Color
Descripción

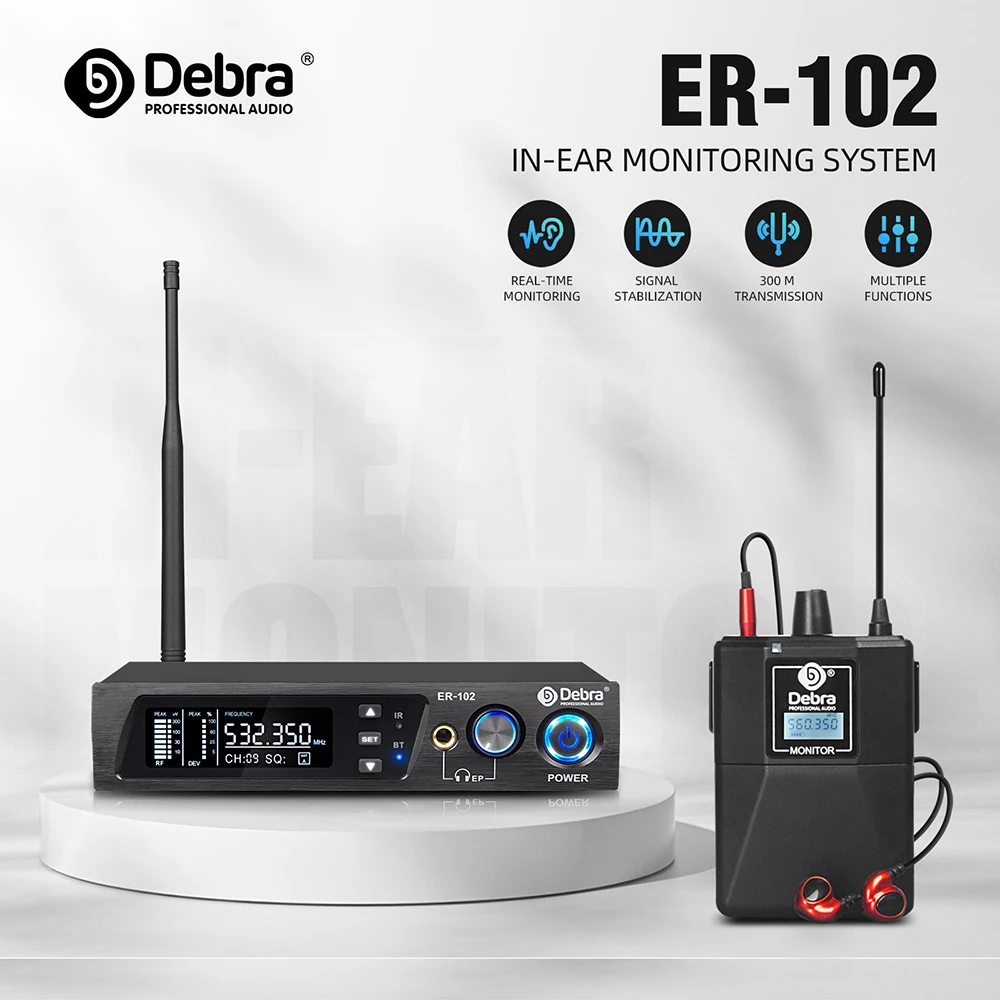

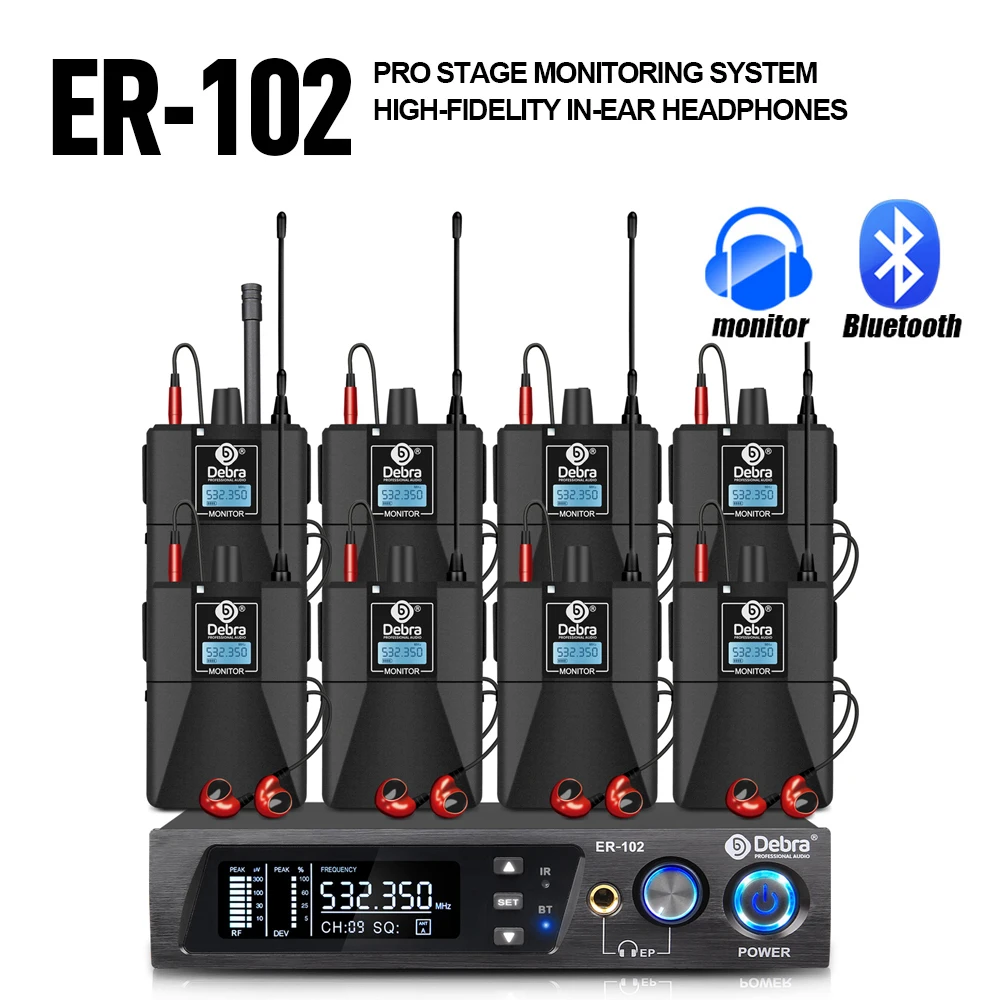

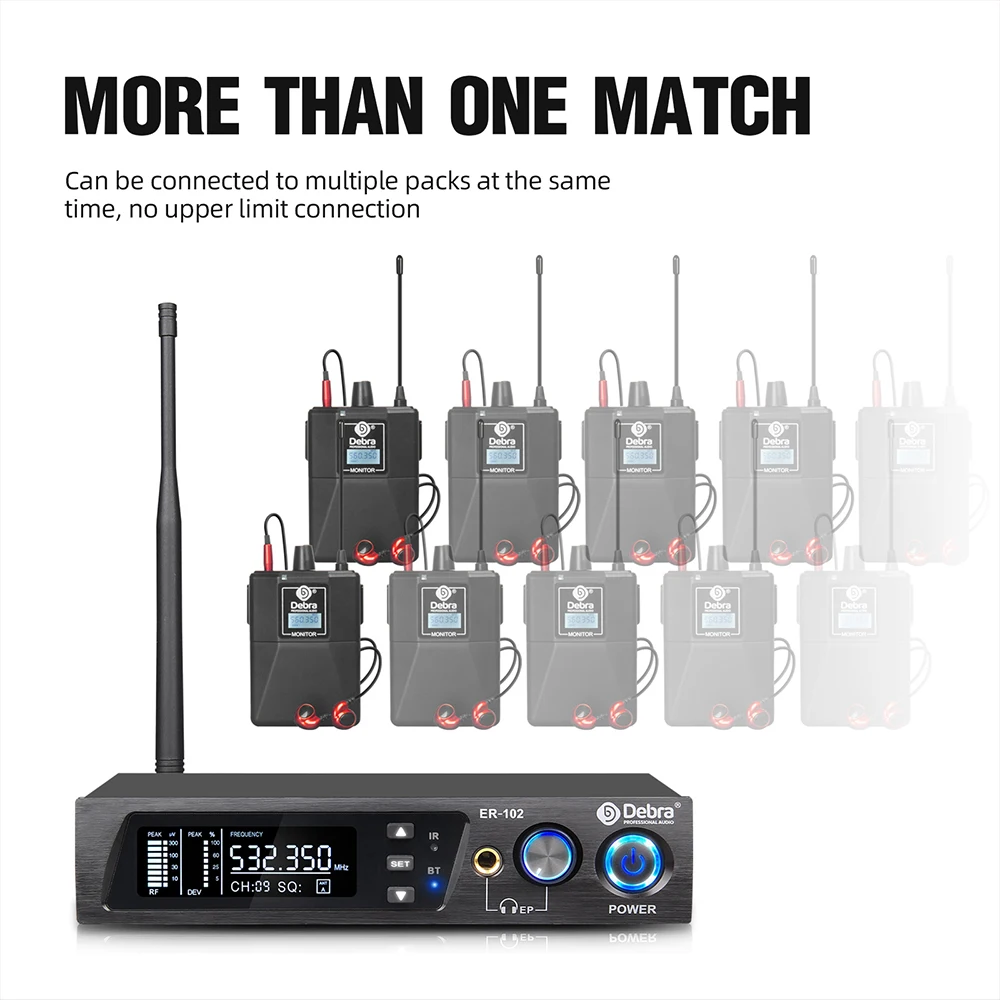

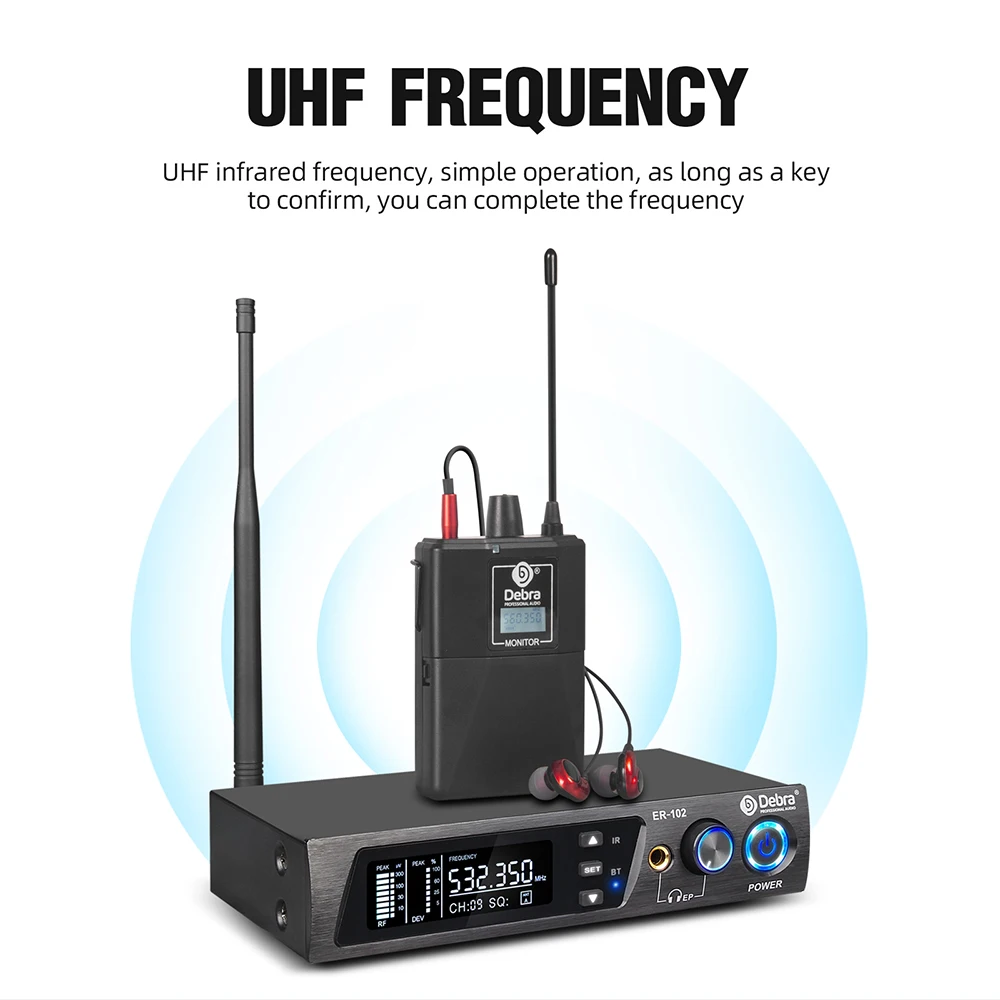

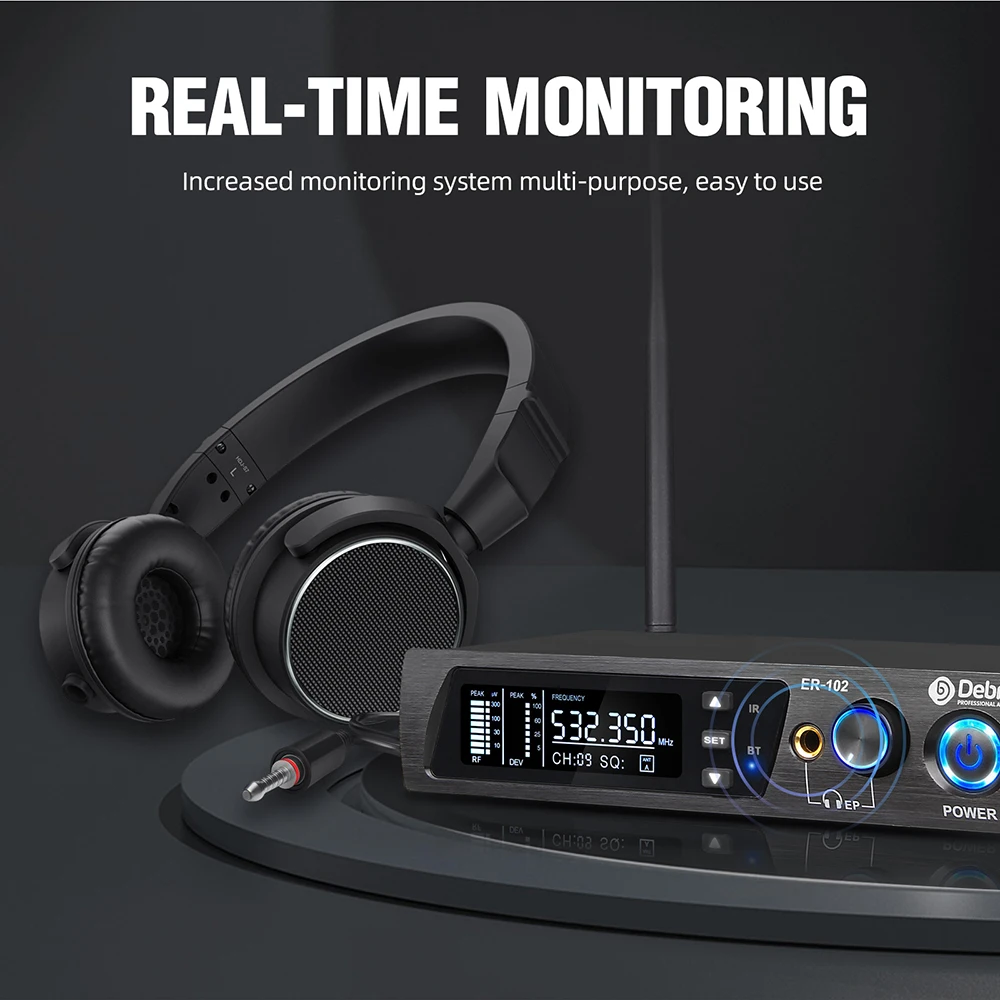

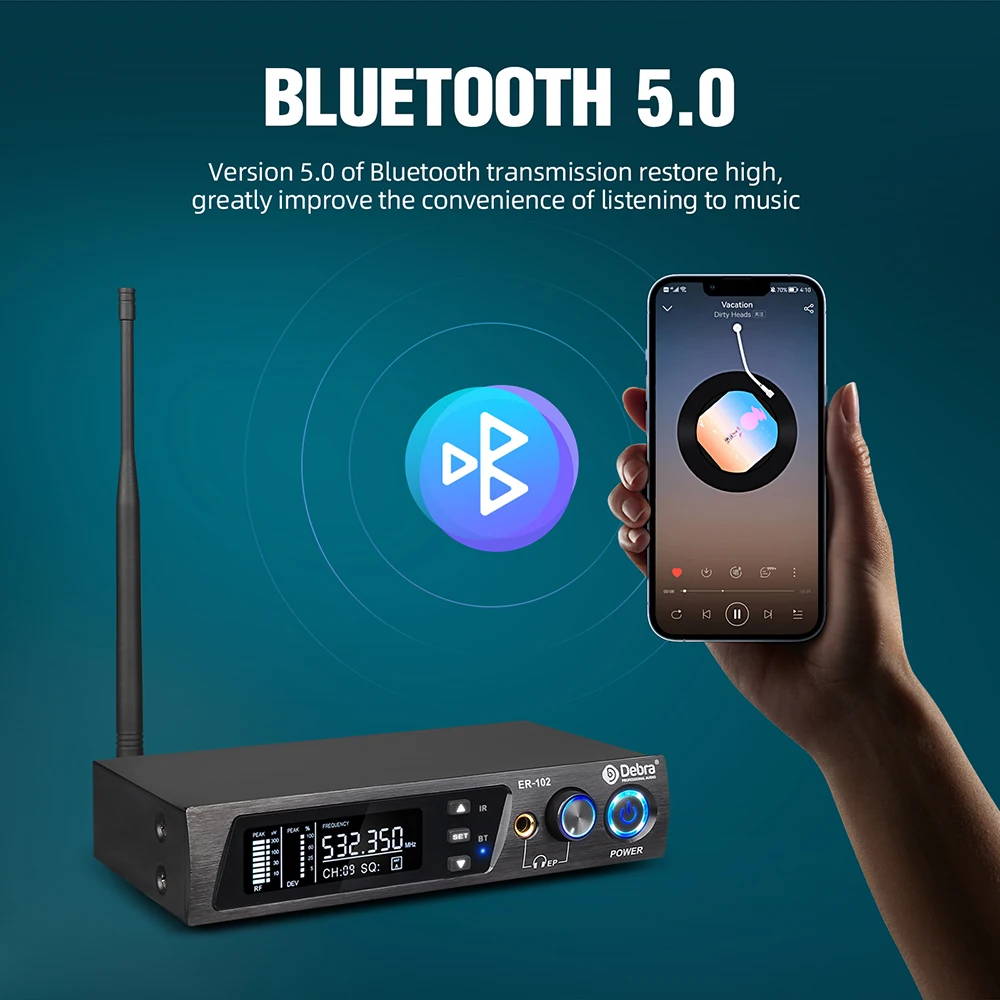

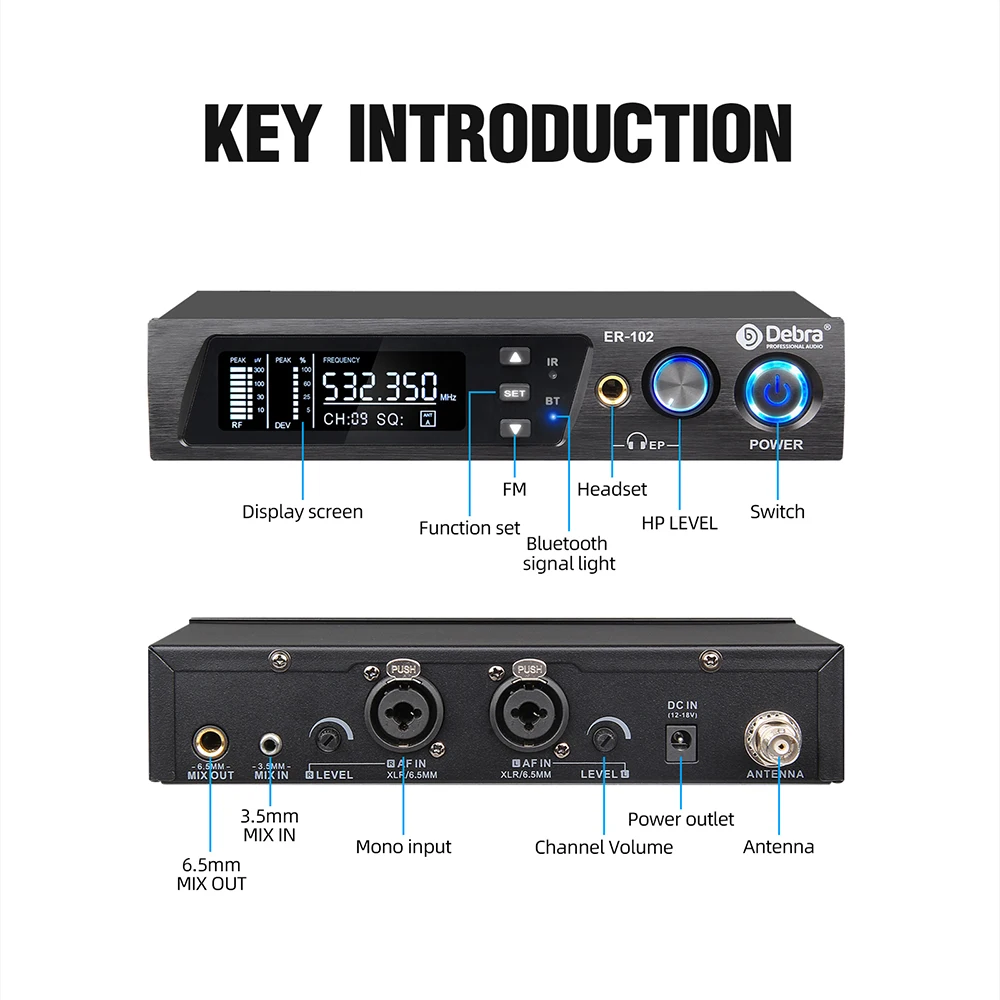

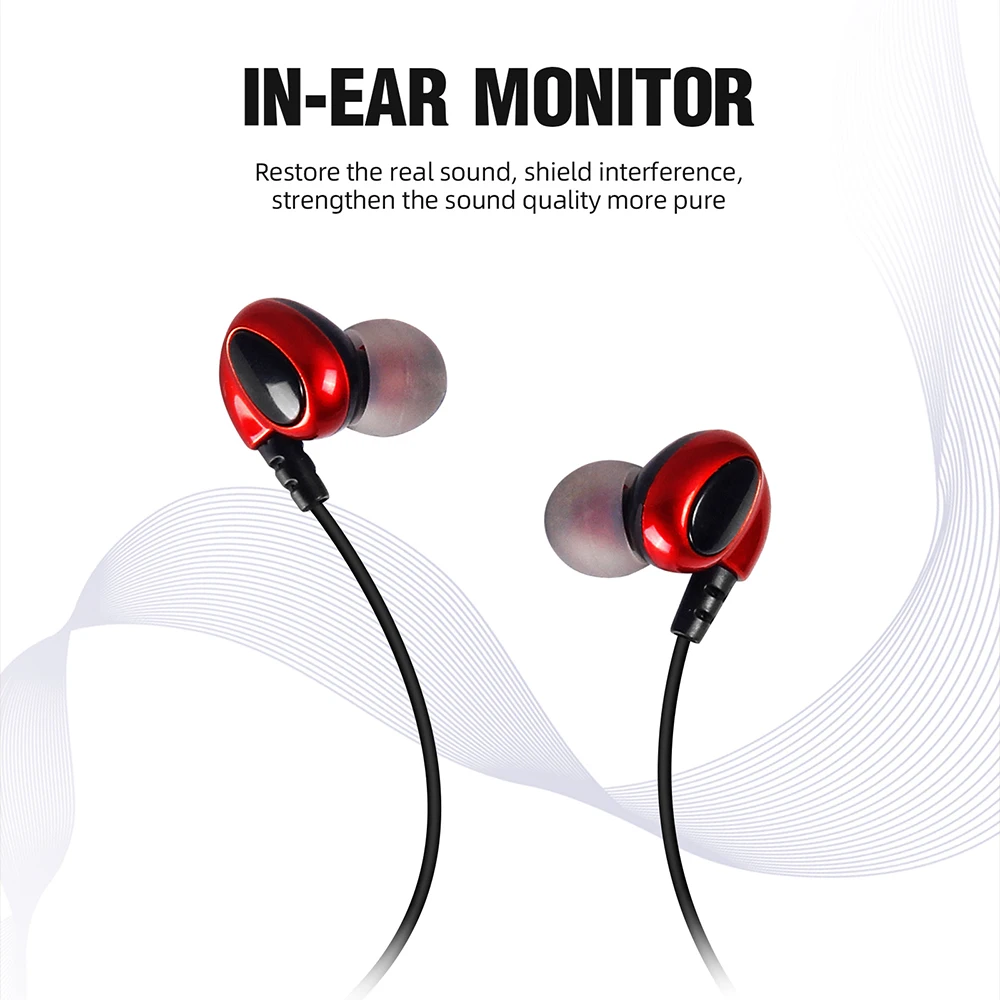

Recommend the latest ER-102 professional wireless monitoring system, it uses UHF signal transmission, has Bluetooth function, can connect multiple bodypack receivers for wireless monitoring, with high-fidelity HIFI headphones, used for recording studios, stage performances, classroom teaching, conferences speech, etc.
●The transmitter and antenna should kept in the relative position of accessibility of the straight line.
●Don't put the receiver close to the radio wave emission source, with magnetic objects or most digital devices(such as the CD player, computer, speaker, wifi etc ).
●Try to place the receiver in height of 1.5 meters from the ground and the position of a distance of 1 meter away from the wall.
Receiver Specifications
Frequency range:530-580MHz

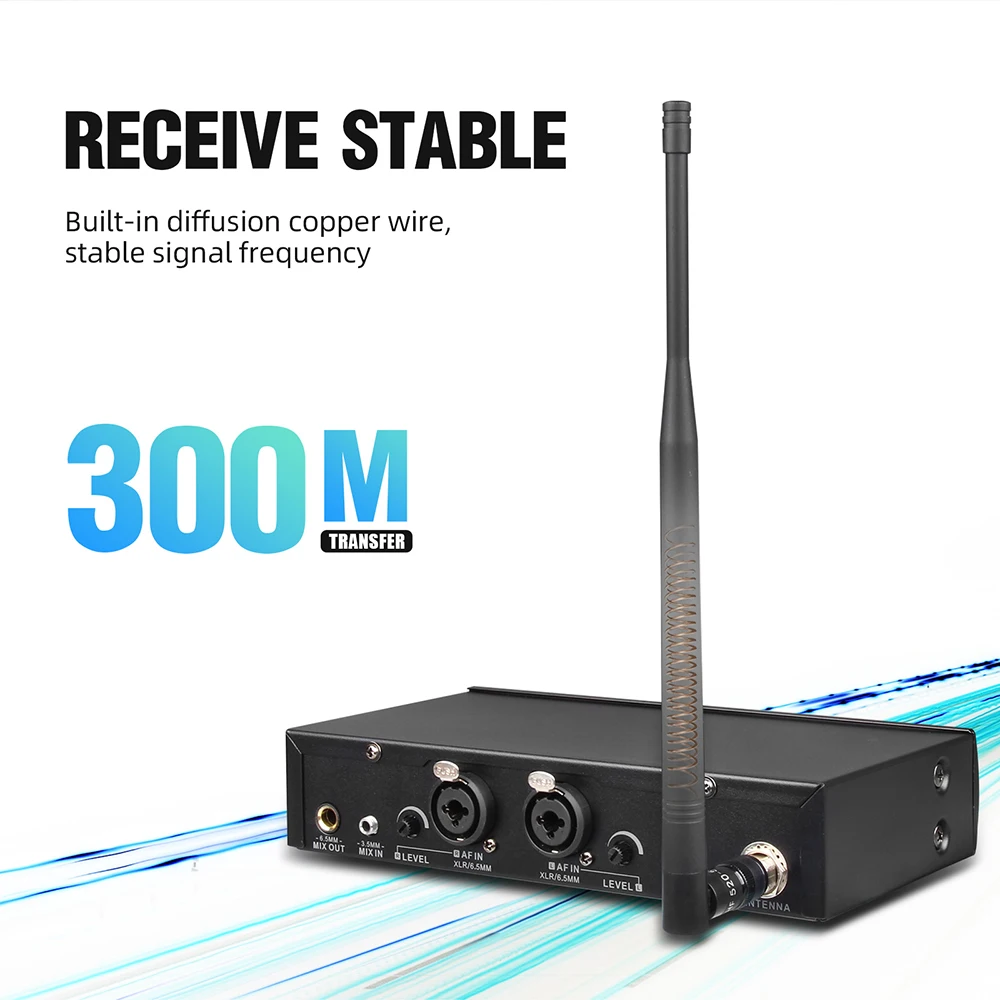

Signal transmission range: 300m (in an open environment)
Receiving mode: Super heterodyne double-conversion
Frequency vibration: PLL lock loop
Sensitivity: -93 dBm
Audio output: XLR balance output:0~500mV
/ ф6.35 unbalance output:0~500 mV
Rated power consumption:3W

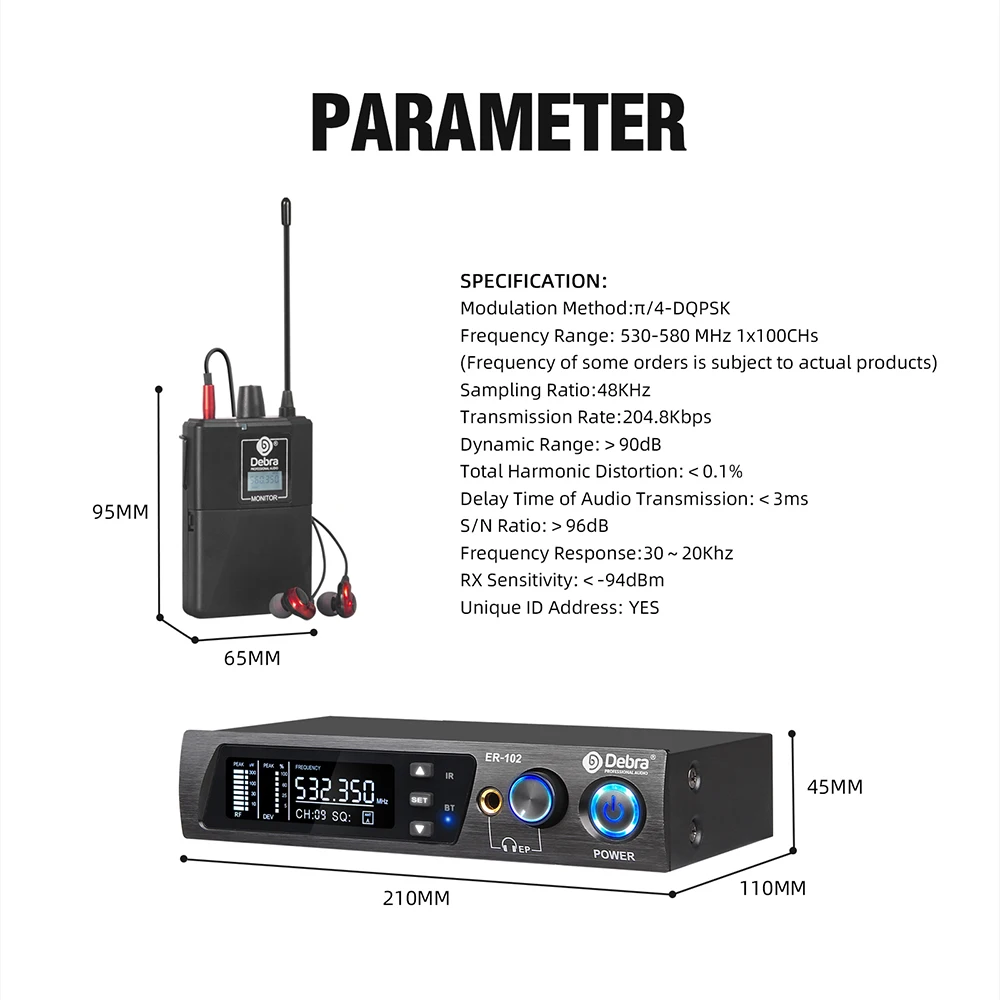

SPECIFICATION：
Modulation Method:π/4-DQPSK

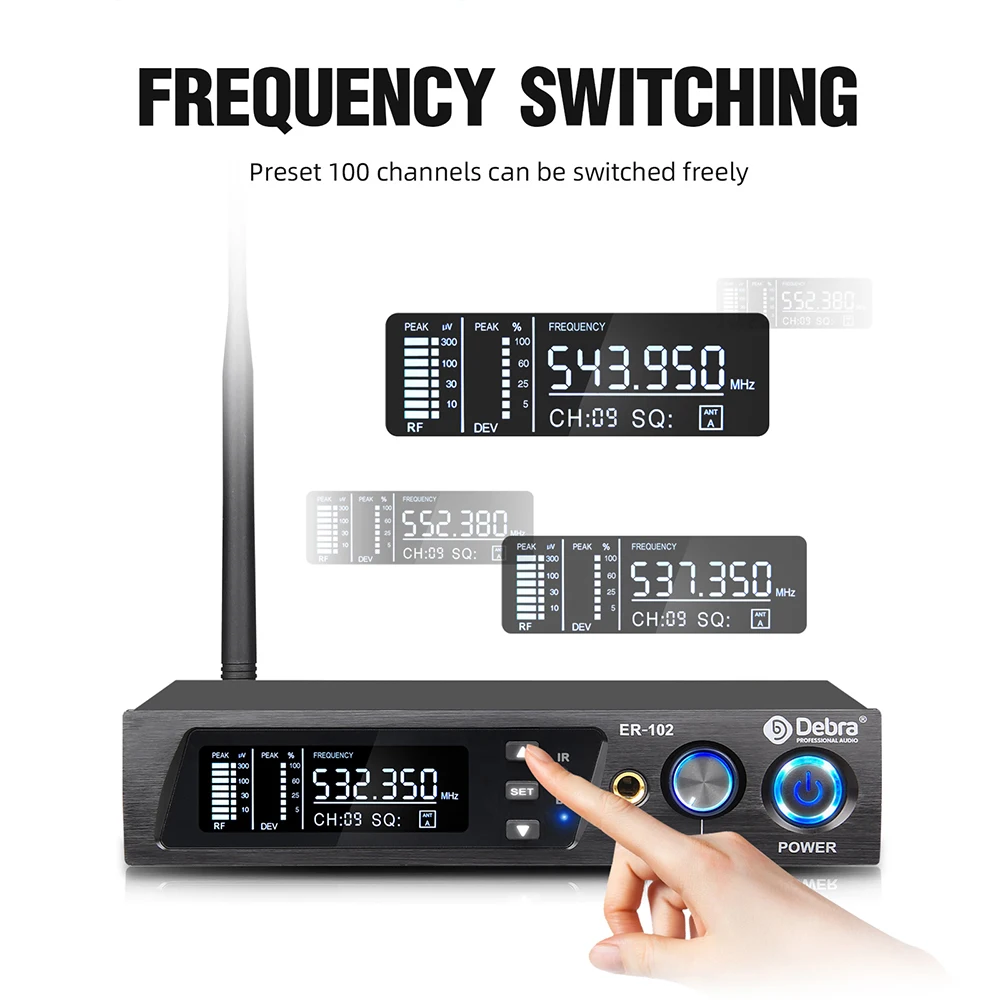

Frequency Range:530-580 MHz 1x100CHs
(Frequency of some orders is subject to actual products)
Sampling Ratio:48KHz
Transmission Rate:204.8Kbps
Dynamic Range:＞90dB
Total harmonic Distortion:＜0.1%
Delay Time of Audio Transmission:＜3ms
S/N Ratio:＞96dB
Frequency response:30~20KHz
RX Sensitivity:＜-94dBm
Unique ID Address: YES
SPECIFICATION：
Modulation Method:π/4-DQPSK
Frequency Range:530-580 MHz 1x100CHs
(Frequency of some orders is subject to actual products)
Sampling Ratio:48KHz
Transmission Rate:204.8Kbps
Dynamic Range:＞90dB
Total harmonic Distortion:＜0.1%
Delay Time of Audio Transmission:＜3ms
S/N Ratio:＞96dB
Frequency response:30~20KHz
RX Sensitivity:＜-94dBm
Unique ID Address: YES
Company profile
The purpose of the establishment of Yin Peng E-Commerce Co., Ltd. is to allow users to buy the highest quality products at the most favorable price, while providing the best after-sales service. Its brand "Debra" is a high-quality microphone and electronic audio product logo. Committed to developing a variety of high-quality and professional and non-professional consumer audio products. Excellent quality, reliable performance and high cost performance make it have a good reputation in the field of musical instruments, and enjoy a certain reputation in the electronics industry. "Debra" 's diverse product range includes professional wireless microphones and in-ear monitor systems designed for performers, high-quality mixers for professional DJ and recording studios, and singing equipment for portable music players and smartphones Sets, and multimedia entertainment equipment sets for home entertainment integration.
"Debra" products have been widely used in various industries, whether it is concert stage, recording studio, radio and television station or public broadcasting system in religious places, conference facilities or other occasions. In the future, you will see the shadow of the "Debra" musical instrument in many places.
"Debra" is a registered trademark of musical instruments. Its philosophy is not only dedicated to the gorgeous appearance of products, but also has inherent high quality. The purpose is to express that more hobby users and users can use high-quality products. Its design icon is not only liked by people with many years of experience in the musical instrument industry, but also attracts young people who are all new to performing.
Warranty & Return
1. 100% original: We promise all our products is original, you can get what you see at the link.
2. 7 days Return: Enjoy 7 days to return if any quality problem.
3. 365 days guarantee: Enjoy 365 days free maintenance only charge shipping cost.
4. 14 days exchange: Enjoy 14 days to exchange if you do not like it.
