Handheld Optical Fiber Cleaver TAWAA FC-30 Cutter Double Fixture Standard Less than 0.5 Degrees (48000 times blade life)
TAWAA
FC-30 is a traditional bench top cleaver.simple and easy to use. It
isavailable with a fibre offcut collector. it is applicable to 250um.
900um,
3.0mm
fiber cable and flat cable. work efficiency and high precision
cleavedangle of typical 0.5 degree. The blade provides over 48,000 fiber
cleaves by easy and simple blade position selection.
Product Features：
lBlade life up to 48,000 times
lTypical cutting angle ≤0.5 degree
lTungsten steel blade, wear resistance,high hardness, corrosion resistance
lTraditional bench top design, simple andeasy to use
lDouble fixture design, suitable for various optical fibers of 250~3.0mm
lHigh-precision CNC machining and forming, excellent texture
Product parameter：
Fiber Meterial
Single fiber
Cladding Diameter
125μm
Cleaved Length
Single fiber: 8~20mm / Ribbon fiber: 10mm
Applicable Fiber Cable
Single fiber: 250μm, 900μm, 3.0mm
/ flat cable / Ribbon fiber: 2 to 12 fiber cable
Typical Cleaved Angle
Less than 0.5 Degrees★①
Typical Blade Life
Total 48,000 fiber cleaves （replaceable）★②
Off-cut Collector
Pre-fitted
Type of Offcut Bin
Manual
Auto Return
Pre-fitted
Dimension / Weight

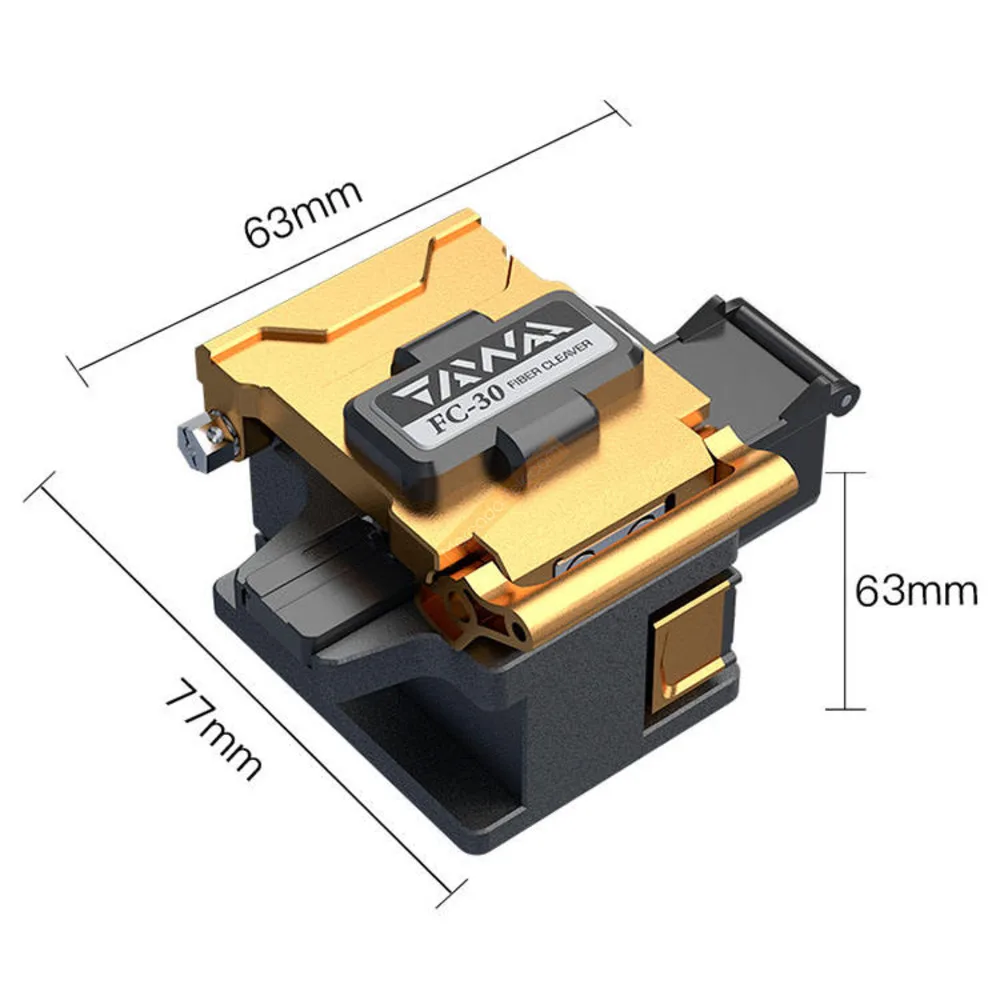

63W *77D*63H(mm) / 335g
★① The fiber cleave angle changes by operating environment
★② Blade life changes by operating environment
Product configuration：
Cleaver FC-30
1
Carrying case
1
Fiber Clamp Type 2
1
Quick guide
1
