En Stock
0,99 €
Con la garantía de
Color
10 unidades vendidas
Última actualización: 2026-01-01T20:28:48.970Z
Descripción

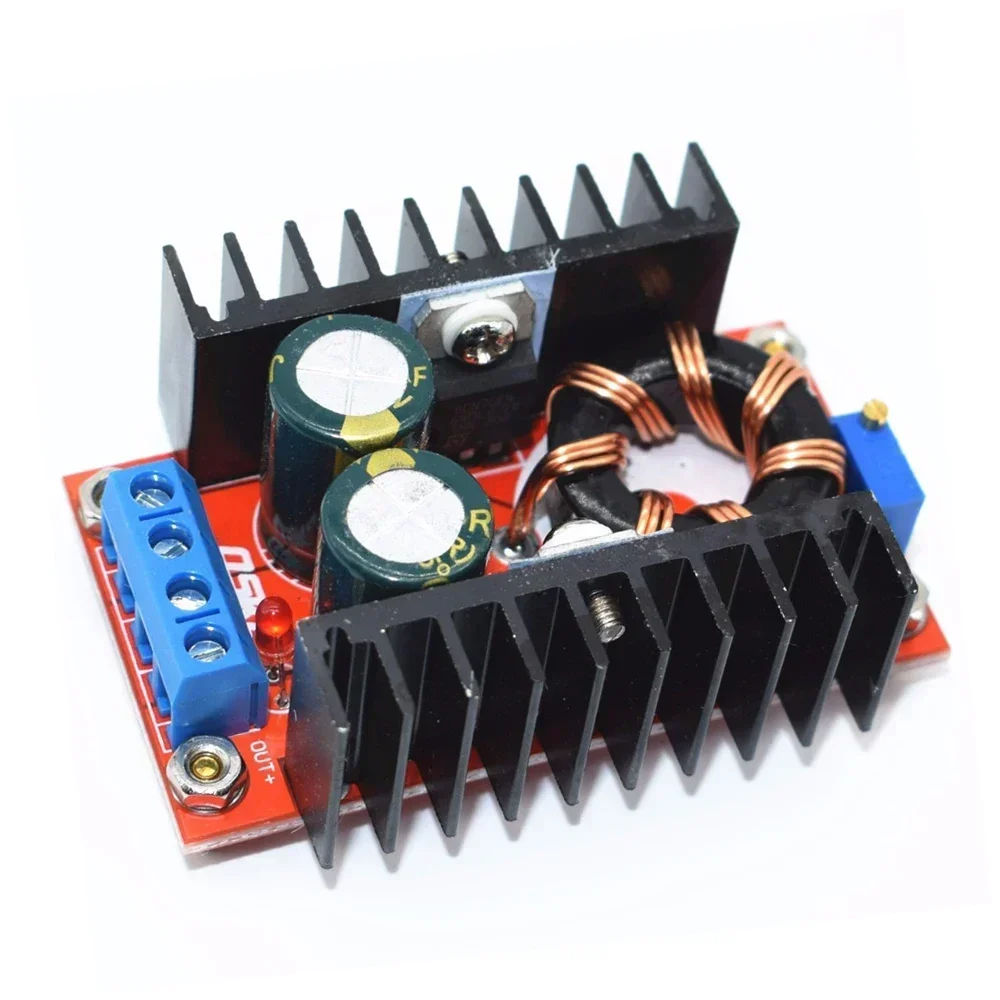

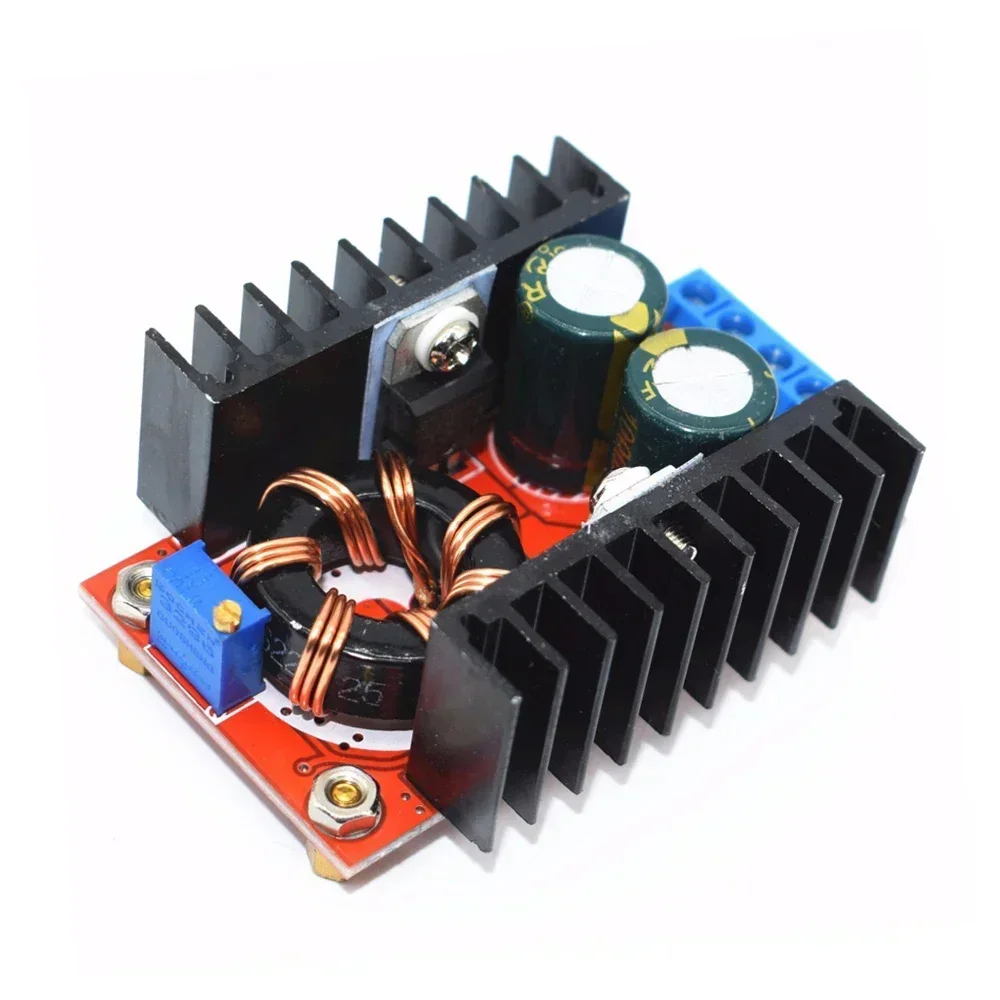

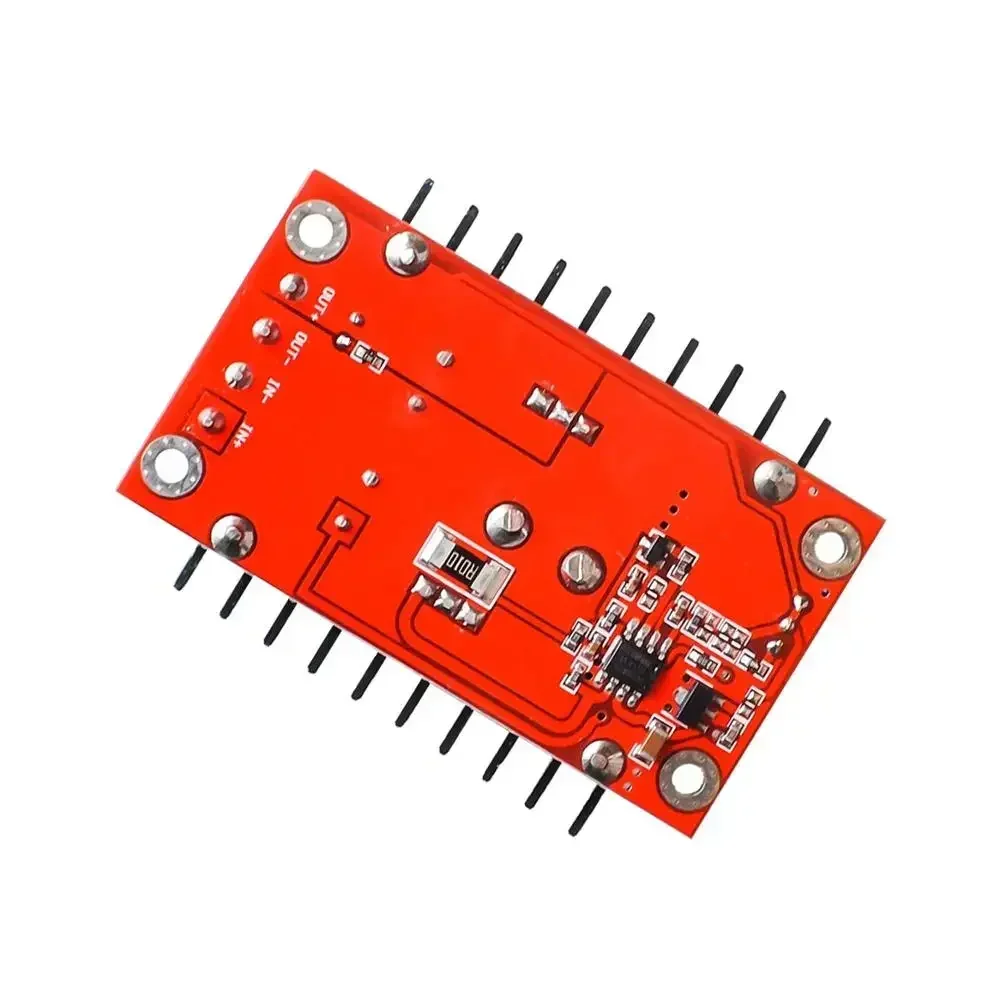

150W DC-DC Boost Converter Adjustable Step Up Power Supply Module 10-32V To 12-35V 10A Laptop Voltage Charge Board Module

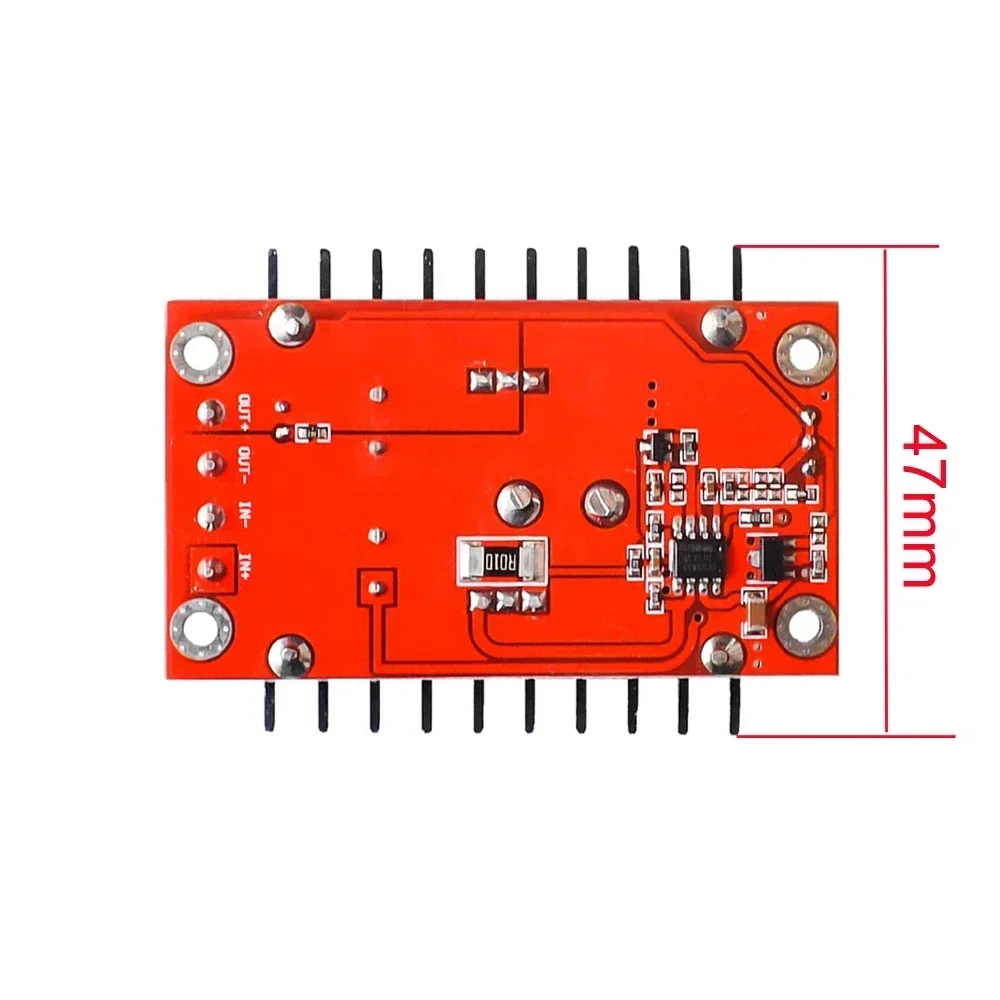

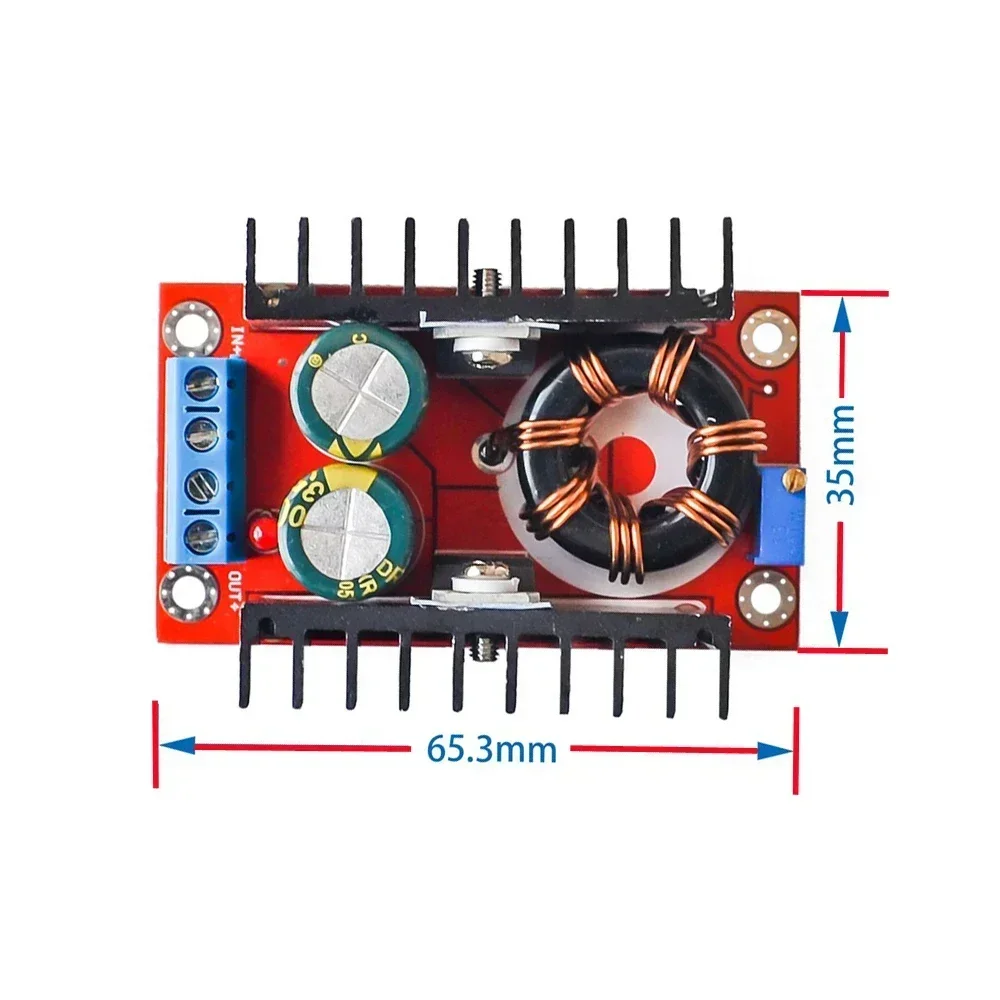

Specification:Module Properties: non-isolated step-up module (BOOST)65.3 * 47 * 23.5mm (length * width * high)Input voltage: DC 10-32VOutput voltage: DC 12-35V (adjustable)Output Current: 10A (MAX)Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)Easy to drive 65W 90W dual-core notebook.Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°CConversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)Output Ripple: 2% (MAX) 20M-bandwidthOperating Temperature: Industrial (-40°C to +85°C) (ambient temperature exceeds 40°C, lower power use, or to enhance heat dissipation)Full load temperature rise: 45°CNo-load current: 25mA typicalVoltage regulation: ± 0.5%Dynamic response speed: 5% 200uSShort circuit protection: None (Please Install fuses and protection circuits at Input port.)Input Reverse Polarity Protection: None (Please Series diode at the input port.)Some Applications:DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.Boost charger. You can use the 12V power supply to charge battery more than 12V, for example, 24V batteryPackage Contents:1 x 150W DC-DC Boost Converter
Opiniones de clientes
3 opinionesL
24 de febrero de 2025
los materiales se ven de buena calidad recomiendo al vendedor
Variante: Color:Module
A
2 de agosto de 2025
Variante: Color:Module
R
27 de abril de 2025
Variante: Color:Module
