4port RCA to HDMI Converter RCA switch AV to HDMI 4AV In 1HDMI 2AV Out AV to HDMI for DVD PS2 N64 SNES TV Projector Monitor
1.0 Introduction

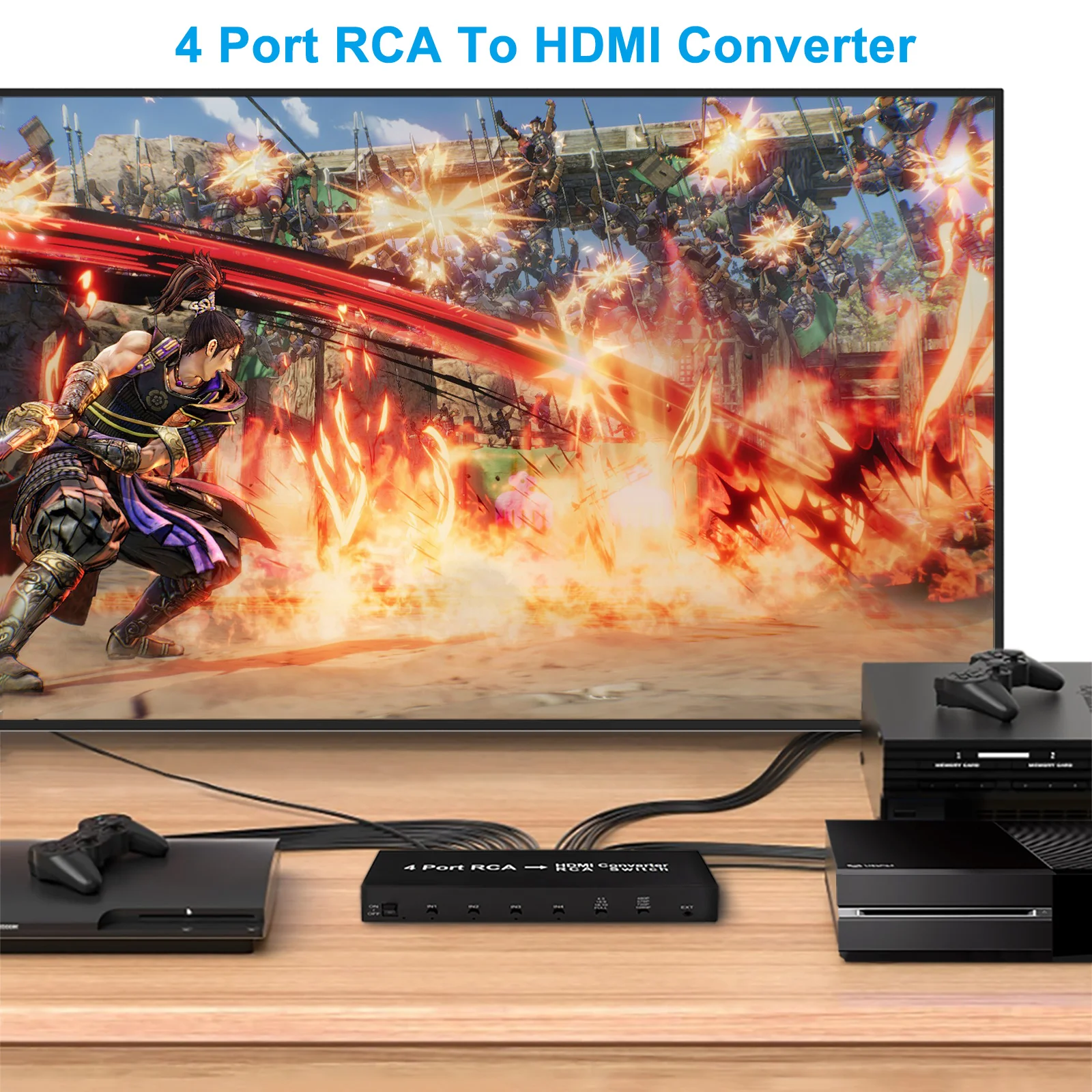

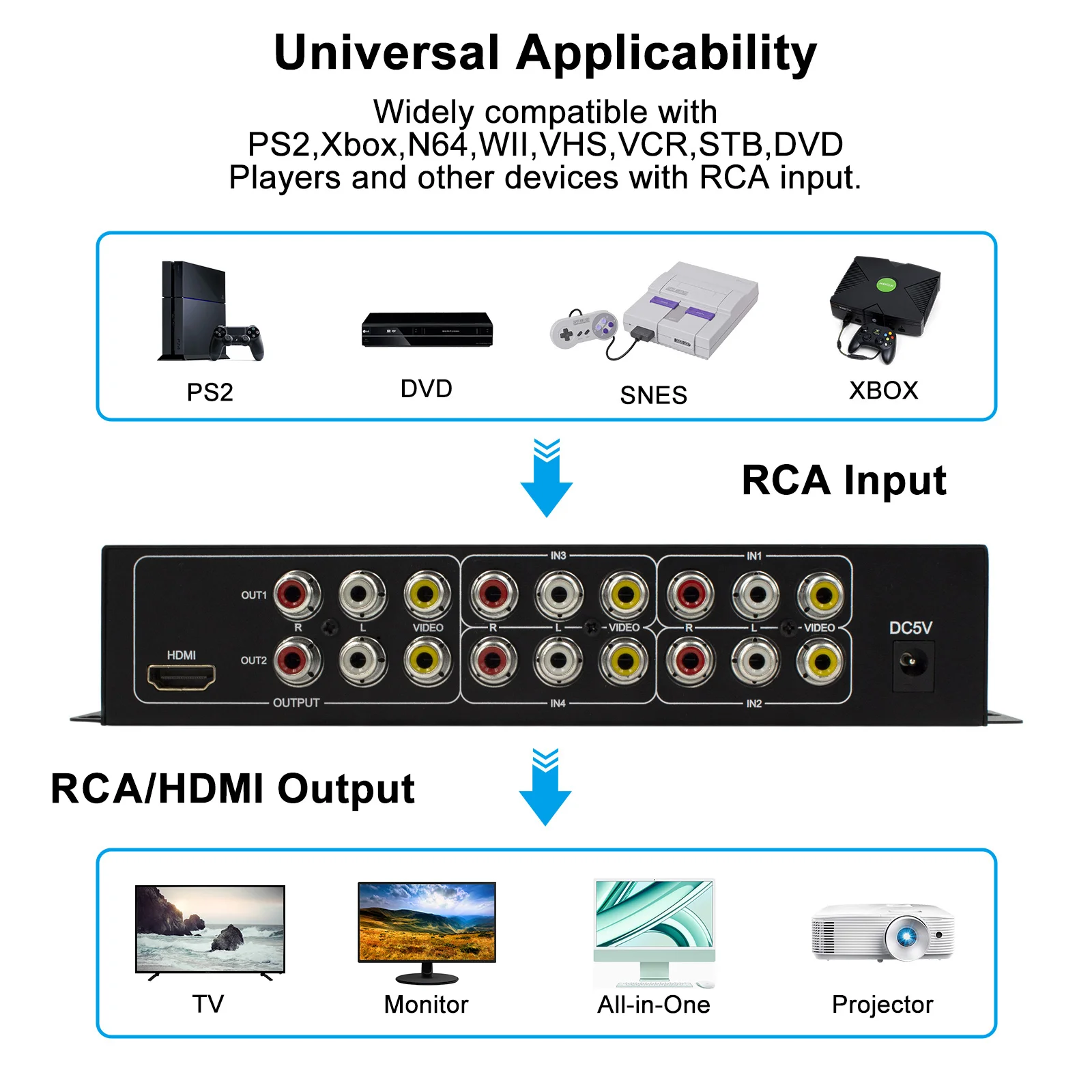

The 4 Port RCA to HDMI converter and RCAswitch, converts 4-port RCA video signals toHDMI video signals and switch 2-port RCA tohelp users get the high quality of the HDMIsignal from RCA signal. It works with the devicewith RCA output port such as play stations,DVD and the device with HDMI and RCA inputport such as HDTV, Projector.
2.0 Features
Transmit four RCA device signals in one HDMI device and two RCA device display. Can connect four old devices, game consoles at the same time in one device display, saving you trouble and damage by constantly plugging in and out of devices.
Comes with 2 RCA loop out ports, can be displayed on 3 devices at the same time, multi-screen playback at the same time without delay.
Converts composite video signals to HDMI HD signals with built-in chip, no driver installation required. You can switch the resolution of HDMI signal and the ratio of picture width displayed by HDMI signal. The resolution includes 480P/576P/720P/1080P, and the aspect ratio includes 4:3/16:9/16:10/FULL, with various options for various monitors, TVs and projectors.

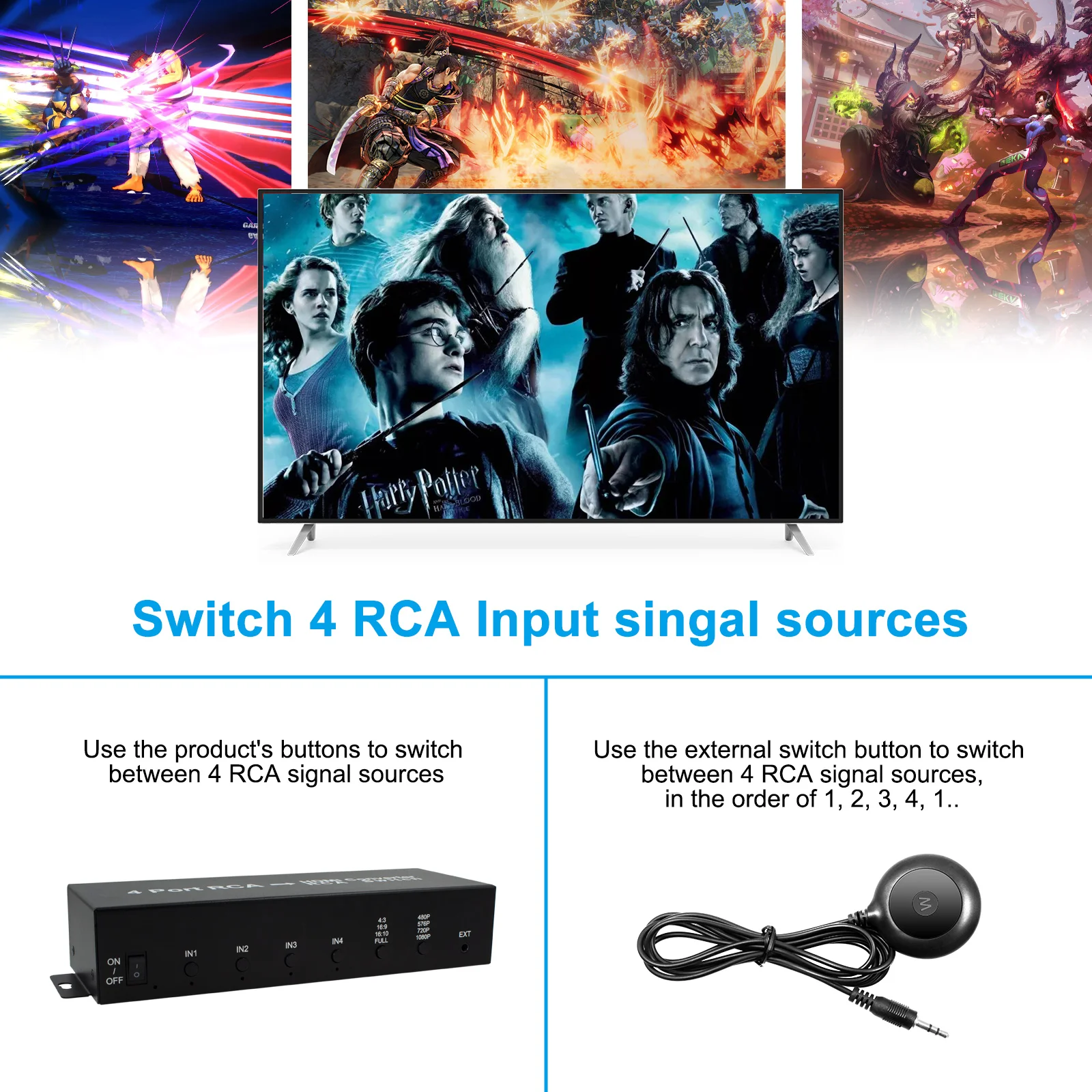

Two switching methods, use the buttons on the product to switch the signal source, HDMI resolution and HDMI display frame ratio; equipped with a desktop controller, the signal input channel can be switched with buttons,making it convenient to store the converter andtidy the desktop.
3.0 Specifications
Product Name: 4 Port RCA to HDMI converter and RCA switch
Model: M043S

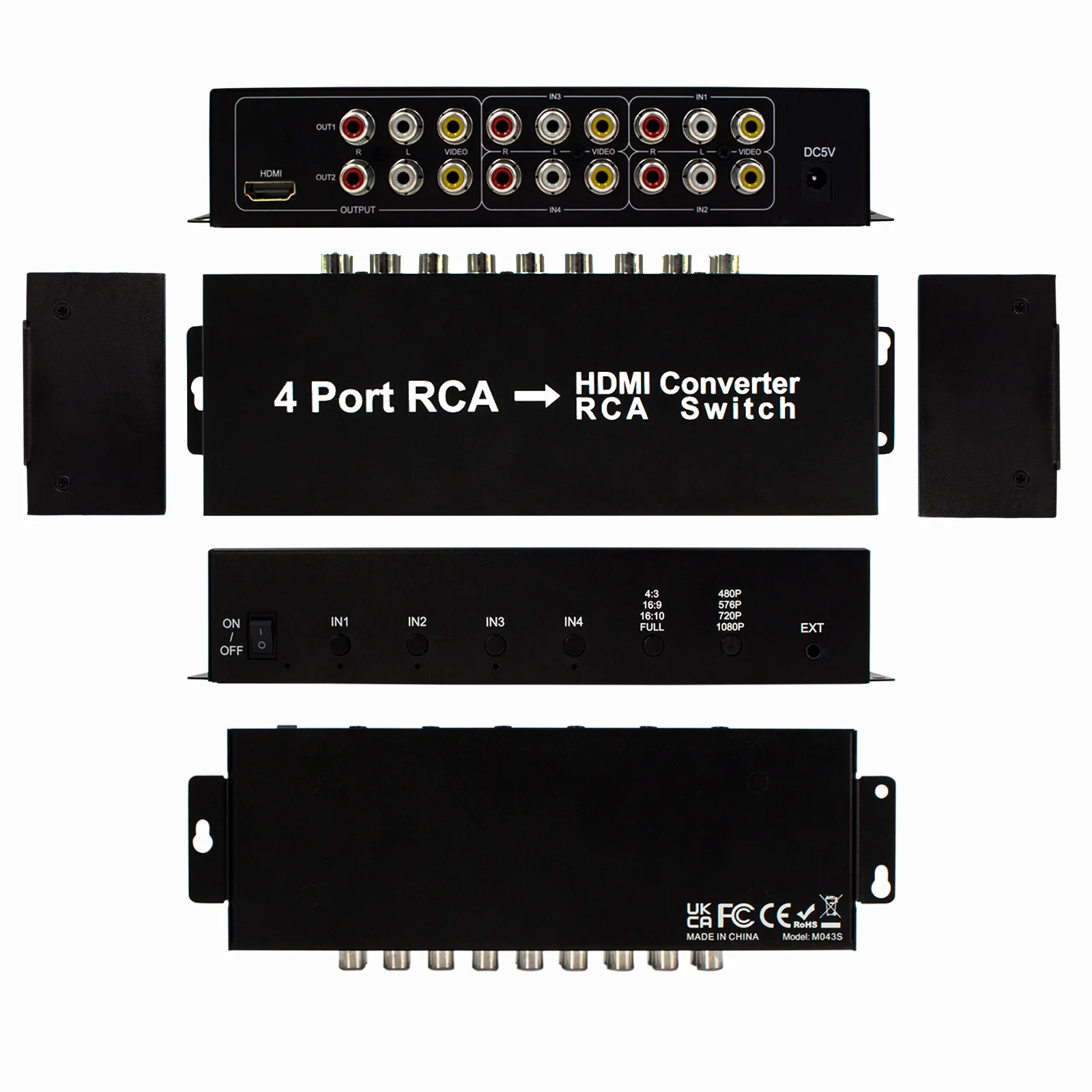

Input port: 4xRCA
Output port: 1xHDMI; 2xRCA
Input resolution: Detect NTSC-443/NTSC-M/NTSC-J/PAL60/PAL-H/PAL-I/PAL-N/PAL-Nc/PAL -M/PAL-B/PAL-D/PAL-G;
automatically: 1.0Vp-p; Impedance:75Q
HDMIoutput resolution: 480P, 576P, 720P, 1080P
Aspect ratio key: 4:3, 16:9, 16:10, FULL
ON/OFF key: ON: Connect the power supply; OFF: Disconnect power
EXT key: switch the RCA input1,2, 3, 4
Indicator LED: When switching channels, the correspondingchannel lights up

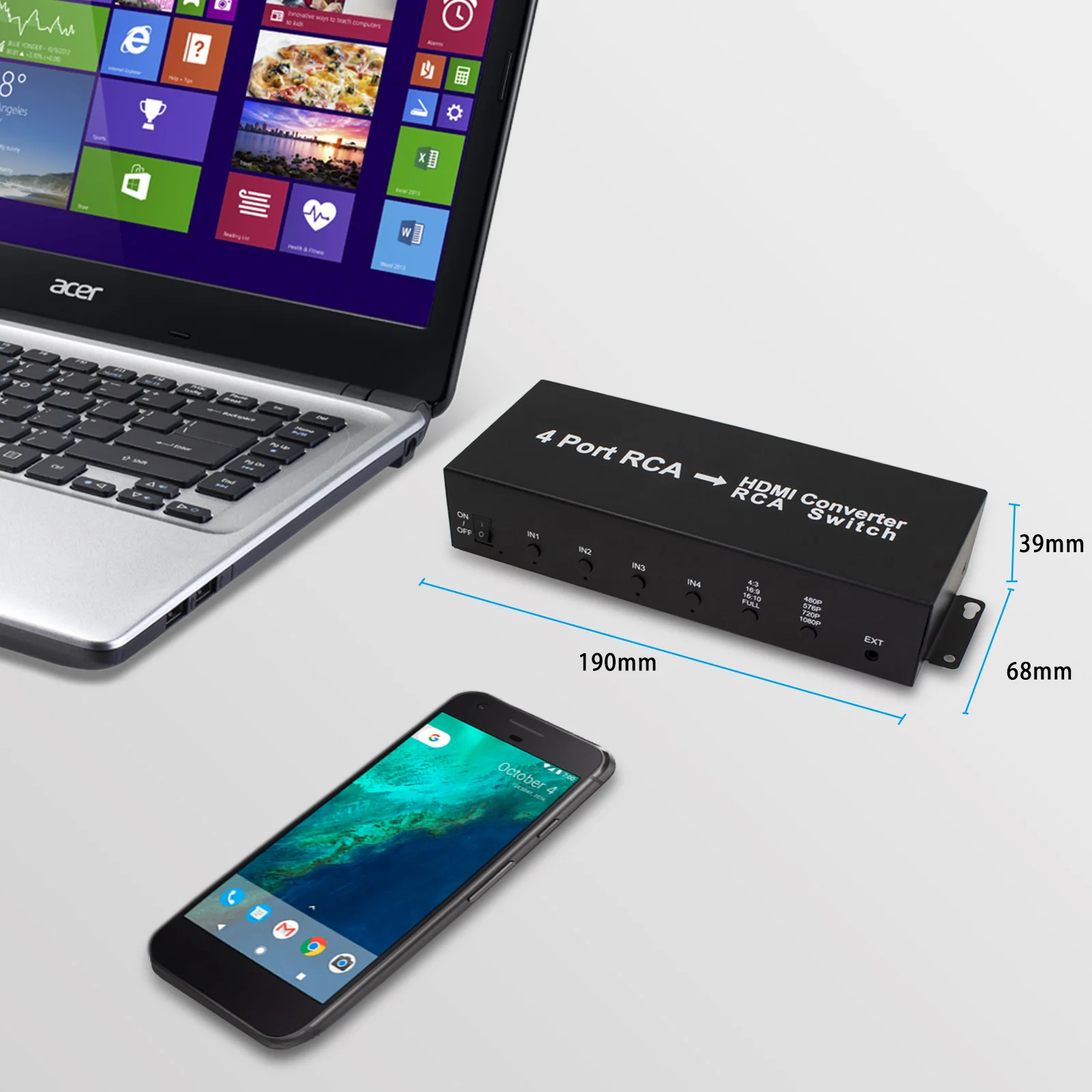

Dimension(mm): 190x68x39
Weight(g): 333
Power Supply: DC5V1A

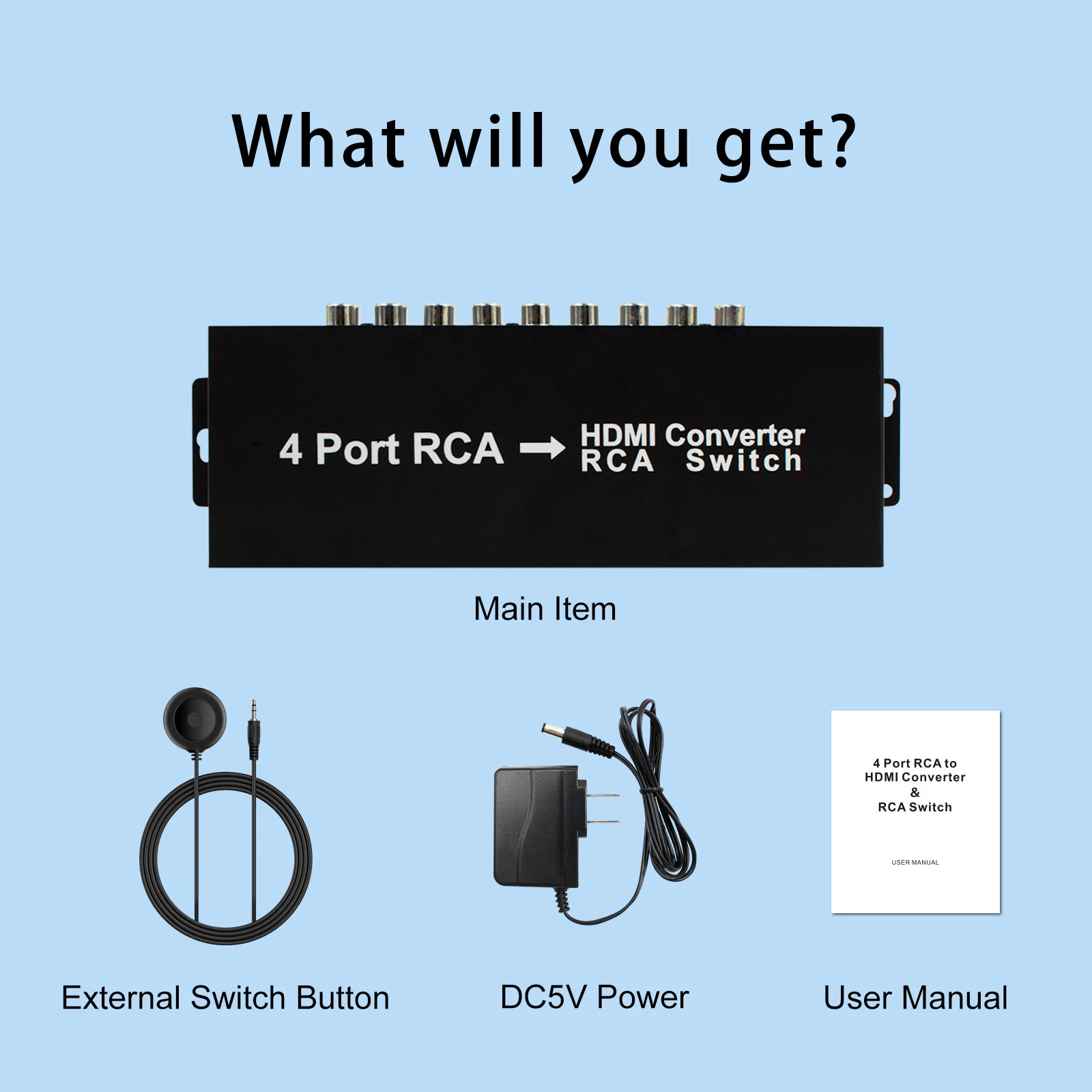

4.0 Package Contents
1. Main unit
2. Power supply
3. Desktop button controller
4. User Manual

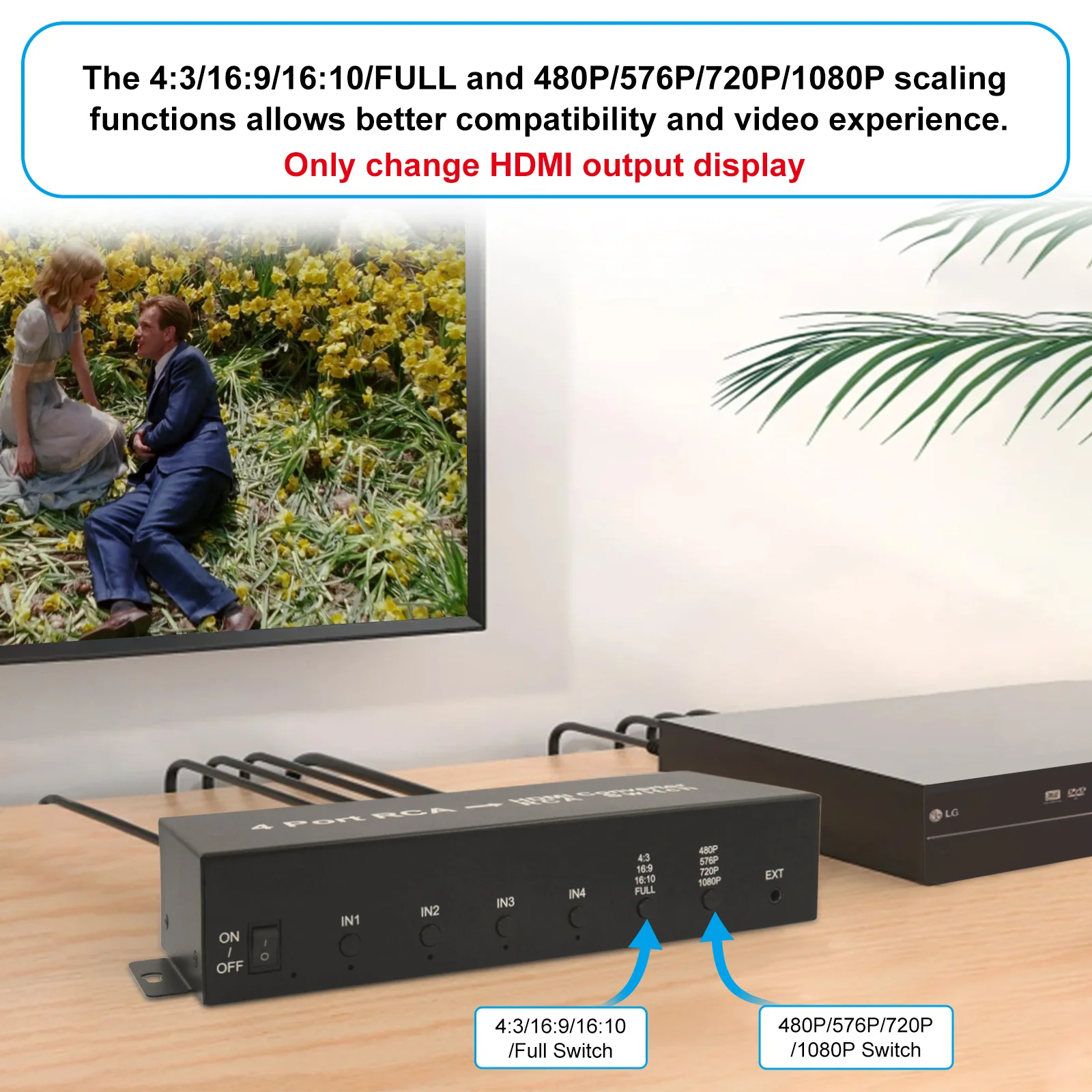

NOTE: 1. This product support HDMI 480P, 576P, 720P,1080P output, you can press the key to changethe resolution you need. It also supports HDMIaspect ratio 4:3, 16:9, 16:10, FULL output, youcan press the key to change the aspect ratio youneed.
2. Only support to change HDMI output aspectratio and resolution, do not support to change RCA output. RCA output is by-pass.
