2022 Best HDMI to Fiber Optic Converter 1080P HDMI Fiber Optic Video Extender KVM IR USB Loop to HDMI Fiber Transmitter Receiver

Description:

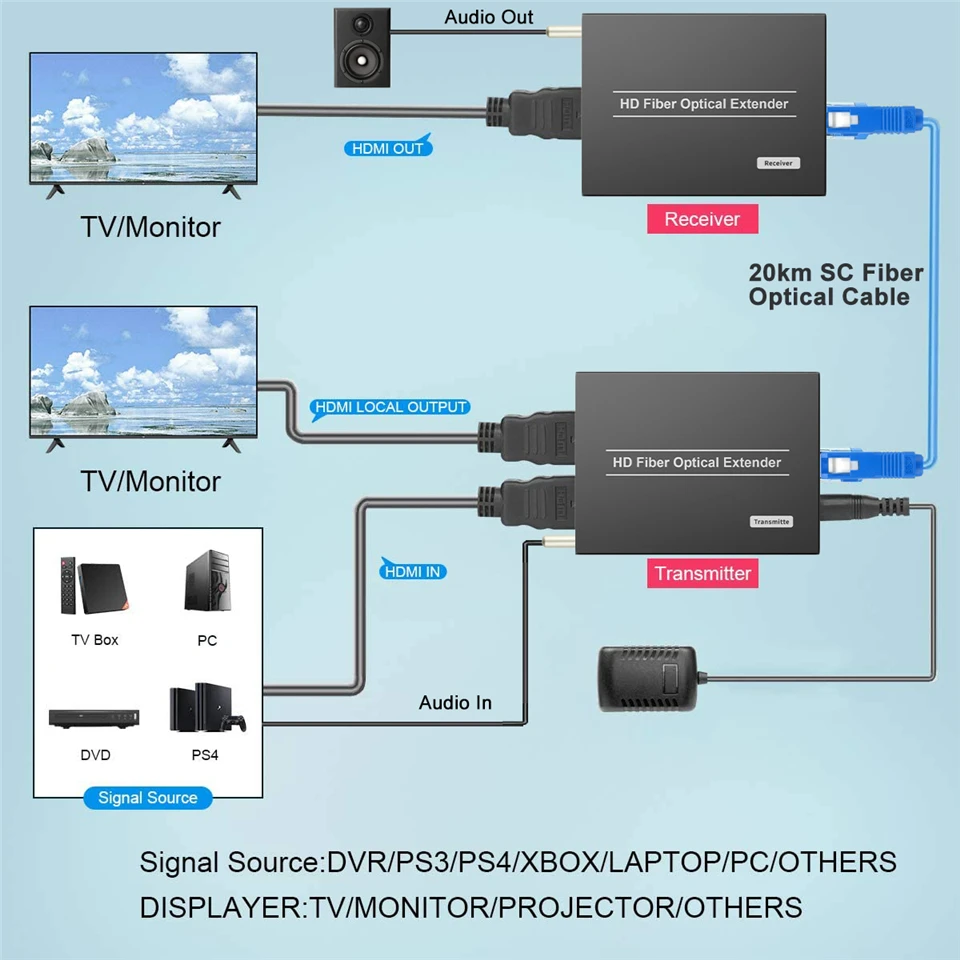

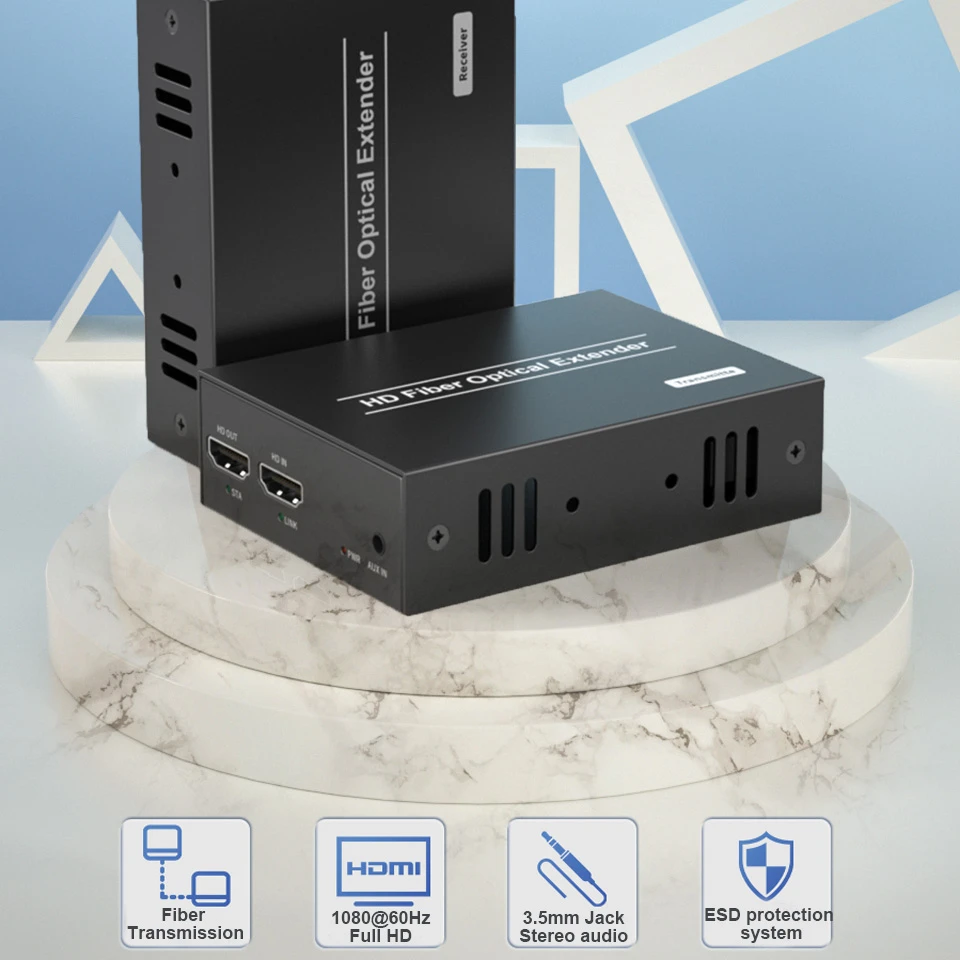

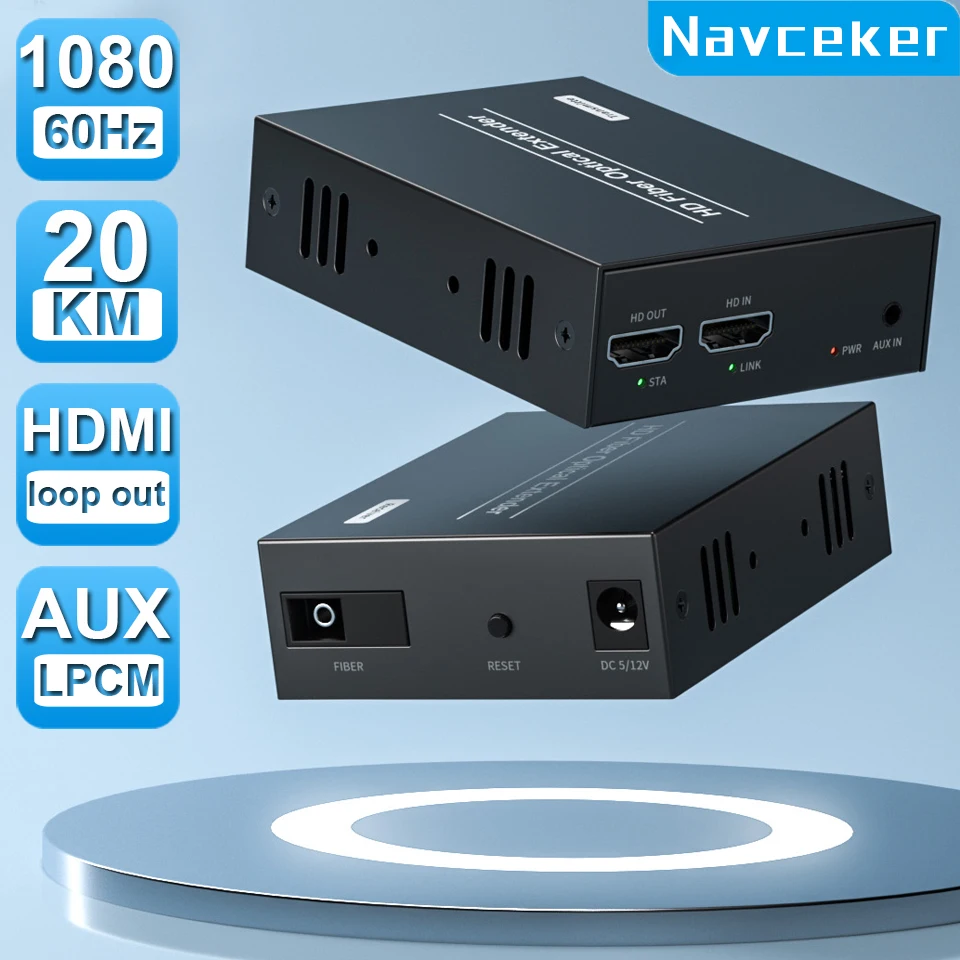

ZY-DT242F, Navceker HDMI Fiber optic extender provides extension of HDMI video audio signal long distances over one SC/FC fiber optic cable, it supports high resolution up to 1920x1080@60Hz . It also supports 3.5mm stereo audio and HDMI loop out function.The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

There are 2 models optional, different model has different interface and appearance, please choose suitable model before purchase:

Features:

20Km HDMI Fiber Optic USB KVM Extender Video Transmitter Receiver HDMI Loop Over SC Fiber Cable for PS4 PS5 DVD PC To TV Monitor

• Long range transmission:up to 20 km over a single-mode SC fiber optic cable;

• Video resolution: 480P,720P,720i,1080i,1920*1080P@60Hz;

• Audio sampling rate: 32kHz, 44.1kHz and 48kHz ;

• Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

• Compressed mode:Newest H.264 technology;

• Latency/Delay:less than 50ms;

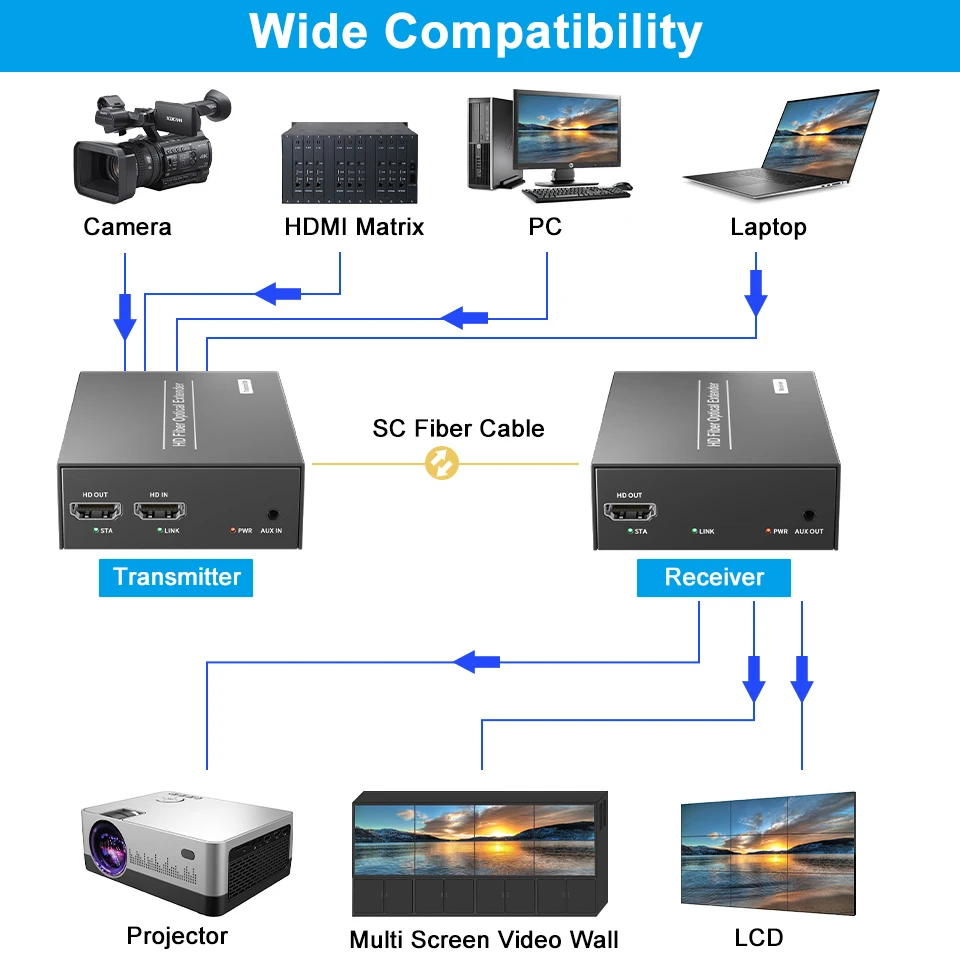

• Male to male: one TX to one RX applicataion;

• Male to female: over TCP IP,one TX to many RX applicataion;

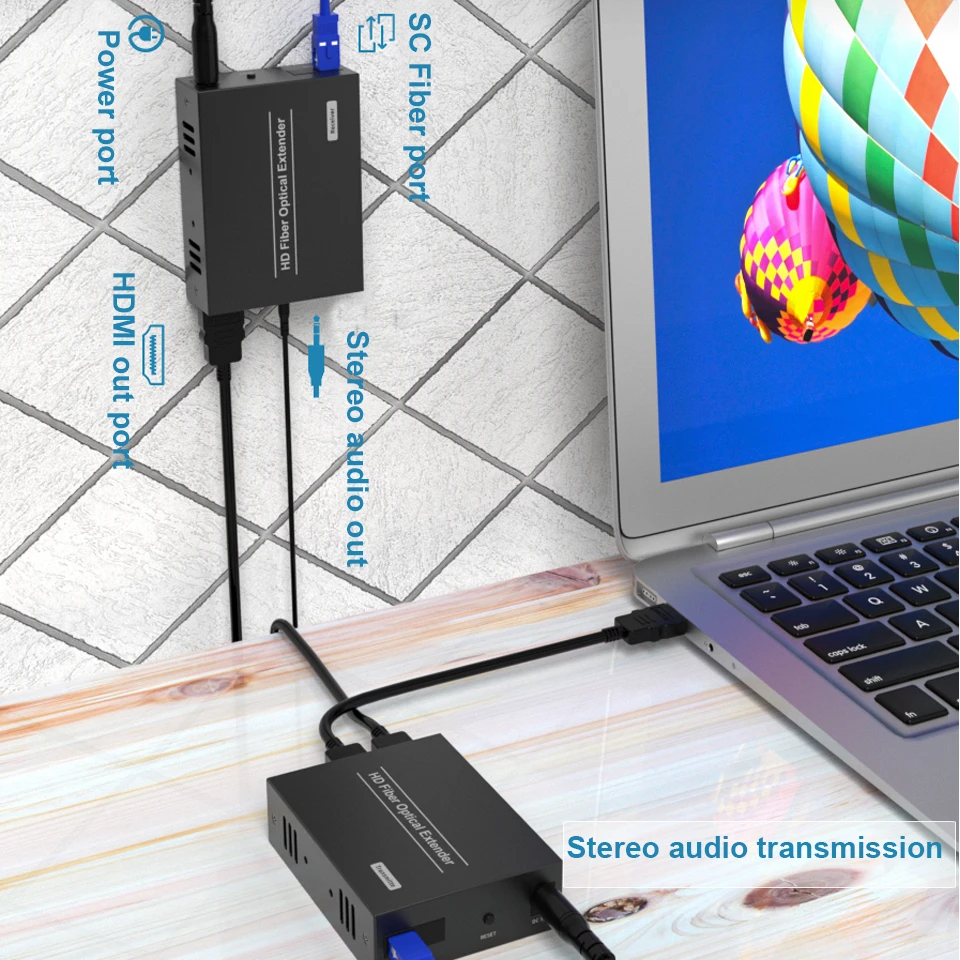

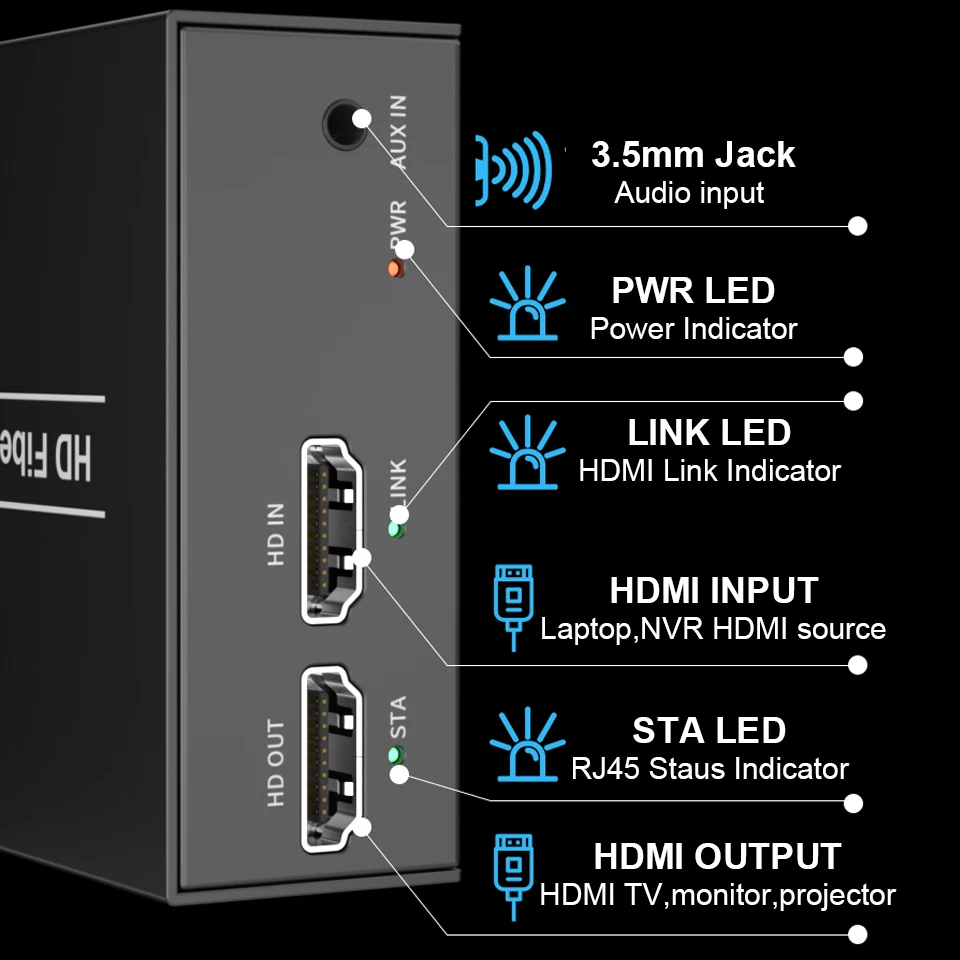

• Stereo Audio:3.5mm Jack stereo audio transmission;

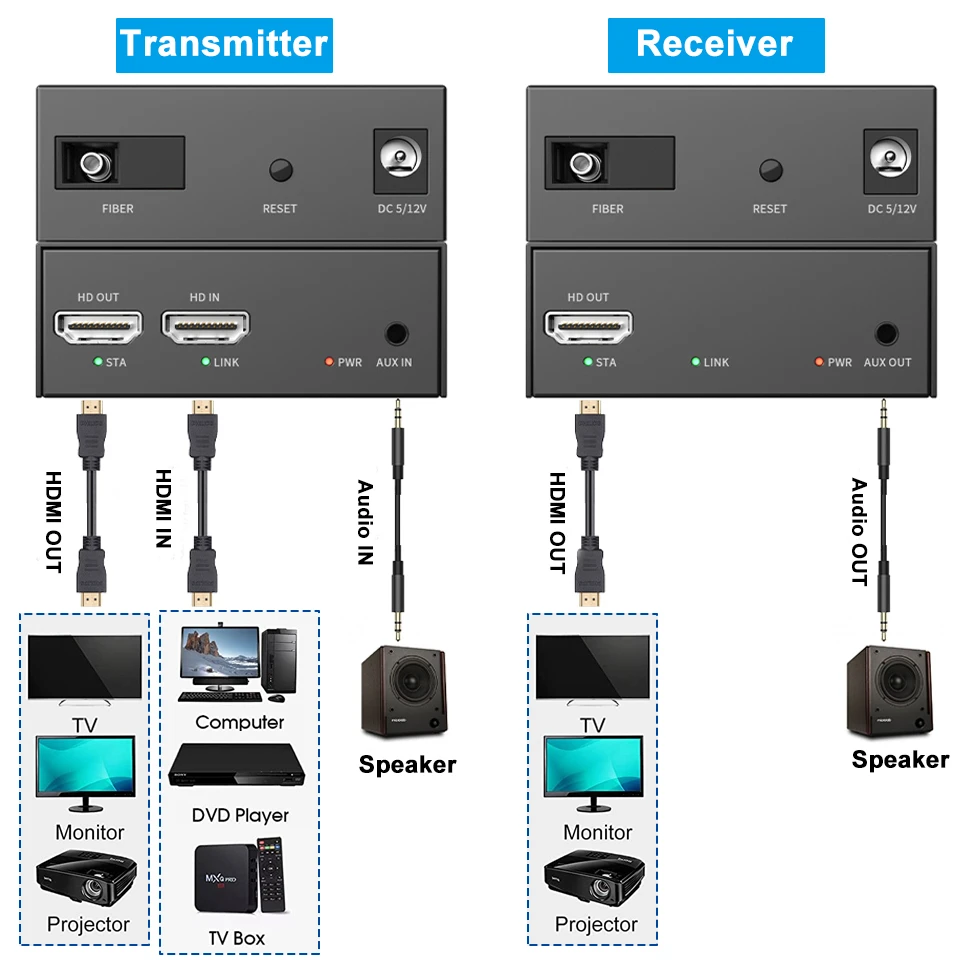

• HDMI Loop Out:The transmitter with one HDMI loop output;

• Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;

• Built-in automatic adjustment system: make the image smooth, clear and stable;

• Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;

• Plug and Play:Simple to install.

Specifications:

Converter HDMI-compatible to Fiber Optic Video Extender KVM(HDMI-compatible+USB)To Fiber Mouse and keyboard compressed 1080P

Video
Standards----------HDMI 1.3; HDCP 1.2
Maximum pixel clock------165MHz
Maximum data rate-------6.75Gbps
Resolution ------1920X1080P@60Hz
Connector-----HDMI-A
Impedance--------100Ω

Audio
Interface----3.5mm seat
Signal direction--------Unidirectional
Signal type----------PCM audio


Fiber type

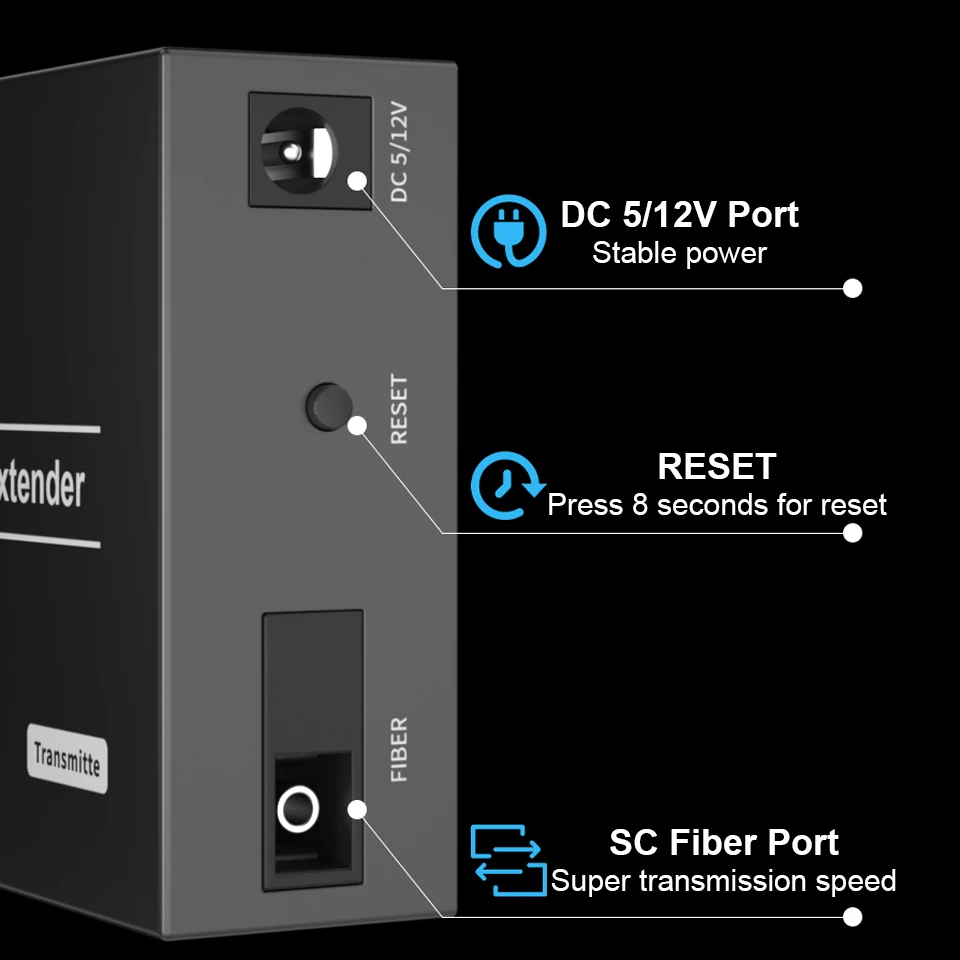

Fiber interface--------------- SC Connector
Transmission distance--------0~20 km over single-mode fiber

Fiber Type---------- ------------------ Single Mode

Wavelength--------------------1310nm

Interface Bandwidth--------------6.25Gbps

Other
Power supply-----The power adapter: DC 5V/2A
Power dissipation------MAX 3W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%

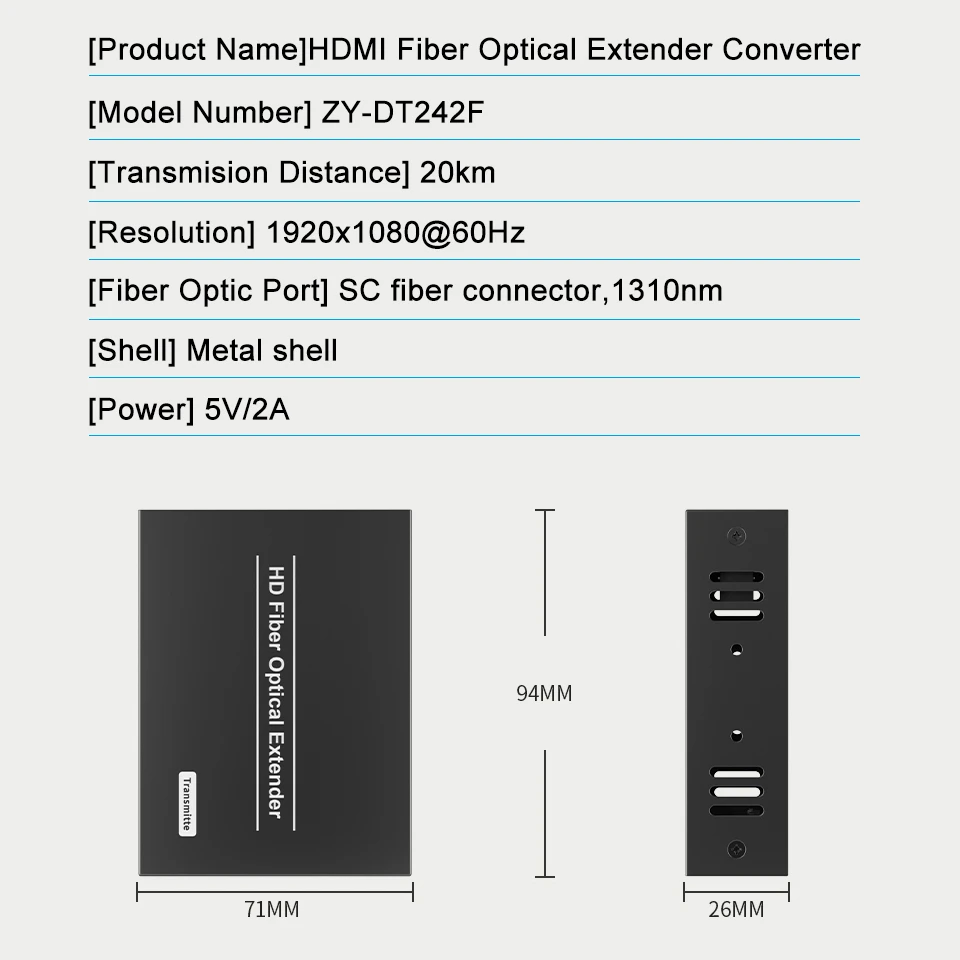

Dimension-------94*71*26mm
The warranty--------1 year free warranty

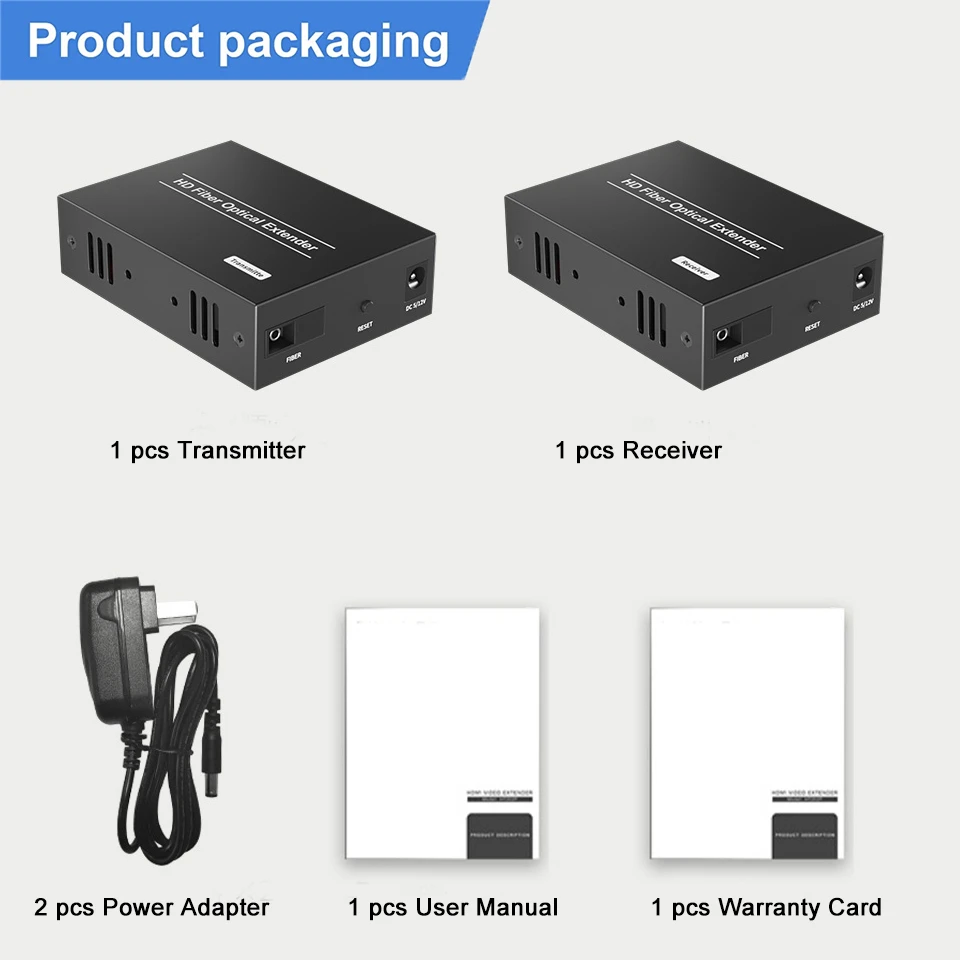

Package:

HDMI extender Fiber transmitter ……………………1 pcs

HDMI extender Fiber receiver ……………………… 1 pcs

Power adapter ……………………………….... 2 pcs
User manual …………………………………..1 pcs
