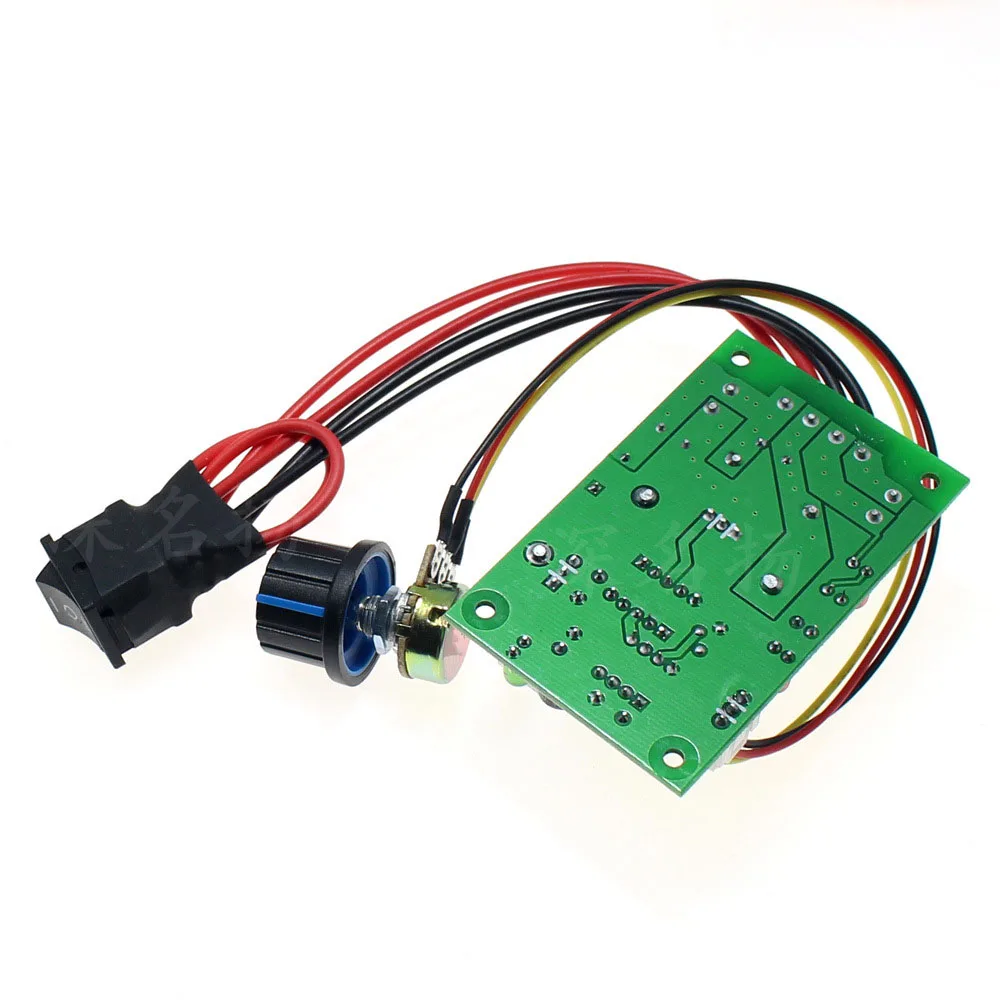

DC 6V-30V CCM6N PWM 12V DC Motor Speed Controller 6A 12V 24v Positive Inversion Switch Controllers Mini Size
All products were checked well before delivering, please placing order without concern.
DC Speed controller

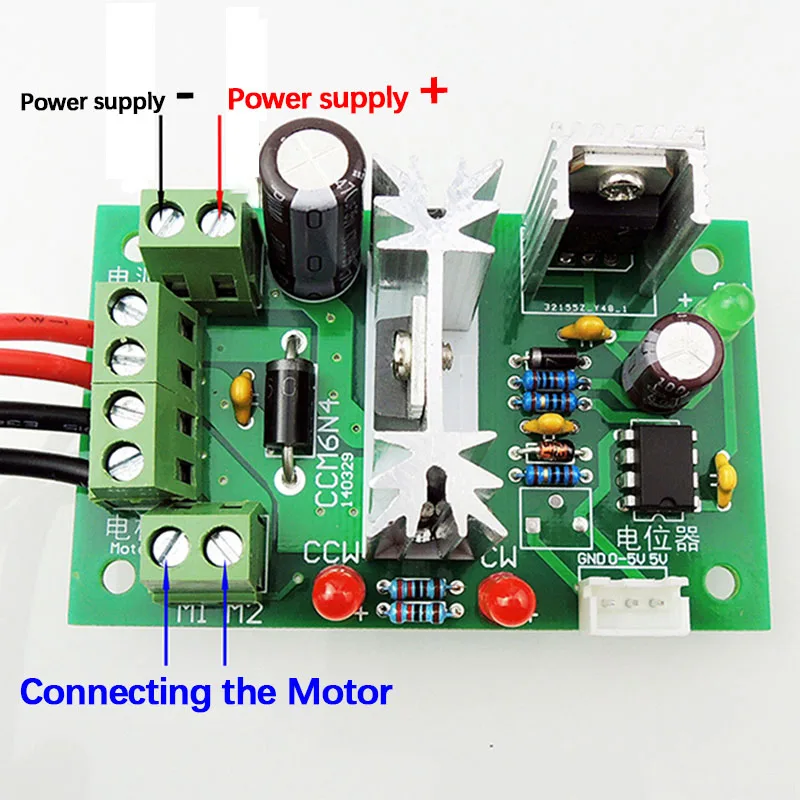

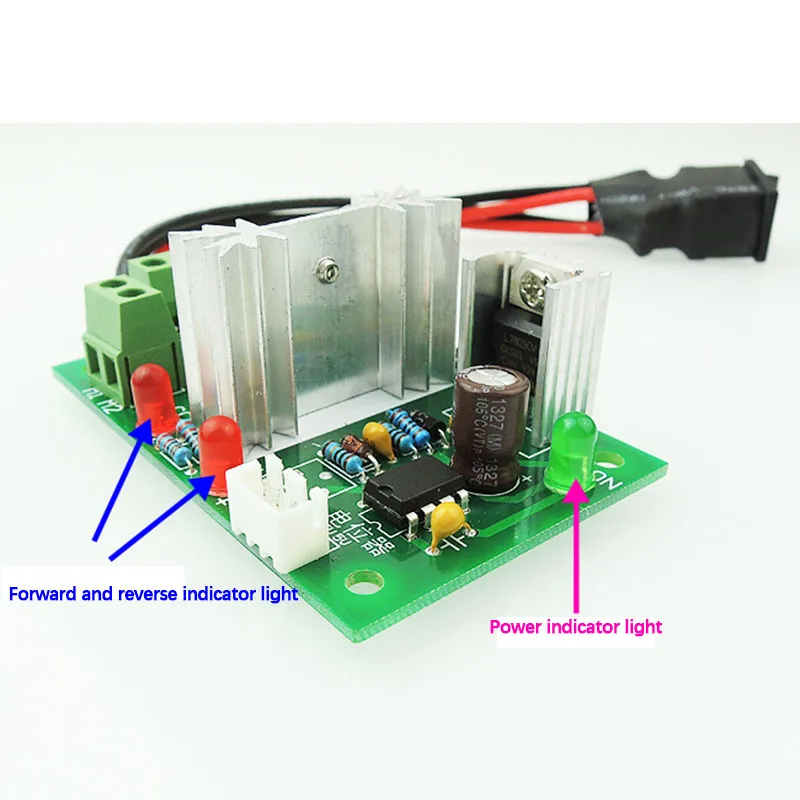

1. Can adjust the low speed, low noise, can control the motor is reversing, support for PLC control, external 5V signal can be adjusted speed, this product with positive and negative indicator and power indicator

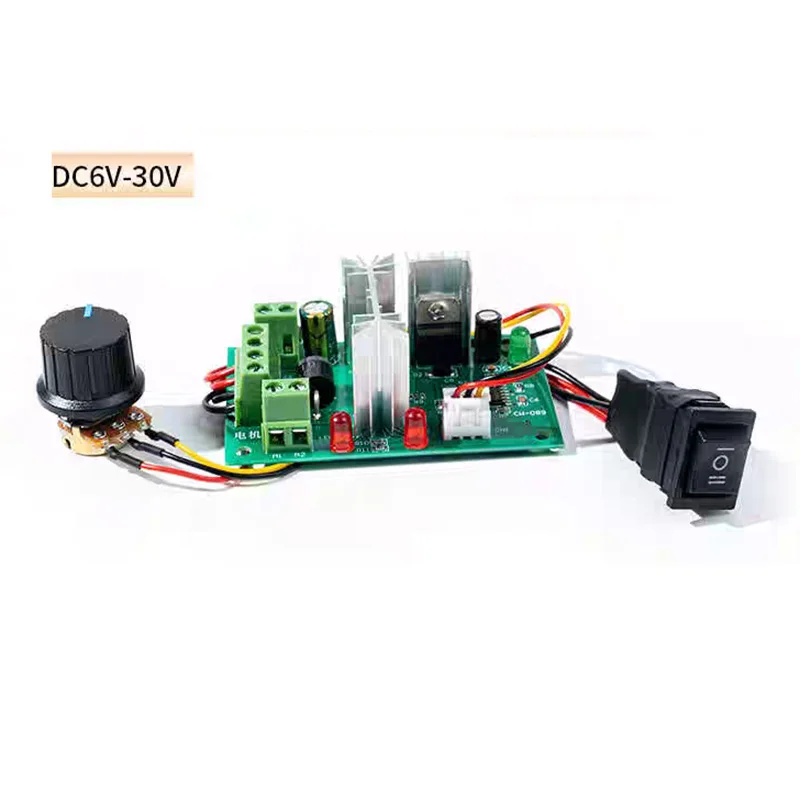

2. Input Voltage: DC 6V-30V

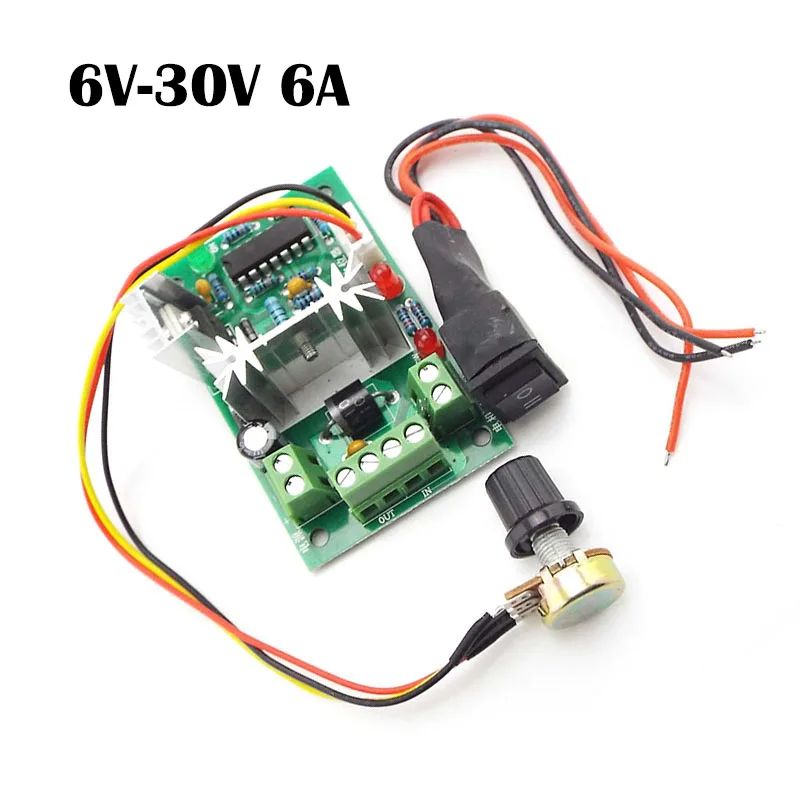

3. Current: Rated current 6A, maximum through current 10A, Short circuit in less than 30s
4. Power: MAX 200W
5. Frequency: 16khz
6. PWM pulse width speed range: 0% - 100%

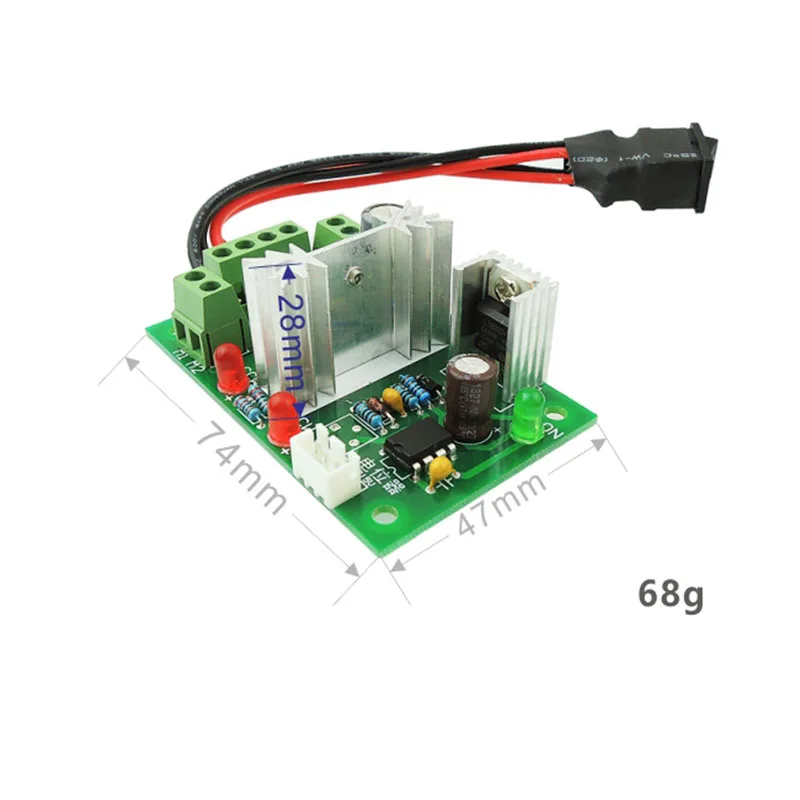

7. Size: 74 x 47 x 28mm, four positioning pitch plate edge 5mm, Positioning hole diameter 3.6mm

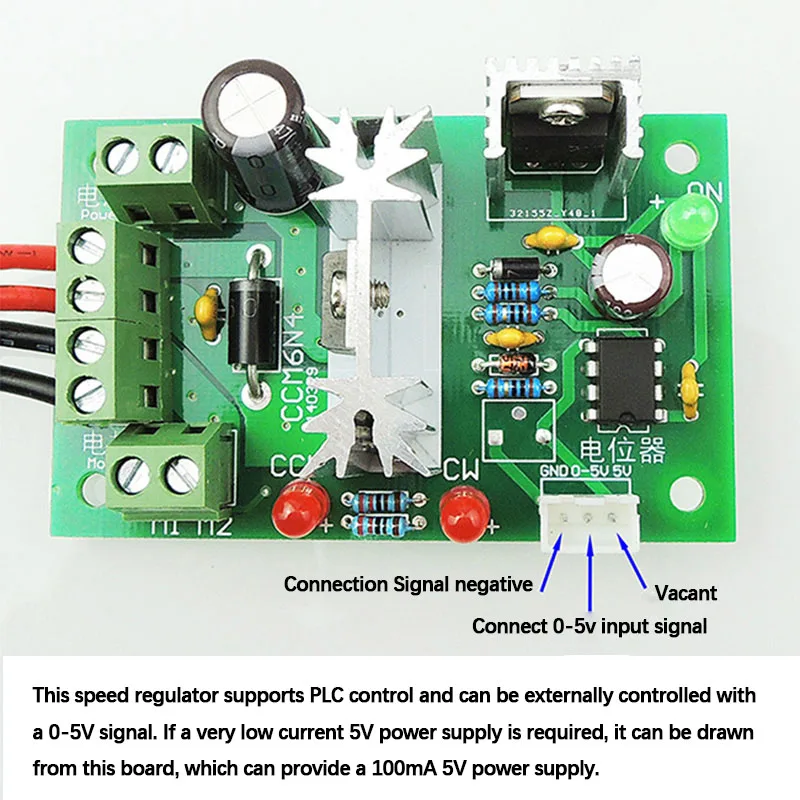

8. You can control an external 0-5V external voltage that can direct control of the speed of the motor, if you need a very small current 5V power supply, We can provide 100mA 5V power supply
9. All chips are imported original
10. Control motor: Adjust Speed, CW/CCW And Stop
