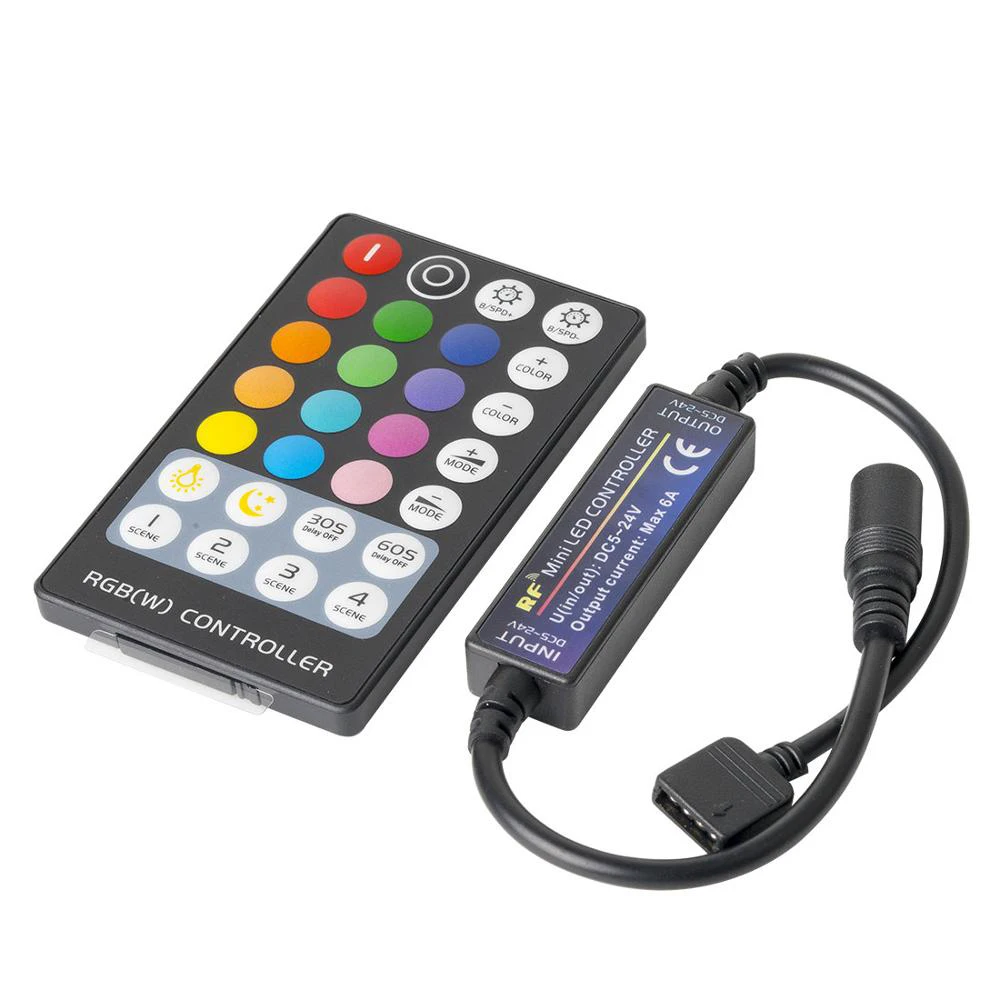

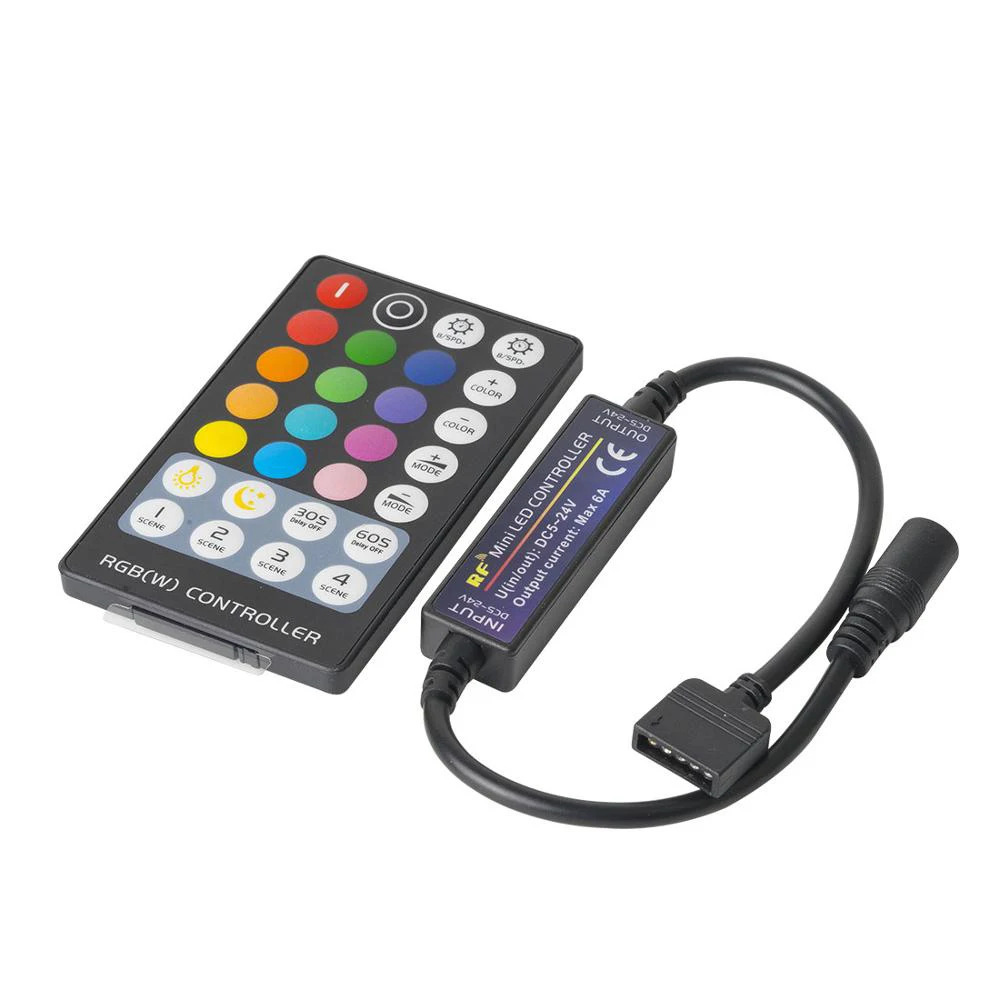

LED Light Strip Controller RF14 17 21 28 Keys for 5050 DIM RGB RGBW RGBCCT 4pin 5pin 6pin LED Lights Tape Controller DC5-24V

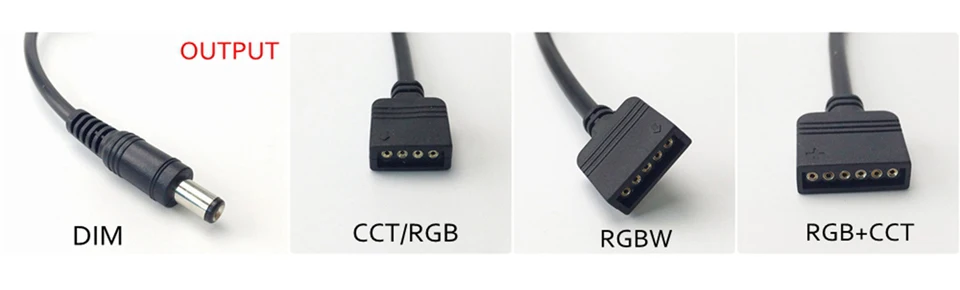

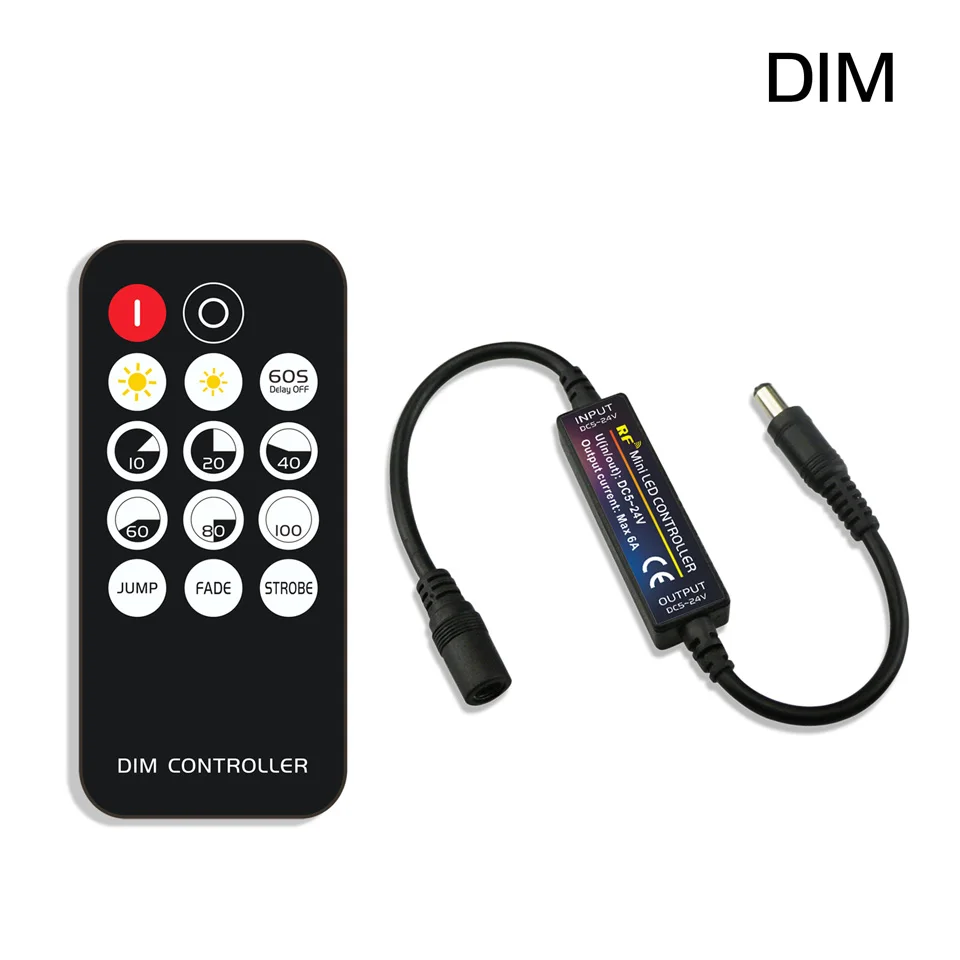

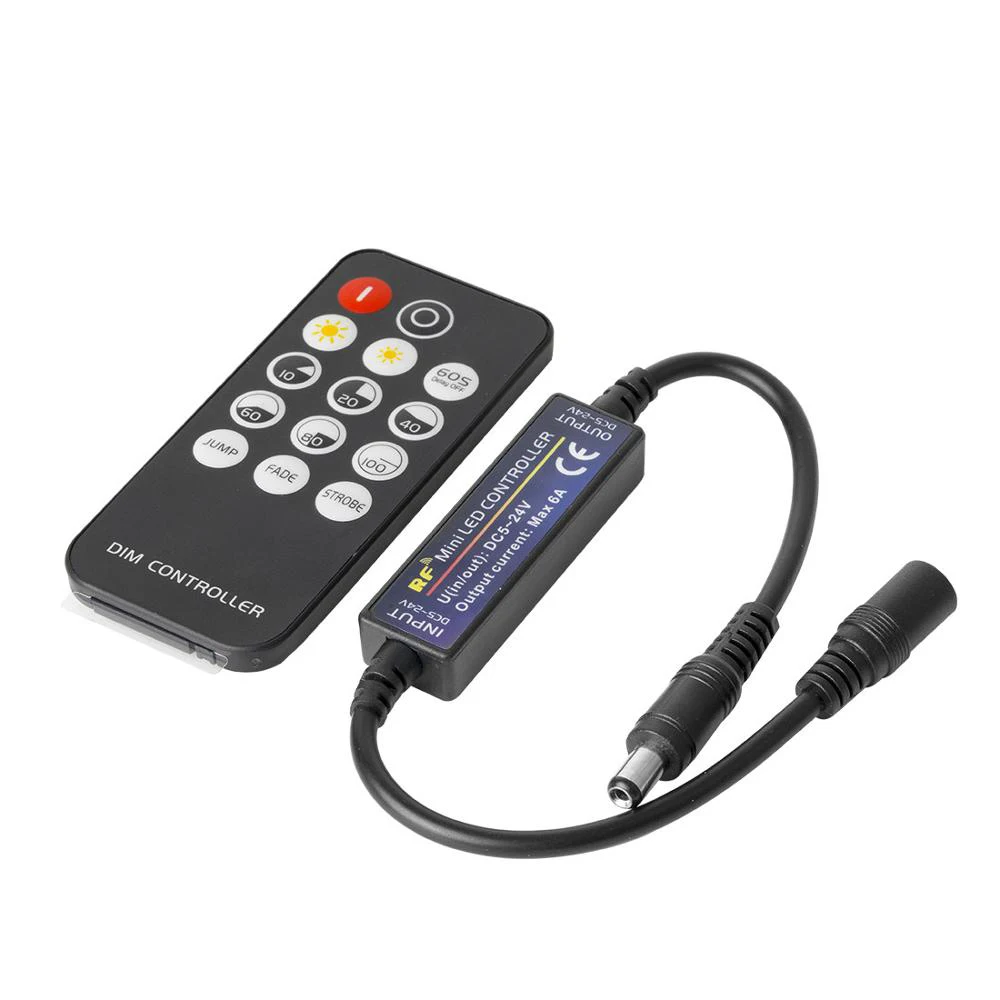

RF 14 Key SolidColor Controller: use for 2pin wires Single Color led strip.

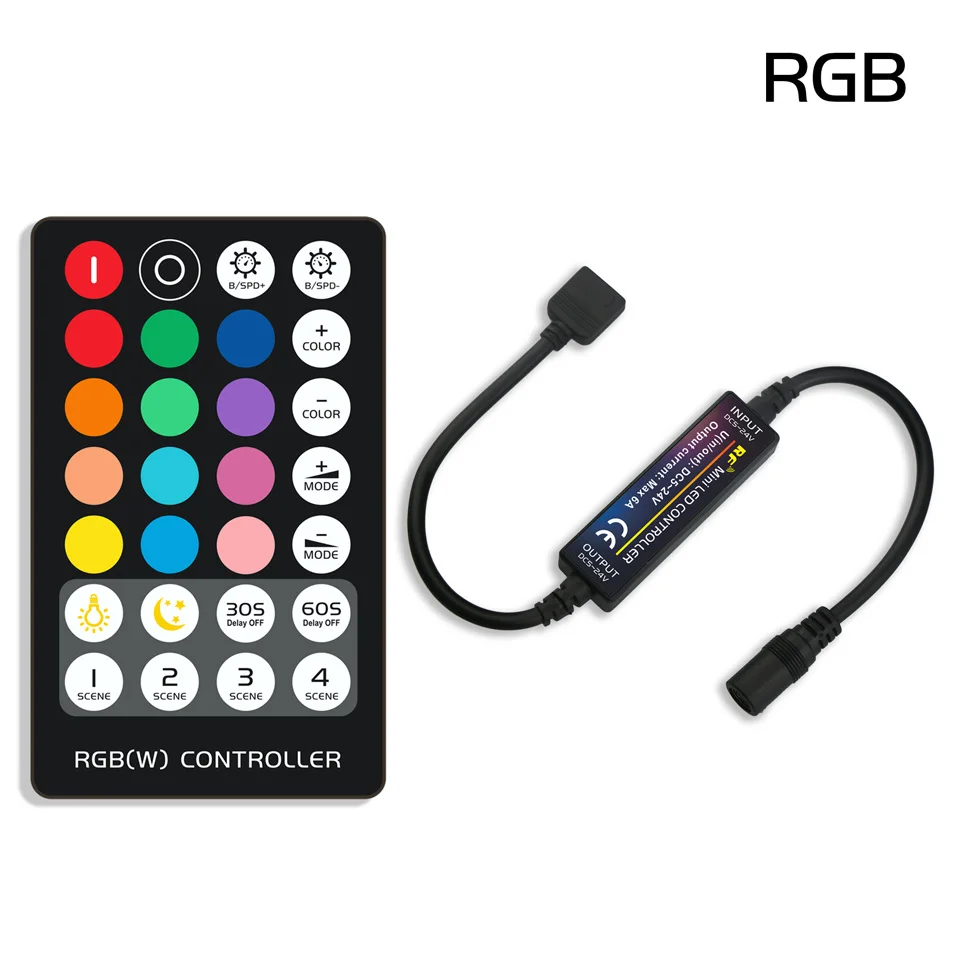

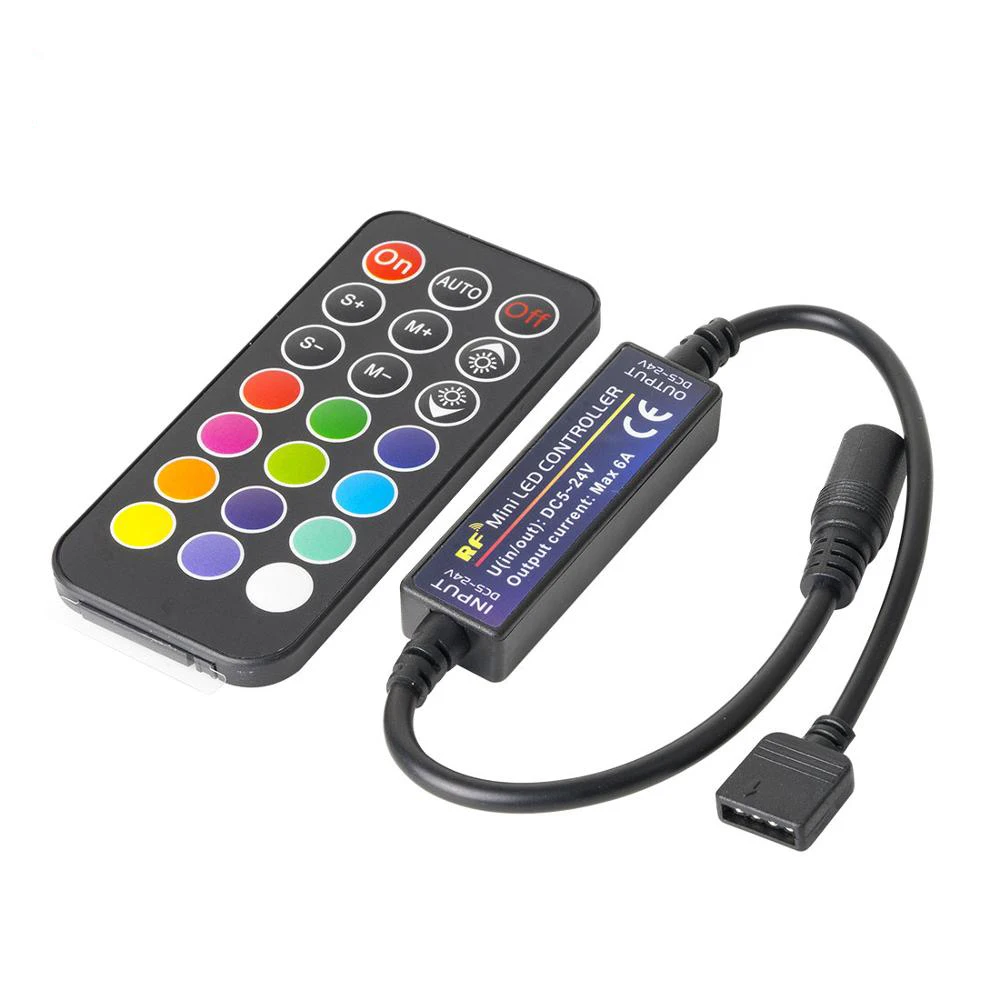

RF 21 Key RGB, RF 28 Key RGB Controller: use for 4pin wires led strip, Only RGB SMD LED.

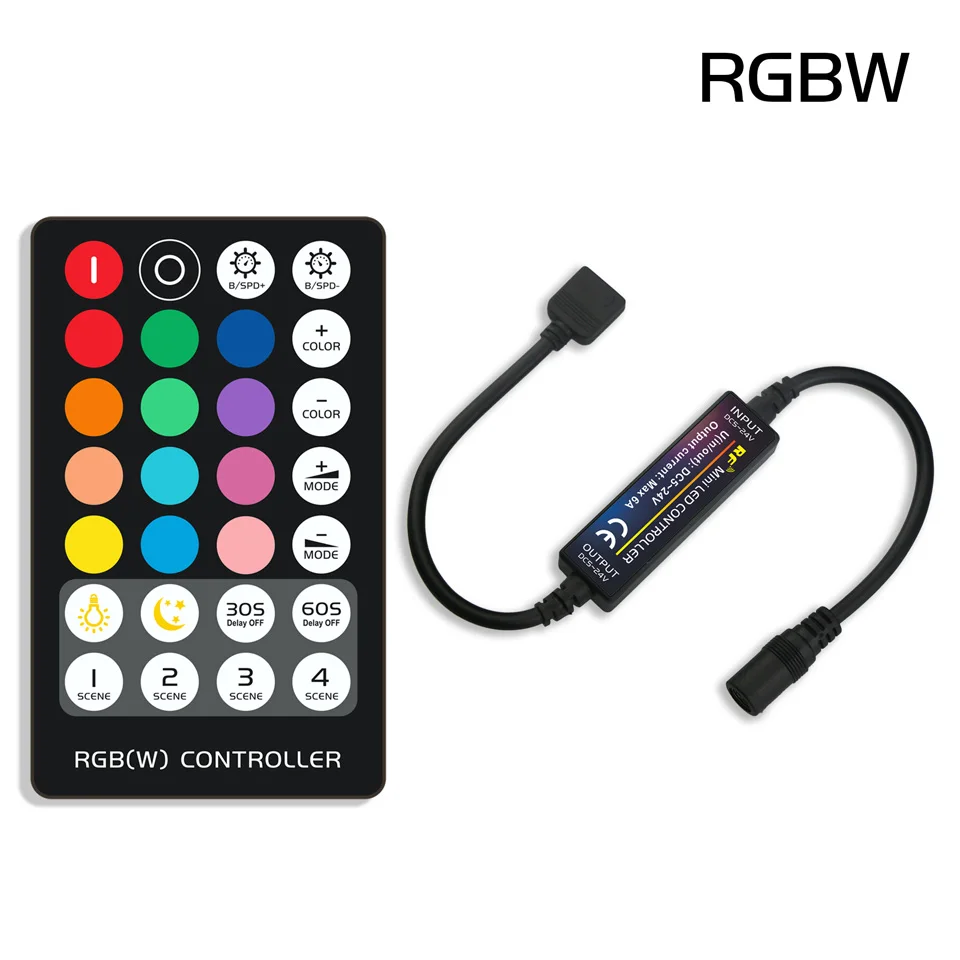

RF 28 Key RGBW Controller: use for 5pin wires led strip, RGB&CW or RGB&WW in one SMD LED, 4 Color in 1 SMD. Other type is RGB+CW or RGB+WW.

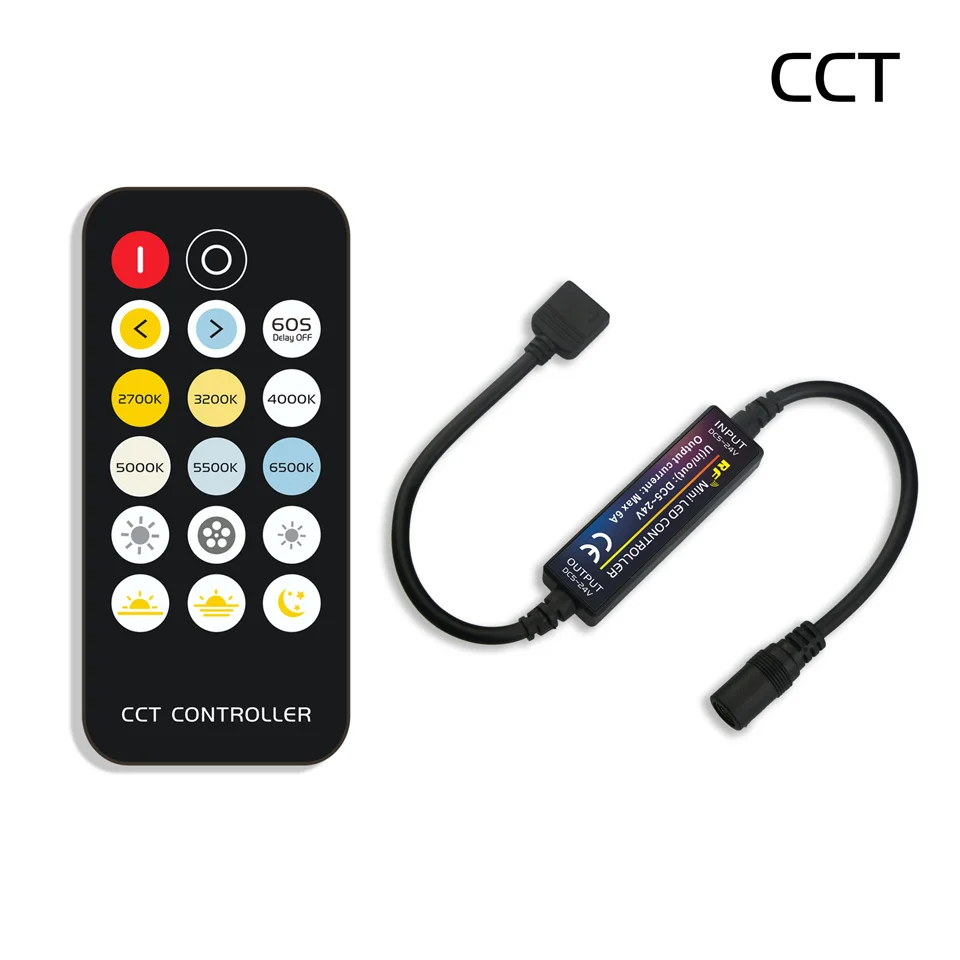

RF 17 Key CCT Controller: use for 3pin wires led strip, WW+CW or WW&CW in one SMD LED.

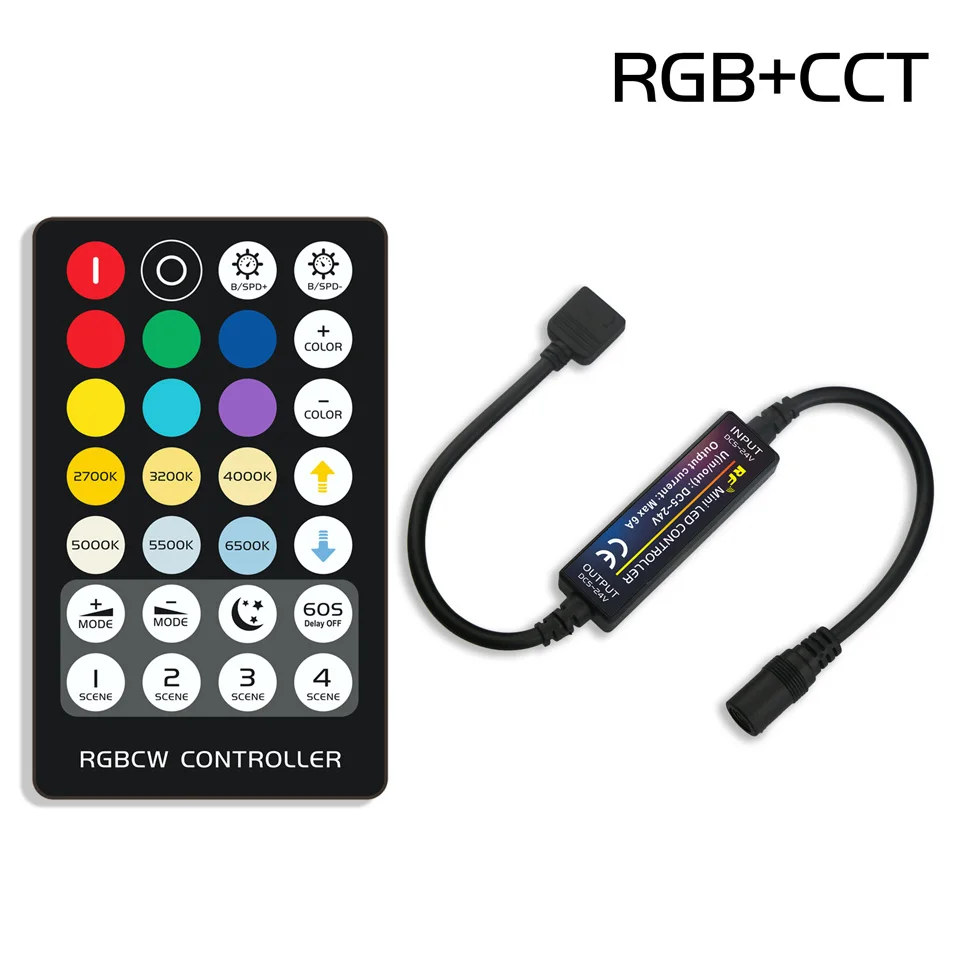

RF 28 Key RGBCCT Controller: use for 6pin wires led strip, 5 Color in 1 SMD. Other type is RGB+CW+WW.

Product Description:

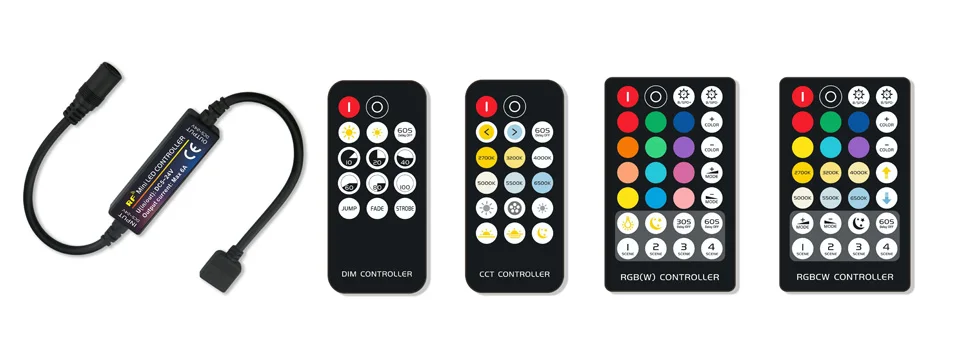

Led controller has 4 types.

The products of this series can be used to control light bars: Dimmer, RGB, RGBW.

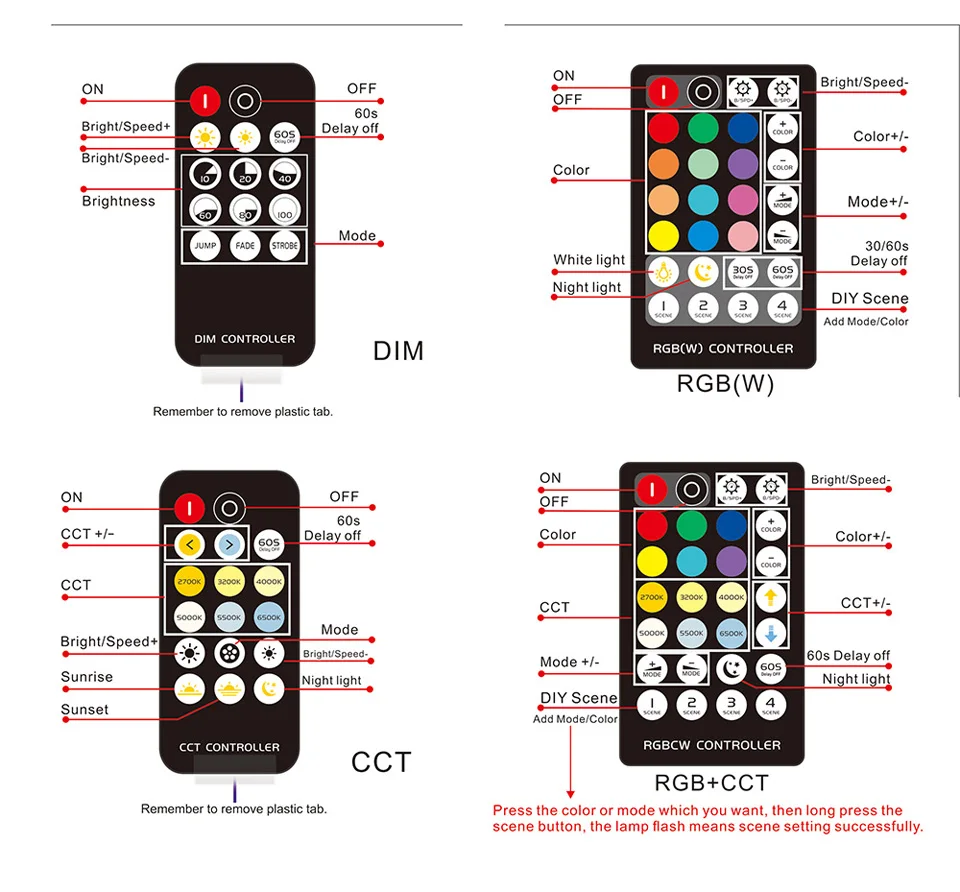

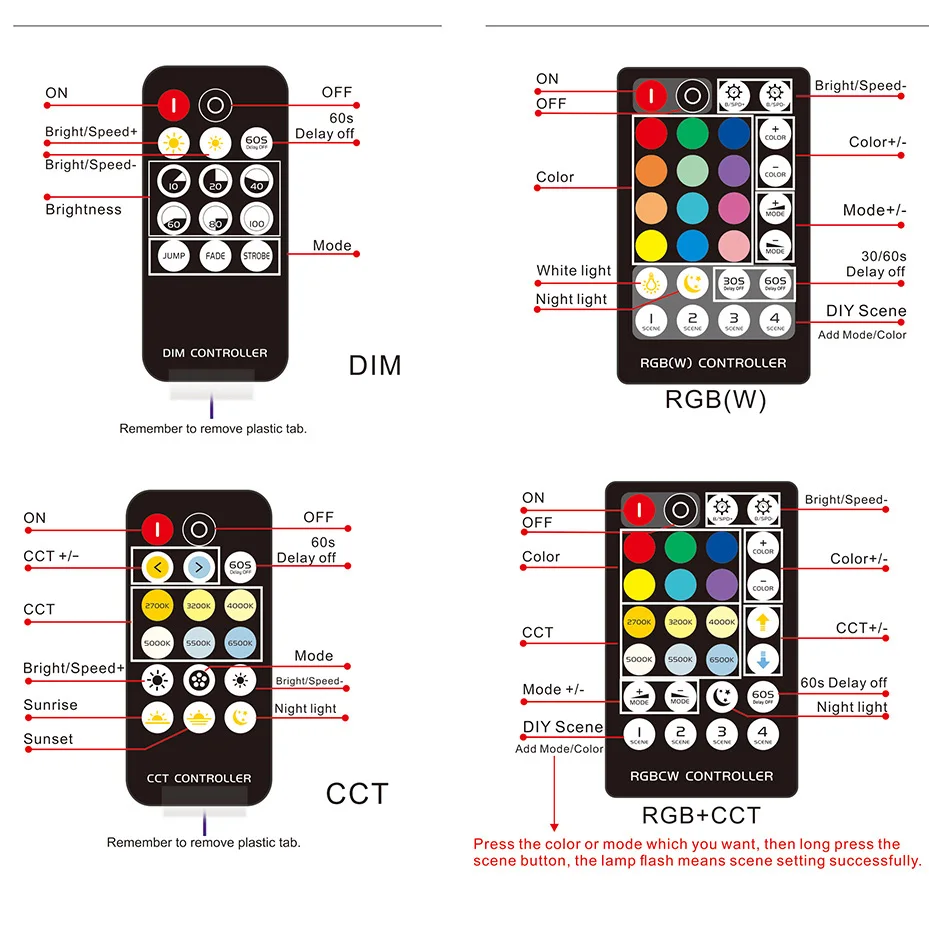

It can realize fade, jump, fade in and fade out, flash, blasting flash etc. dynamic lighting effects according to customers' actual needs. And a variety of static colors can be chosen from.

Technical Parameters:

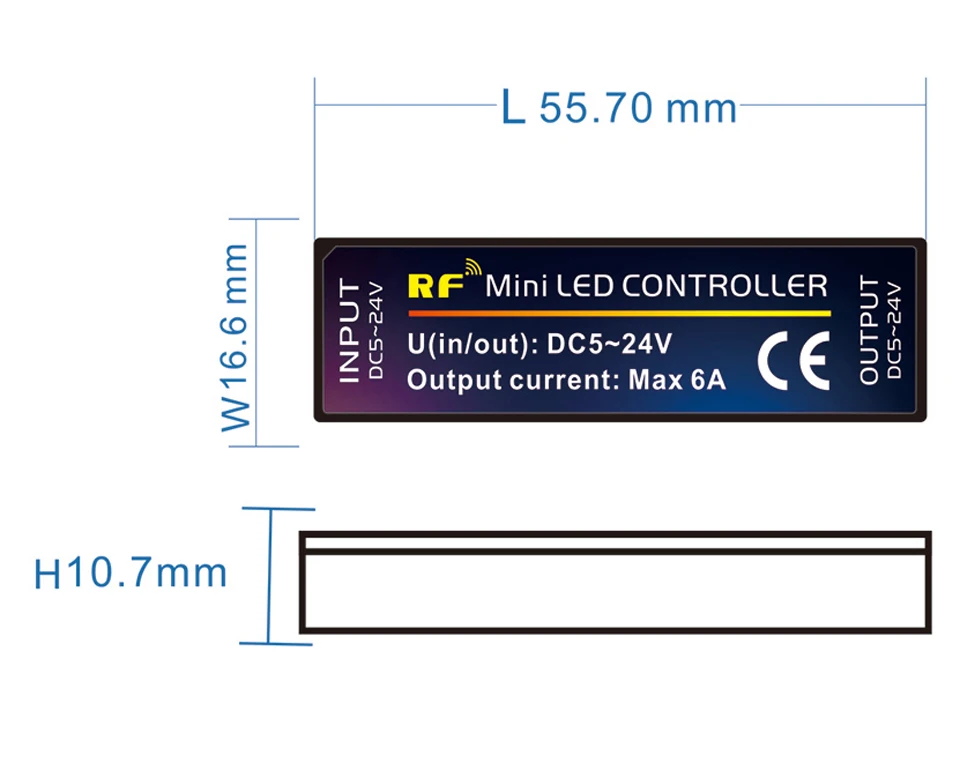

Product Name: RF 14Keys/17Keys/21Keys/28Keys Controller.

Working Temperature：-20-60℃.

Input Voltage：DC5-24V.

Connection Mode：Common anode.

Static Power Consumption： 0.5W.

Output Current：Single Color - 1CH*6A, CCT - 2CH*3A, RGB - 3CH*2A, RGBW/RGBCCT - Max 6A.

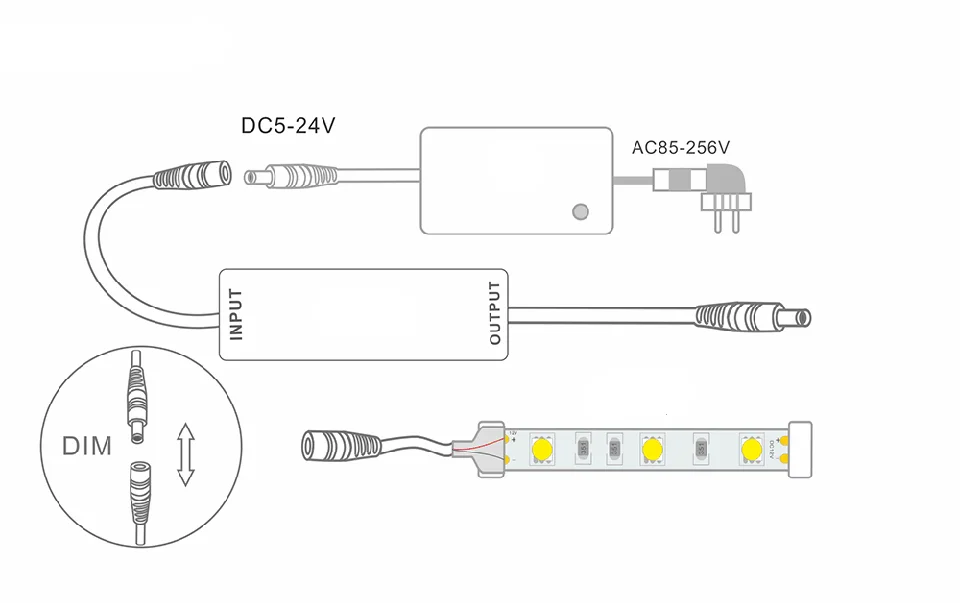

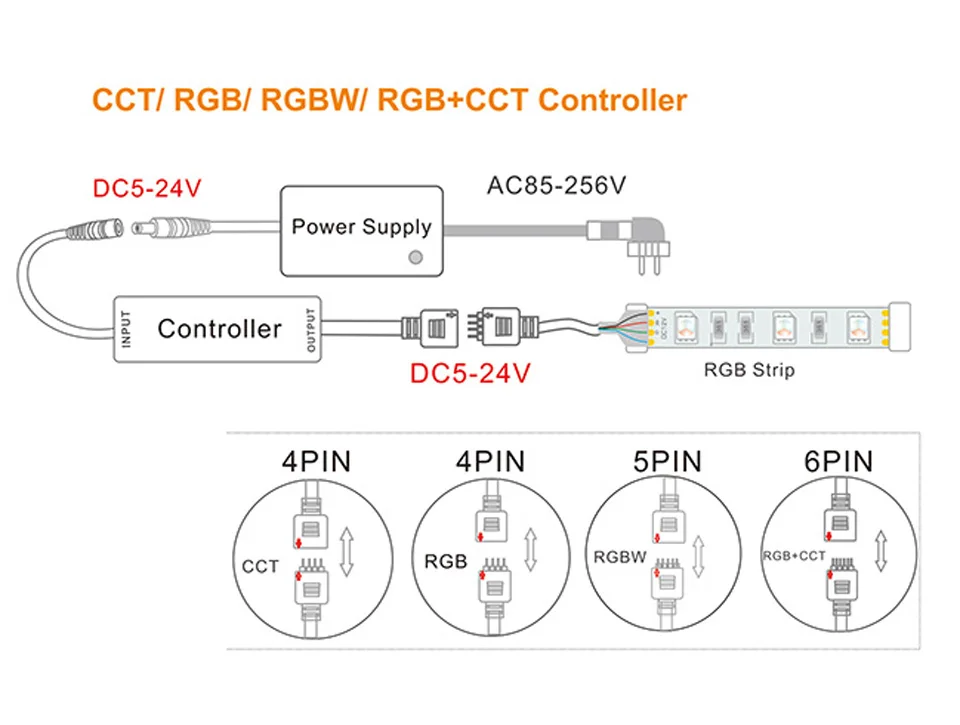

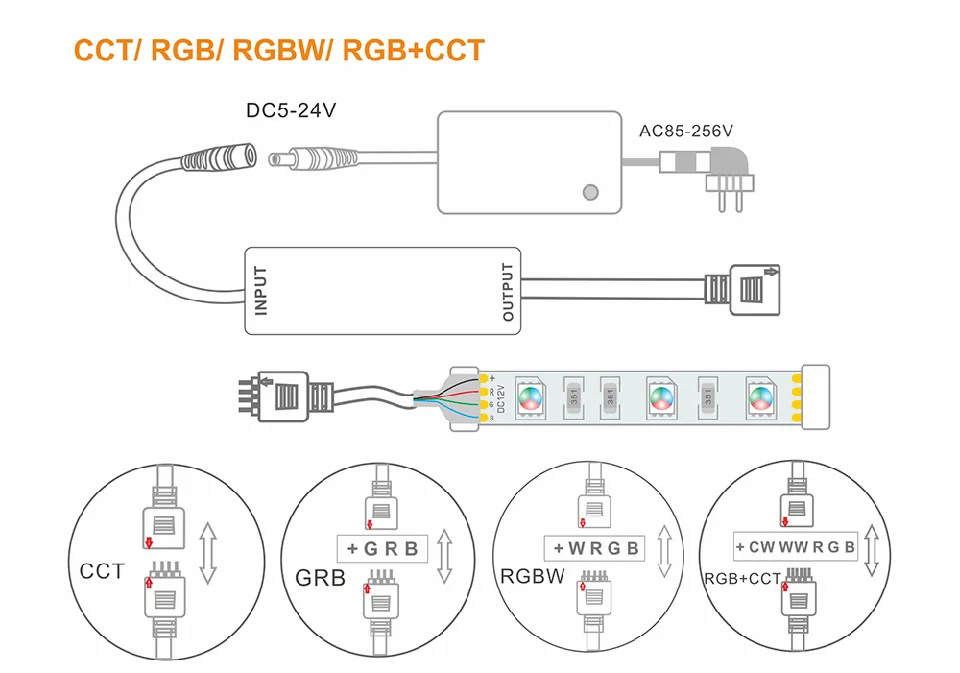

Note: If the controller's output wire sequence which you get are different from above, please according to the actual controller’s wire sequence to corresponding led lights, just make sure the arrows of controller and light are inserted accordingly.
