Descripción
Features:

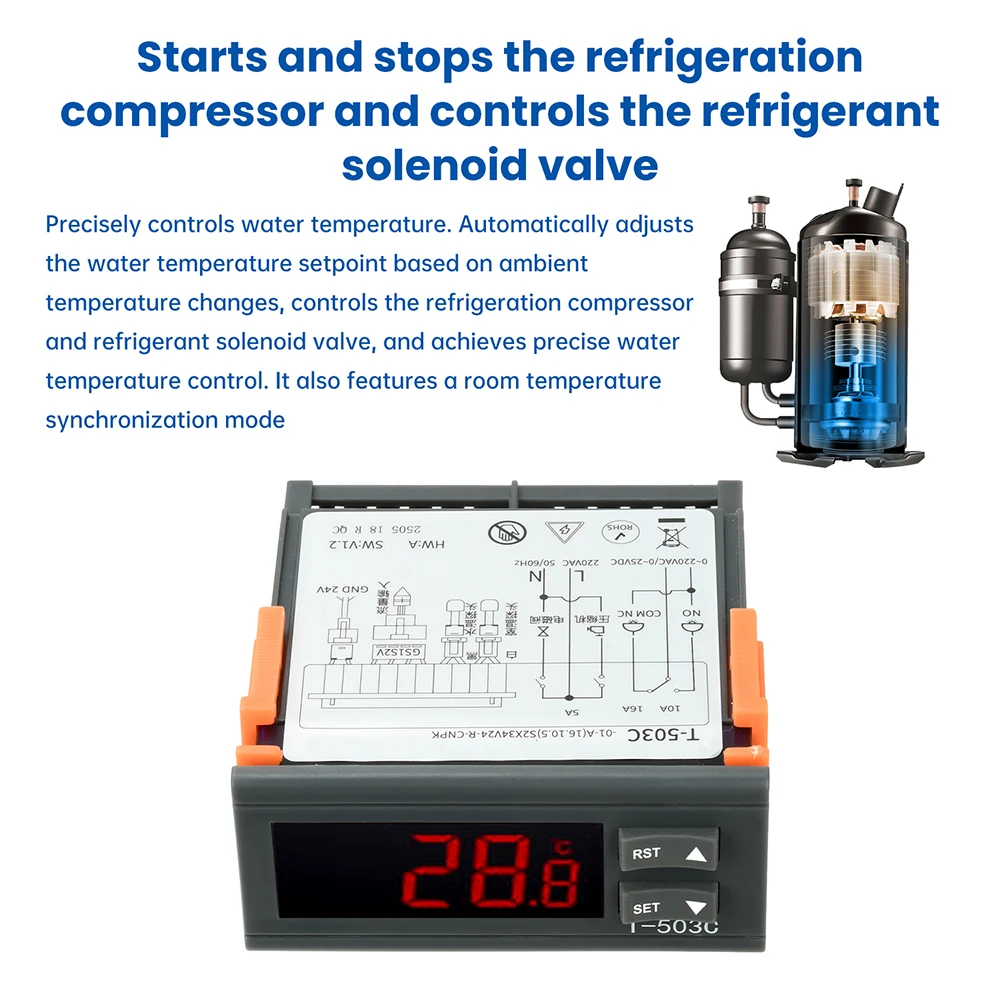

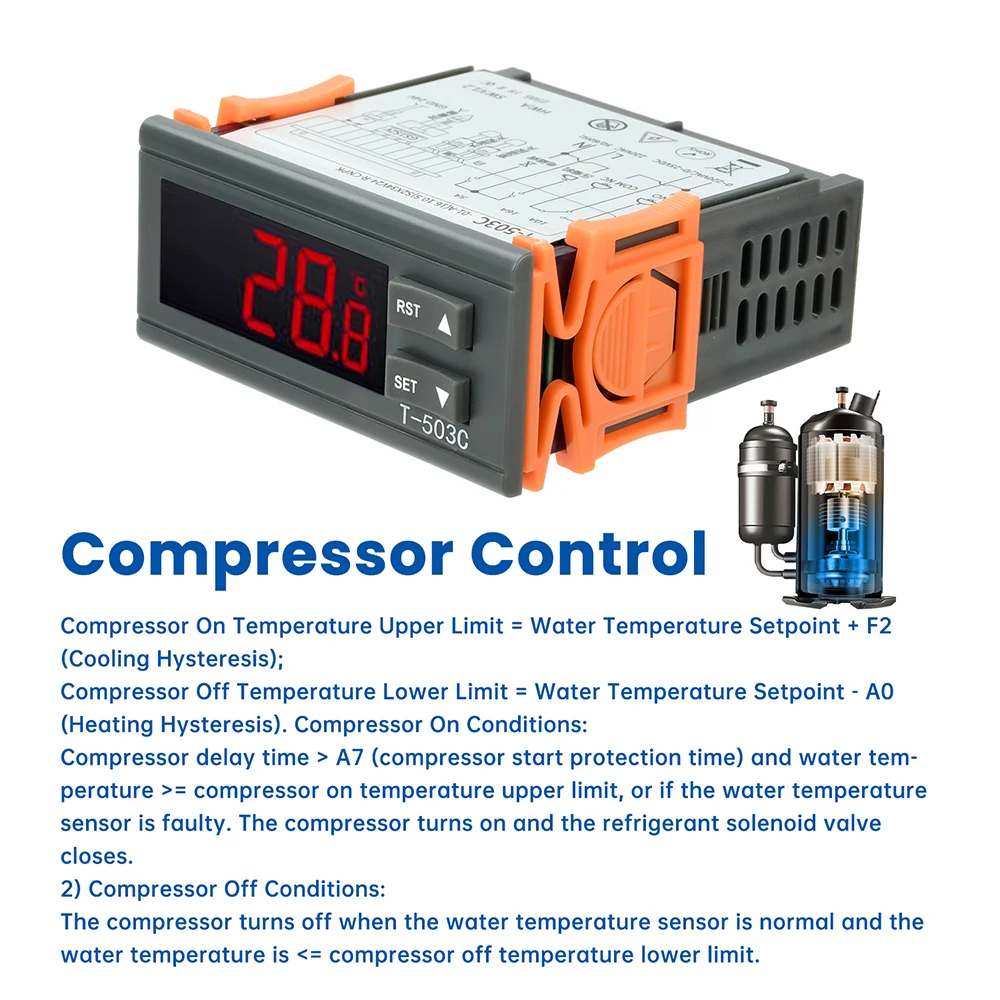

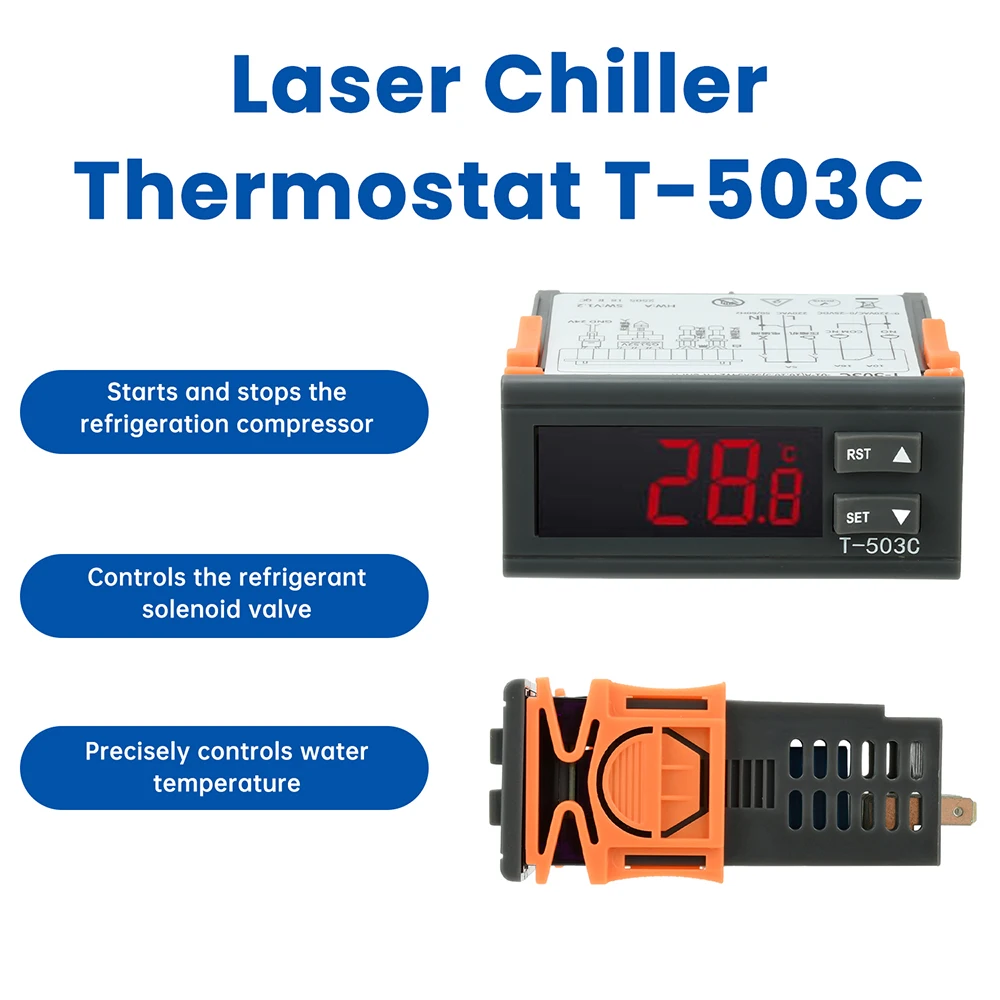

1. Laser Chiller Temperature Controller: Starts/stops the refrigeration compressor and controls the refrigerant solenoid valve to achieve precise water temperature regulation, featuring a simultaneous room temperature adjustment mode.
2. Dual temperature sensors for water temperature regulation and room temperature monitoring, with a measurement range of -40 to 99.9°C and a display resolution of 0.1°C.

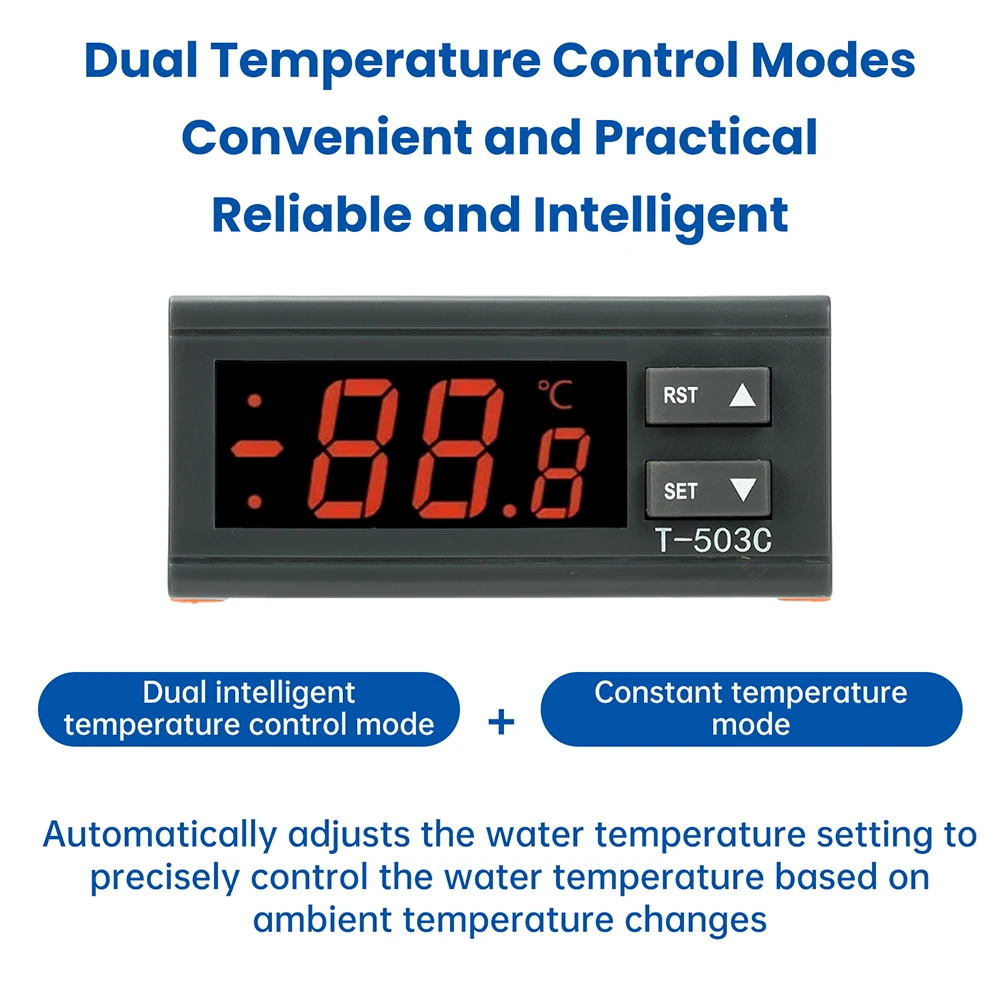

3. Dual-temperature control mode: Automatically adjusts water temperature setpoints based on ambient temperature changes for precise water temperature control, offering convenience and practicality.

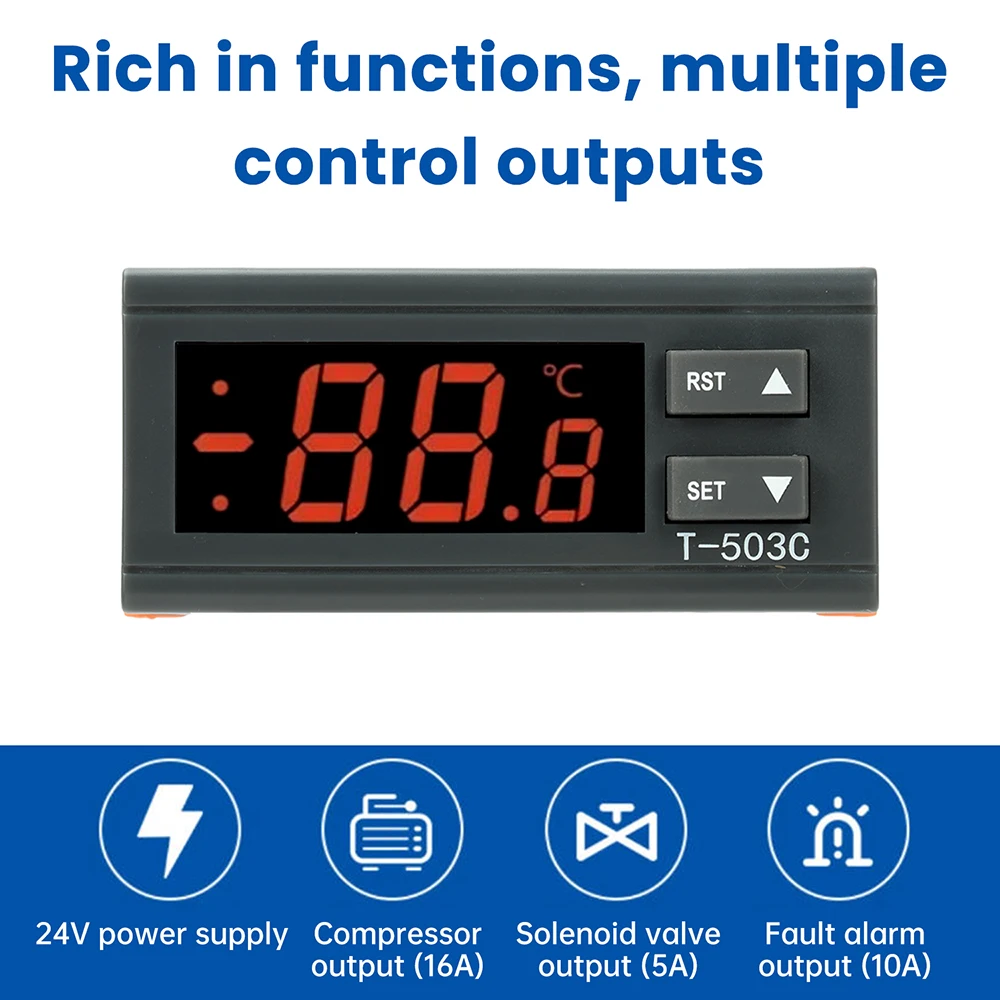

4. Multi-channel control outputs: 24V power supply with compressor output, solenoid valve output, and fault alarm output. Diverse functionality for broad applicability.
5. Wide range of applications: Suitable for laser chillers, oil coolers, high-power chillers, industrial air conditioners, and related fields.
Power Supply: DC 24V ±10%
Total Power Consumption: 3W
Measurement Range: -40 to 99.9°C
Temperature Measurement Accuracy: ±1°C at -15 to 70°C, ±2°C at other ranges
Measurement Resolution: 0.1°C
Sensor Fault Delay: 3 seconds
Compressor Output: Contact capacity 16A/AC 220V
Solenoid Valve Output: Contact capacity 5A/AC 220V
Fault Alarm Output (NC/NO): Contact capacity 5A/AC 220V
Operating Ambient Temperature: -20~60℃
Storage Temperature: -25~75℃
Relative Humidity: 0~95% (non-condensing)

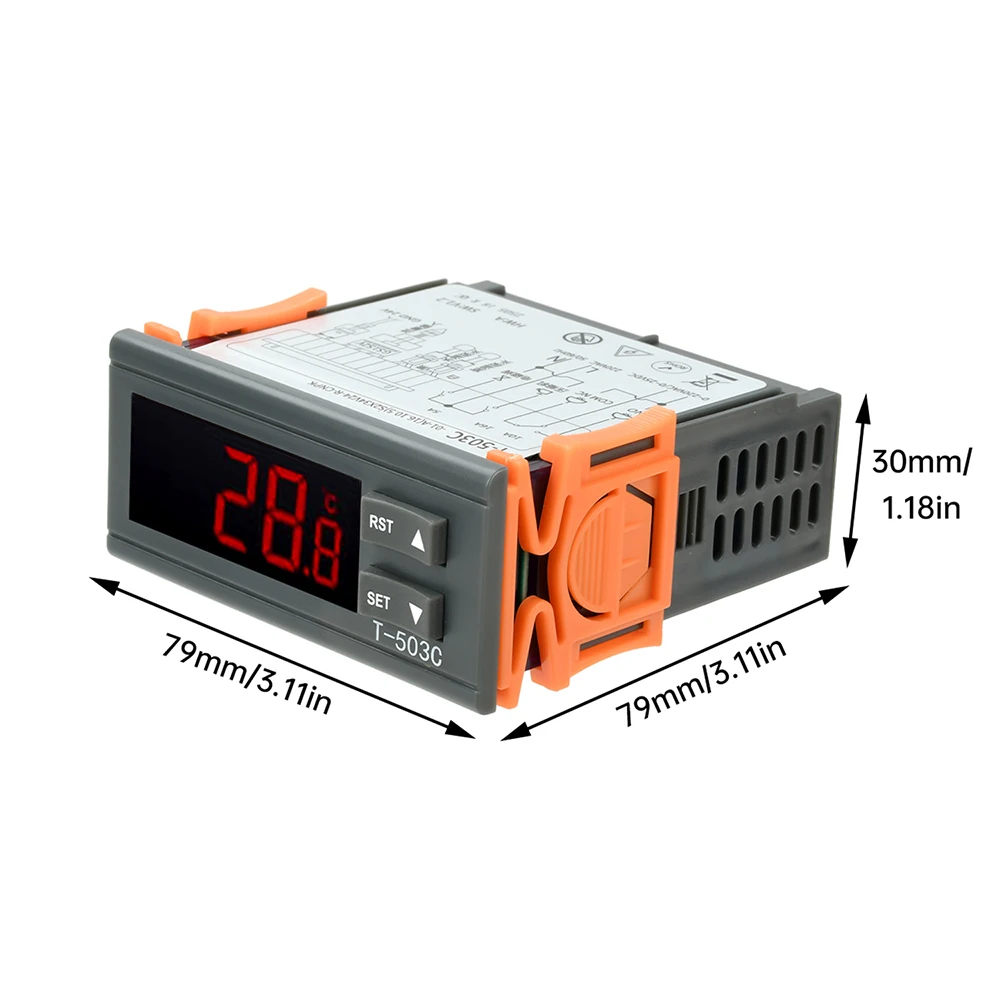

Product Dimensions: 79*79*30mm

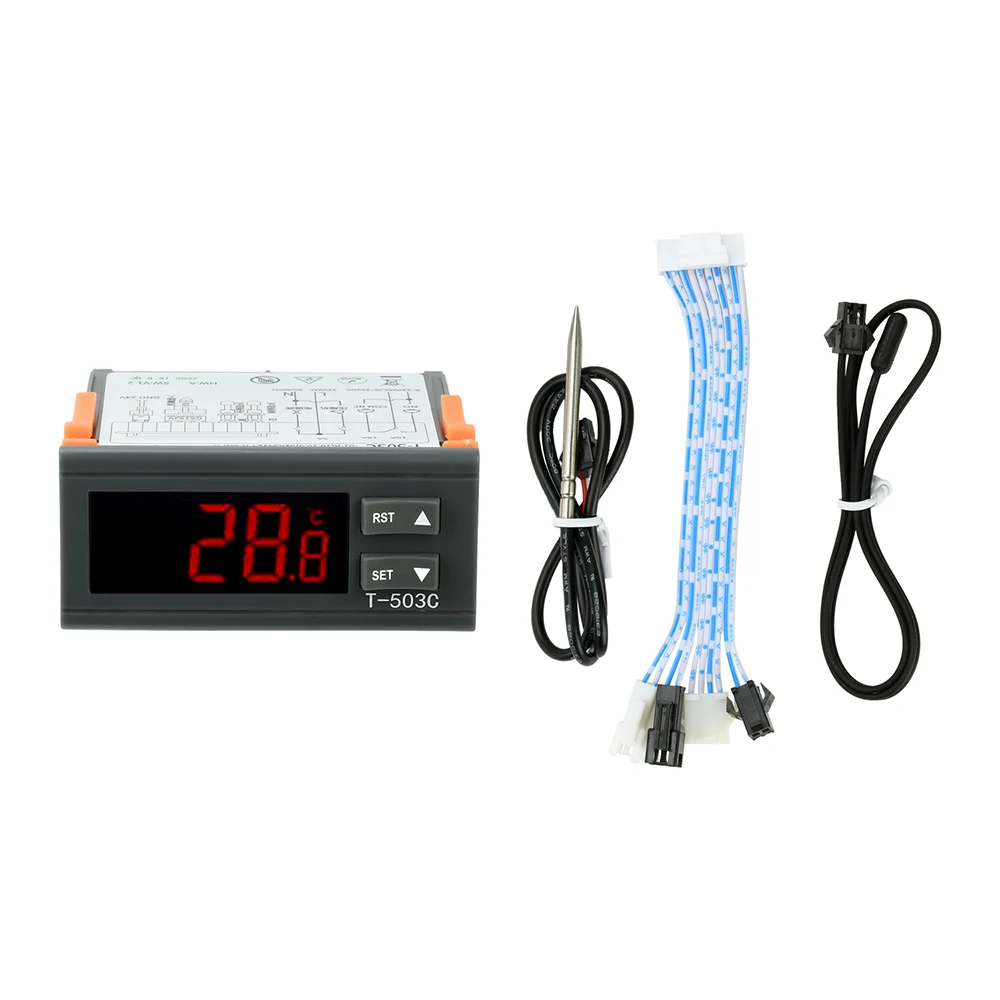

1 x T-503C DC 24V Laser Chiller Temperature Controller Dual Temperature Sensor Multi-Channel Control Output Intelligent Thermostat
