Controlador de pared de vídeo de TV 2x2 HDMI DVI 1080P 60Hz 1X2 1X4 1X3 2X1 3x1 4X1 procesador de pantalla multi video empalmador 180' Flip

2x2 HDMI DVI TV Video wall Controller 1080P 60Hz 1X2 1X4 1X3 2X1 3x1 4X1 multi video screen processor switcher splicer 180' Flip

Introduction：

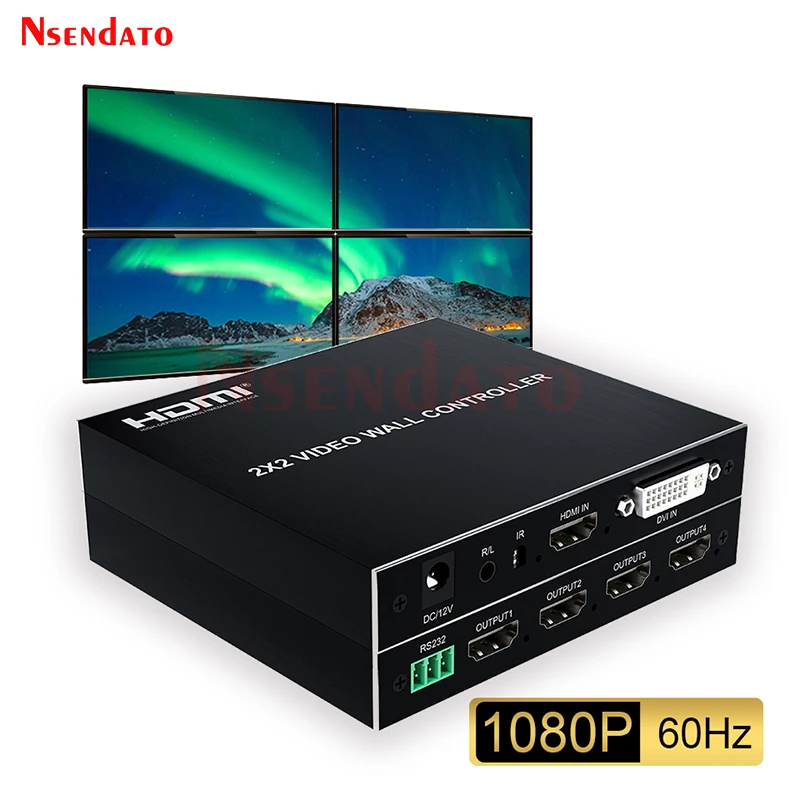

This Nsendato 1080P 2X2 video wall controller,support HDMI or DVI input and 4 HDMI output,Nsendato main function is to divide a complete HDMI,DVI HD image signal into 4 blocks and assign to 4 video display units (such as rear projection unit, LCD TV, etc.). Complete with 4 HDMI HD video display units to form a large dynamic image wall.

Features:

Support HDMI and DVI input;

Support 4 HDMI output;

Output support RGB 4:4:4;

Support input resolution 1080P/1080i/720P/576P/576i/480P;

Support output resolution 1080P/1080i/720P/576P/576i/480P;

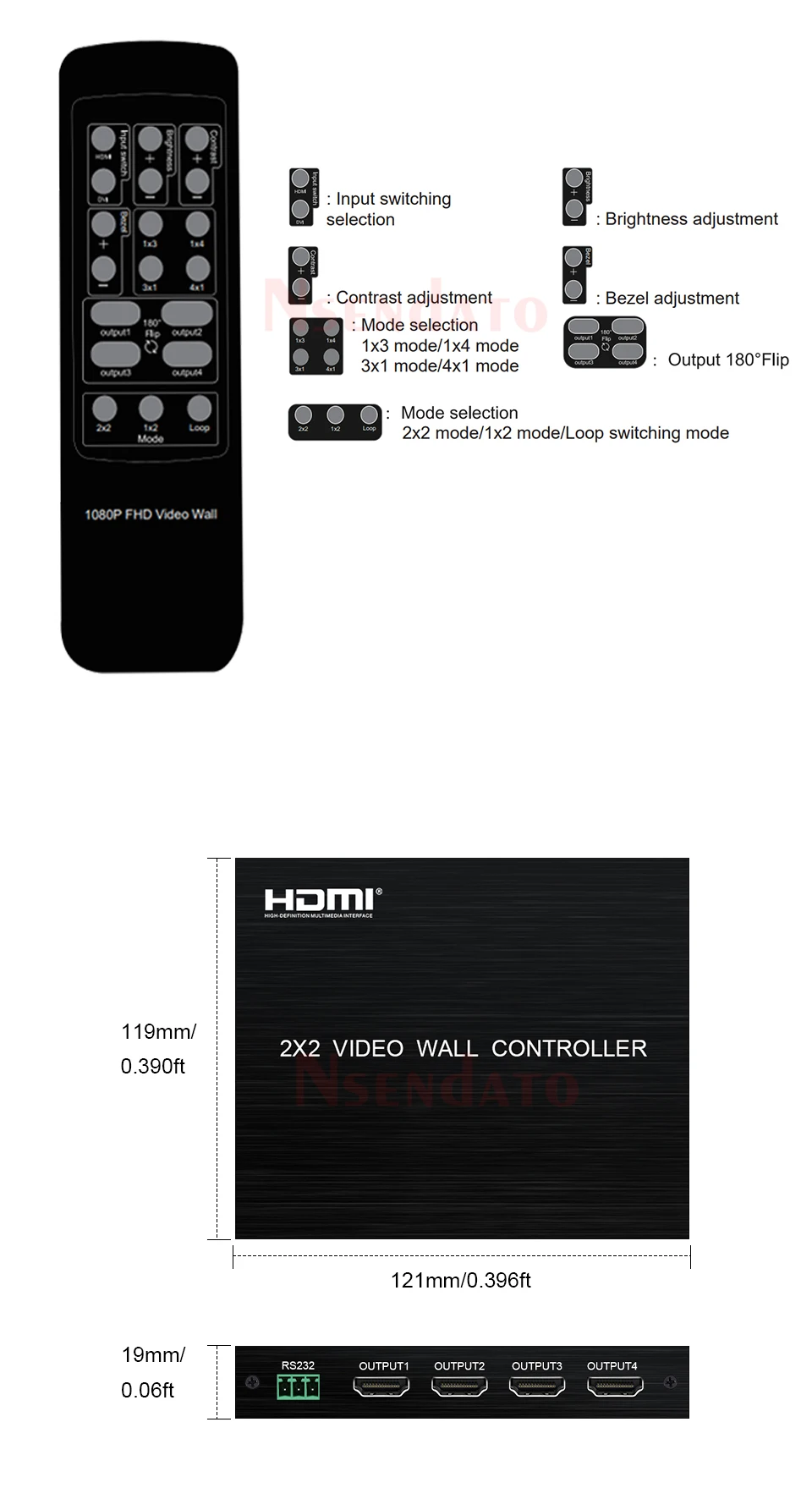

Support RS232 control;

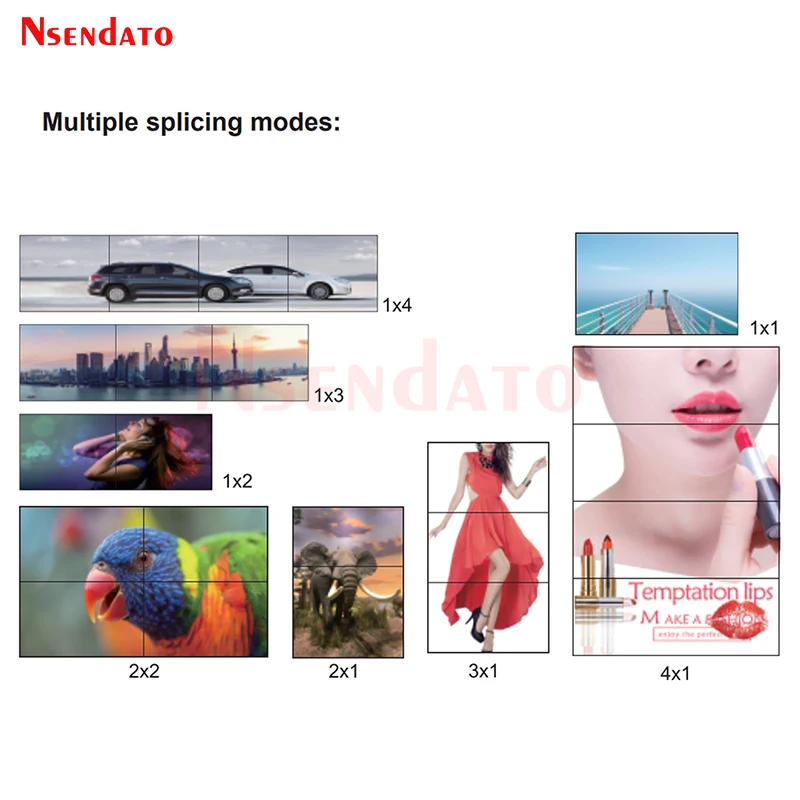

Support 2X2/1X2/2X1 splicing, easy operation, plug and play;

Support 2X2 automatic splicing function;

Specifications:

HDMI resolution:the highest support 1920x1080/60Hz

Support audio format:stereo

Input cable length:≤5m AWG26 HDMI standard cable

Output cable length:≤5M,AWG26 HDMI standard cable

Max working current:300mA

Power adapter specifications:input AC (50HZ, 60HZ) 100V-240V Output 12V DC/1A

Nsendato Package list

2x2 Video Wall Controller

Power adapter

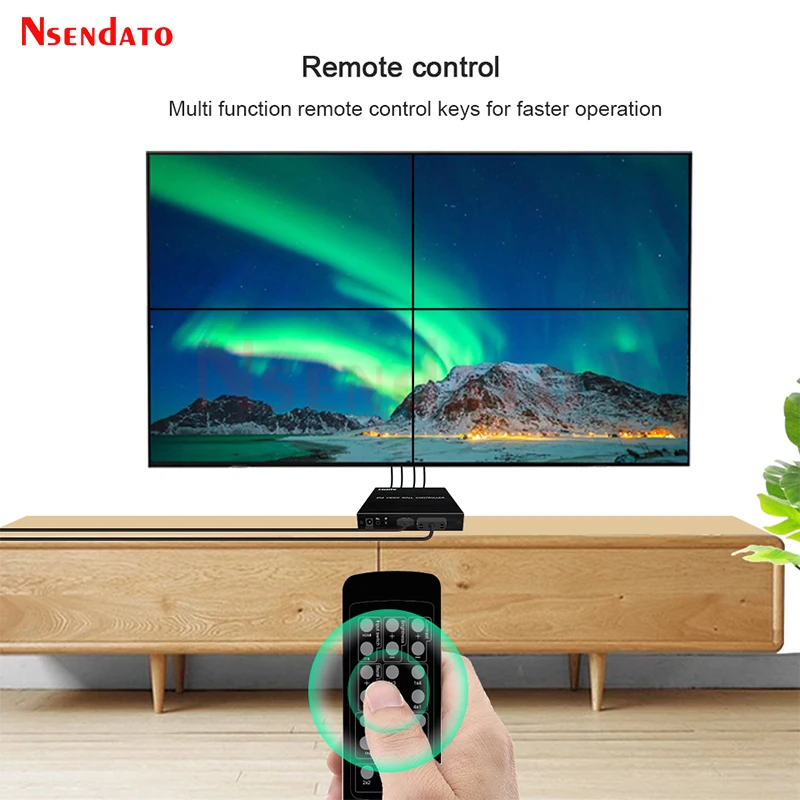

Remote control without battery

RS232 cable

User Manual
