Item Introduction:
New products,very powerful ,original high quality,buy with confidence !
Brand new and high quality,buy with confidence!

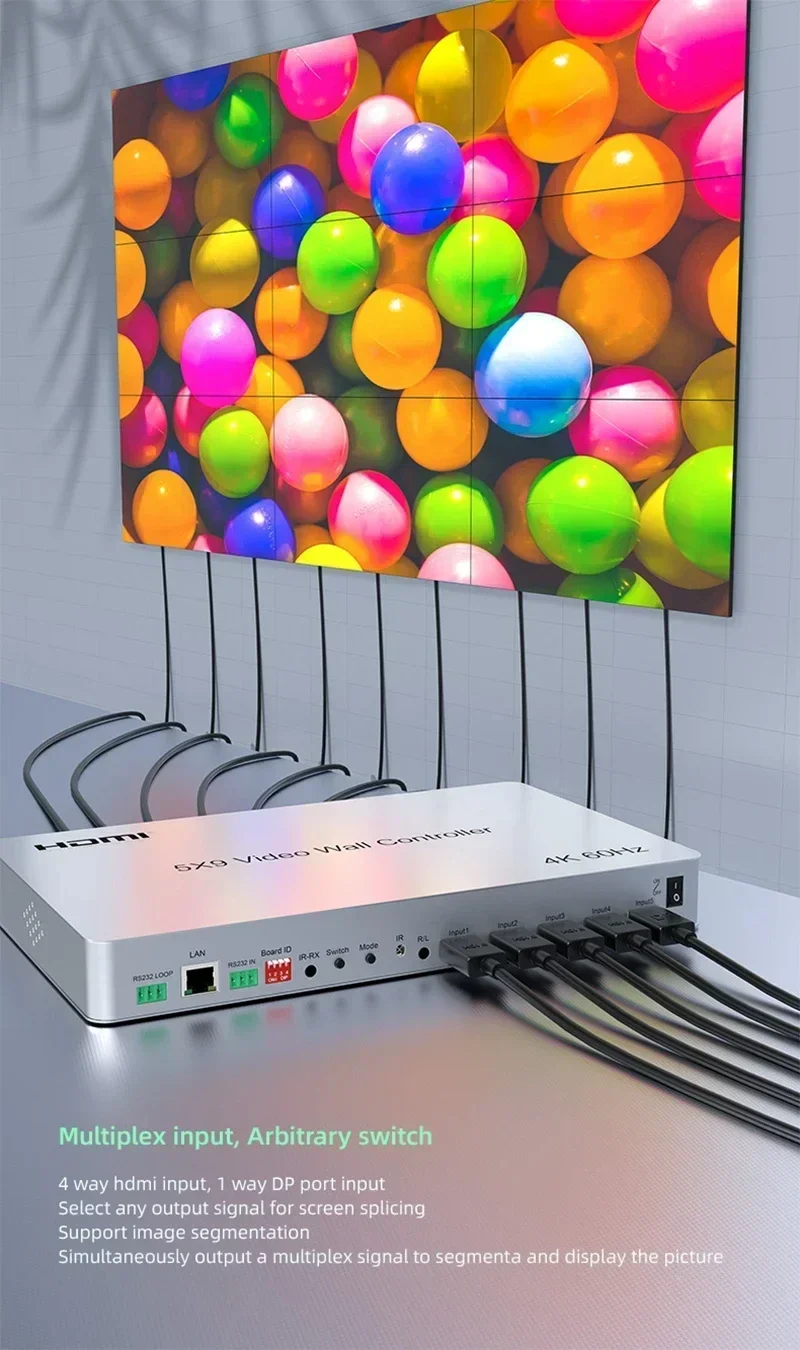

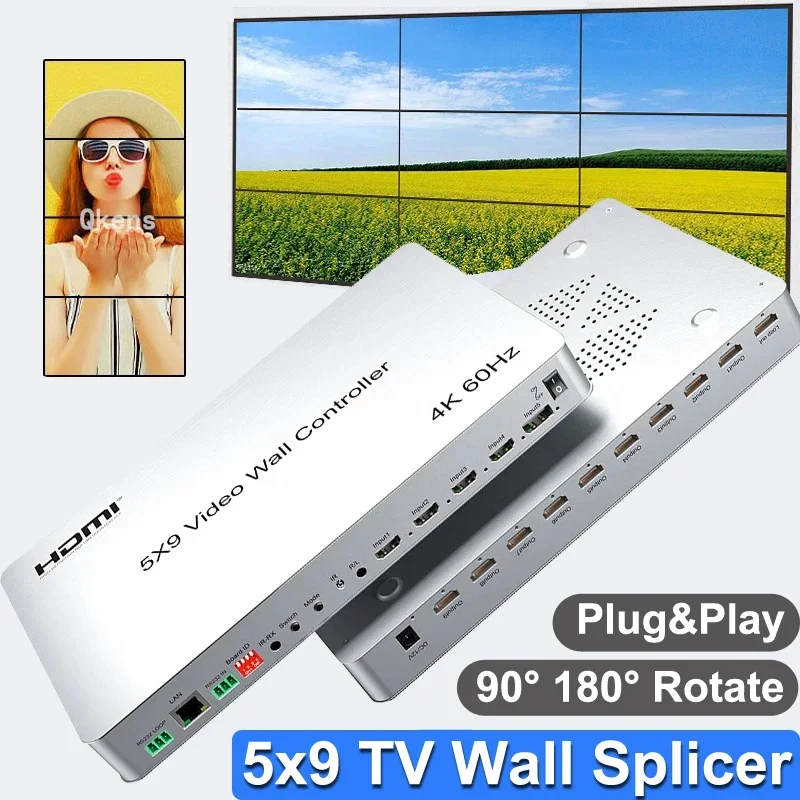

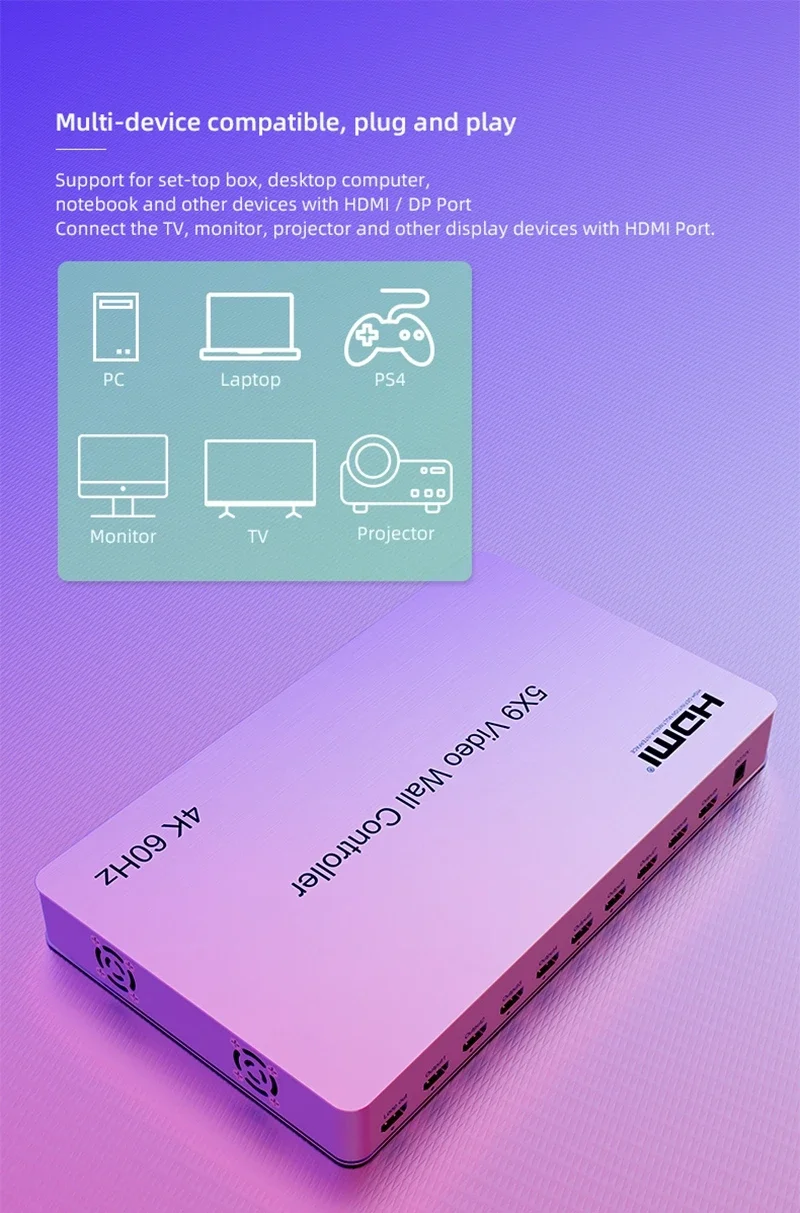

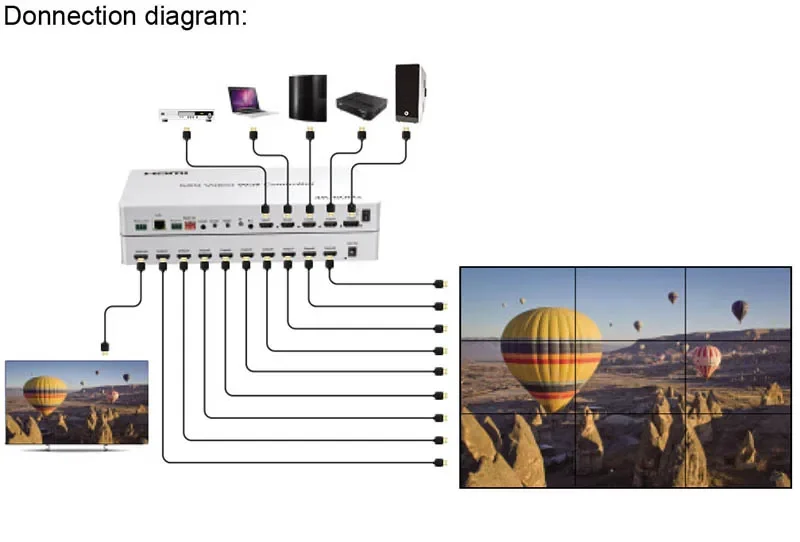

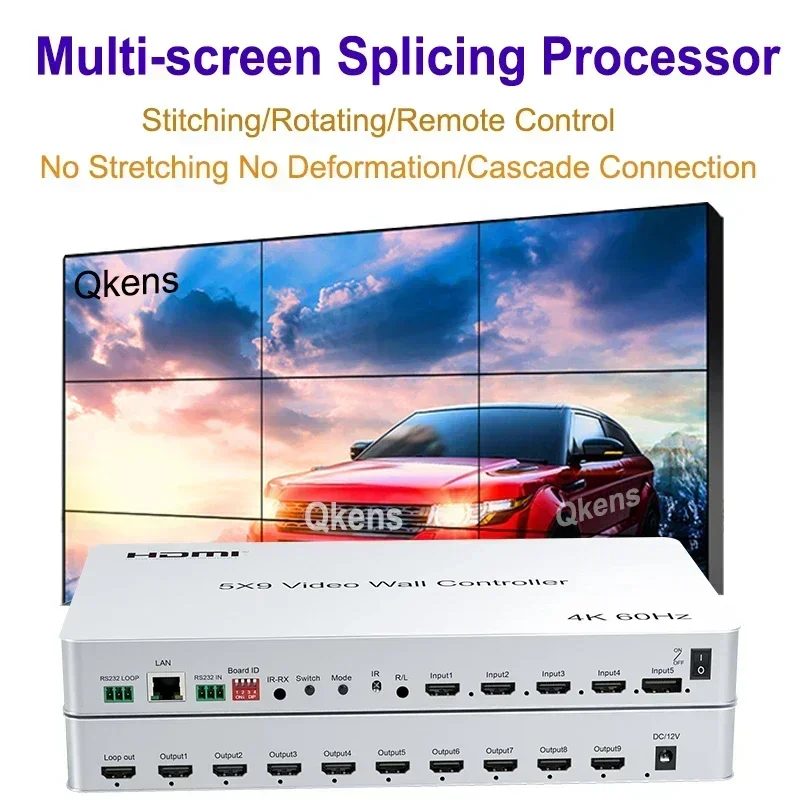

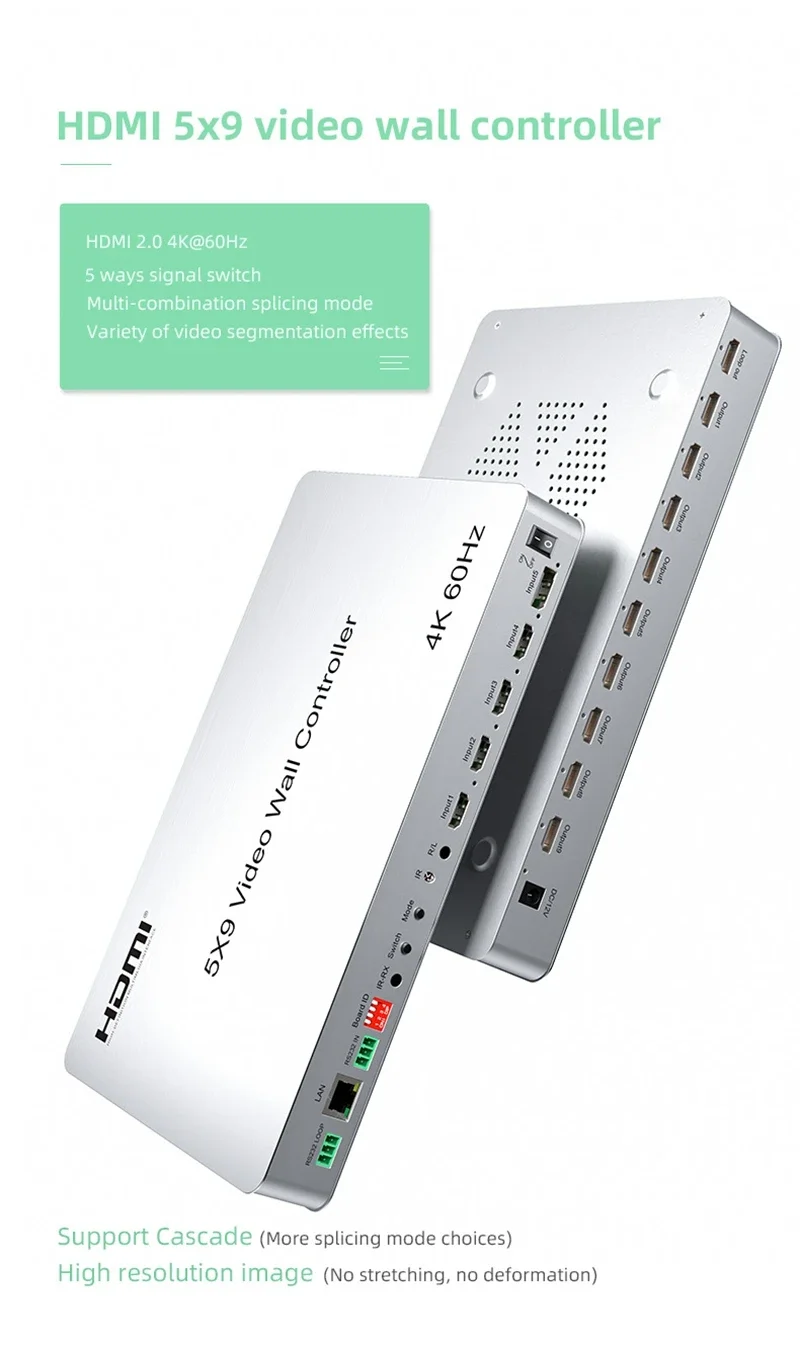

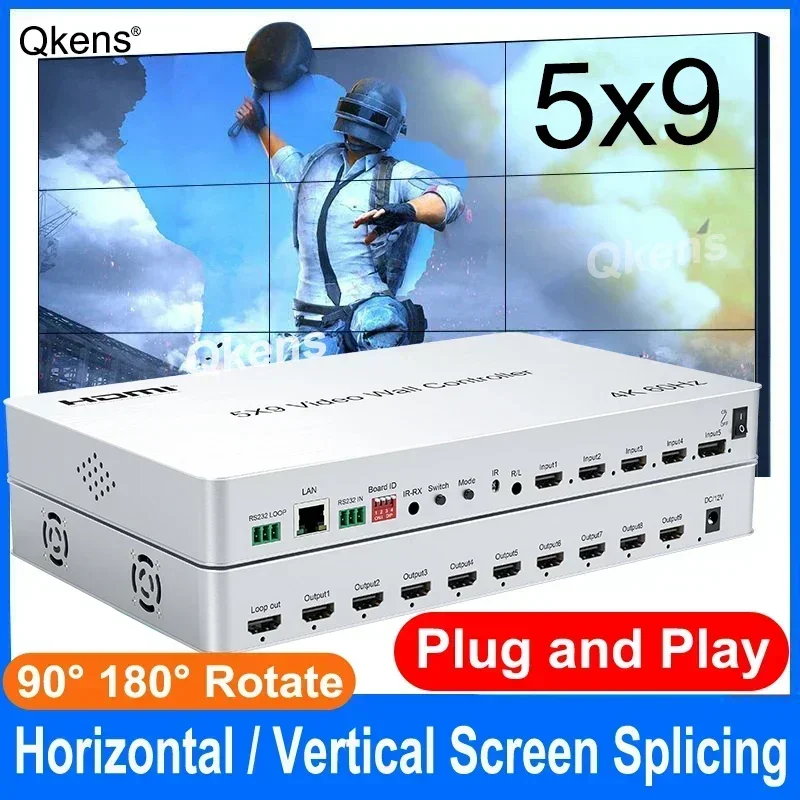

This 5x9 video wall controller support 4 way hdmi input and 1way DP input,10 way hdmi output,(9 way splicing
with 1 way local bypass); the main function is to divide a complete hdmi HD image signal into 9 pieces and then
be assigned to 9 video display units ((such as Rear projection unit, LCD TV, etc). Completed with 9 HDMI
high-definition video display units to form a large dynamic image screen.
At the same time, the 4-way hdmi HD signal can be displayed on the screen, and has a variety of video
segmentation effects.
It is mainly used in ultra-high definition video surveillance, large screen wall, store
advertising screen, exhibition screen and other industry applications
Features:
* Supports 4 way hdmi input (1 way 4k@60hz, 3 way 4k@30hz), 1 way dp input (4k@60hz),
and 9 way hdmi output (1080p@60hz),1 way hdmi bypass (image is consistent with the splicing image),
one 3.5mm headphones stereo output.

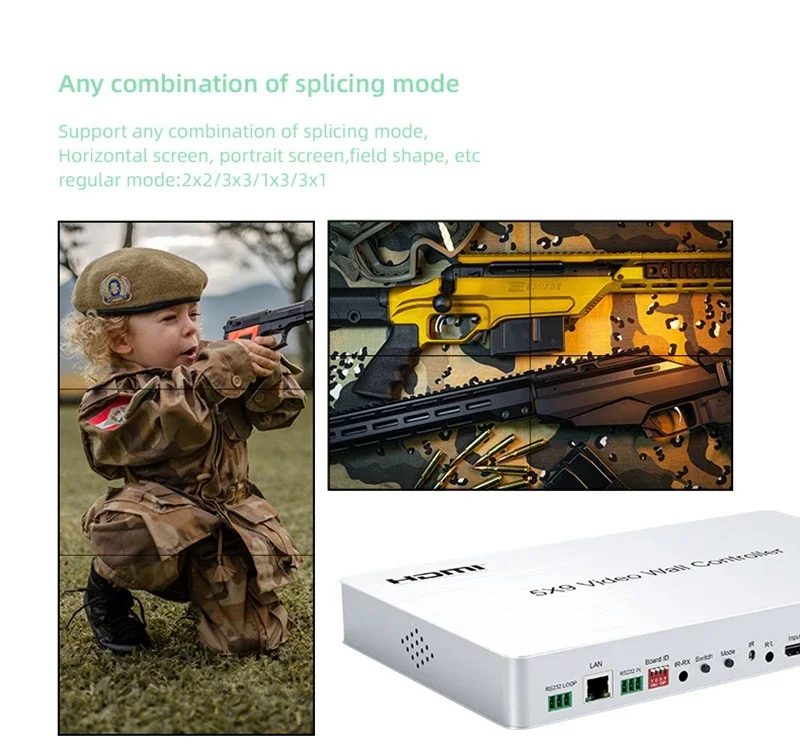

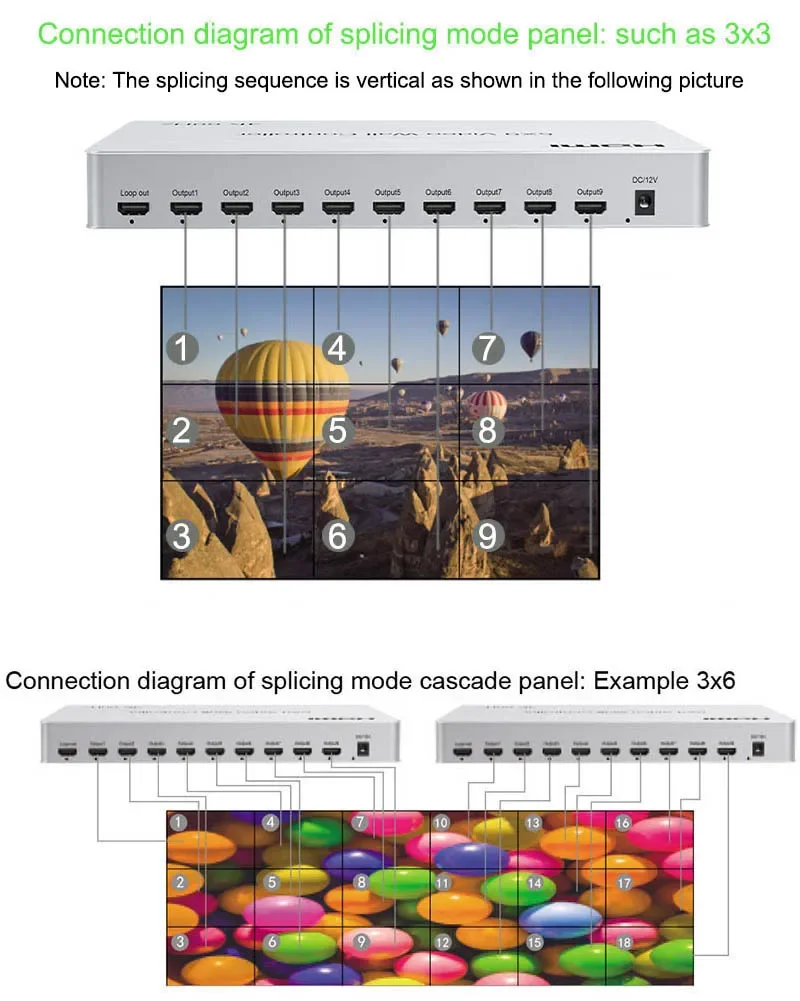

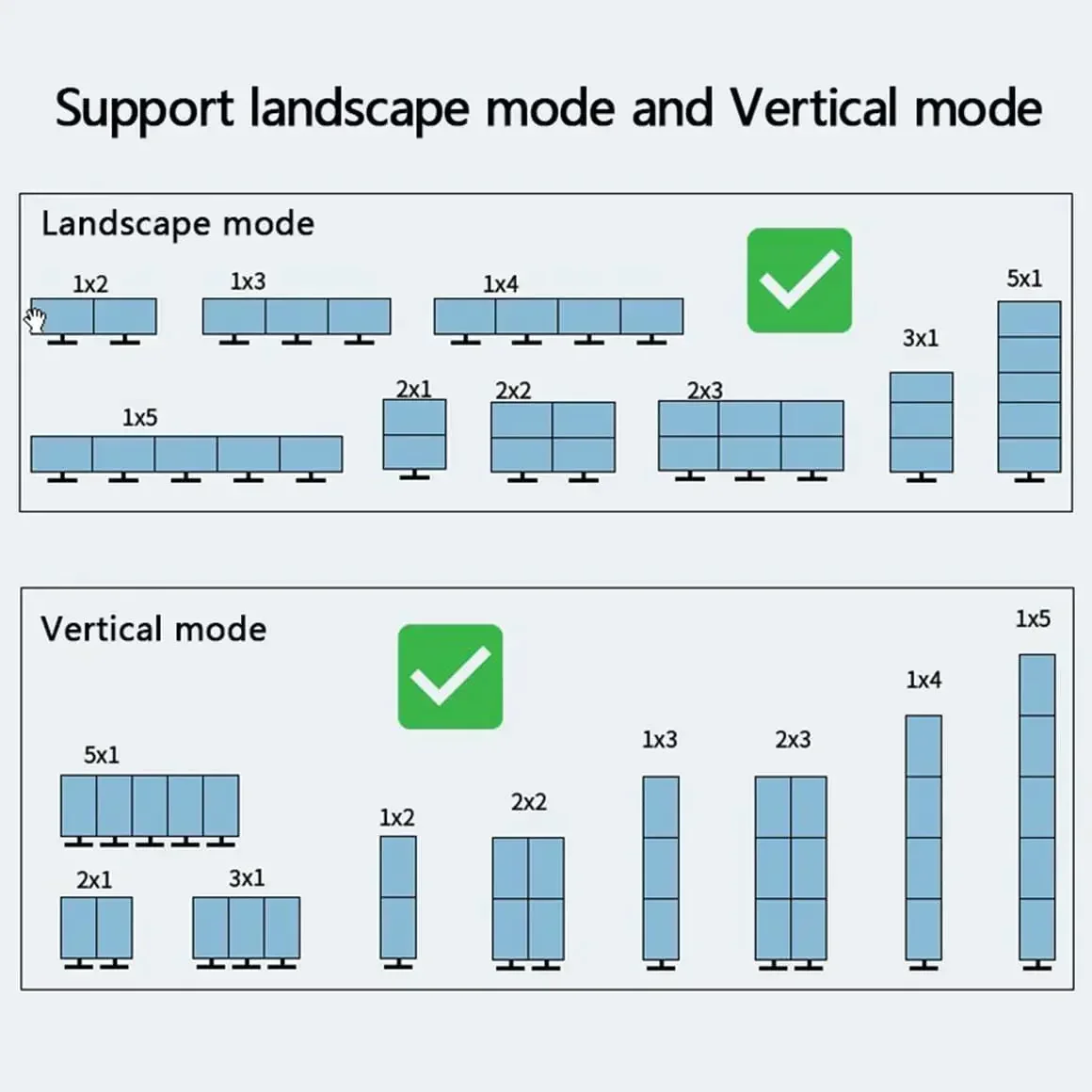

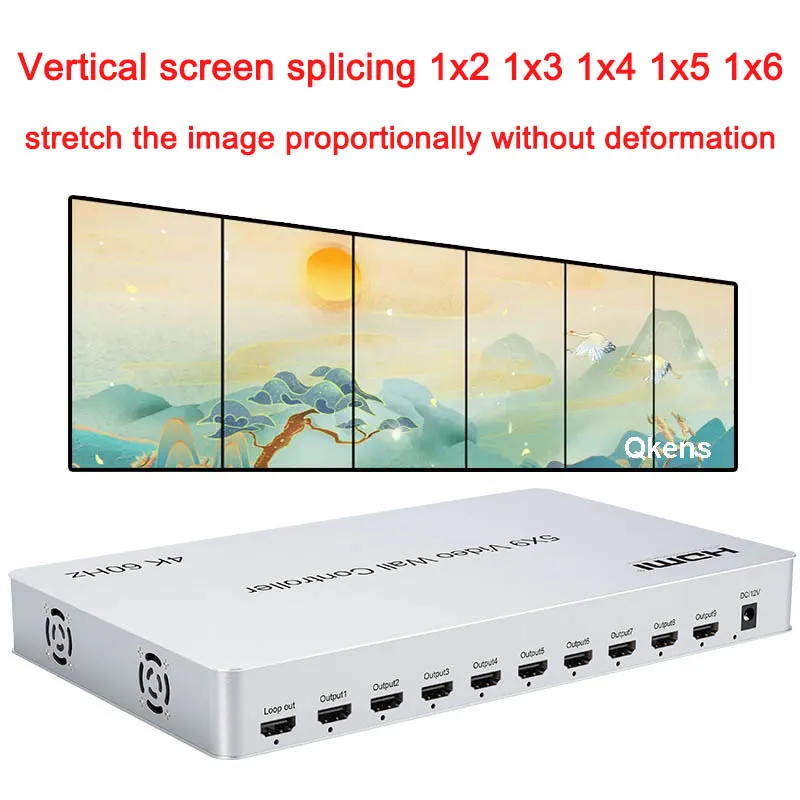

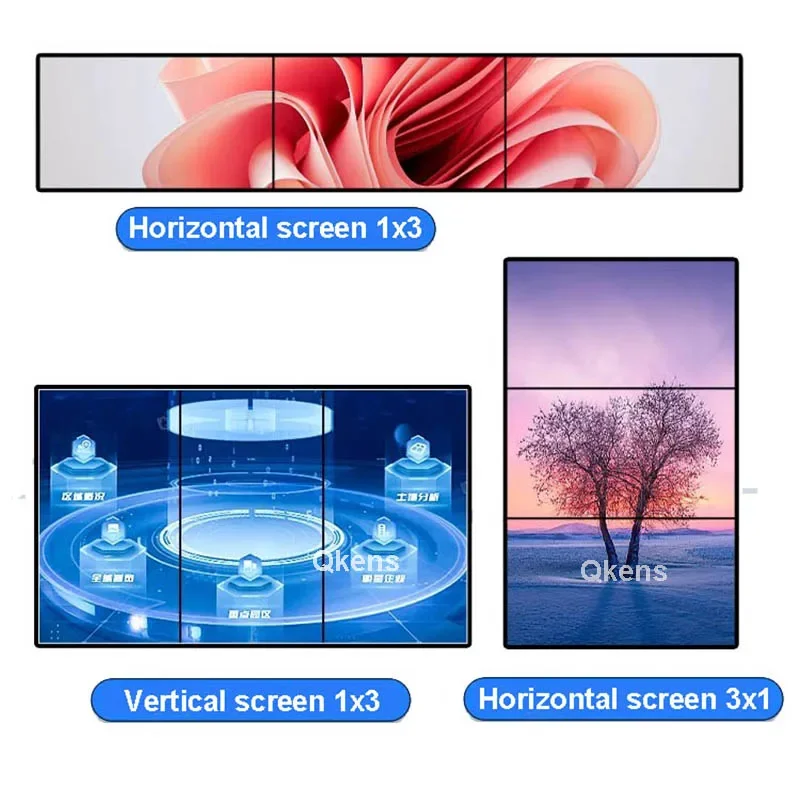

* Single device, 5 in 9 out (1x1~4x4 compatible),various splicing modes: horizontal screen /vertical screen / 2x2,

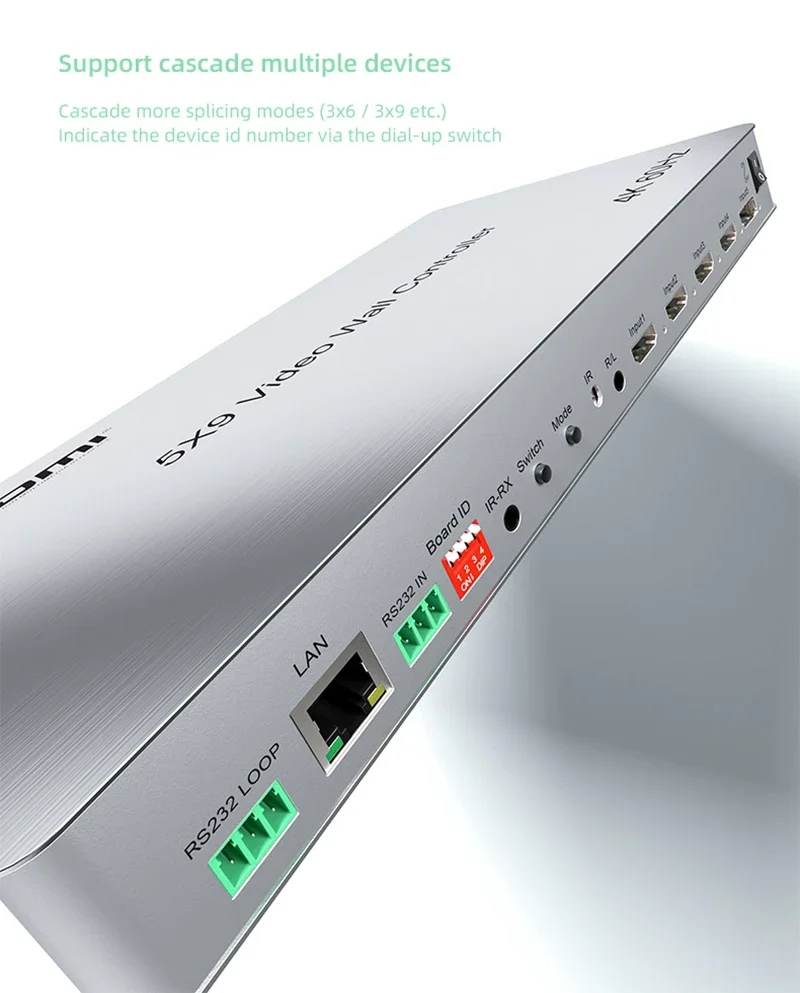

and support the large-scale cascade connection

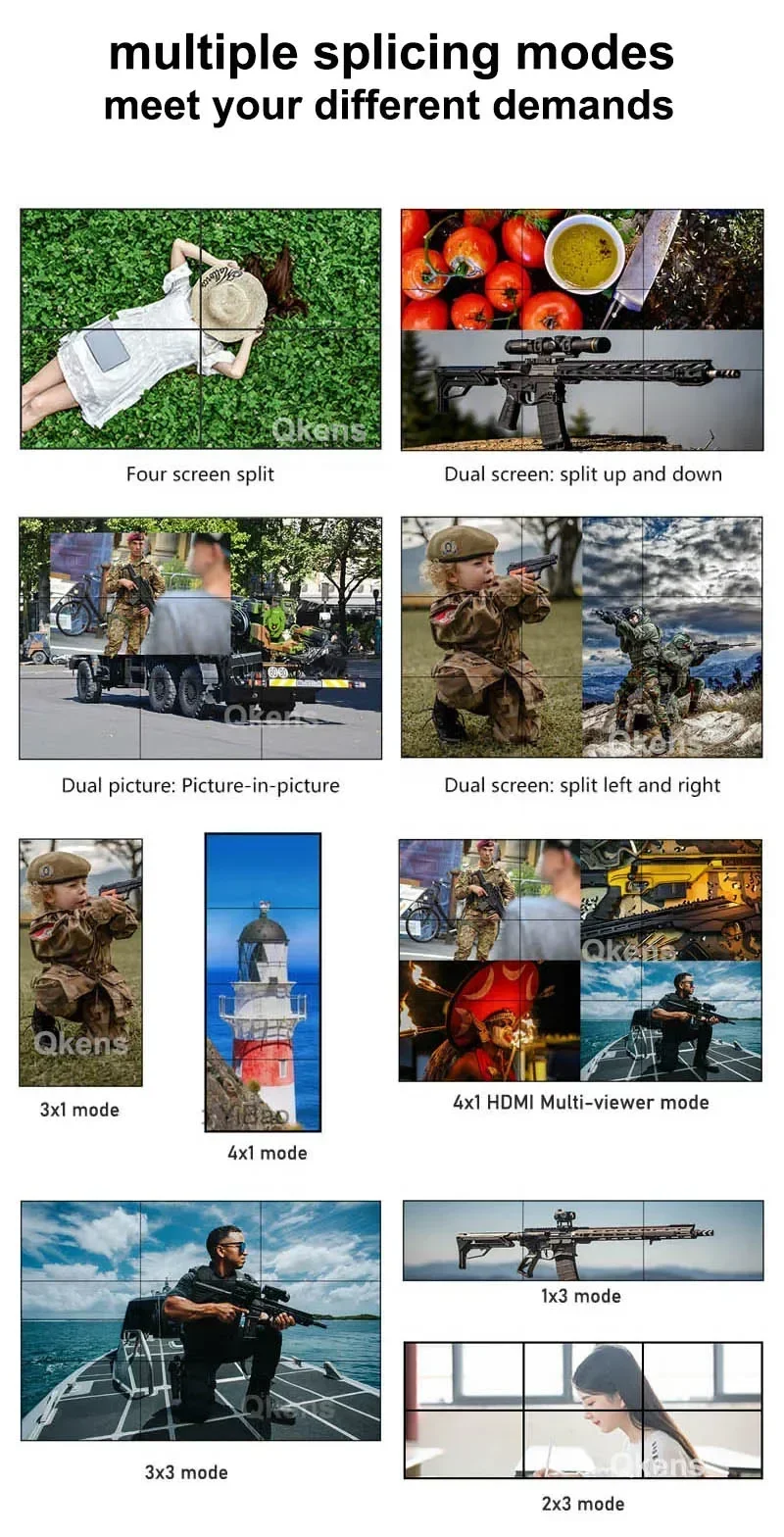

full screen 4 segmentation, support a variety of segmentation modes(Single
picture, double picture with picture in picture, four picture segmentation),any input source
channels can be allocated to the split screen.
* Input resolution up to 3840x2160@60Hz,downward compatible,one output resolution,
the output resolution support up to 1920x1080@60hz(Output supports custom standard resolution).

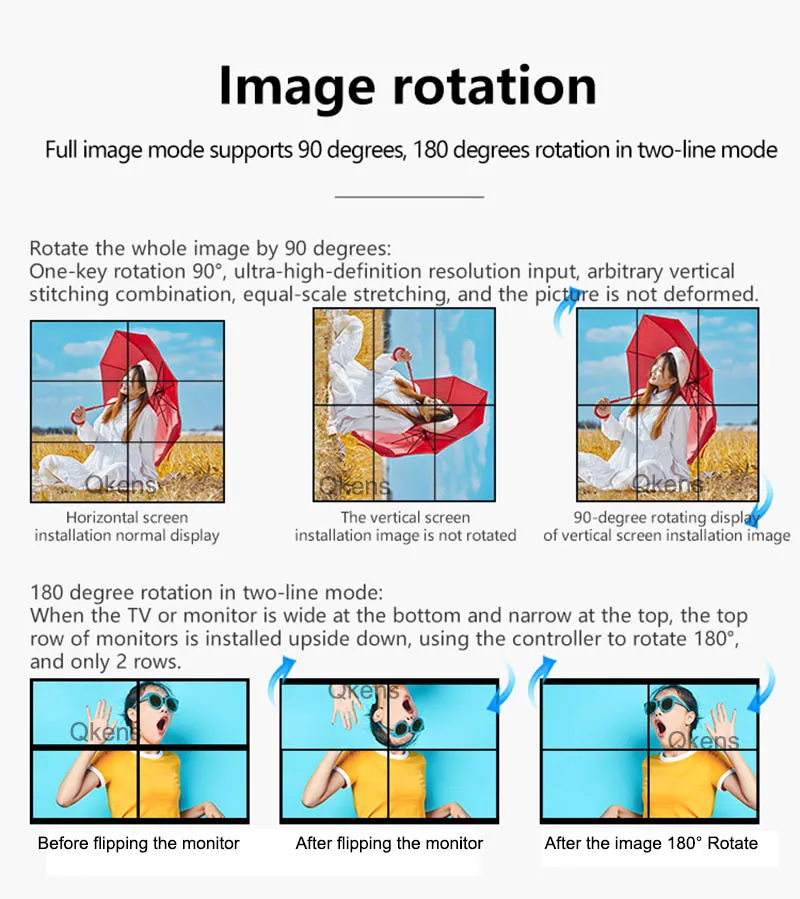

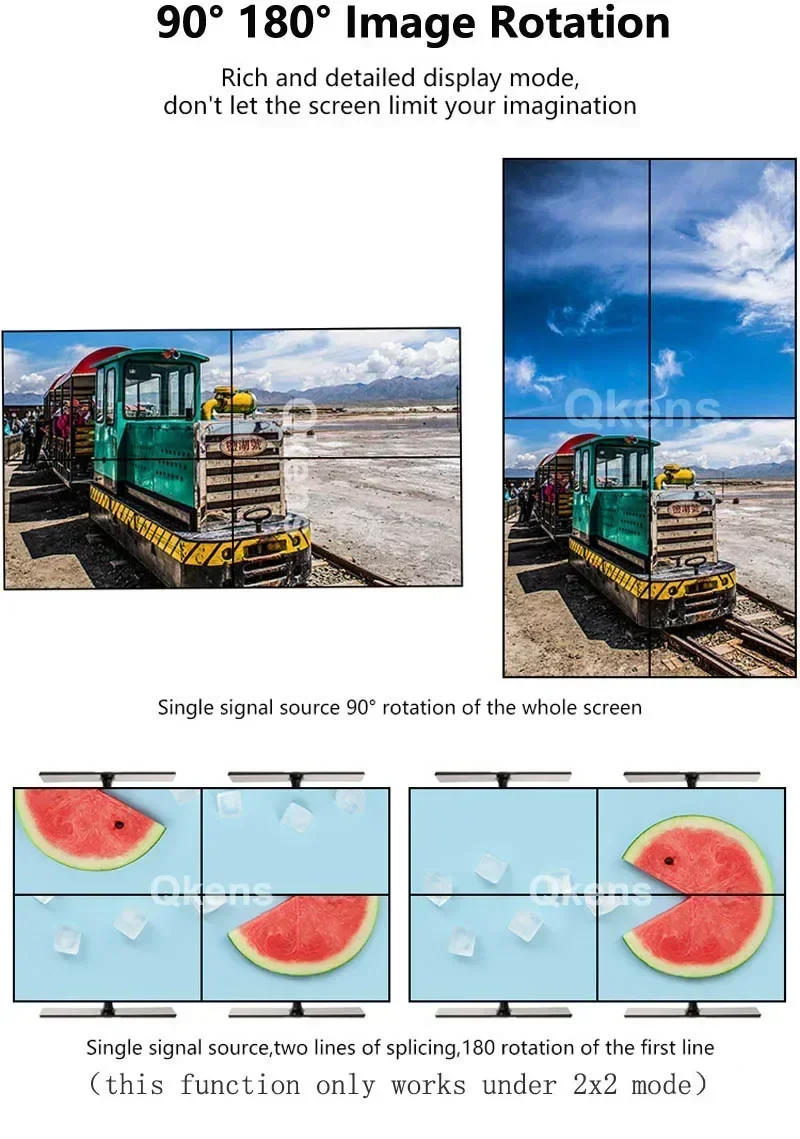

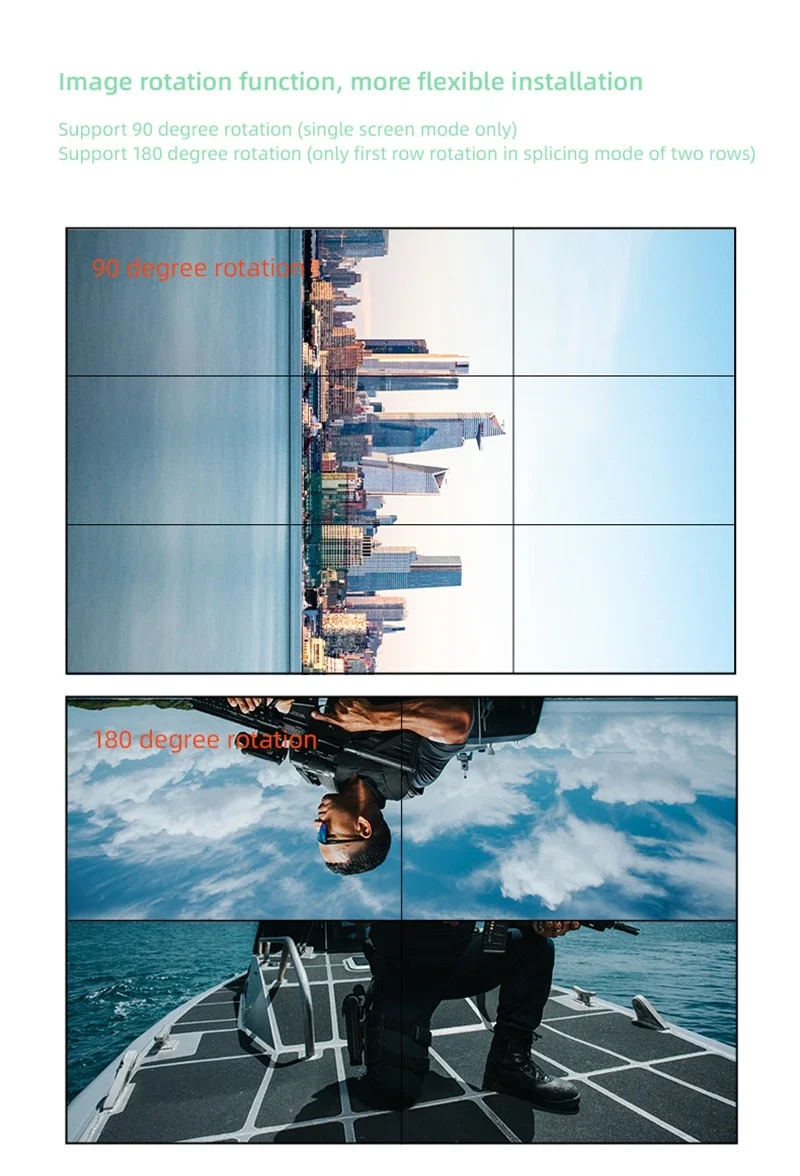

*Input supports full-screen 90°rotation
180 ° rotation(Support only in splicing mode when two rows)
*No stretching, no deformation
Input cable length .......................................................... ≤5m AWG26 HDMI standard cable
Output cable length ................................................ ≤5M,AWG26 HDMI standard cable
Max working current ............................................................................................. 1 A
Power adapter specifications ......... input AC (50HZ, 60HZ) 100V-240V Output 12V DC/2A
Operating Temperature range ........................................................... (-10℃～ +45℃)
Dimension (L x W x H) ..............................................................approx. 305x184x37(mm)
Weight .......................................................................................................approx. 1720g

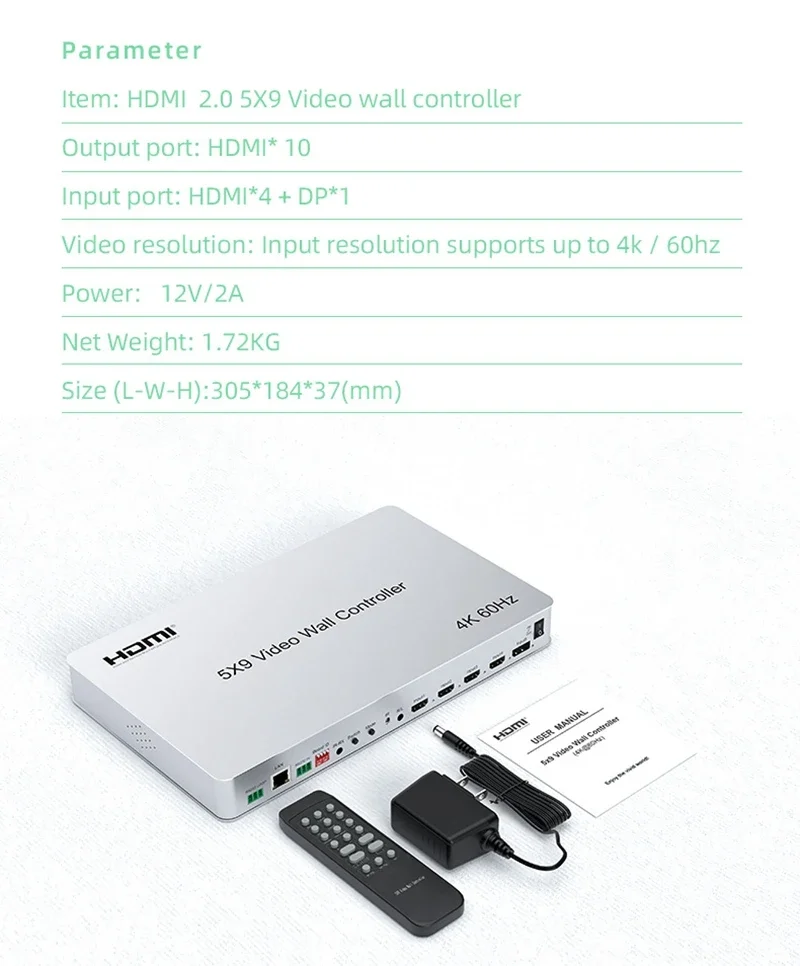

Package Content:
1PCS 5X9 Video Wall Controller
1PCS Remote controller without battery
1PCS DC 12V Power Adapter
1PCS User Guide
No other accessories,if any need,freely consult us before purchase !
