Controlador de pared de vídeo 1080p 2x2 HDMI DVI 1X2 1X4 1X3 4x1 procesador de empalme multipantalla TV Splicer Box 180 ° Flip Plug and Play

Introduction:

Brand new and high quality,buy with confidence !

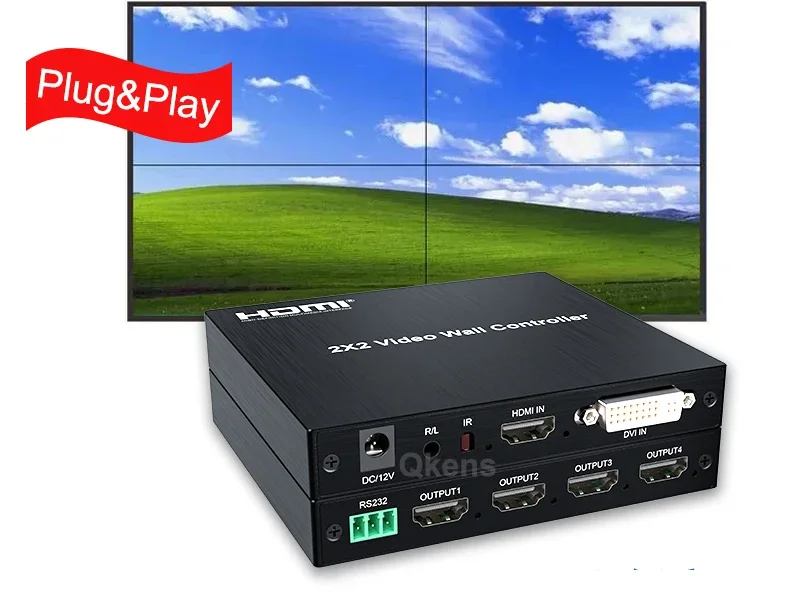

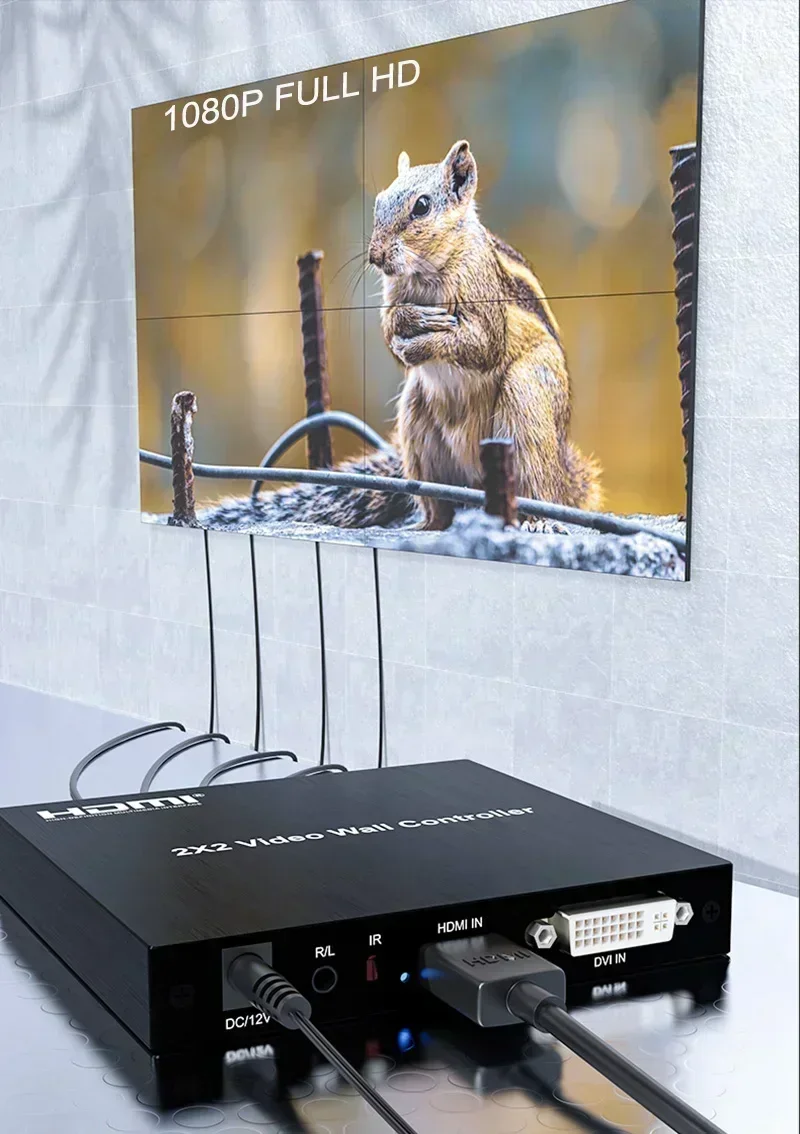

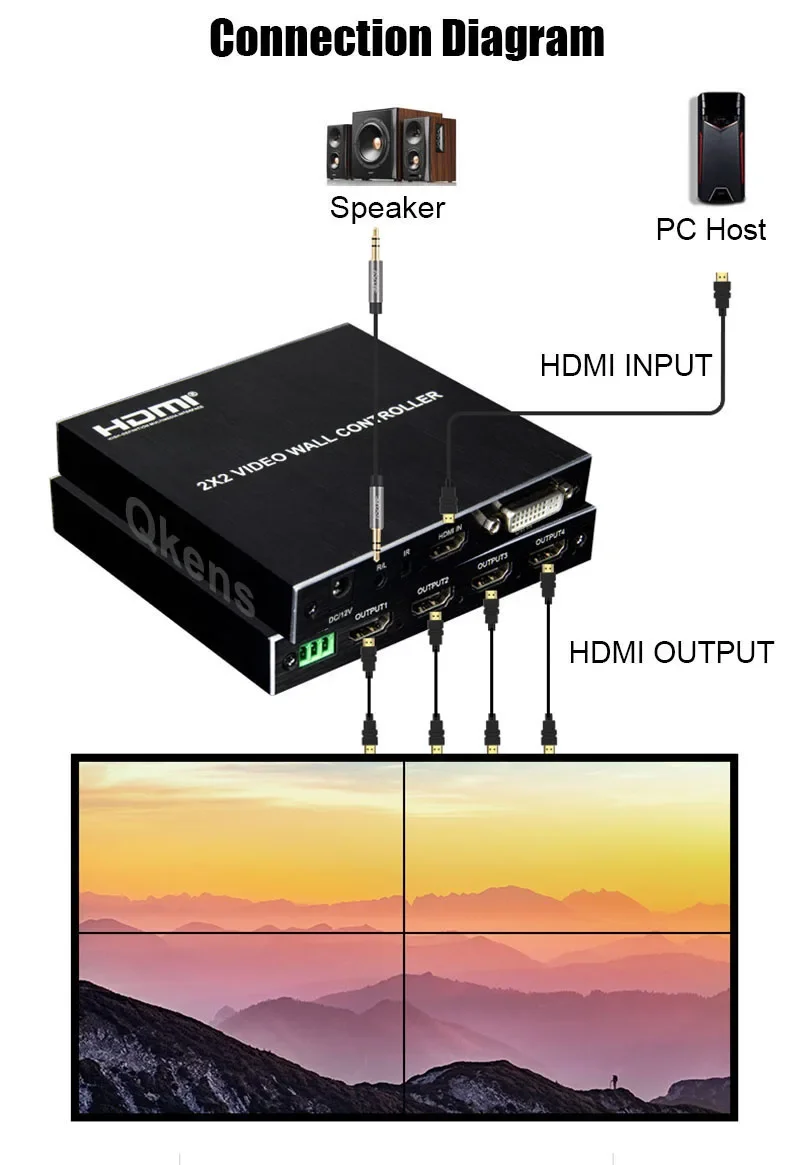

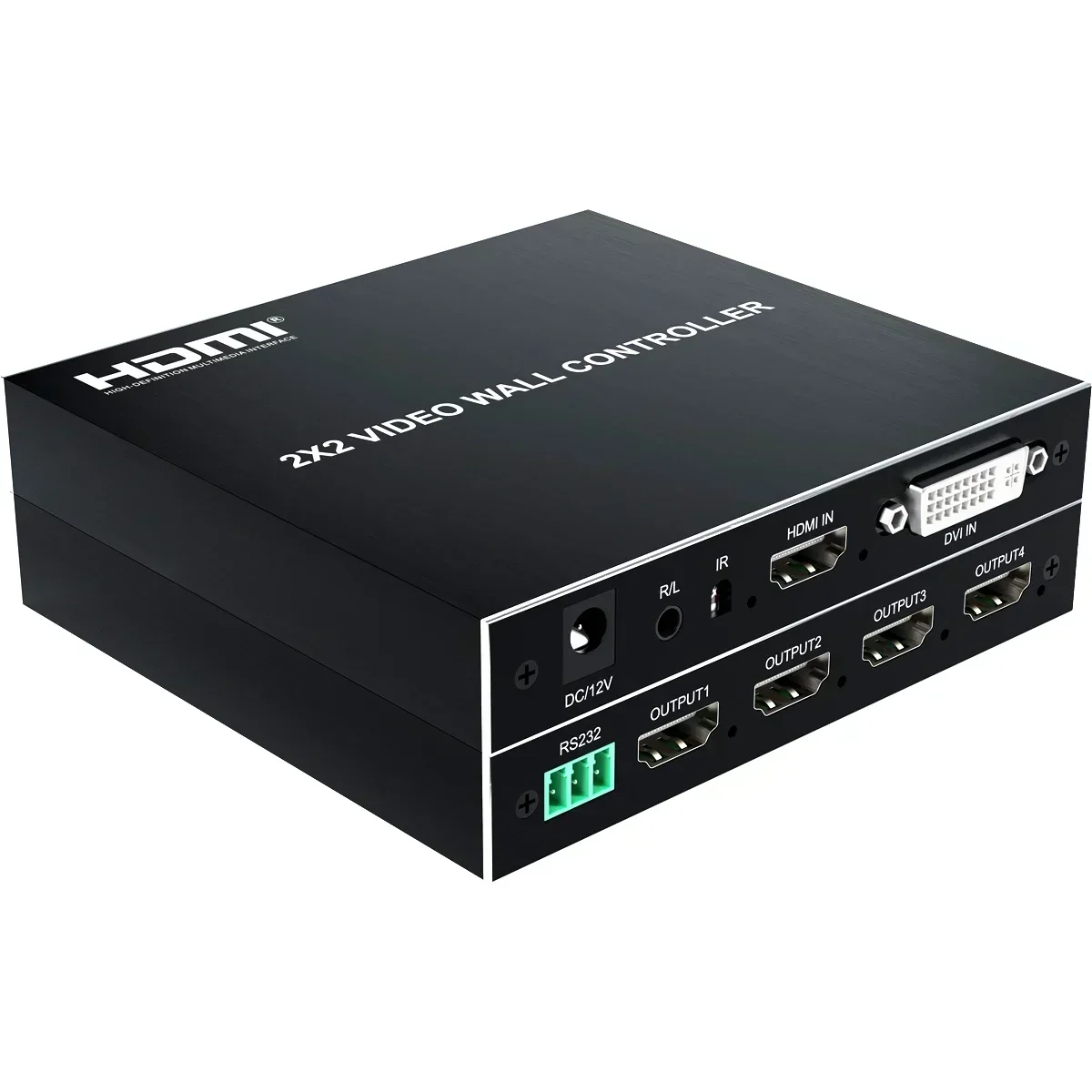

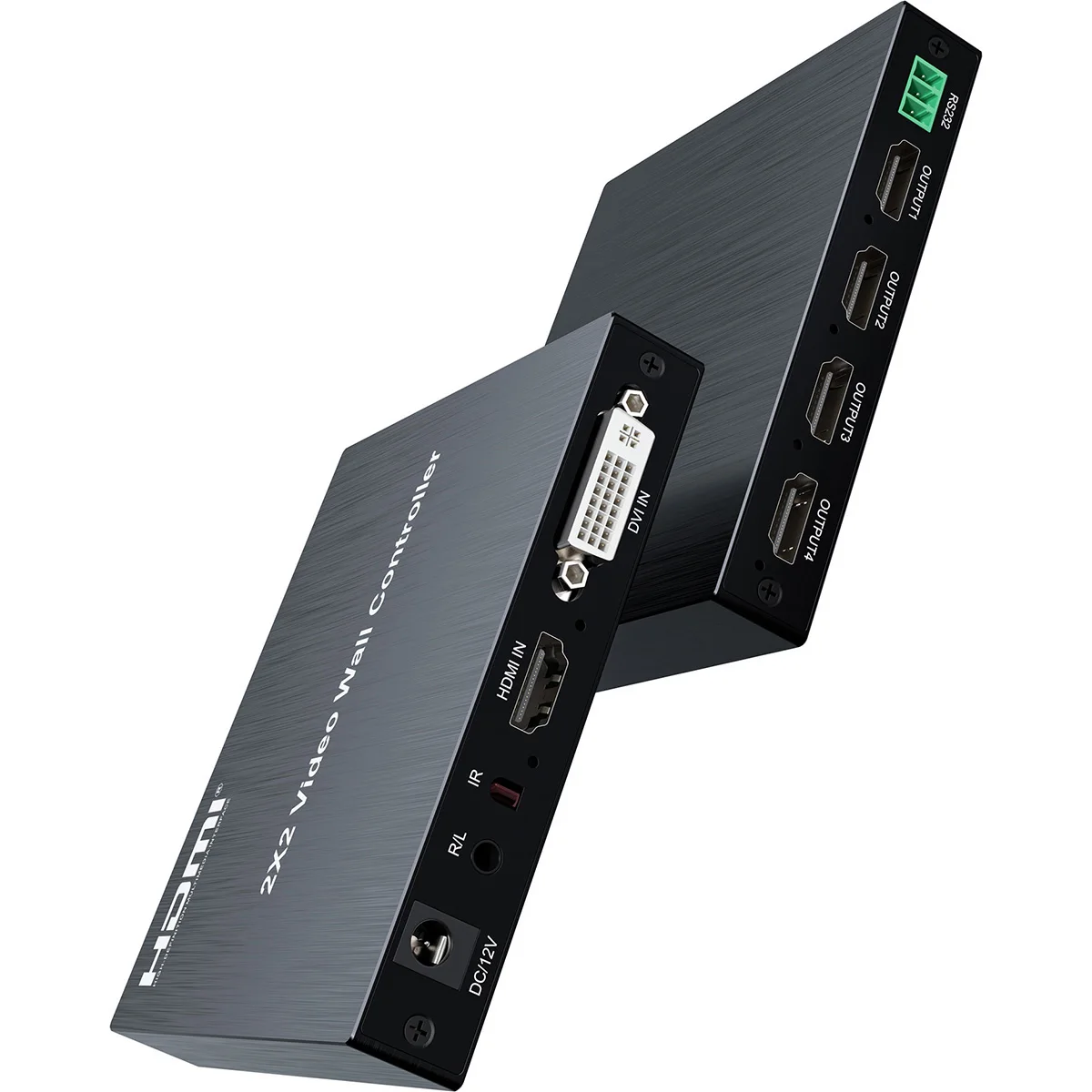

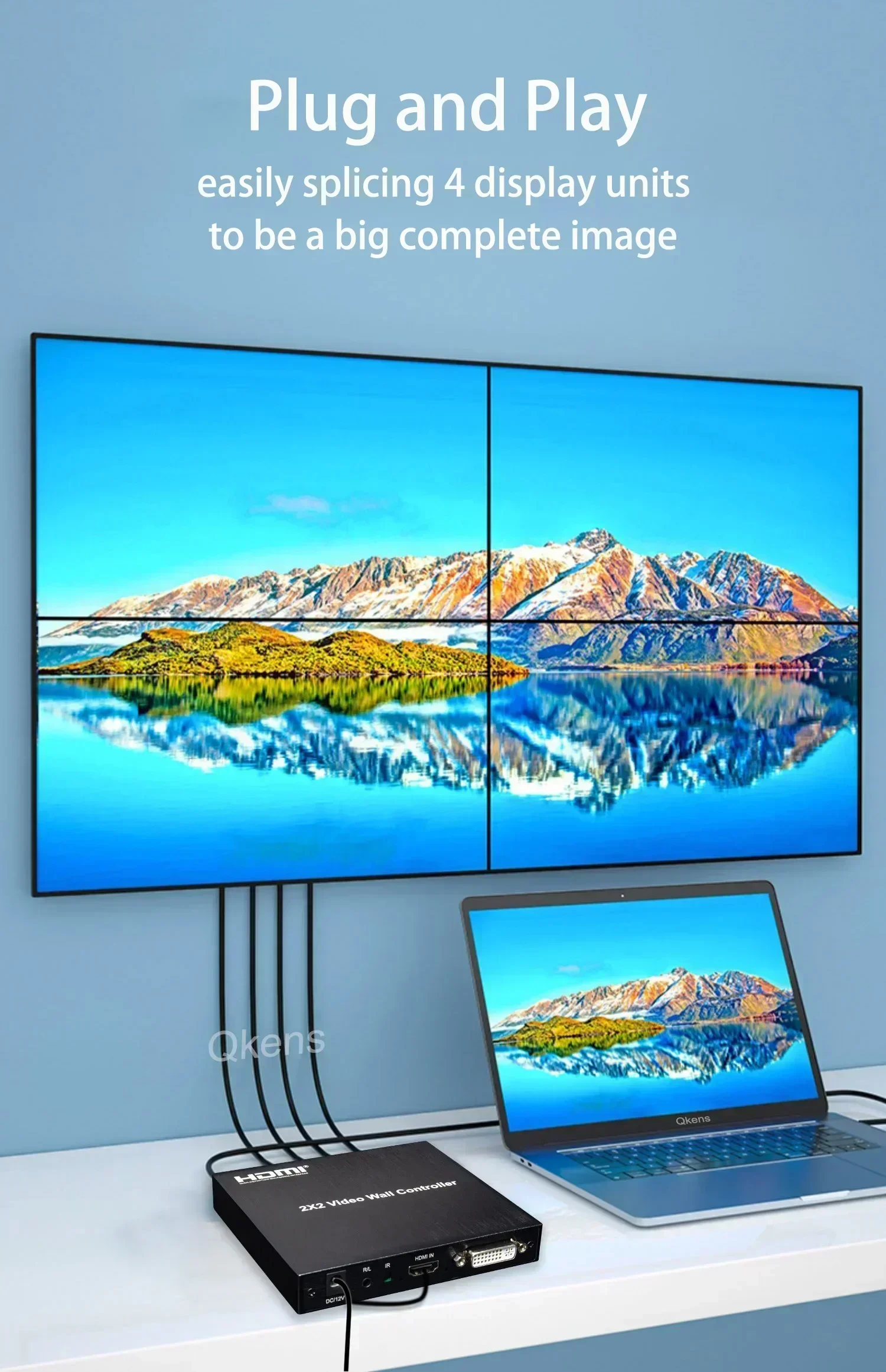

Our 2X2 video wall controller,support 1 HDMI or DVI input and 4 HDMI output,its main function is to
divide a complete HDMI or DVI HD image signal into 4 blocks and assign to 4 video display units (such as rear
projection unit, LCD TV, etc.). Complete with 4 HDMI HD video display units to form a large dynamic image wall.

Features:

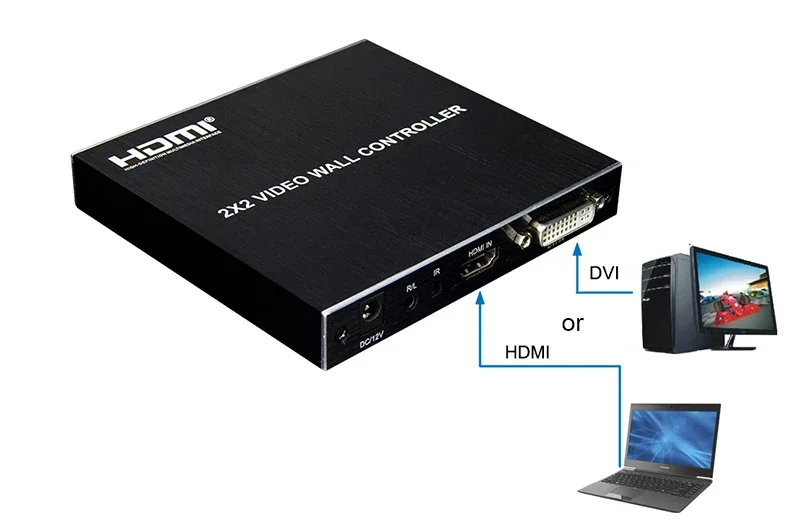

Support HDMI and DVI input;
Support 4 HDMI output;
Output support RGB 4:4:4;
Support input resolution 1080P/1080i/720P/576P/576i/480P;
Support output resolution 1080P/1080i/720P/576P/576i/480P;

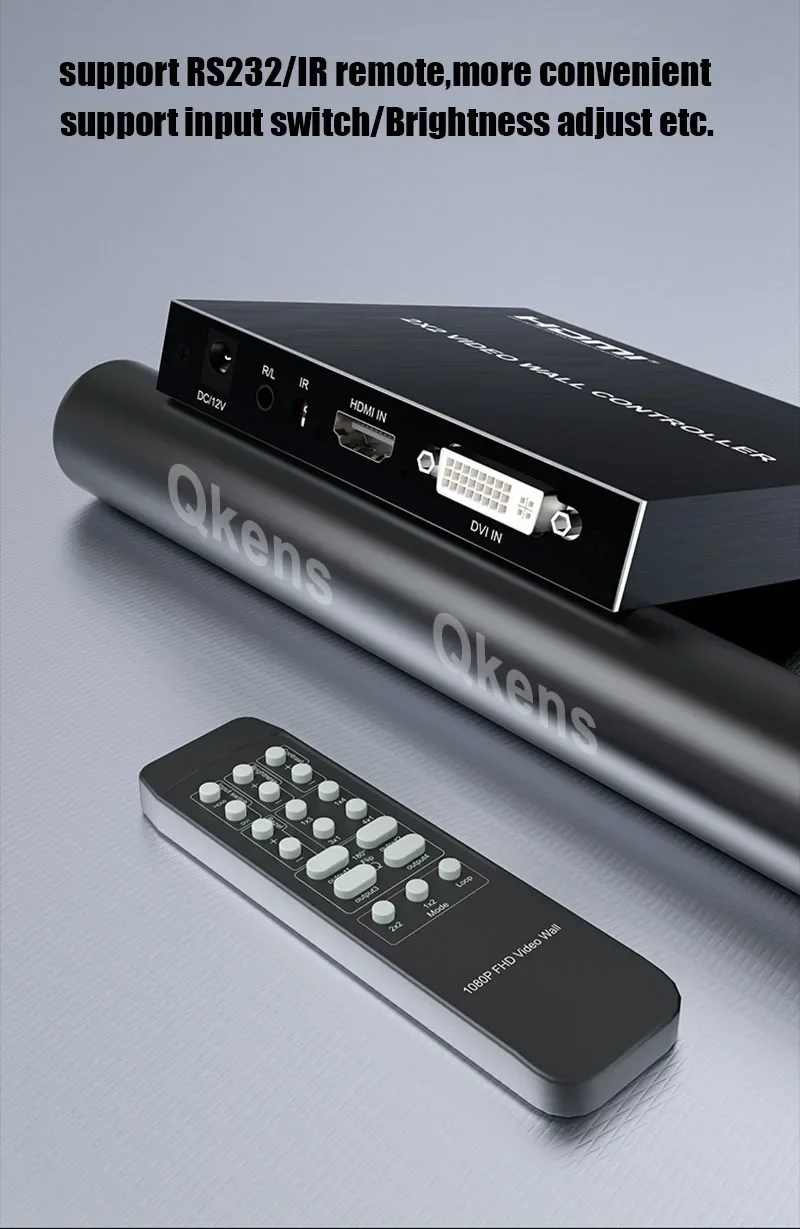

Support RS232 control;

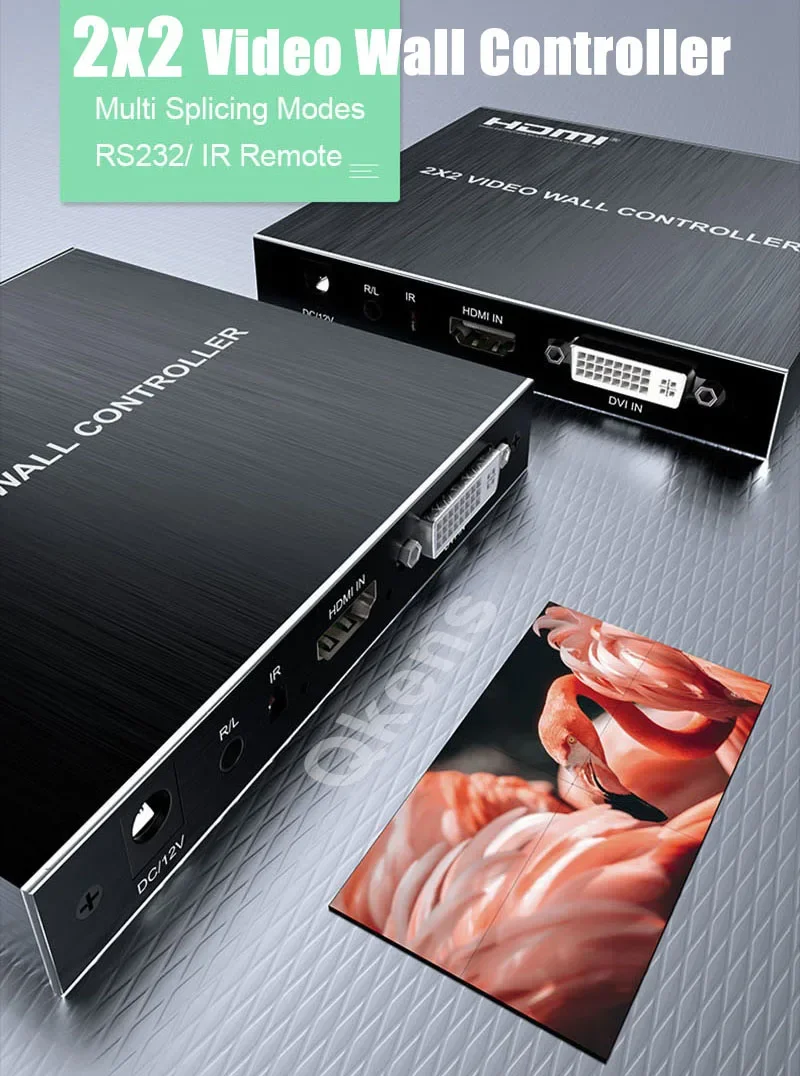

Support 1x1/2X2/1X2/2X1/1x3/3x1/1x4/4x1 8 splicing modes
Support 2X2 automatic splicing function;

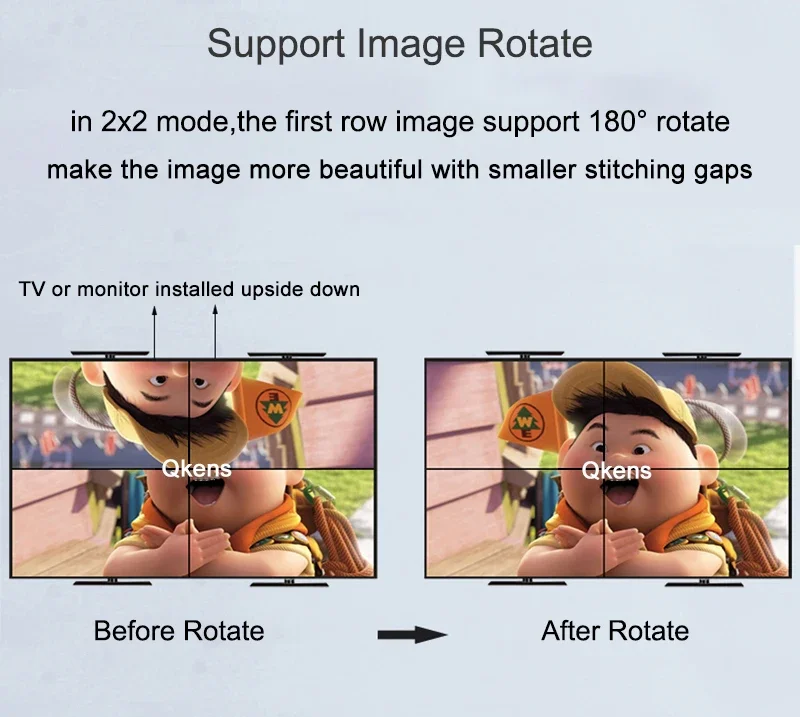

Support under 2x2 mode,the first row two display units 180° Rotate

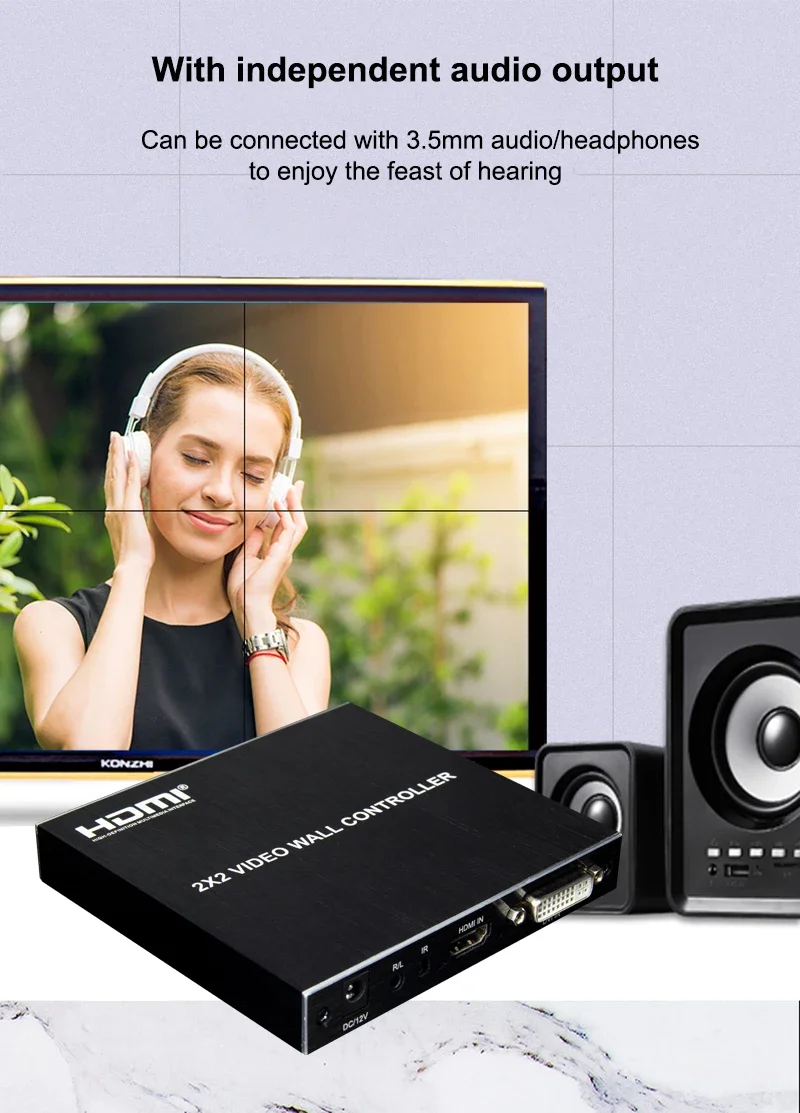

Support audio seperation
Input cable length:≤5m AWG26 HDMI standard cable
Output cable length:≤5M,AWG26 HDMI standard cable
Power adapter specifications:input AC (50HZ, 60HZ) 100V-240V Output 12V DC/1A
