DL03 Micro Brushless ESC Controller Motor Governor Module Servo Motor Drive ESC Board 8A for 1104 1106 1306 Brushless Motor
Product Description.

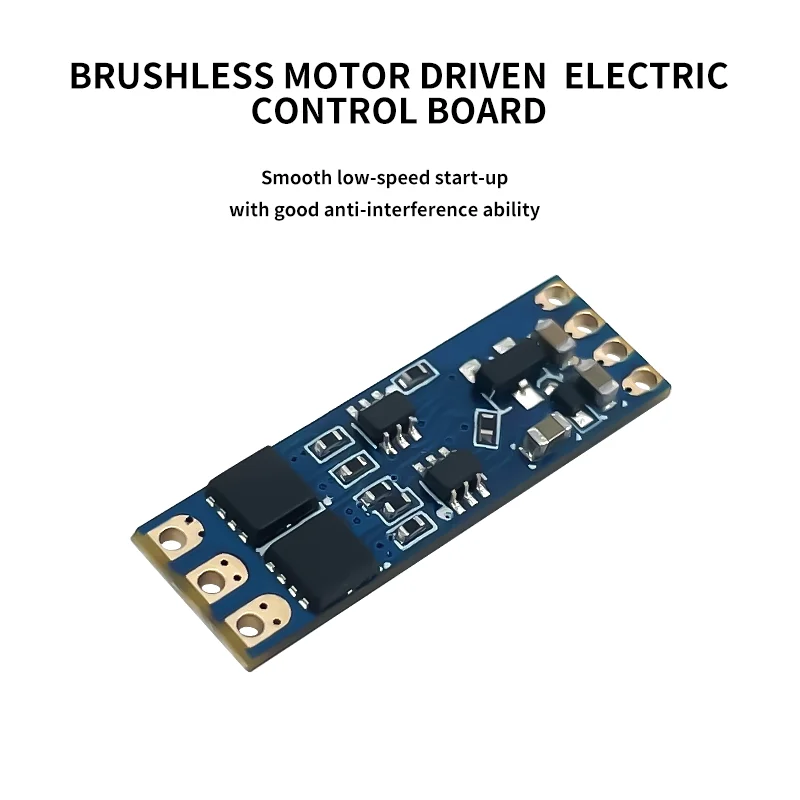

DL03 is a brushless electronic speed controller module.
It can adjust the motor speed according to the control signal, with the characteristics of
compact size, good stability, smooth low start, etc.
It can be widely and quickly applied to brushless power system products.
Product Parameter
DL03 brushless ESC parameters
Output capacity: continuous current 8A (depending on the actual load power)
Power input: 12Vdc (5-16Vdc/2-3 lithium battery packs)
Control Signal: PWM
Signal pulse width: 0.9mS ~ 2ms

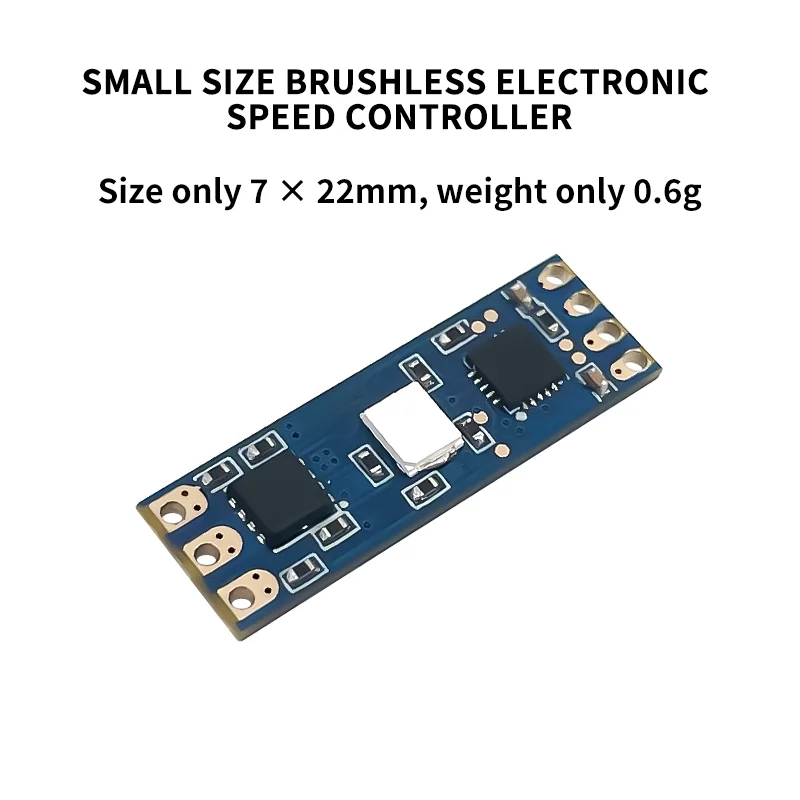

Dimensions : 7x22.4x2.7mm
Weight : 0.6g
Frequently Asked Questions.
1. Buy only if you know how to play! Warning you must be very careful
when connecting the power supply, look at the positive and negative
poles before wiring! It is strongly recommended to connect capacitors
and diodes in parallel between the positive and negative poles to
protect the other components of the ESC!
2. This product is 8A brushless ESC (1~3S), can only be applied to
brushless motors! Special reminder: ESC overload operation is easy
to overheat protection, the motor will slow down or stop,
or even burned out!
3. 2s power supply must be connected in parallel capacitors!
Be sure to add heat dissipation when using, especially after
connecting 2A ~ 3A! ESC only has signal input pin, without BEC 5V
power supply voltage output, standard PWM signal drive for common
model receivers, can be driven by ESC tester. ESC is suitable for
1104, 1106 or 1306 and other small brushless motors,
the actual use needs to be tested.
4. After installing the ESC directly, if you hear a dripping sound
and the motor does not turn or the speed cannot be increased,
the possible reasons are as follows:
a. Please make sure the motor and ESC power match;
b. The three wires of brushless ESC can be connected arbitrarily,
if the steering is not right, you can adjust any two of the wires to each other.

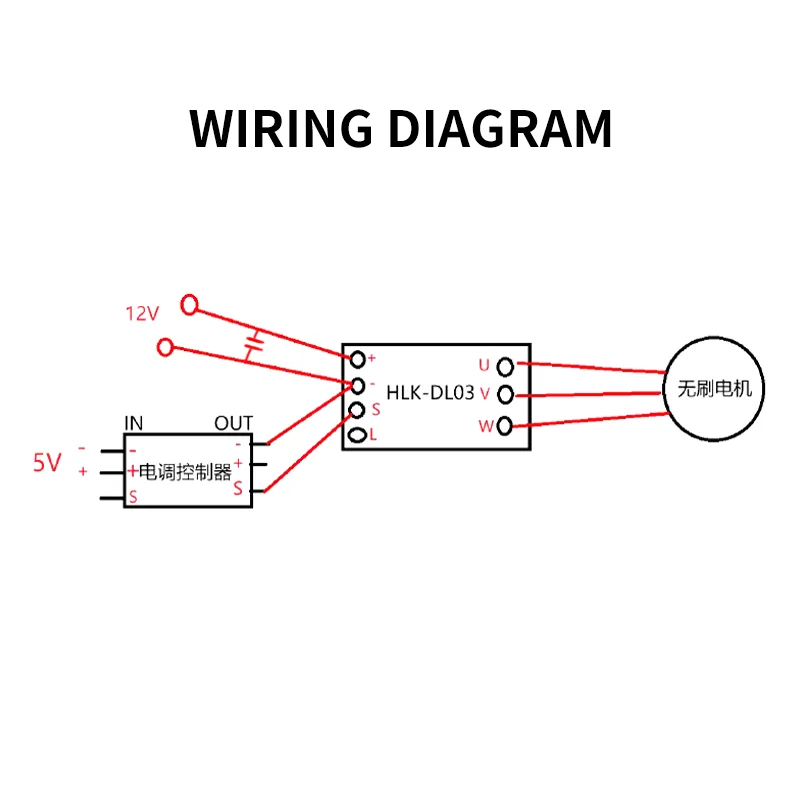

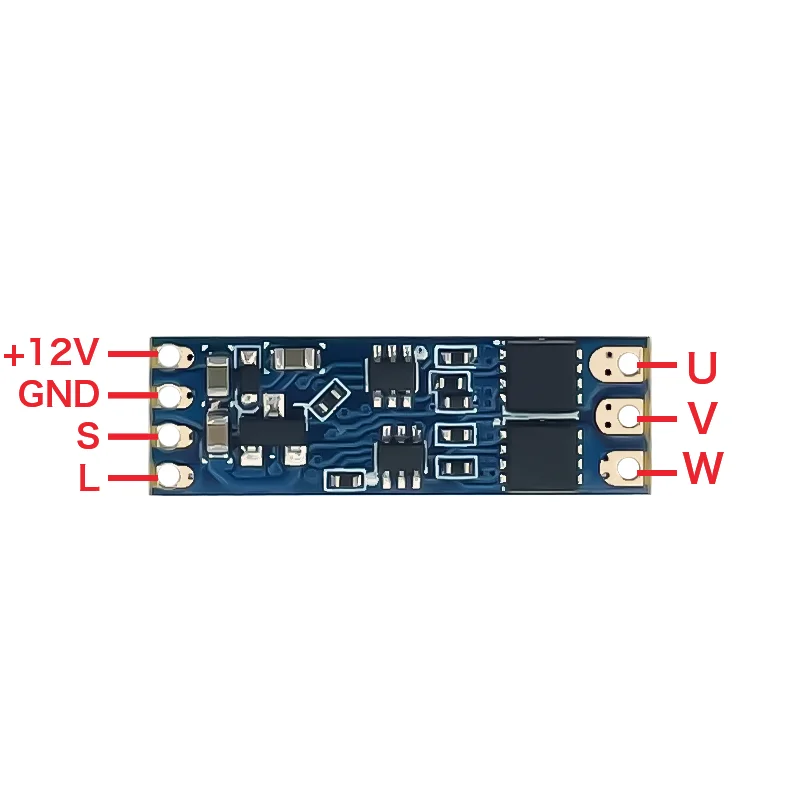

C. General wire colour: red positive, black negative, yellow signal wire.
Positive pole: 12Vdc power supply; Negative pole: power ground;
S: signal line, PWM signal; L: indicator, connected to the negative pole light.
U/V/W: connect to brushless motor.
