Descripción

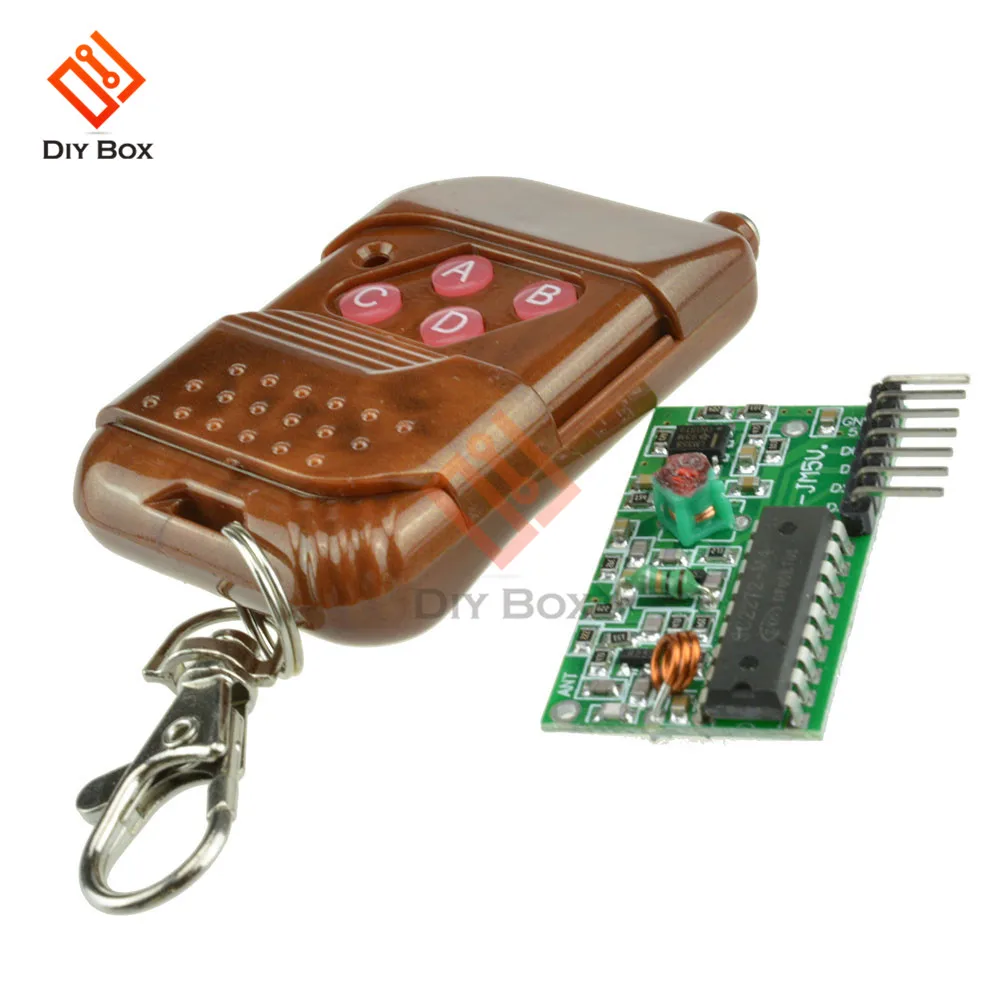

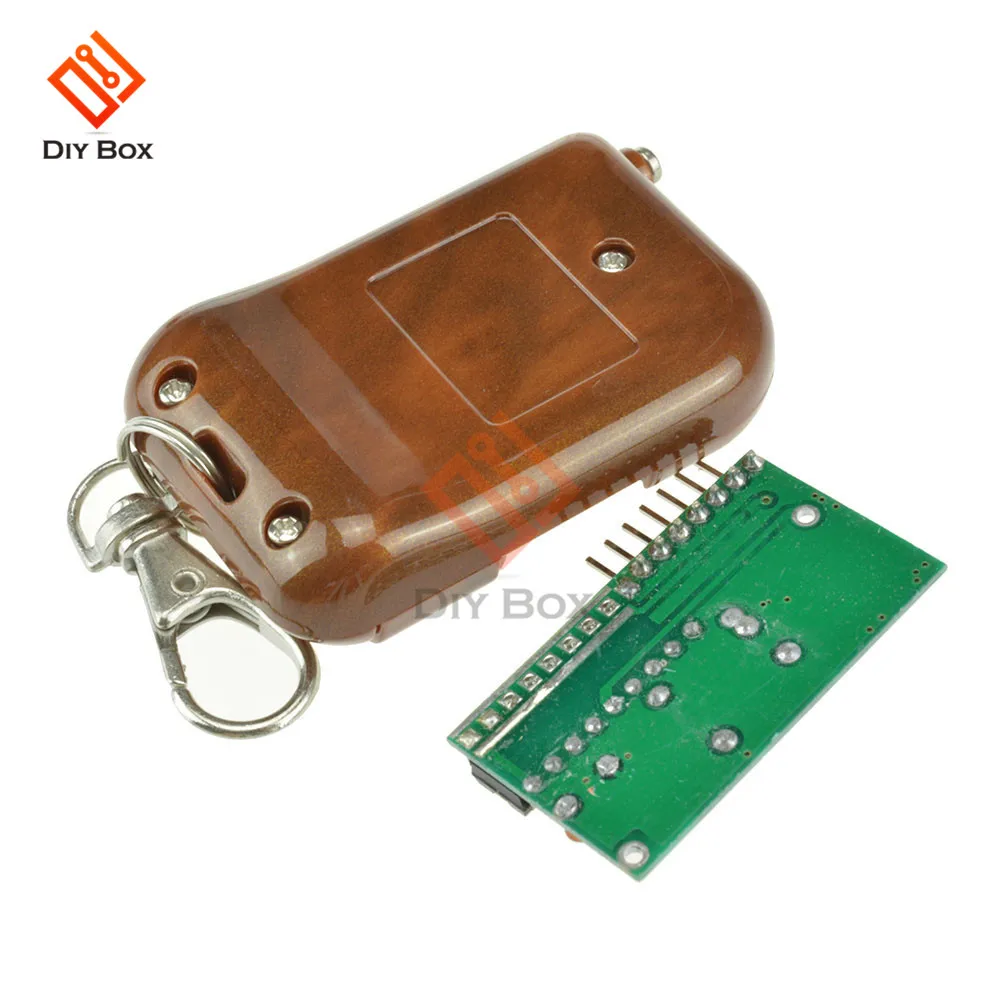

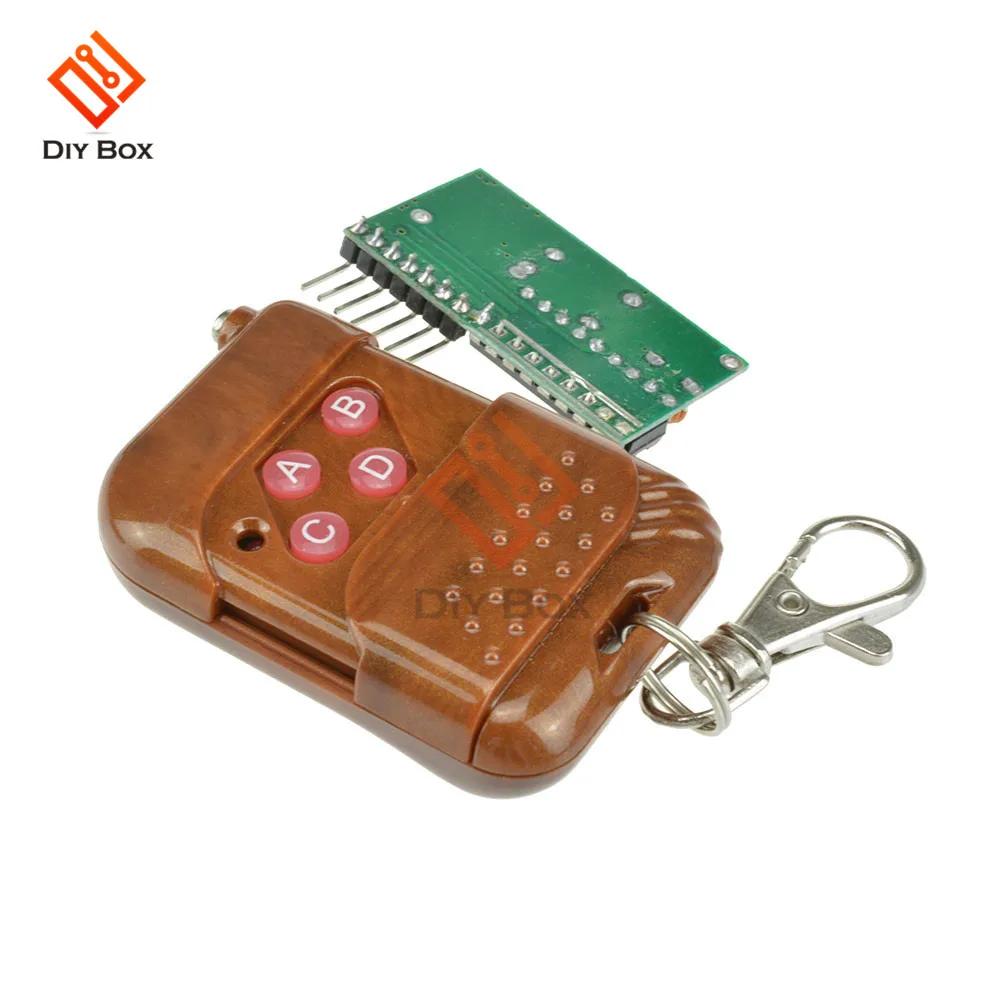

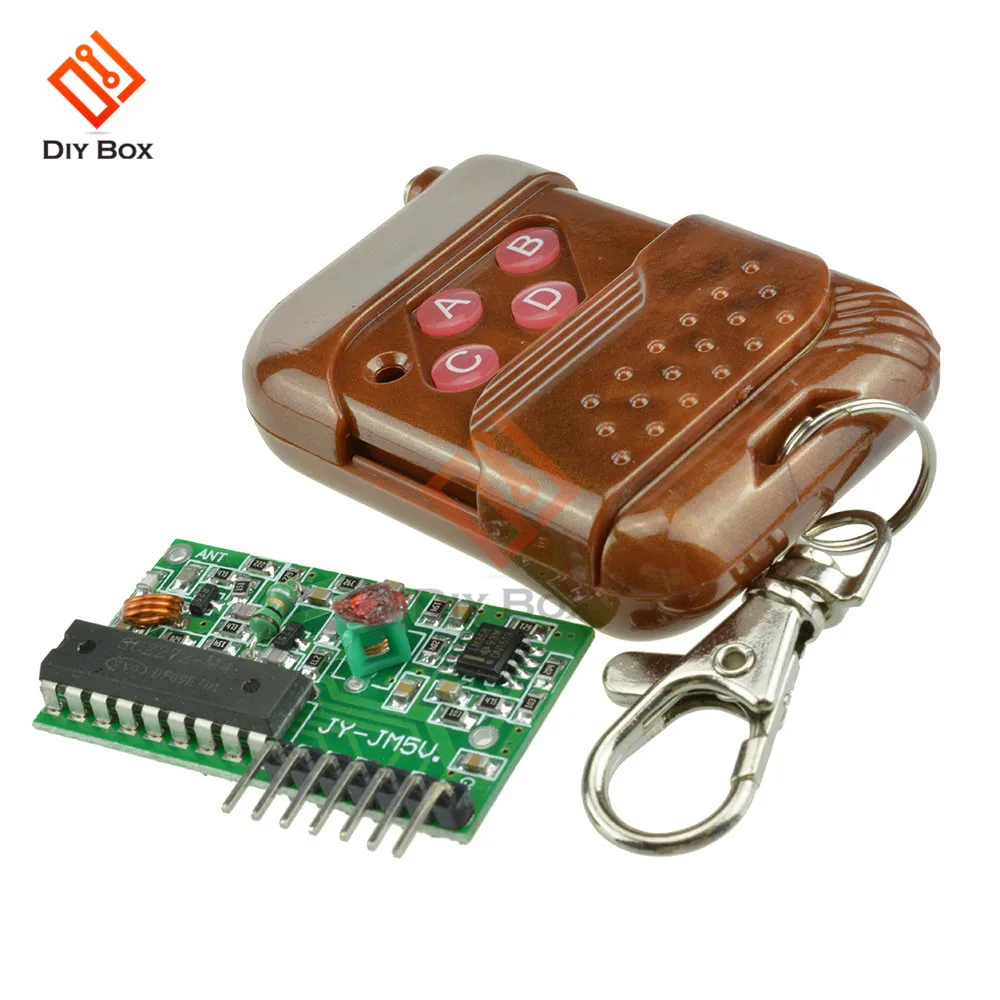

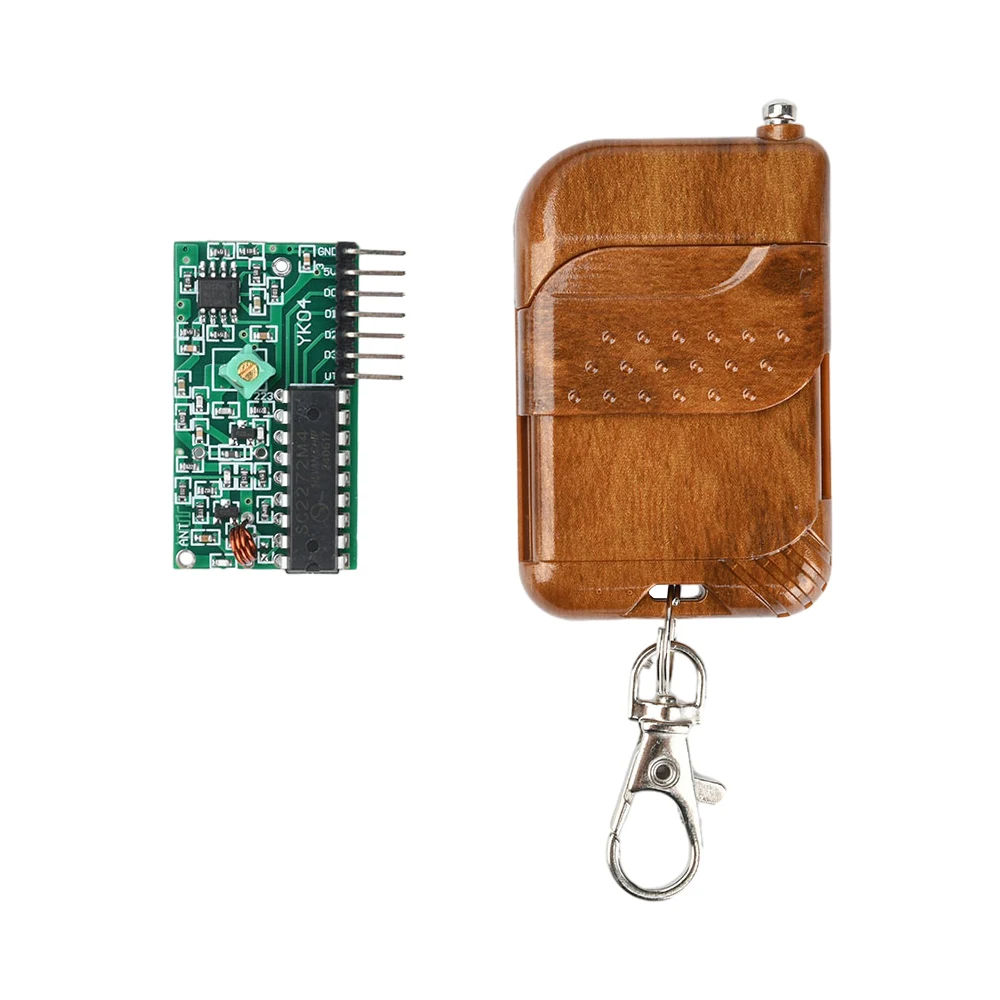

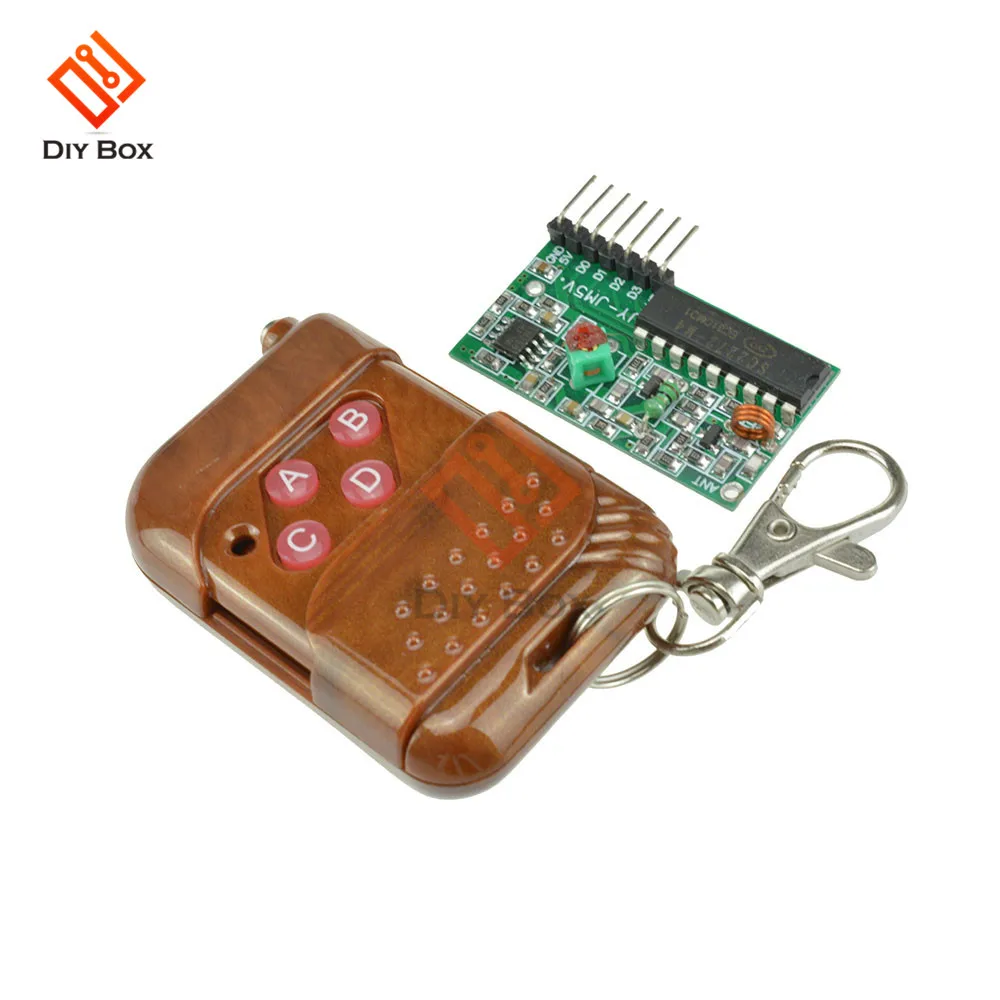

IC 2262 2272 433MHZ Four Ways 4 CH Key Wireless Remote Control Module Kit ASK Decoding Receiver Board For Arduino
Note:This product does NOT come with a battery
Remote control
1.Operating voltage: DC12V (27A/12V battery x1)
2.Operating Current: 10mA @ 12V
3.Radiated power: 10mw @ 12V
4.Modulation mode: ASK (Amplitude Modulation)
5.Transmitting frequency: 433MHZ
6.Transmission distance :10-50M (Open field, the receiver sensitivity of -100dbm)
7.Encoder types: fixed code
With decoding receiver board
1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
2.Size: 6.6*22*41mm
There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.
1.Operating voltage: DC12V (27A/12V battery x1)
2.Operating Current: 10mA @ 12V
3.Radiated power: 10mw @ 12V
4.Modulation mode: ASK (Amplitude Modulation)
5.Transmitting frequency: 433MHZ
6.Transmission distance :10-50M (Open field, the receiver sensitivity of -100dbm)
7.Encoder types: fixed code
With decoding receiver board
1.The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
2.Size: 6.6*22*41mm
There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.
Package Included:
1 x IC2262/2272 4 channel wireless remote control kits 4 key wireless remote 433MHZ
