Control de tiempo del Selector del aceptador de monedas de billetes, tablero de temporizador de 8 canales, venta expendedora de juegos recreativos, máquina dispensadora de agua, JY-258

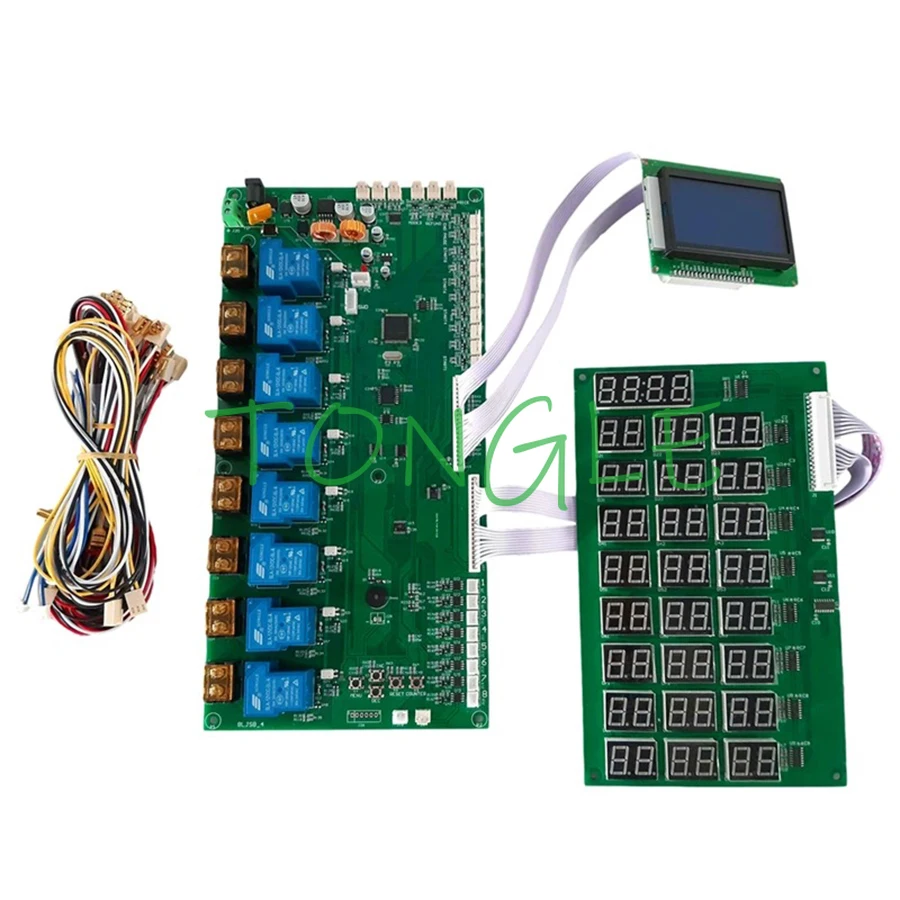

JY-258 Inbuilt Counter 8 Channel Timer Board Bill Acceptor Coin Acceptor Selector Control Token for Vending Arcade Game Machine

Description:

• 2 Displays

• LCD Display only



Product Features

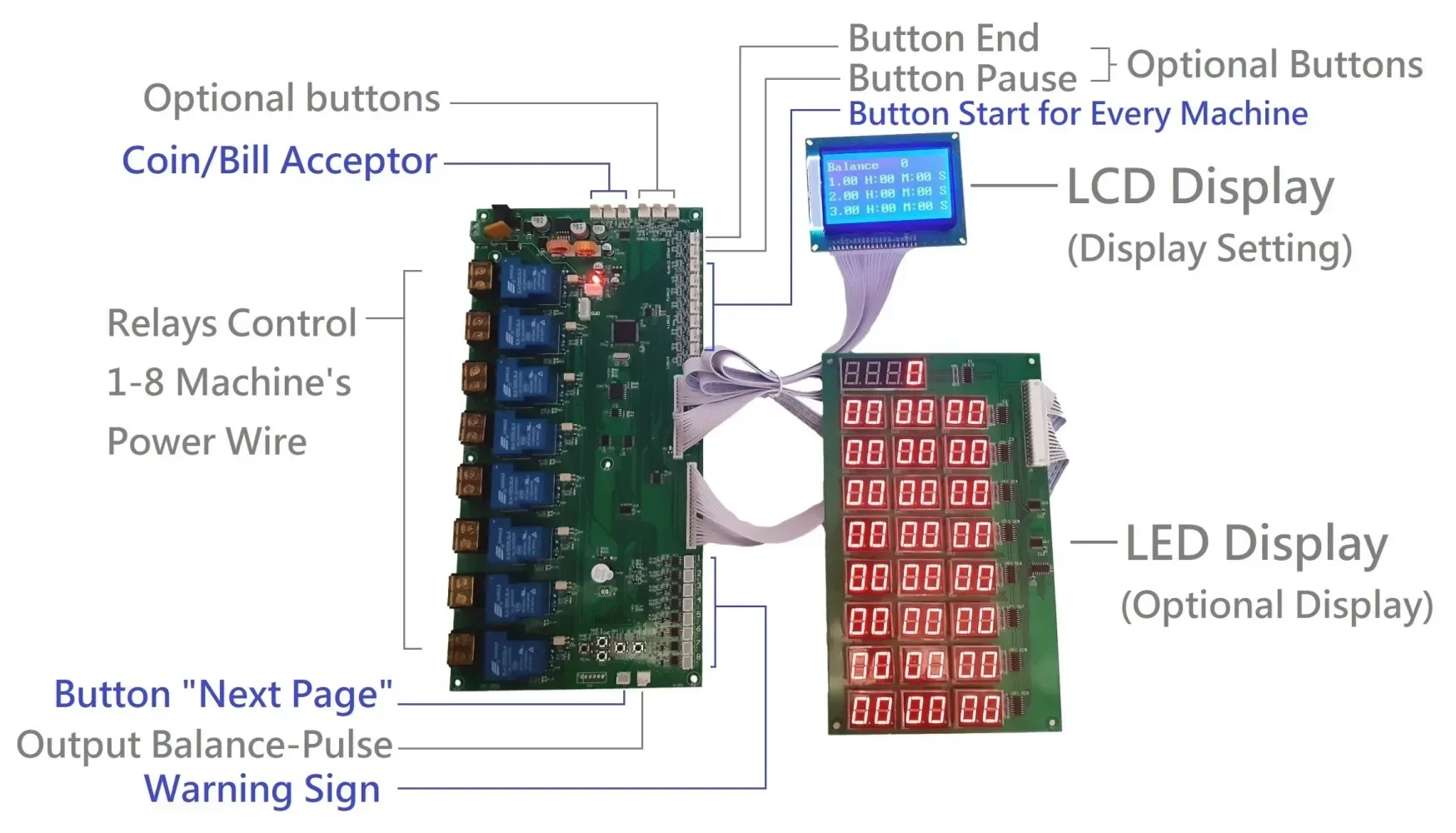

• Function: Coin → Display shows balance → Push button Start → The Relay connects, Display shows Balance and Remaining Time for the Channel.

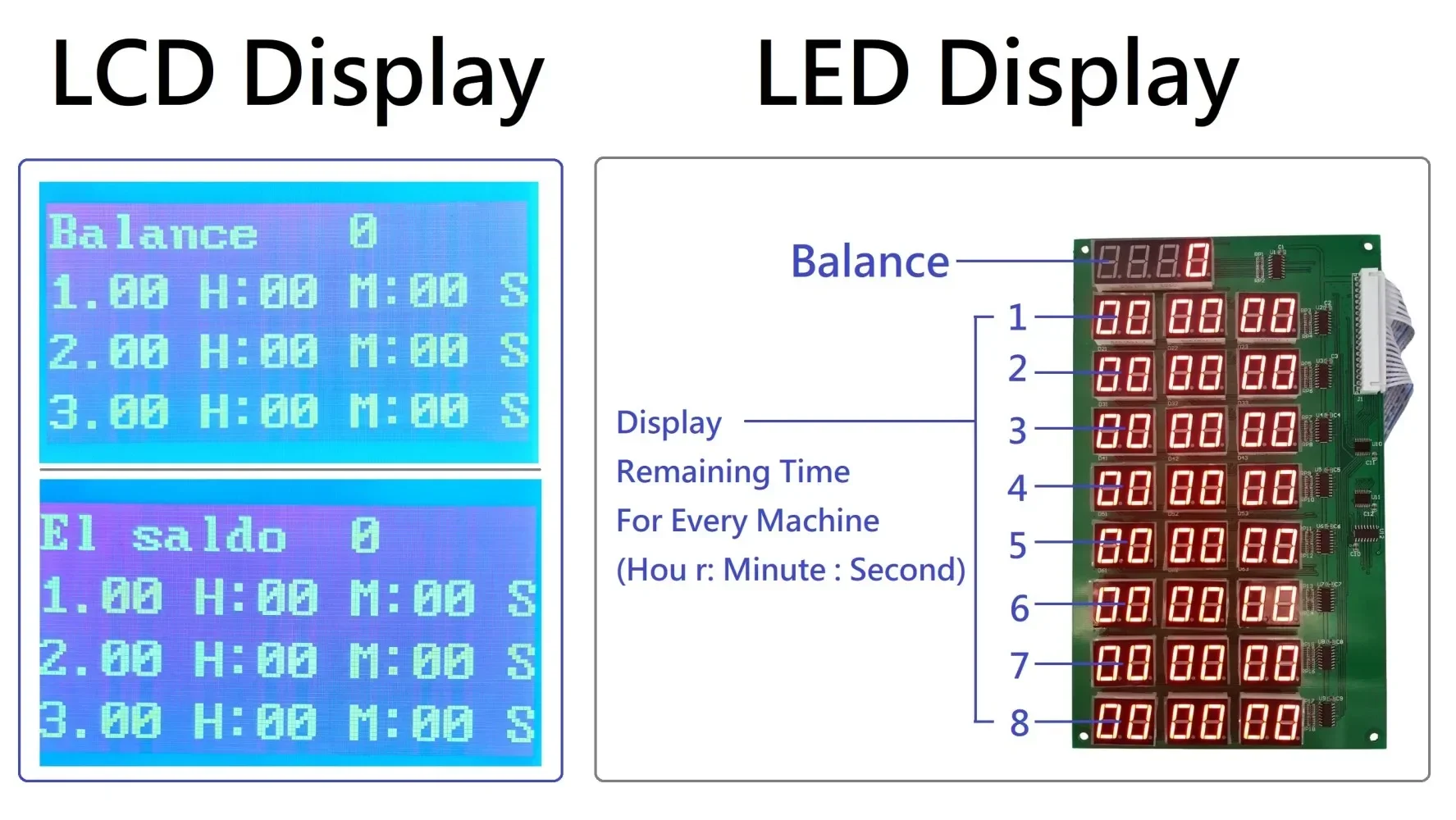

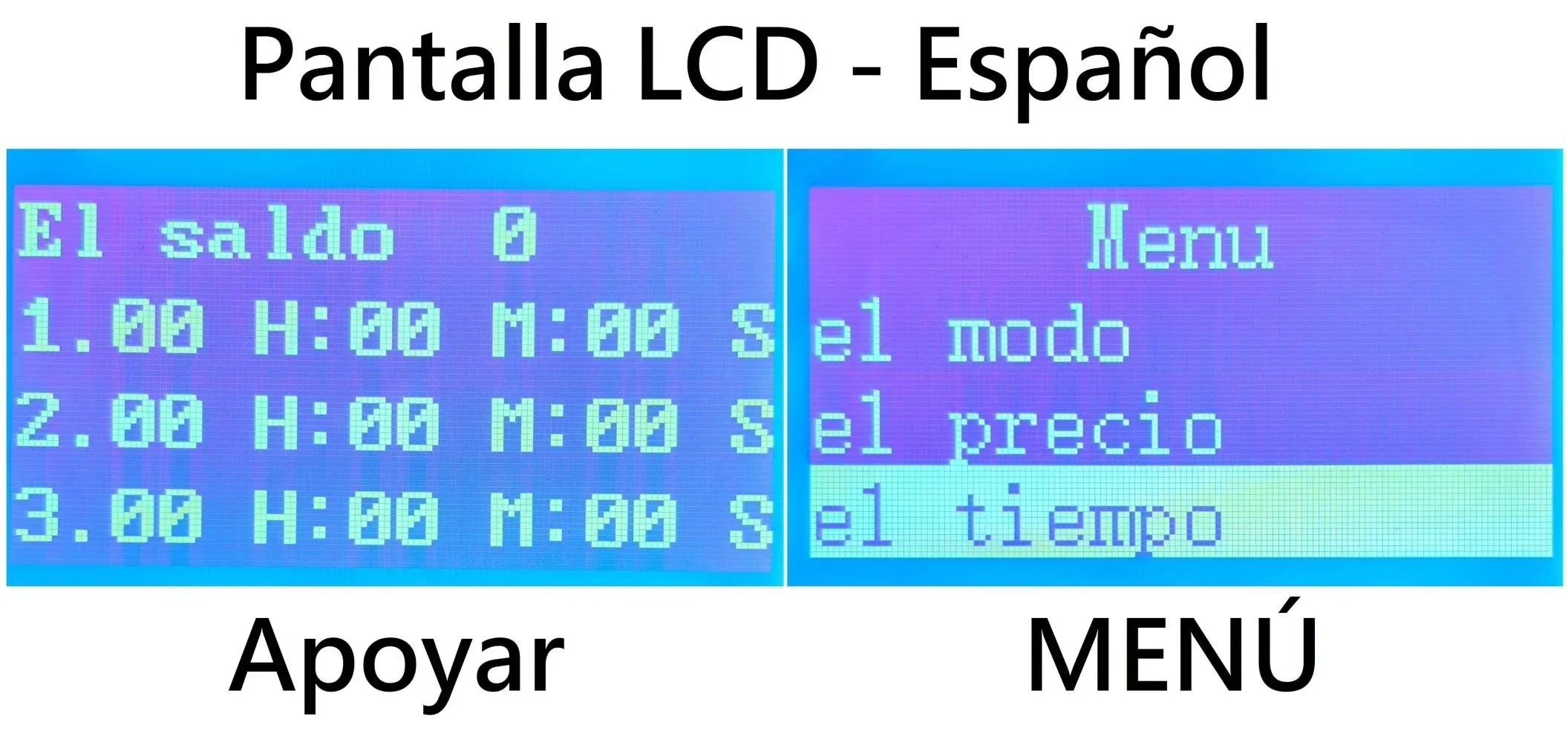

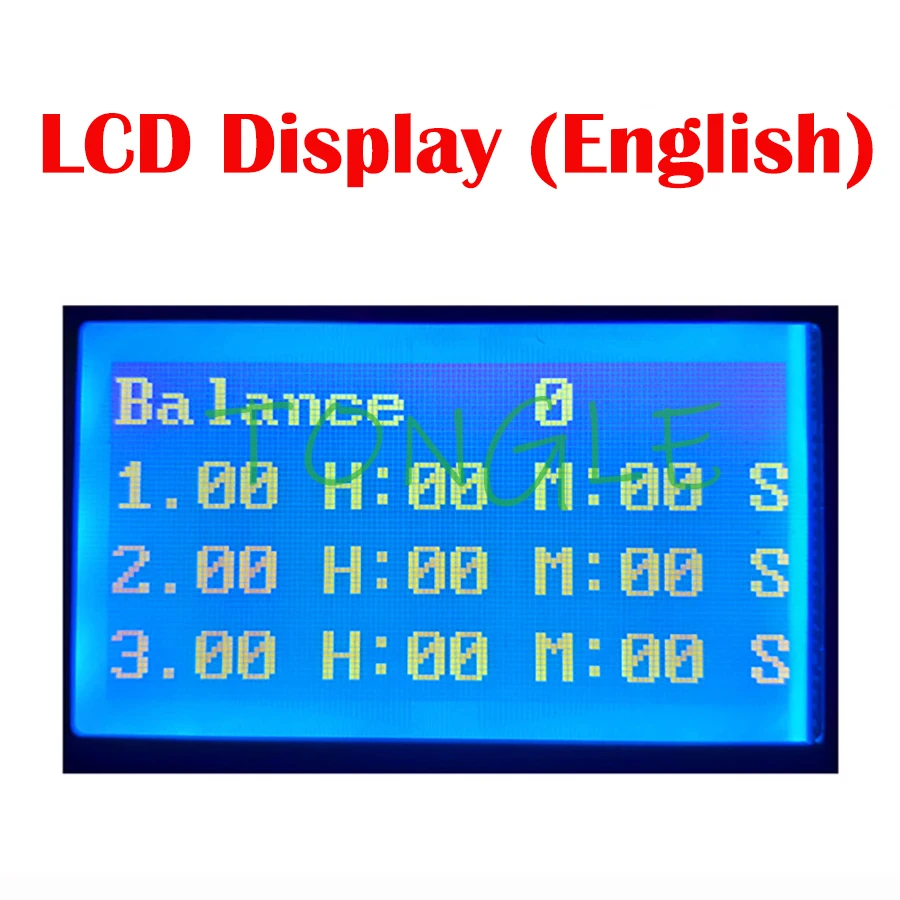

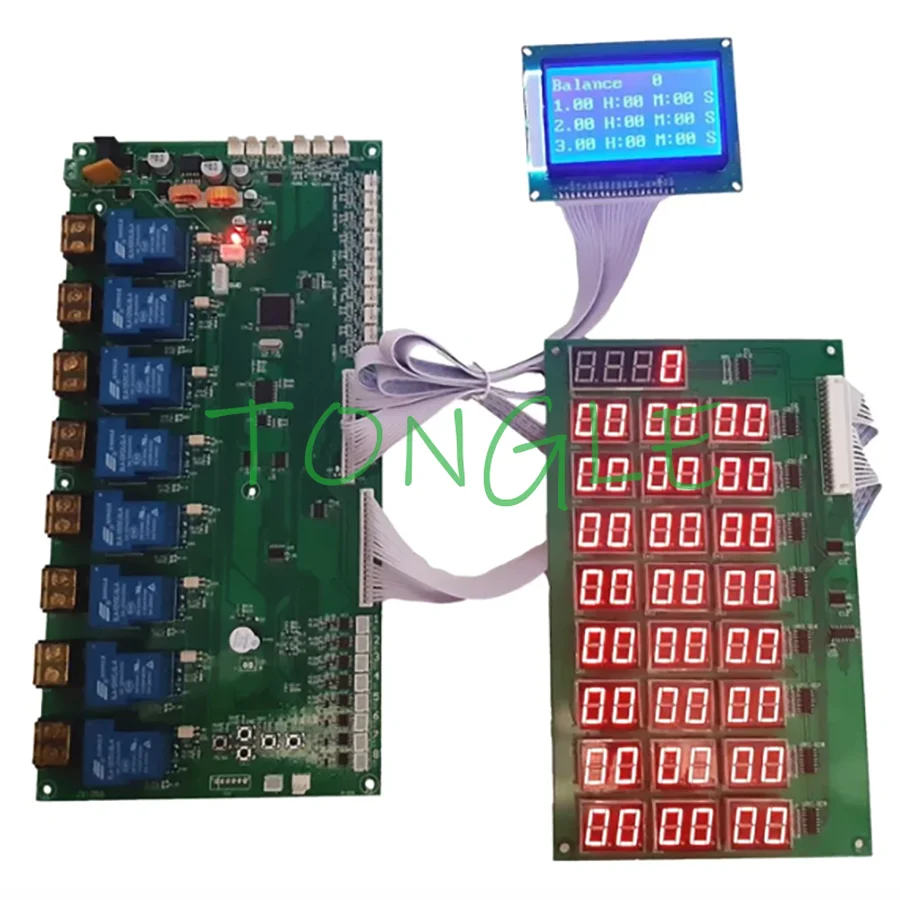

• Multi Language Display for LCD: English, Spanish, and Chinese

  ---------------------------------------------------------------------------------------------------------------------------------------

•
  "Balance"always first line
  2. Remaining time for every channels:
  3 lines on a page for remaining time. Press button to page down to check next 3 channels.

• LED display show: 1. 4 digits for Balance 2. Remaining time for every channel

  LCD Display is neccessery for setting. LED Display is optional



• Setting:Manual or PC software for bulk setting.
  1. Individual setting: Free to set up price and time for every channel.
  2."Package"
  "package": Free to use 1 of 8 and switch to other machine in setting time.

• Time count type:Counts down, accumulated time

• Inbuilt 8 digits reset counter:record income per signal input. Manual Reset per input channel

•
  Machines CAN work at the same time if pay enough on Individual payMode 2:Machines CAN NOT work at the same time if pay enough on Individual pay2 Same charge way for Mode 1 and Mode 2:
  "Individual pay"or"package pay"before chargeIndividual pay:Price and time is based on machine.Package pay:Pay for"package fee"
  "package time"

Mode 1

Mode 2

Individual pay

V

V

Package pay

V

V

Active machines at the same time

Up to 8

1

Mode 3:Set up price and time for Mode 3."charge 1 time"

• Various buttons: button pause, end, package.

•
  : DC+12V

  Input signal: coin acceptor, banknote acceptor, or any pulse input device

  Control way: Pulse input, time counters down, switch control

  Output: No output voltage. Switch control. Max current load: 15A

  Warning sign: Output DC+12V per channel.

• Optional Function-Balance return:output balance by pulse after push button return

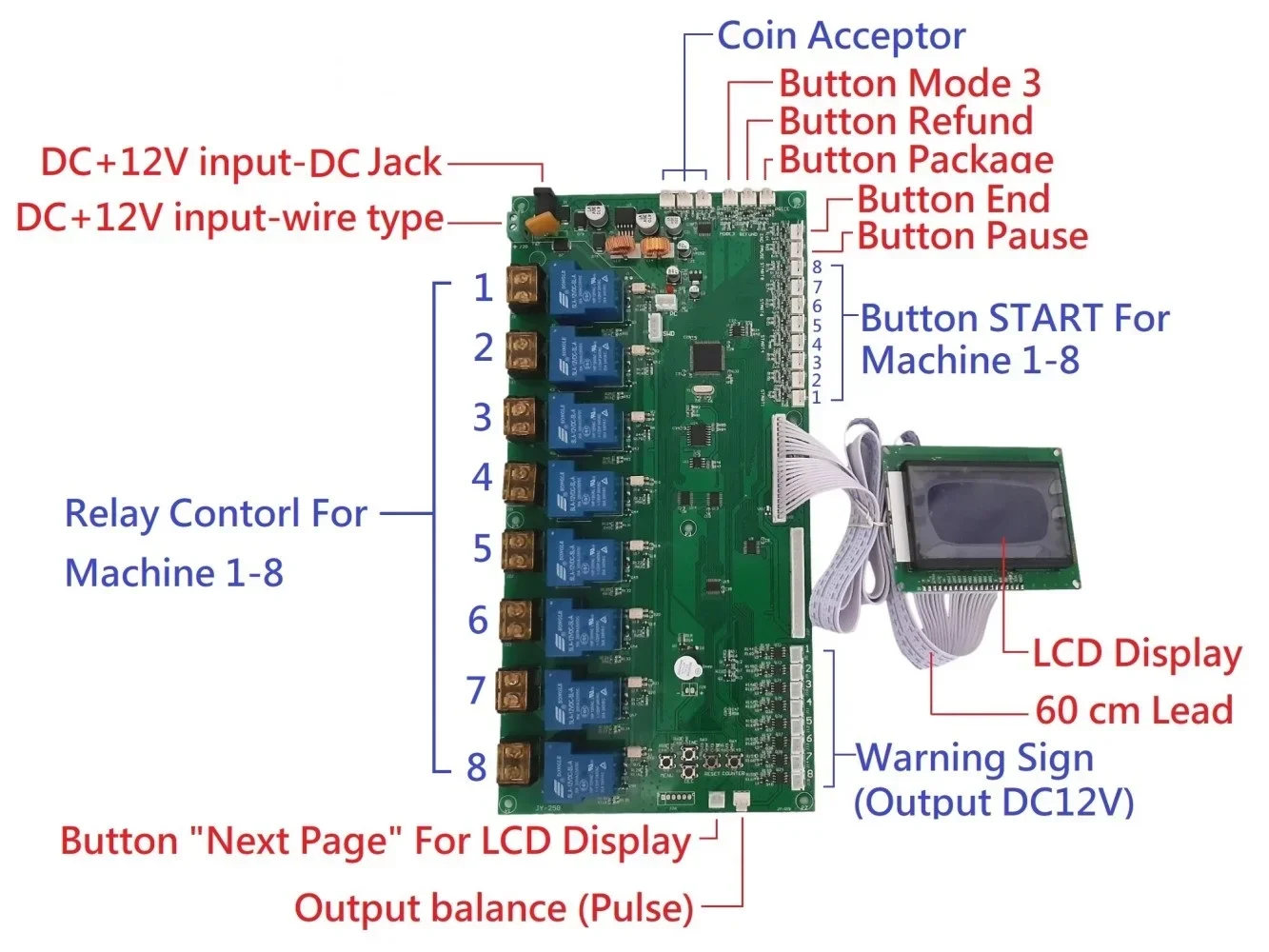

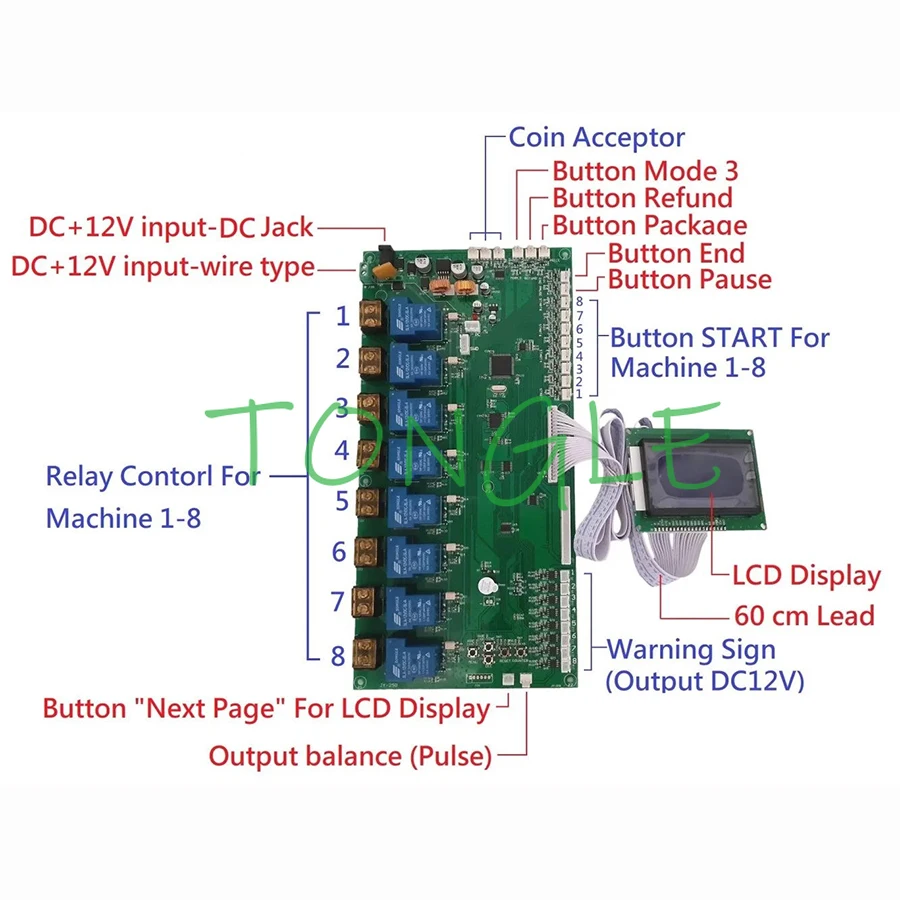

Connection

• Coin Acceptor: Plug to our coin acceptor or same connector

• Buttons: Plug to microswitch connector.

  For Light: 6.3mm connector, Signal and GND: 4.8mm connector

• Relay Control: Screw wires on Connector.

• If Connector is not the same size, please solder wires. It also works by solder wires.

• We shows CONNECTOR PIN DEFINATION on Manual.

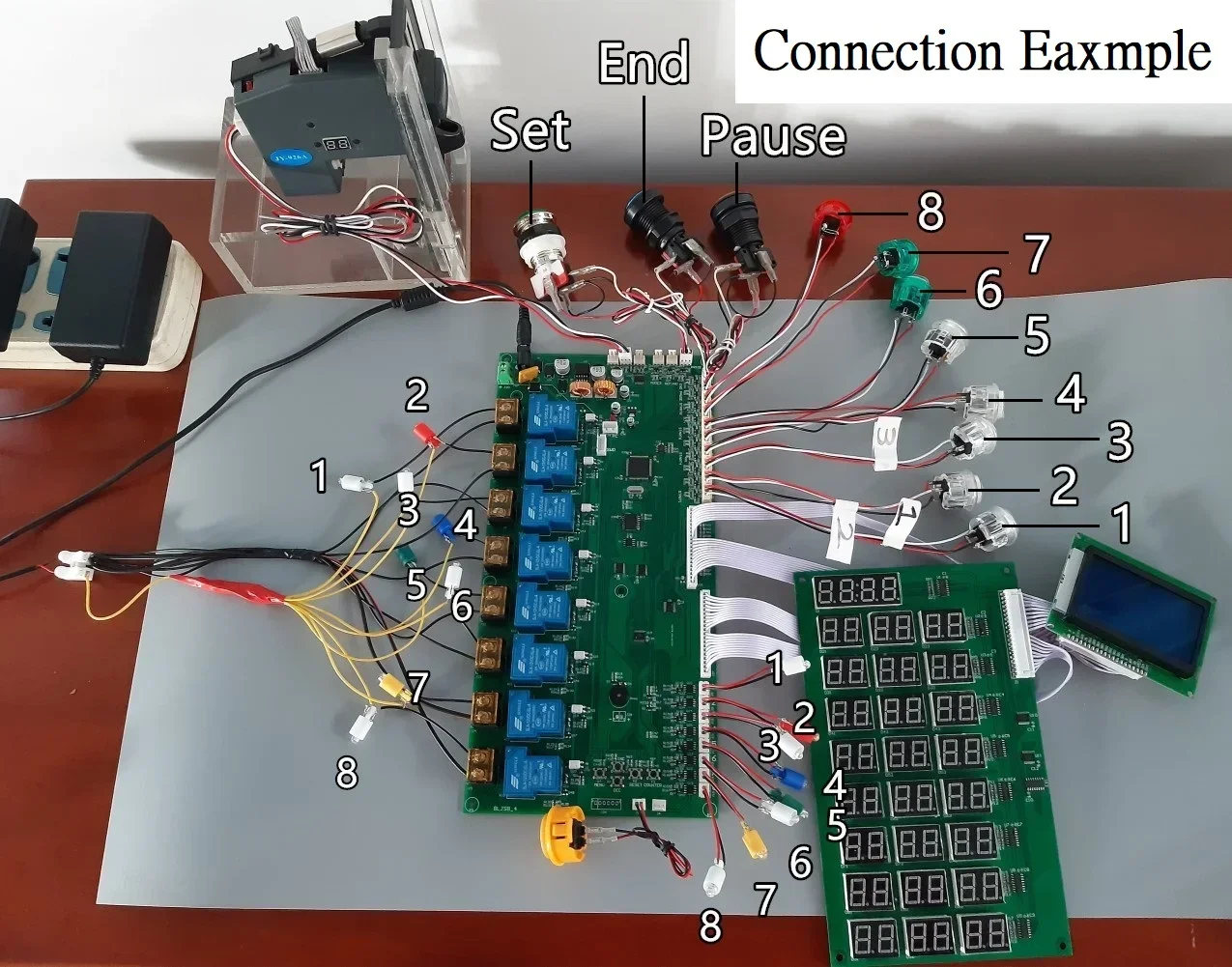

Connection Example

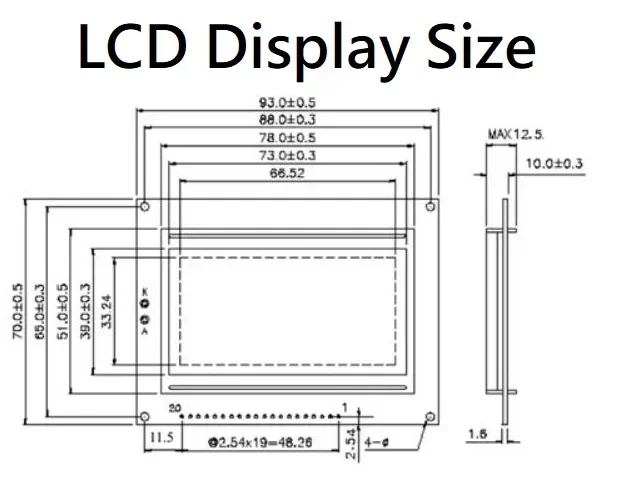

Size
