Features:
1. MVS changed the stereo output

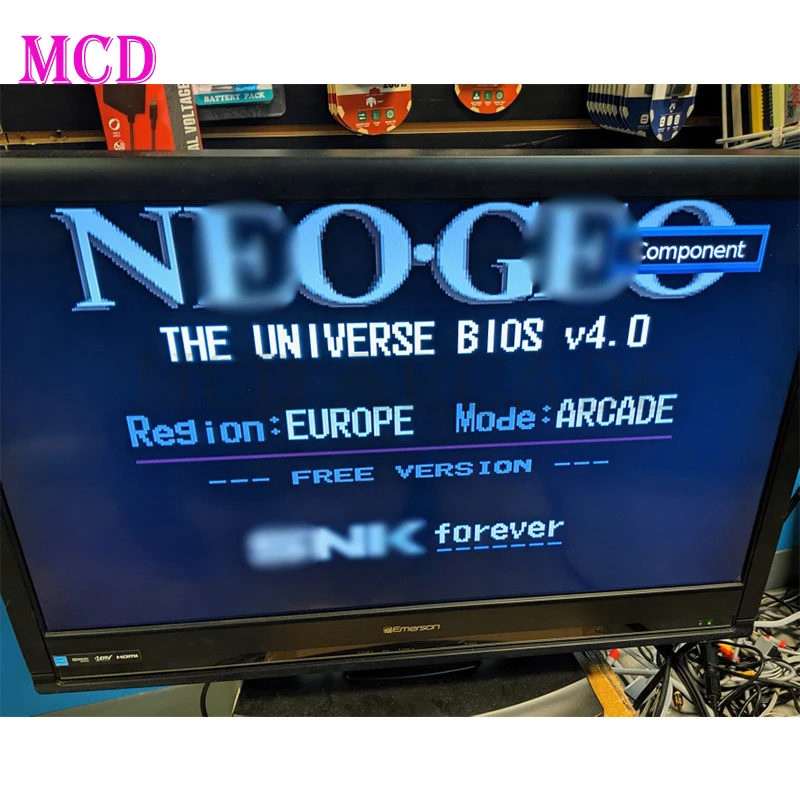

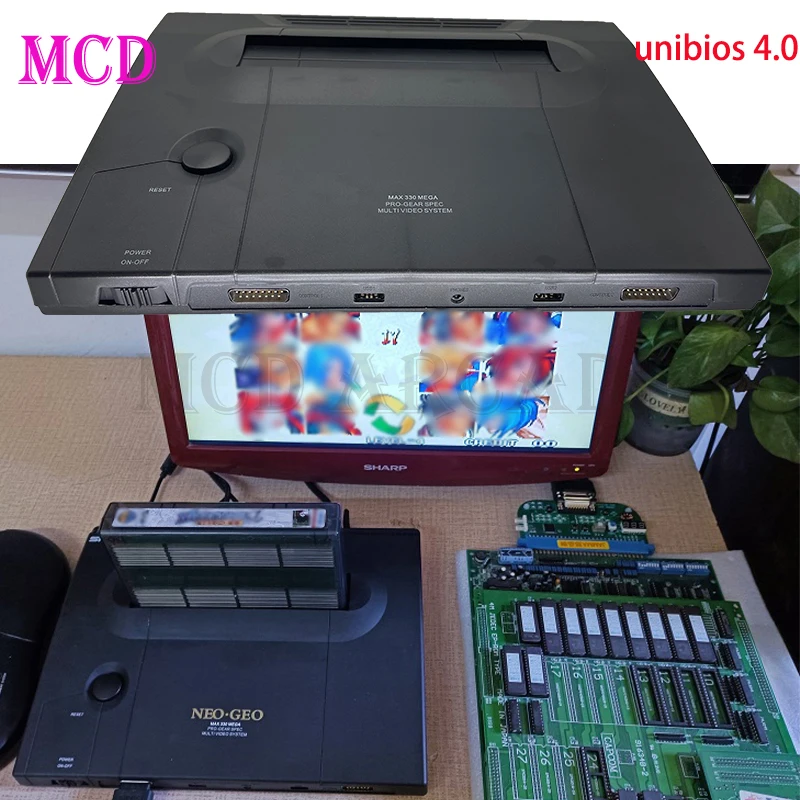

2. Using BIOS version 4.0, you can set arcade or AES mode, cheat function, etc. When starting the BIOS screen (to insert the card), press the SNK handle ABC to enter the BIOS setting. Press BCD to enter the tuning mode to set the difficulty, etc. It is not complicated to explore by yourself. In the game, you can also press the start button + coin button to call out the menu to select the cheat function and reset and other functions.

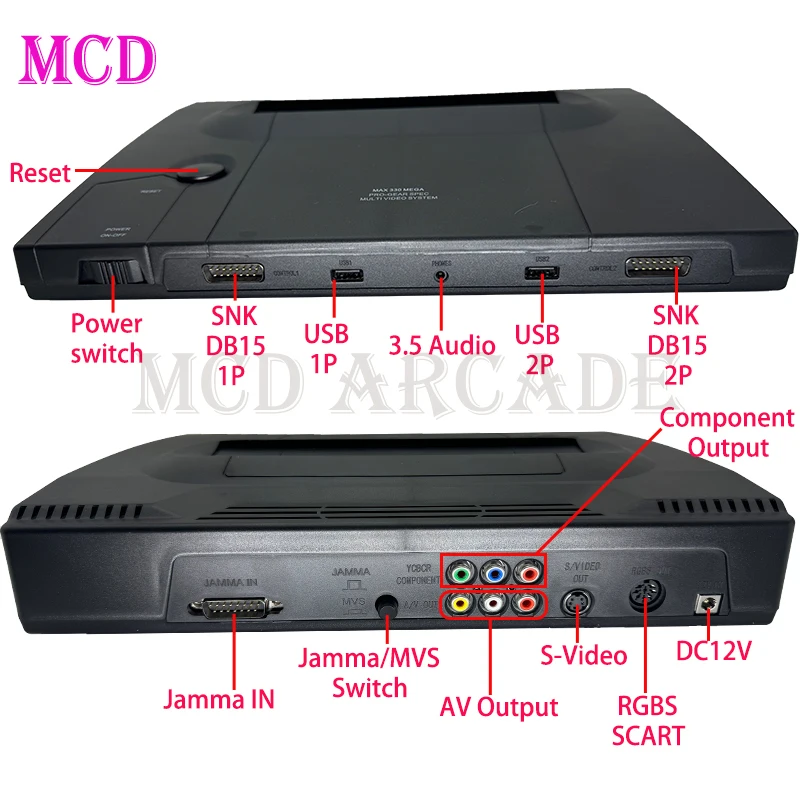

3. A variety of original video interface outputs are designed with full configuration: a micro video/S terminal/color difference component YCBCR/RGBS/SCART all original signals are original without any delay and other problems, and can be connected to TV/color monitor and other displays.
4. USB interface, you can use ps3/PS4/XBOX360/XBOX360/XBOX ONE handle or joystick. There are many handles and joysticks on the market that cannot be tested one by one. Generally, the ones that support ps3/4 are selected.
5. The SNK/DB15 interface supports NEOGEO handles and joysticks, and you can also make your own joysticks.

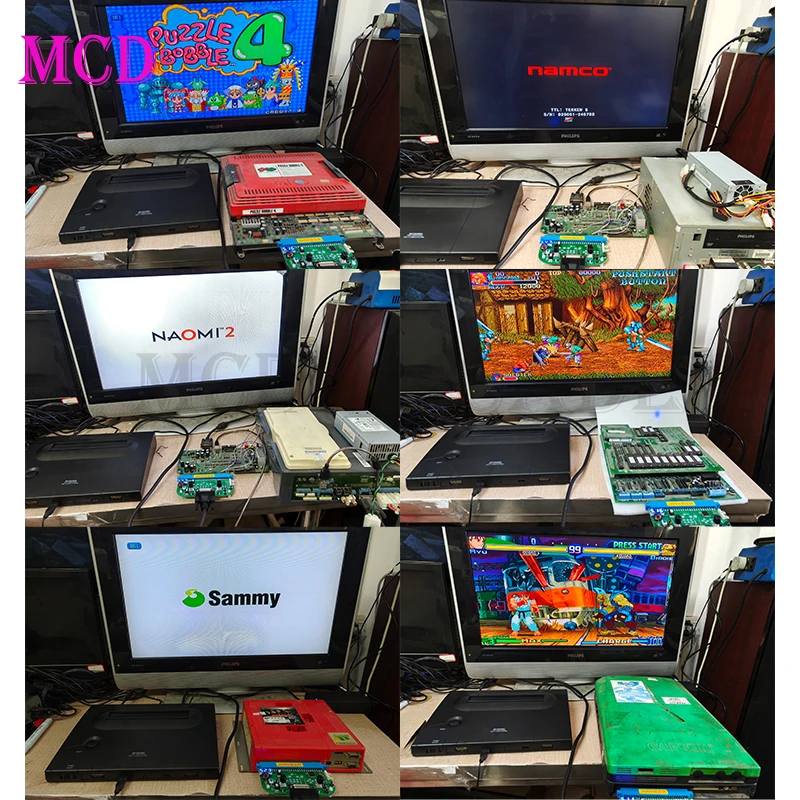

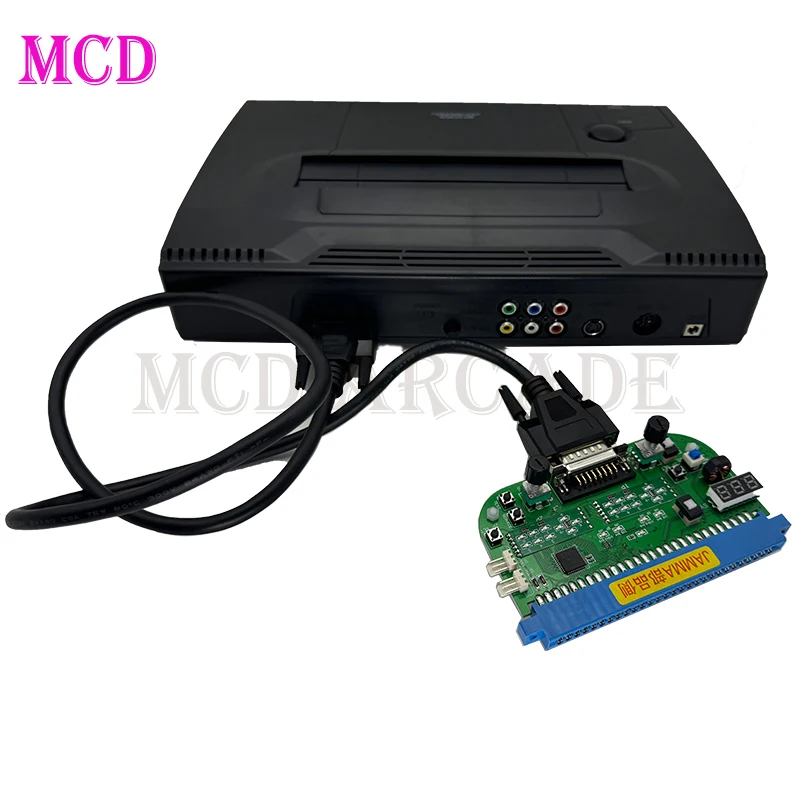

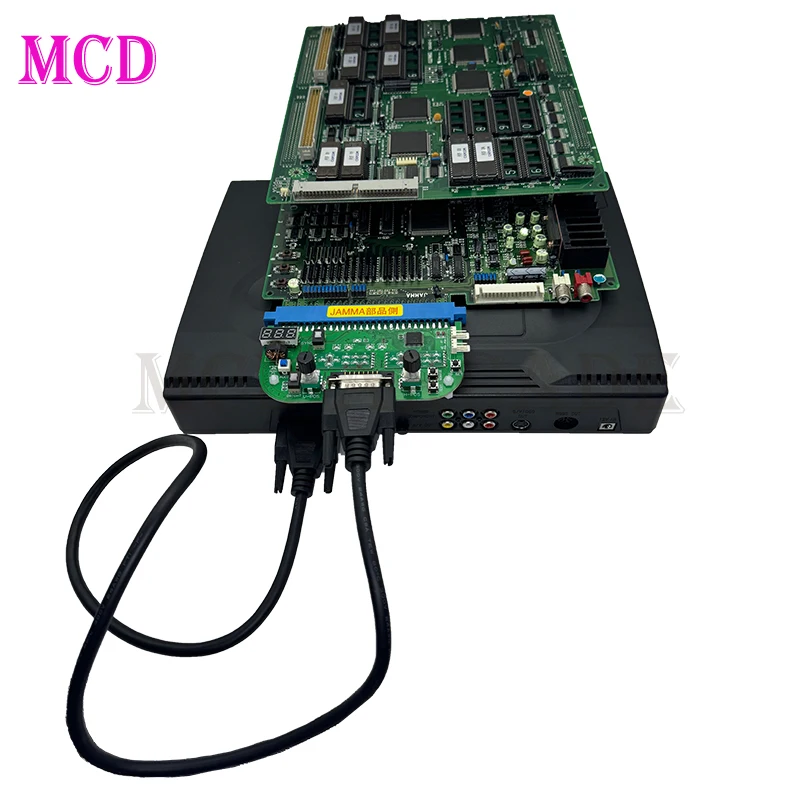

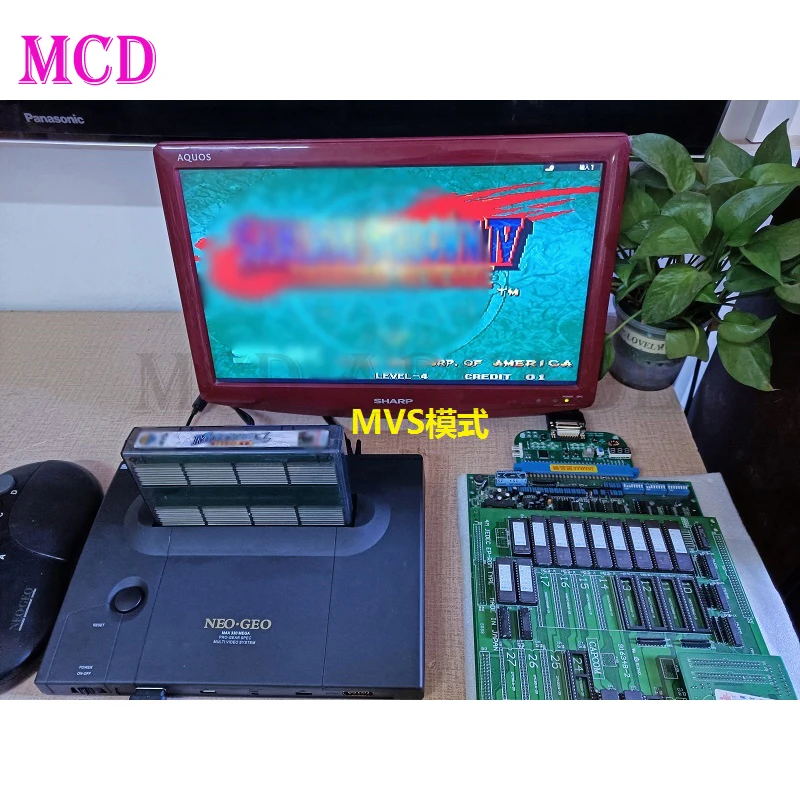

6. The arcade board can be connected to the board through a 28-pin JAMMA extension cable. The mode switch on the back of the host can be played in JAMMA mode. It supports general 28-pin arcade board decks such as cps1/2/3, igs decks, atomiswve , 1945, etc...Which is compatible with other Jamma Arcade PCB Motherboards (Sammy/CPS1/CPS2/PGM 2/IGS/Pandora etc).
7. Jamma board function description:
✔、Button setting: Press the SET button to start, press the display light on the Jamma board to set, set the order up, down, left, right, 123456, when the display is on, press the button you want to set, such as setting to stop for 5 seconds and automatically save the setting.
✔、Continuous shooting setting: Press the handle or joystick start button + down + the button you need to set. For example, to set the 4th button to shoot continuously, press the handle start button + direction down + press the 4th button. If you need to turn it off, just operate again.
✔、Combination key setting: Press the start button and then press left or right, the corresponding LED display will appear on the Jamma board.
✔、The Jamma board has the function of adjusting the screen position, which can adjust the screen position up, down, left, and right, and correct some substrate synchronization problems such as screen distortion, unstable screen, black screen, etc.

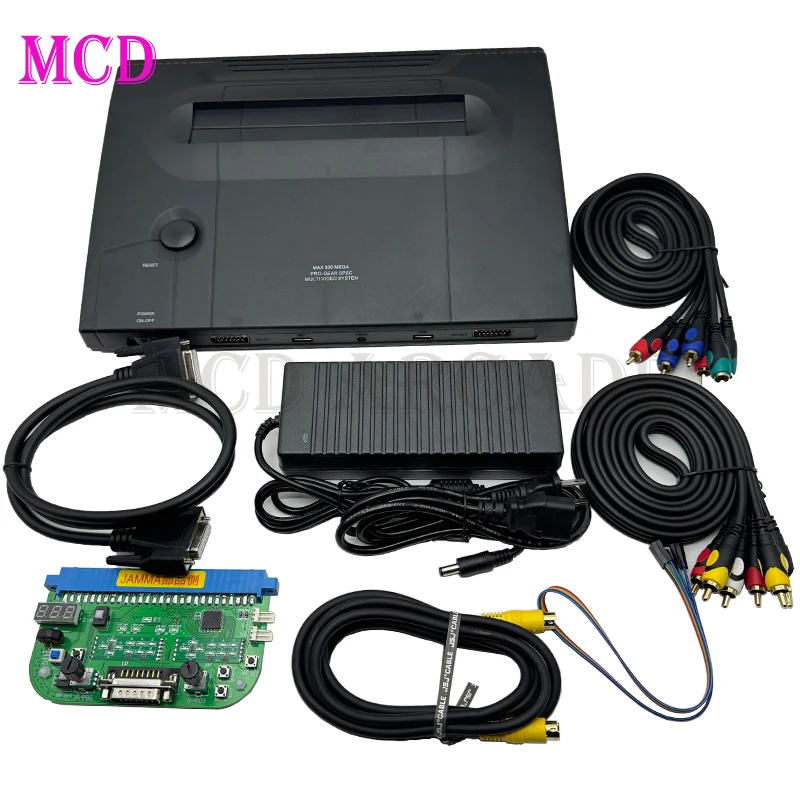

Kit list:
MVS host*1
12V power supply*1
AV cable*1
S terminal cable*1
Color difference component line*1
JAMMA board*1
Jamma board connection cable*1
