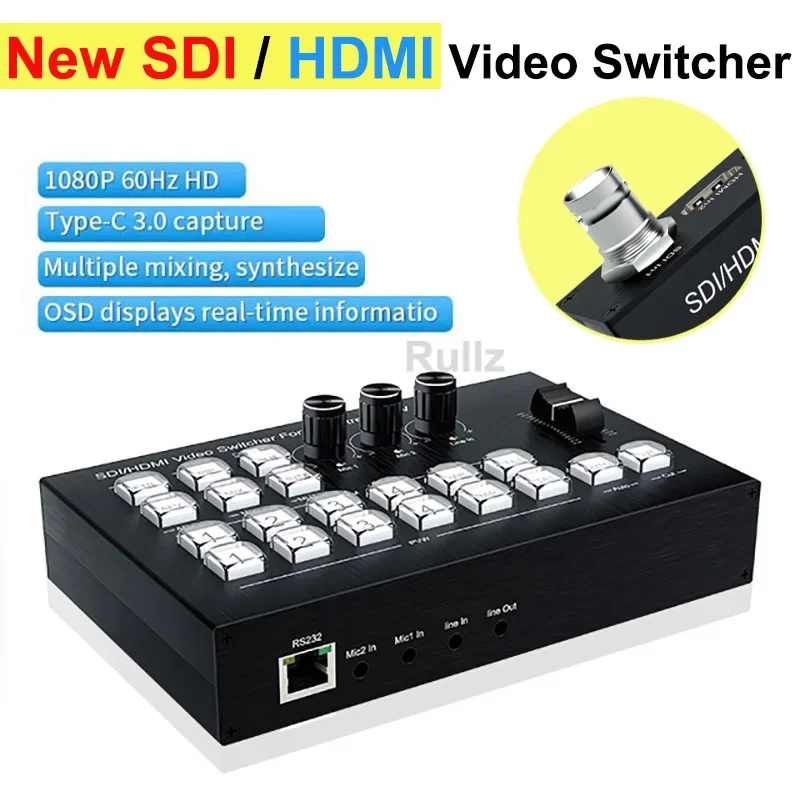

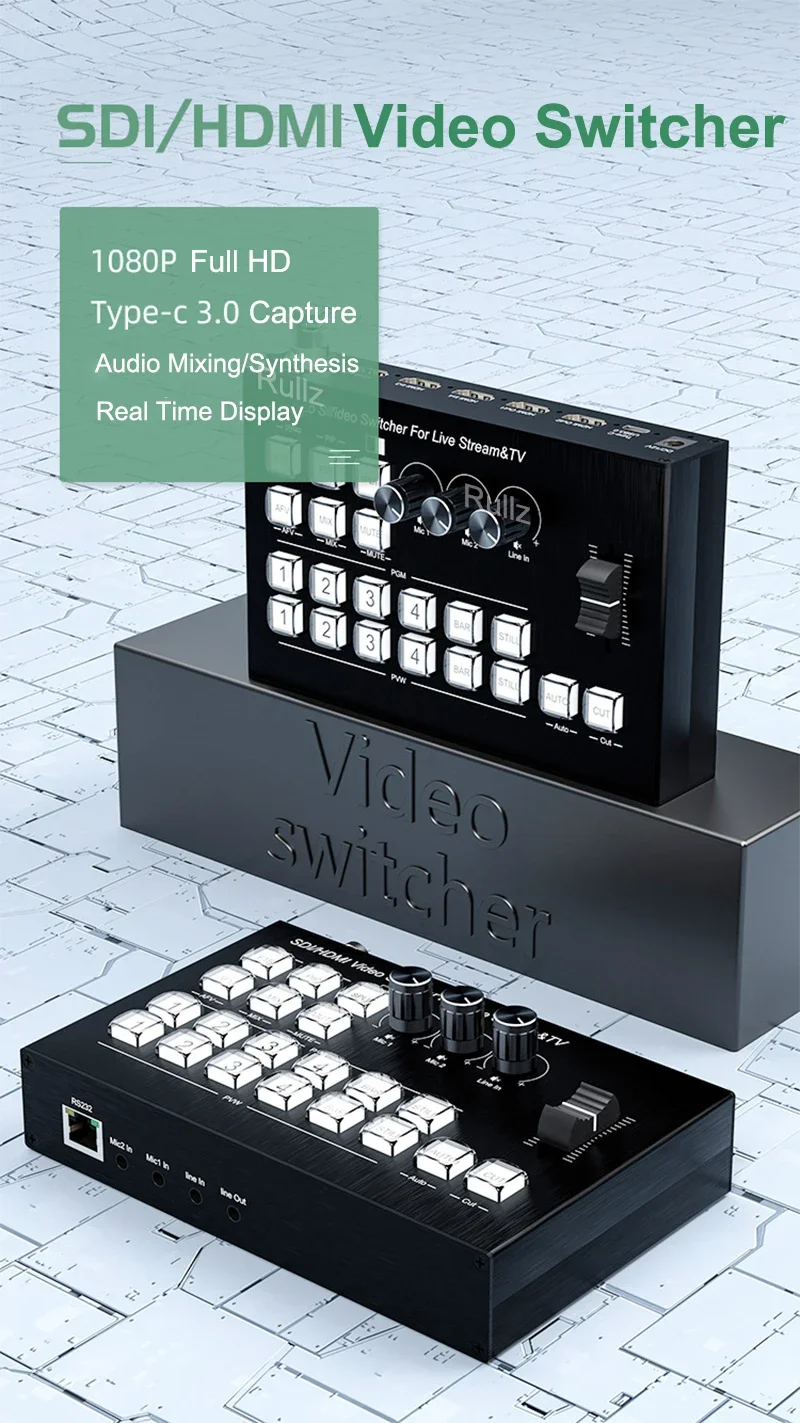

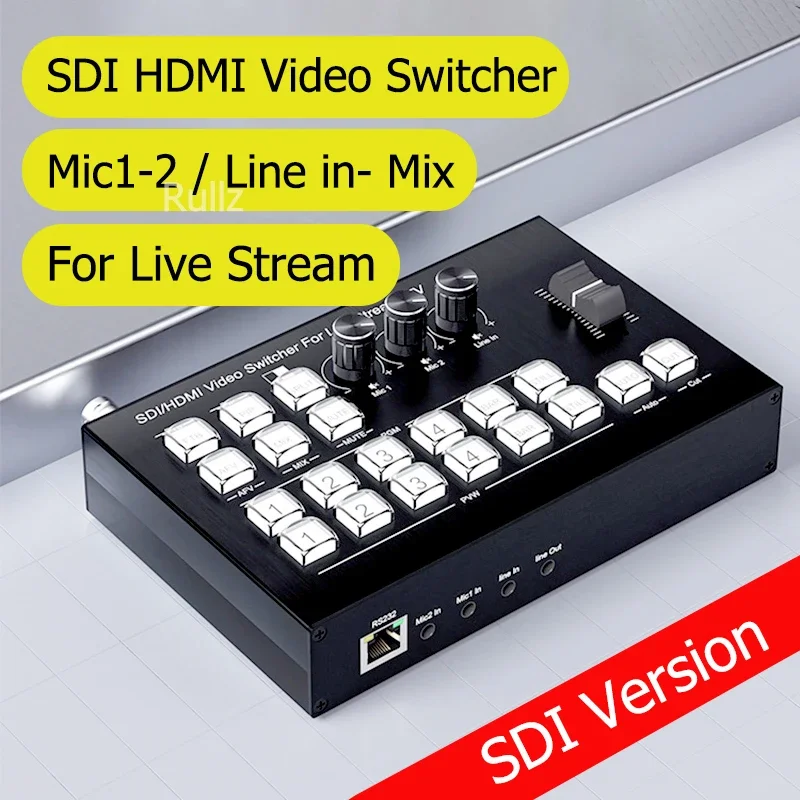

New Arrival 1080p SDI HDMI Video switcher for live streaming
Item Introduction :
Our new product ! Brand new and high quality,buy with confidence!

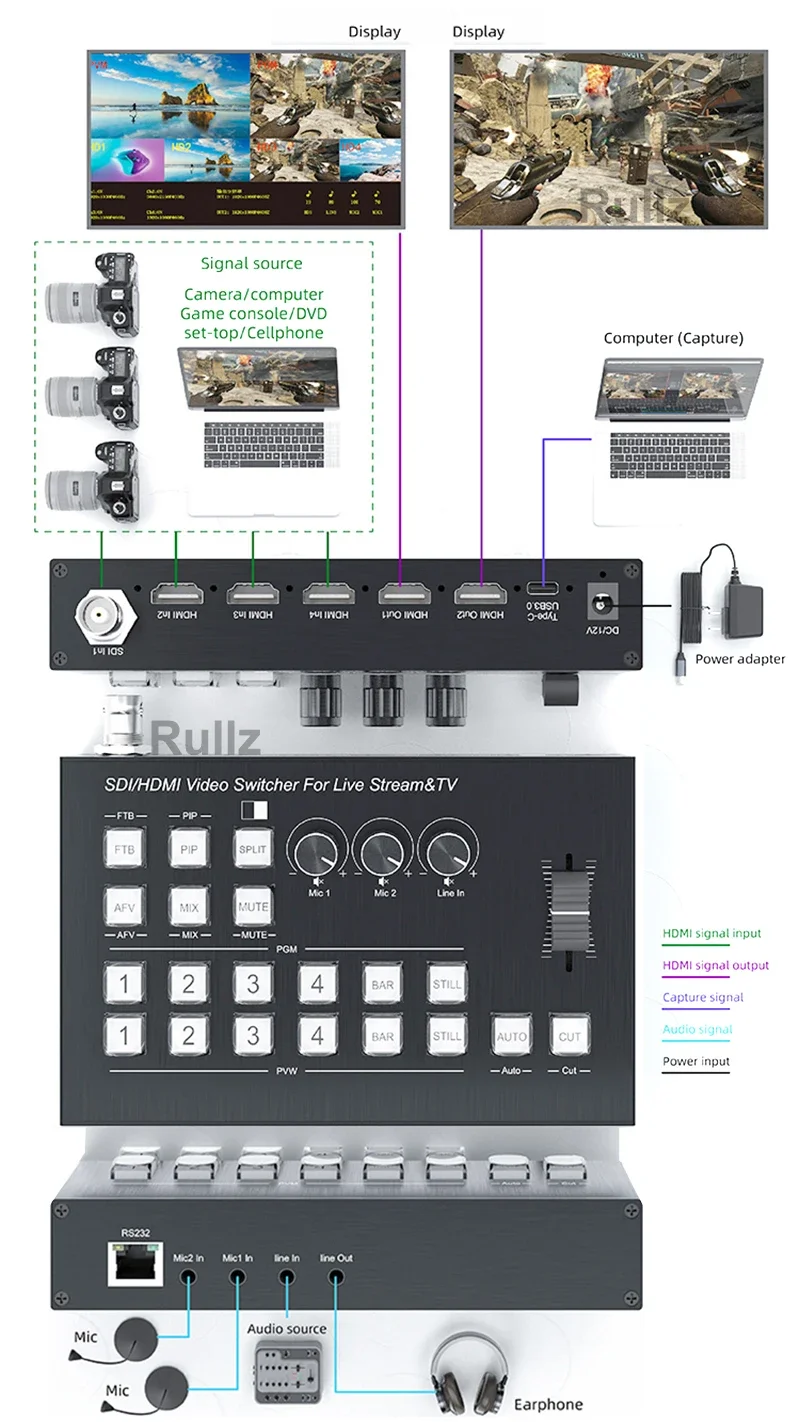

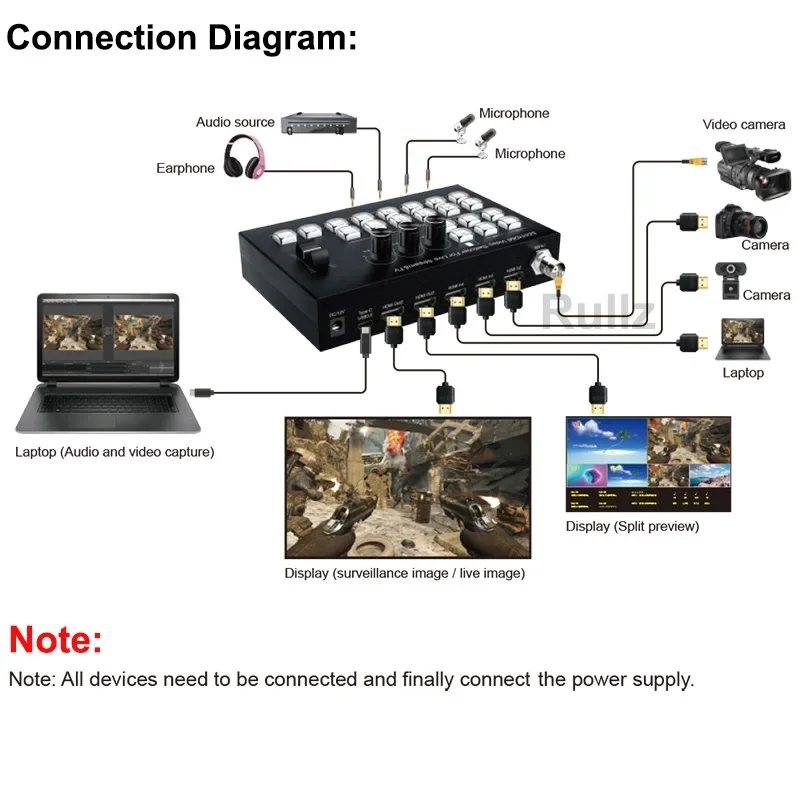

This SDI/HDMI video switcher for live streaming, 1 SDI input and 3 HDMI input support resolution
1080P@60Hz, and support HDCP1.4 standard, support HD embedded audio or external analog audio,
after mixed processing, can be embedded in the output HD signal or output from the analog port.
All resolution of the input signal is automatically adapted, the output resolution is 1920X1080@60Hz,

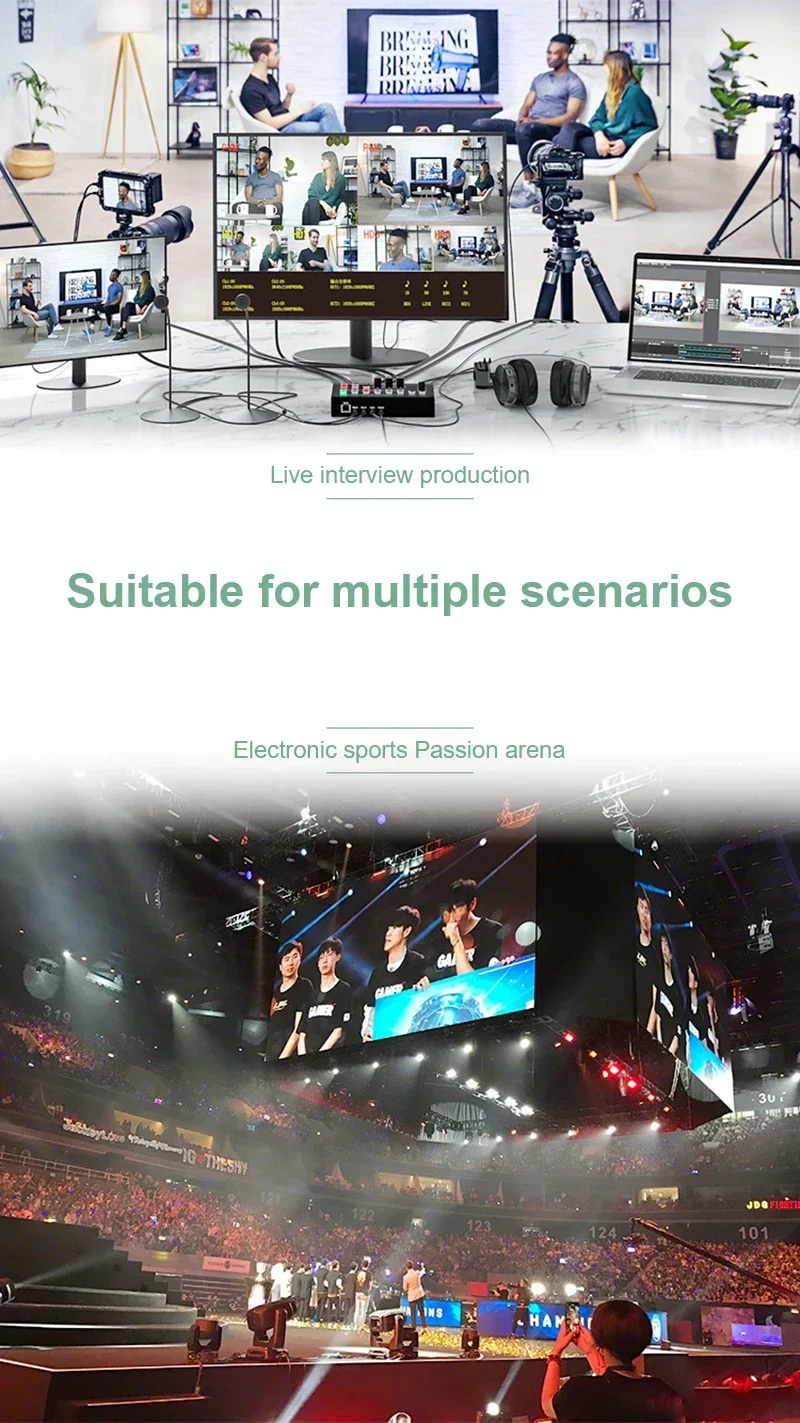

To satisfy the requirements of Radio and television program production, live production of interviews
and speeches, outdoor experience events, school courseware production and other video switching needs.
It can be used in live streaming and various event venues.
Features:
* 1 SDI signal input supports a resolution of 1920*1080/60hz,
and supports 100m lossless transmission;
* Easy convert broadcast-level SDI signal;
* 3 HDMI input; 2 HDMI output;
* One Type-C 3.0 capture port, supports video format YUY2;
* Support OSD display input channel signal, resolution information, volume information;
* Support MIC,LINE IN,HD mixing output (LINE OUT fixed mixing output);
* Support HD audio following (fixed following PGM);
* Support LINE OUT and HD audio output;
* Support power-off save settings;
* High quality keys, color backlight design.

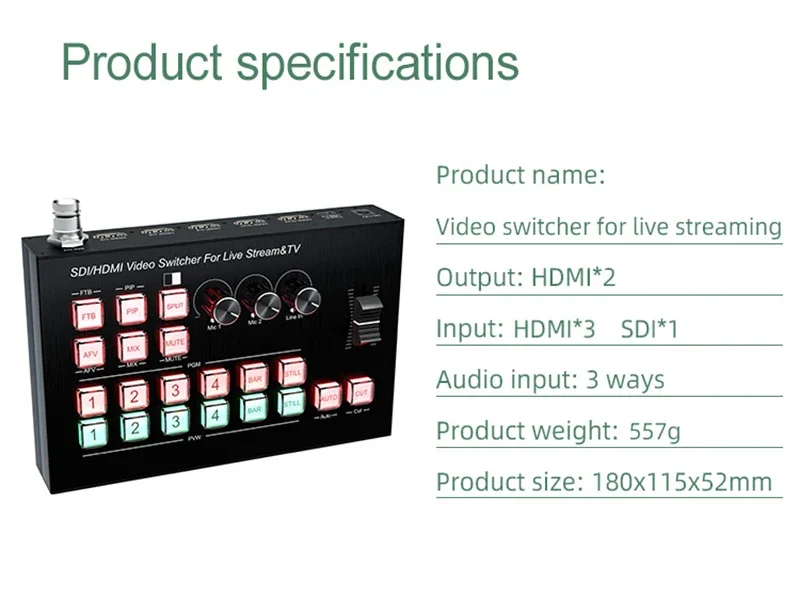

Specifications:
SDI input resolution ................................................................................ Up to 1080P@60Hz
SDI transmission rate .................................................................................. up to 2.97Gbps
SDI input cable length .................. Max 100 meters, using RG6 75R HD digital video cable
HDMI input resolution .................................................................................... 1080P@60Hz
HDMI output resolution .................................................................................. 1080P@60Hz
Type-C 3.0 capture and push network traffic video format ......................... YUY2,MJPEG
Supports audio format .................................................................................................. PCM
The maximum bandwidth transmission ............................................................... 148.5MHz
Maximum transmission rate ............................................................................. 1.65 x3Gbps
The input cable length ............................ 1080P/60Hz≤15 m AWG26 HDMI standard cable
The output cable length .......................... 1080P/60Hz≤15 m AWG26 HDMI standard cable
Maximum working current ......................................................................................... 0.85 A
Power adapter specifications .......... Input AC(50Hz,60Hz)100V-240V; Output: DC/12V 2A
Working temperature range ....................................................................... (-15℃ to +55℃)
Size .............................................................................................Approx. 180x130x52(mm)
The weight ......................................................................................................Approx. 557g

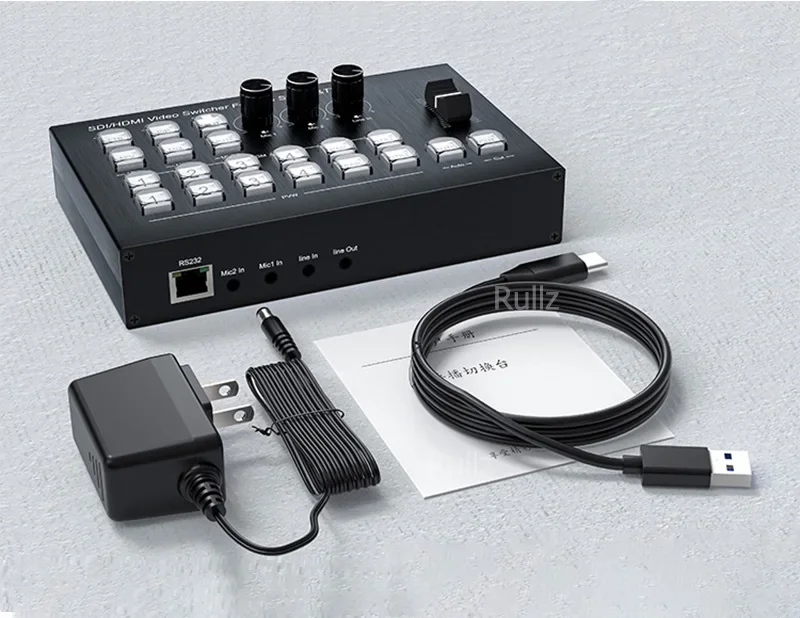

Package Includes:

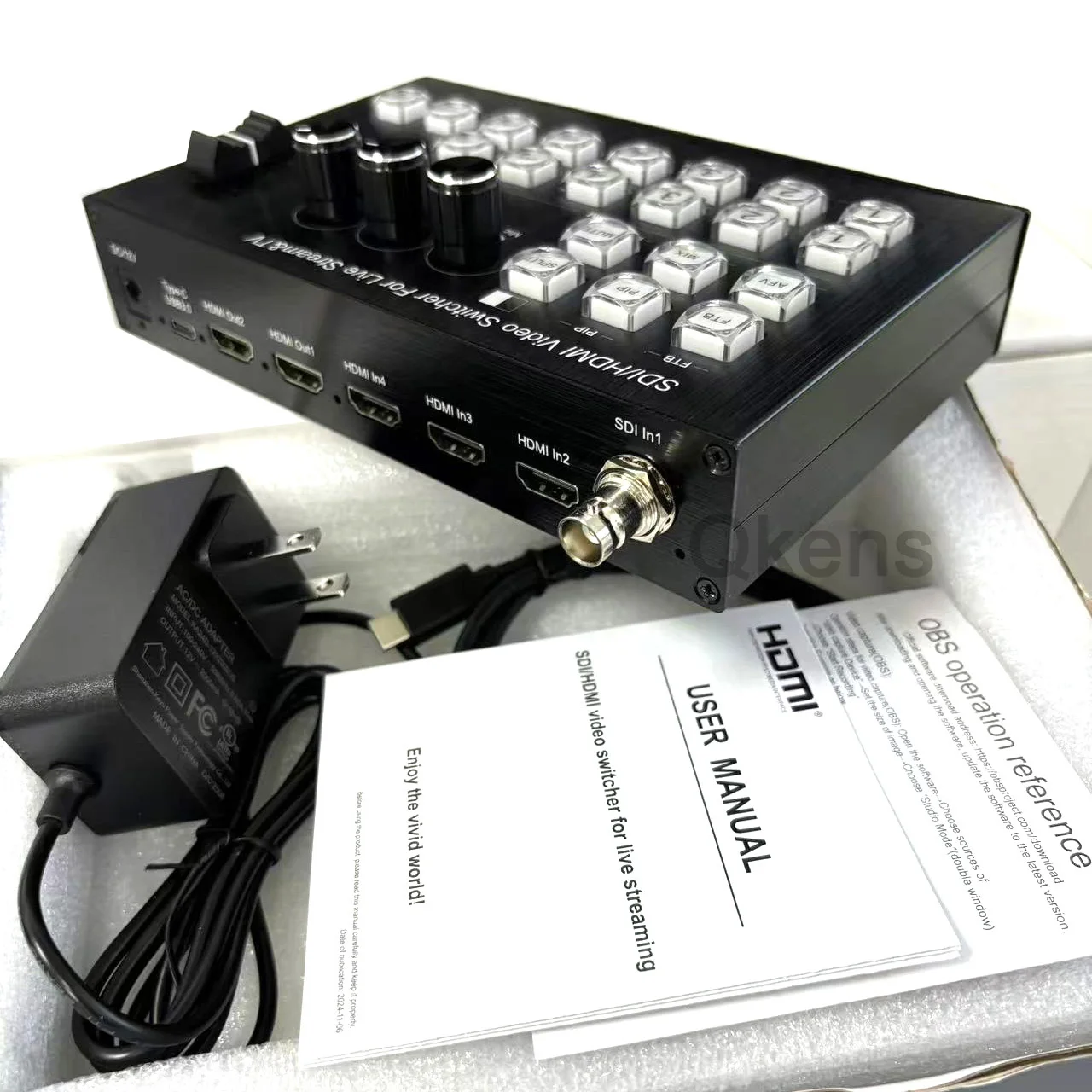

1. SDI/HDMI Video switcher 1PCS
2. 1M Type-c USB3.0 to USB-A 3.0 cable 10Gpbs) 1PCS
3. DC/12V power adapter 1PCS
4. User manual 1PCS
Without retail box and other accessories,if any need,pls contact us before purchase.
