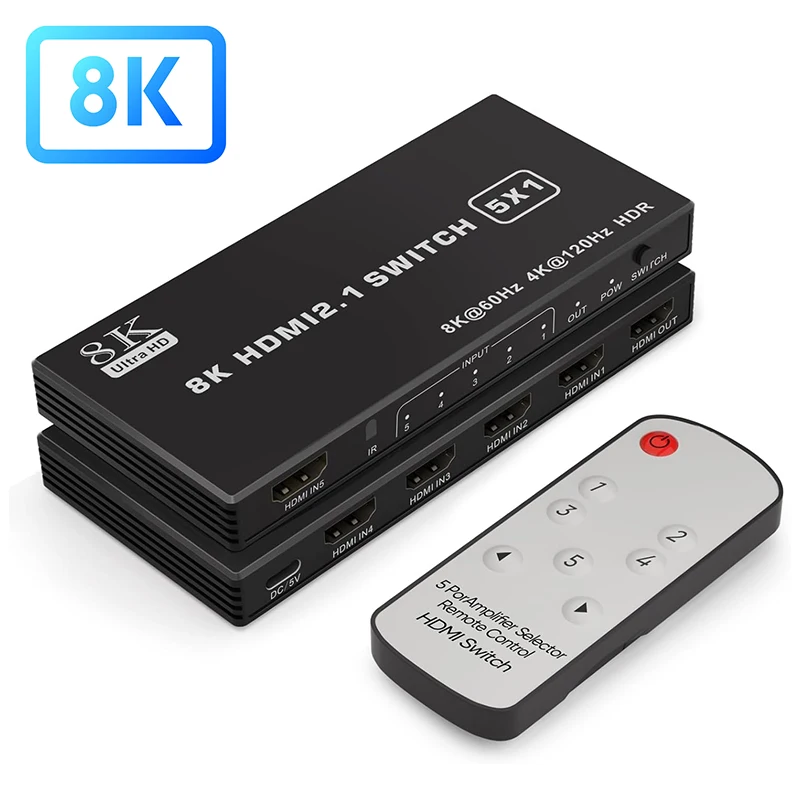

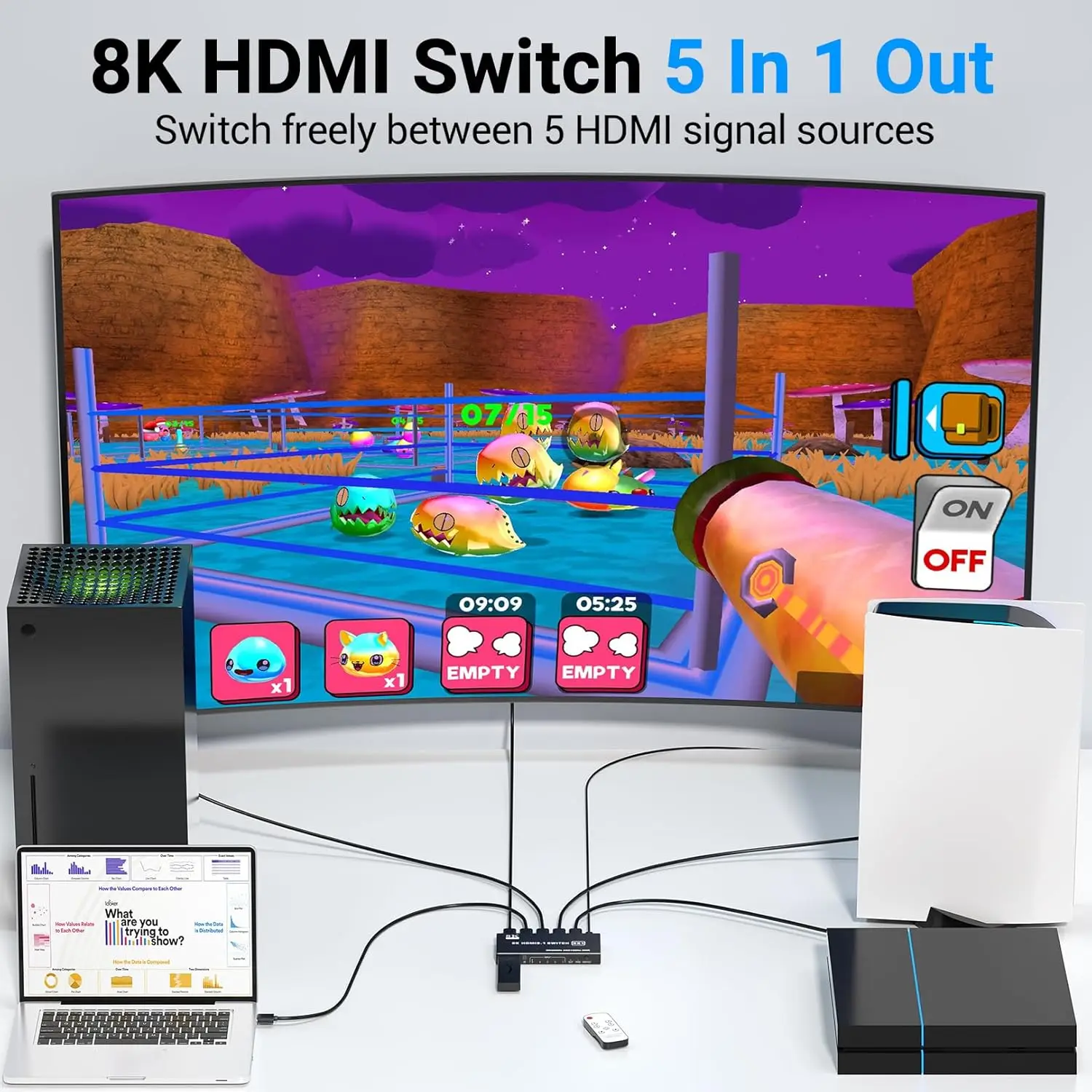

HDMI 2.1 Switch 5 in 1 out:
The 8K 5X1 HDMI Switch Box with IR remote ONLY connects three HDMI sources to one HDMI display.

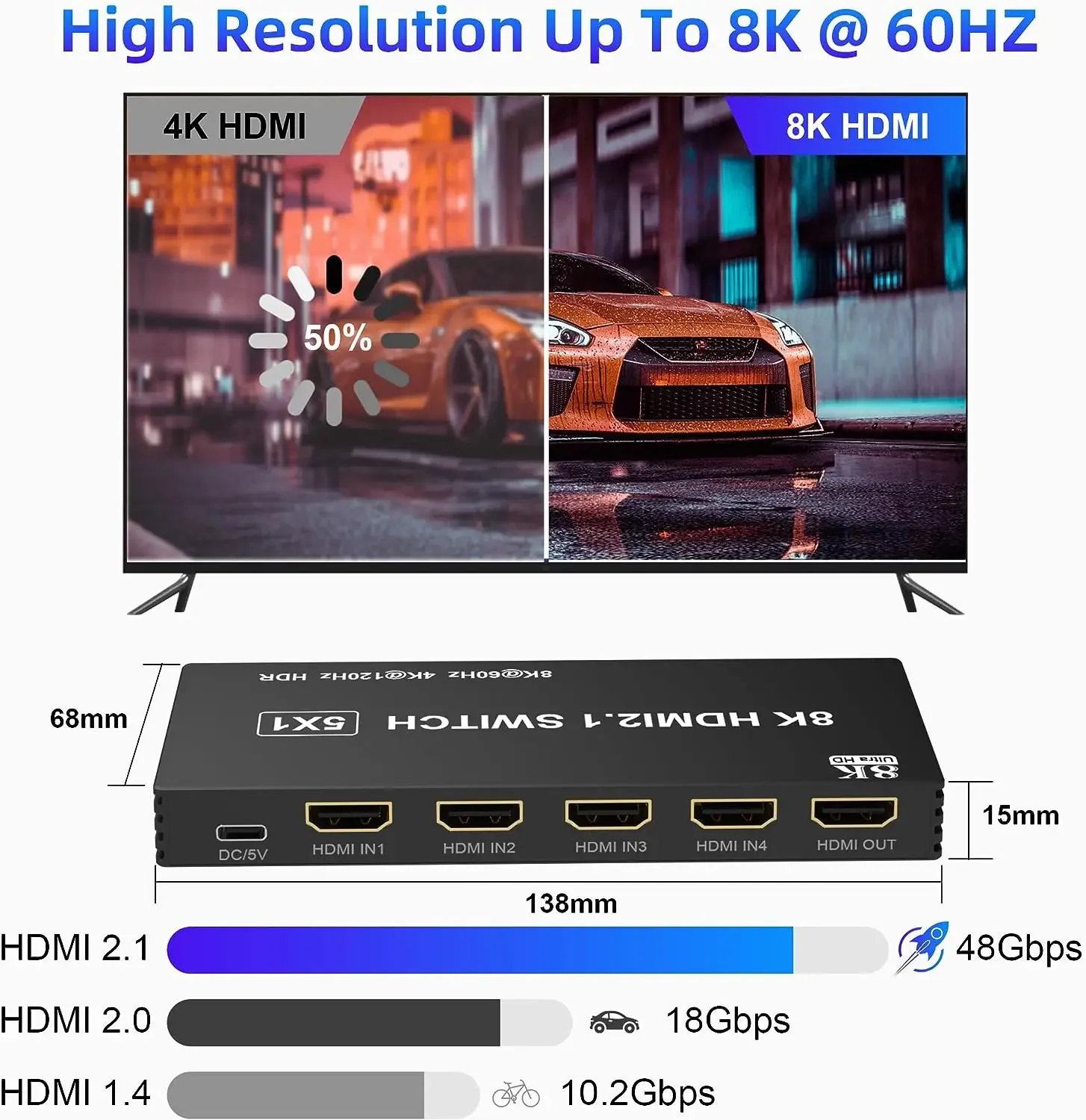

This HDMI Switcher with IR remote control supports 8K@60Hz,4K@120Hz,2K@144Hz, IR Control, HDR,
HDCP,with transfer rates up to 48Gbps and backward compatible with all previous HDMI standards.
2-Way Switch Mode:
Button Switch-switch hassle-free under the basic toggle button, just press the selection button on the HDMI 2.1 switcher 8K box to choose the video source or display needed; IR Remote Switch-supports easy switching with remote control up to 15-feet away.
This 8K@60Hz / 4K@120Hz HDMI Switcher 5 Inputs 1 Output with IR remote control support for the latest in High-bandwidth Digital Content Protection and HDMI specification guarantees system compatibility and stability.
Features & Specifications:
Quick Frame Transport (QFT)
Support 8K@60Hz / 4K@120HZ / 2K@144HZ / 4K@60HZ / 1080P@60HZ
Support HDMI 2.1 / HDCP 2.3
Support Dynamic HDR
Support max. Bandwidth 600MHZ
Support max. Transmission rate 48GBPS
Support video color format 24/30/36 bit
Audio Mode: Support DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)& ALLM / VRR (Variable Refresh Rate) pass-through
All mode Support up to 8K 60 Hz YCbCr 4:2:0 10bit, 8K 30 Hz RGB/YCbCr 4:4:4 10bit or 4K 120 Hz RGB/YCbCr 4:4:4 10bit Support color depth color
Support uncompressed audio, such as LPCM.
Important Remarks:
1)HDMI ATC certified Ultra High-speed HDMI 2.1 cable is needed to work with this 8K HDMI 2.1 Switch.
2) Qualified 8K HDMI 2.1 cables are recommended if you want to get an 8k signal.
3) The length of the HDMI cables connected to both ends of the switch should not exceed 3 meters respectively.
4) connect the supplied USB cable to feed additional power for the switch to work.
You need to connect at least 2 HDMI sources, otherwise you don't need to use the product.
5)You must connect at least 2 signal sources, otherwise you don't need to use the product.
6) The Remote Control battery is not included, and the battery model is AAA.

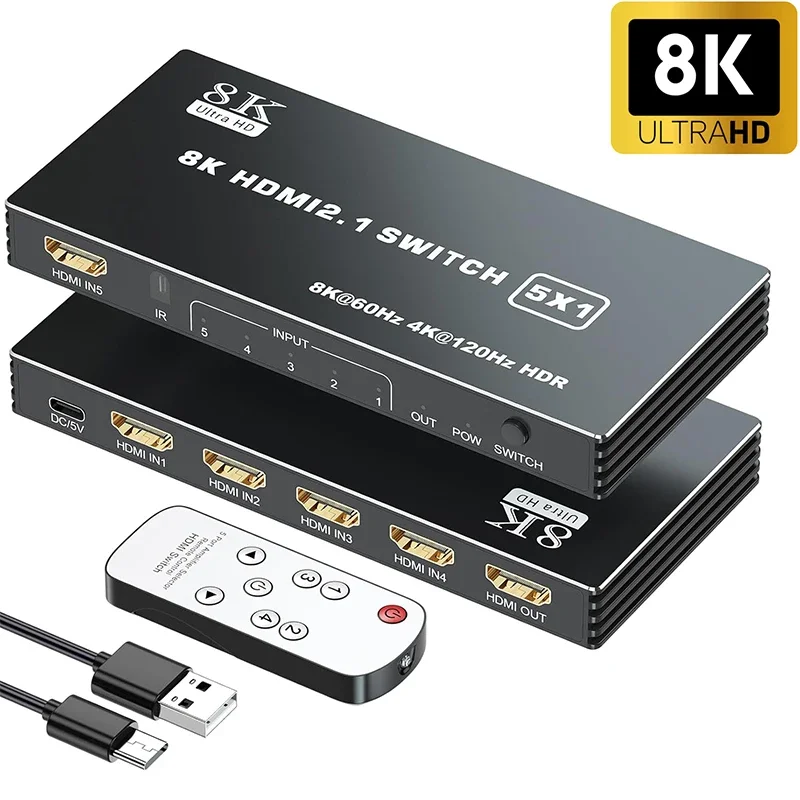

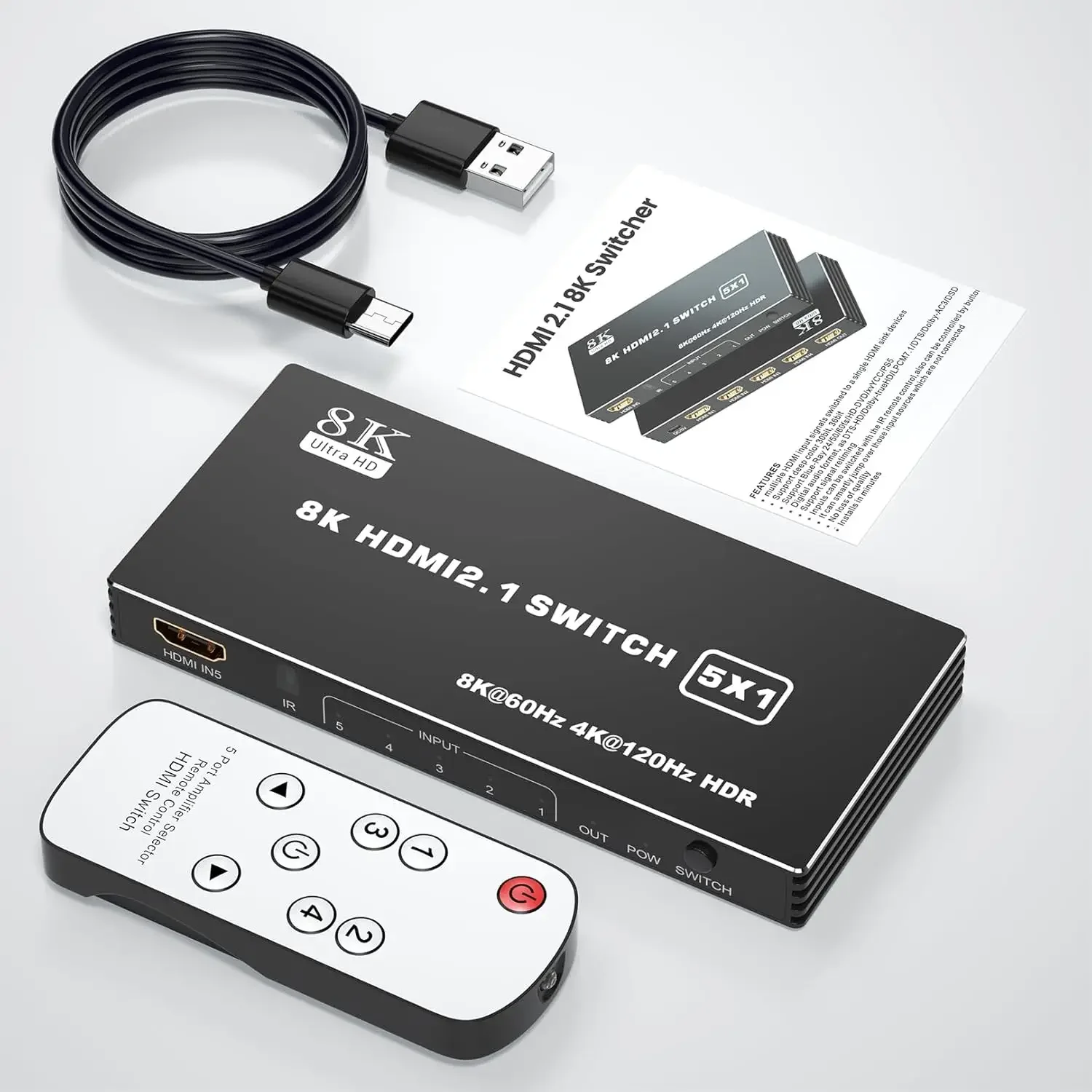

1x8k HDMI 2.1 Switch(unidirectional)
1xUSB Power Cable
1xRemote Control (no battery)
1xUse Manual
