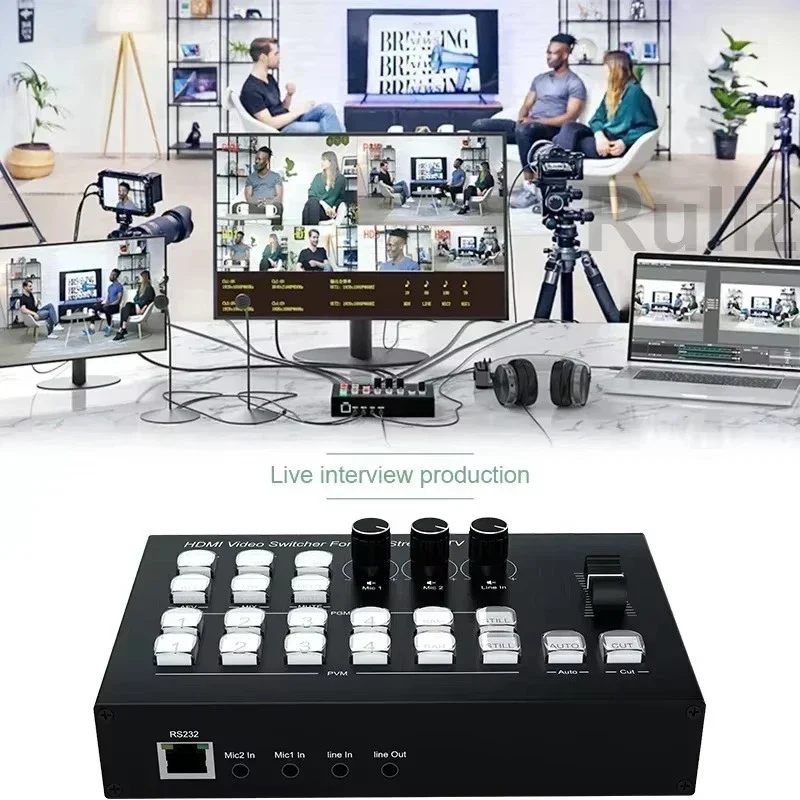

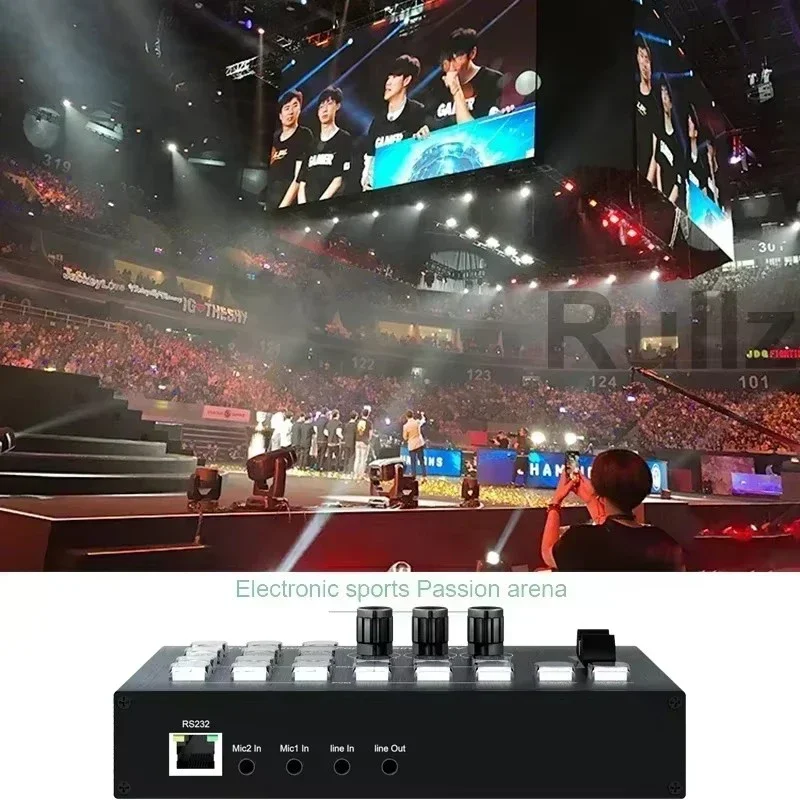

Conmutador de cámara múltiple de vídeo HDMI 4K de 4 canales para transmisión en vivo, producción de transmisión, mezclador de vídeo, estación de conmutación, grabación tipo C

Features:

* 4 HDMI input; 2 HDMI output;
* One Type-C 3.0 capture and push network traffic port, supports video format YUY2;

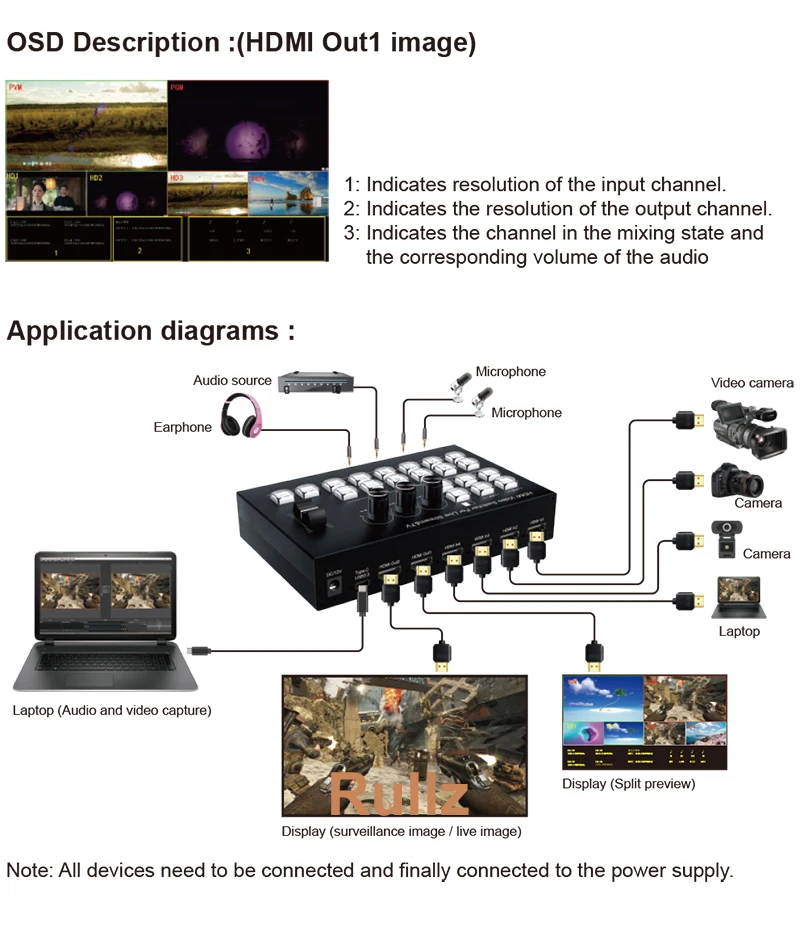

* Support OSD display input channel signal, resolution information, volume information;
* Support MIC,LINE IN,mixing output (LINE OUT fixed mixing output);
* Support HD audio following (fixed following PGM);
* Support left and right two segmentation (PGM on the left, PVW on the right);
* Support LINE OUT and HD audio output;
* Support power-off save Settings;

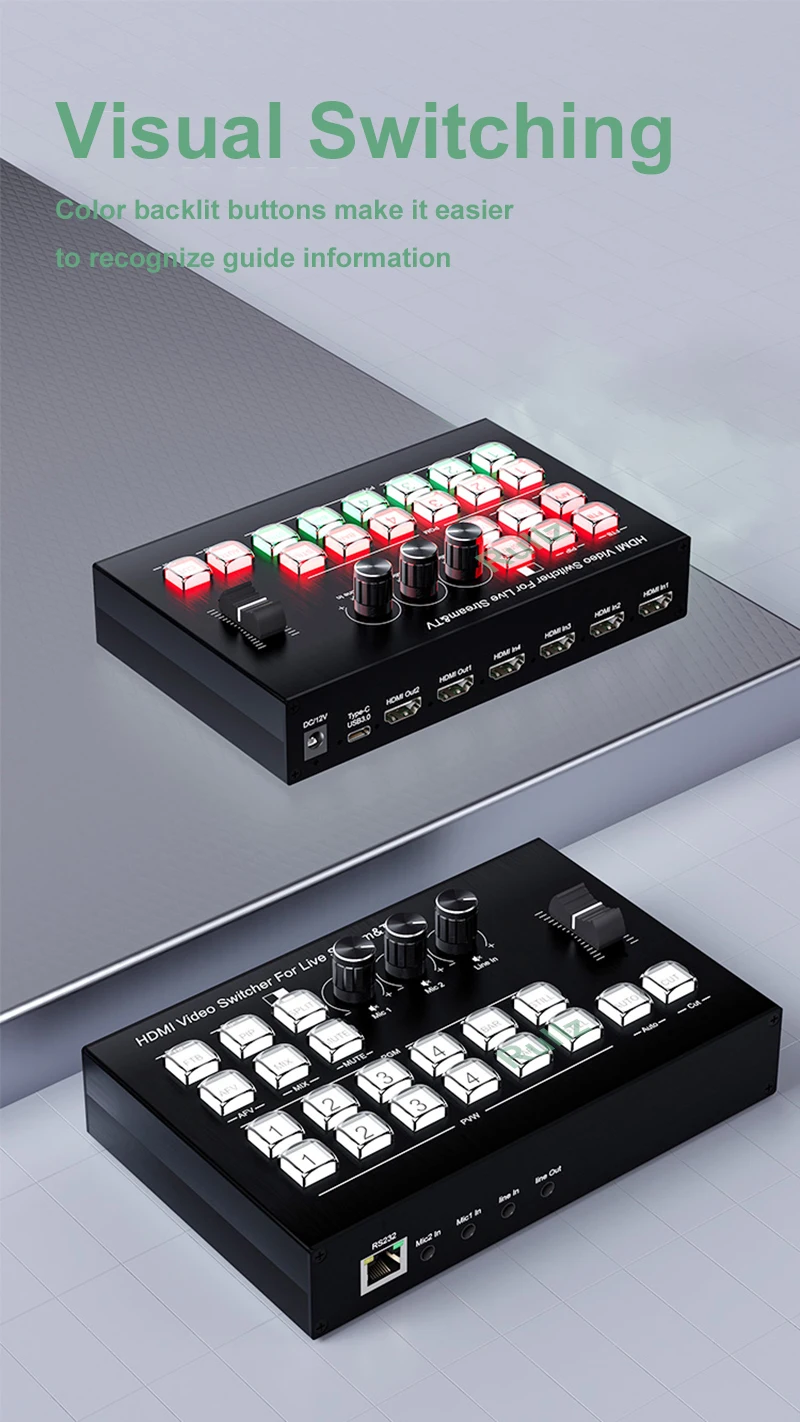

* High quality keys, color backlight design

HDMI input resolution ................................................................................ up to 4K@30Hz
HDMI output resolution ................................................................................. 1080P@60Hz
Type-C 3.0 capture and push network traffic video format ............................ YUY2,JPEG
Supports audio format ................................................................................................. PCM
The maximum bandwidth transmission ............................................................... 148.5MHz
Maximum transmission rate ............................................................................. 1.65 x3Gbps
The input cable length ........................... 1080P/60Hz≤15 m AWG26 HDMI standard cable
The output cable length ......................... 1080P/60Hz≤15 m AWG26 HDMI standard cable
Maximum working current ........................................................................................... 0.7 A
Power adapter specifications .......... Input AC(50Hz,60Hz)100V-240V; Output: DC/12V 2A
Working temperature range ....................................................................... (-15℃ to +55℃)
Size ..............................................................................................Approx. 180x115x52(mm)










1: FTB -- PGM turns on or off to black screen
2: PIP -- Enter or exit picture-in-picture mode
(PGM background, PVW small image, audio follows PGM);
3: SPLIT -- Left and right two segmentation (PGM on the left, PVW on the right);
4: AFV -- audio follows PGM image;
5: MIX -- Audio mix (MIC1-2/Line in/HD);
6: MUTE -- Turn on or off the mute;
7: PGM_1 -- PGM image switched to HD1; PGM_2 -- PGM image switched to HD2;
PGM_3 -- PGM image switched to HD3; PGM_4 -- PGM image switched to HD4;
BAR -- PGM blue image turn on or off;
STILL -- PGM image is frozen or unfrozen;
8: PVW_1 -- PVW image switched to HD1; PVW_2 -- PVW image switched to HD2;
PVW_3 -- PVW image switched to HD3; PVW_4 -- PVW image switched to HD4;
BAR -- PVW blue image turn on or off;
STILL -- PVW image is frozen or unfrozen;
9: Mic1 -- Tap MIC 1 to turn on or off the Input volume, rotate to adjust the volume.
10: Mic2 -- Tap MIC 2 to turn on or off the Input volume, rotate to adjust the volume.
11: Line In -- Tap to turn on or off analog audio input , rotate to adjust the volume;
12: Slider key - Fade in and out between PVW and PGM image;
13: Auto -- Fade in and out between PGM and PVW image;
14: Cut -- Quick switch between PGM and PVW image;

Package Content:

1. Video switcher for live streaming 1PCS
2. 1M Type-c USB3.0 to USB-A 3.0 cable 10Gpbs) 1PCS
3. DC/12V power adapter 1PCS
4. User manual 1PCS

Without retail box and other accessories,if any need,pls contact us before purchase.
