Conectores solares de alimentación Cable de rama en Y de 30 A, adaptador paralelo de cable solar en par para panel solar 1 * M/FF + 1 * F/MM negro rojo Power

• High Power Capacity :With a capacity of 30A, this solar connector can handle high power output from solar panels, making it ideal for off-grid living.

• Versatile Cable Configuration :The Y-branch cable configuration allows for easy parallel connection to multiple solar panels, making it a versatile option for solar energy systems.

• Durable and Long-Lasting :Made with high-quality materials, this solar connector is built to last and withstand harsh weather conditions, ensuring long-term performance.

• Easy Installation :The crimp terminal design makes installation quick and easy, saving time and effort during the installation process.

Features:

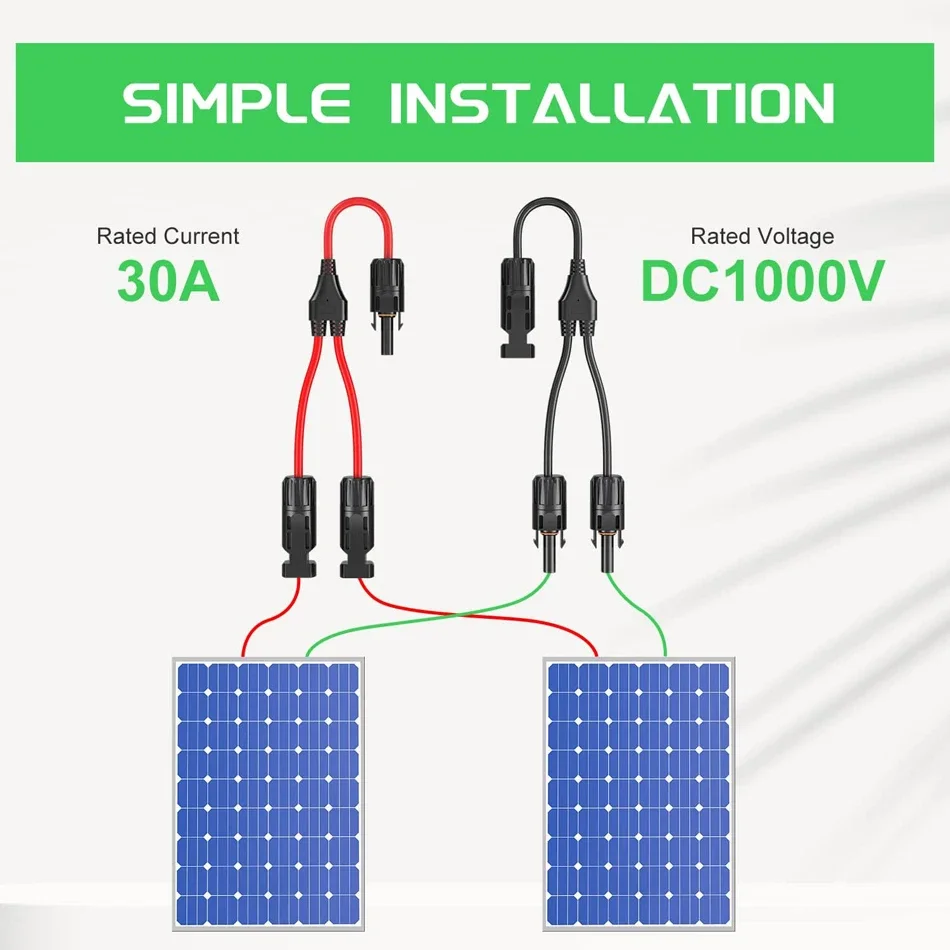

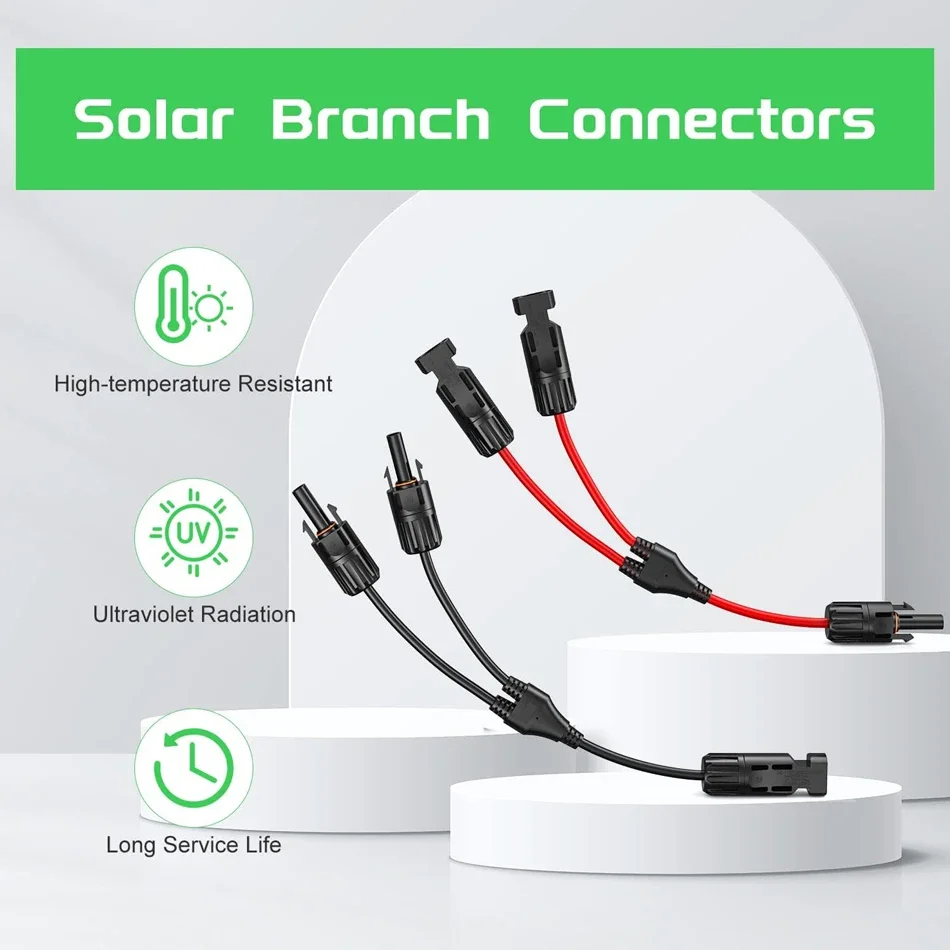

• 【Y Branch Parallel Connector】The solar connector has passed CE and TUV certification, 1 Male to 2 Female (M/FF) and 1 Female to 2 Male (F/MM). It can connect 2 solar cells in parallel.

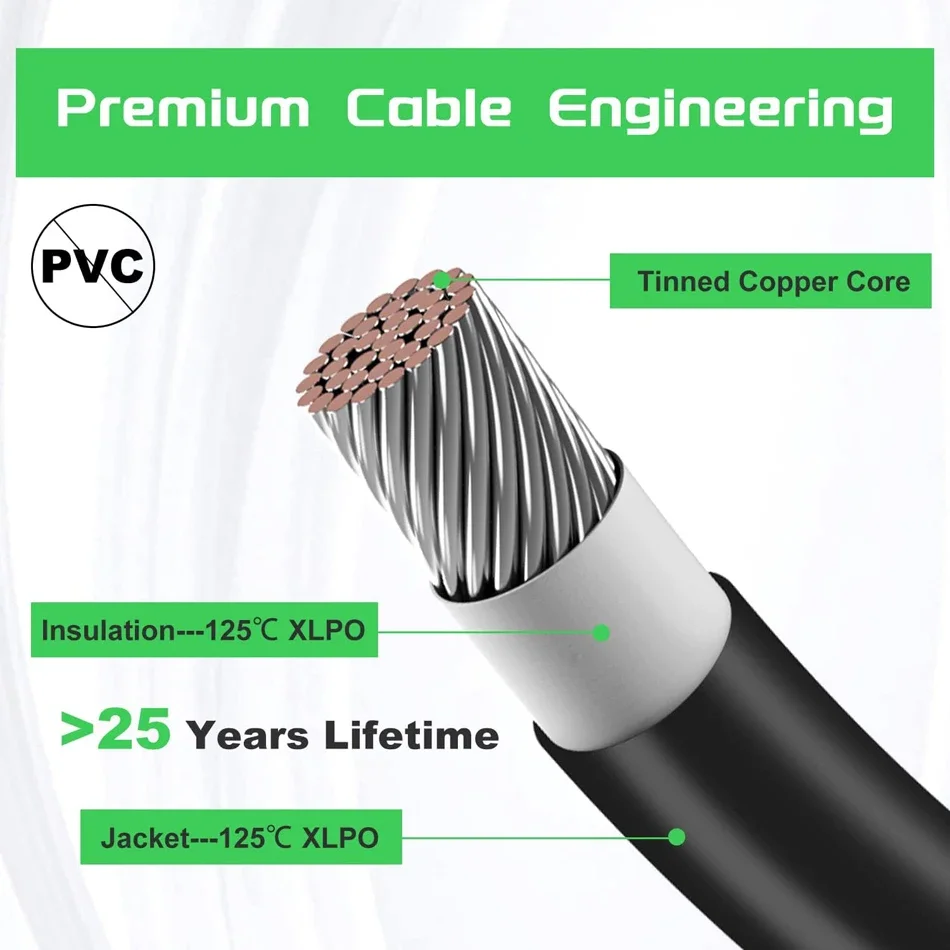

• 【XLPE Material & Durable】The inner core of the wire is twisted with 56 tinned copper wires with a diameter of 0.285mm, with low contact resistance and high current and high voltage capacity. The wire sheath is made of XLPE material, which is resistant to high and low temperatures, fireproof and anti-corrosion, and anti-ultraviolet, and has a service life of up to 25 years.

• 【Double Sealing Ring & Flame Retardant】 IP67 waterproof and UL94 V-0 flame retardant, durable in outdoor environments, the double sealing ring design improves waterproof performance and increases the cable's enforceability in severe weather such as rain, snow, and wind

• 【Easy to Install and Strong Connection】The solar connector cable can be connected with your fingers, press your fingers on both sides of the built-in lock on the solar panel connector to easily connect and disconnect solar wire connectors and solar cables, plug and play -Play, strong connection and not easy to fall off

• 【High-Security Connector】Solar photovoltaic connector for installing and using solar photovoltaic electricity static, rated current is 30A, rated voltage is 1000V DC, high-quality materials keep your devices stable at -40℃~+85℃。

Specification:

Length: 20FT

Wire Gauge: 10 AWG 10 Guage

Cross-Sectional Area of The Conductor: 6mm2

Rated Voltage: DC: 1.8KV -AC：0.6~1KV

Operating Temperature Rate: -40~ + 90℃

Fire Rating: UL2556 VW-1

Waterproof Rate: IP67

Package Included：

• One pair ( 1 piece black + 1 piece red /2pcs black) 20 Feet 10AWG Solar Extension Cables

1. Key away from Fire

2. Due to includeing small parts, please keep away from Children under Three.

3. Please leave 5 star feedback if you're satisfied with our products and service, we will appreciate it

4. If the products you received was damaged or any more question, please feel free to contact us.
