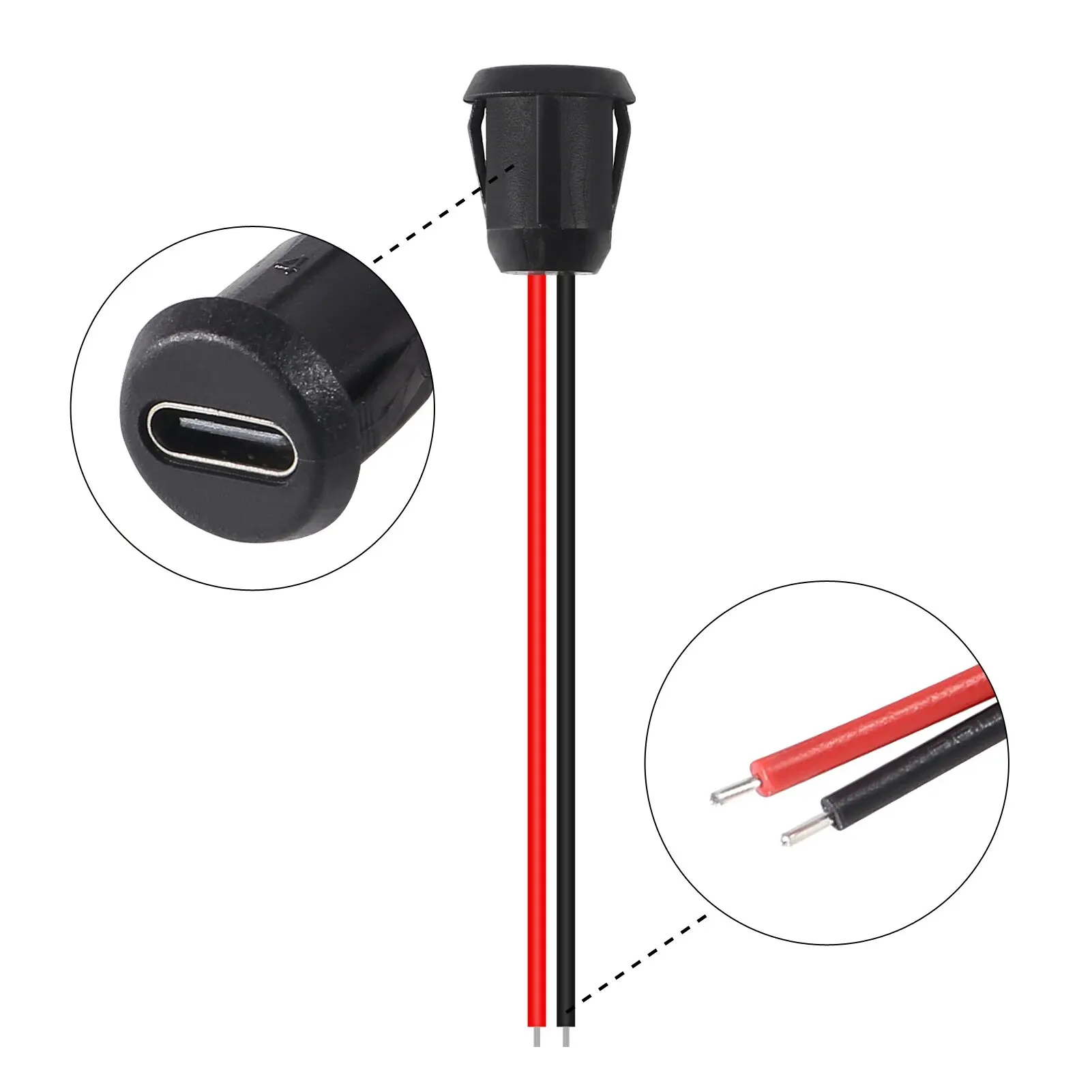

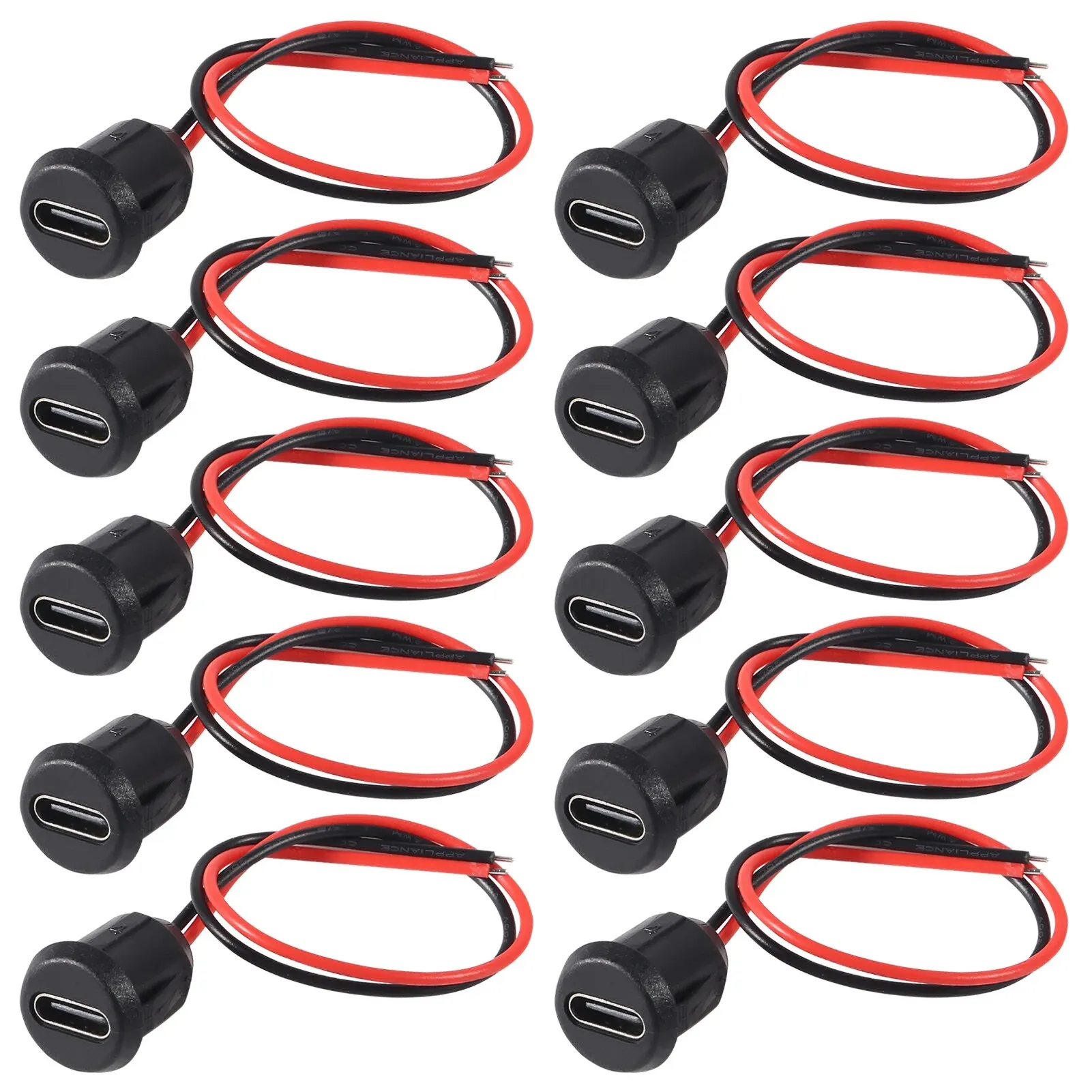

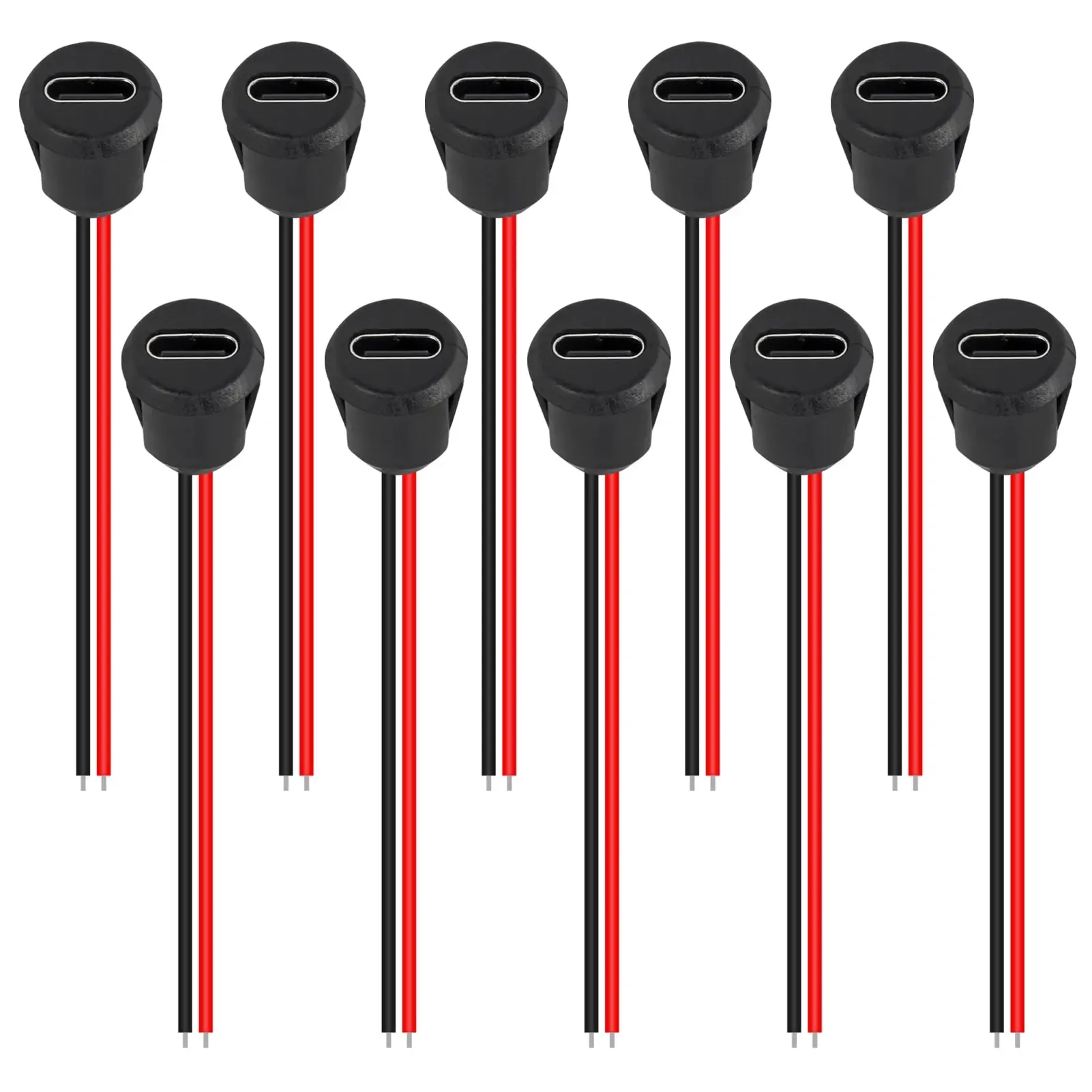

Conector USB tipo C hembra de 2 pines, resistente al agua, con enchufe hembra, puerto de carga de carga rápida, enchufe de cargador USB-C, 5 uds.

5PCS Type-C female 2pin USB connector type-C waterproof with female socket fast charging jack charging port USB-C charger plug socket

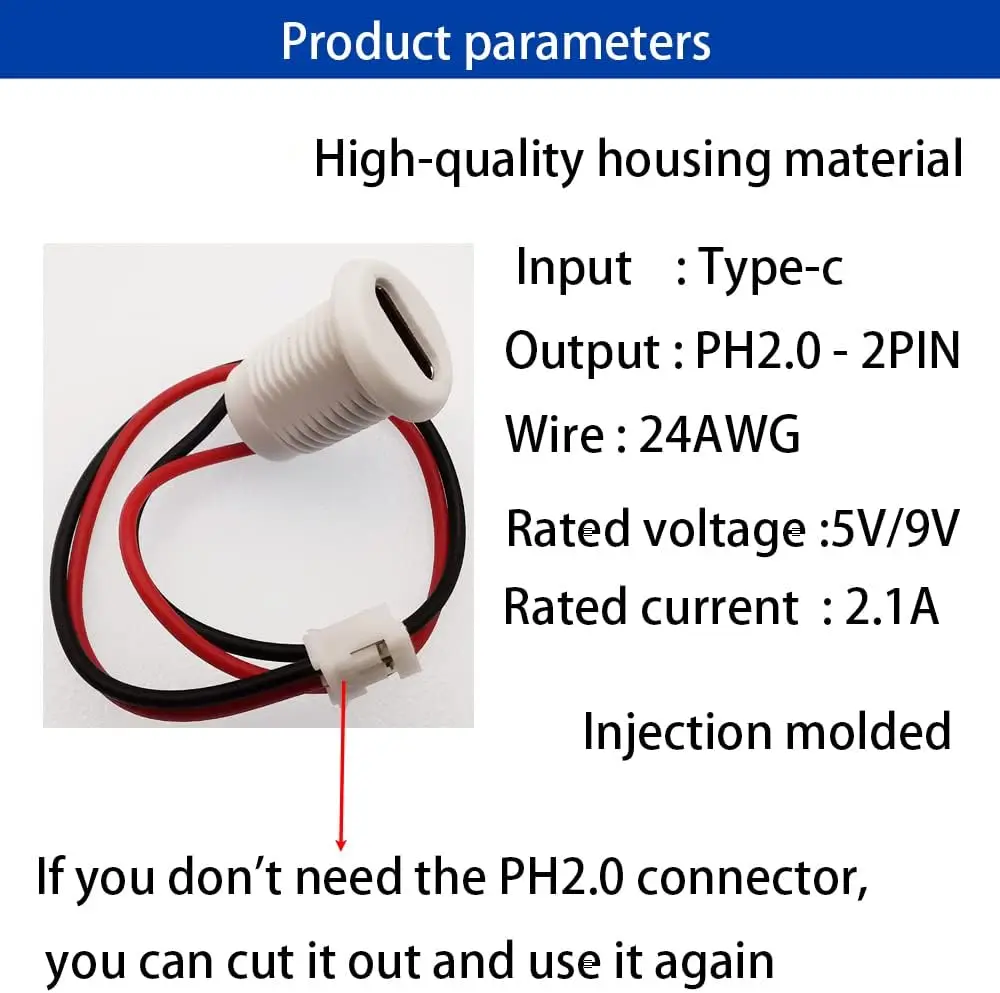

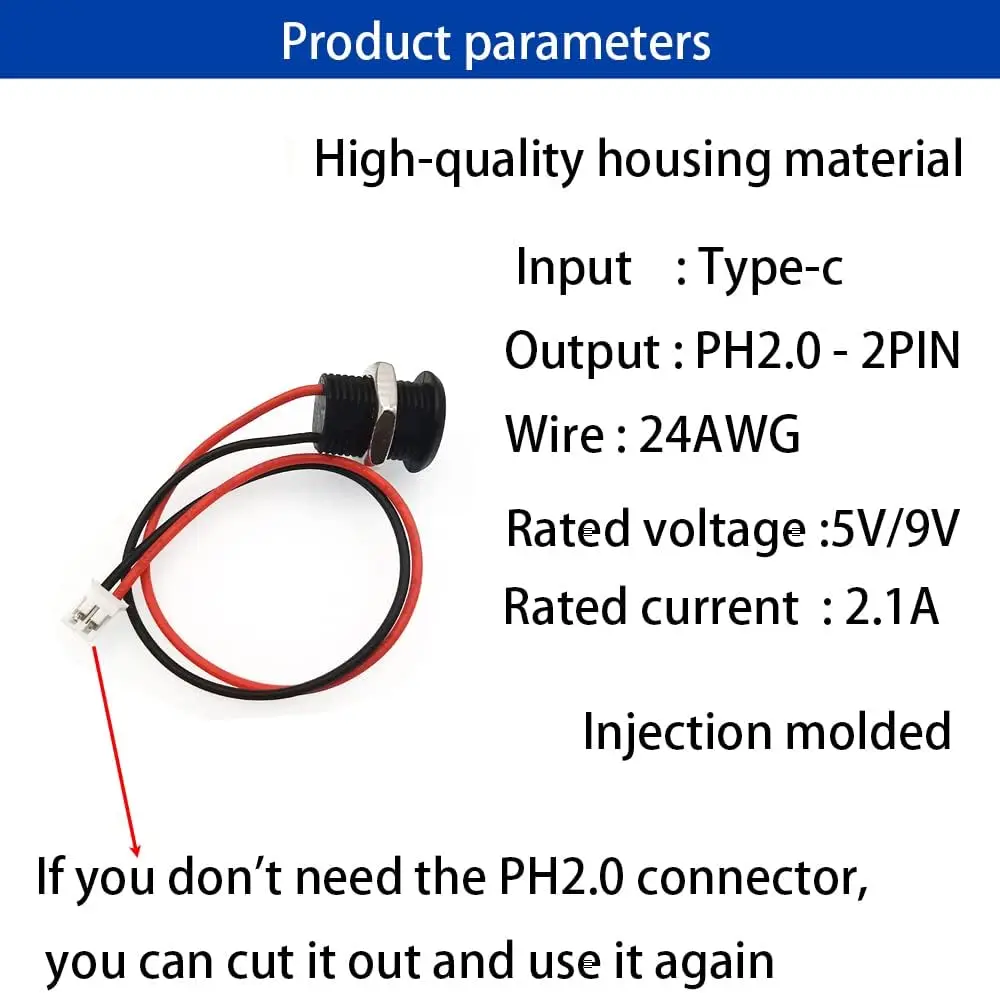

Features:

• Easy to use, ideal for power input for DIY electronics

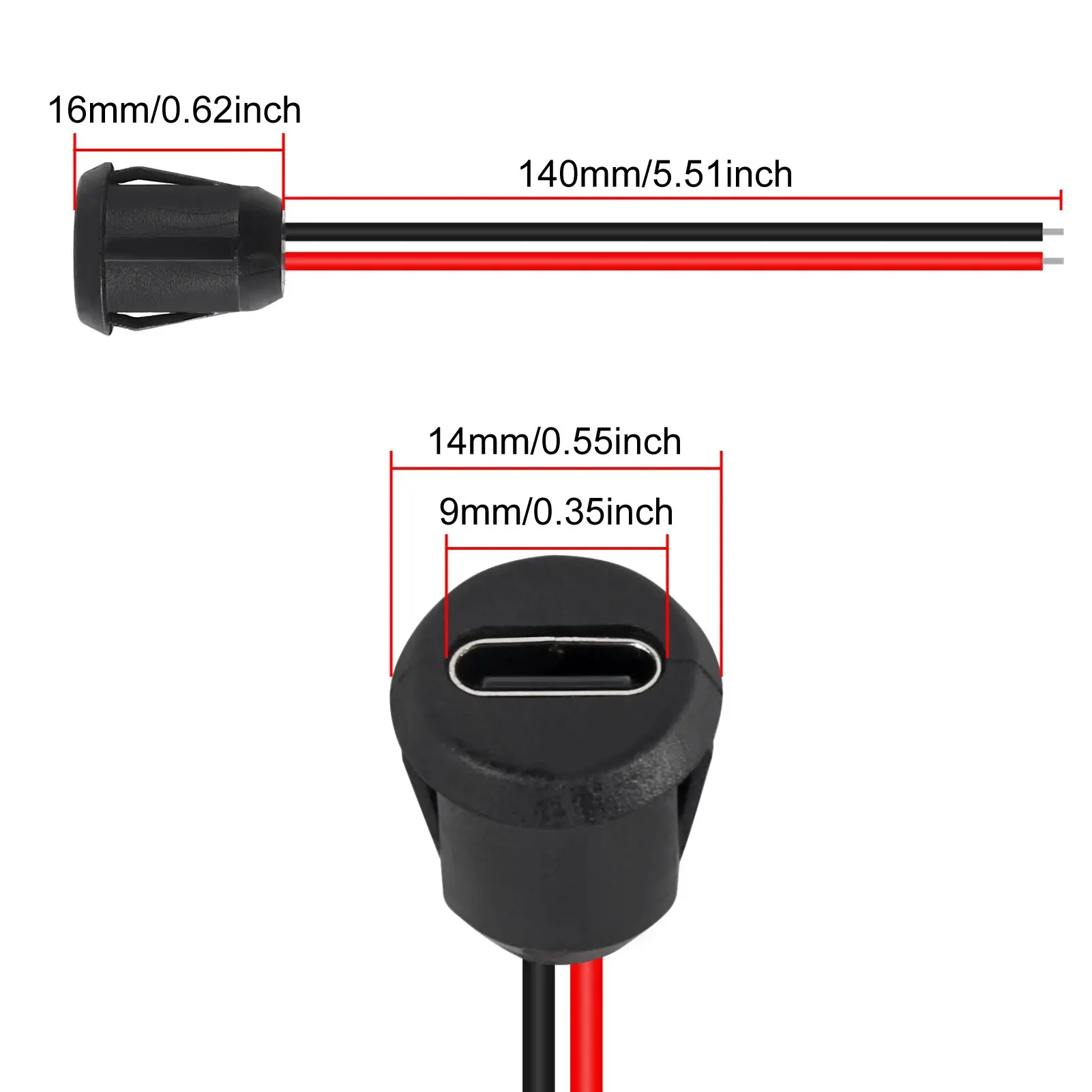

• Rated voltage 20V, rated current 2.1A, 24AWG wire. Length 10cm

• Waterproof material, waterproof grade IPX5

• Contact resistance is less than 30 milliohms and insulation resistance is greater than 1M ohms.

• Packing list ：5PCS Type c female socket

Specification:

�� Materials: Education

Forming: LCP UL94 V-0

Contacts: minimum copper alloy gold plating on the contact area, minimum tin plating

on the soldering area 100uMin (lead-free)

Shell: SUS304-H, T=0.30±0.03mm50u” full nickel-plated

Using Machinery●

Insertion: 5~20N

Extraction: 820N Test

Durability: 10000

【Electrical】

Current: 3A for VBUS; 1.25A for GND PIN0.25A for others

Voltage: 20V

Maximum withstand voltage: 100V AC R.M.S

Contact resistance: 40mq

Maximum insulation resistance: 100MQ

Temperature range: -25 °C + 85 °C

Package include:

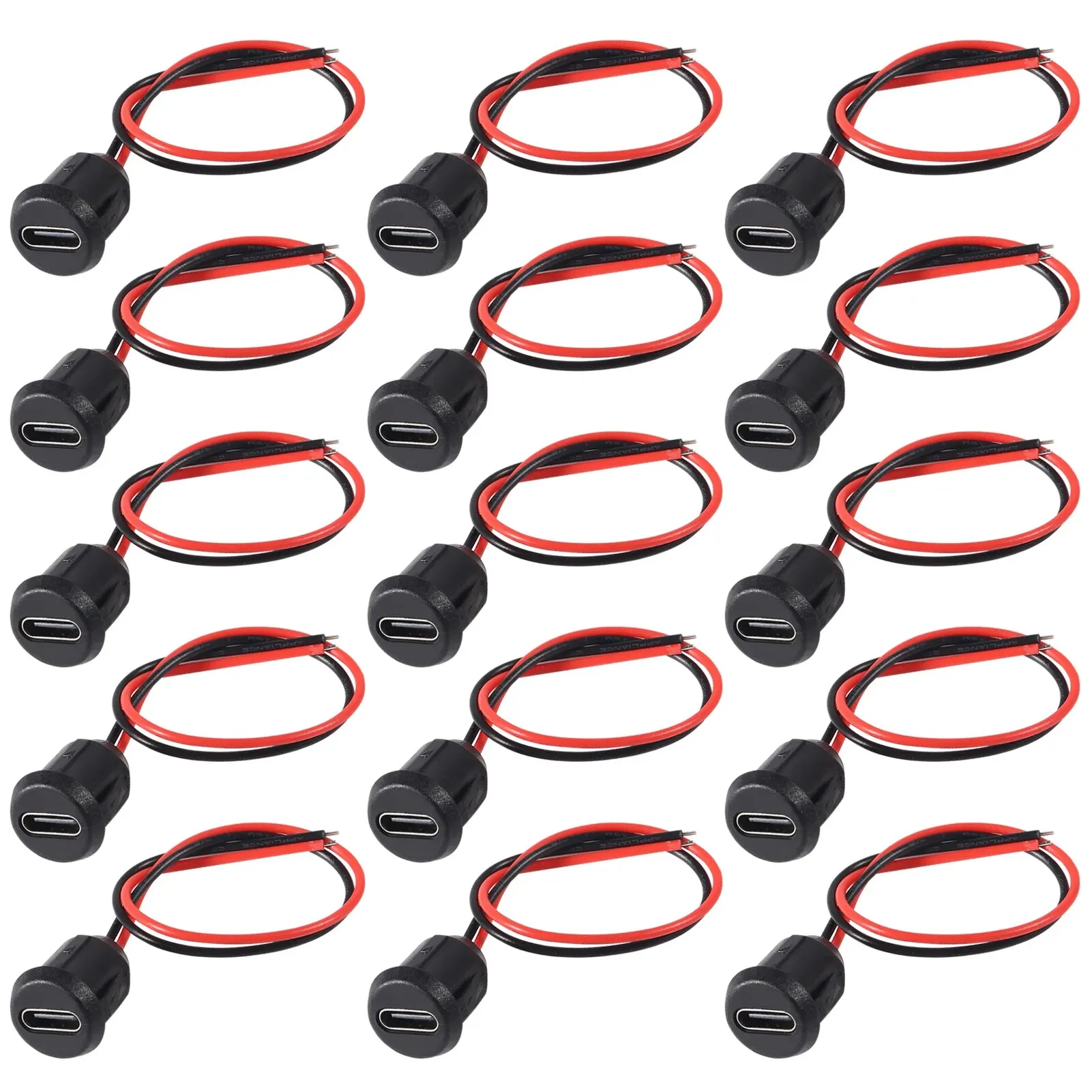

5 x USB Type C Connector

1. Key away from Fire

2. Due to includeing small parts, please keep away from Children under Three.
