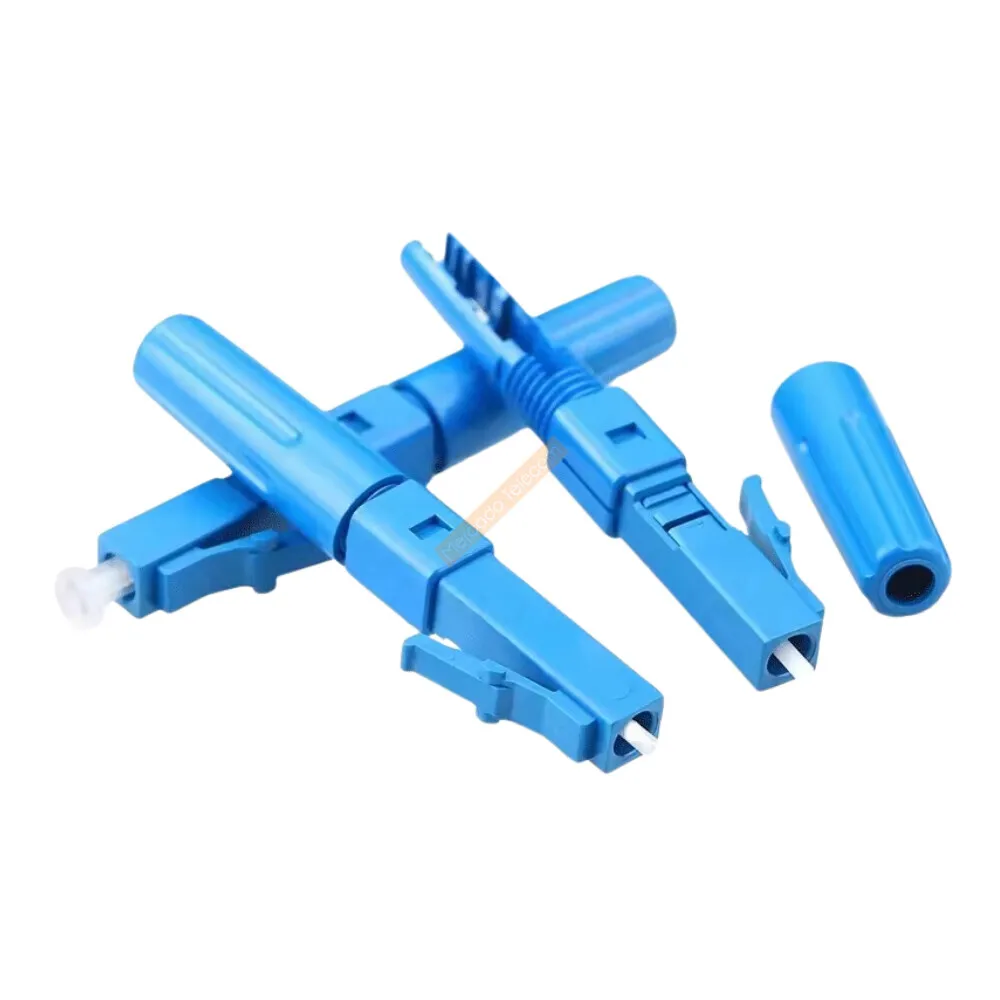

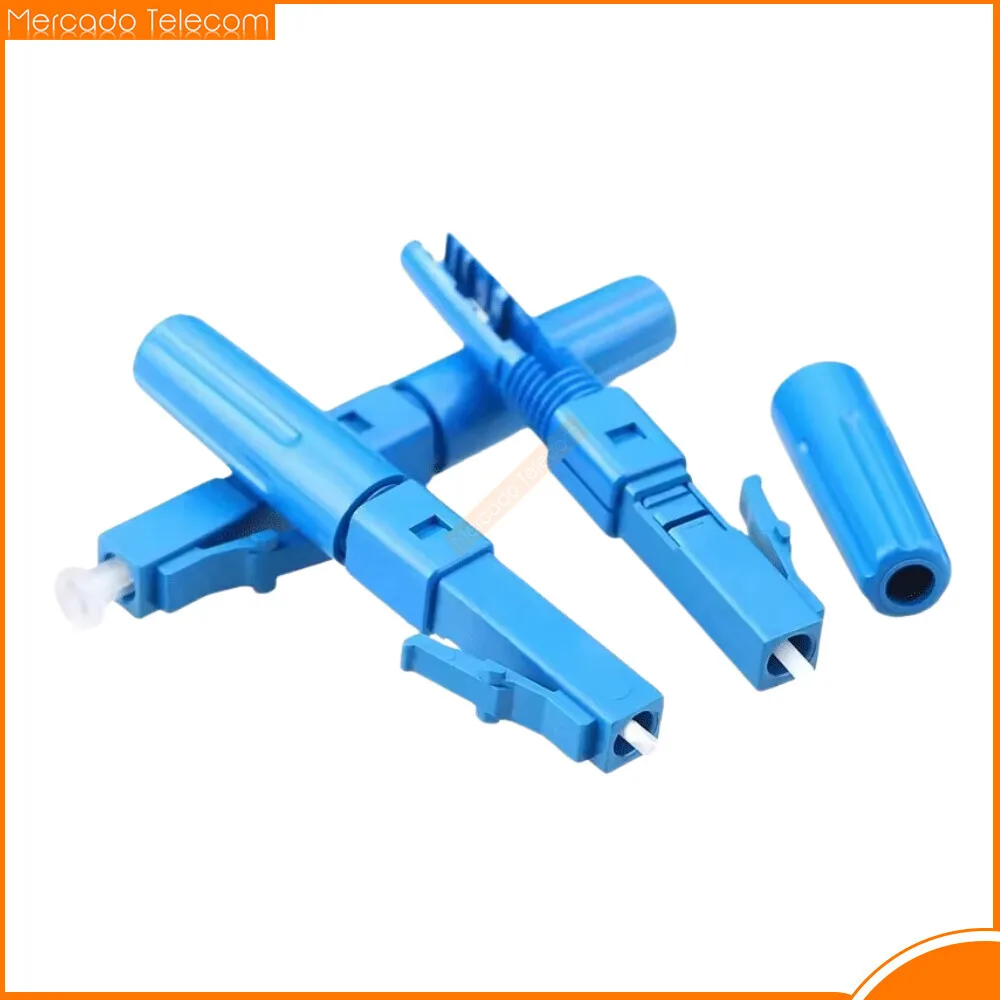

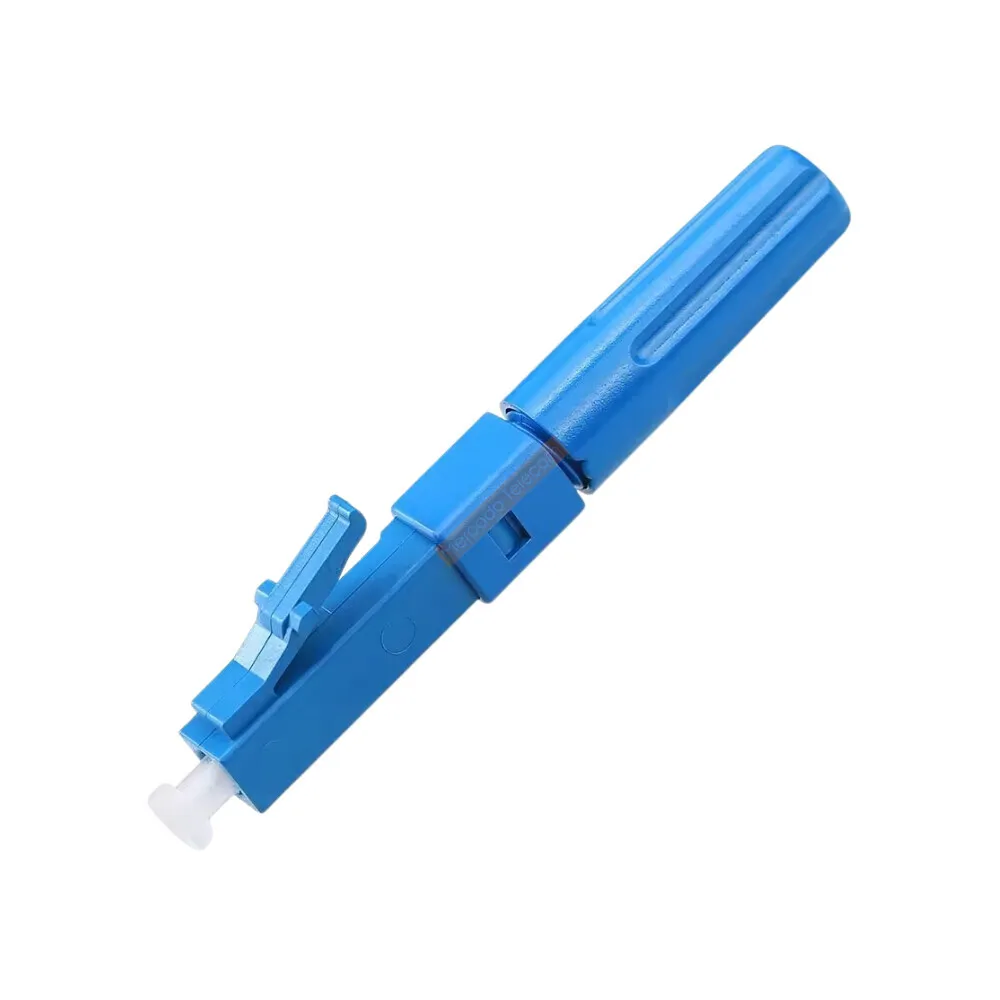

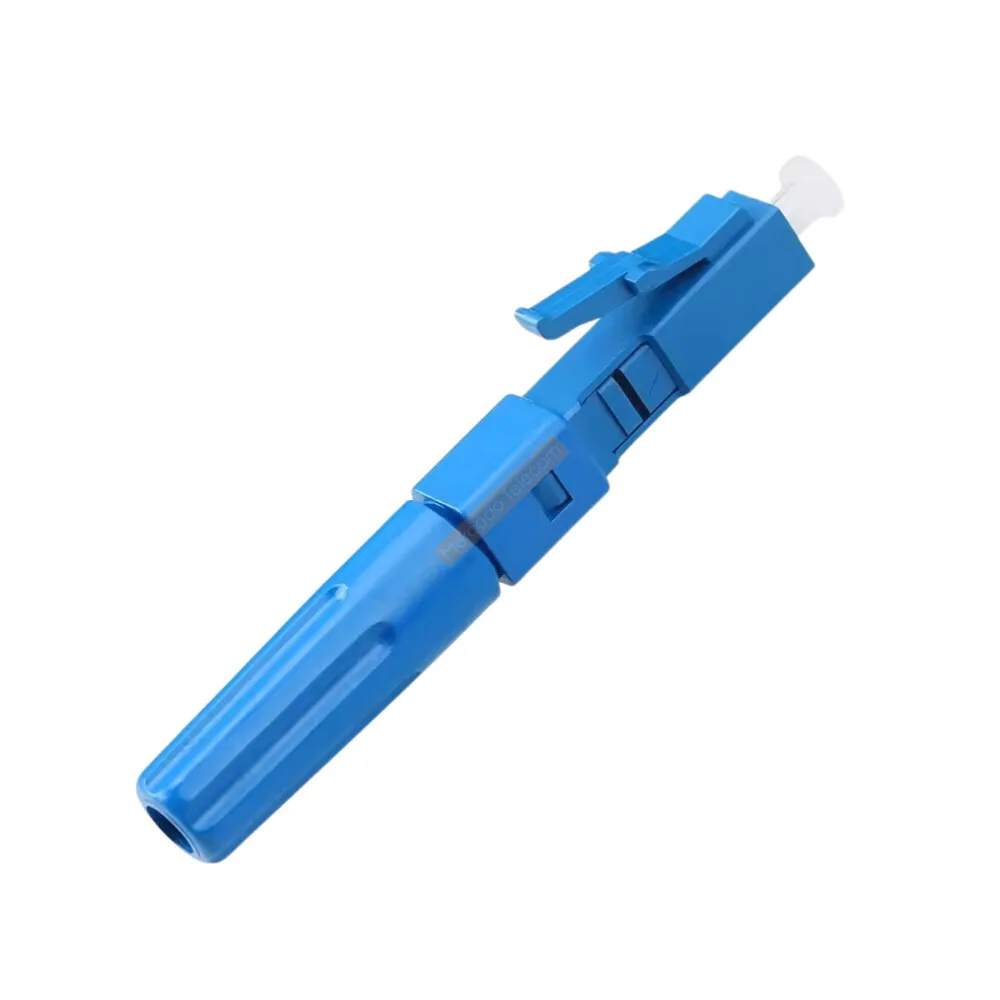

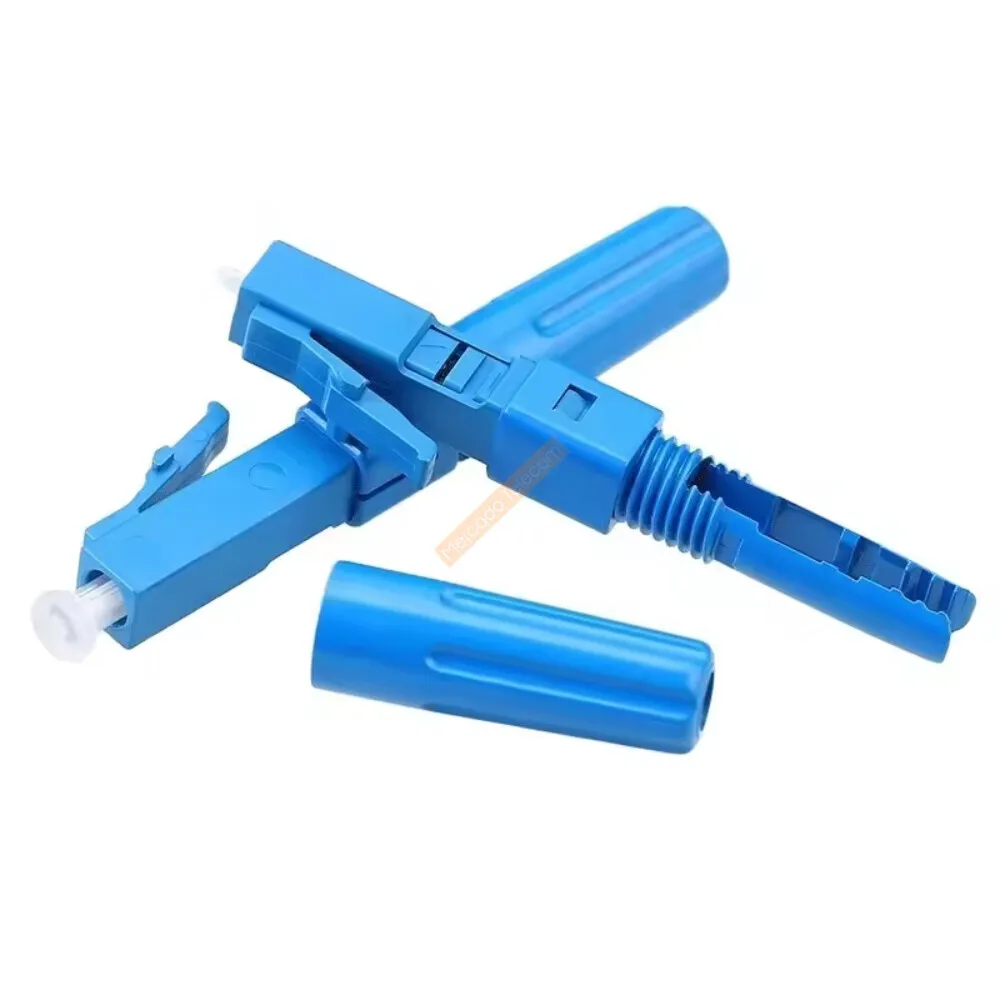

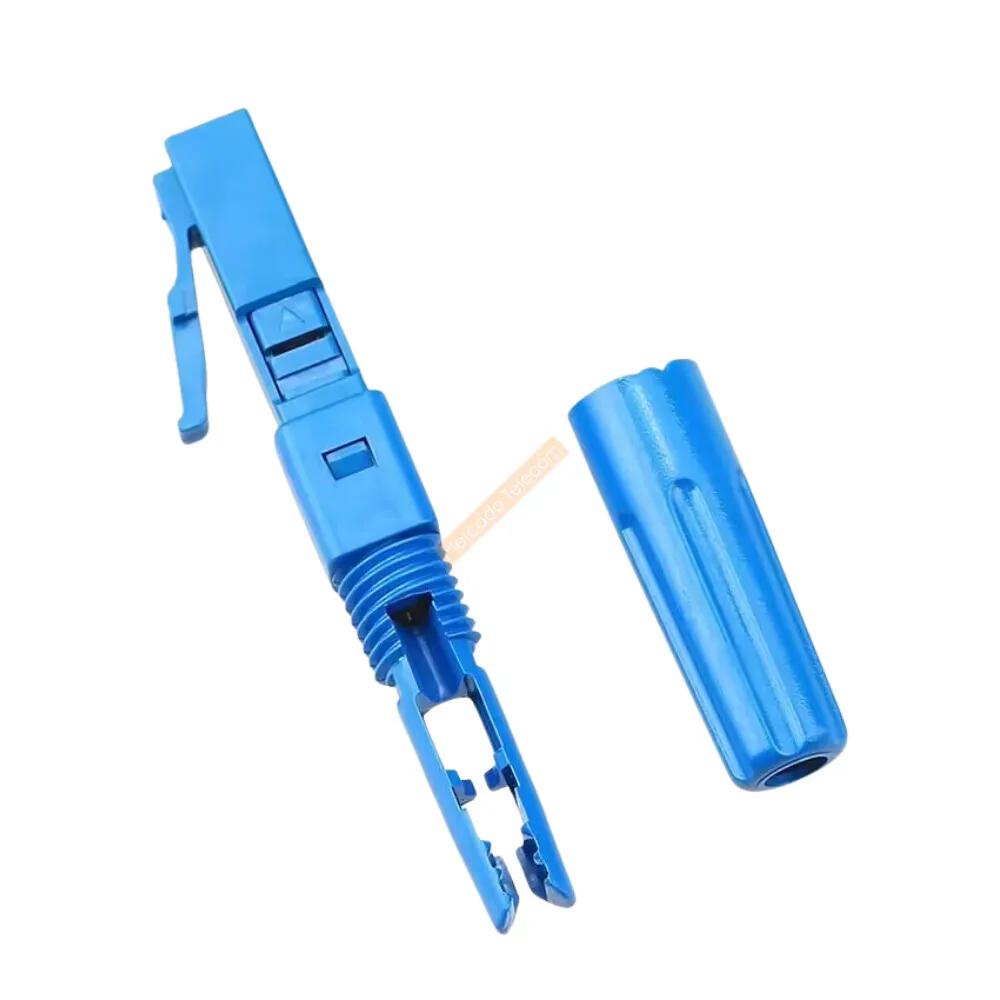

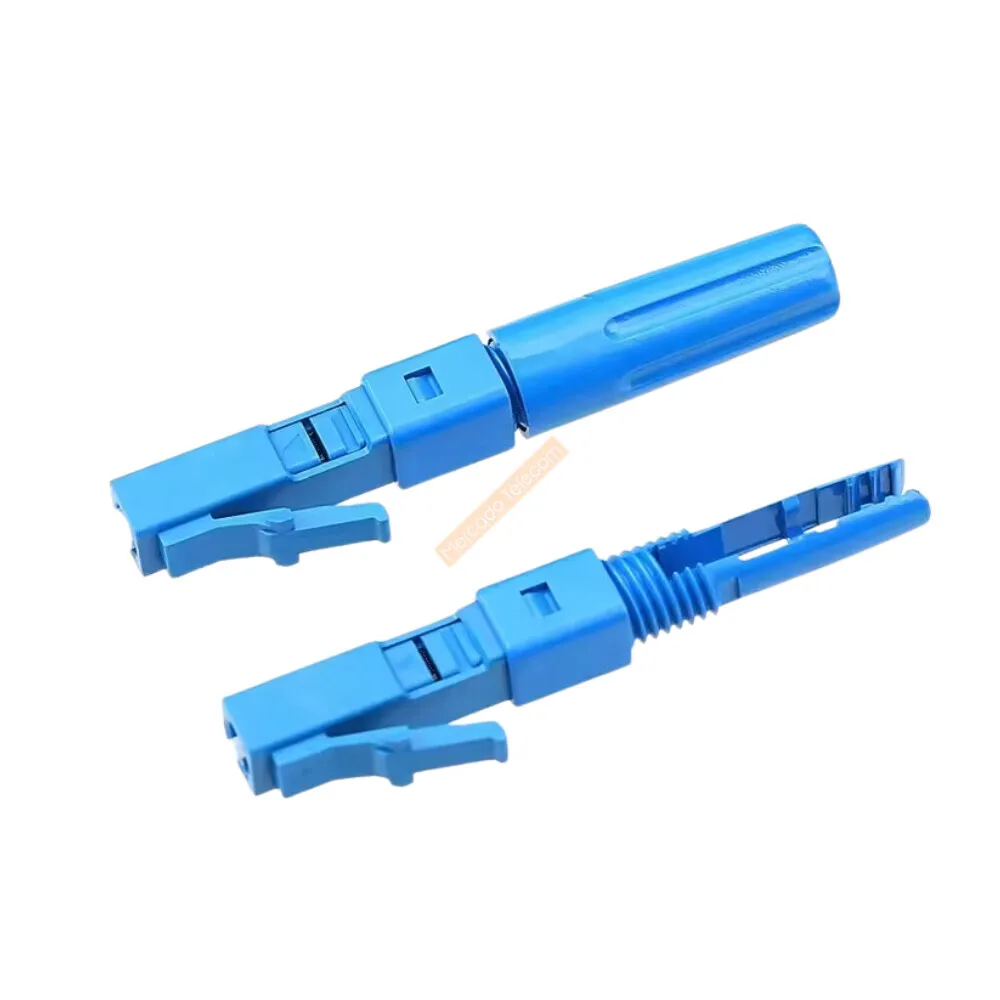

10pcs/lot ELC925T LC UPC Fast Connector Quick Connection for Drop Indoor Cable Fiber Optic Adapter Free Shipping
Features:
- Fiber embedded, polishing in factory;
- Matching gel inside;
- Applicable for different situation;
- Meet various assembly operating habits；
- Screw type,total length:53.3mm, including soft tail
- Applied to 2.0x3.0mm 1.6x2.0mm drop cable Ø2.0 and Ø3.0 indoor cable, 0.9 invisible cable;
- The diameter of fiber coating:250μm, 900μm;
- Tensile strength:≥30N/2min
Specification
Item
Parameter
Cable Scope
2.0x3.0mm 1.6x2.0mm Drop Cable
3.0mm 2.0mm Indoor Cable
0.9mm Invisible Cable
Fiber Diameter
125μm ( 652 & 657 )
Coating Diameter
900μm
Mode
SM
Operation Time
about 4min(exclude fiber presetting)
Insertion Loss
≤ 0.3 dB(1310nm & 1550nm), Max ≤ 0.5 dB
Return Loss
≥50dB for UPC
Success Rate
98%
Reusable Times
≥5 times
Tighten Strength of Bare Fiber
3N
Tensile Strength
30 N/2min
Temperature
-40~+85℃
On-line Tensile Strength Test (20 N)
IL ≤ 0.3dB
Mechanical Durability(500 times)
IL ≤ 0.3dB
Drop Test(4mconcrete floor, once each direction, three times total)
IL ≤ 0.3dB
Connector Length
40mm
