Conector hembra Micro Mini PHB de 50 piezas, carcasa de plástico con hebilla de doble fila, 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2, 2,0mm x 8P 2x9 2x10P

50Pcs Micro Mini PHB 2.0mm Female Housing Connector Double Row buckle plastic shell 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9 2x10P

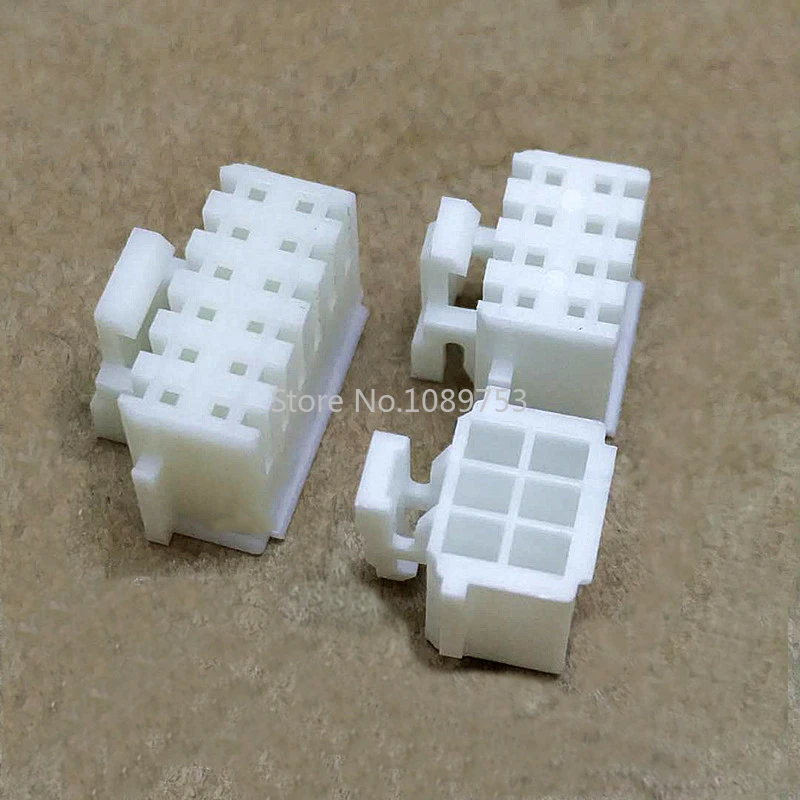

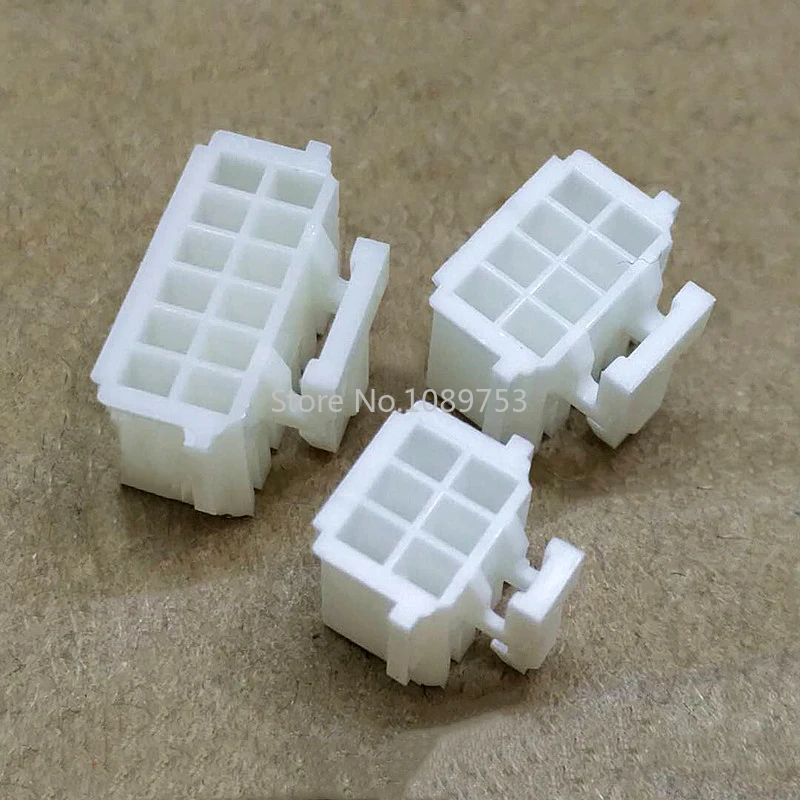

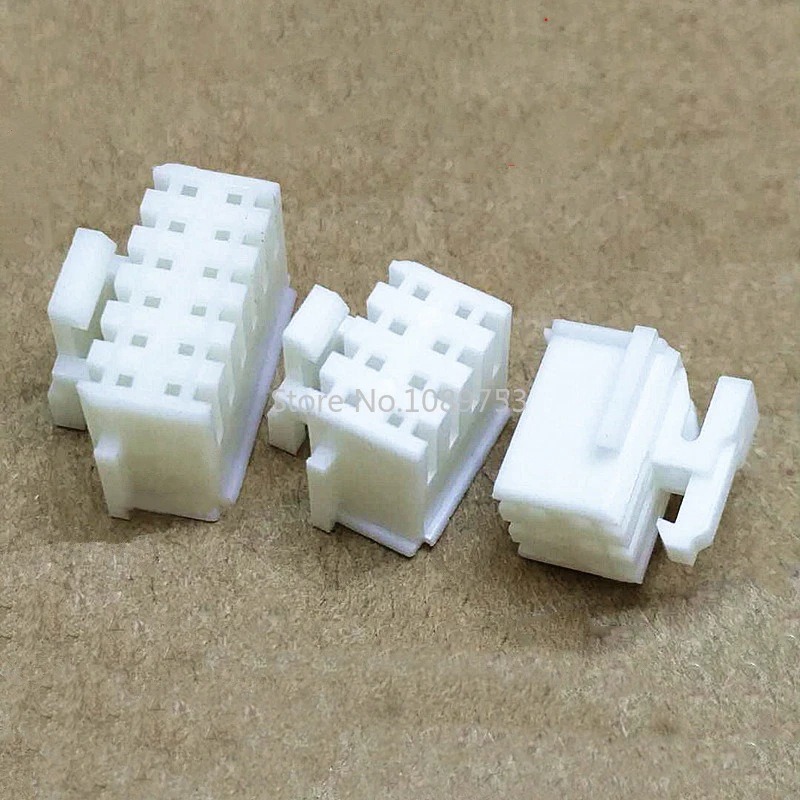

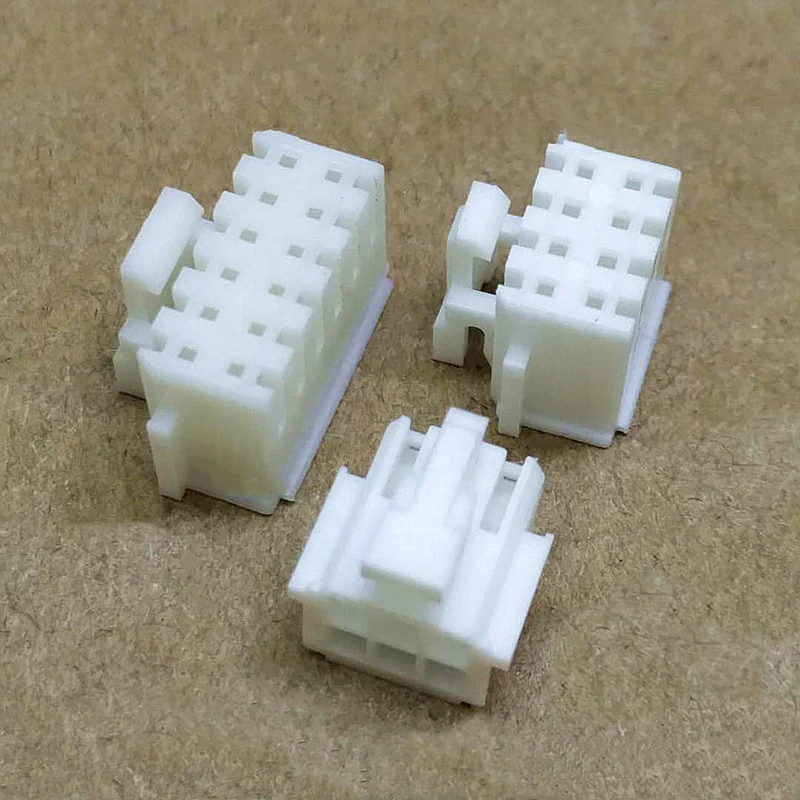

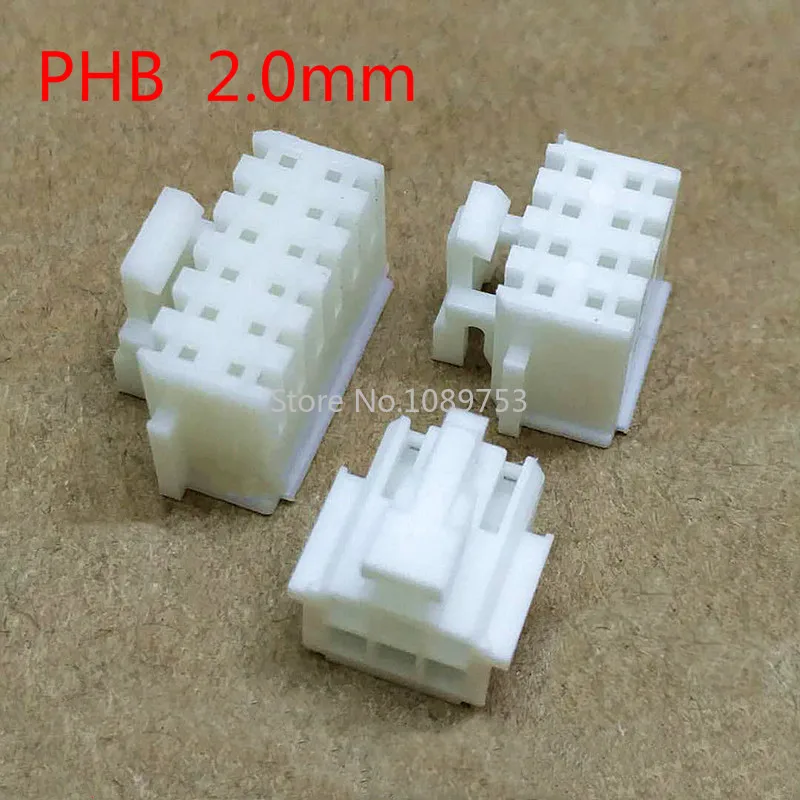

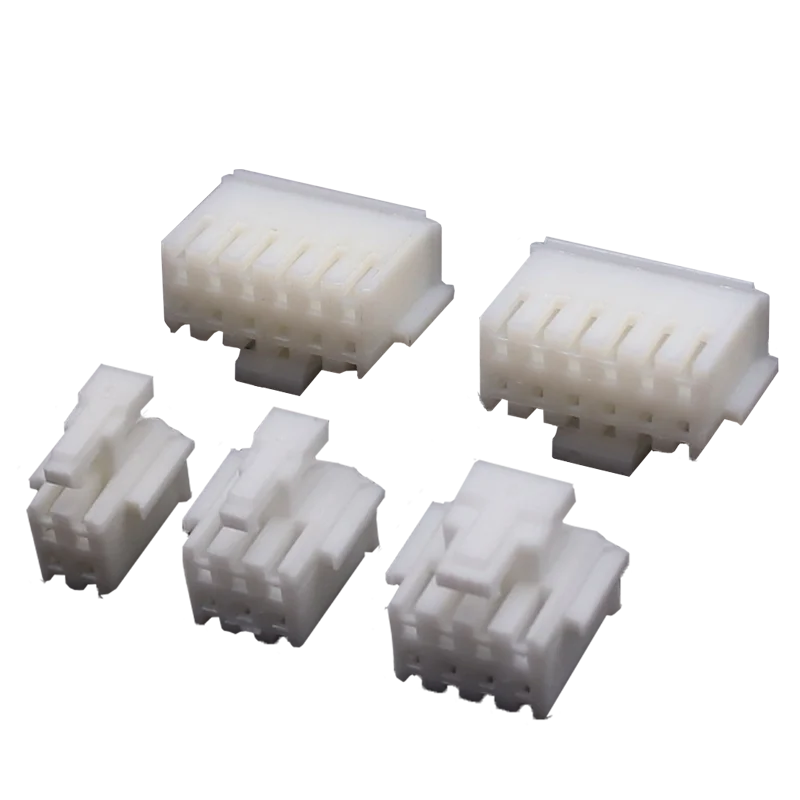

PHB 2.0mm Pitch Double Row Female Housing Header
Feature

1.Pitch=2.0mm ;

2.From 2x2P to 2x10P ;

3.Female;

4.Double Row;

Mechanical
1.Operating Temperature: -40°c ~ 85°c;
2.Housing: NYLON66 UL94V-0;

Electrical

1.Rated Voltage: 250V AC/DC;

2.Rated Current: 5.0A AC/DC;

3.Contact Resistance: ≤0.01Ω;

4.Insulation Resistance: ≥1000MΩ;

5.Withstand Voltage: AC800V / 1Min;
