Cantidad por Paquete
Descripción
100% brand new and hight quality.
Farewell to the traditional electrical tape connection, safer, more standardized, more efficient.

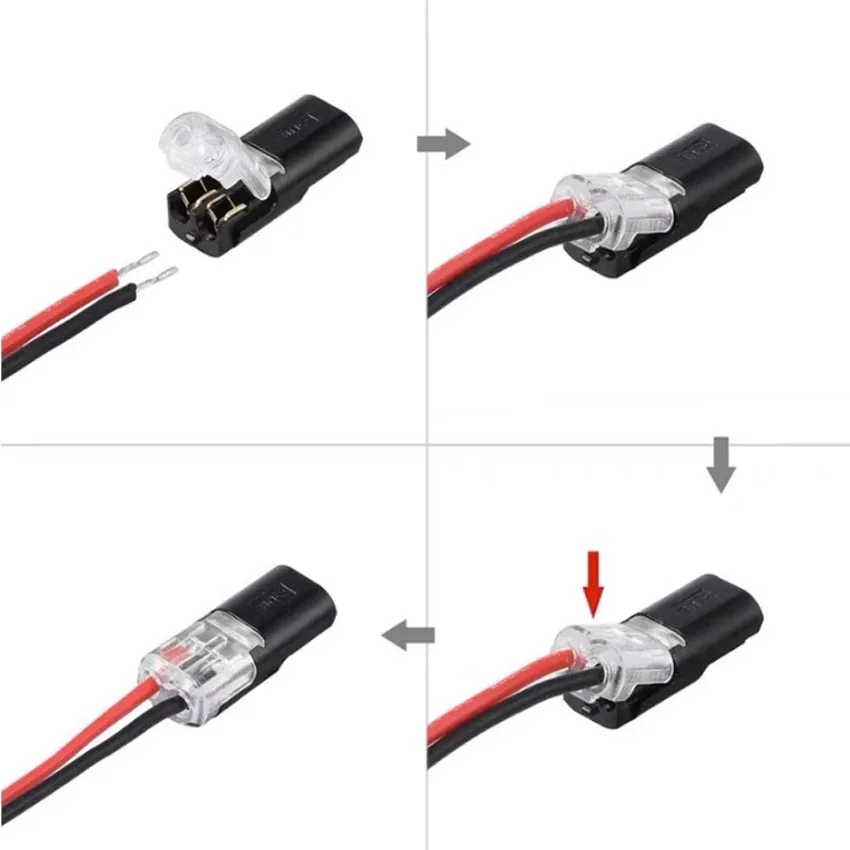

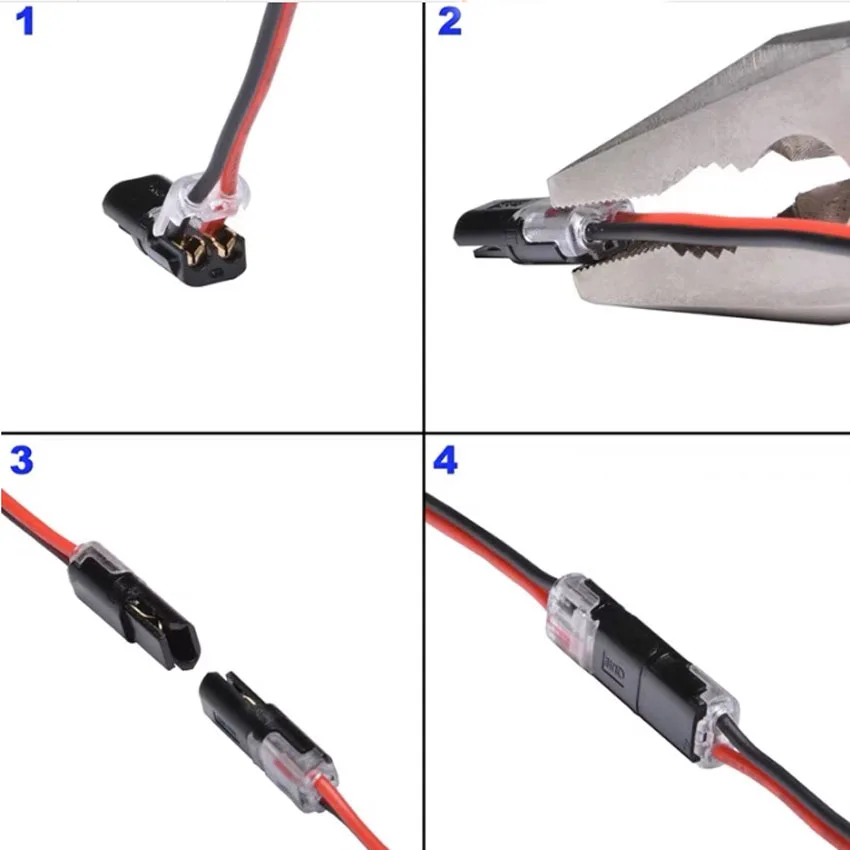

Fast wiring, save time, effort, easy, fast and reduce costs.
No peeling, no exposed conductor, excellent ampacity and no hidden dangers.
Using a breakdown link does not damage the protective layer of the original wire. The cross-sectional area of the wire is larger than its cross-sectional area, which reduces the actual load.
The structure of multi-pierced wire insulation and clamping pressure is used to ensure the connection does not fall off easily, strengthen the safety guarantee and prevent the occurrence of arcing.
Butt joint between conductors 2 and 2 and internal plastic housing insulation to prevent short circuits. Improve the standardization of cabling and facilitate subsequent maintenance and inspection.

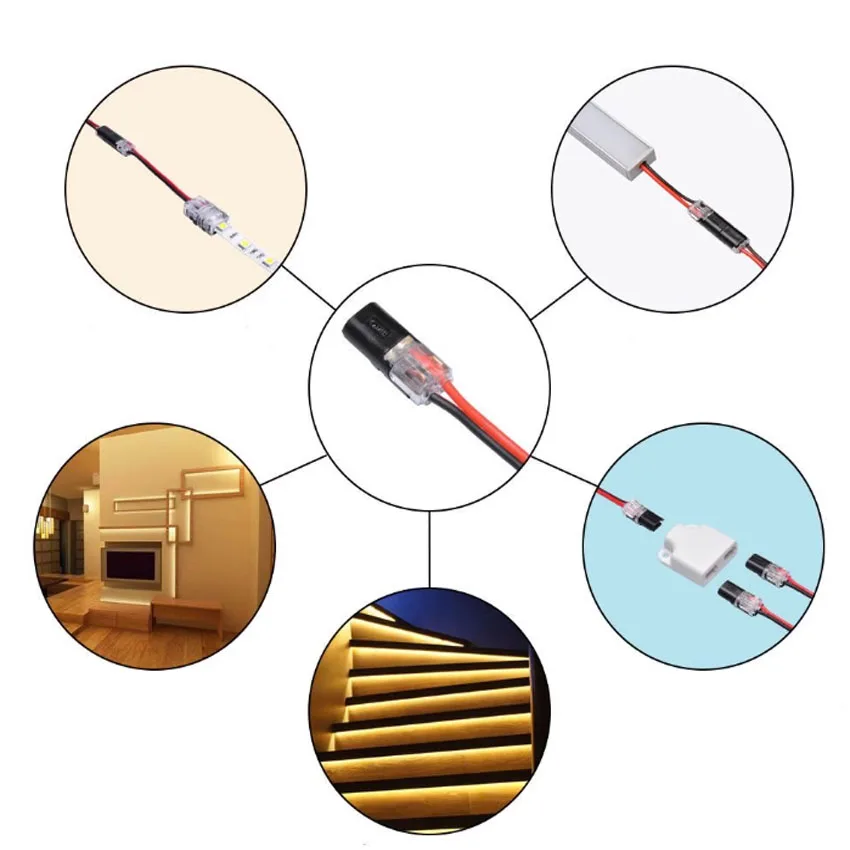

Very versatile, compatible with different types of single-core hard wire, multi-core wire, flexible wire, and suitable for various uses.
Material: Polycarbonate
Color: Black
Nominal voltage: 300V
Nominal amplifier: 10A
Minimum cross-sectional area: 0.34-0.75 mm²
Processable cable type: solid wire / stranded wire 22-18 # AWG
High precision copper (Cu)
Normal working TEMP: -20 - + 80 ℃
Flame retardancy level: UL94v-0
Warm reminder:
Conversion: 1cm=0.39inch, 1inch=2.54cm
Other accessories demo in the picture is not included.
Actual colors may be a little different due to different monitors.
Please allow 1-5mm deviation due to manual measurement.
