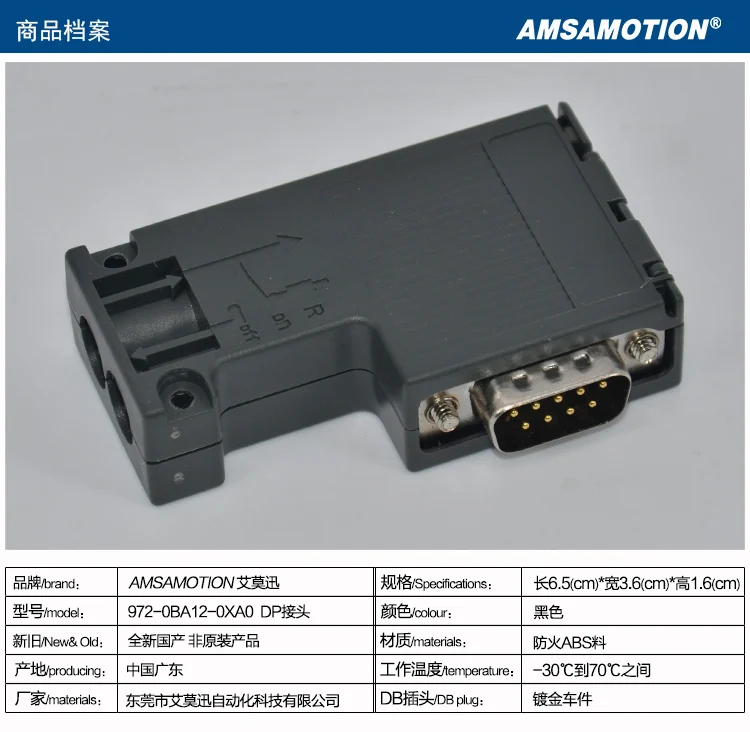

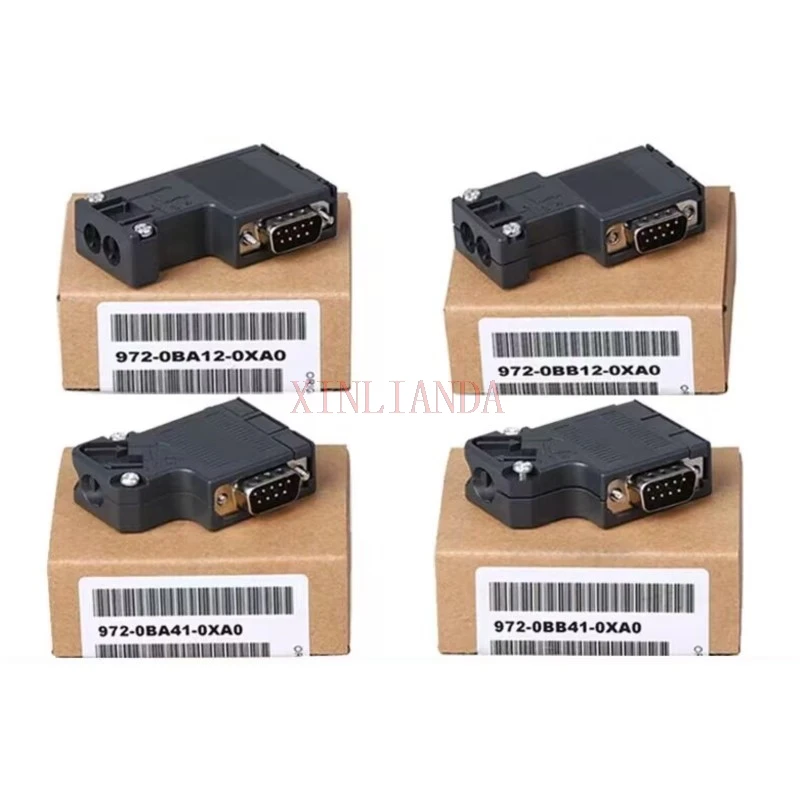

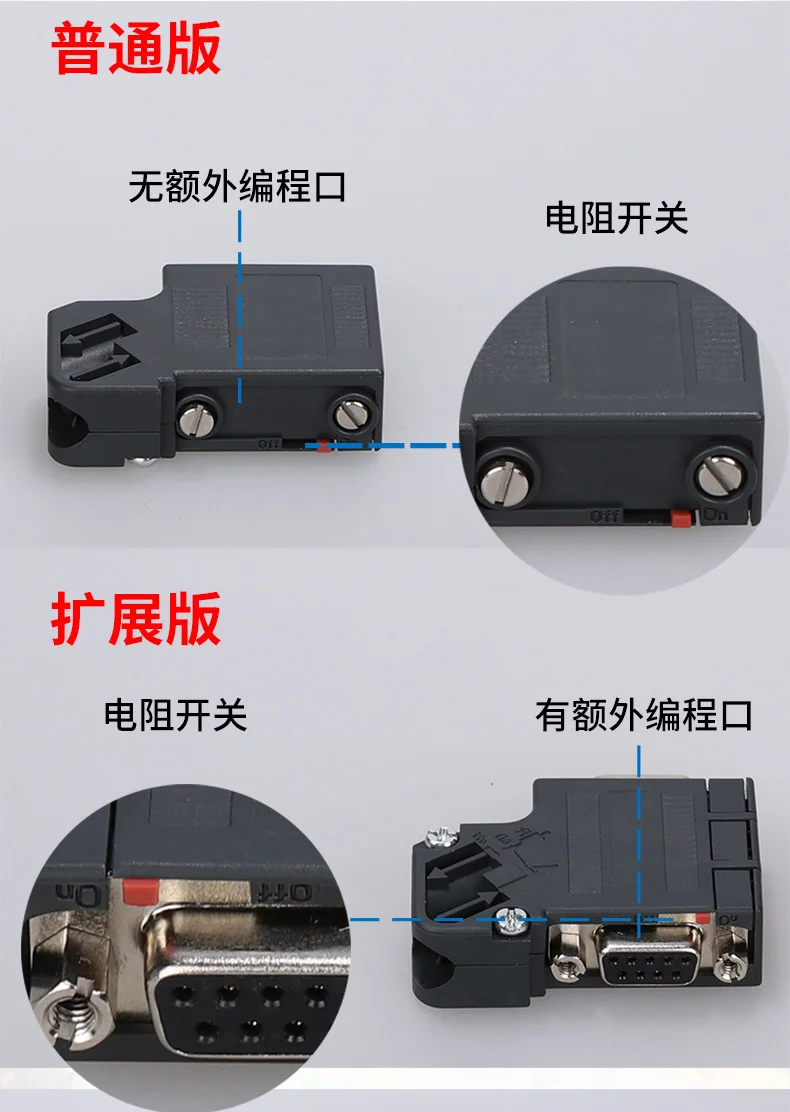

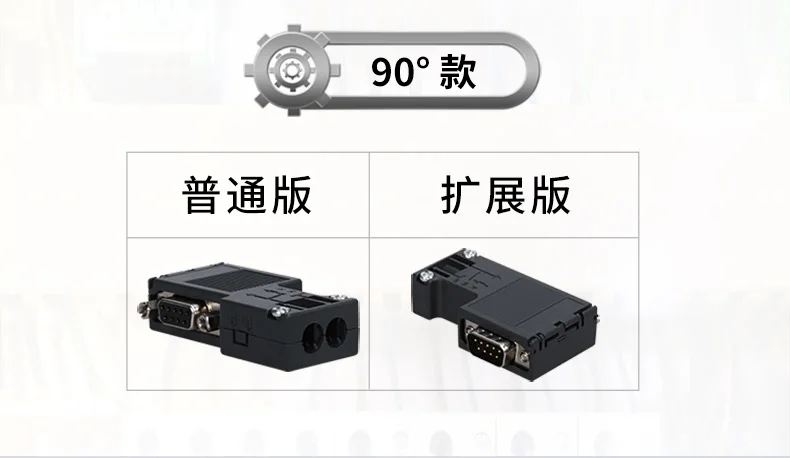

Model: 972-0BA12-0XA0 90 degrees without programming port

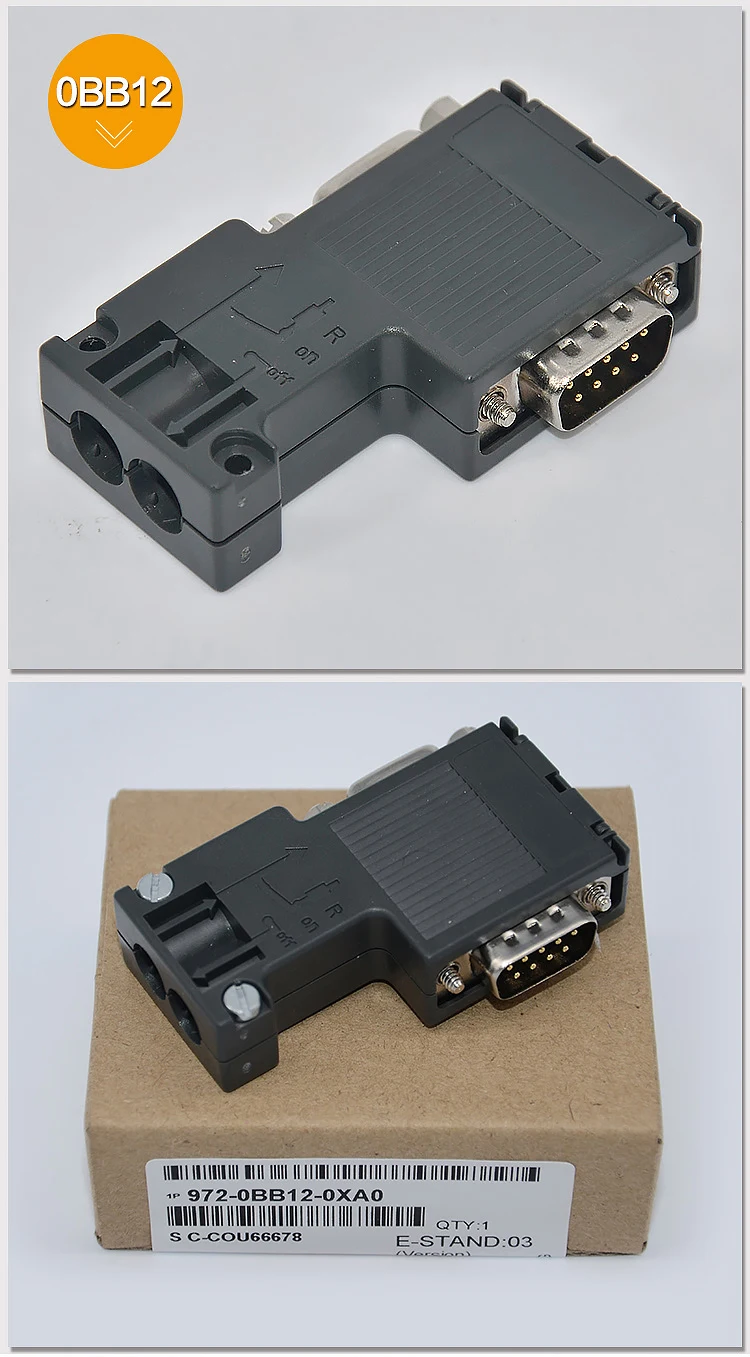

Model: 972-0BB12-0XA0 90 degrees with programming port

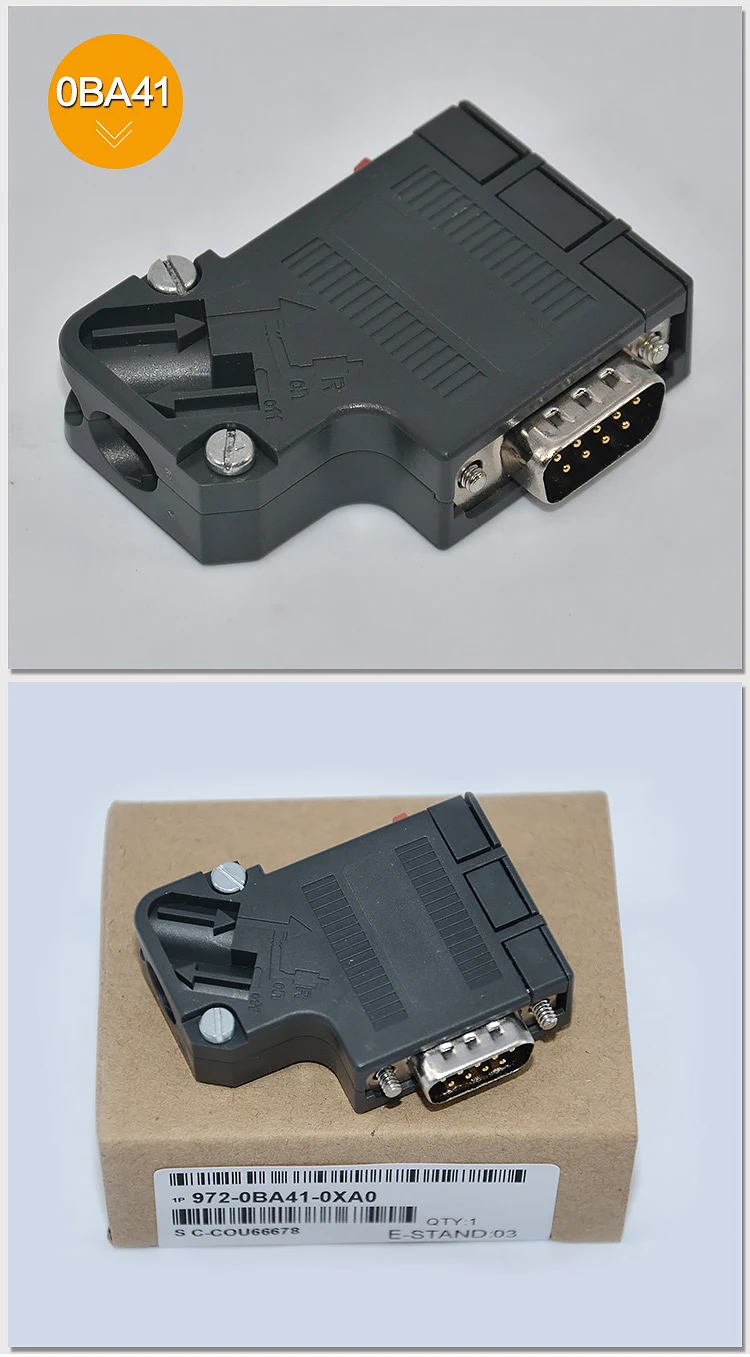

Model: 972-0BA41-0XA0 35 degrees without programming port
Model: 972-0BB41-0XA0 35 degrees with programming port
product detail:

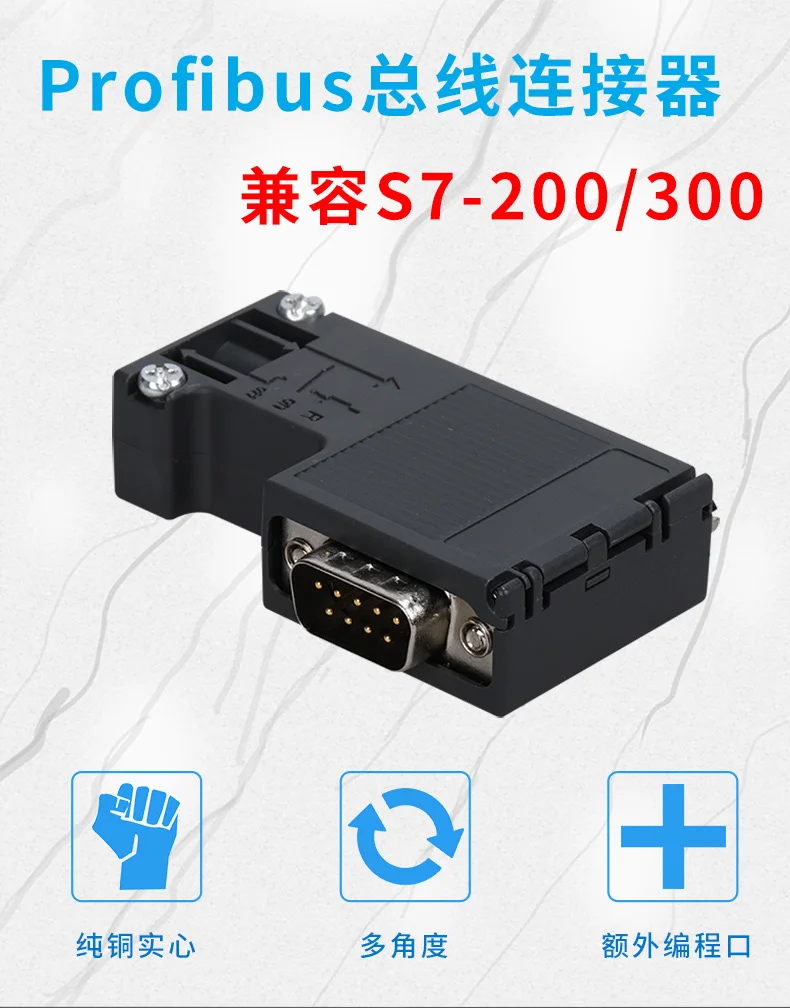

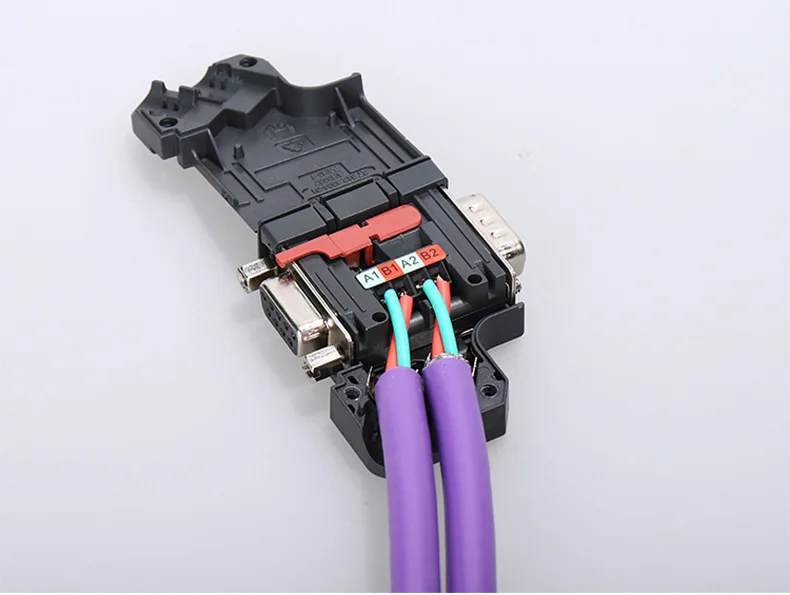

1. The DP bus connector is an RS485 general interface device between the master station and the slave station cable in the PROFIBUS DP protocol. It is mainly used in the unit-level and field-level communication in the manufacturing automation system. The round-robin communication method transmits data, and can transmit signals at a transmission rate of 12 M bit rate, and has a built-in terminal matching resistor.

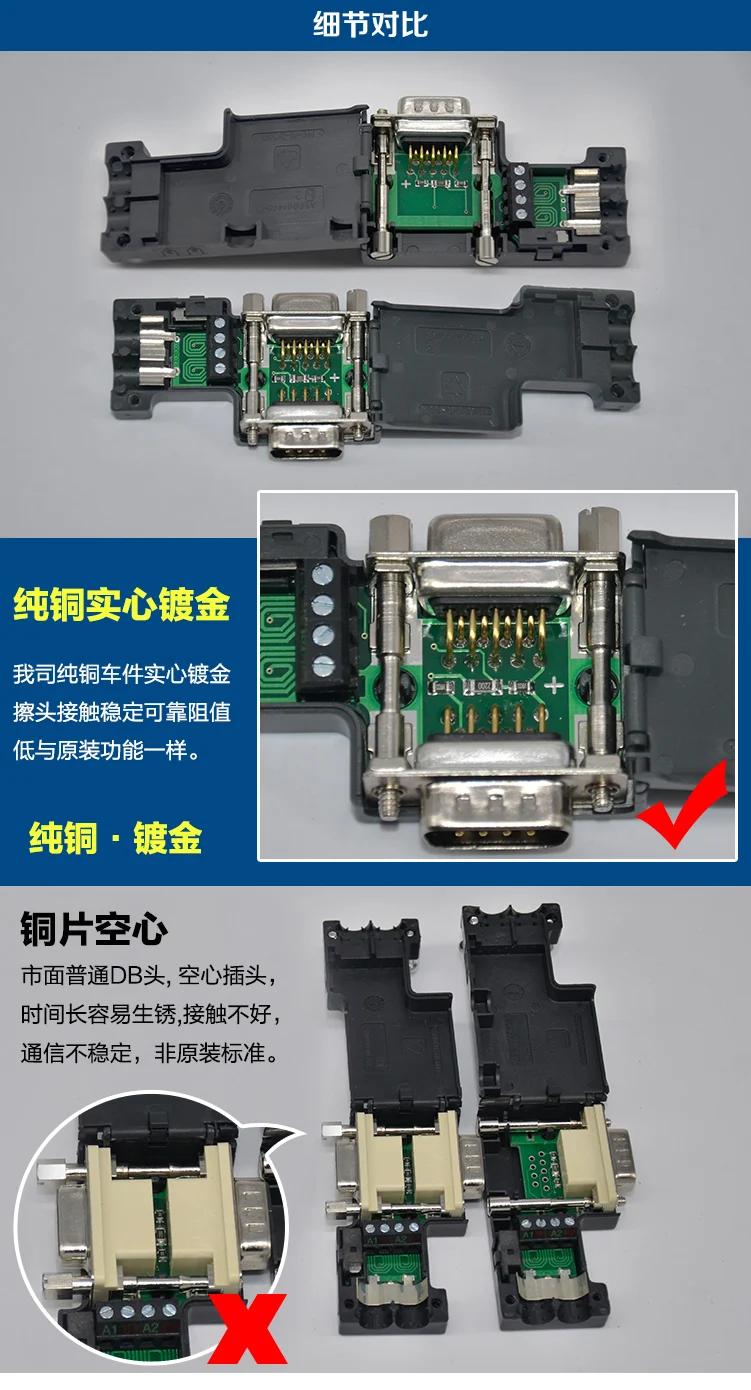

2. The design of the connector fully takes into account the angle of cable entry and the problem of tension relief. The built-in grounding metal sheet effectively prevents common mode interference and has strong electromagnetic compatibility.

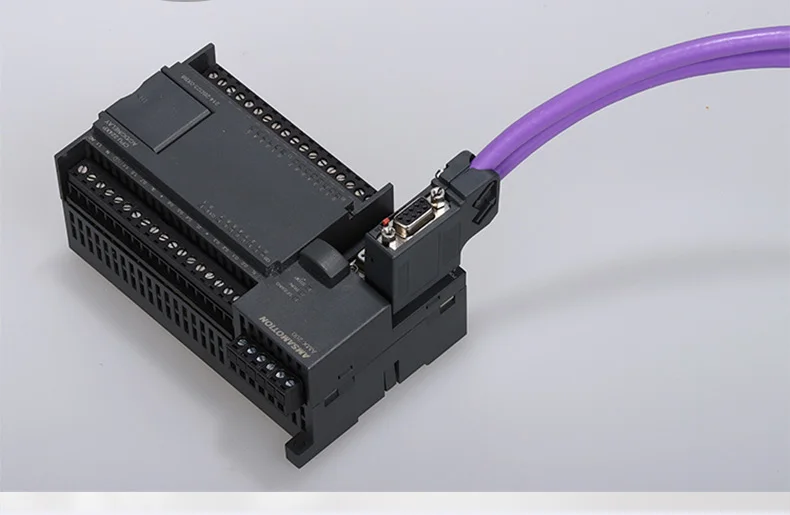

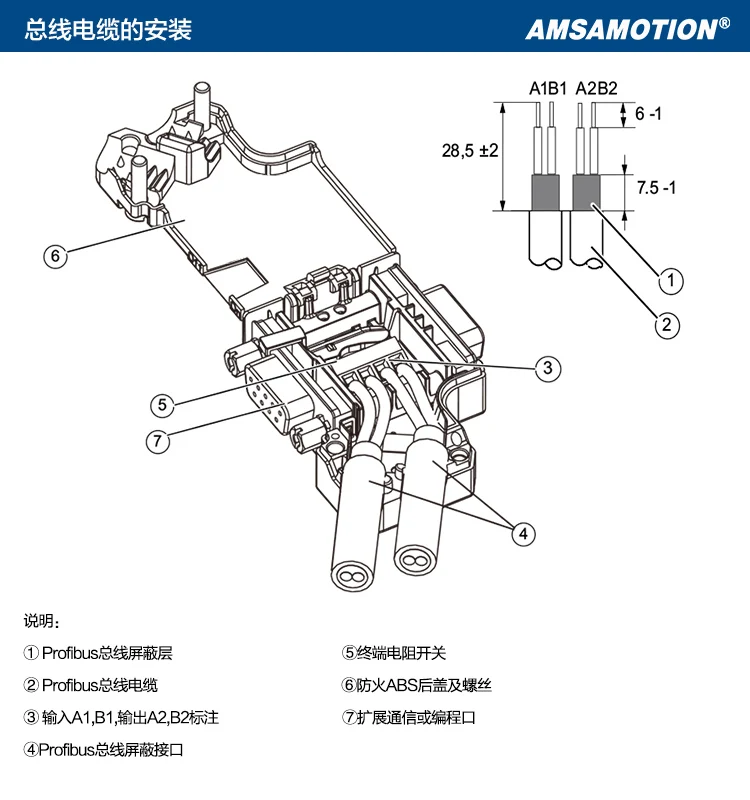

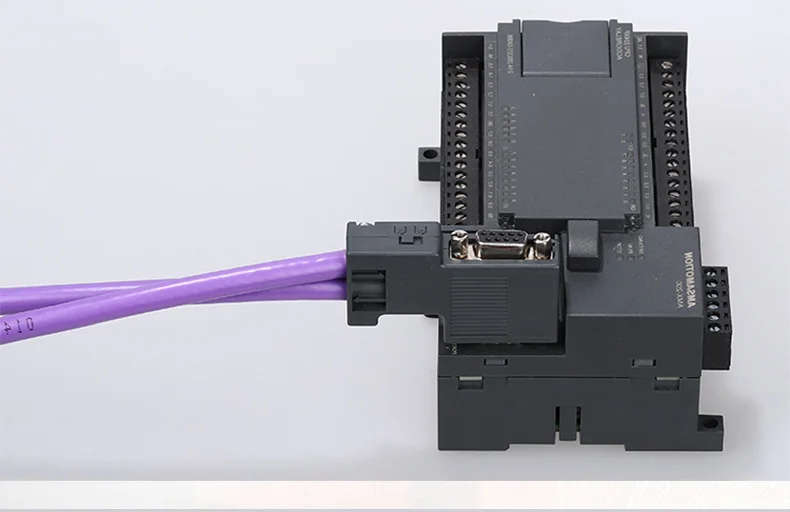

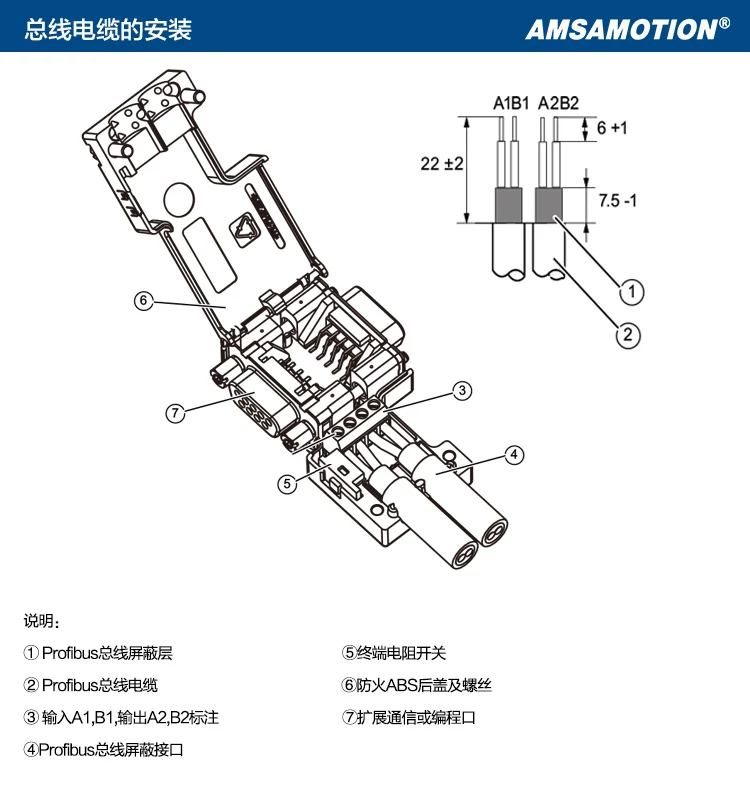

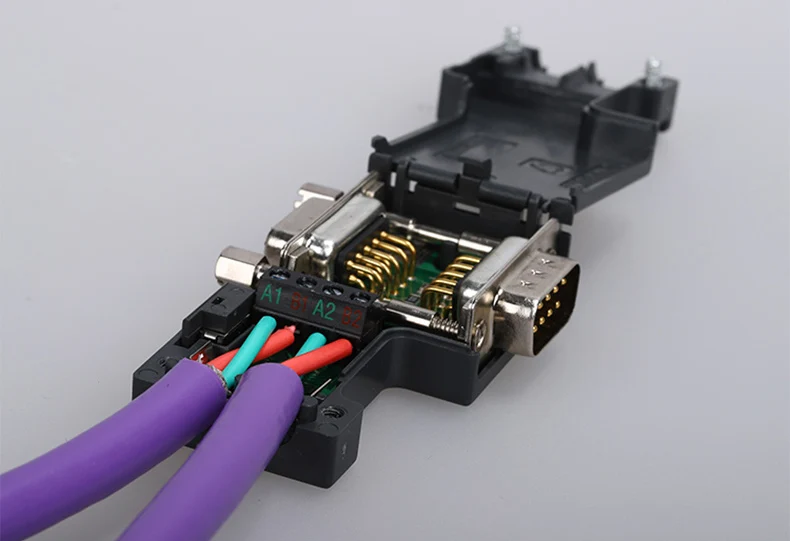

3. Easy to use, directly connect the bus cable to the DP bus connector and insert the connector socket into the interface of the Profibus master/slave station, and fix it with screws.
