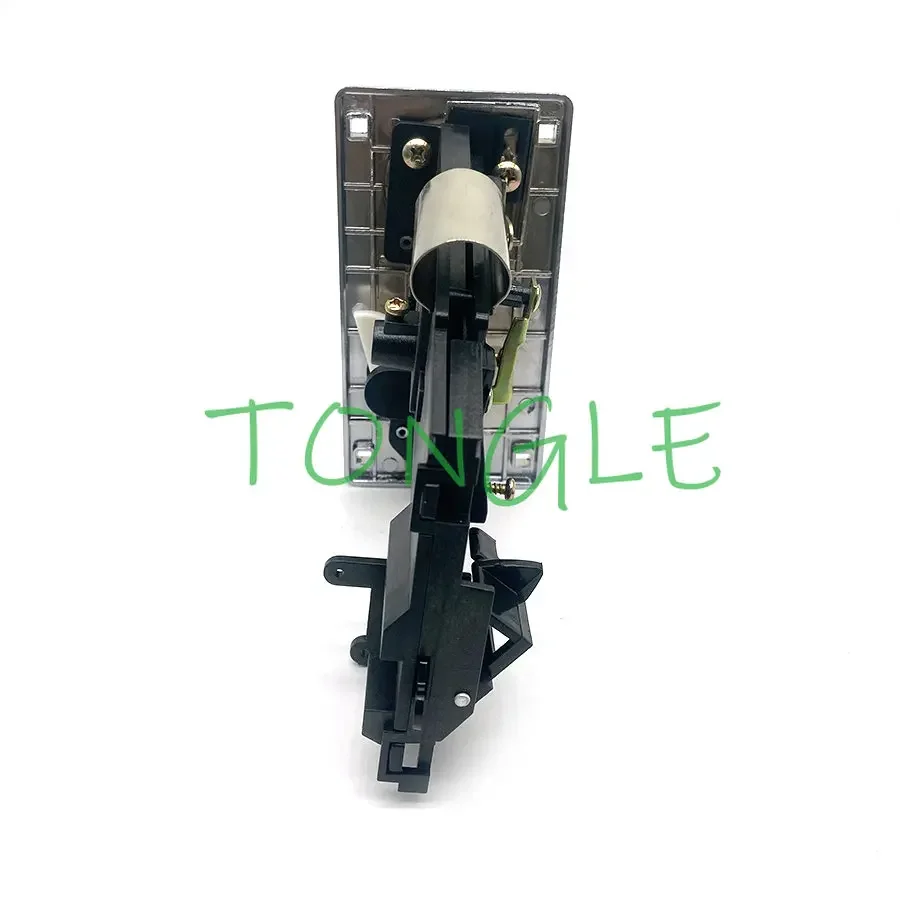

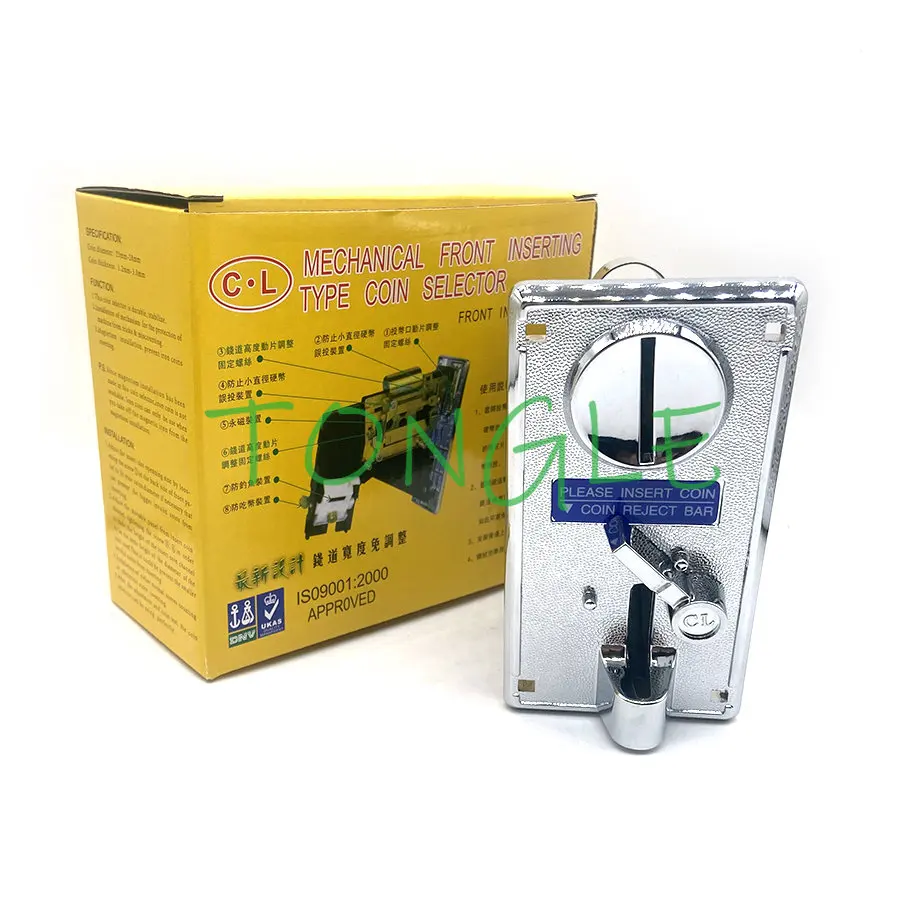

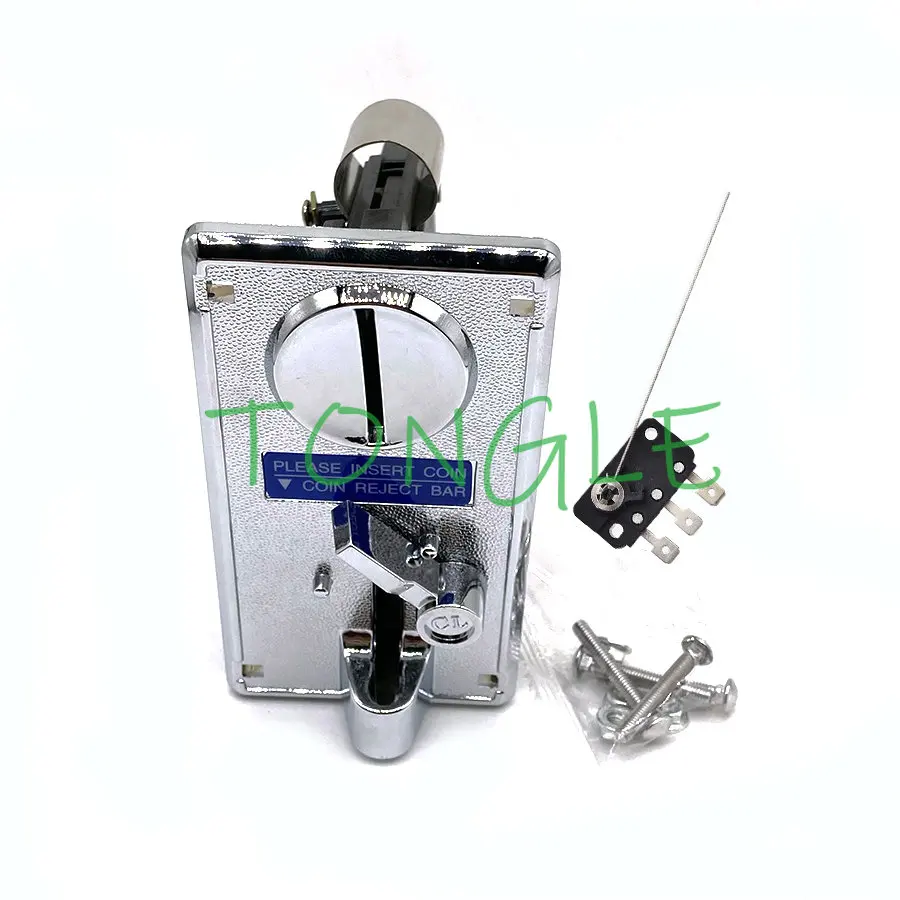

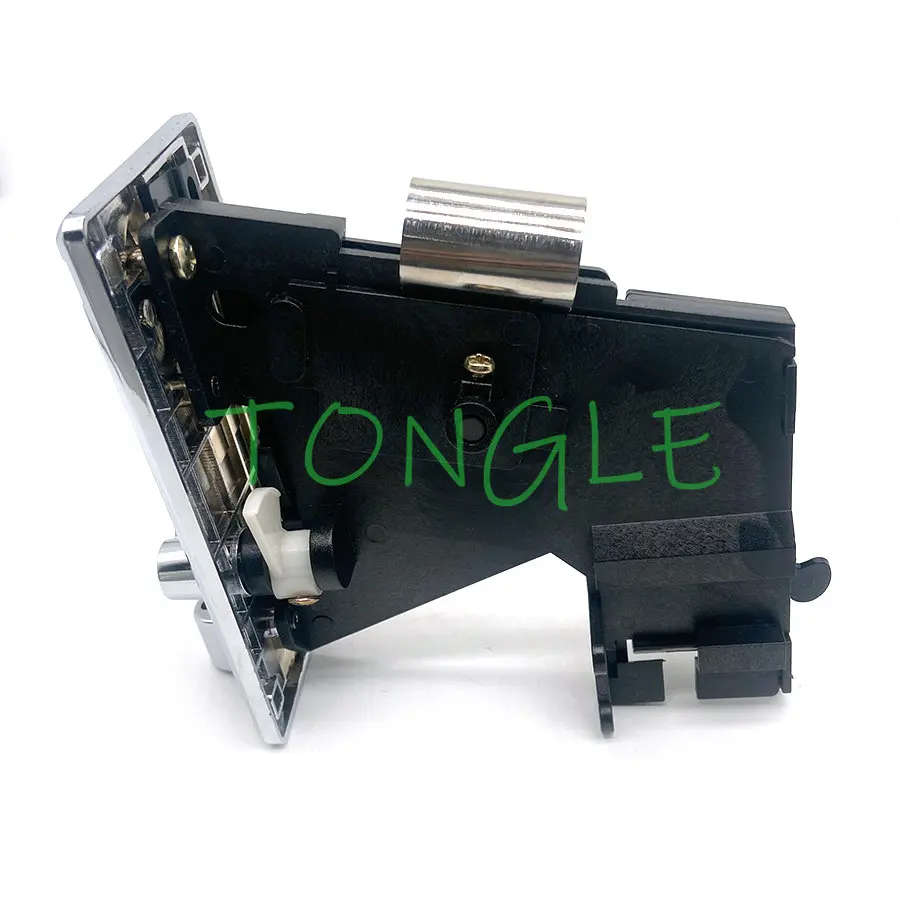

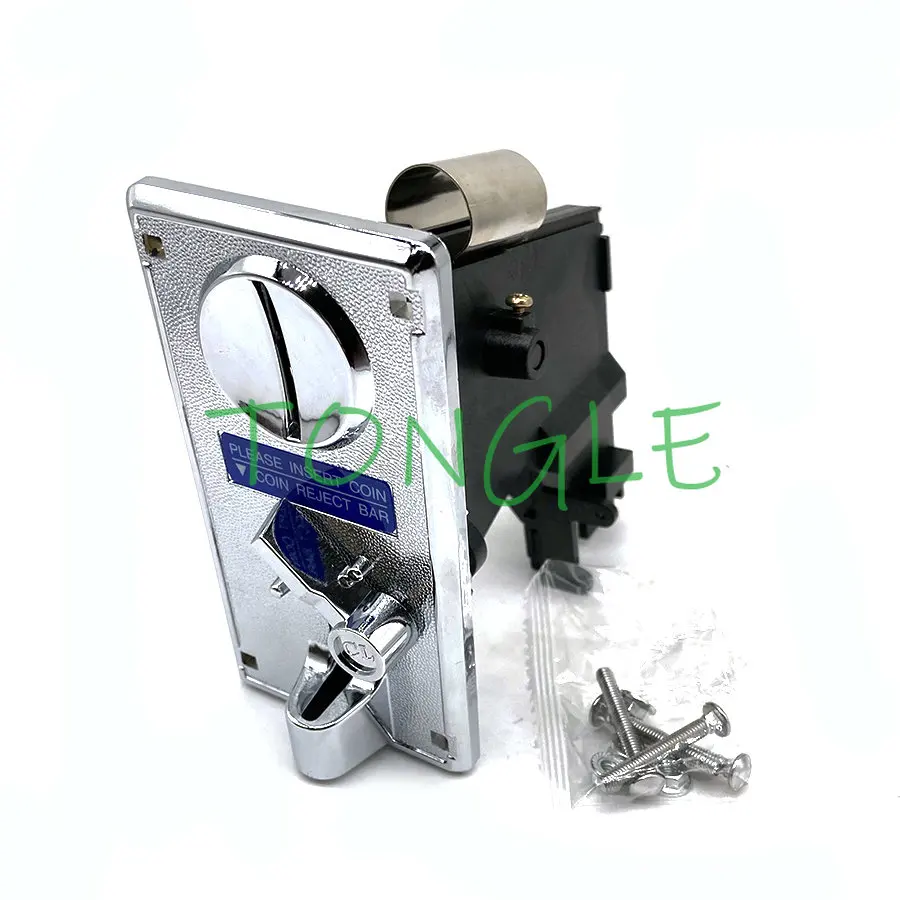

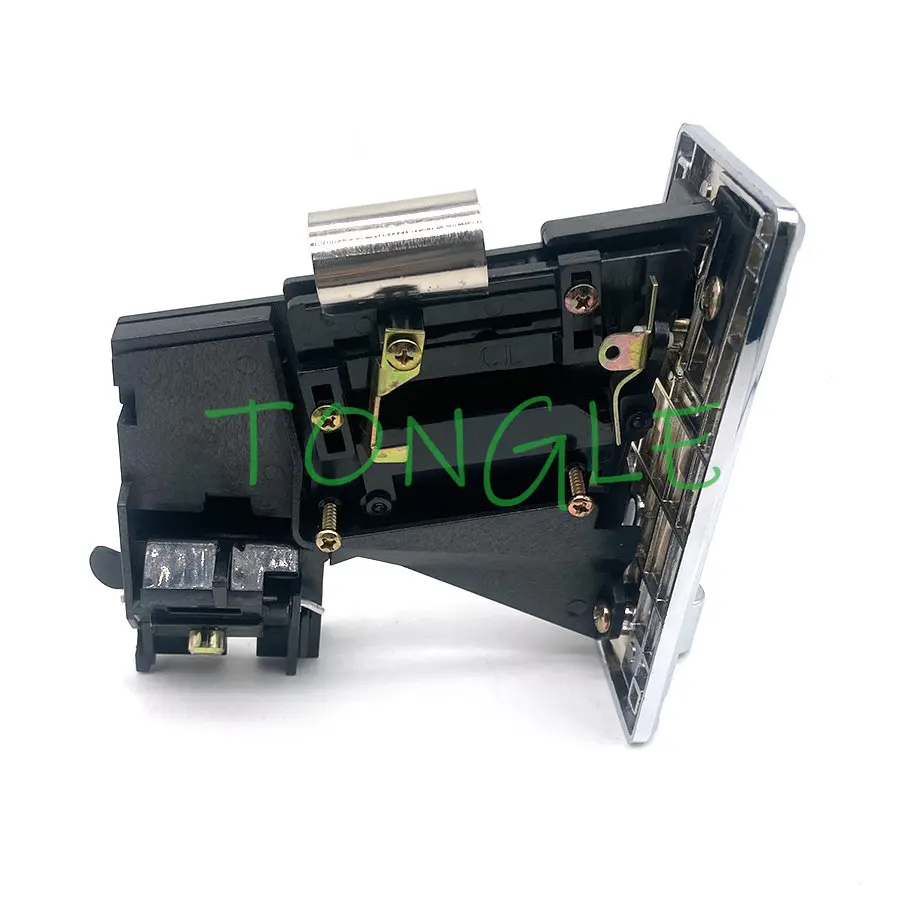

CL-selector de interruptor de aceptador de monedas mecánico, mecanismo electrónico de plástico Mech para juegos Arcade Pandora, piezas de máquinas expendedoras

CL Mechanical Coin Acceptor Arcade Game Tokens Selector Vending Machine Mechanisms For 3PIN Needle Micro Switch

SPECIFICATION:
Coin diameter: 23mm-28mm
Coin thickness: 1.2mm-2.5mm

FUNCTION:
1.This coin selector is durable, stabilize.
2.Installation of mechanism for the protection ofmachine from tricks & miscounting.
3.Magnetism installation, prevent iron coinsinserting.

P.S.Since magnetism installation has been made in this coin selector, iron coin is notworkable. Iron coin can only be use when you take off the magnetic iron from the magnetism installation.

INSTALLATION:
1.Adjust the insert slot openning size by loos-ening the screw ① in the back size of front panel to fit your coins diameter if necessary that can prevent the bigger invalid coins from inserting.
2.Adjust the movable panel from insert coin channel, tightening the screw ③, ⑥ in order to make the height of the insert coin channel to be the same height of the diameter of the coin used. Thus,it could be prevent the smaller invalid coins from inserting.
3.Installation of either normal scores counting or electronic score counting.
4.After the adjustment and coin test, the coin selector can be using perfectly.
