Descripción

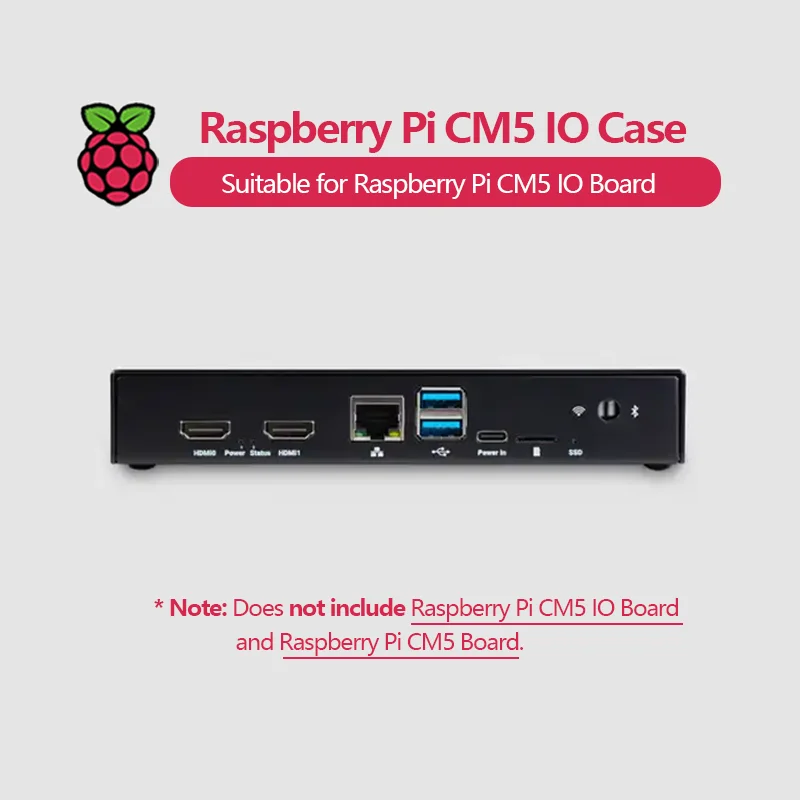

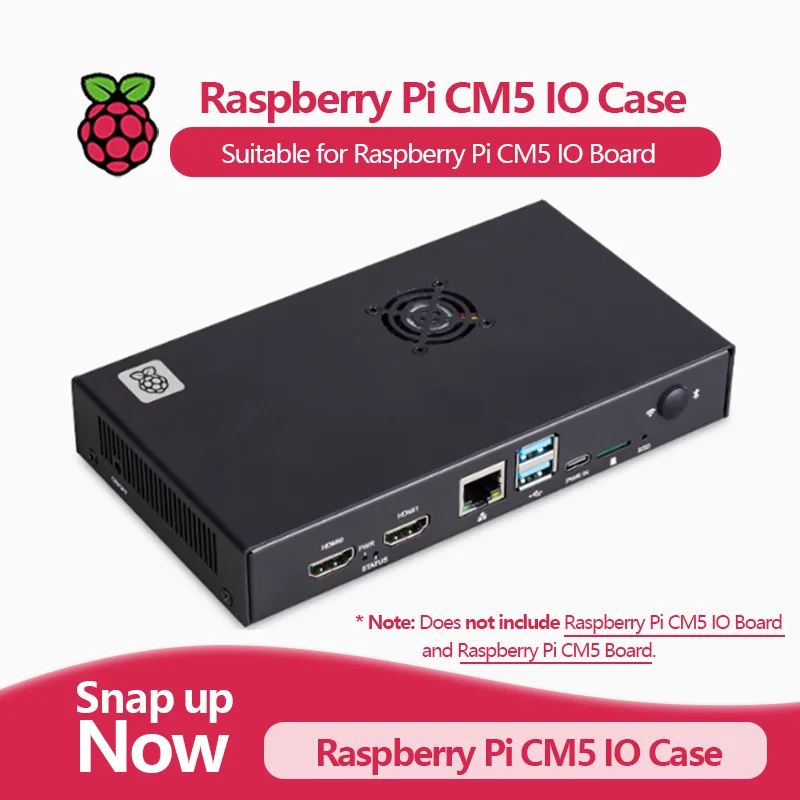

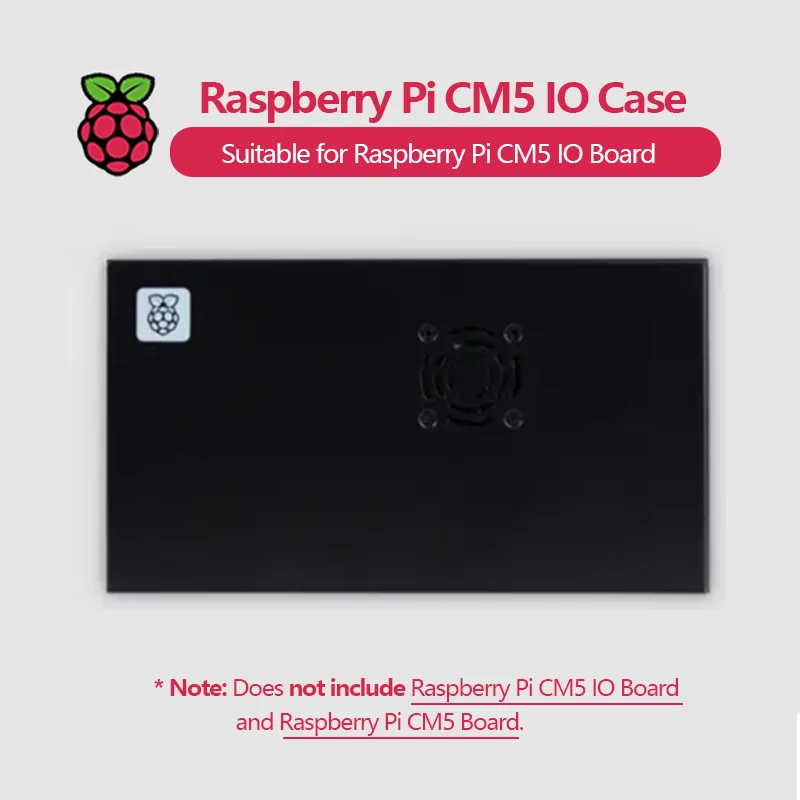

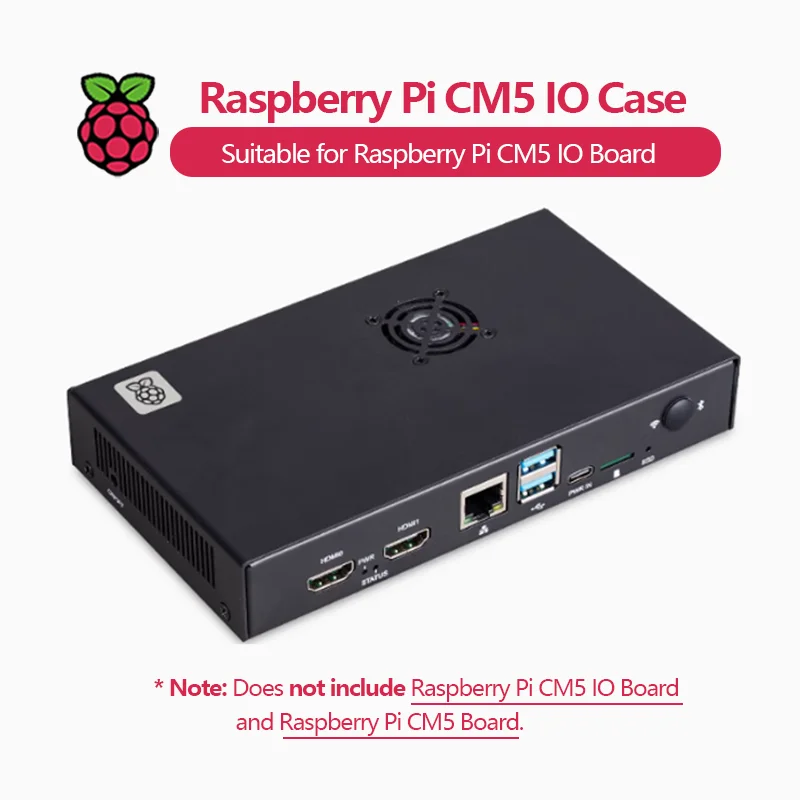

The IO Case has slots to enable the connection of cameras or DSI displays, and includes a built-in controllable fan to support thermal regulation for higher-power applications. Cut-outs in the side of the case allow access to HDMI, Ethernet, USB-A, and USB-C (power in) connectors and to the SD card slot, and there is a mounting hole for an external wireless/Bluetooth antenna.
Specifications
Case
170 mm × 94 mm × 28 mm
Approx 350g weight
Sheet metal construction
DC brushless fan
5V DC (3.5 – 5.5V) supplied via four-pin fan header on a carrier board
≥ 3.5V start voltage
0.85W power consumption
0.18 ± 0.02A rated current
8000 RPM ± 15% (at 25℃, after 3 – 5 minutes rotating) maximum fan speed
2.46 CFM maximum airflow
21.7 dB noise level
150 mm cable length
Documents
Compliance
Raspberry Pi IO Case for Compute Module 5 has undergone extensive compliance testing and meets a number of regional and international standards.
View and download.
