Cable USB 3,0 de 3-300cm, Cable de extensión USB plano, Cable de datos macho hembra, Cable extensor USB 3,0 de doble ángulo para PC, TV, extensión USB

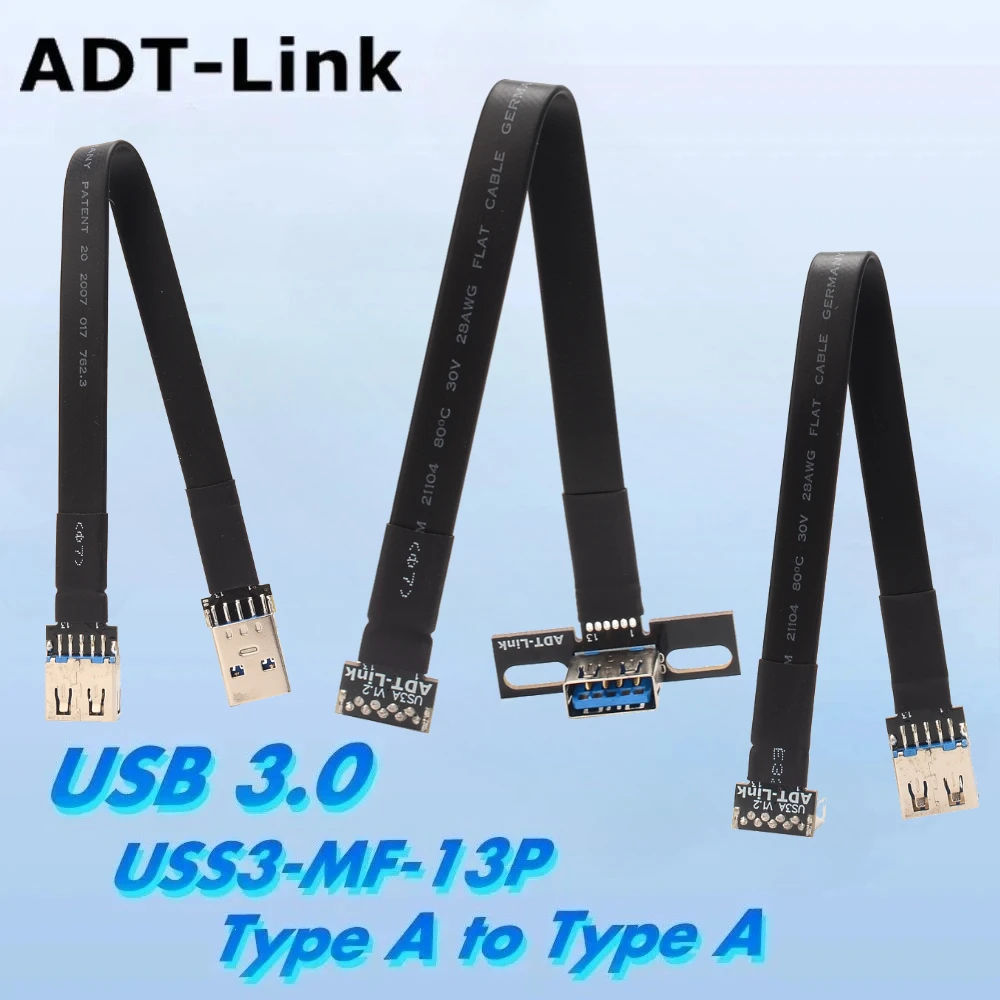

USB 3.0 Type-A male to Type-A female flat cable

Brand name: ADT-LINK

Product name: USB 3.0 Type-A male to Type-A female flat cable

Product model: USS3-MF-13P series

Transfer speed: support of increased bandwidth up to Gen1x1 5Gbps

Wire length: 3~300 cm, the length can be customized,

Current capacity: 1.5A within 50cm ; 0.9A within 1 meter

Product application: GPS navigator, ROCK Pi 4 Raspberry Pi microcontroller development board, built-in USB device to extend the use of adapter, convenient for brushless pan/tilt, steering gear pan/tilt, Xiaosi pan/tilt, SLR handheld pan/tilt USB Power supply and AV transmission, etc.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

Product List

Cable length Description:

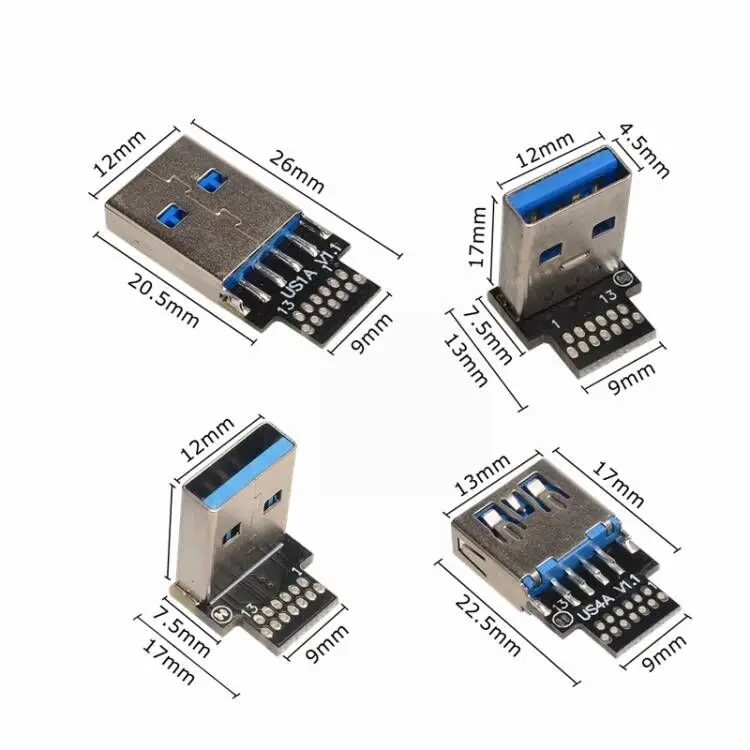

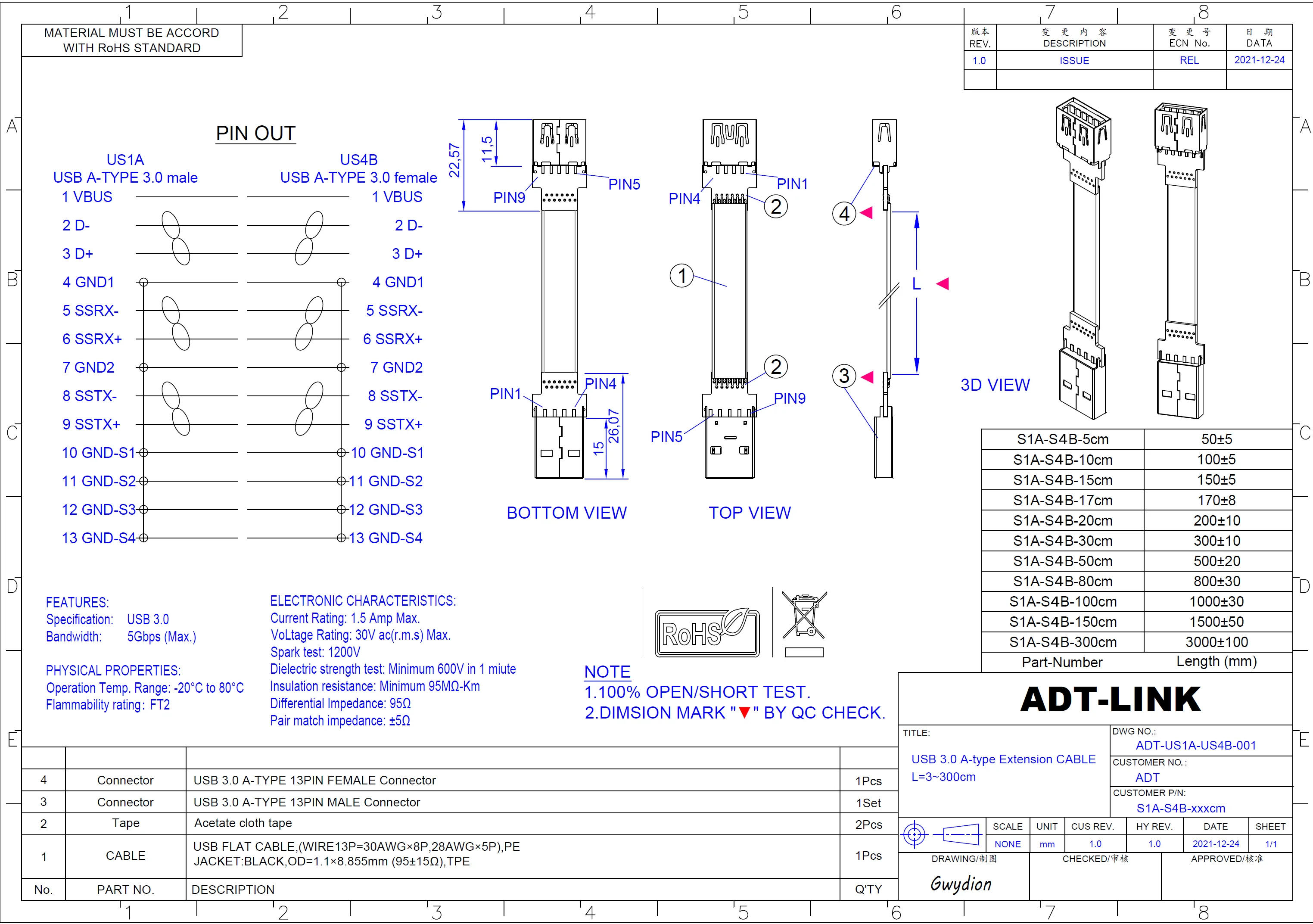

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm black arrow in the figure below.

Product advantages:


Design advantages:differential signal without via design, no CAF micro short circuit phenomenon, high speed signal data transmission without parasitic capacitance and parasitic inductance signal attenuation interference problem, power circuit enhanced wiring design, PCB board miniaturization design, can reduce mechanism interference , no card hardware, product installation is easy.

Production advantage:Our factory direct sales, product customized production, welding at the metal welding point during production. And put on the heat-shrinkable tube protection, the product is firm and reliable, there will be no problem of disconnection and disconnection. The product works well, stable and reliable.

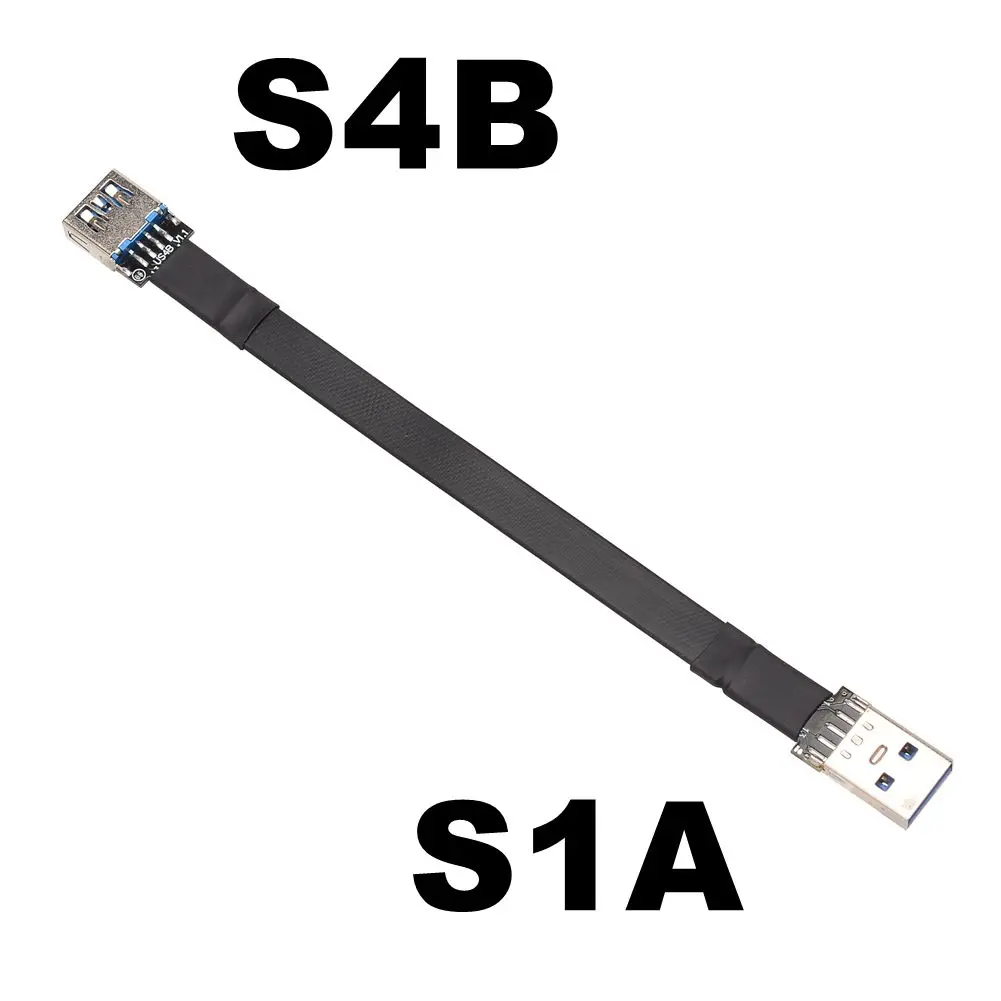

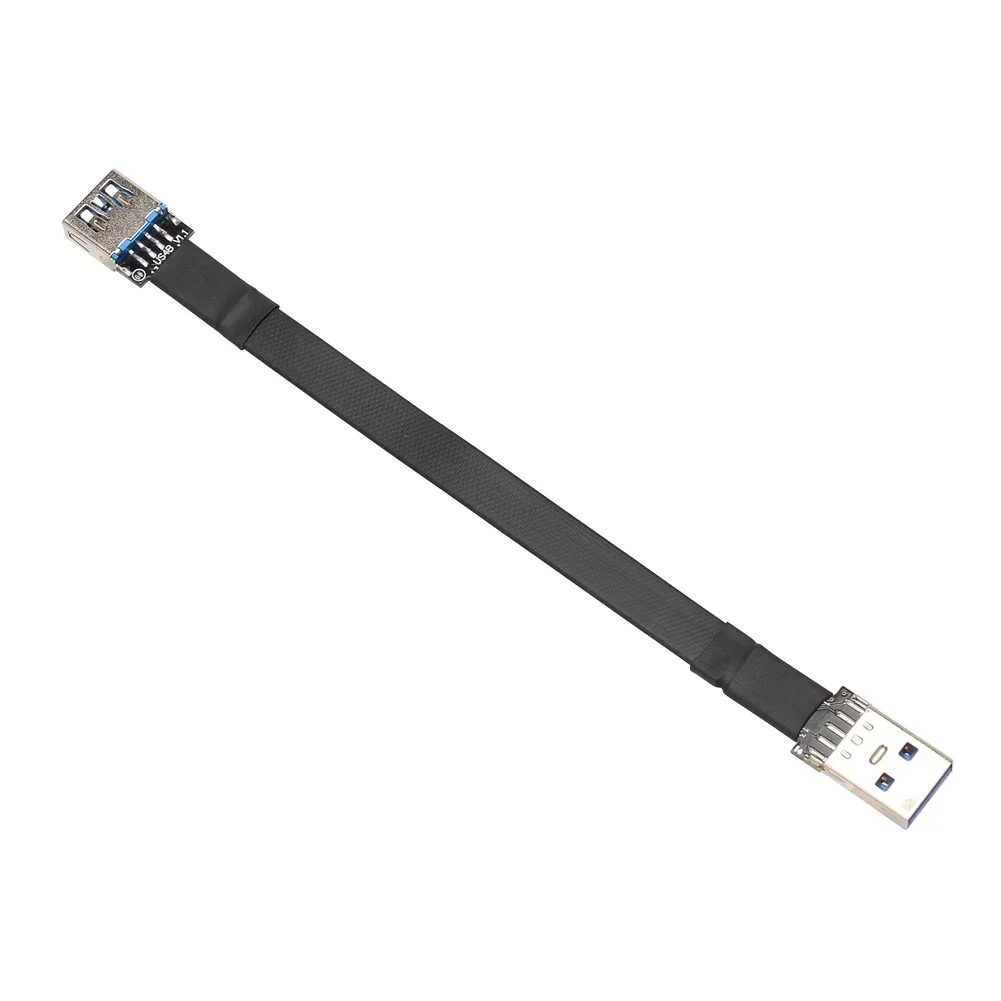

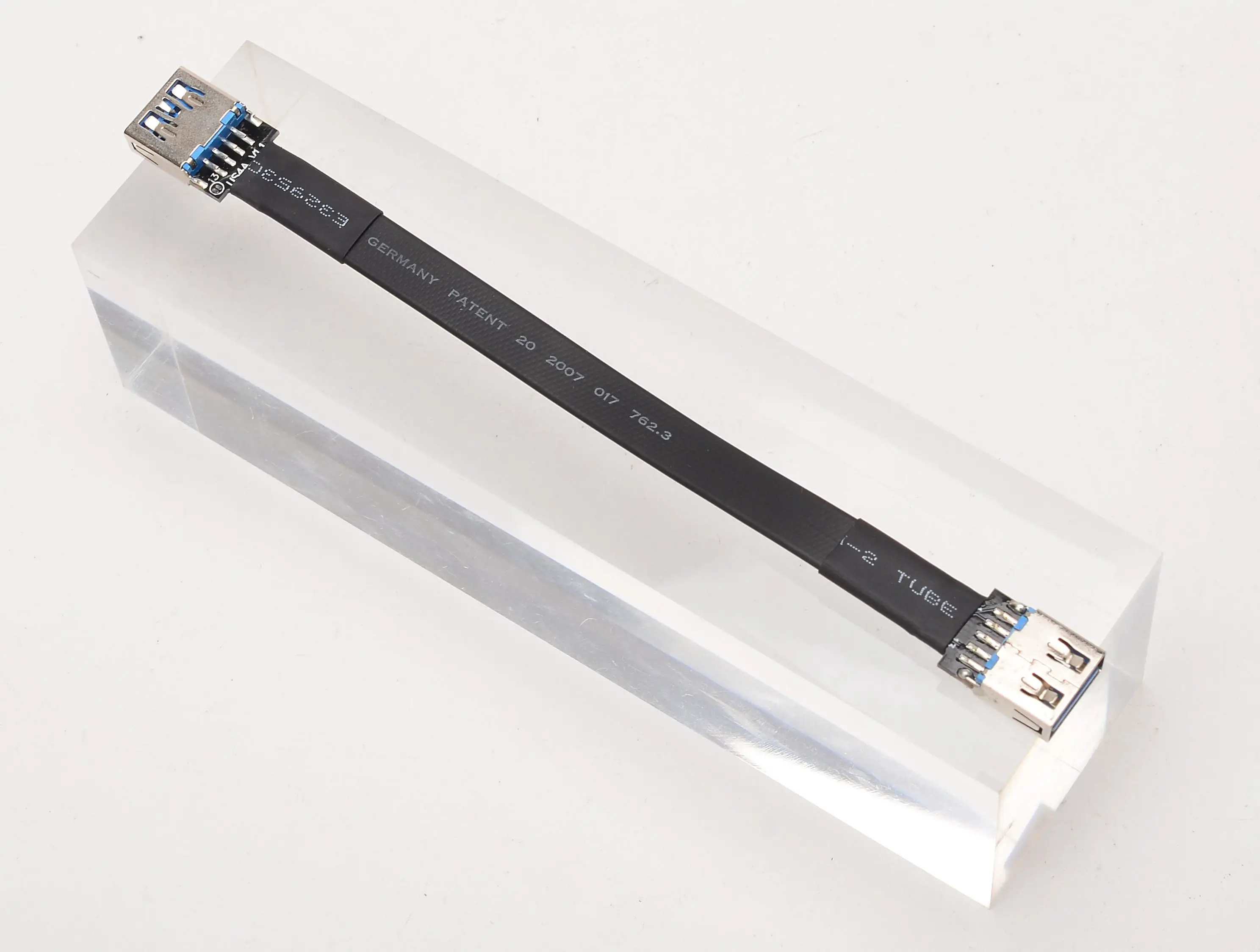

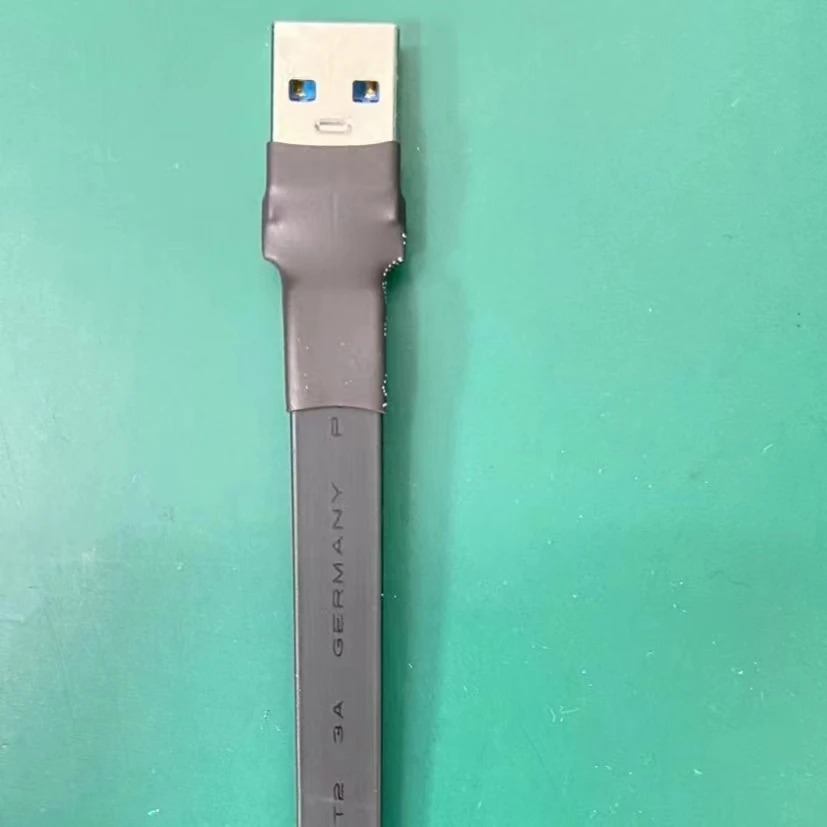

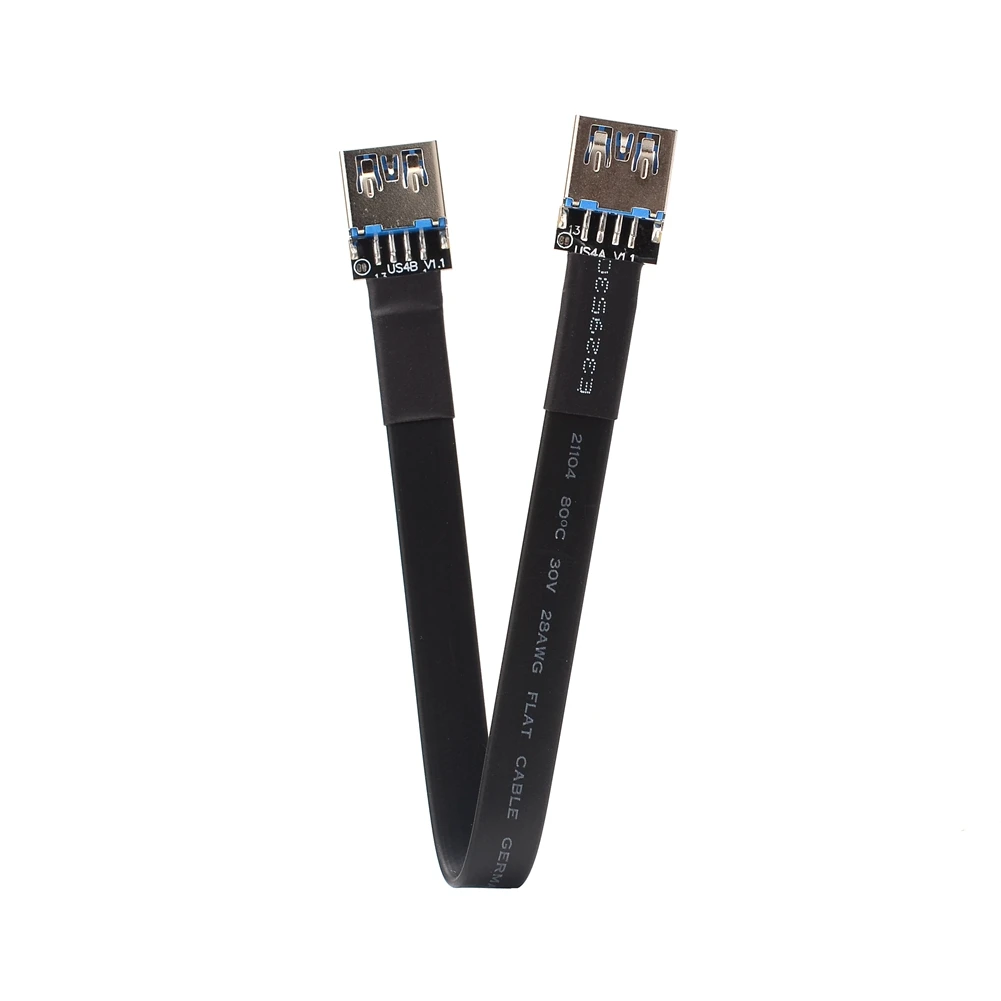

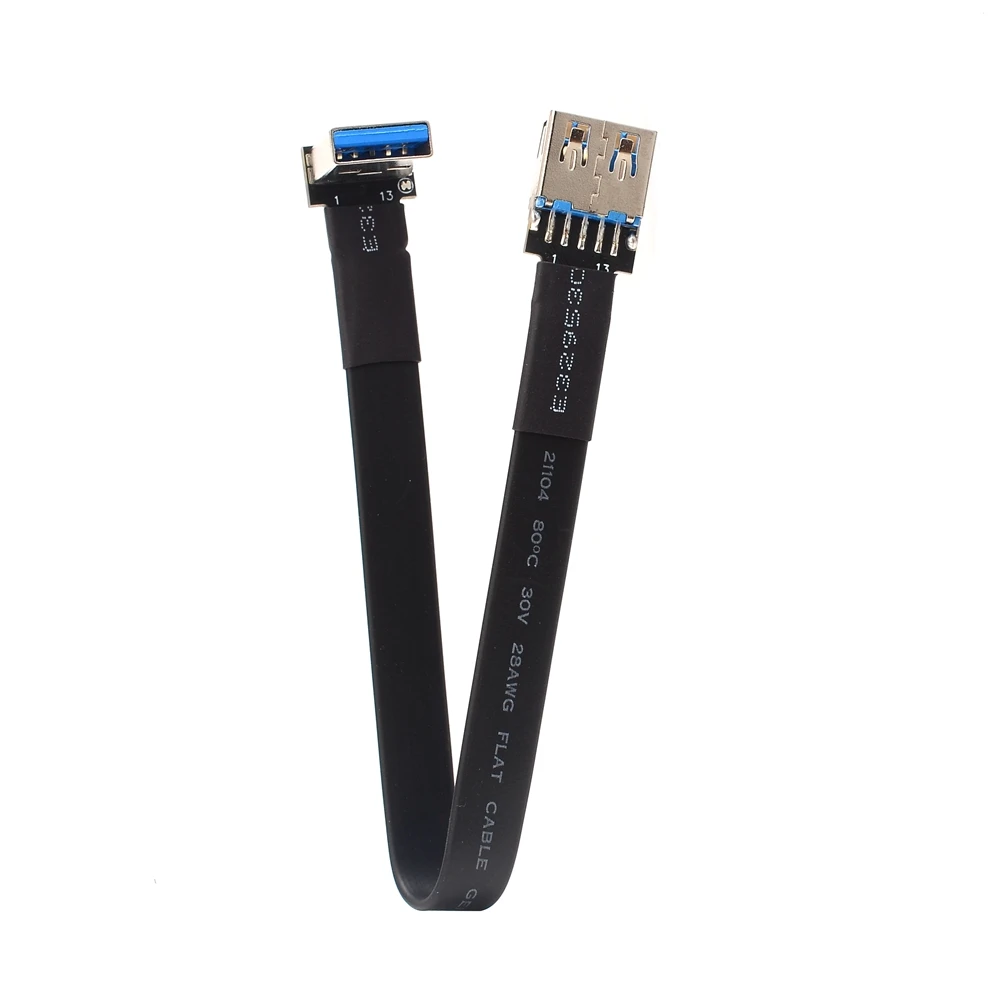

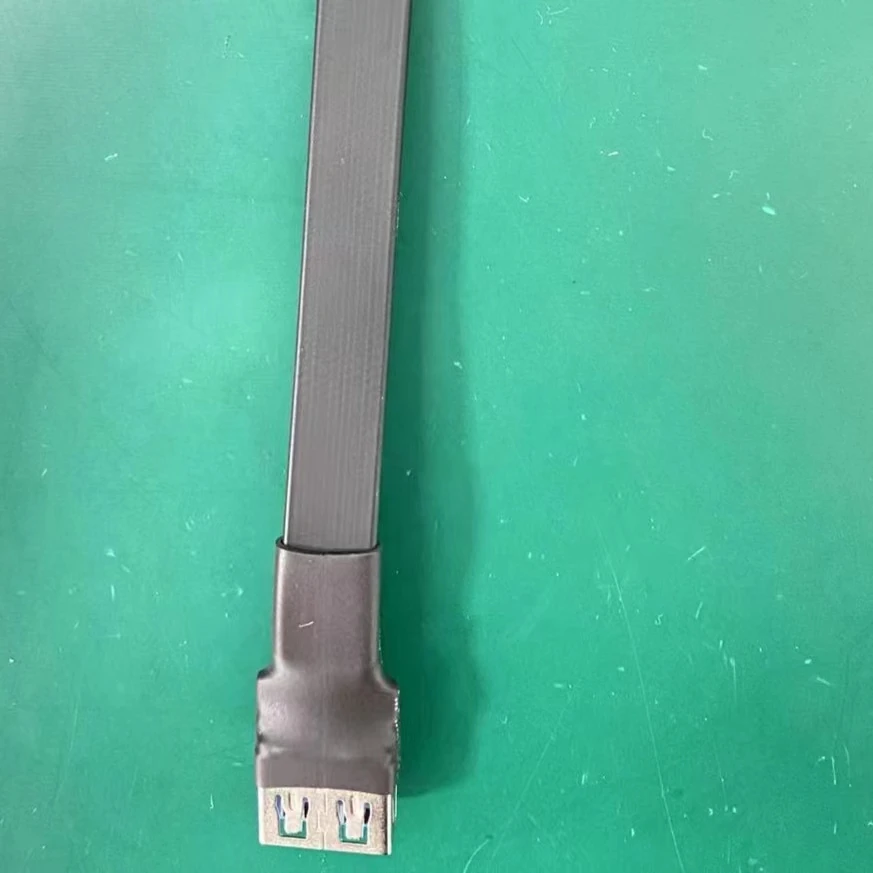

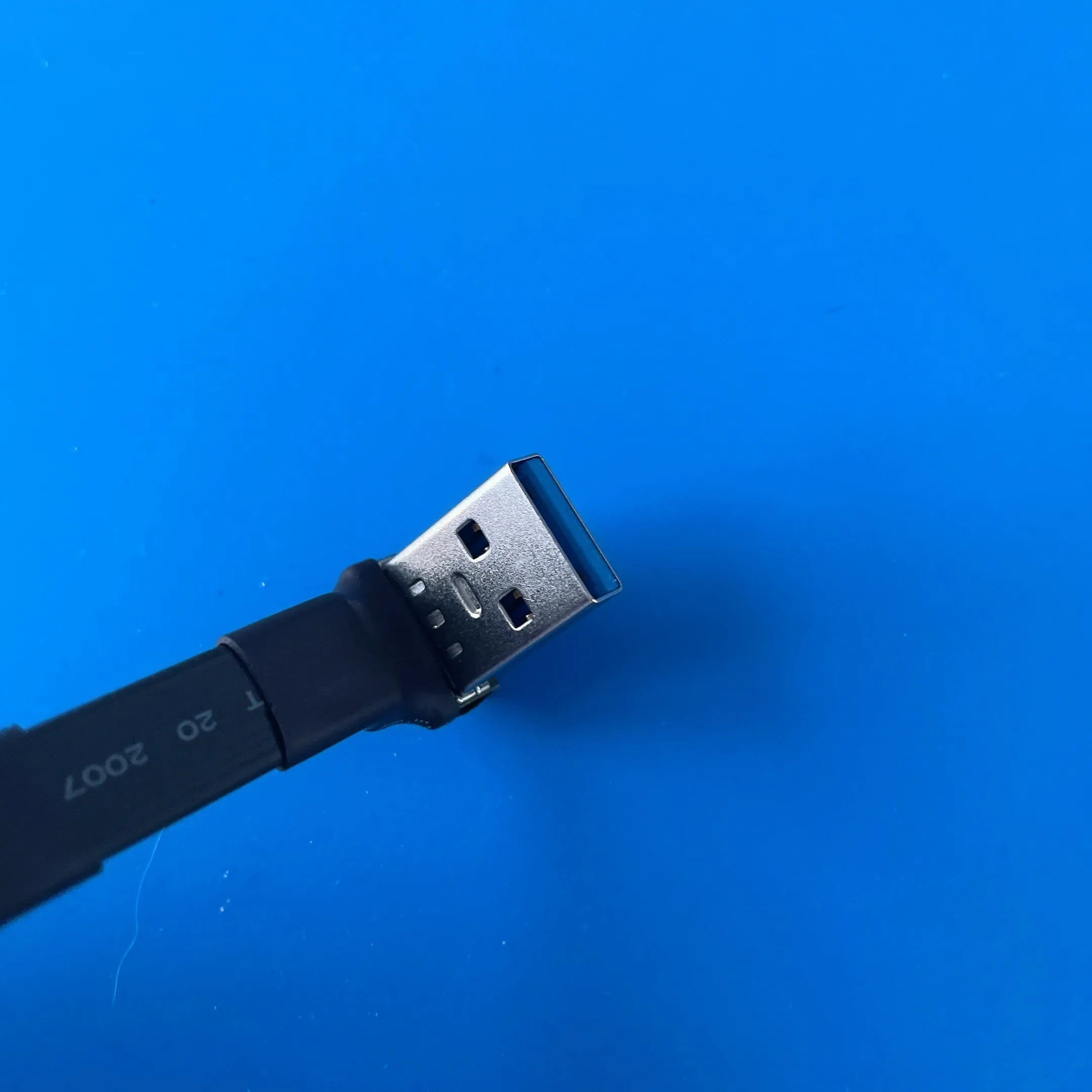

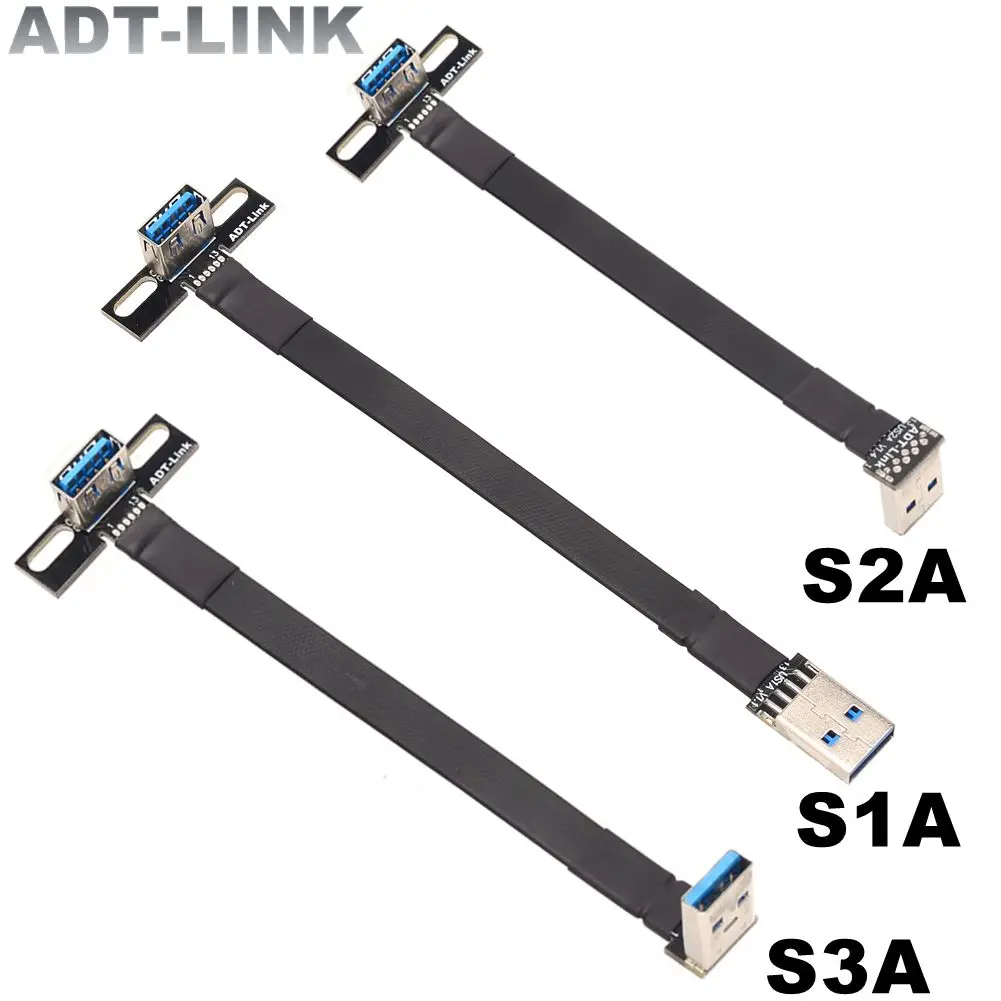

S1A-S4B Real Photos:

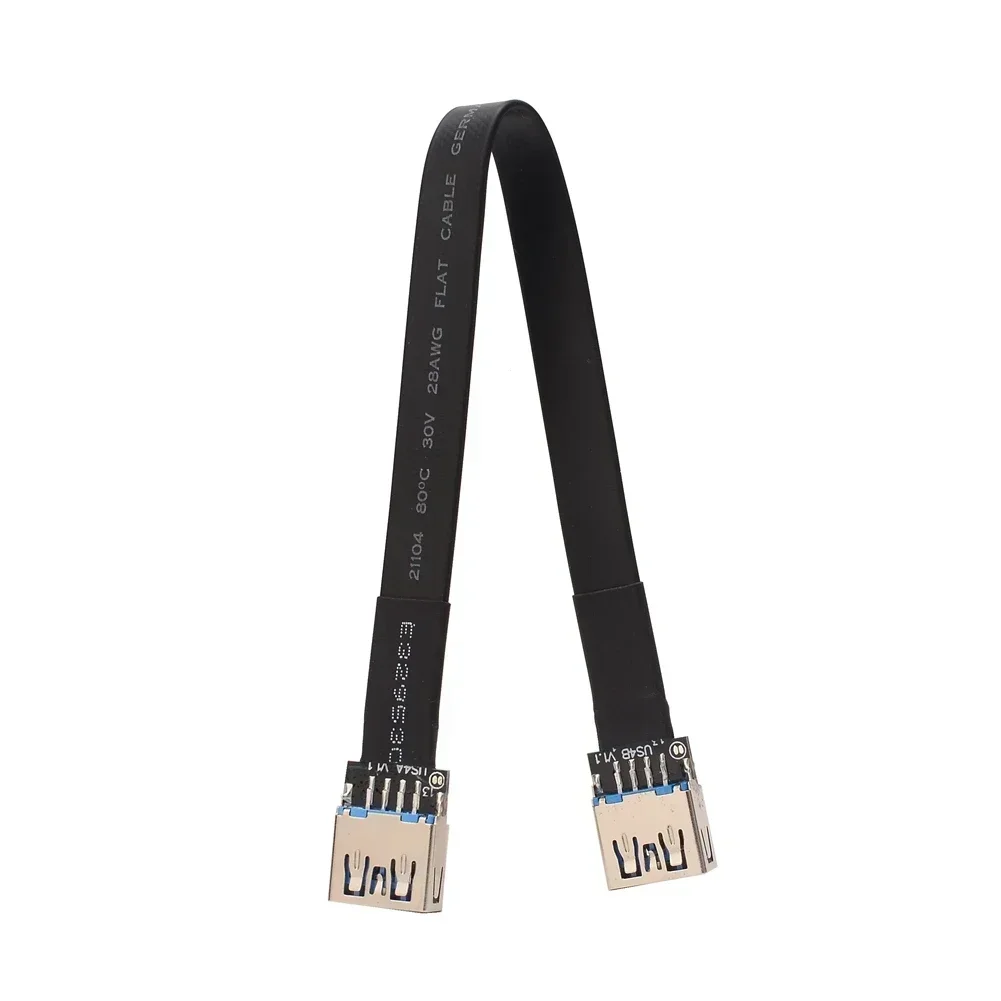

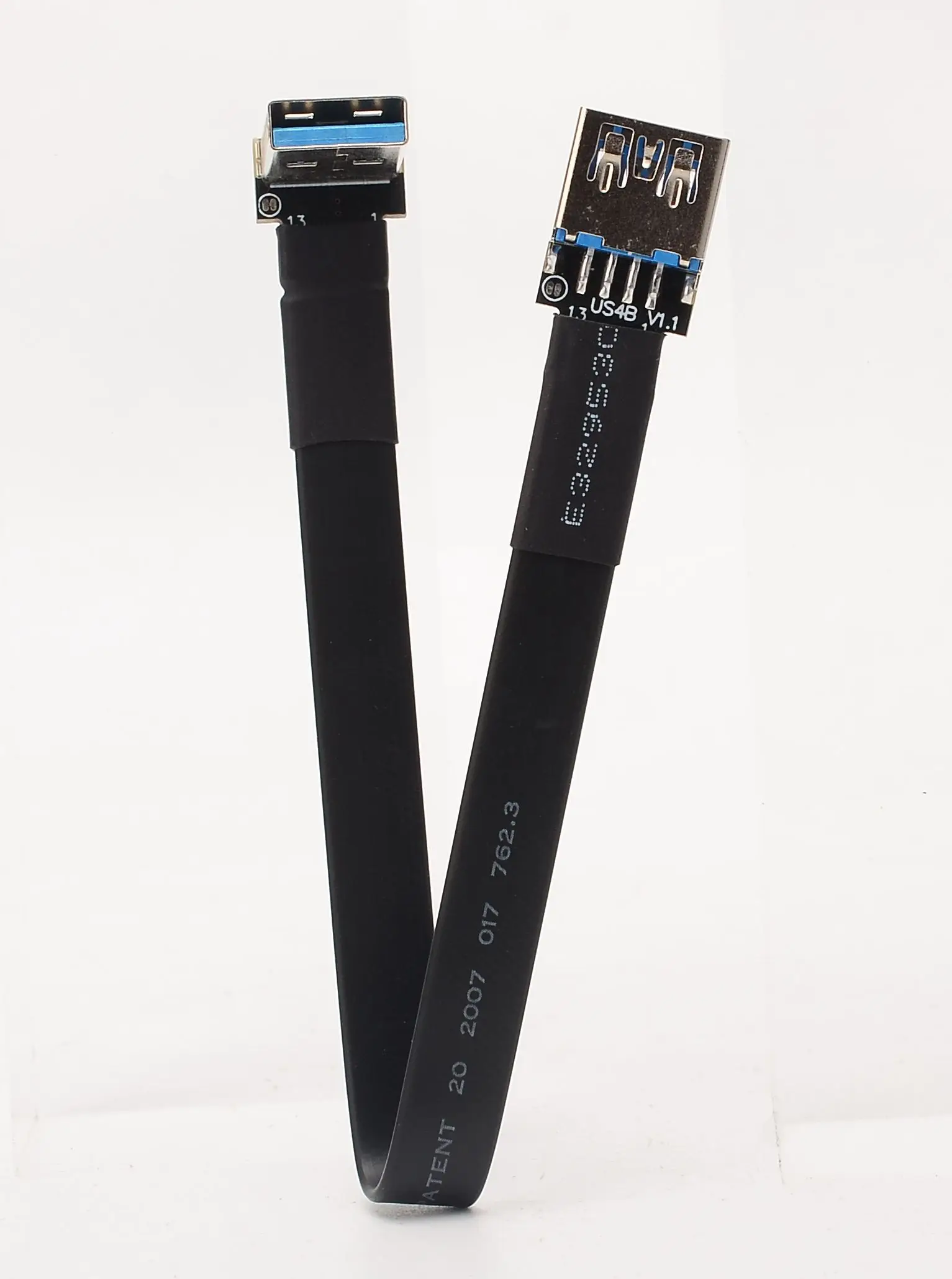

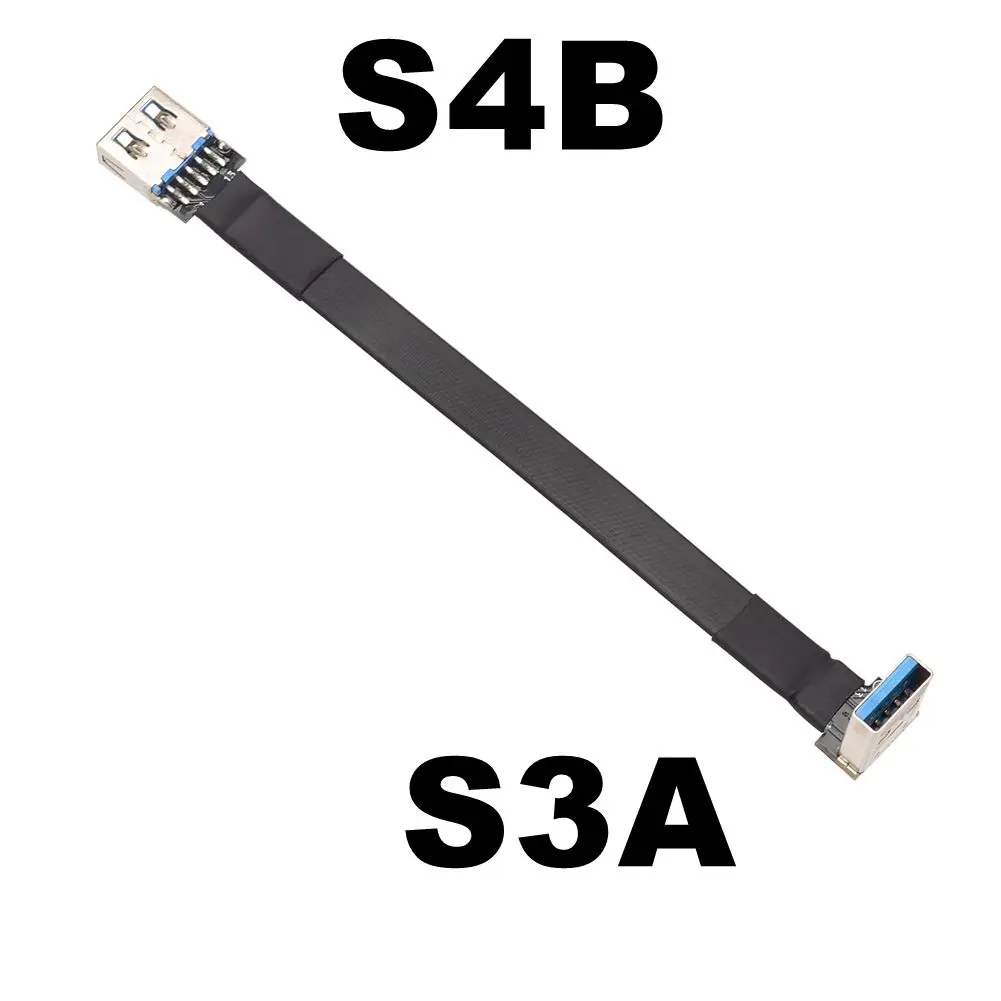

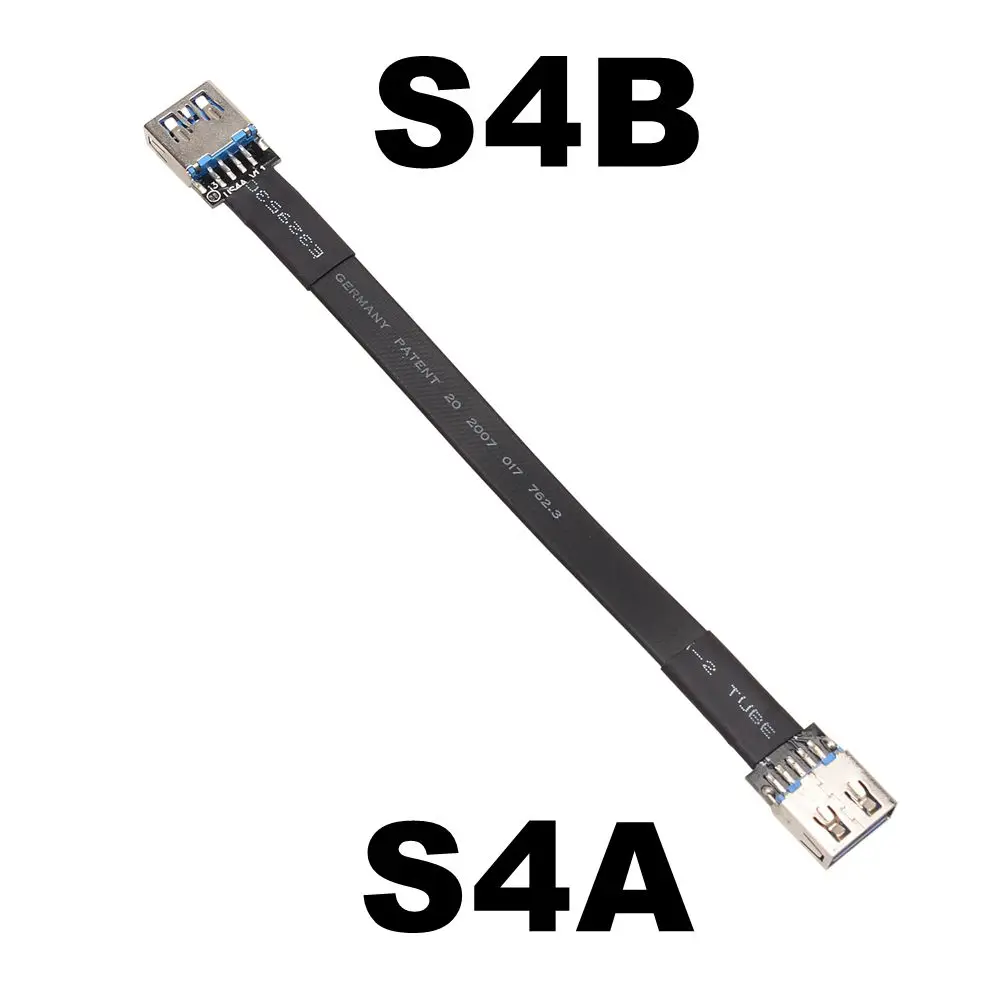

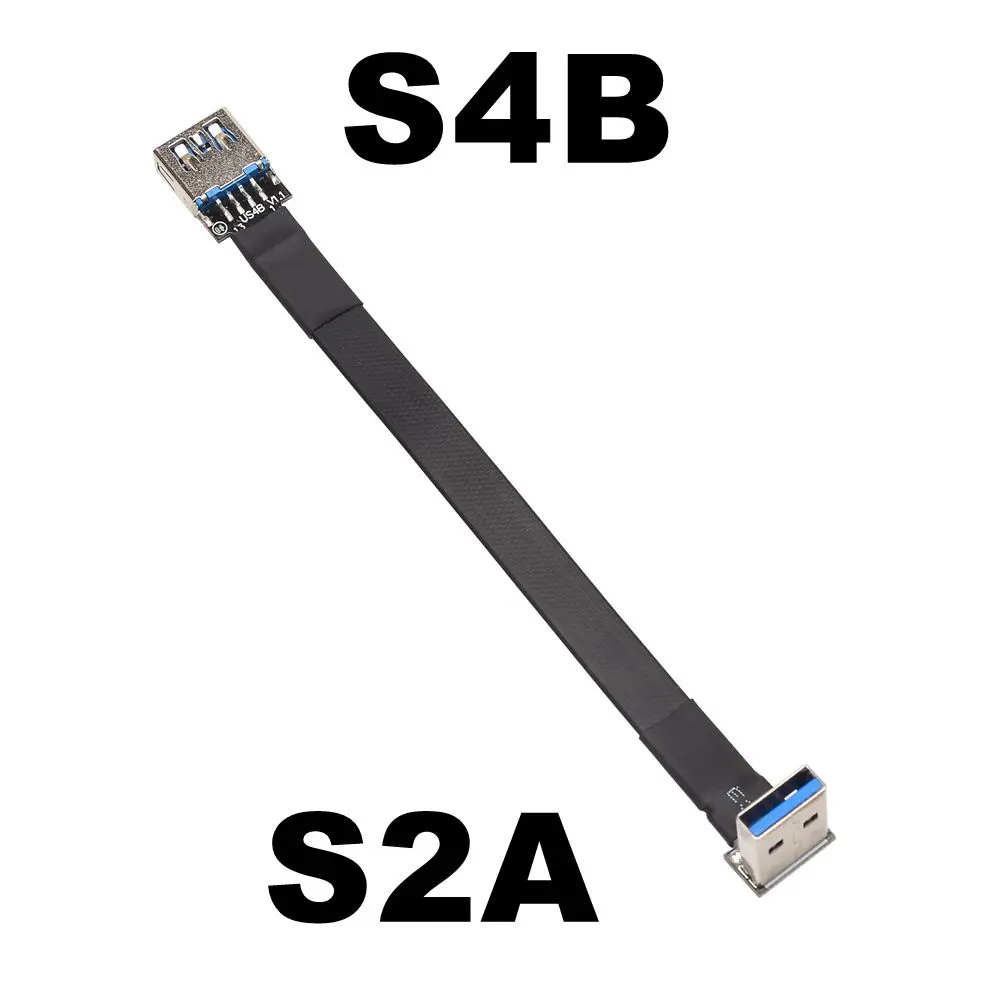

S2A-S4B Real Photos:

Download:

To open 3D PDF files. Please usesoftware.

FTP: Los Angeles

Schematic file download:

3D model STEP & PDF files download:

Spec download:

FTP: Hong Kong

3D model STEP & PDF files download

Schematic file download:
