Brand: ADT-Link
Product Model: HAA-MF-24P series of commodities

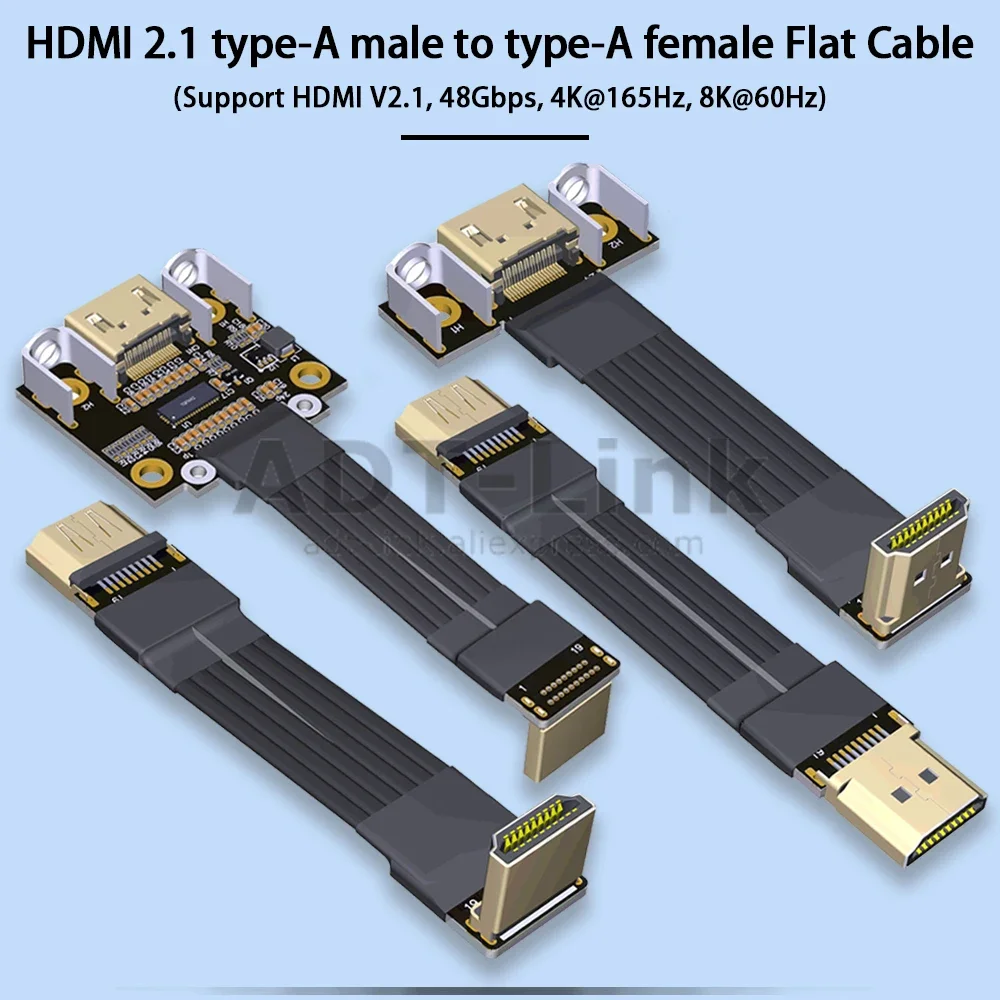

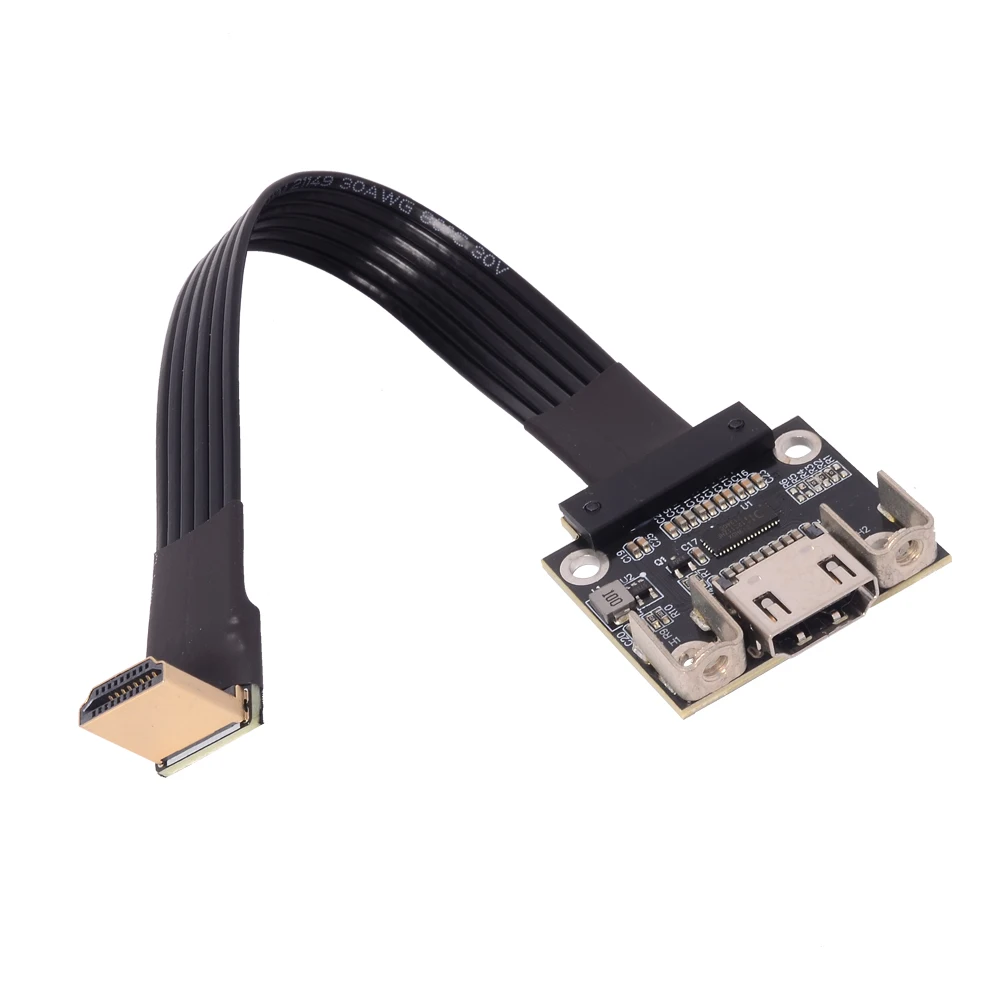

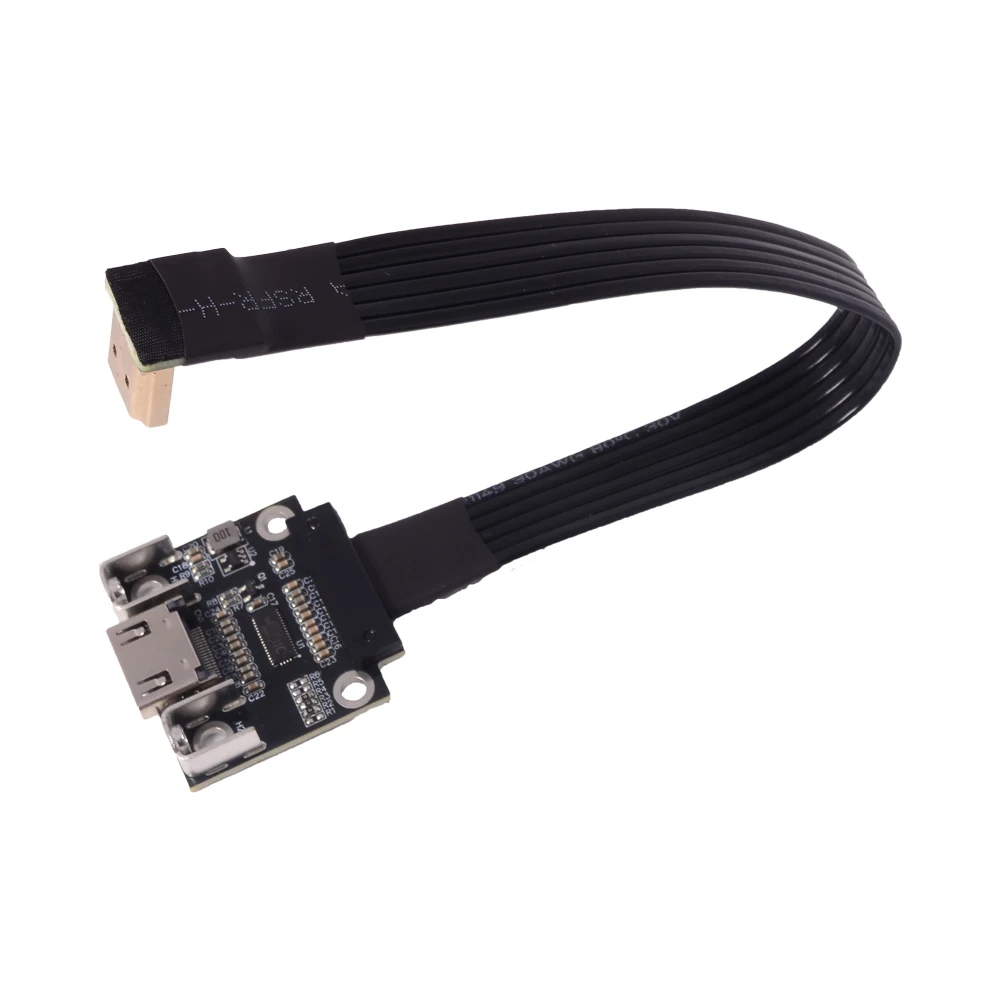

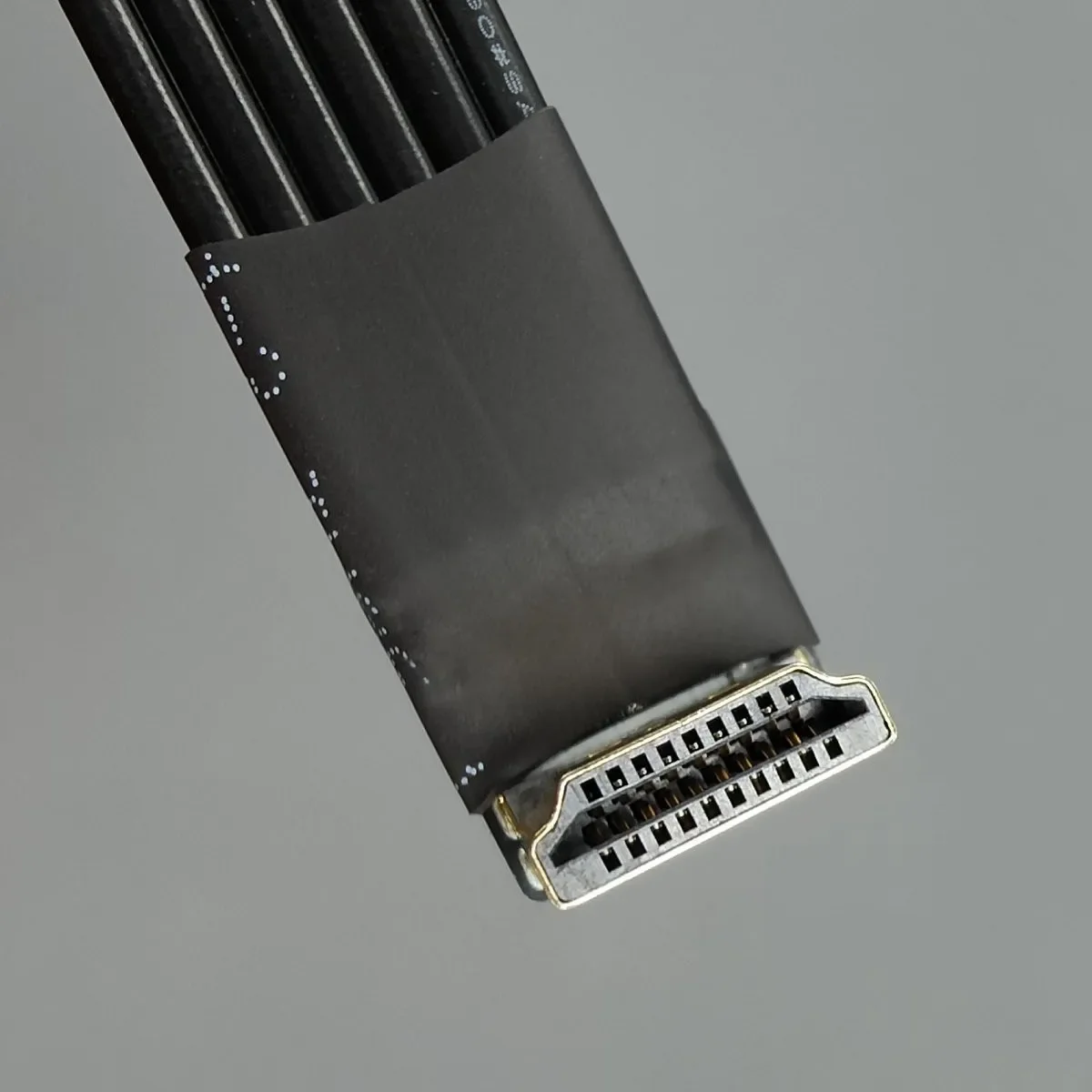

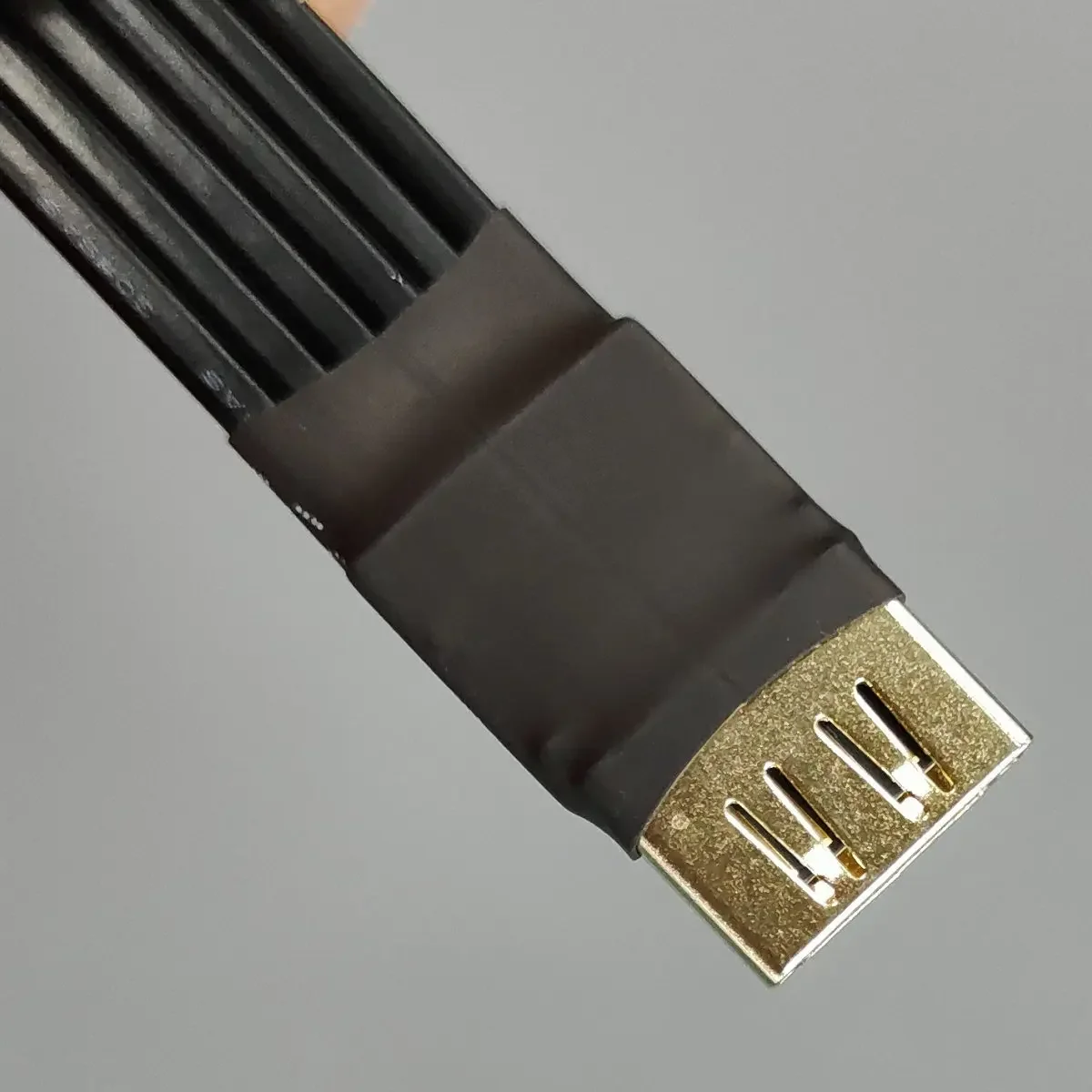

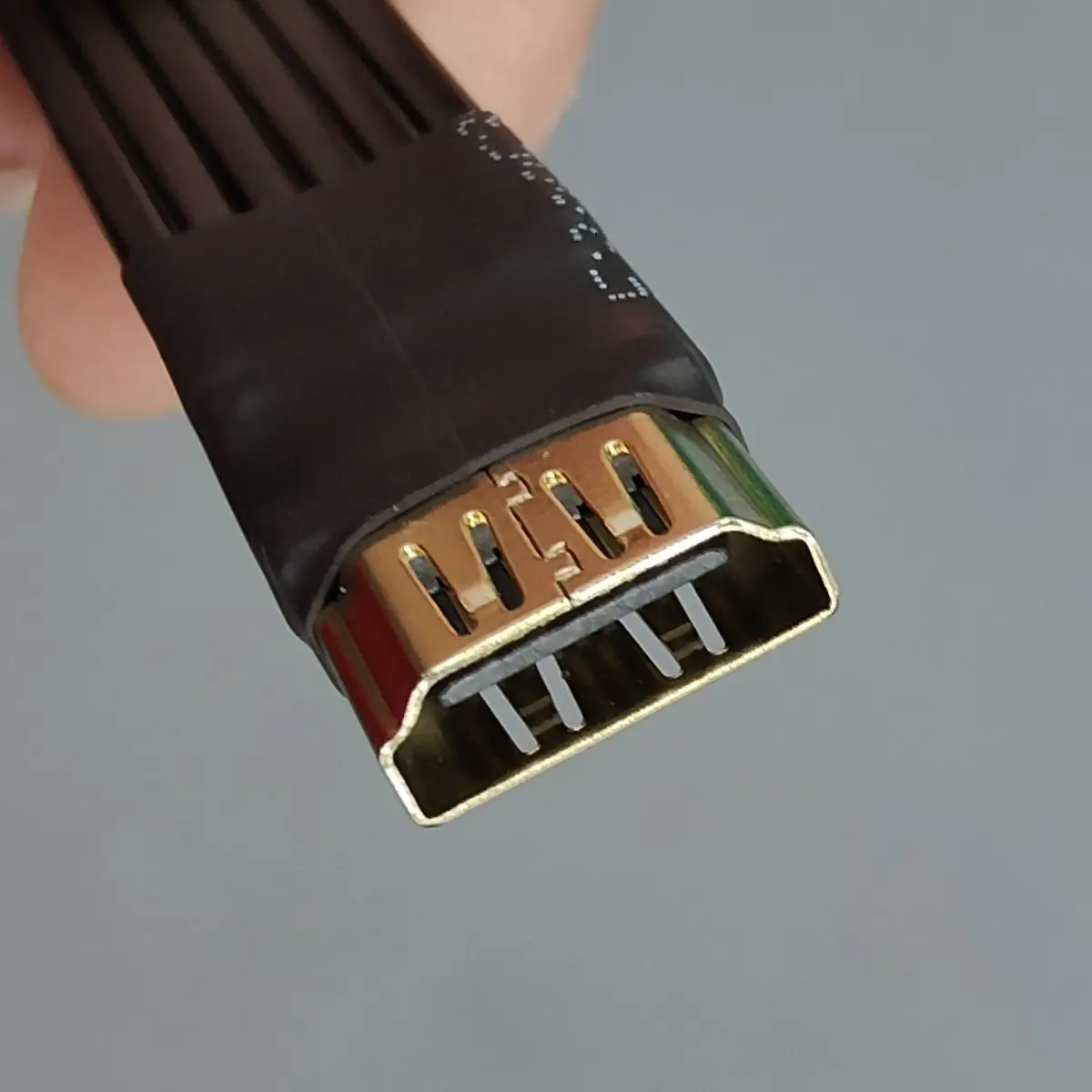

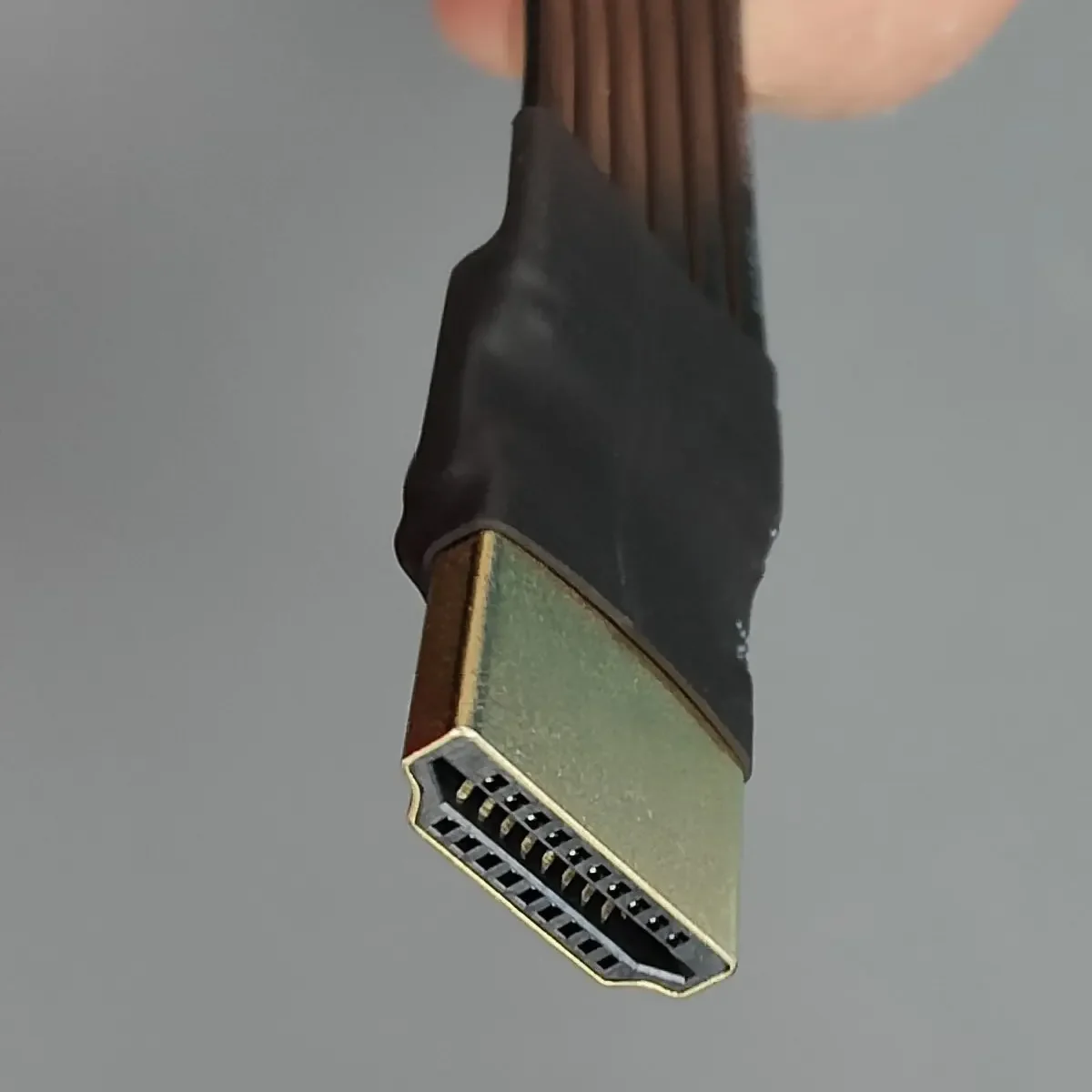

Product name: Standard HD extension adapter cable (A type to A type)
Wire length: 3cm-3m (customized wire length is supported)
Product Specifications:Supports HD 2.1/2.0
Application: For FPV Aerial Photography Gopro Camera
Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.
Purchase restriction: This product is designed to connect to built-in internal devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.
Description of wire length:
The length of the wire in our shop refers to only the part of the wire, excluding PCB and connector. If PCB and connector are included, about 4cm should be added. This is about 9cm in length. Refer to the dimensioning of the line 5cm in length below.

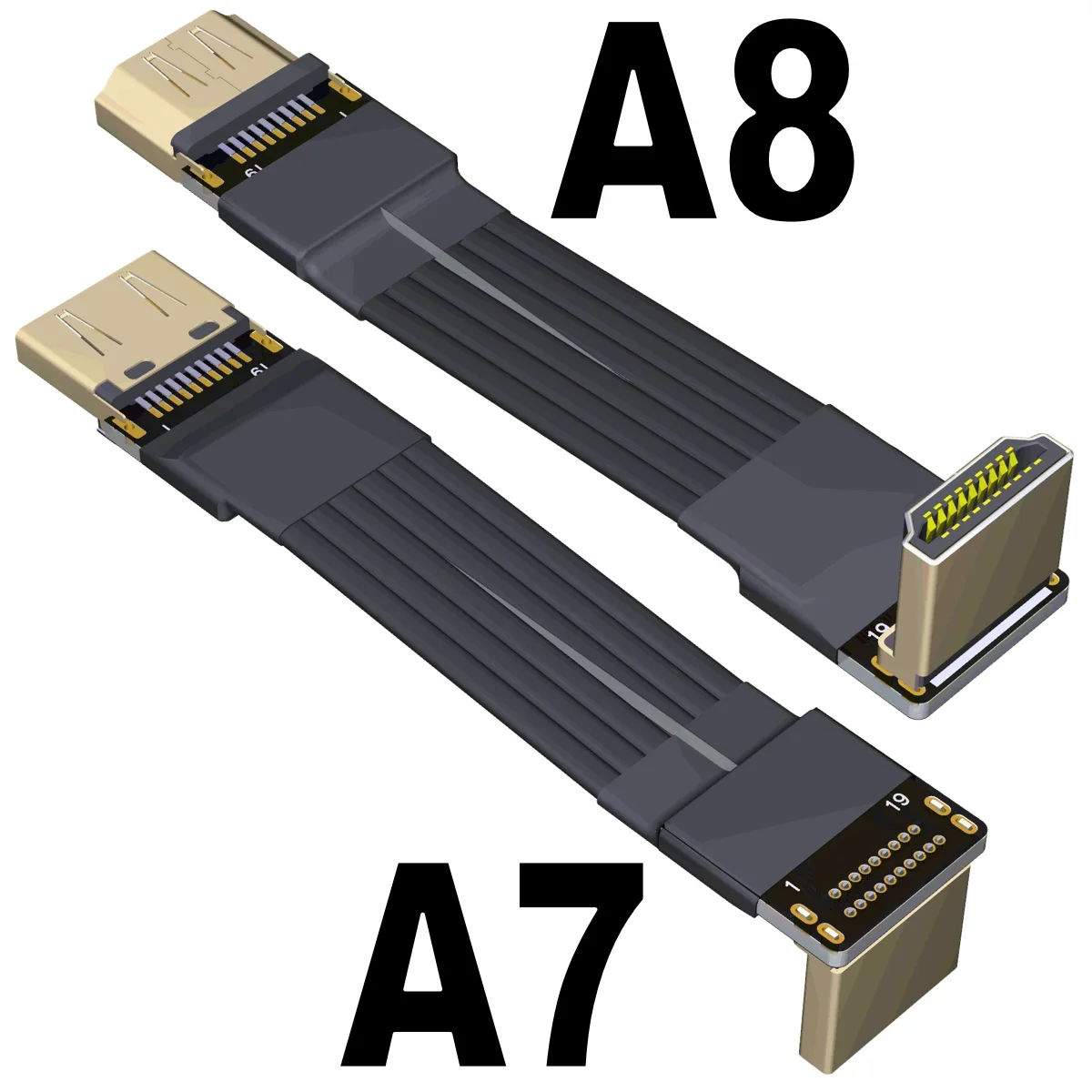

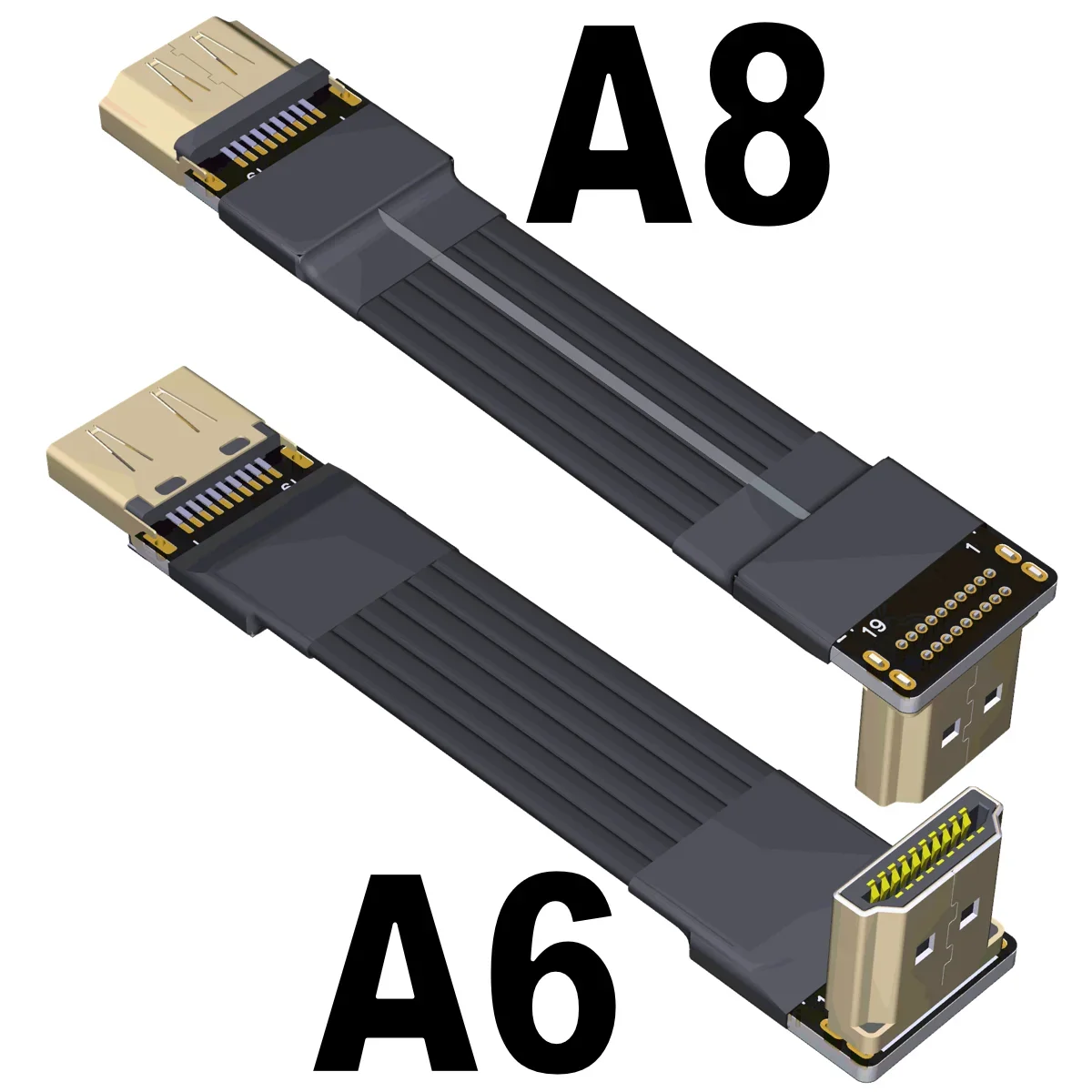

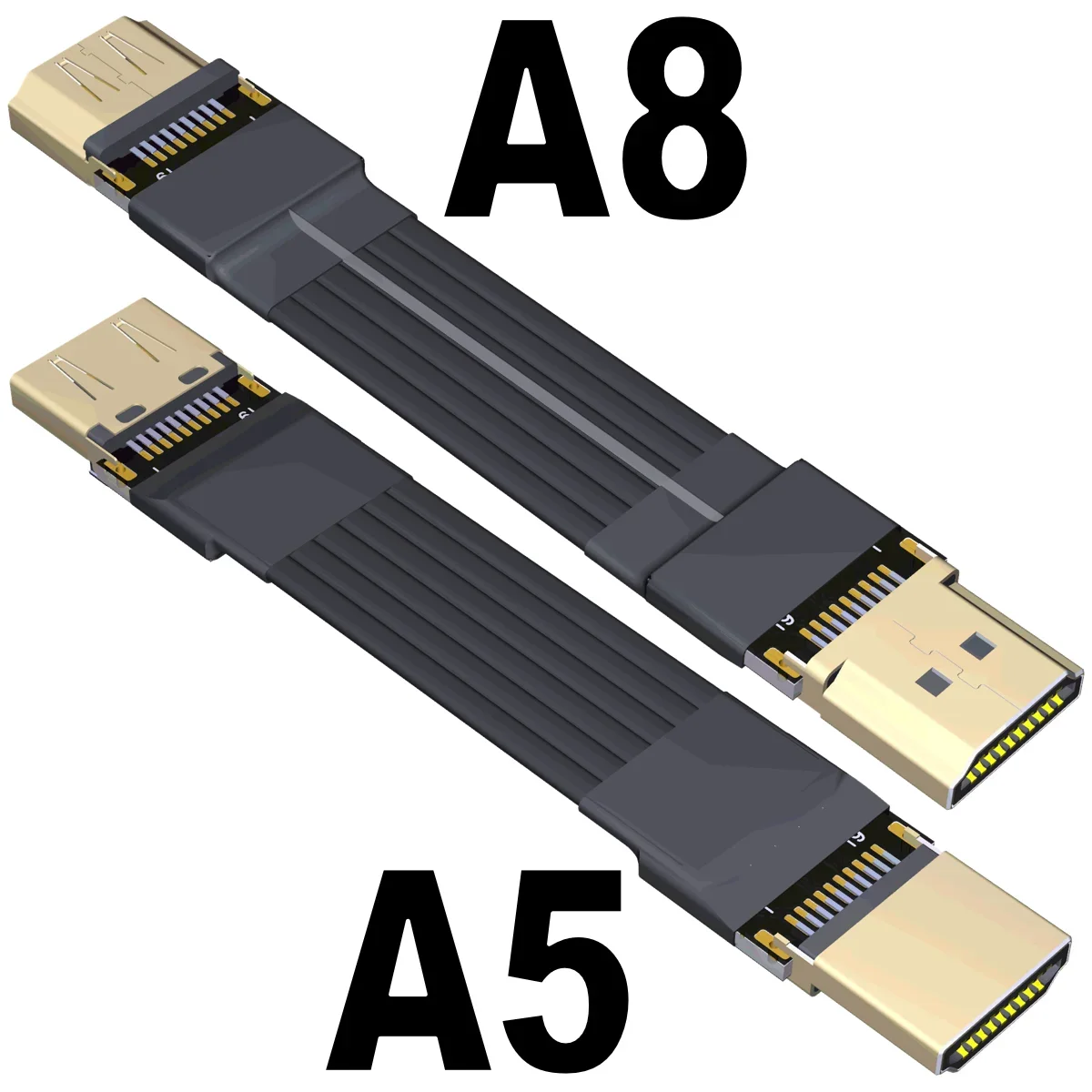

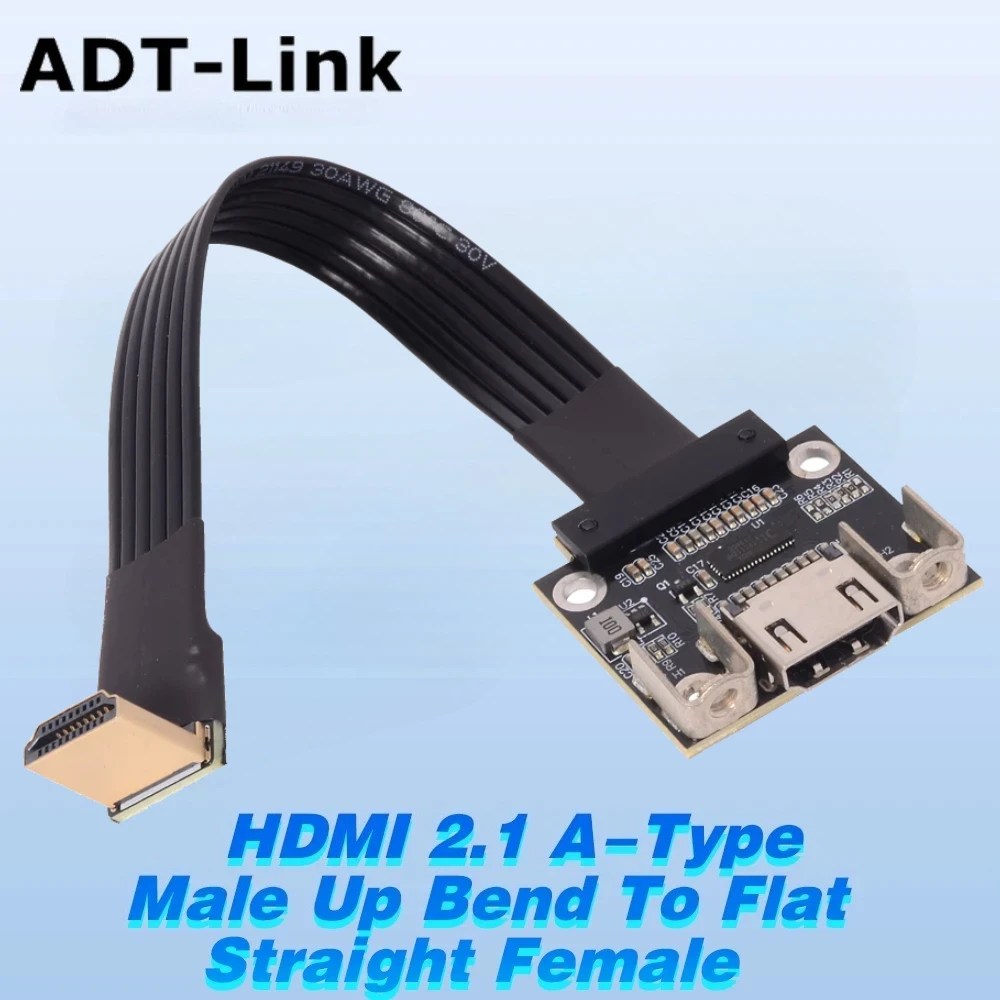

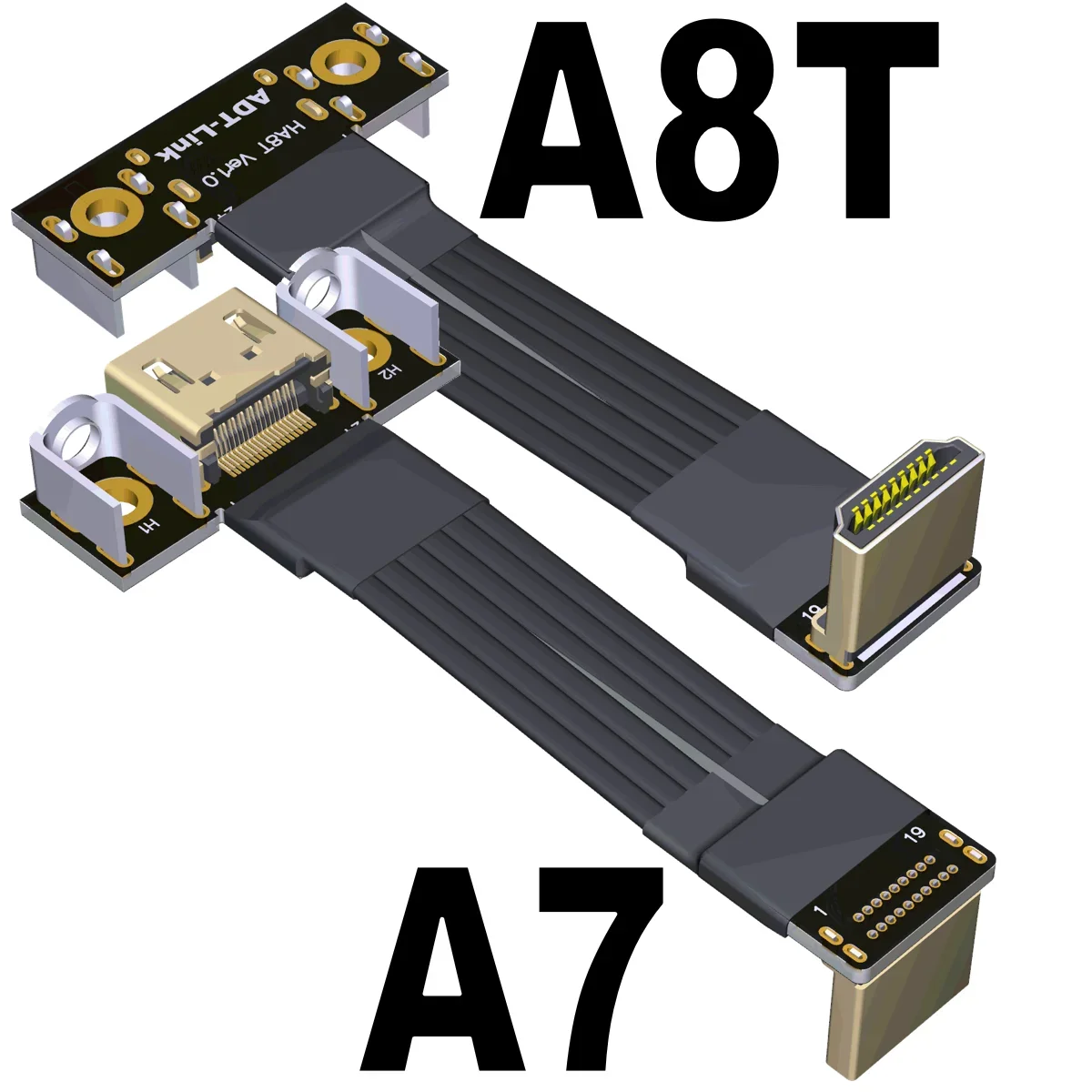

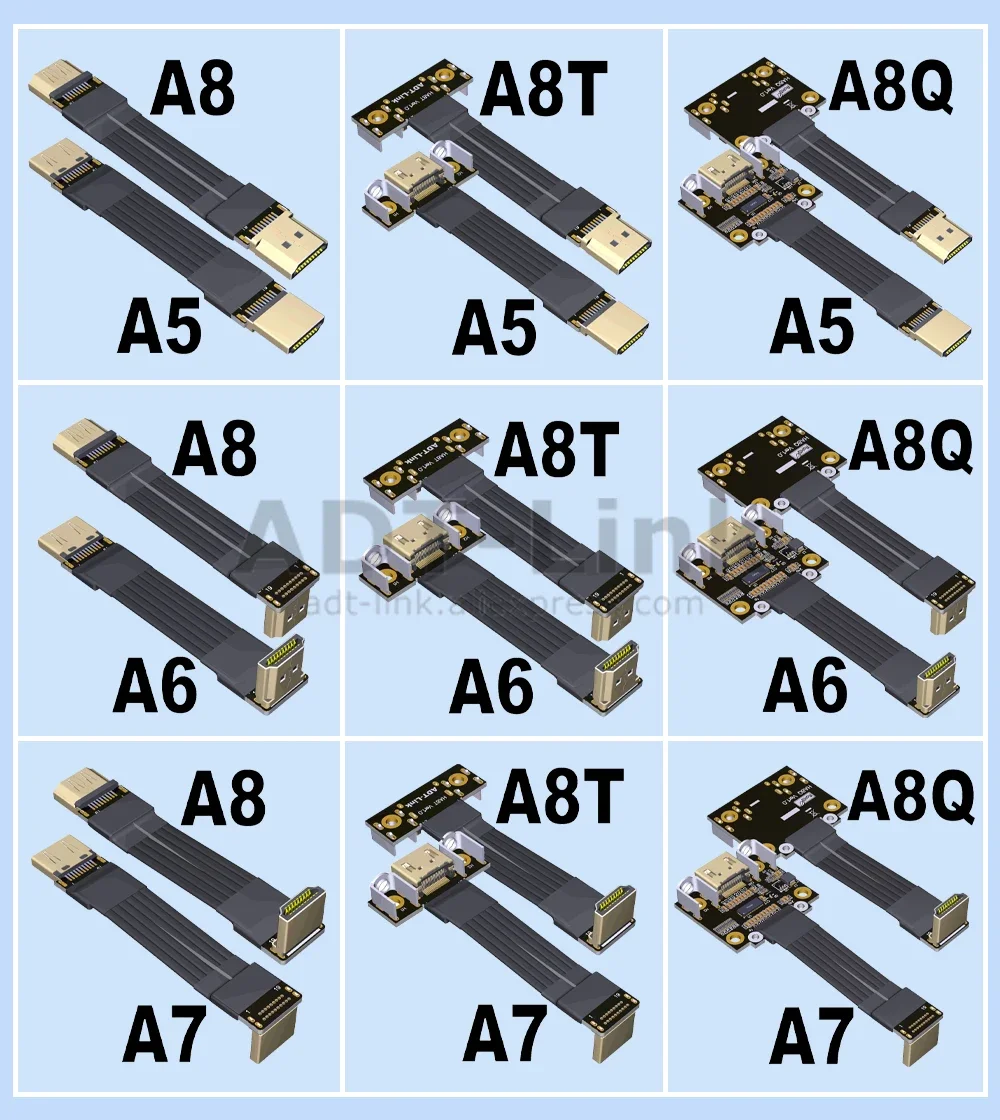

Straight male to straight femaleMetal ShieldedHA5-HA8HD 2.0 Straight male to straight double-ear femaleMetal ShieldedHA5-HA8THD 2.0 Straight male to straight double-ear femaleMetal ShieldedHA5-HA8QHD 2.1 with chipUp male to straight femaleMetal ShieldedHA6-HA8HD 2.0Up male to straight double-ear femaleMetal ShieldedHA6-HA8THD 2.0Up male to straight double-ear femaleMetal ShieldedHA6-HA8QHD 2.1 with chipdown male to straight femaleMetal ShieldedHA7-HA8HD 2.0down male to straight double-ear femaleMetal ShieldedHA7-HA8THD 2.0down male to straight double-ear femaleMetal ShieldedHA7-HA8QHD 2.1 with chipNote 1: Model A8, A8T extension cable has no relay chip and two conversions, that is, the signal will be attenuated when the HD cable is strung together more than 2. There may be problems such as flash screen, so it does not support HD2.1 full speed, please use the frequency down.

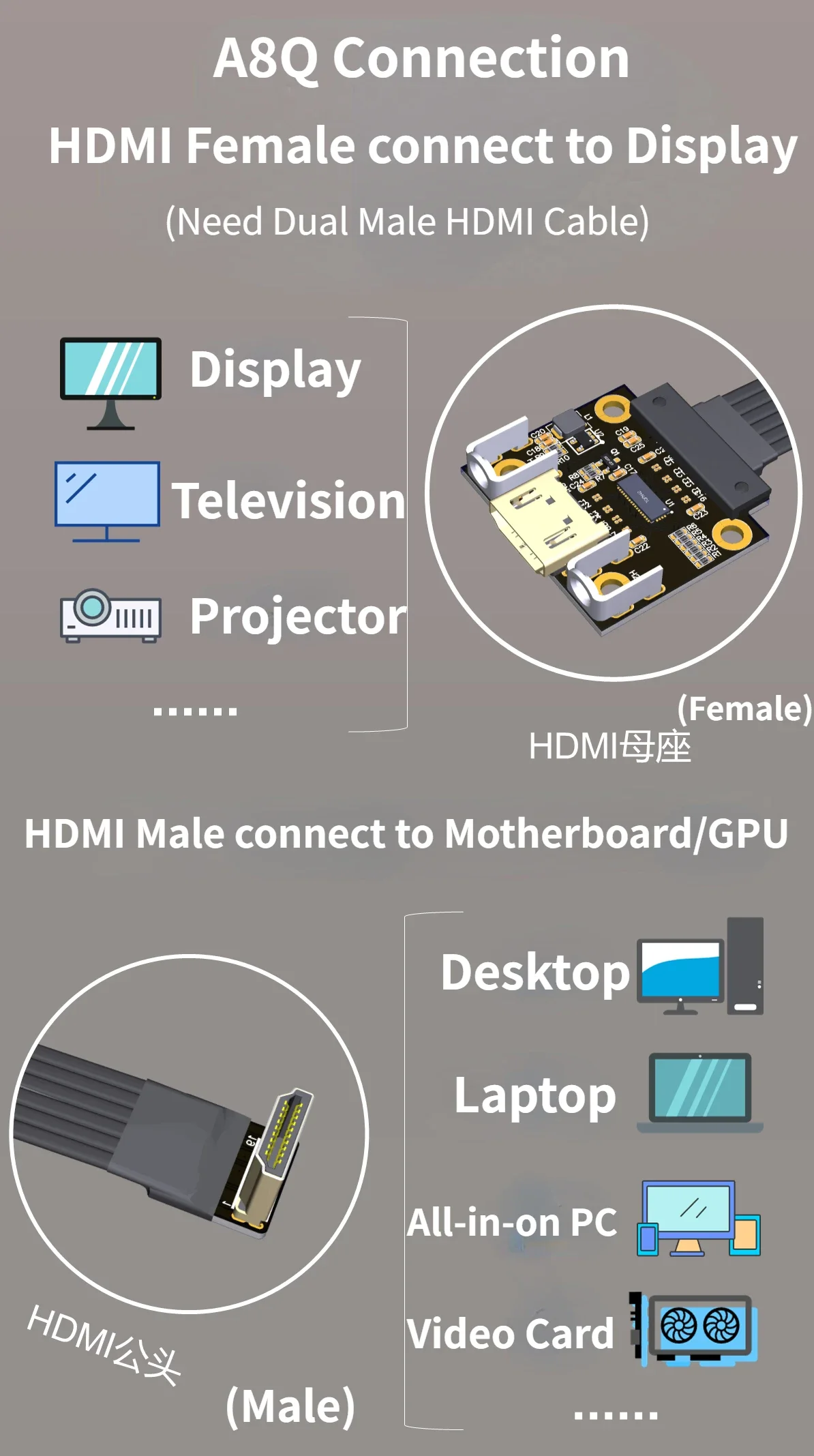

Note 2:Model A8Q WITH RELAY CHIP signal is unidirectional, the female terminal must be connected to the display, the other male terminal must be connected to the motherboard or graphics card

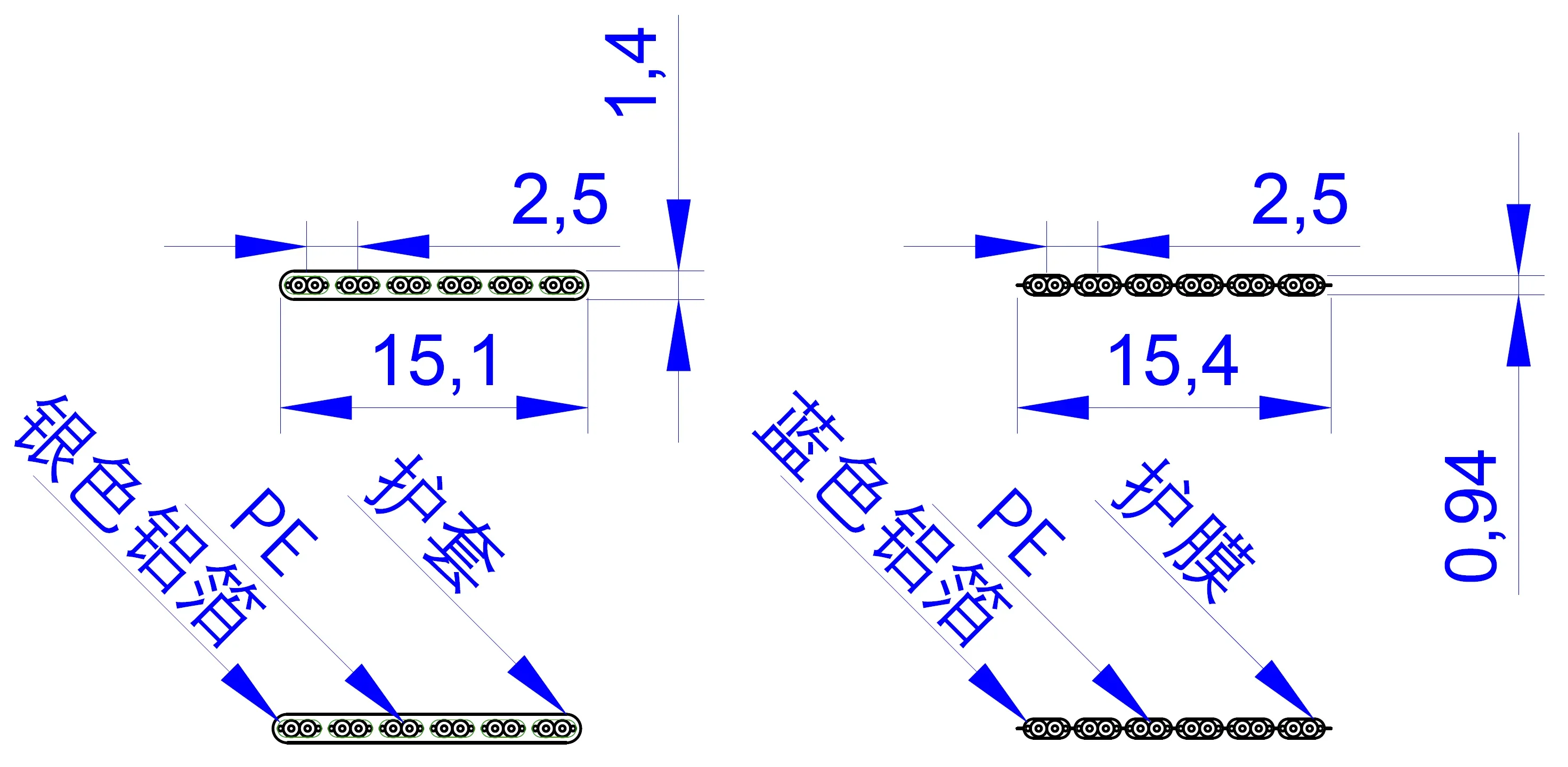

The thickness of the black model is 1.3mm, the silver model is 1.4mm, and the blue model is 0.94mm
Model A8Q, what is the hole distance of A8T?

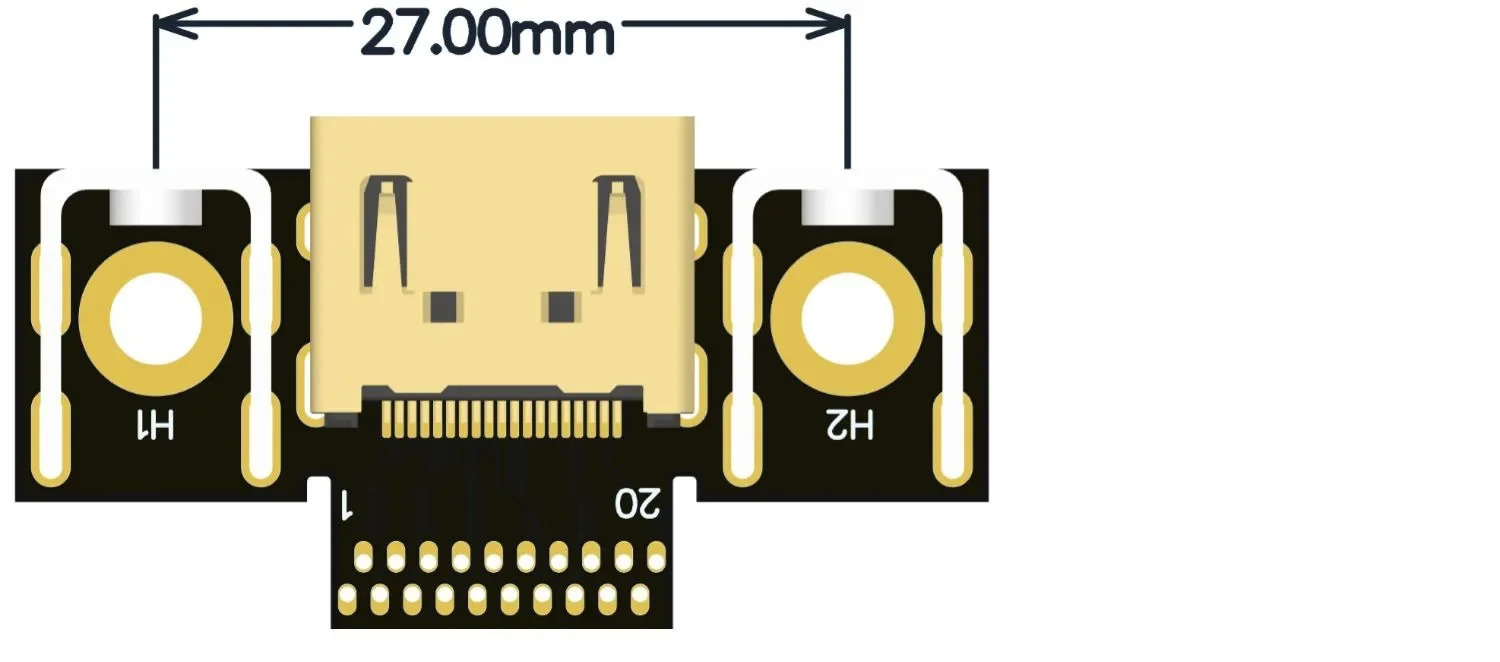

Please use M4 screws as shown in the following figure. The hole spacing is 27mm. For details, please refer to the 3D drawing

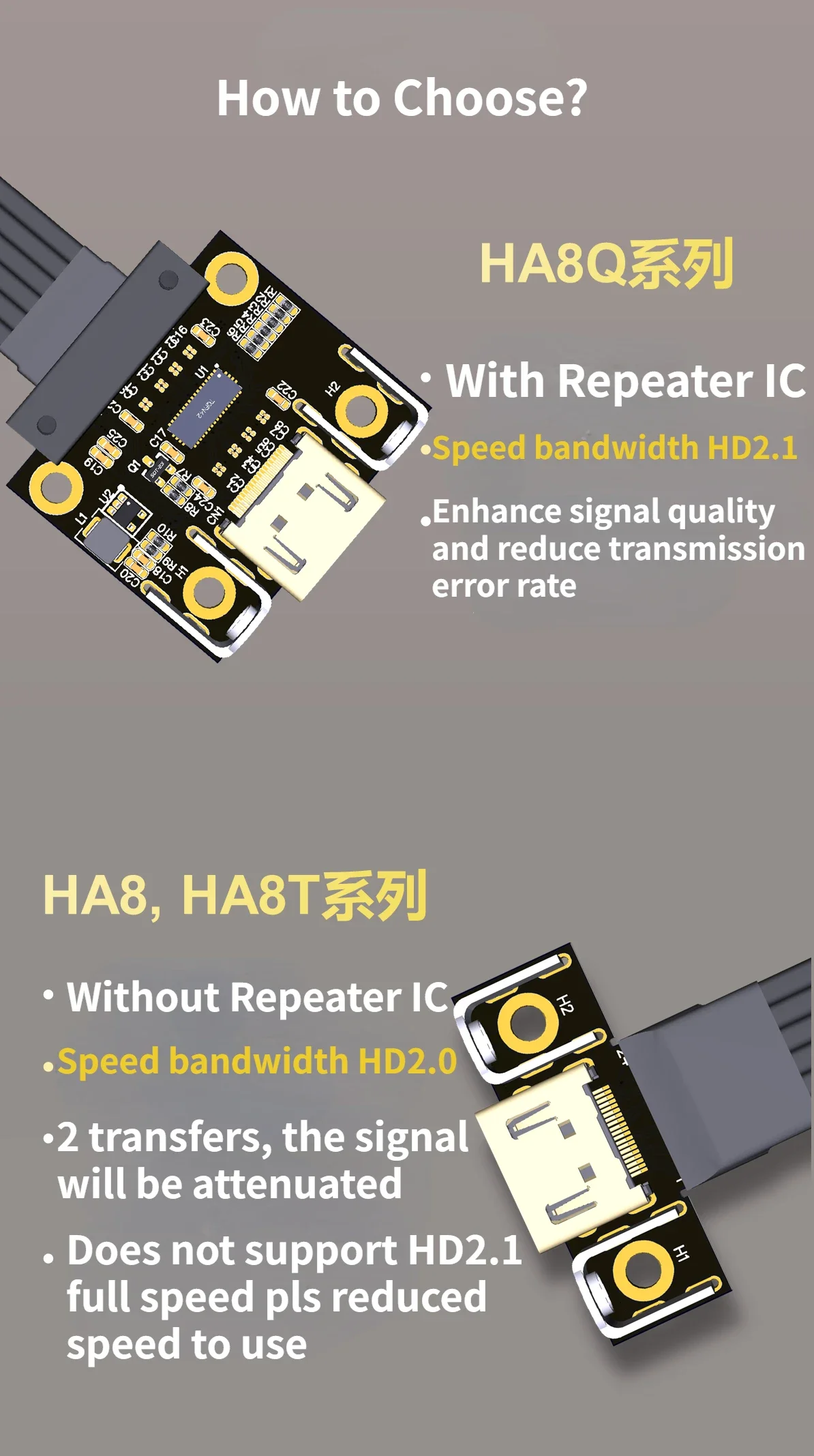

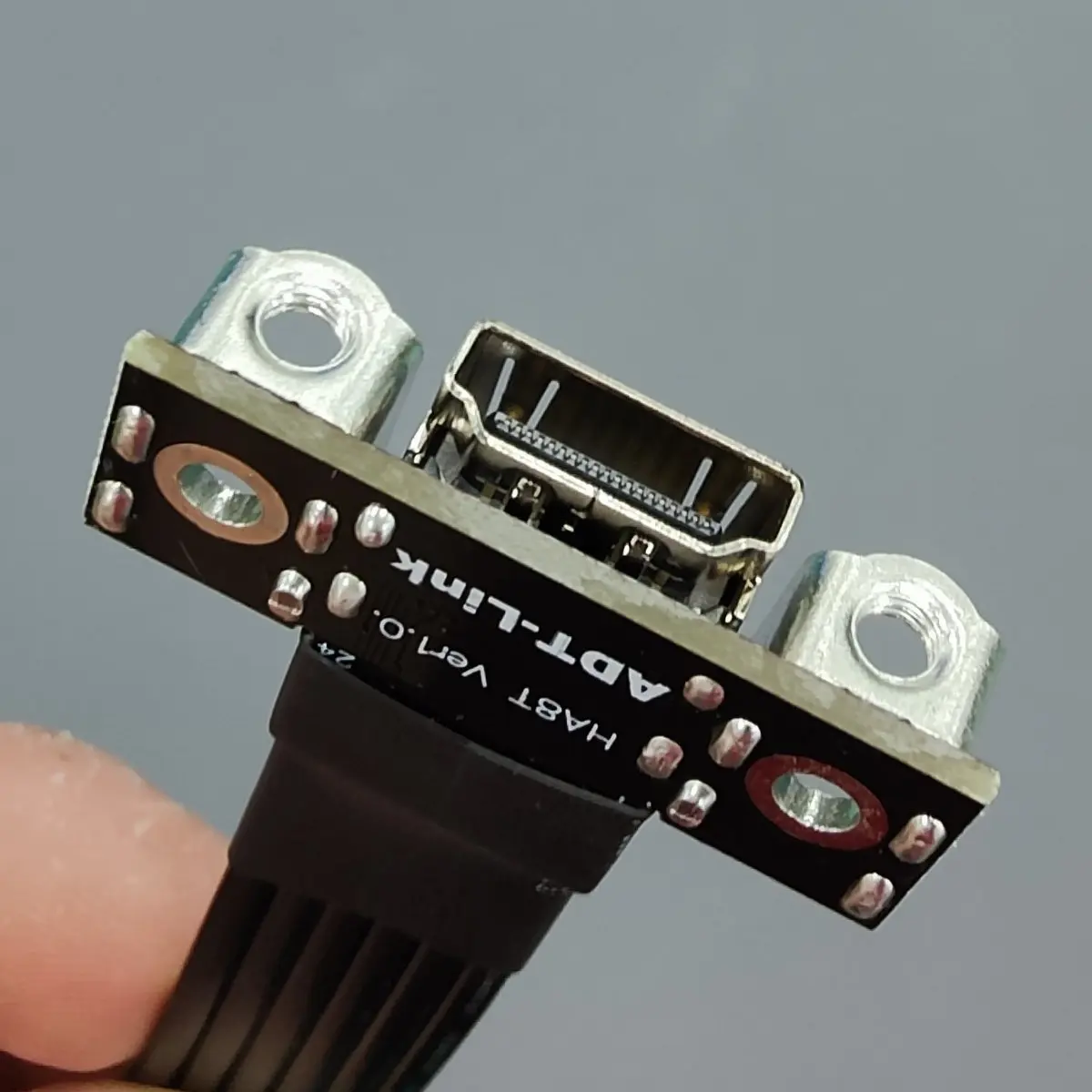

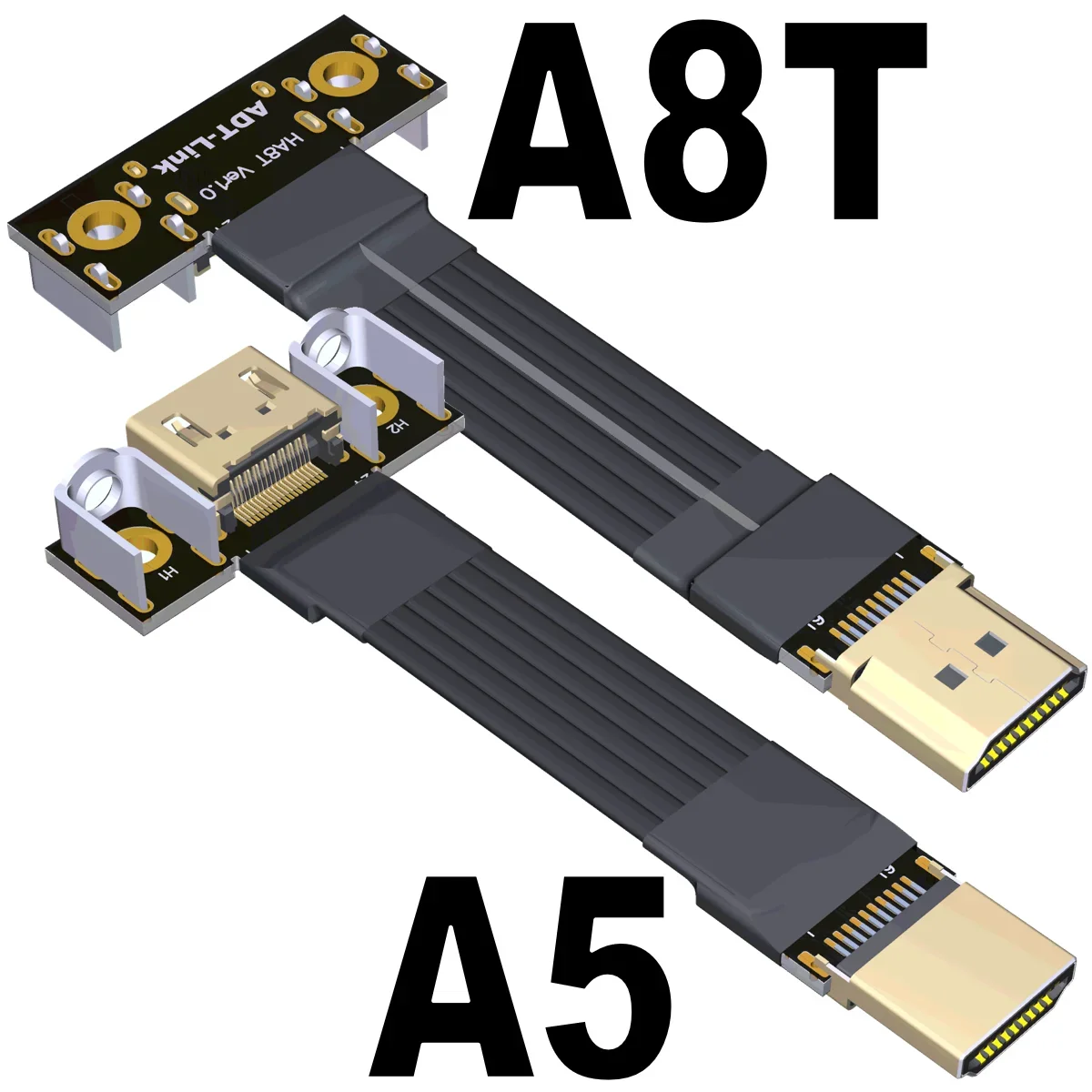

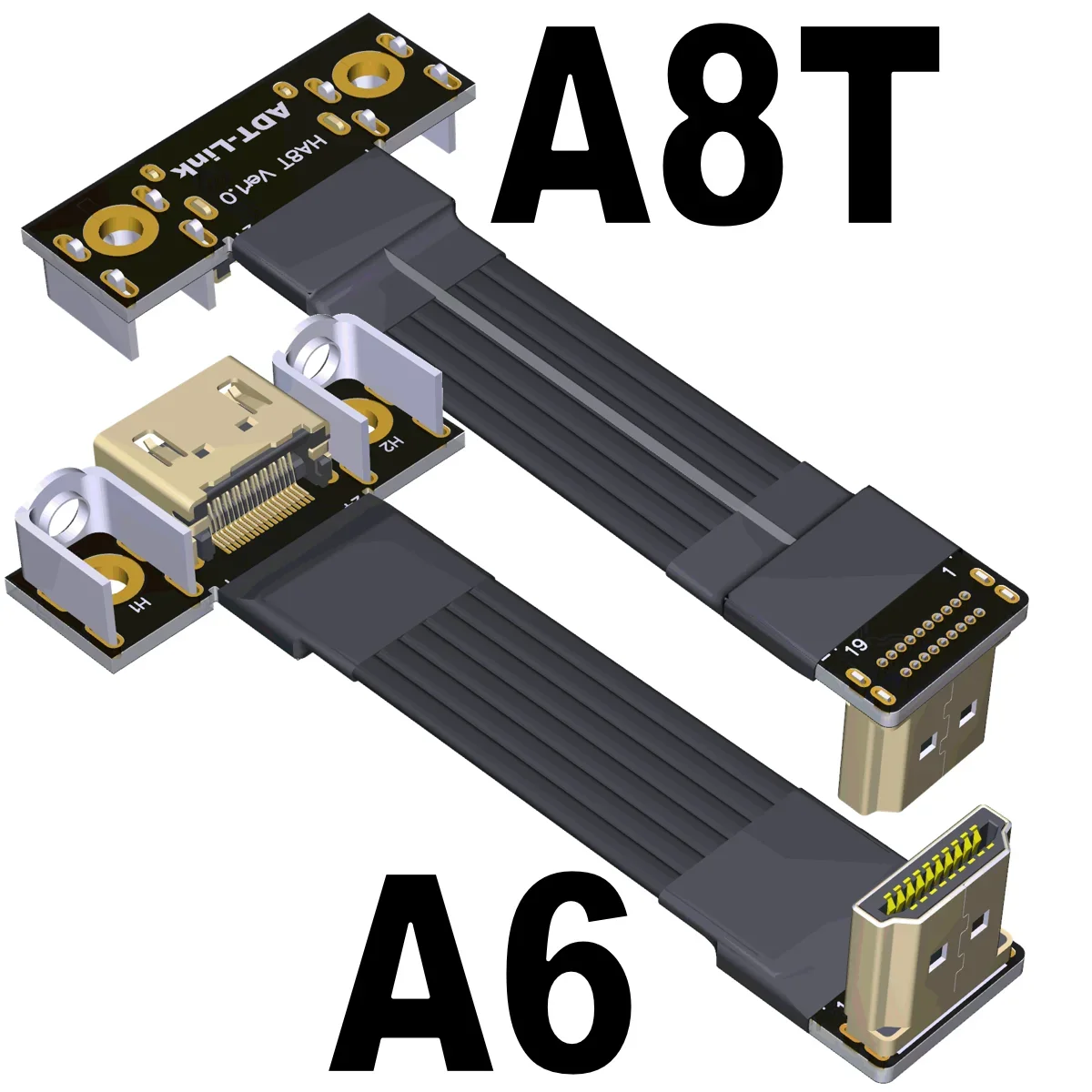

Model HA8T(right picture) without chip, the signal attenuation after two HDMI cables are connected in series may not meet the requirements of HDMI2.1 high-speed signal transmission.

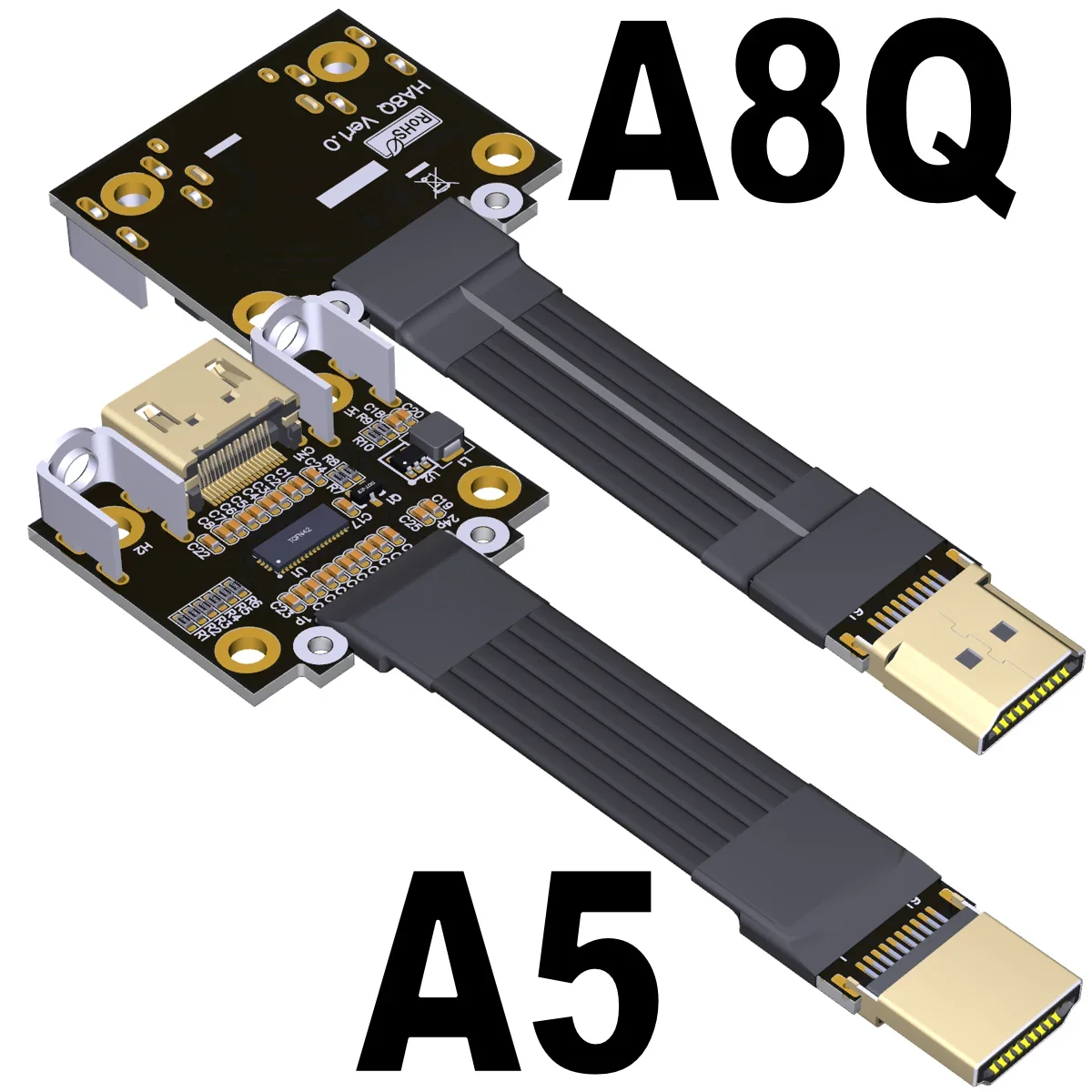

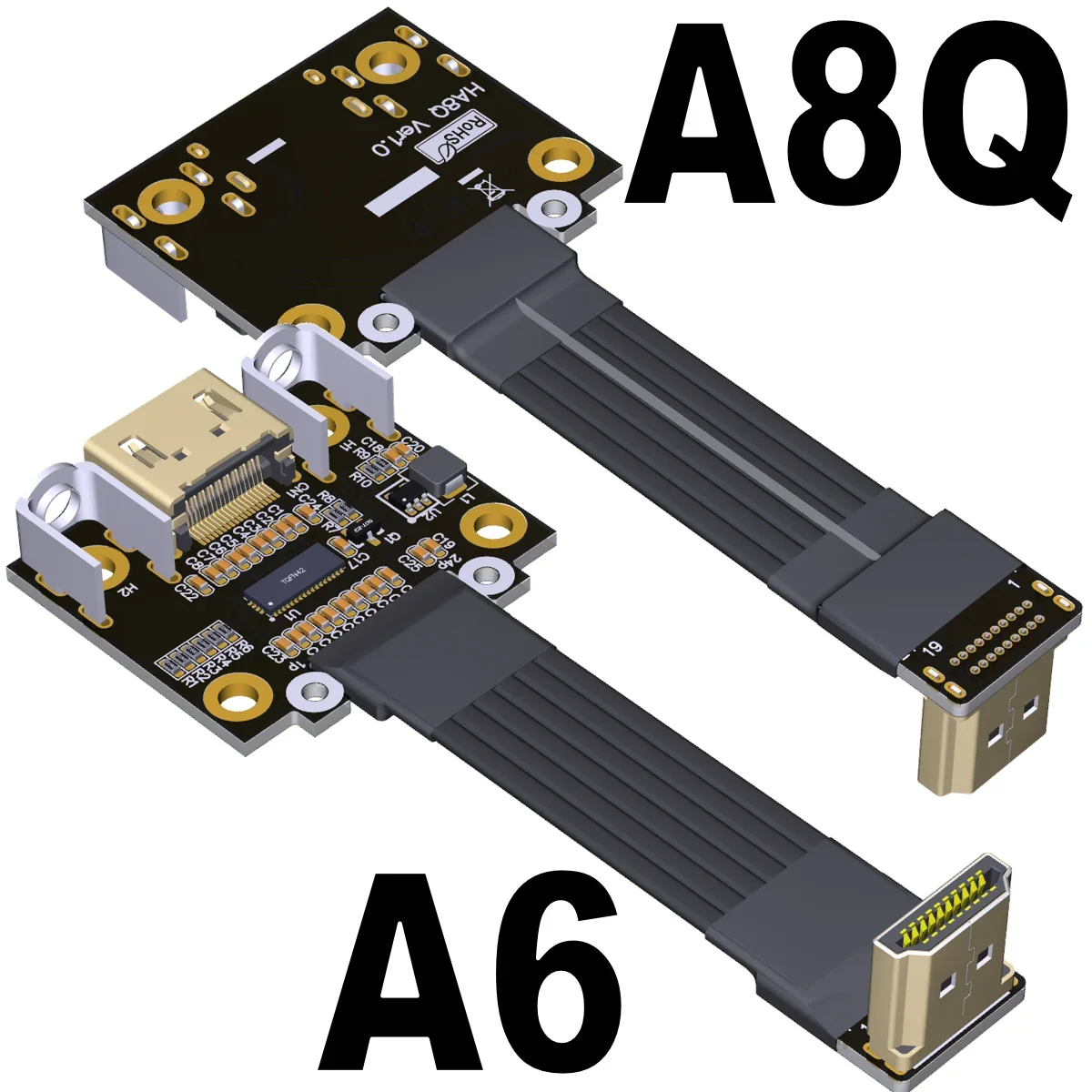

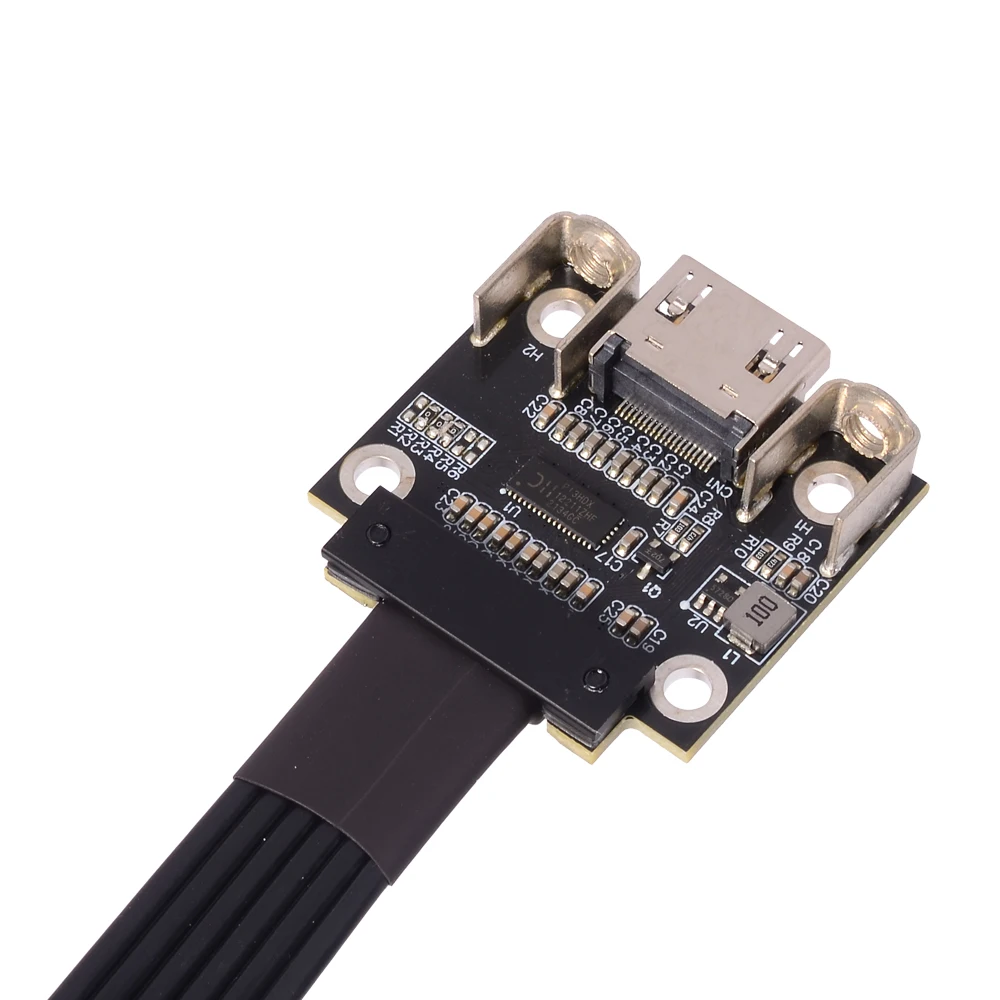

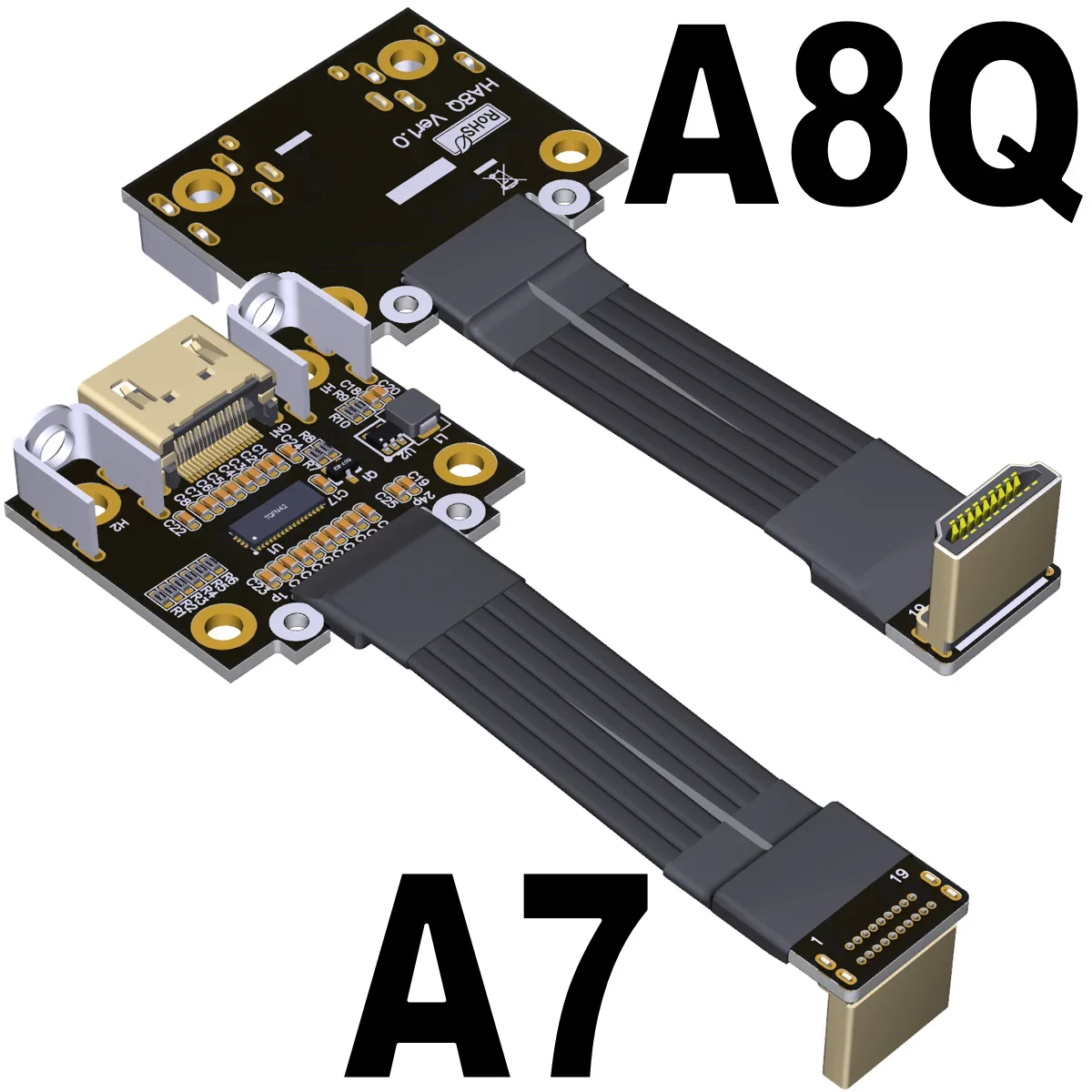

The model HA8Q(left) has a chip that uses the Diodes/Pericom Redriver Repeater IC, which regenerates signals and enhances their quality. To reduce the error rate of signal transmission, refer to the diagram below:
Technical data download:
3D dimensional drawing: http://www.adtlink.cn/download/HAA-MF-24P.ZIP
Schematic: http://www.adtlink.cn/download/schematic_hdmi.pdf
Datasheet: Contact customer service
Tips: For 3D size PDF files, please use Adobe Acrobat Reader DC original software
