Cable elevador PCIE 4,0x4 M2 M.2 NVMe Key M SSD a PCI-E x4 4,0, Cable de extensión Gen 4 SATA, Cable de alimentación 64G/bps GPU, puente extensor

ADT-Link M.2 NVMe to PCI express x4 Extension Riser Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe x4 extension cable

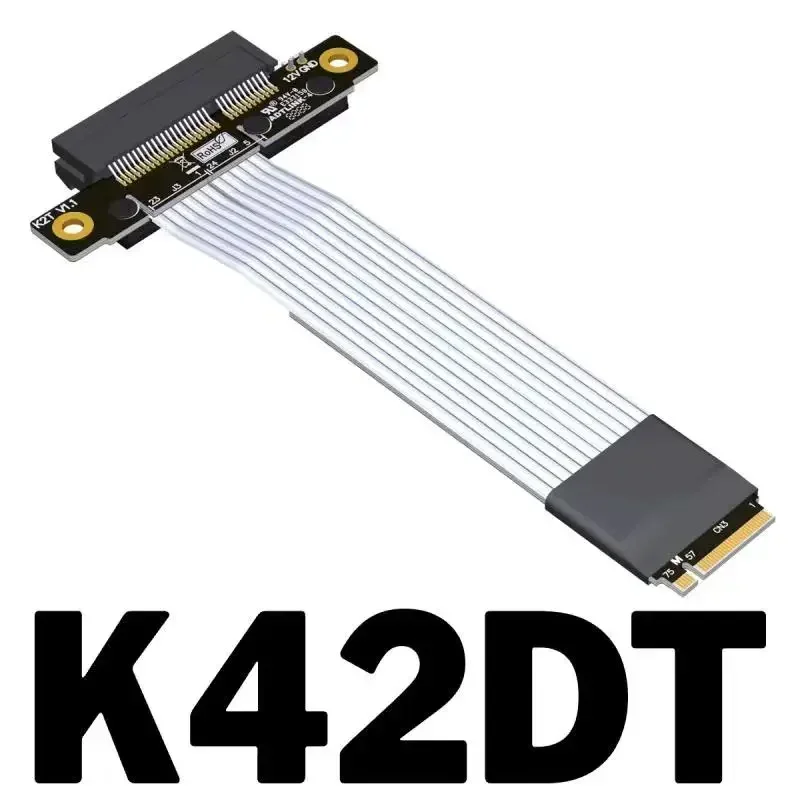

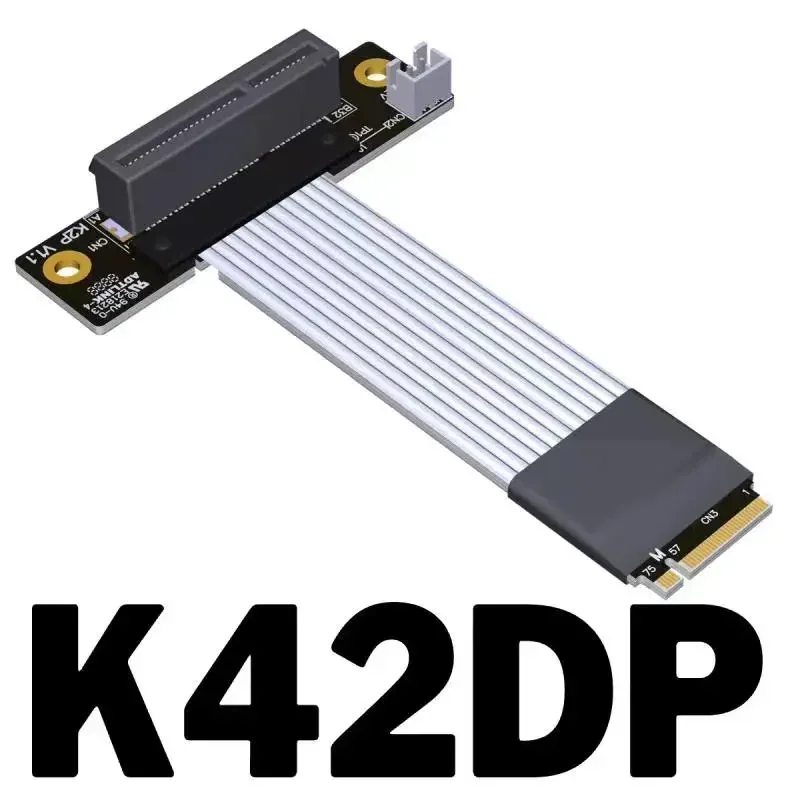

Product model: K42DT, K42DP, K42DW

Transferspeed:PCIe 4.0 x4, gen4, 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: PCIe x4 SSD RAID, LAN, Capture cards to M.2(ultra SSD, M-key)extension

Part-Number Description:

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

What is the difference between K42ST and K42DT:

Accessories: order come with a 4pin sata power cable

Q&A

Is there any EMI shielding for Cable?
With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.1mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Photo:

Download:

To open 3D PDF files. Please usesoftware.

FTP: Los Angeles

3D Step & 3D PDF files download

Test report files download

Cable specificationfiles download

FTP: Hong Kong

3D Step & 3D PDF files download

Test report files download

Cable specification files download
