8 core MPO patchcord female MTP-4DLC 6DLC OM3 1 3 5 10M fiber breakout MTP Type B 8 core OM3 ftth jumper optic patch lead ELINK

The MPO connector (known as multi-fiber push-on and also as multi-path push-on) is a multi-fiber connector defined according to IEC 61754-7 and TIA/EIA 604-5 that can accommodate up to 72 fibers in the tiniest of spaces, comparable to an RJ45 connector. MPO connectors are most commonly used for 12 or 24 fibers.

Specification

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Application

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

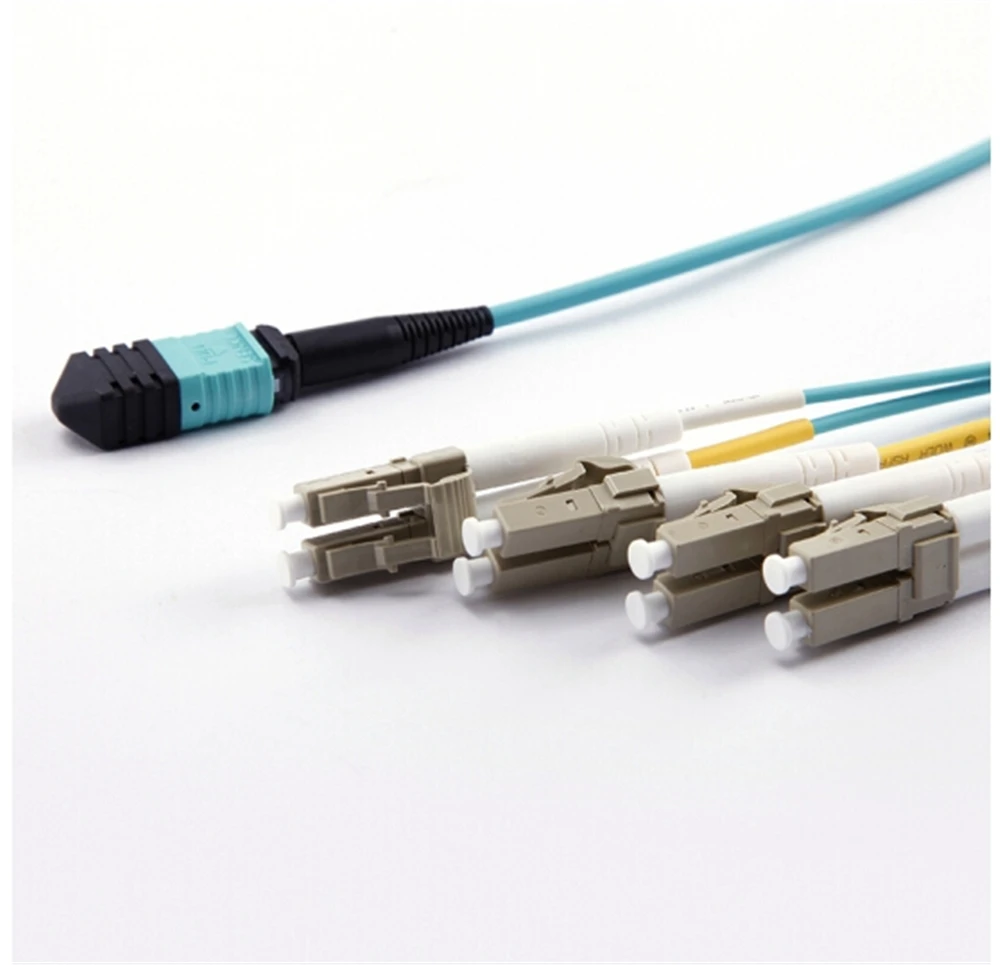

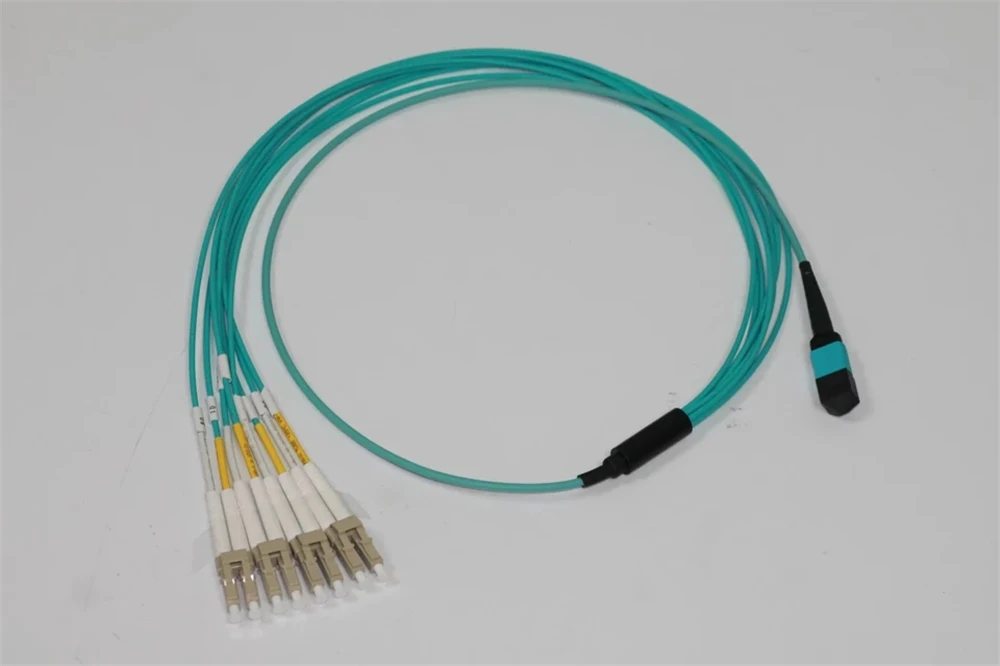

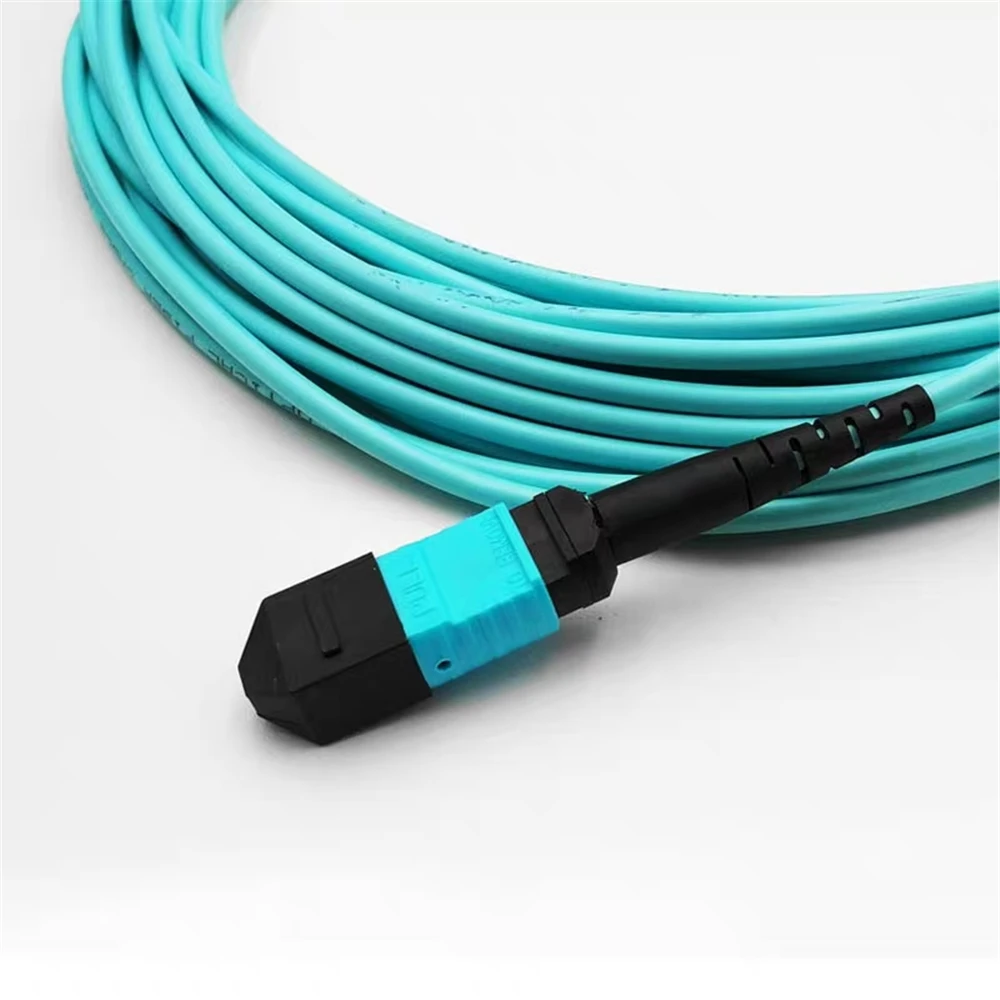

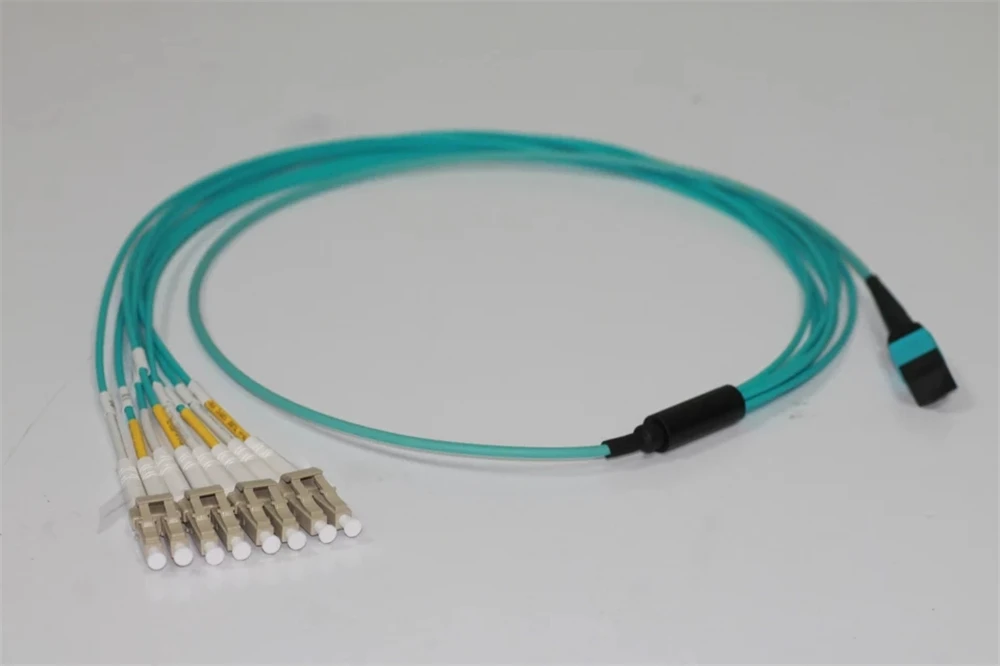

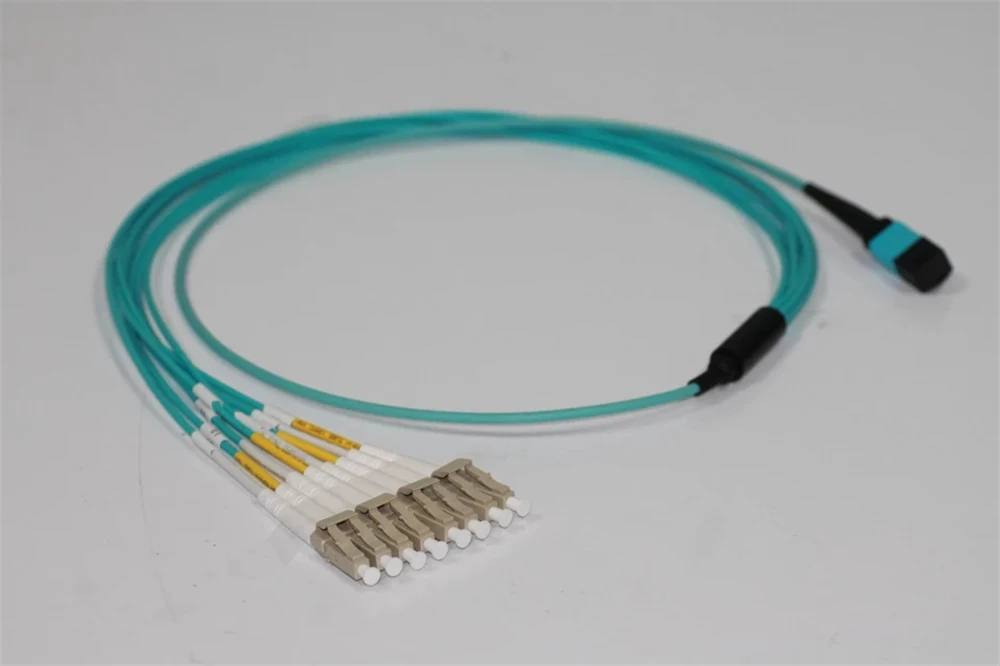

Product Show:
