12core MPO-MPO fiber optic patchcords ribbon fiber flat cable OM3 2mtr aqua color
The MPO connector (known as multi-fiber push-on and also as multi-path push-on) is a multi-fiber connector defined according to IEC 61754-7 and TIA/EIA 604-5 that can accommodate up to 72 fibers in the tiniest of spaces, comparable to an RJ45 connector. MPO connectors are most commonly used for 12 or 24 fibers.
Specification
Model
SM
MM
Connector A:MPO/MTP
Connector Fiber Count
8,12,24,48 Core
Polish
PC,APC
PC
Insertion Loss
Standard
≤0.70dB
≤0.50dB
Elite Low Loss
≤0.35dB
≤0.30dB
Return Loss
PC≥50dB,APC≥60dB
≥30dB
Durability(500 Matings)
≤0.2dB
Test Wavelength
1310/1550nm
850/1300nm
Connector B:LC,LC Uniboot,SC,FC,ST
Polish
PC,APC
PC
Insertion Loss
≤0.2dB
≤0.2dB
Return Loss
PC≥50dB,APC≥60dB
≥35dB
Durability(500 Matings)
≤0.2dB
Test Wavelength
1310/1550nm
850/1300nm
Application
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

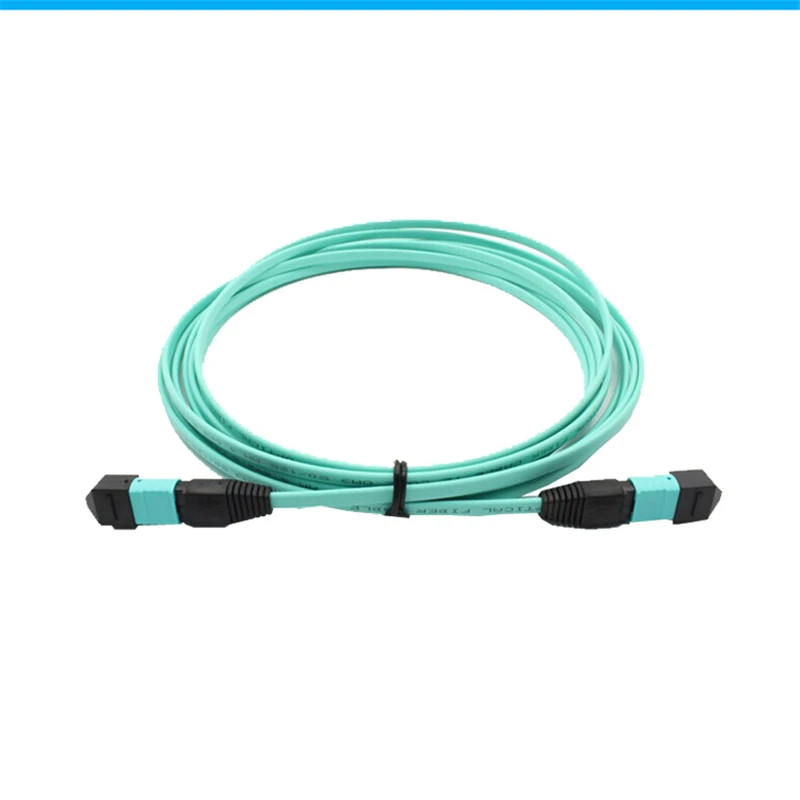

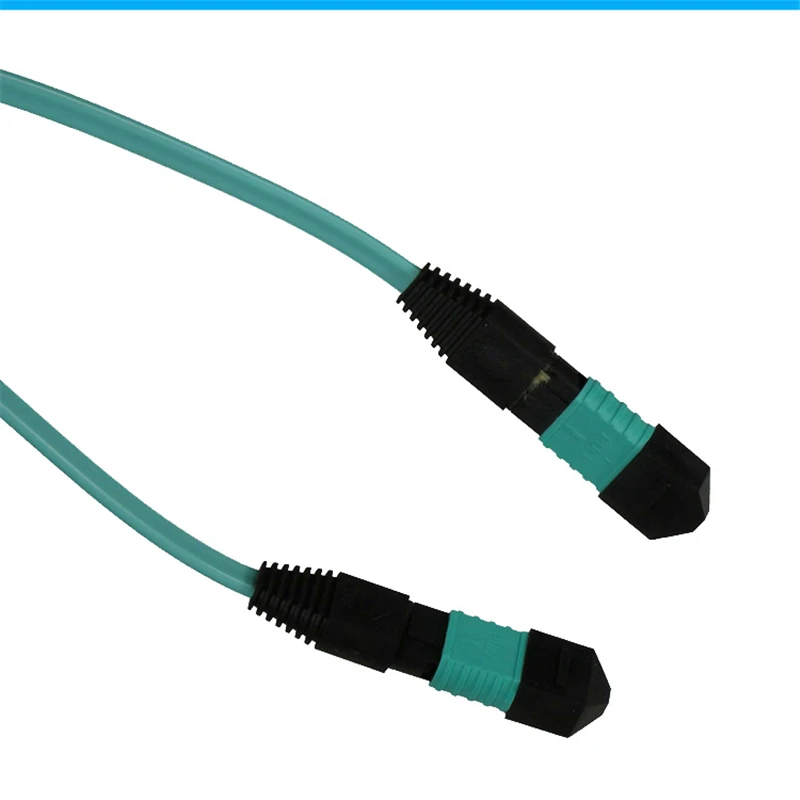

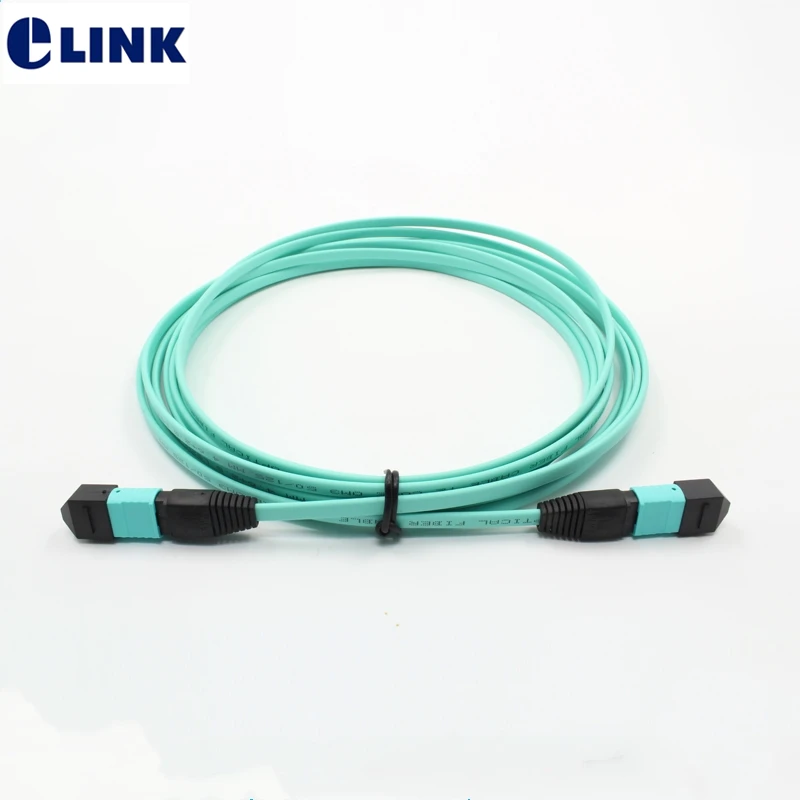

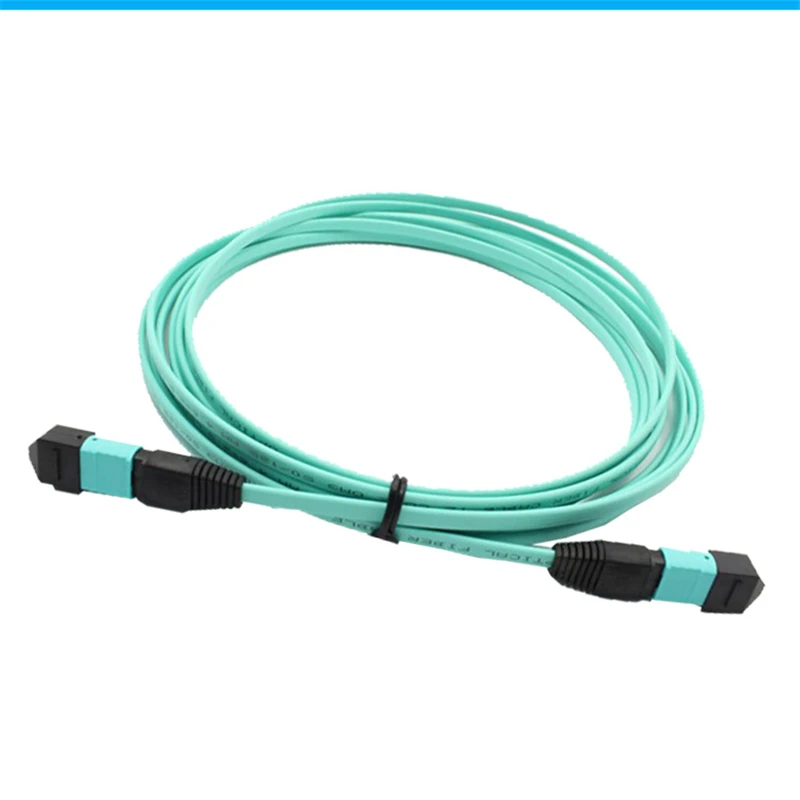

Product Show:
