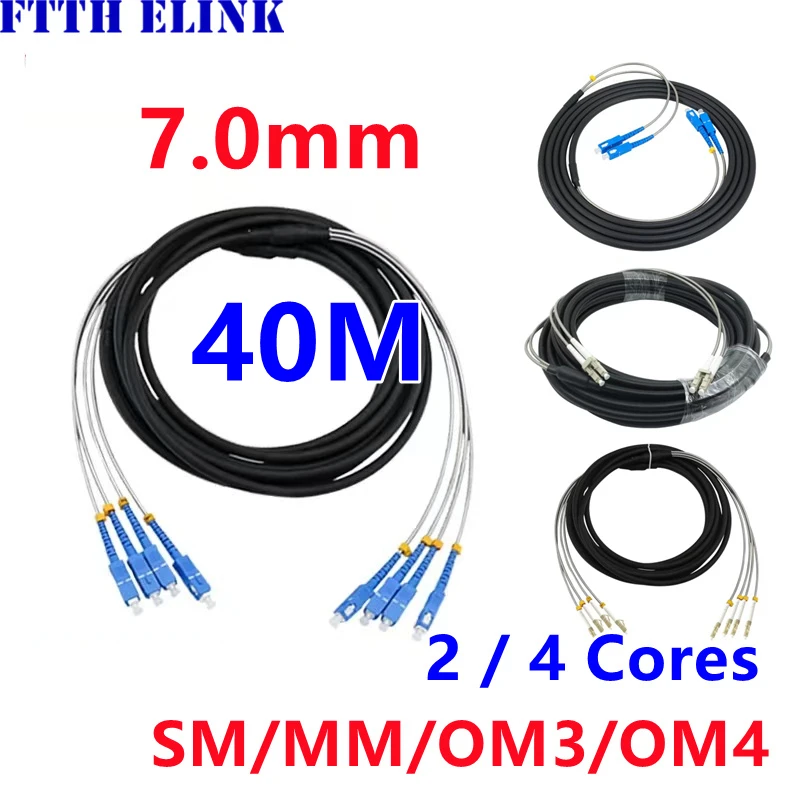

Outdoor CPRI 2C 4C Fiber optic Patch cord SM OM3 OM4 OM2 LC SC FC ST 2 cores 2 fiber drop patch cable Singlemode FTTH FTTA jumper ELINK
7.0mm CPRI Jumper 2 / 4 cores SM OM3 OM4:
Pic Show:
The outdoor fiber cable connector is designed by USource which is the ideal choice for Fiber to the Antenna (FTTa) or any other harsh environmental applications, meeting IP67 environmental sealing ratings.
Features
IP67 water immersion and dust protection for harsh environment
Wide range of operational temperature for outside plant -40 ~ 85°C
Chemical resistance
Standard dual LC connector
Durable mechanical mating
Low insertion loss
Cable Parameters
Fiber Count
Cable Dimension
mm
Cable Weight
kg/km
Tensile
N
Crush
N/100mm
Min. Bend Radius
mm
Temperature
Long Term
Short Term
Long Term
Short Term
Dynamic
Static
2 or 4
7.0
42.3
200
400
1100
2200
20D
10D
-40 ~ 85°C
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;
CableModel
GYFJH-4B1 /GYFJH-2B1 / GYFJH-2A1,
Fiber Count
2, 4 Fibers
Fiber Type
SM G652D, SM G657A, or MM 50/125 or MM 62.5/125
Buffer Diameter
900um±10um Material LSZH
Simplex cable Diameter
2.0mm±0.1mm Material LSZH
Color
Orange or grey or customized
Filler Diameter
2.0mm±0.1mm
Material LSZH
Color Black
Strength Member
Kevlar
Jacket Diameter
7.0±0.1mm
material PE
Color Black
