NOTICE:
1 Pls contact us freely for other length;
fiber patch cord E2000-E2000 Simplex Singlemode 1m 3m 5m 7m 10m 9/125um optical fibre jumper E2000/UPC-E2000/UPC E2K elink
Buy E2000/APC-E2000/APC-FC-LCA-SCA-LC-SC Simplex Jumper:
Buy E2000/UPC-E2000/APC-FC-LC-SC-ST Simplex Jumper:
Feature:
1. E2000 and E2000 APC optic connectors with metal shutter
2. Available in different fiber types including OS1/OS2 - G.652D or G657A1, G.657A2, OM1, OM2, OM3 or OM4
3. Low smoke zero halogen (LSZH) jacket color coded to identify the optical fiber type
4. Available as hybrid patch cords with different connector types including FC, LC, SC or ST
5. Available in standard and custom lengths
6. REACH, RoHS & SvHC materials compliant.
Application:
1. Telecommunication networks
2. CATV
3. LAN and WAN
4. FTTX
5. Broadband network
6. Data Centre
CHARACTERISTICS
UNITS
SIMPLEX
DUPLEX
Cable Material
PVC LSZH
PVC LSZH
Strength Member
Aramid
Aramid
Crush
N
1000
1000
Operating Temperature
°C
-20 to +60
-20 to +60
Secondary Buffer Diameter(2.0mm and 3.0mm)
µm
900 ± 50
900 ± 50

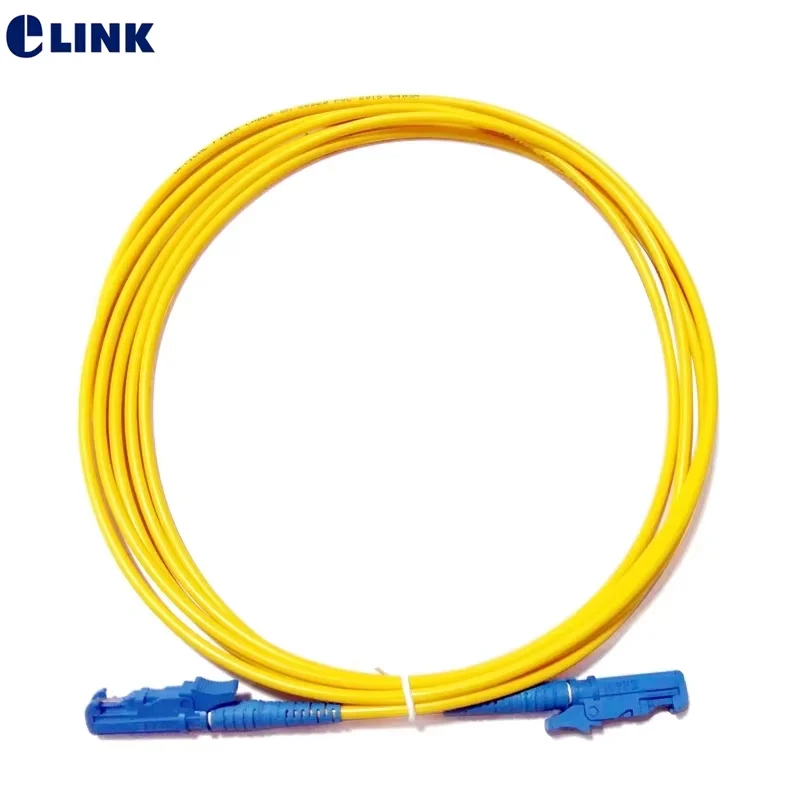

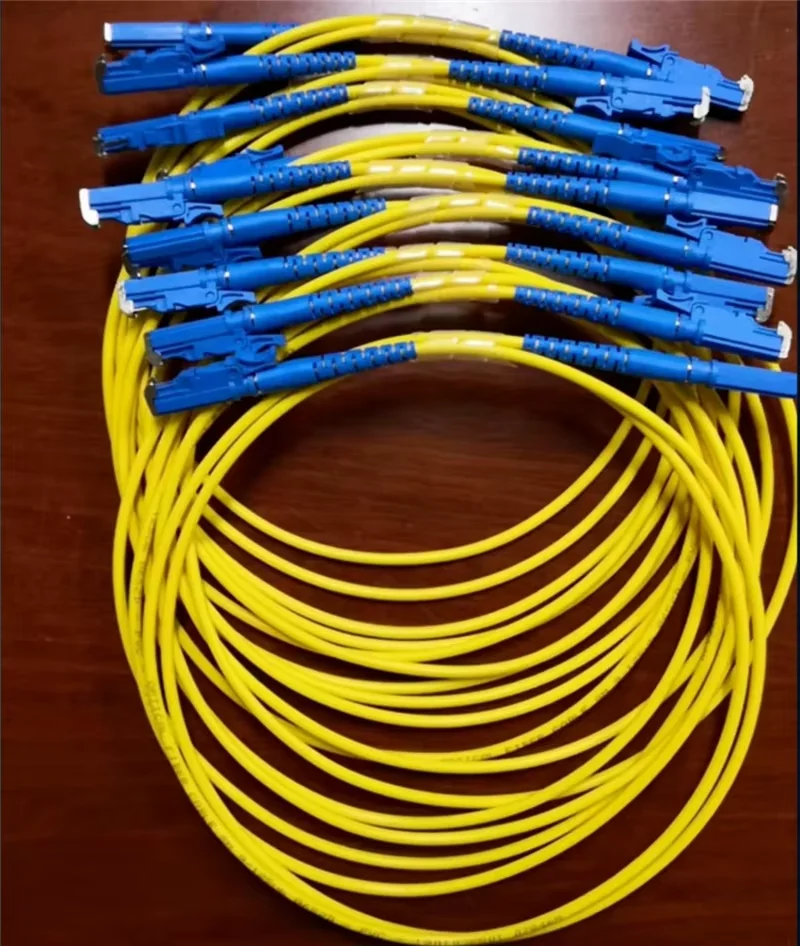

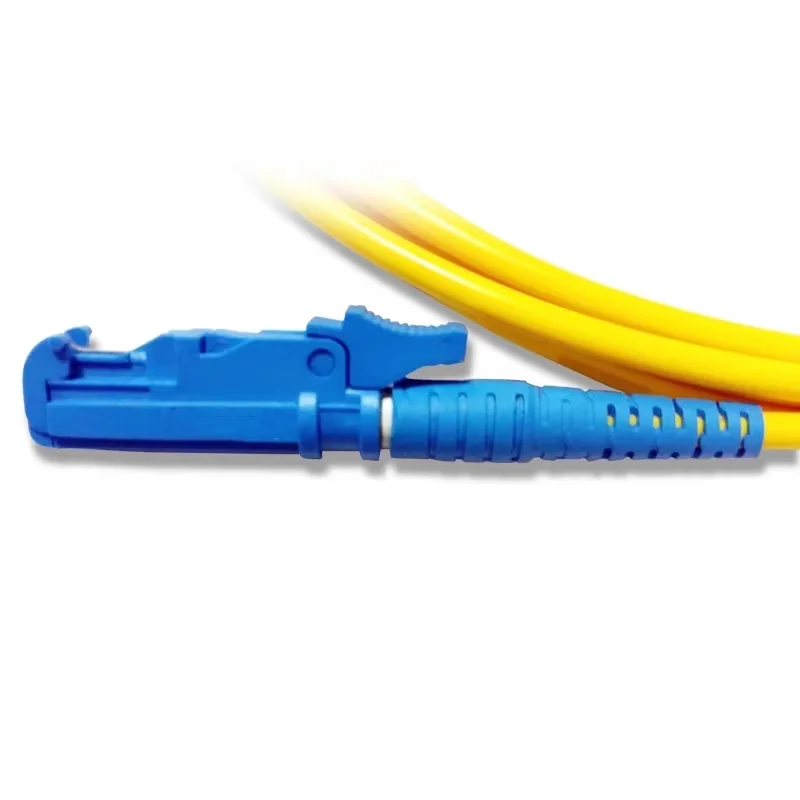

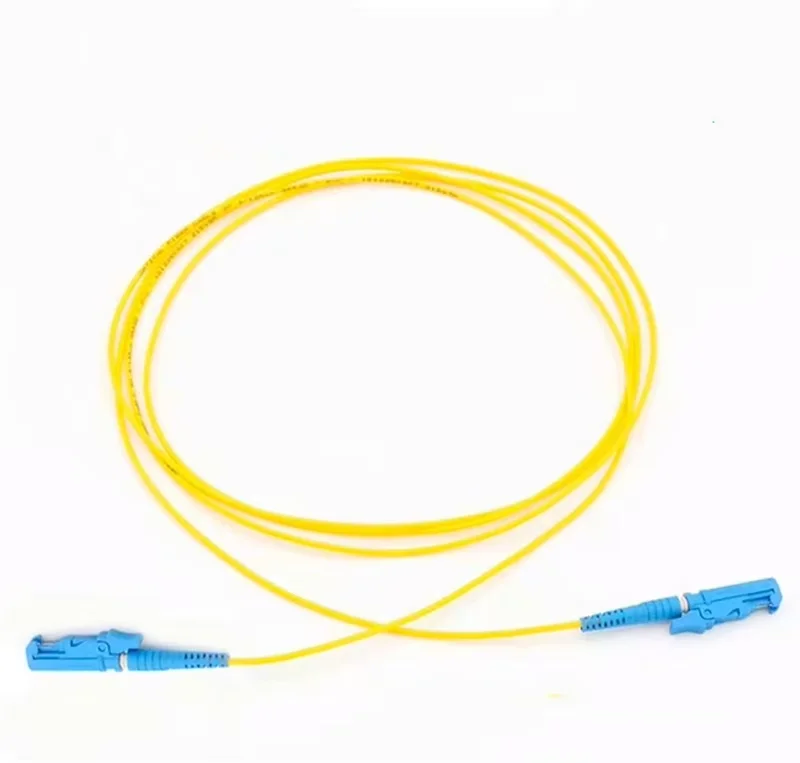

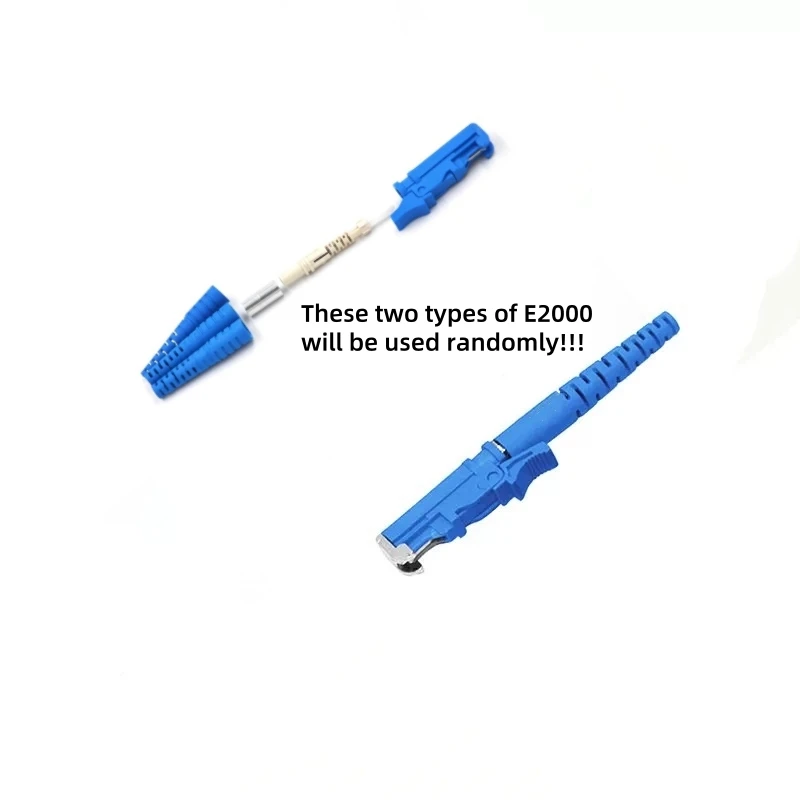

Photo Show:
