Cable de cinta de extensión de 8P FFC tipo C USB 2,0 Micro B, Cable plegable de 90 FPV, plano, ultrafino, Flexible, FPC, Cable de protección de datos de carga
2,32 €
Enlace proporcionado por:
Longitud del Cable:
Color:
Brand name: ADT-LINK

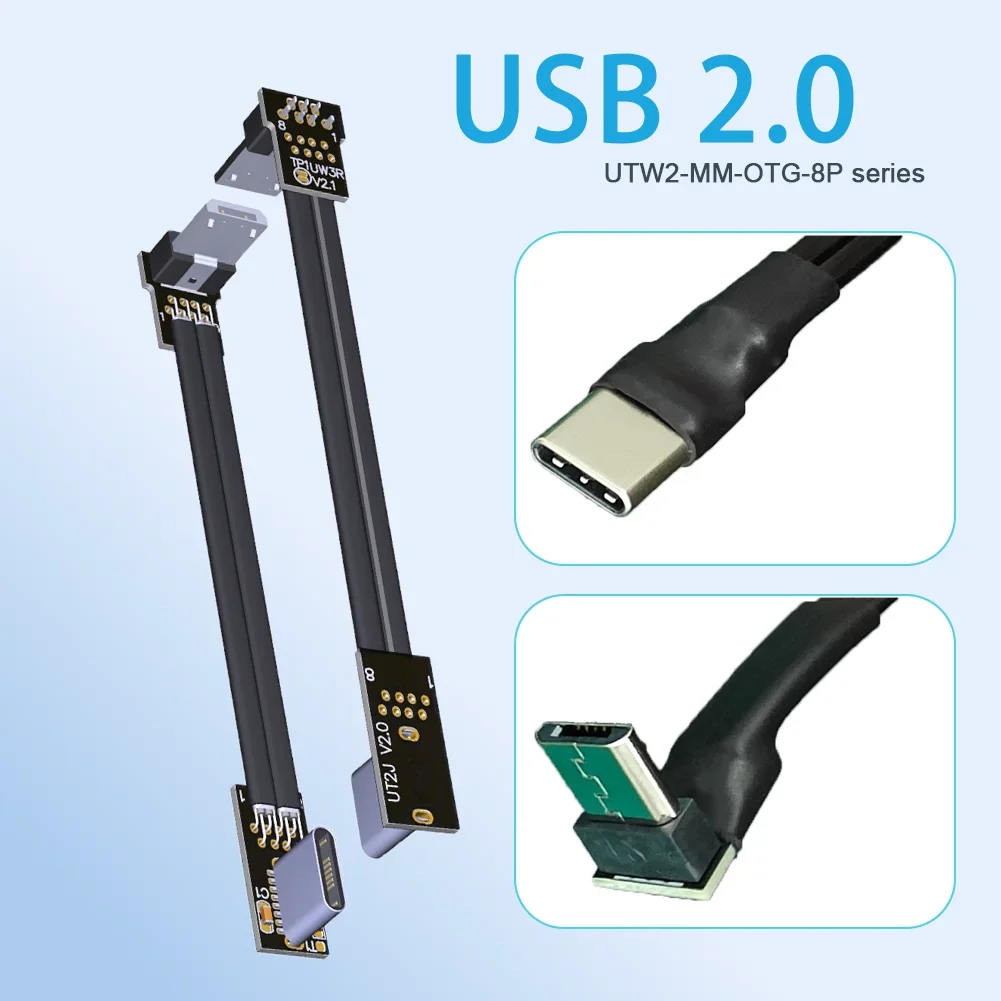

Product name: USB 2.0 Type-C male to Micro-B male/female flat cable (Support OTG)
Product model: UTW2-MM/MF-8P series
Transfer speed: USB 2.0 standard 0.48G/bps
Wire length: 3~300 cm, the length can be customized,
Current capacity: 4A within 50cm ; 3A within 1 meter
Product application: GPS navigator, ROCK Pi 4 Raspberry Pi microcontroller development board, built-in USB device to extend the use of adapter, convenient for brushless pan/tilt, steering gear pan/tilt, Xiaosi pan/tilt, SLR handheld pan/tilt USB Power supply and AV transmission, etc.
Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.
Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use.
ADT USB series Part-Number Description:
S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E
Cable length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.
Product Model description:
Product Name
Product Model
speed bandwidth
C-type straight male To Micro-B straight female cable
UT1G-UW4
USB 2.0
C-type Elbow male To Micro-B straight female cable
UT2G-UW4
USB 2.0
C-type Right angle male To Micro-B straight female cable UT2J-UW4 USB 2.0 C-type Left angle male To Micro-B straight female cable UT2K-UW4 USB 2.0C-type straight male To Micro-B Up angle male cable
UT1G-UW3R
USB 2.0
C-type Elbow male To Micro-B Up angle male cable
UT2G-UW3R
USB 2.0
C-type Right angle male To Micro-B Up angle male cable
UT2J-UW3R
USB 2.0
C-type Left angle male To Micro-B Up angle male cable
UT2K-UW3R
USB 2.0
Product advantages:
I. Advantages of wire, using the wire designed by ADT, the wire is light, thin and flat, and the core wire is shielded with aluminum foil for anti-interference
2. Line length advantage, from 3cm to 3m can accept customization
3. Multi-core cable design, support high current stability
Four. PCB uses high-frequency and low-resistance high-quality materials, PCB workmanship is precise, PCB uses high TG plate, copper thickness is thickened to 1oz,PCB Power Circuit reinforcement design, wire multi-core cable is designed to strengthen the use of 2 VBUS and 4 grounding, so the power supply core wire reaches 6, the transmission current is stronger, and it supports high current 5V/4A
Product Image:
Product real shot:
Summary of technical issues:
Can wires and PCB connectors be split?
No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.
Cable thickness? Can it be bent?
The thickness of the wire is 1.3mm, and it can be bent and folded without affecting the use.
Yes, there is a metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
