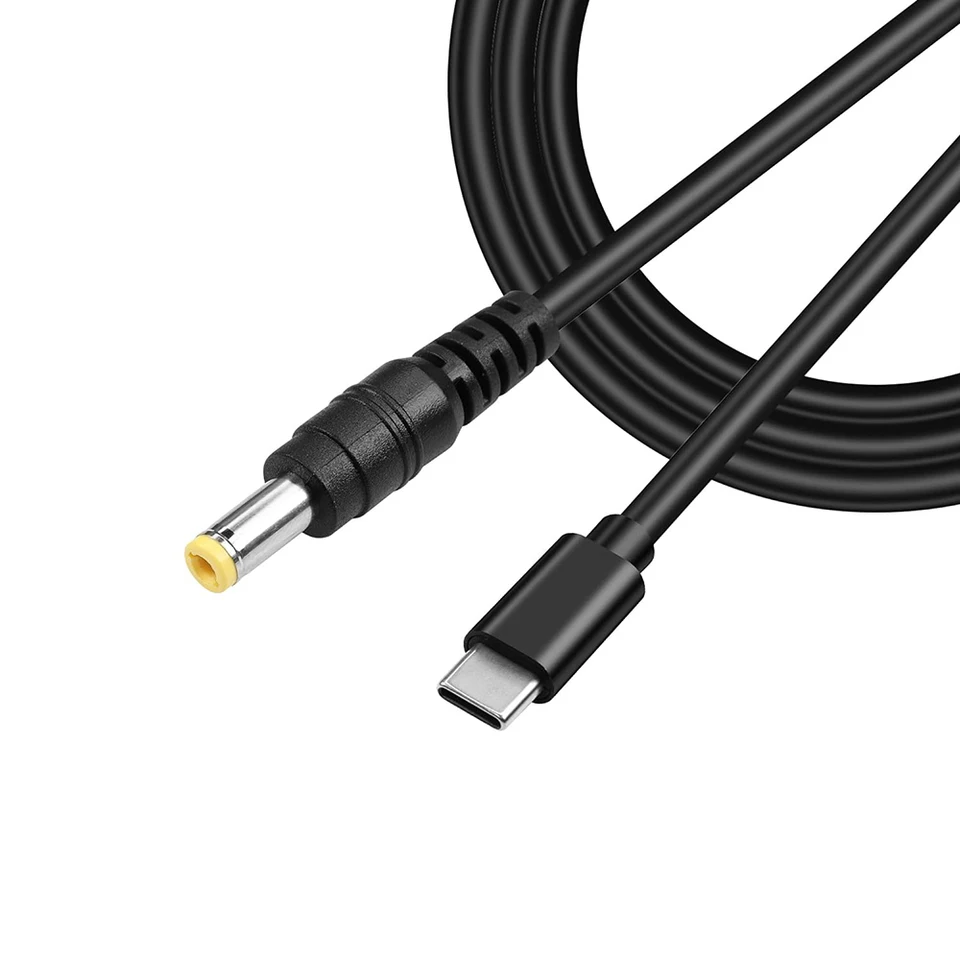

Cable cargador USB tipo C PD de 1,5 M, macho a dc5.5 x 2,1, 5,5x2,5mm, 9V, 12V, 15V, 20V, Cable de fuente de alimentación para enrutadores, altavoz, cámara CCTV

Features:

2. Direct Connection Design: The straight-through design of the cable ensures that it cannot be used in reverse polarity, thus protecting your device from harm. The TYPE-C head is directly connected to the DC port's positive pole using copper wire, and the negative pole is likewise connected (meaning that the PD power source output voltage only activates the PD activation chip in the TYPE-C interface).

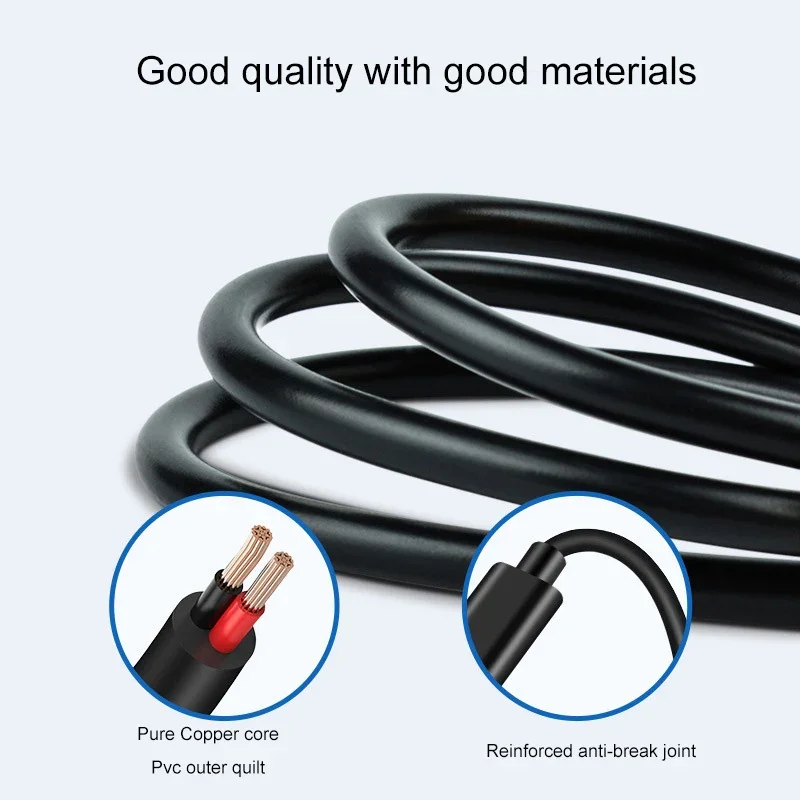

3. Premium Quality Material: The cable is made of high-quality copper core material, which gives it more excellent stability, while the durable PVC sheathing protects against wear and tear. The thicker copper wire can handle high-power equipment charging without any stress.

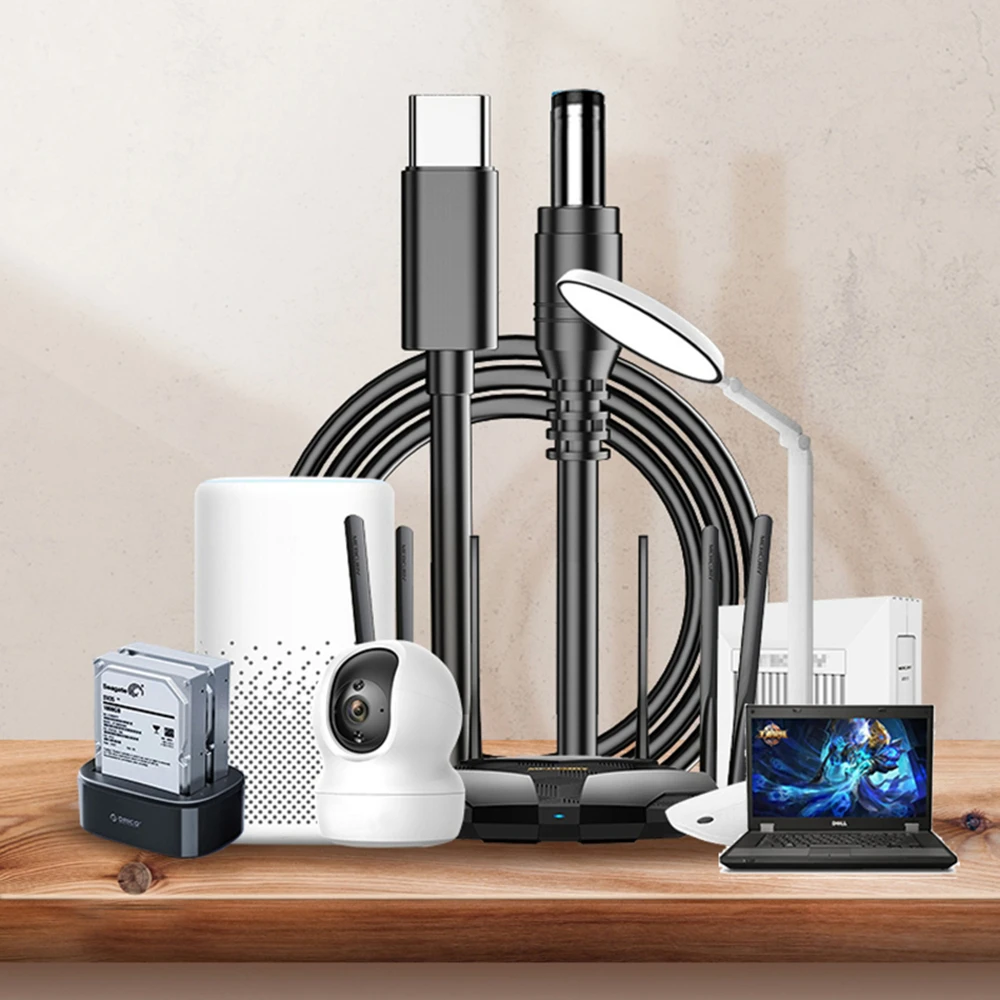

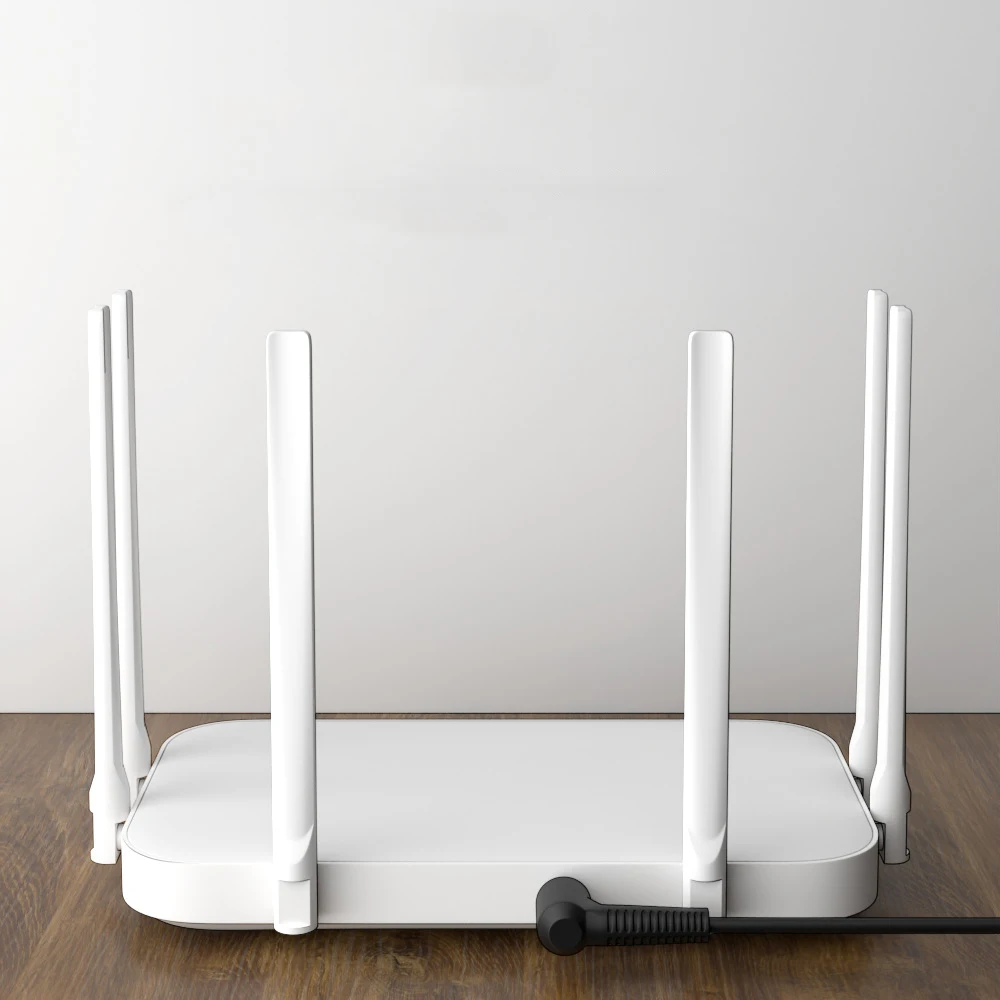

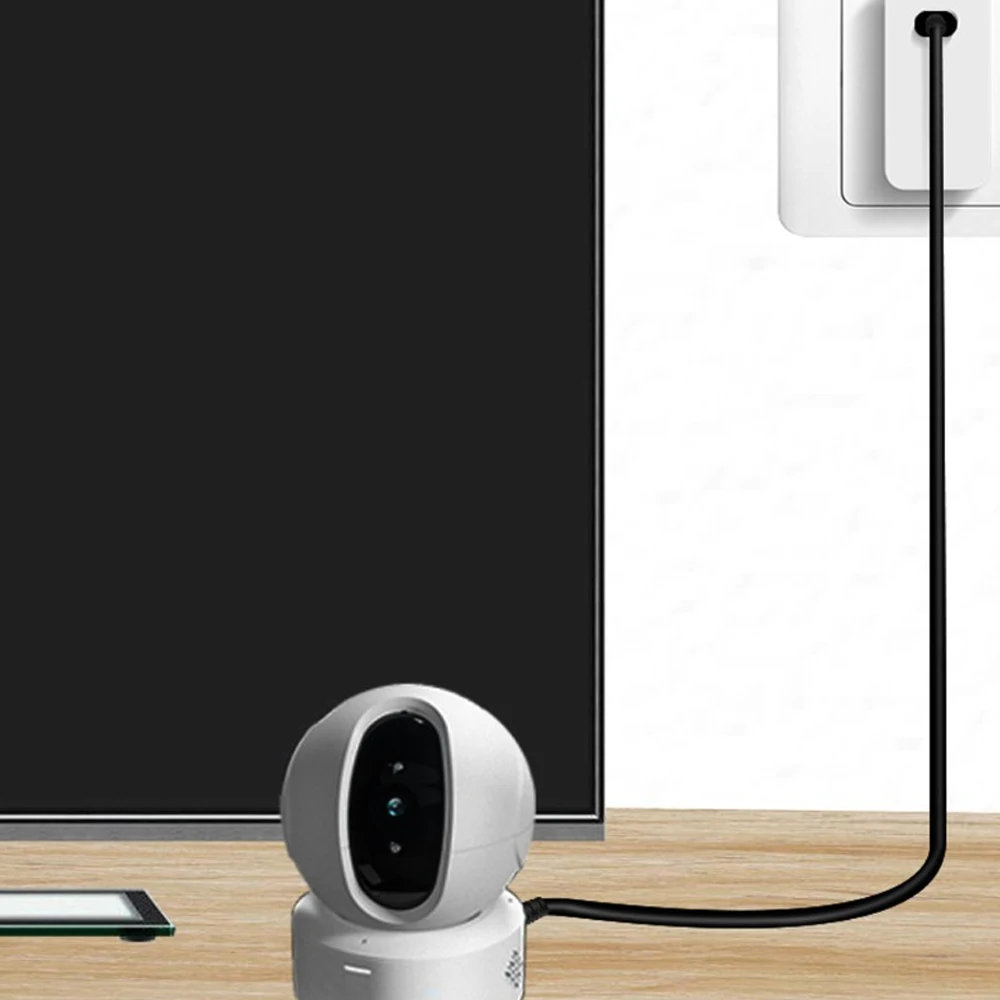

4. Versatile Compatibility: This charging cable is compatible with a wide range of devices, including laptops, CCTV cameras, Wi-Fi routers, stepper motors, table lamps, speakers, headphones, mini fans, LED lights, and other devices.

Specification:

Material: PVC

Options: 9V, 12V, 15V, 20V (optional)

Input voltage: 0-20V

Input current: 0~3A

TYPE-C input: used for DC 9V-20V 1A-5A, only supports PD, not QC.

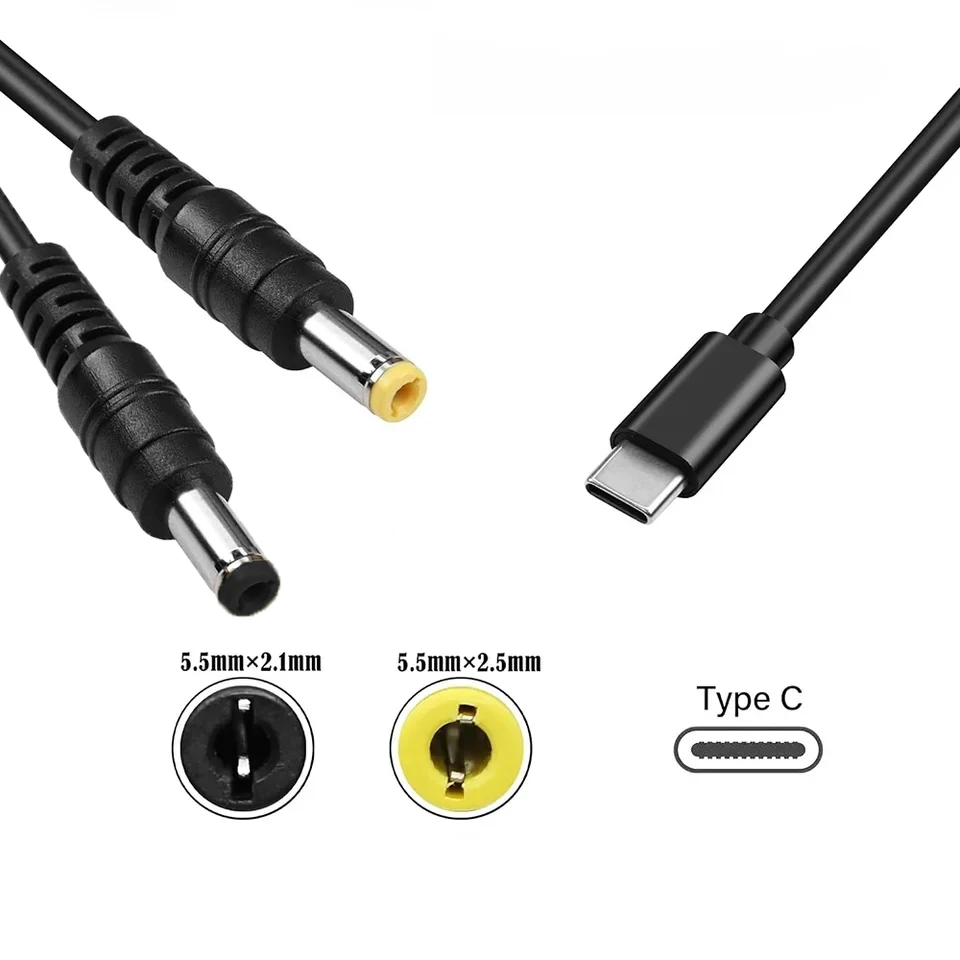

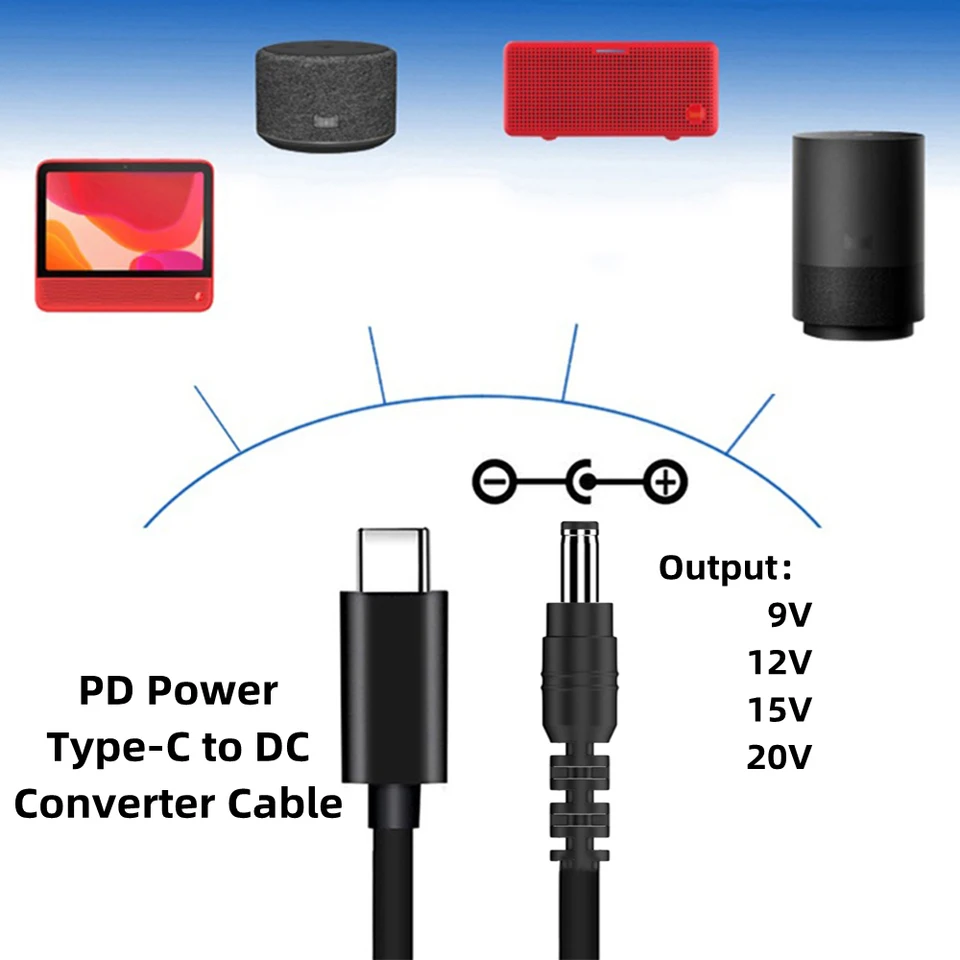

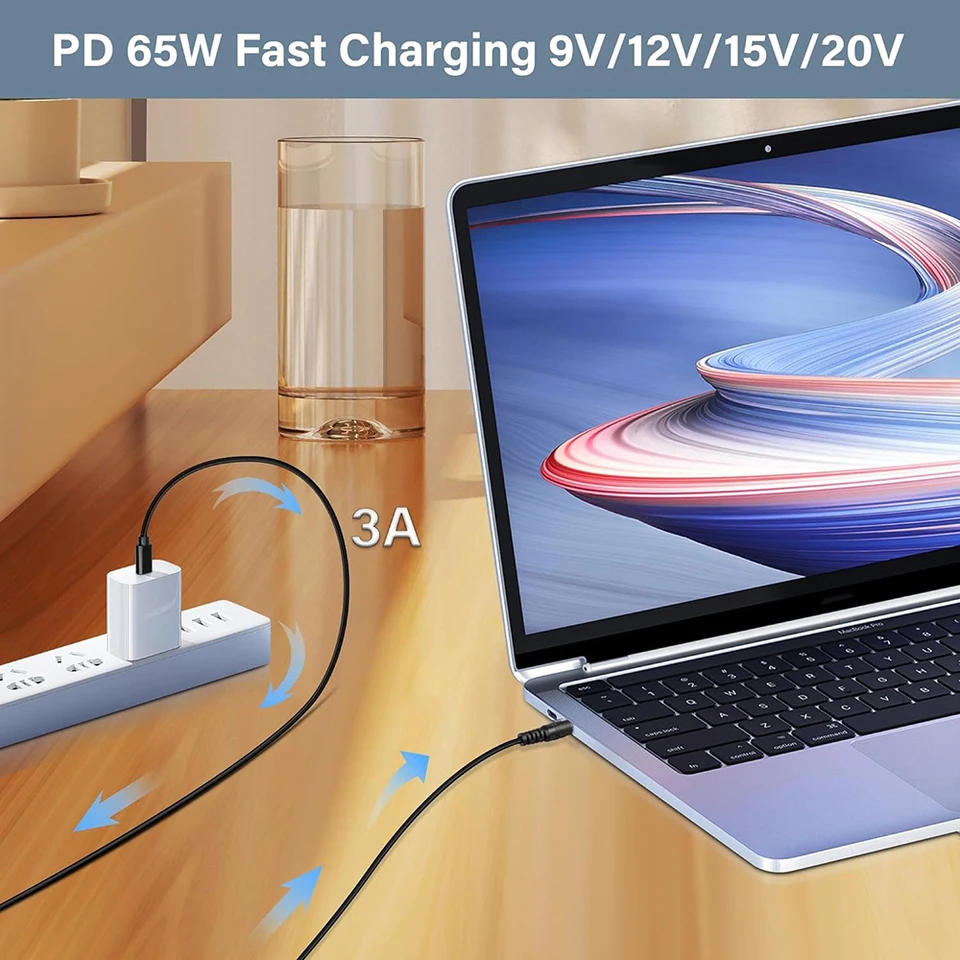

DC 5.5x2.5mm tuning fork interface output: 9V, 12V, 15V, 20V

Length: About 1.5m

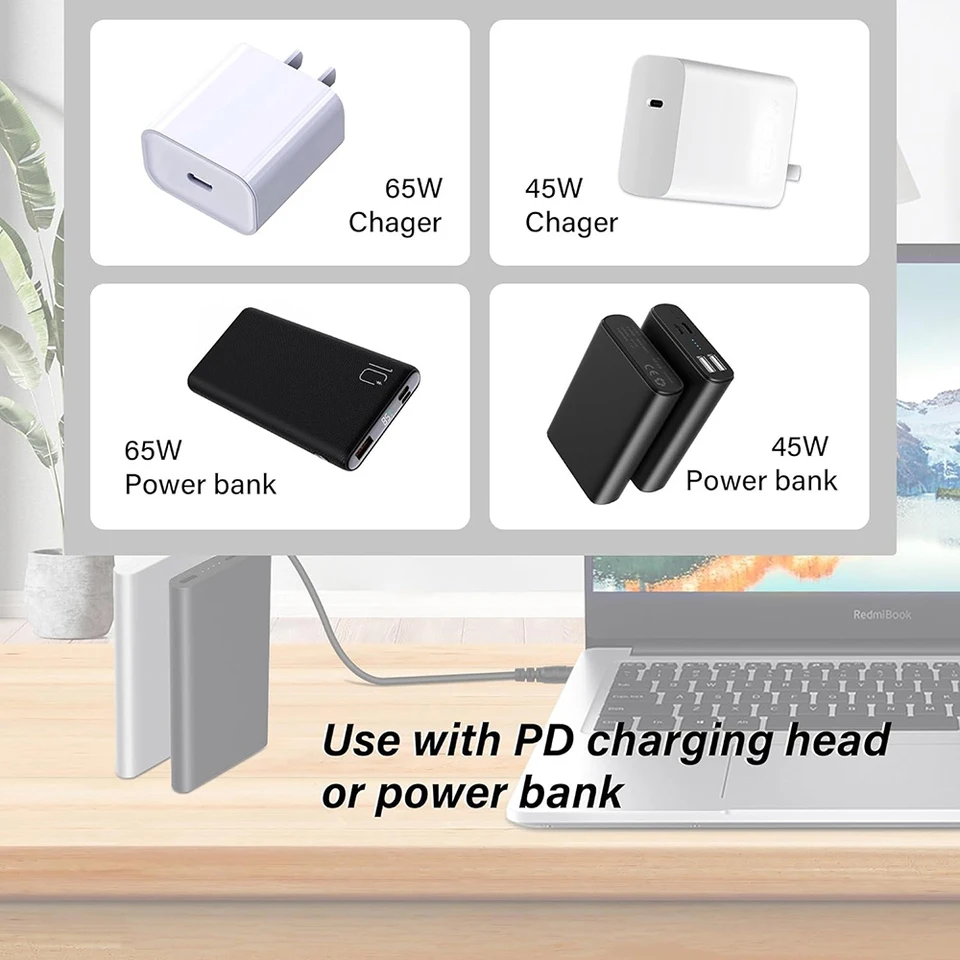

Instructions for use: If you choose a 9V cable, the C-type PD charger or USB C PD charging bank must have a 9V output, choose a 12V cable, the C-type PD charger must have a 12V output, etc. The output voltage of the power cable is stable and cannot be changed. 9V, 12V, 15V, 20V outputs are available for selection

Working principle:

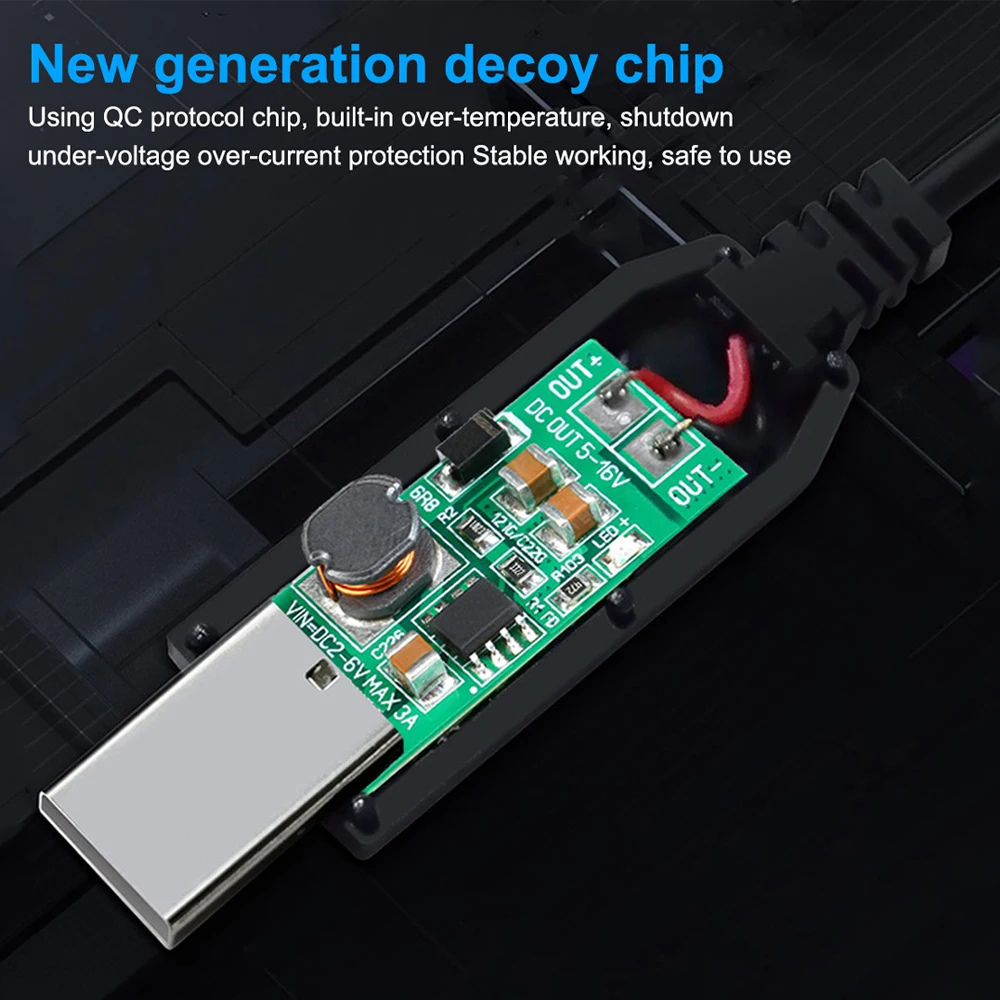

Using a hardware PD recognition chip, the recognition logic of this recognition chip is to deceive and trigger one of the multiple voltage output items of the PD power supply. However, if the voltage indicated by the line to deceive is not present, the voltage will be applied to the next level.

For example, if a 15V PD decoy line is connected to a PD power supply, if your PD power supply only has a maximum of 12V or does not have 15V, and the next level is 12V, the decoy line will apply for output from 12V.

PD has a strict communication format, 1. It will not occur to deceive the PD power supply to a higher voltage. 2. There will be no voltage output item present in the PD power supply, and the line will increase or decrease its voltage output on its own. 3. The wire has no ability to change the power, voltage, or current of the power supply.

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

Package Included:

1 x Cable
