Descripción
Features:
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
I2C controlled, using only 2 pins
Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
Reserved I2C control pins, allows to work with other control boards
Specifications:
Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
Servo voltage: 5V
Logic voltage: 3.3V
Driver: PCA9685
Control interface: I2C

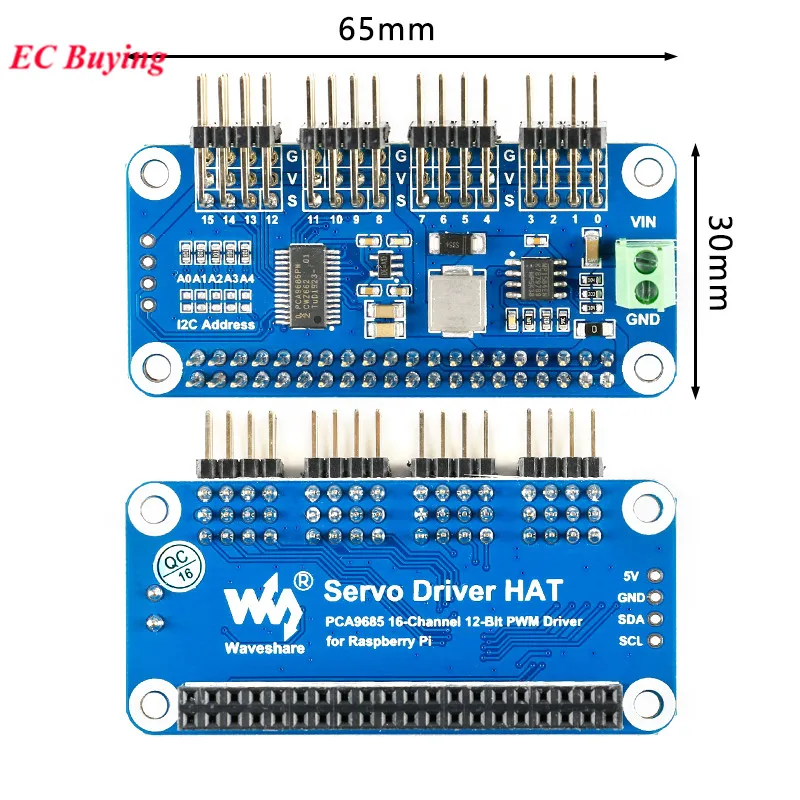

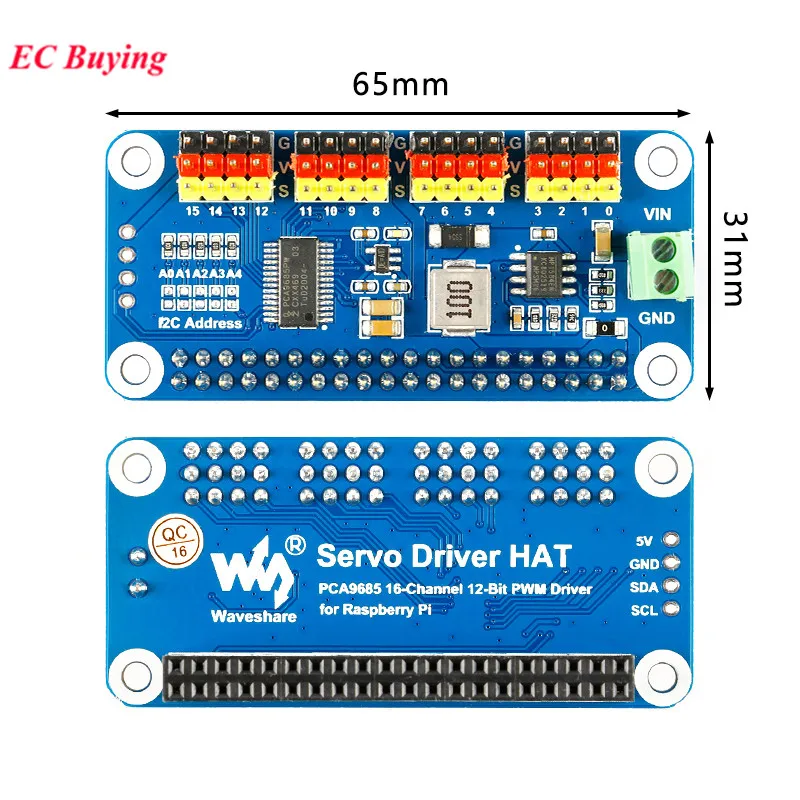

Dimension: 65mm x 30mm
Mounting hole size: 3.0mm
