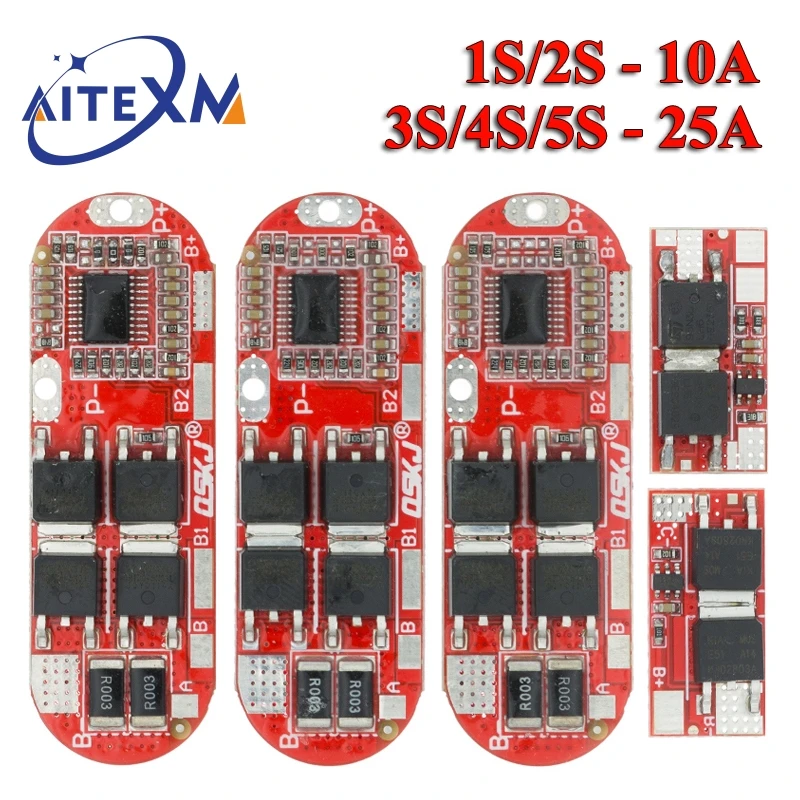

BMS 1S 2S 10A 3S 4S 5S 25A Bms 18650 Li-ion Lipo Lithium Battery Protection Circuit Board Module Pcb Pcm 18650 Lipo Bms Charger

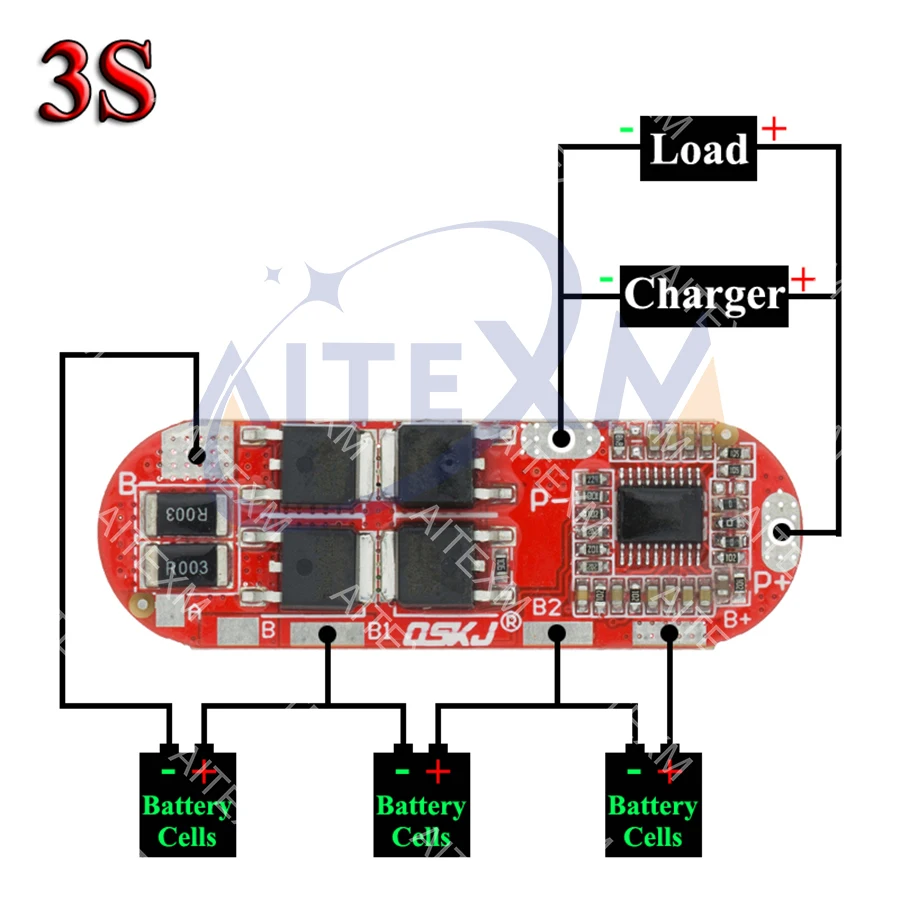

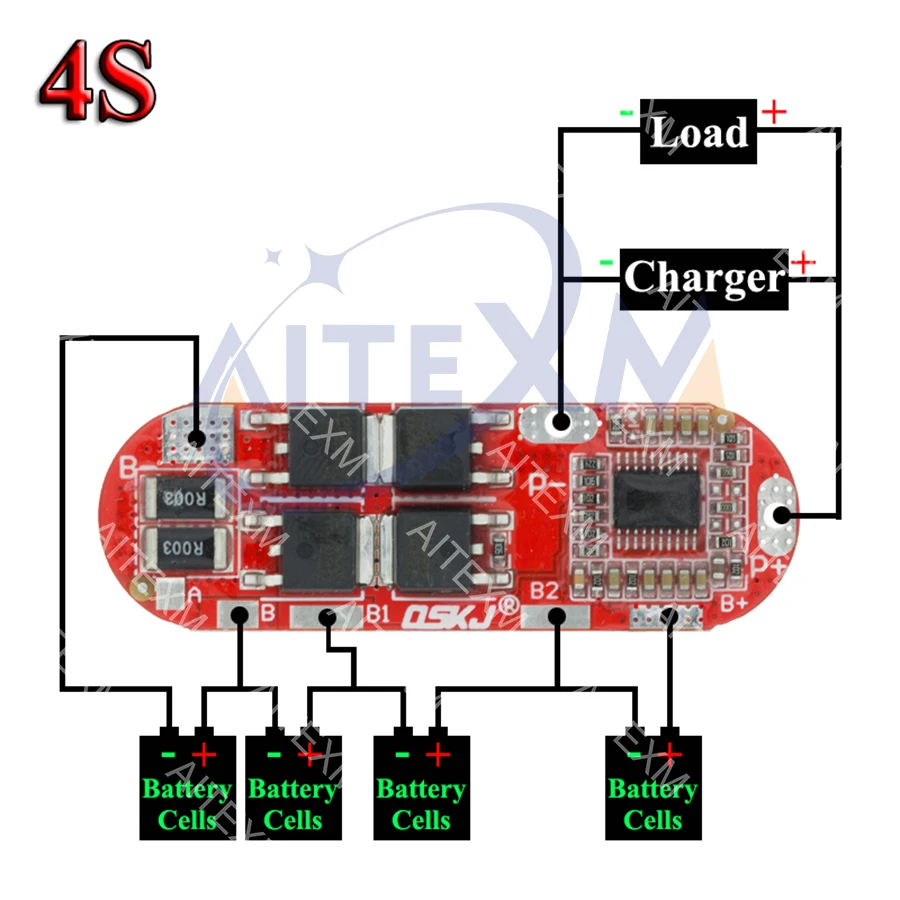

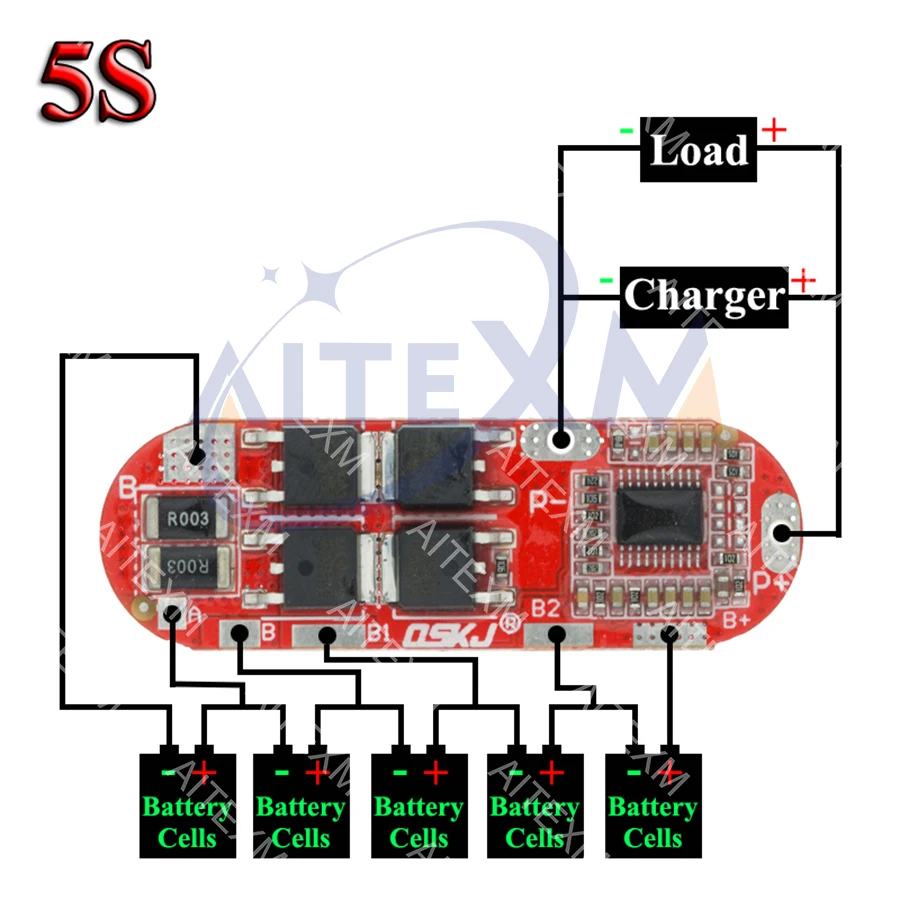

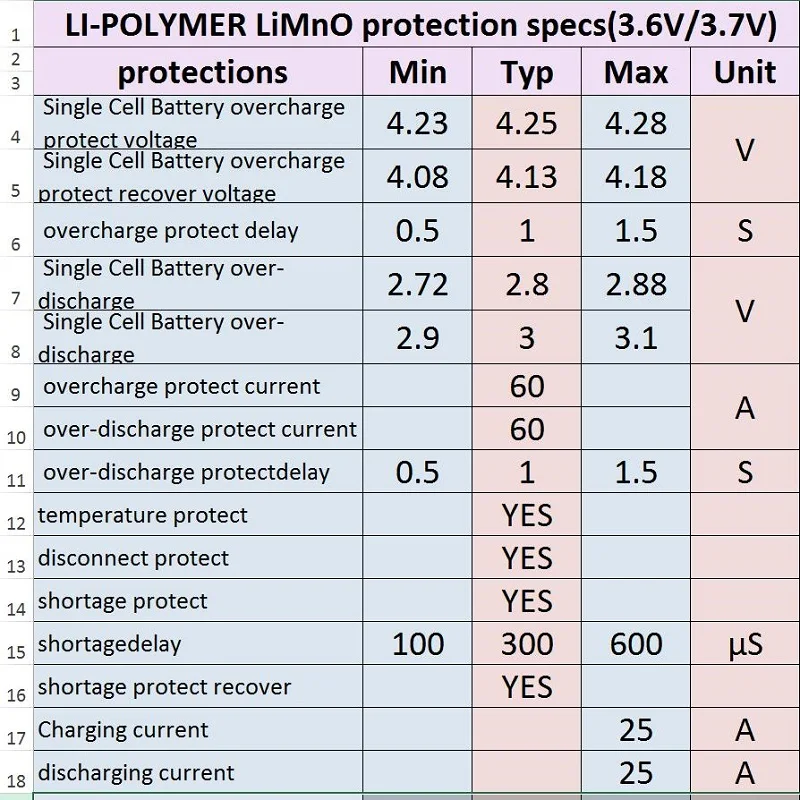

Feature:1:FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V) 2:Single Cell overcharge protect voltage: 4.23 - 4.28V 3:Single Cell overcharge rotect recover voltage: 4.08 - 4.18 4:overcharge protect delay: 0.5 - 1.5S 5:Single Cell over-discharge protect voltage: 2.72 - 2.88V 6:Single Cell over-discharge rotect recover voltage: 2.9 - 3.1V 7:overcharge protect current: 60A 8:over-discharge protect current: 60A 9:over-discharge protectdelay: 0.5 - 1.5S10:temperature protect: YES11:disconnect protect: YES12:shortage protect: YES13:shortage delay: 100 - 600μS14:shortage protect recover: YES15:Charging current: 25A16:discharging current: 25A17:charging voltage : 12.6V for 3S , 16.8V for 4S, 21V for 5S BMS board

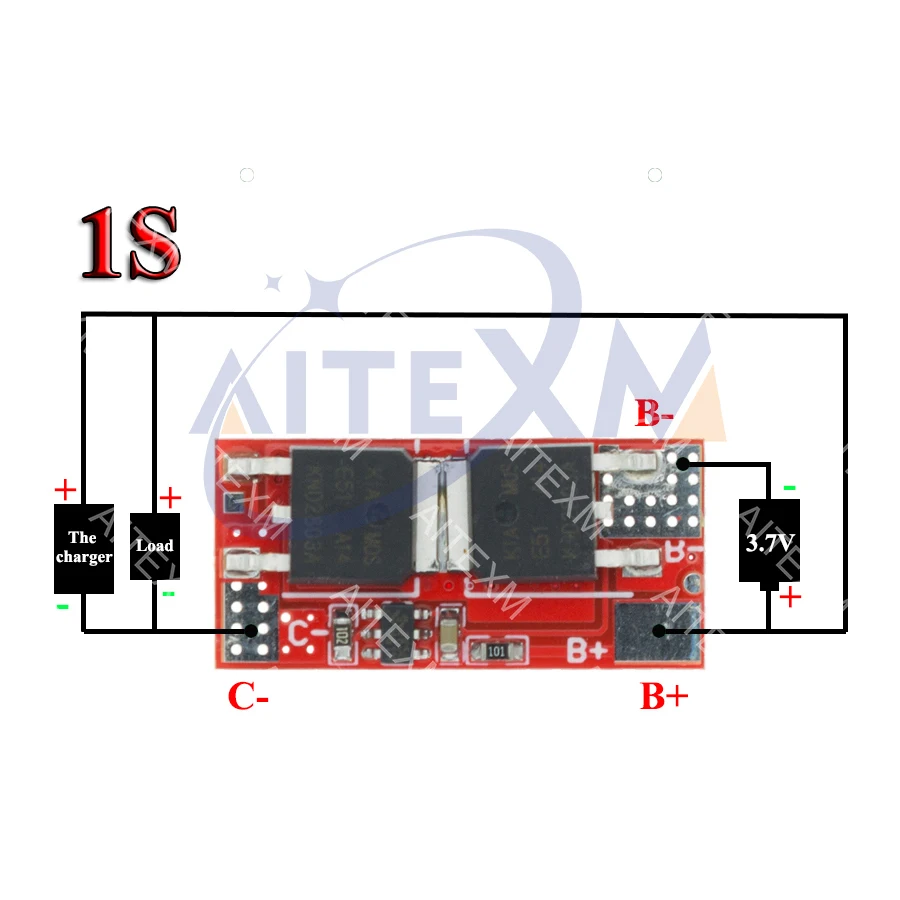

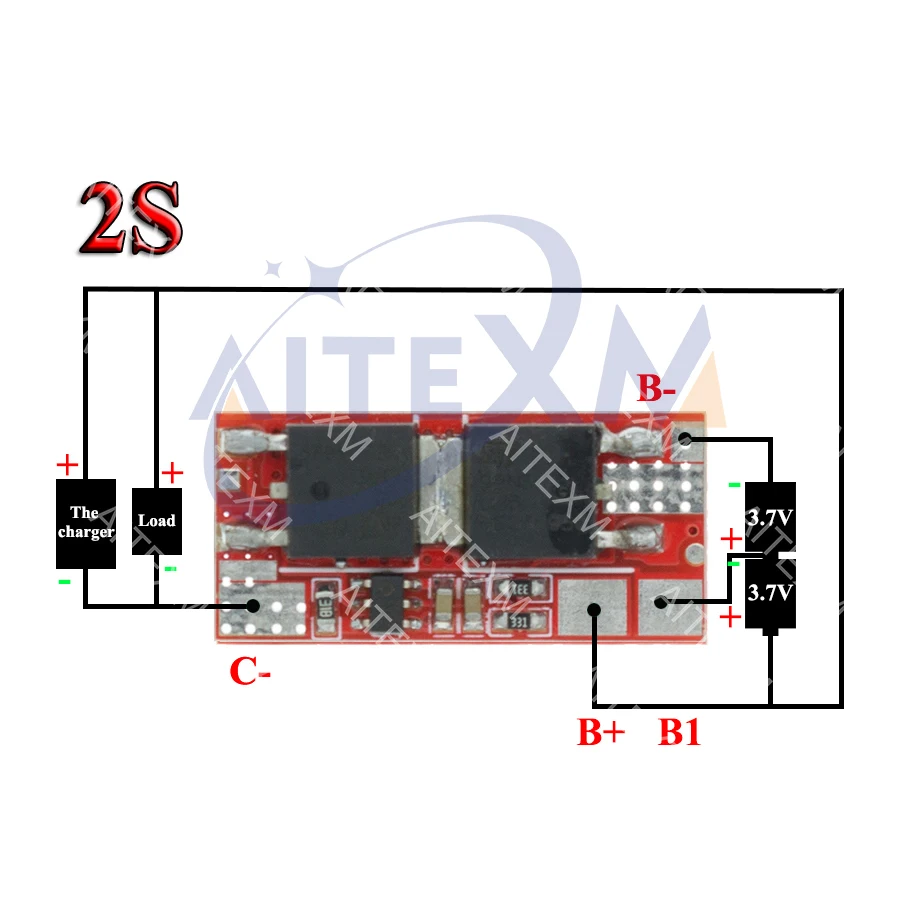

Feature:1:10A BMS 1S 4.2V 2S 8.4V18650 Lipo lithium battery charging Module 2:FOR Li-POLYMER LiMnO Protect Parameter(4.2V)3:Single cell battery overcharge protect voltage : 4.25-4.35 V4:Single cell battery overcharge protect recover voltage : 4.05-4.15 V5:Overcharge protect delay : 1S6:Single cell battery over-discharge protect voltage : 2.3-2.5V 7:Single cell battery over-discharge protect recover voltage : 2.9-3.1 V8:Overcharge protect Current : 16A9:Over-discharge protect delay : 50-200mS10:Disconnect protect : Yes11:Short circuit protect : Yes12:Short circuit delay : 50-100 uS13:Charging current: 10A14:Charging voltage: 4.2V for 1S BMS board, 8.4V for 2S BMS board.
