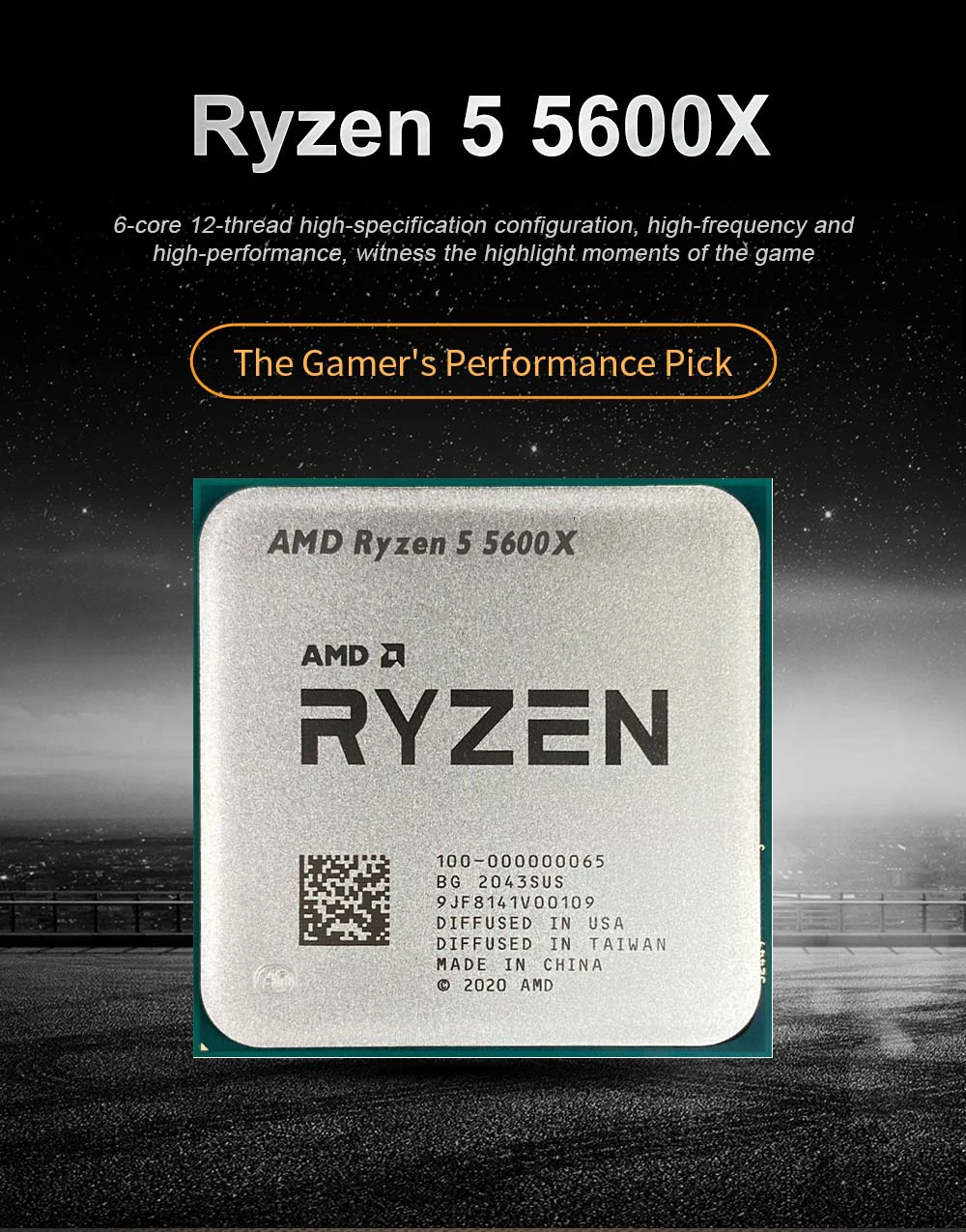

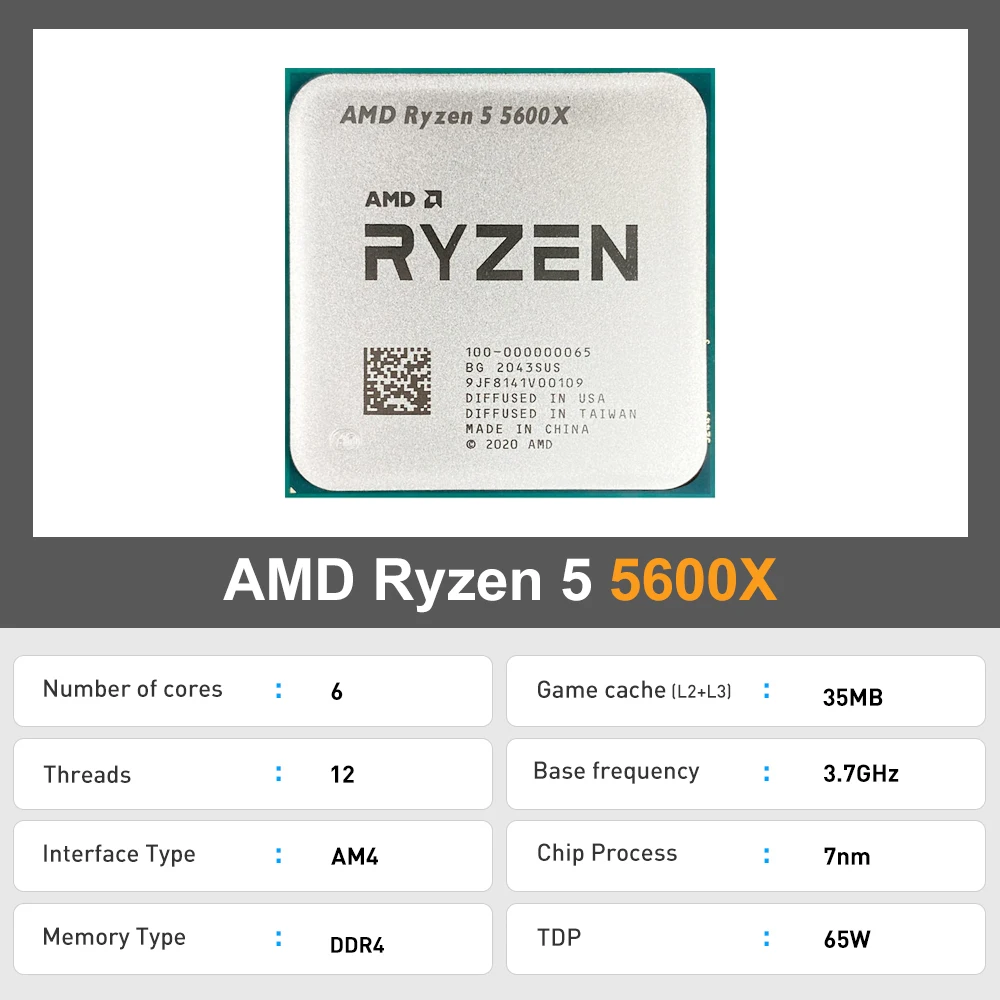

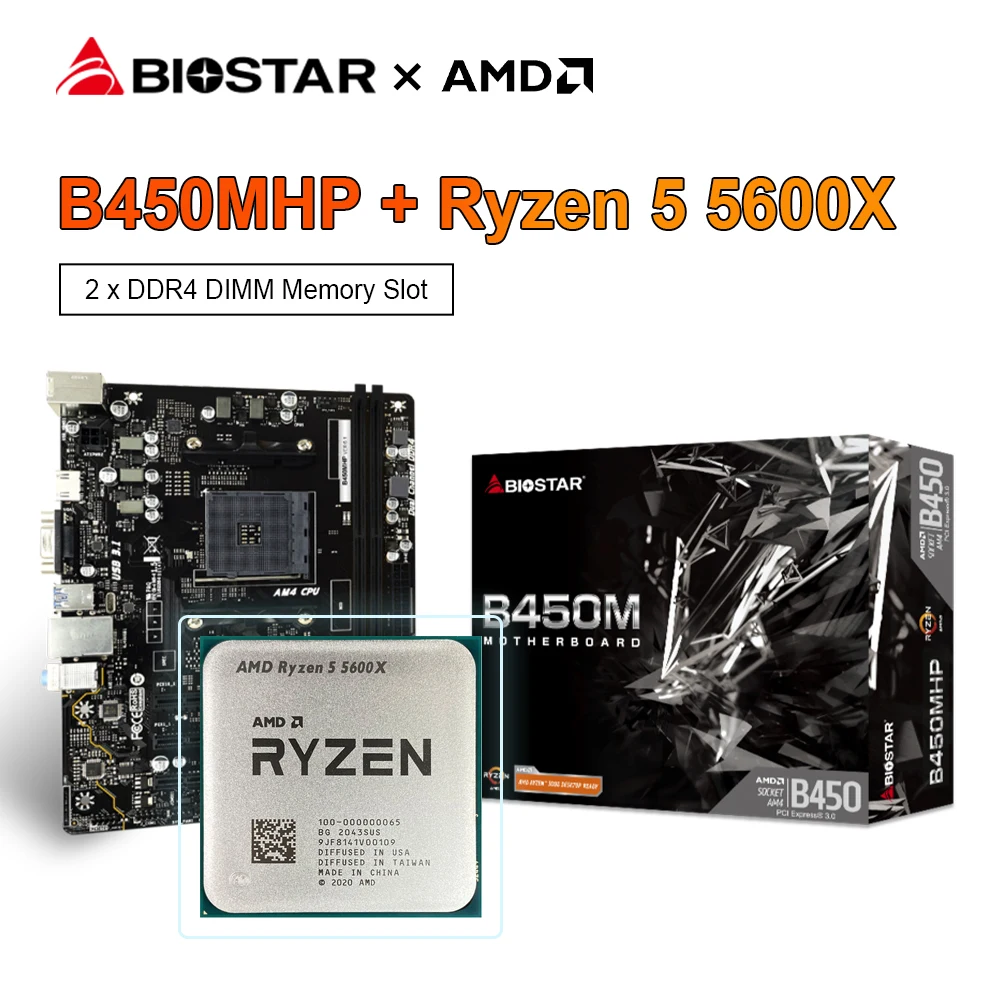

BIOSTAR-placa base para juegos B450MH, procesador AMD Ryzen 5 5600X R5 5600X, 32G, AM4, DDR4

BIOSTAR New B450MH GAMING Motherboard + AMD Ryzen 5 5600X R5 5600X CPU Processor Game 32G AM4 DDR4 Motherboard Kit placa mae

Chip set:

AMD B450

Processor:

AMD A-series APU / Ryzen CPU / NPU for Socket AM4

CPU TDP (Thermal Design Power): 105Watt

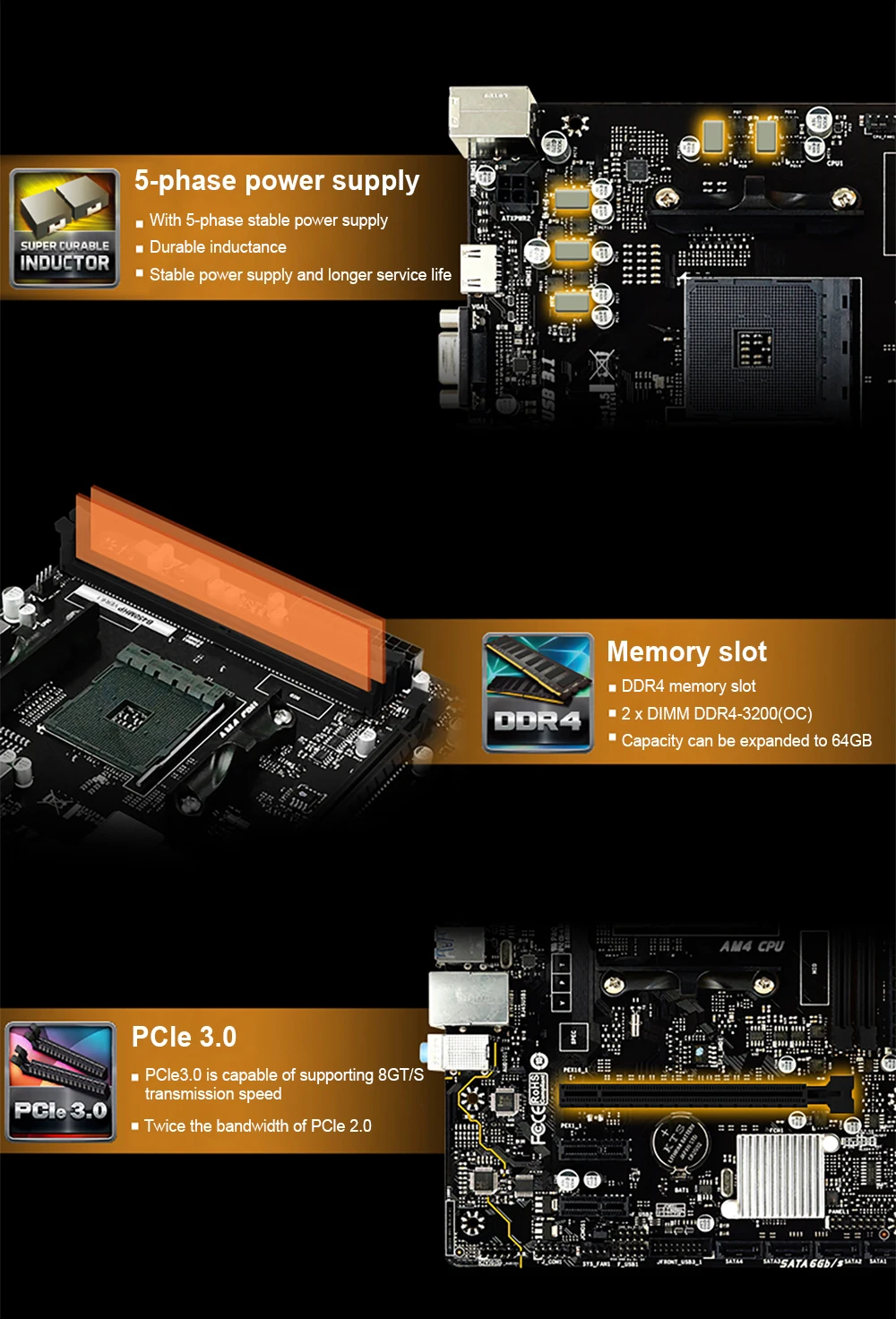

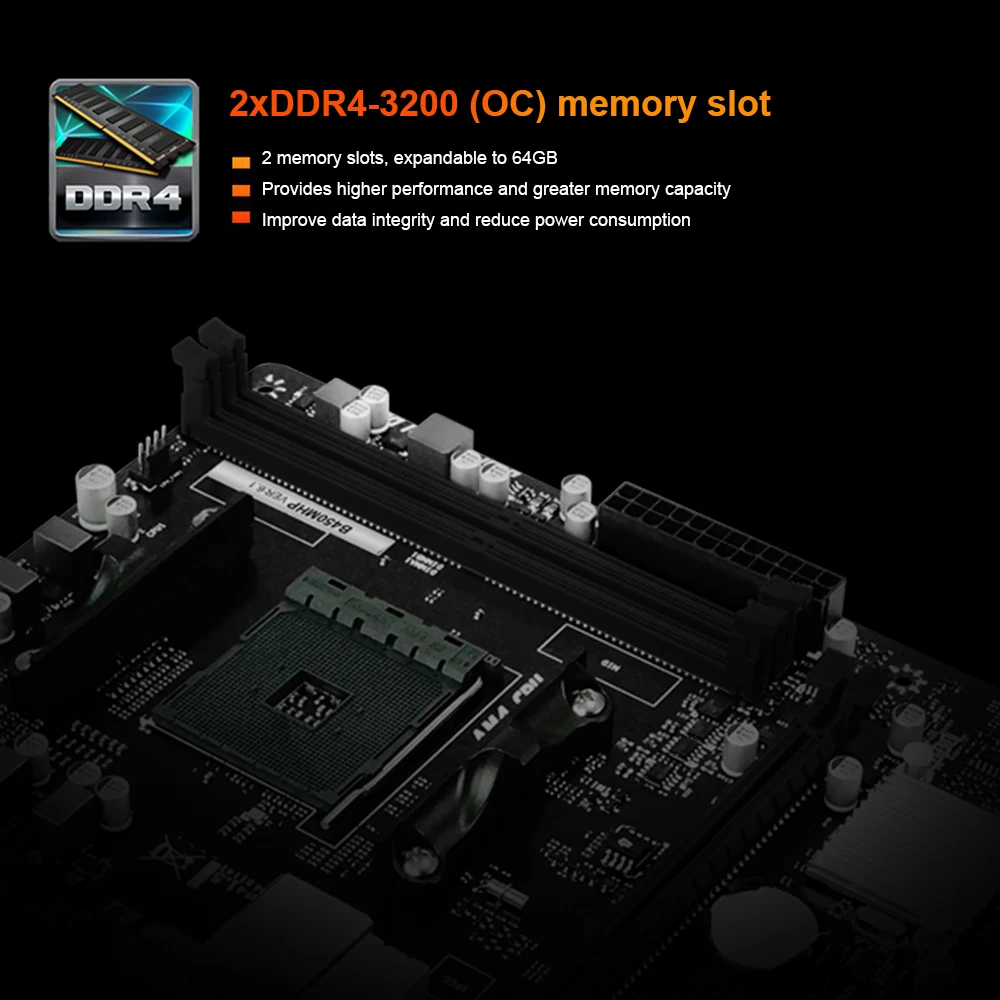

Memory:

2 x DDR4 DIMM slots

The system supports dual-channel DDR4 data module 1866/2133/2400/2667/2933/3200 (OC)MHz

The memory capacity can be expanded to 32GB

On-board graphics card:

AMD built-in integrated display core family cpus to support the on-board output port display

The integrated graphics card model depends on the CPU model

VGA interface, resolution up to 1920 x 1200@60Hz

HDMI port up to 4096 x 2160@24Hz, HDMI 1.4 compliant

Storage capacity

4 x SATA3 6Gb/s port

1 x M.2

Support AHCI & RAID 0, 1, 10

- Onboard M.2 ports support PCI-E & SATA SSDS when paired with Ryzen cpus.

- When A-series APUs are used, the onboard M.2 interface supports only SATA SSDS...

Network configuration:

Onboard Realtek RTL8111H-10/100/1000 NIC chip

Sound card configuration: Realtek ALC887 7.1 Channel HD audio

USB:

2 x USB 2.0 ports

4 x USB 3.1 (Gen1)

1 x USB 3.1 connector

2 x USB 2.0 connector

Expansion slot:

1 x PCIe 3.0 x16 slot (x16)

2 x PCIe 2.0 x1 slot

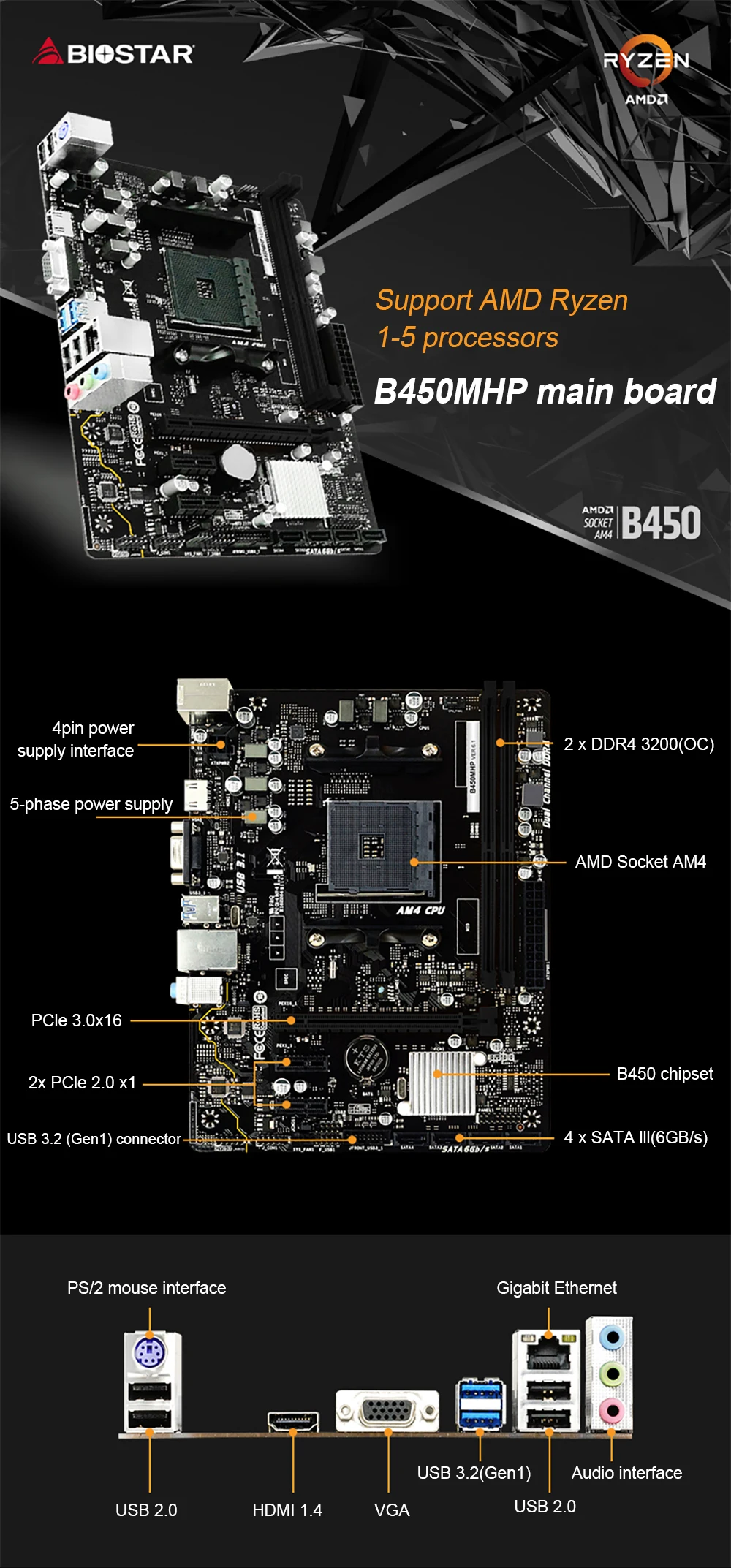

Backplane I/O interface:

1 x PS/2 Key&mouse universal interface

1 x HDMI port

1 x VGA port

2 x USB 2.0 ports

4 x USB 3.1 Gen1 port

1 x onboard NIC jack

3 x audio interface

Onboard I/O interface:

4 x SATA3 6Gb/s port

2 x USB2.0 connector

1 x USB 3.1 (Gen1) connector

1 x front audio connector

1 x front panel connectors

1 x CPU fan connector

1 x System fan connector

1 x serial connector

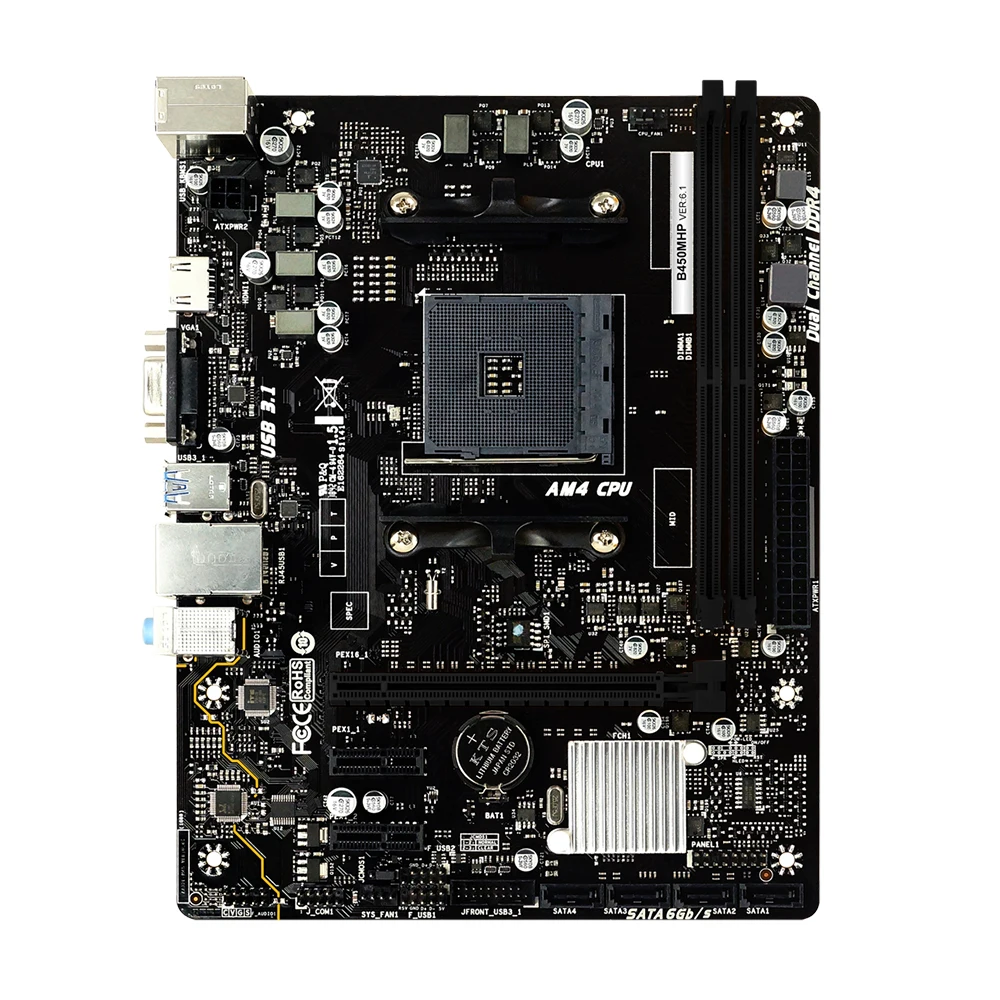

Motherboard specifications:

Micro ATX Architecture, Size: 19.8cm x 24.4cm (W x L)
