Descripción
1. After rigorous performance testing to ensure product stability
2. The product comes with discharge, protection, charging management as a whole
3. Small quiescent current, suitable for long-term standby

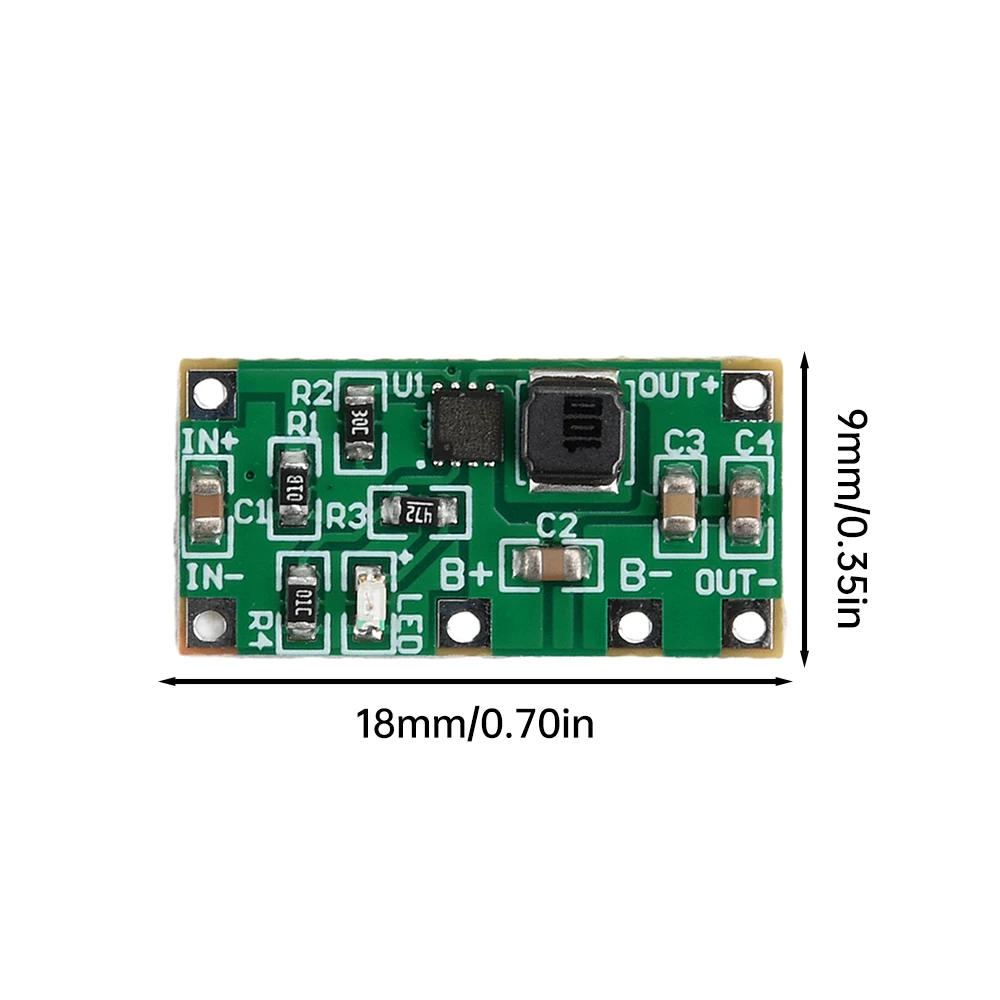

4. Small product size, very compact space to use
5. Suitable for DIY enthusiasts, suitable for toy remote control mouse modification
Parameter:

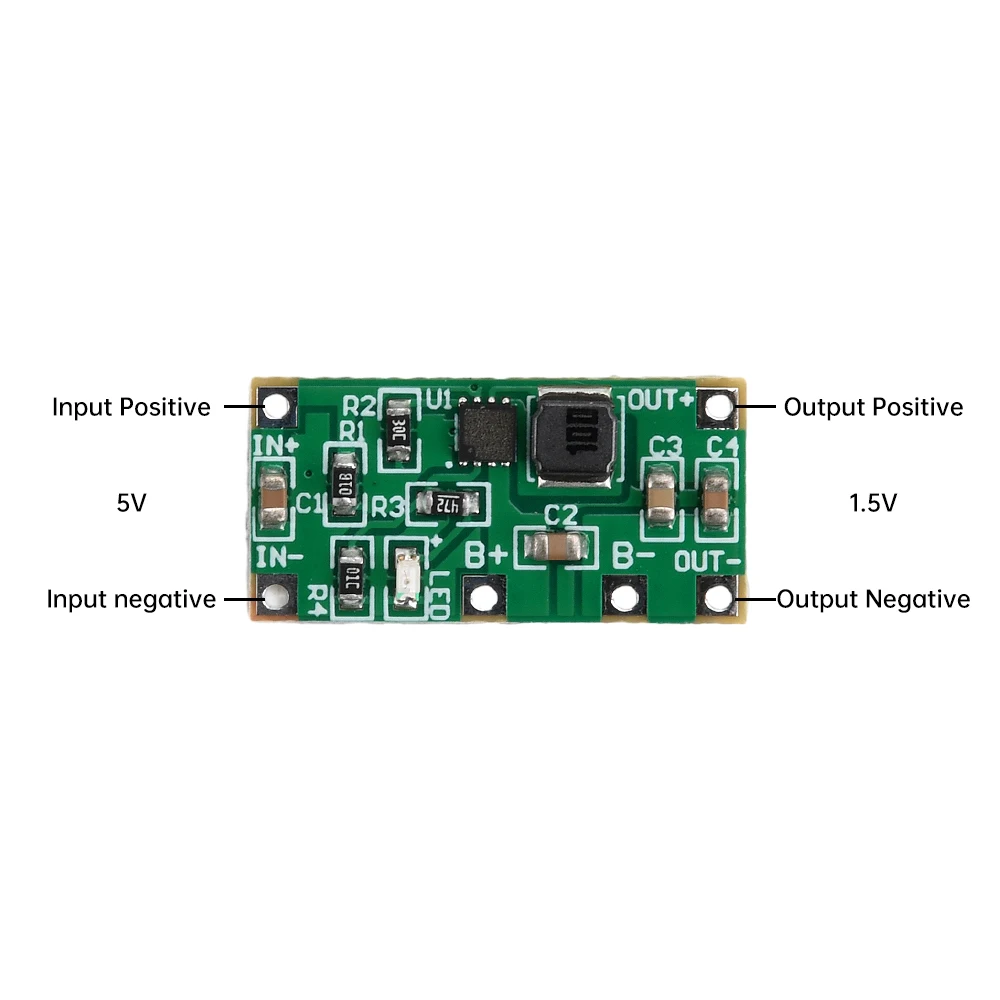

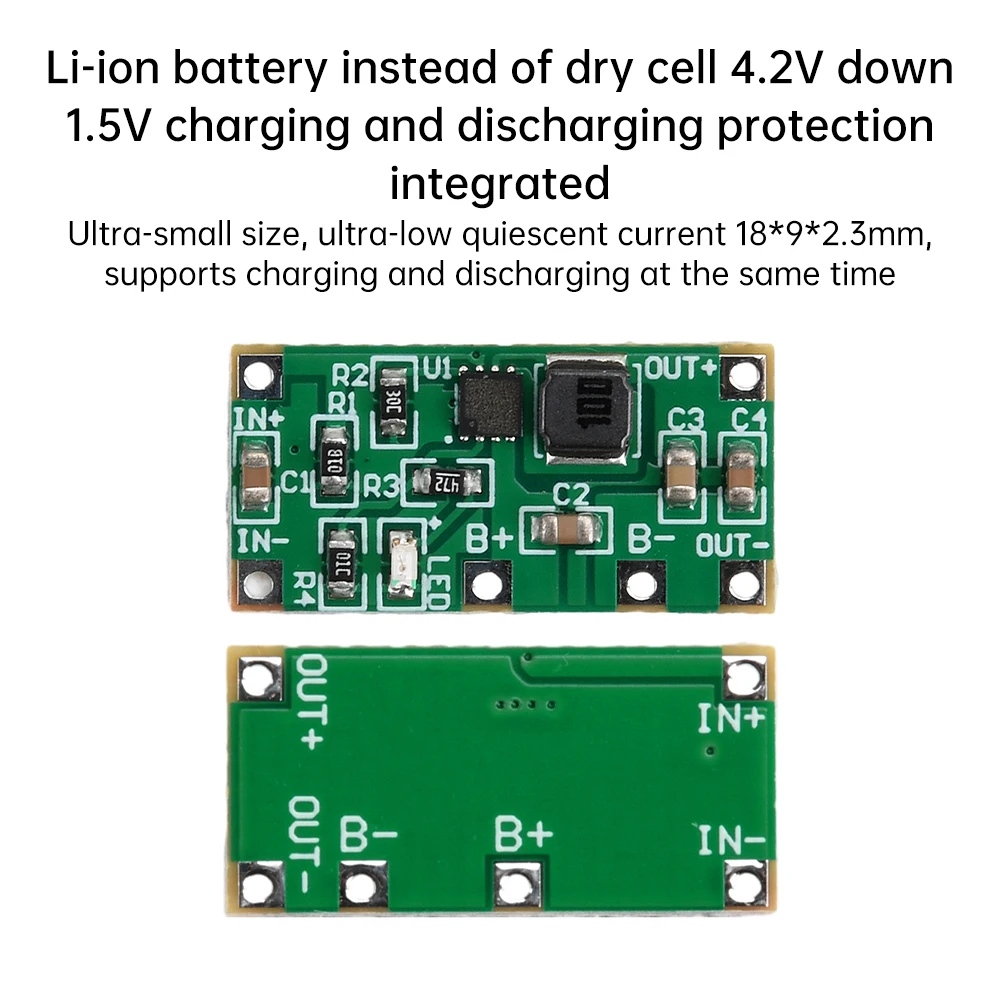

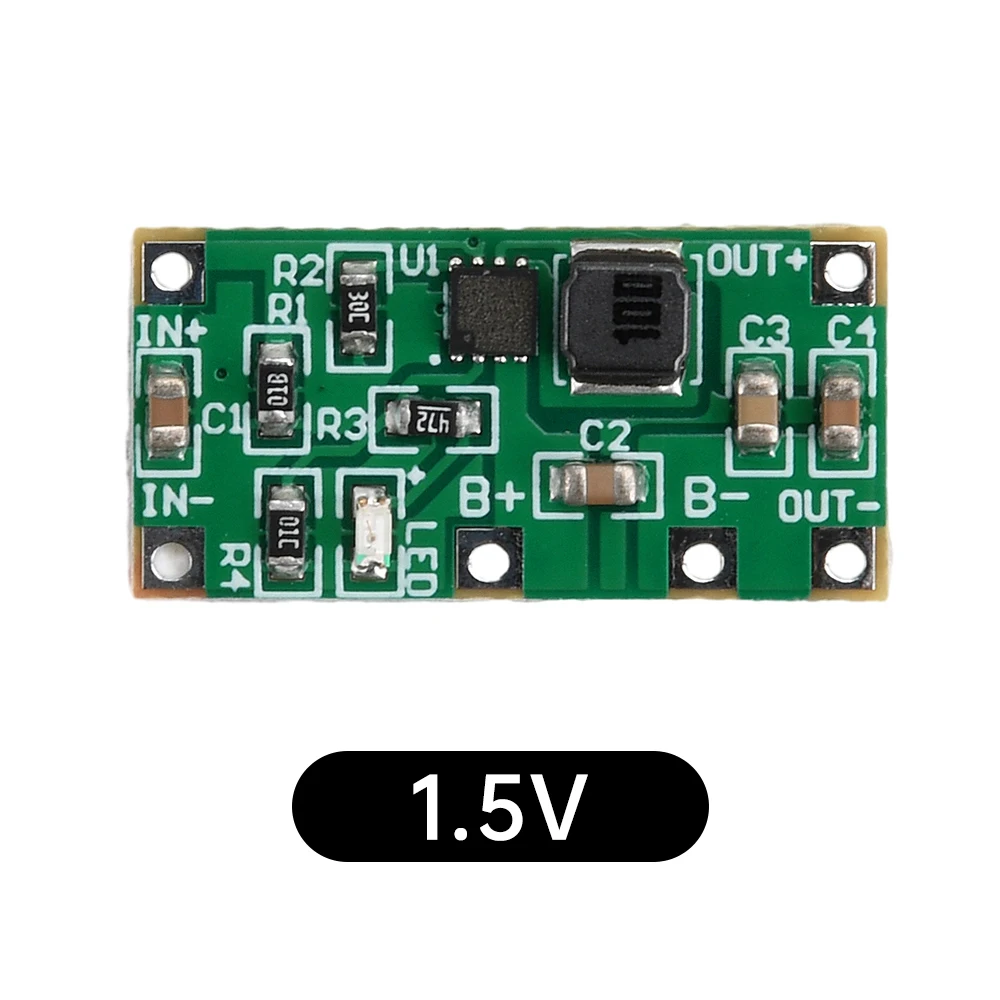

1.5V For single battery models:

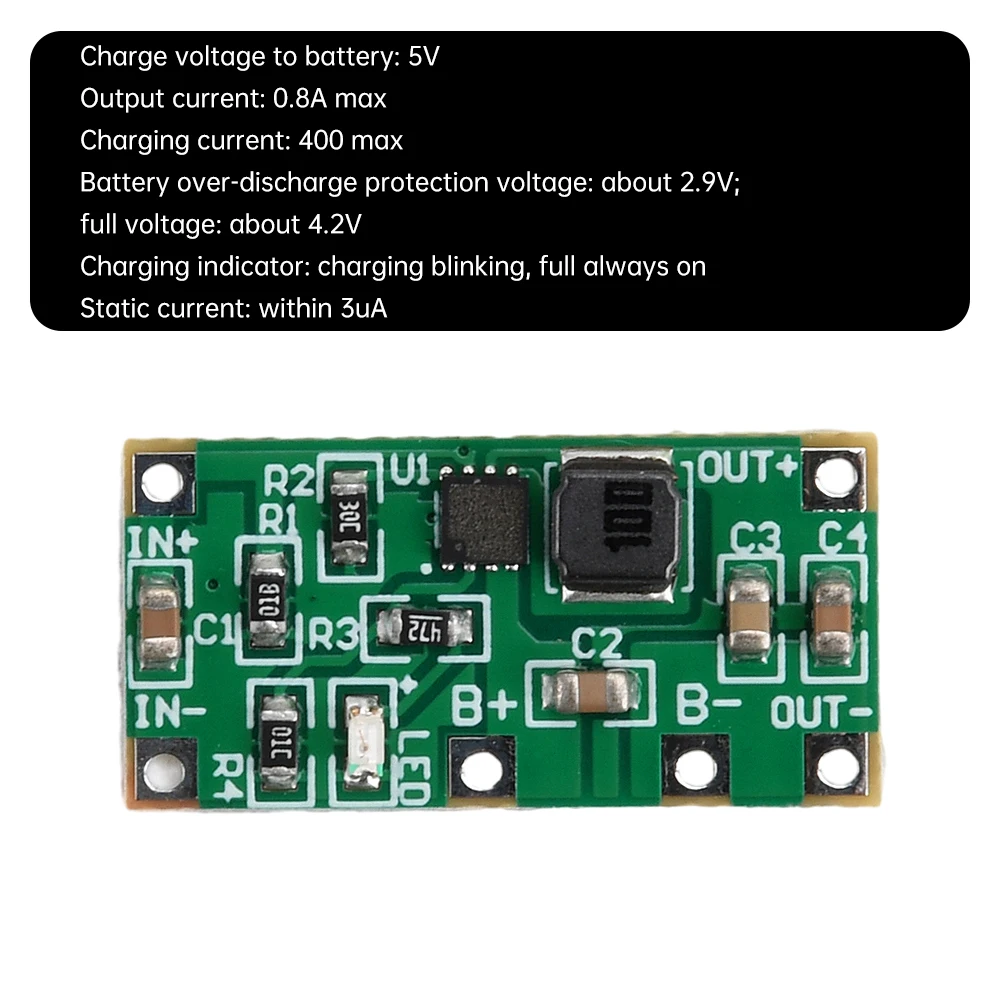

Charge voltage to the battery: 5V
Output current: 0.8A max
Charging current: 400 max
Battery over-discharge protection voltage: about 2.9V; full voltage: about 4.2V
Charging indicator: charging blinking, full always on
Static current: within 3uA

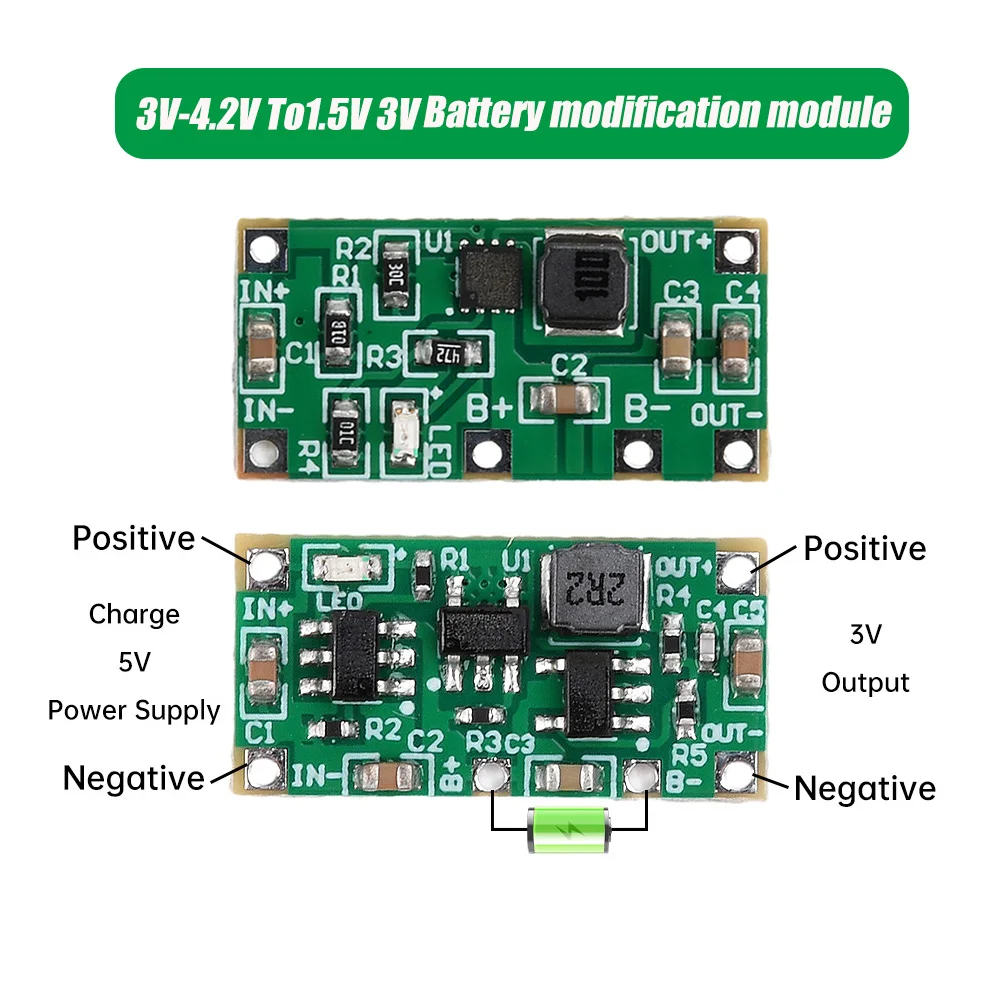

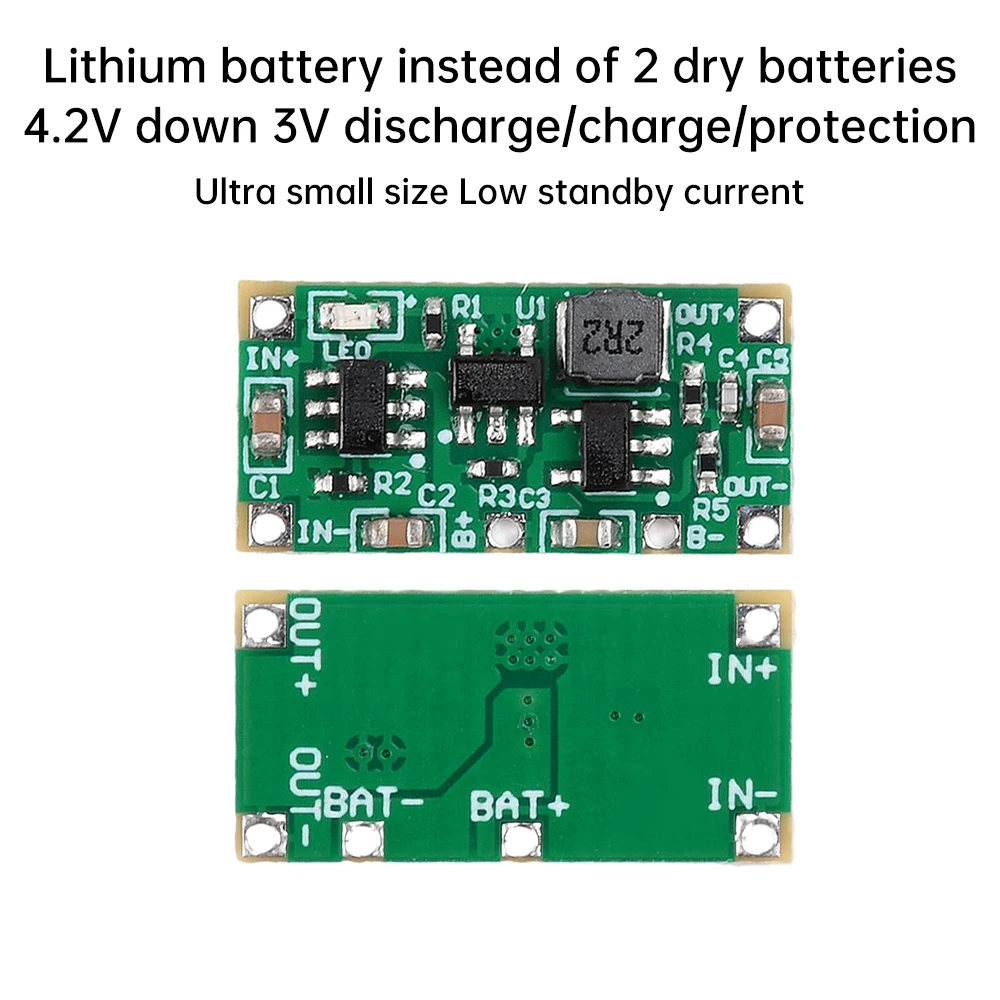

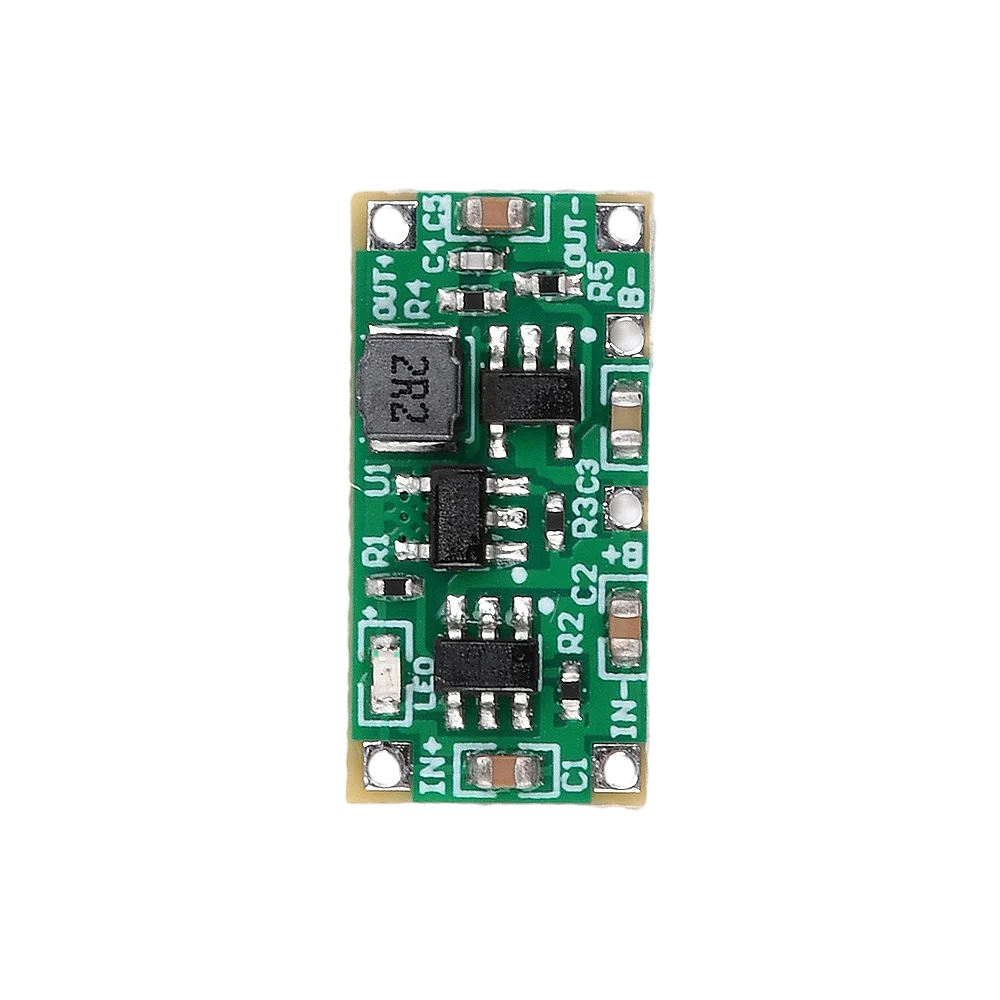

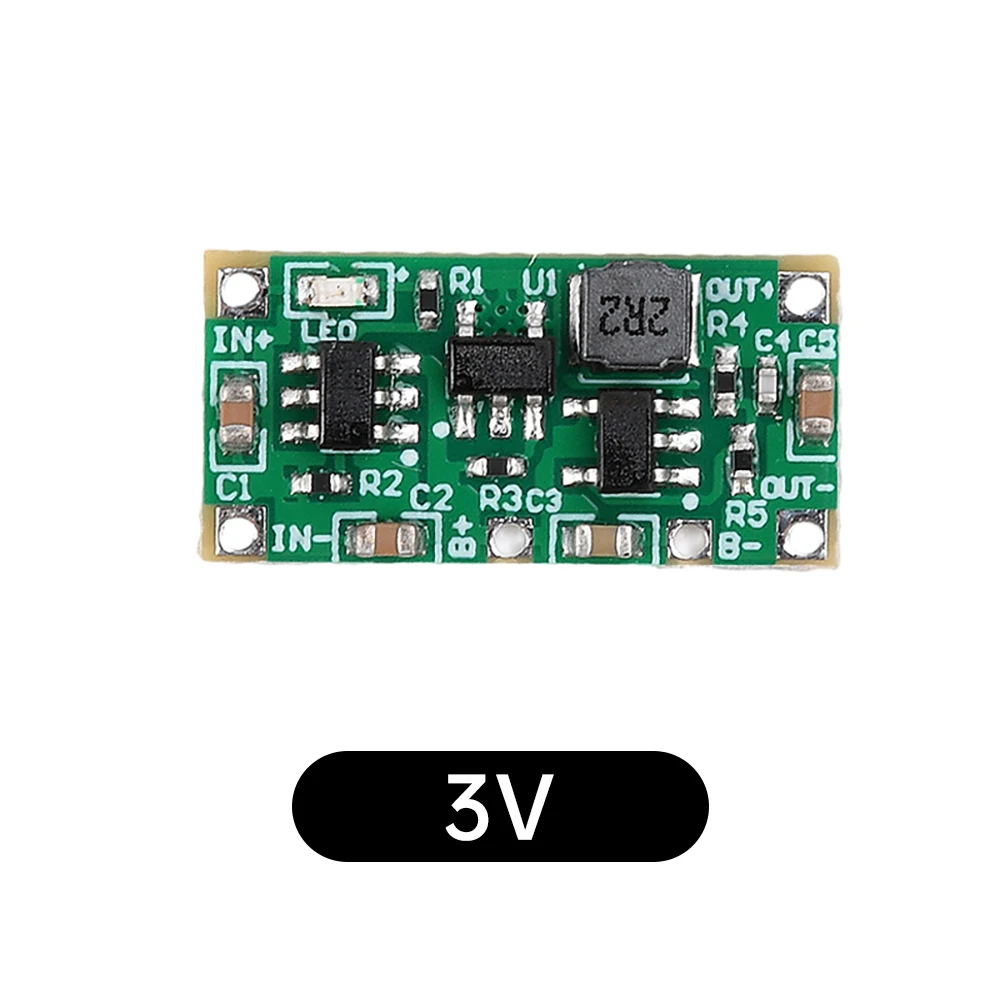

3V for dual-cell battery models:

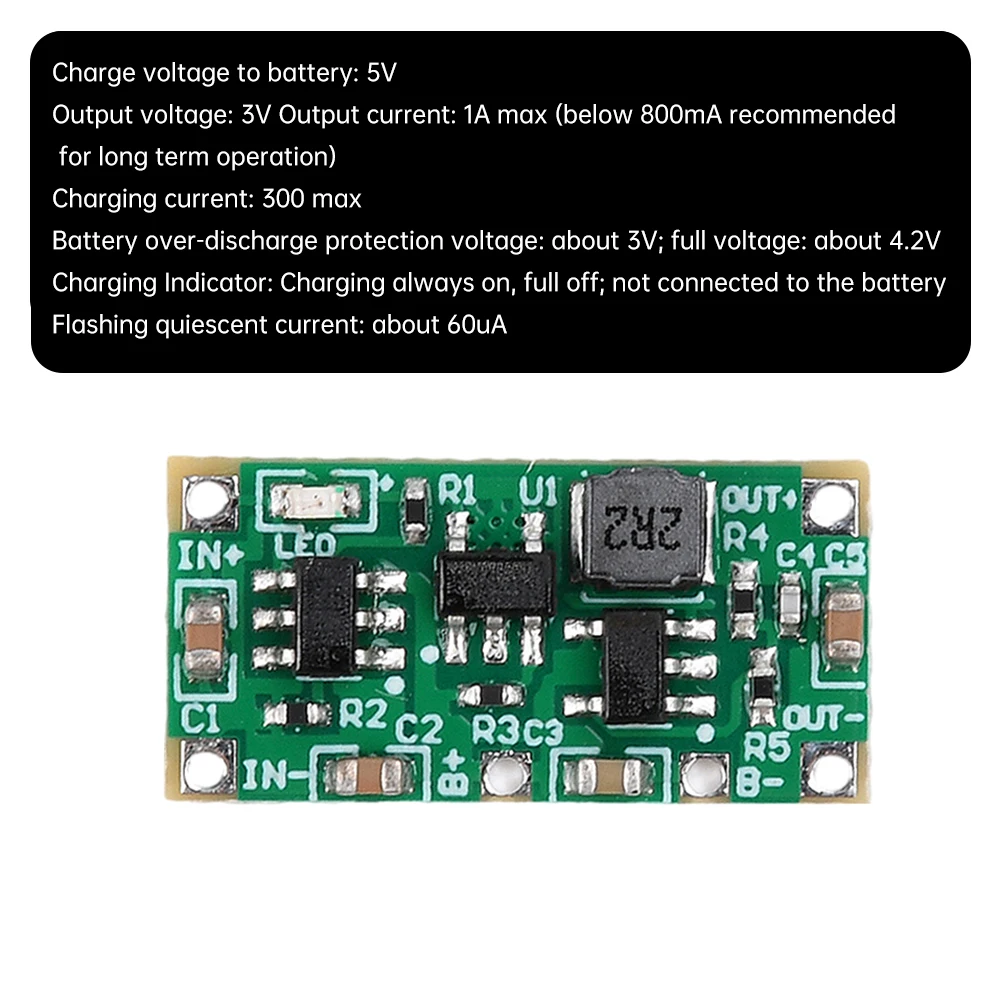

Charging voltage for battery: 5V
Output voltage: 3V
Output current: 1A max (below 800mA recommended for long term operation)
Charging current: 300 max
Battery over-discharge protection voltage: about 3V; full voltage: about 4.2V
Charging indicator: charging is always on, full off; not connected to the battery flashing
Static current: about 60uA
Precautions:
The connection line between the battery and the module is as short as possible, and use copper wire, if the internal resistance of this connection line is too large to cause the battery is actually full but the indicator light will not go out.
