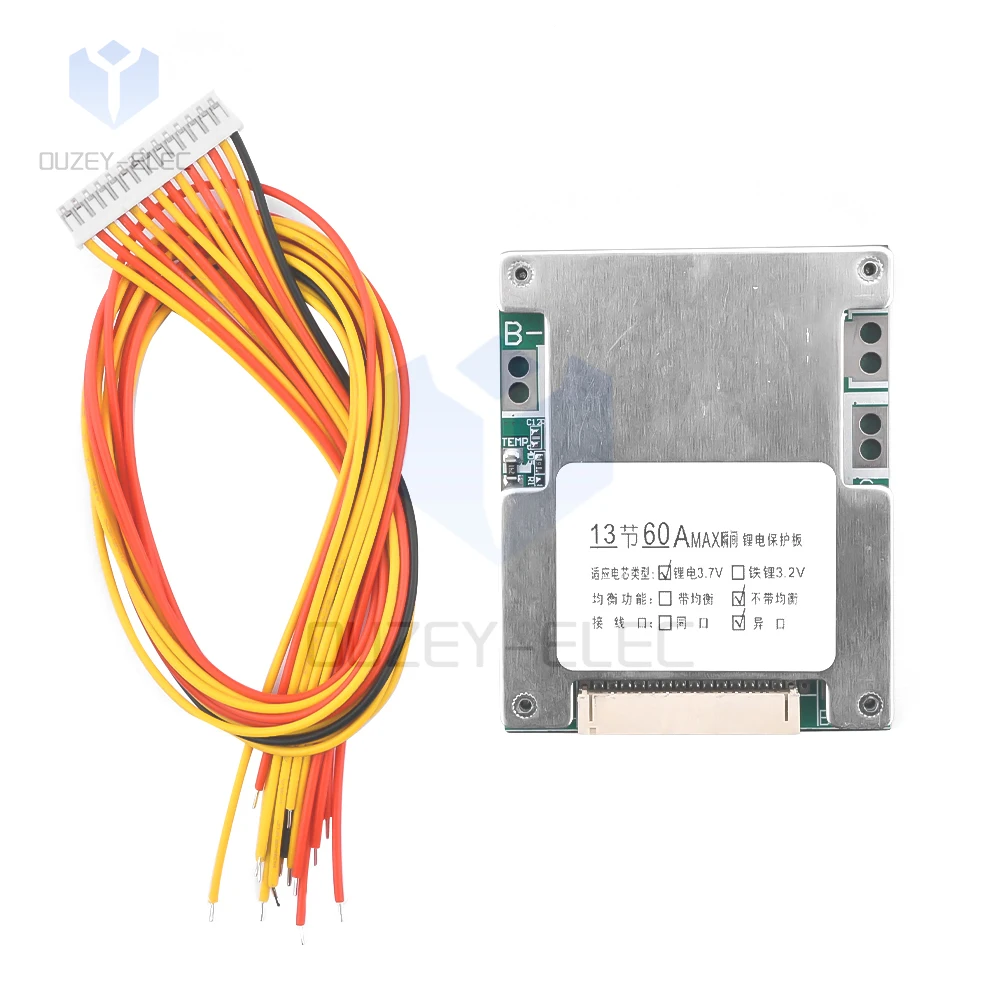

Batería de litio Junta de Protección de la Batería Junta de Protección Compacta Batería BMS Módulo para 13S 48V 60A Baterías Durable

Features:
1.Overload protection and over-discharge protection
2.Overcurrent protection, short circuit protection
3.With temperature control and protection function, safe and reliable
4.Wide application range, suitable for electric cars, electric moped, skateboards, inverters, etc.
5.It is suitable for 13 series lithium-ion batteries, which can be used for 3.7V ternary battery, manganese acid battery and cobalt acid battery.

Parameters:
Style: 13S 48V/60A split
Connection mode: split port
Applicable battery type: 3.7V ternary battery, lithium cobalt oxide, lithium manganese oxide battery
Balanced charging function: without balance
Applicable voltage: 48V
Applicable power: 2500W
Maximum working current: 60A
Maximum DC current: 40A
Overdischarge protection voltage: 2.6V
Overcharge protection voltage: 4.25V
Charging current: 10A MAX
Temperature protection: With this function
High discharge temperature: 75℃
Low temperature load: -7℃
Application: electric vehicle, twister, electric power scooter, scooter, inverter, etc.
Function description: lithium battery overcharge protection; Over discharge protection; Over current protection; Output short circuit protection.

Assembly instructions:
1.The battery voltage pairing first, difference 0.1 V.
2.The battery's internal resistance pairing, internal resistance difference "5mΩ;
3.The battery spot welding, test whether the voltage is normal;
4.The plate welding nickel sheet;
5.Connect the board to the lithium battery in the order of BO, B1, B2 and B+.
6.Please note the output power to configure the size of the nickel sheet;
7.Pay attention not to continuously P+ P- repeatedly short circuit, there will be a circuit voltage spike, easy to cause damage to MOS tube;
8.Attention, do not let the protection board touch water, easy to damage!
9.Welding board, please pay attention to anti-static operation!

Package includes:
Protection board x1
Cable x1
