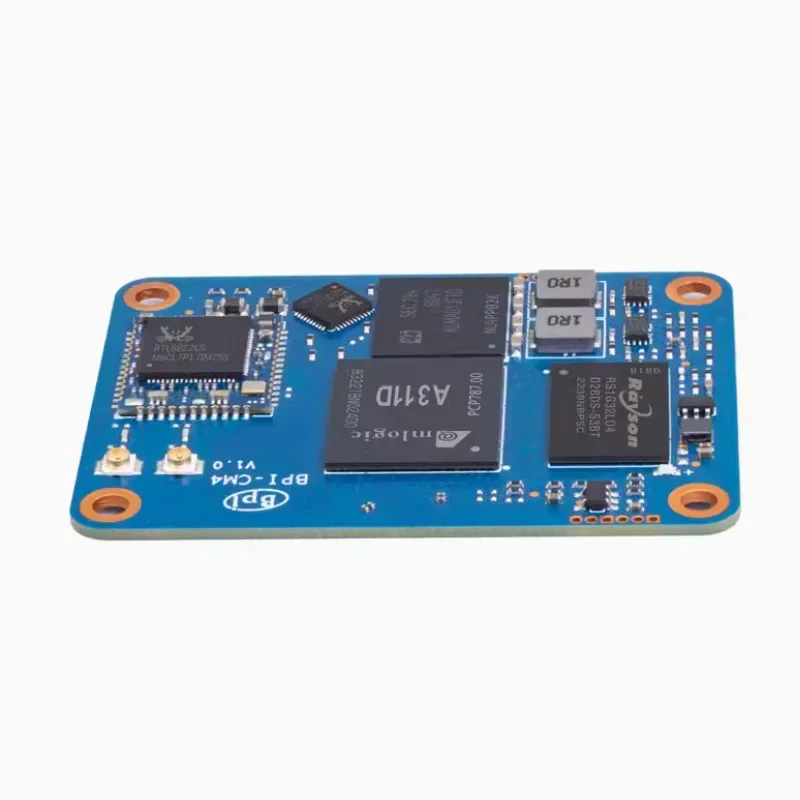

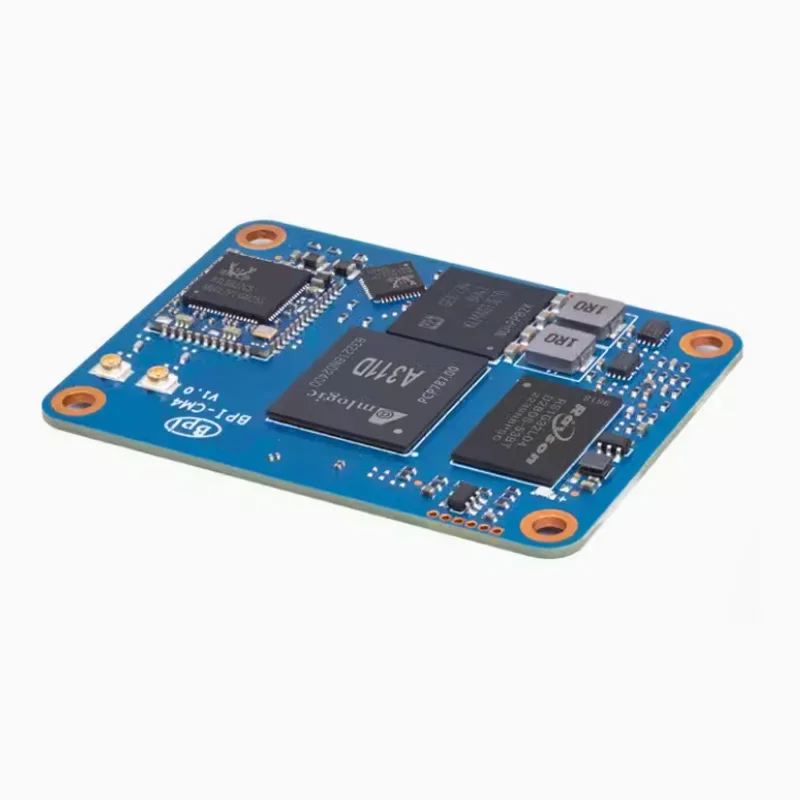

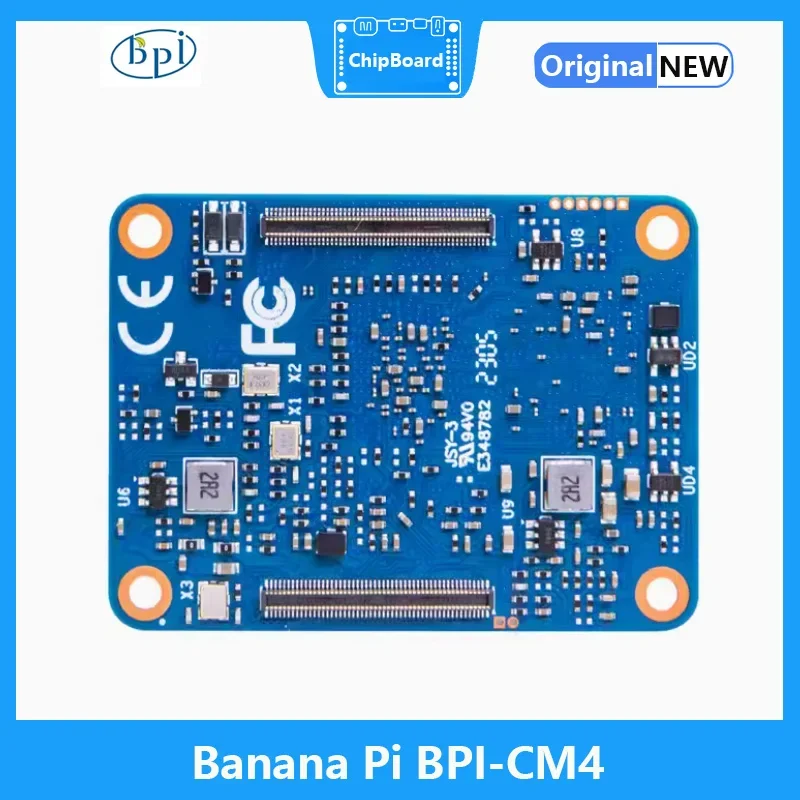

BananaPi BPI-CM4, utiliza Amlogic A311D Quad Core ARM Cortex-A73 y Dual Core ARM Cortex-A53 4G RAM y 16 GB eMMC Flash

Marcador de posición

Banana Pi BPI-CM4 Amlogic A311D Quad Core ARM Cortex-A73 4G LPDDR4 16G eMMC Minipcie 26PIN Support HDMI Output Run Android Linux

BananaPi BPI-CM4 new design with Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU,NPU for AI at 5.0 TOPS, support Camera and MIPI-CSI interface ,HDMI output,2 Gigabit port . 4G RAM and 16 GB eMMC flash.

for A311D chip PIN limited . just support 1 HDMI ,1 CSI and 1 DSI , Raspberry Pi support 2 HDMI ,2 CSI and 2 DSI , Other is Pin2Pin . you can use Raspberry Pi CM4 baseboard.

Key Features

Getting Start

Getting Started with CM4

Hardware

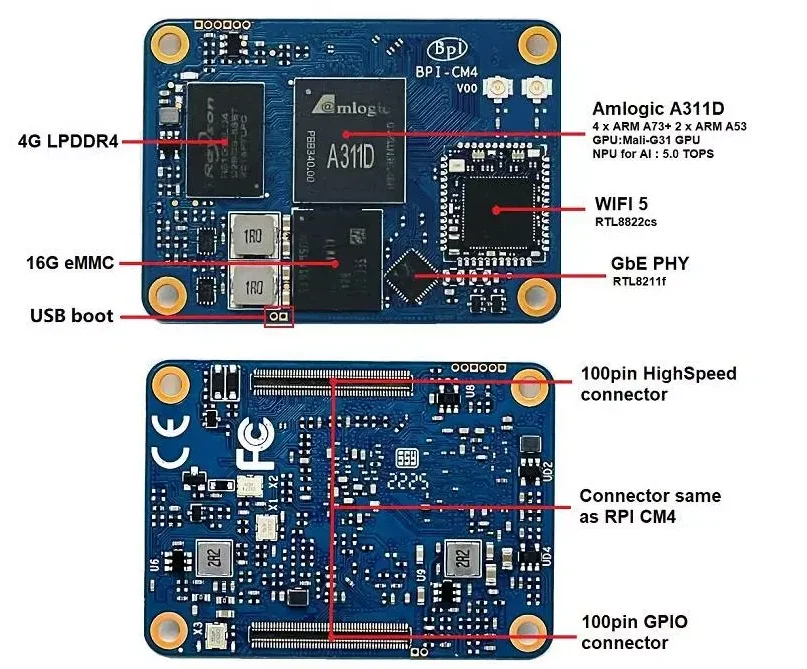

BPI-CM4 Module Hardware interface

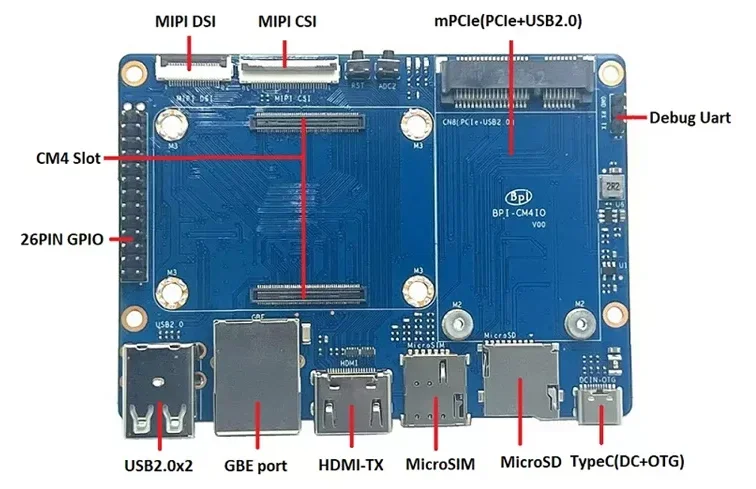

BPI-CM4 moudule base board interface

Banana Pi BPI-CM4 SBC specifications

HDMI 2.1 output up to 4Kp60MIPI DSI connector for displayMIPI CSI connector for camera
