Descripción
motherboard chip
Integrated Chip Graphics Card/Sound Card/Network Card
Main chipset SOC
Display chip Integrated AMD Radeon HD 8330 display chip
Audio chip Integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek Gigabit network card
Processor Specifications
CPU type AMD A4 5050/5000
CPU socket Onboard APU
memory specification
Memory Type 1×DDR4 DIMM
Memory description Support dual-channel DDR3 1600MHz memory
storage expansion
PCI-E standard PCI-E 2.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E slot
Storage interface 2×SATA III interface
I/O interface
USB interface 2×USB3.0 interface, 8×USB2.0 interface (4 built-in + 4 backplane)
Video interface 1×VGA interface, 1×HDMI interface
Power interface 24-pin power interface

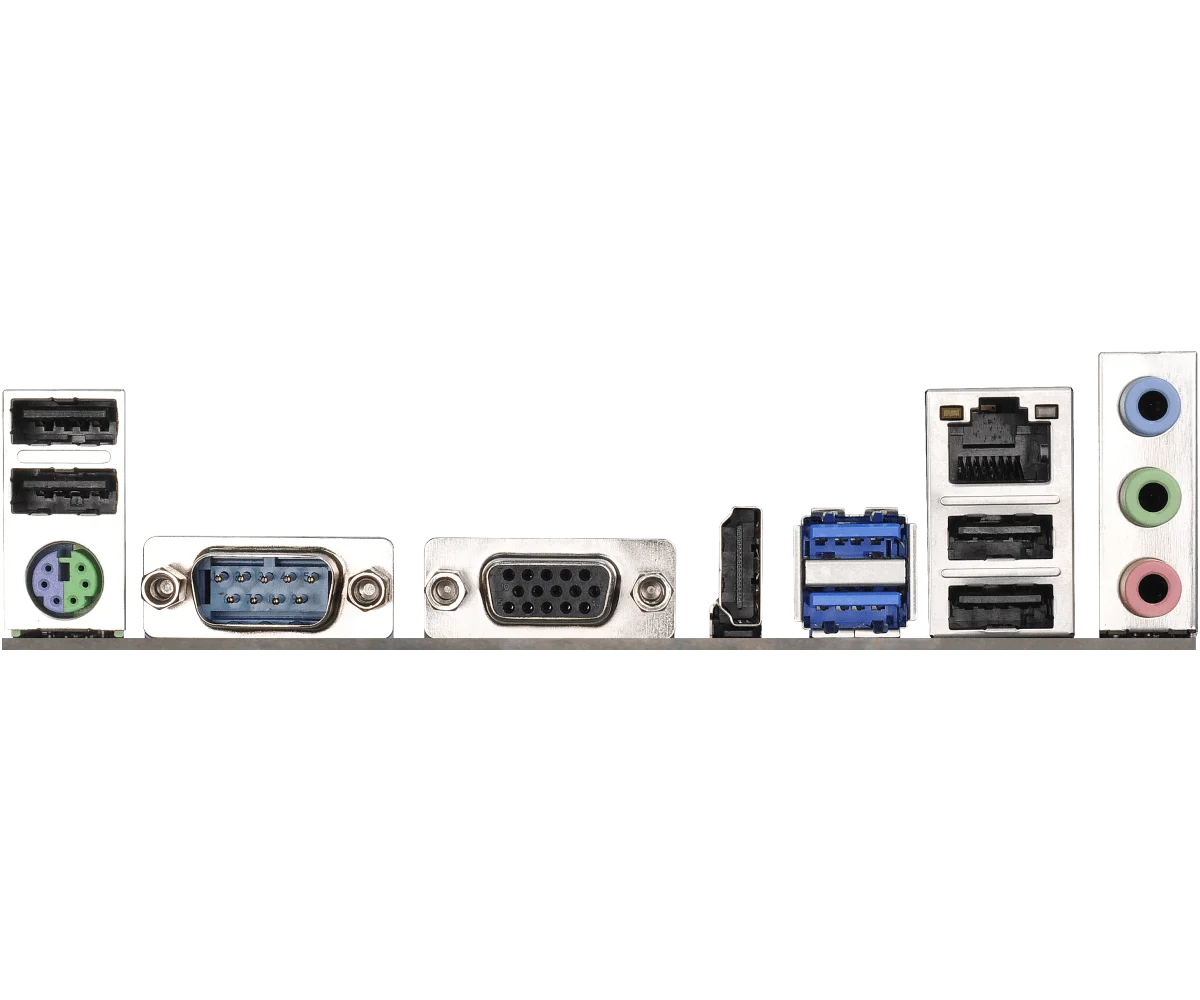

Other interfaces 1×RJ45 network interface, 1×TPM interface, audio interface, 1×PS/2 mouse, 1×PS/2 keyboard interface, 1×COM interface
plate type
Motherboard form factor Micro ATX form factor
