Descripción

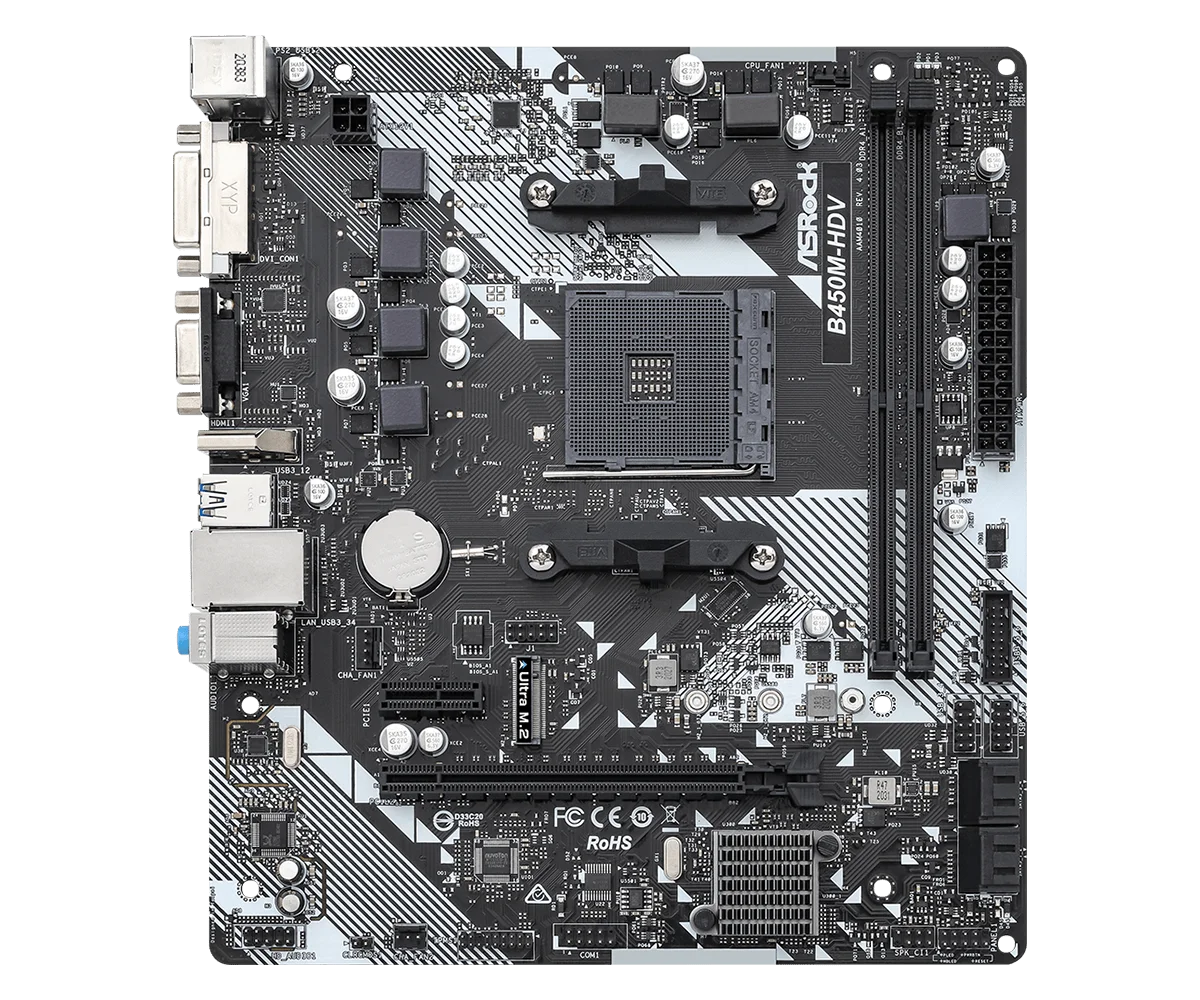

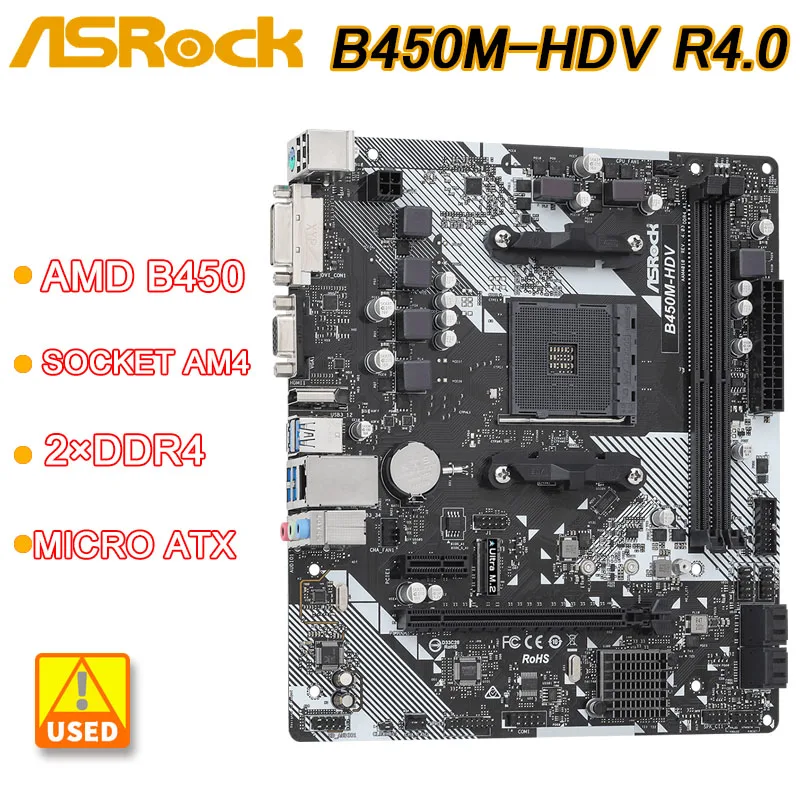

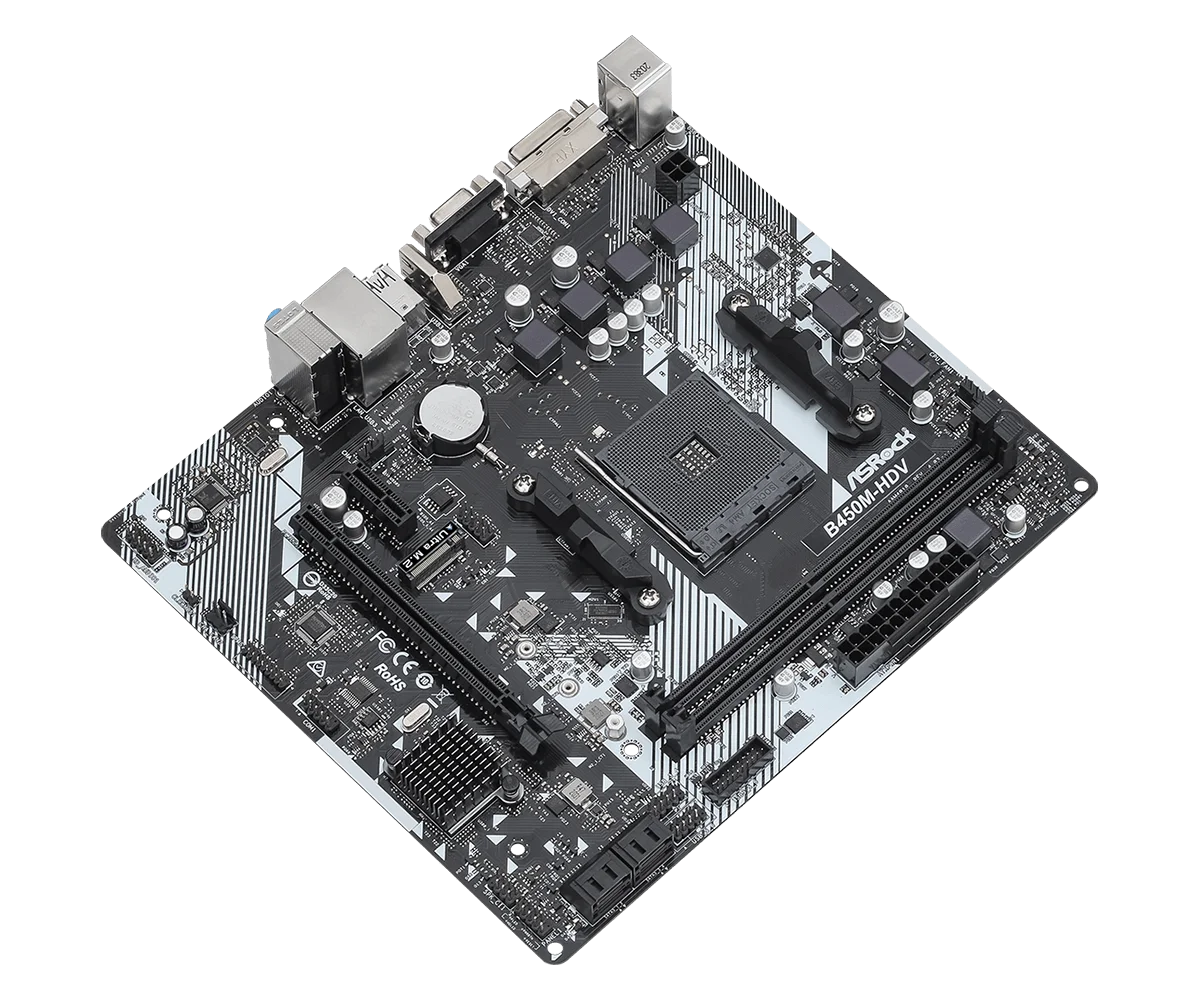

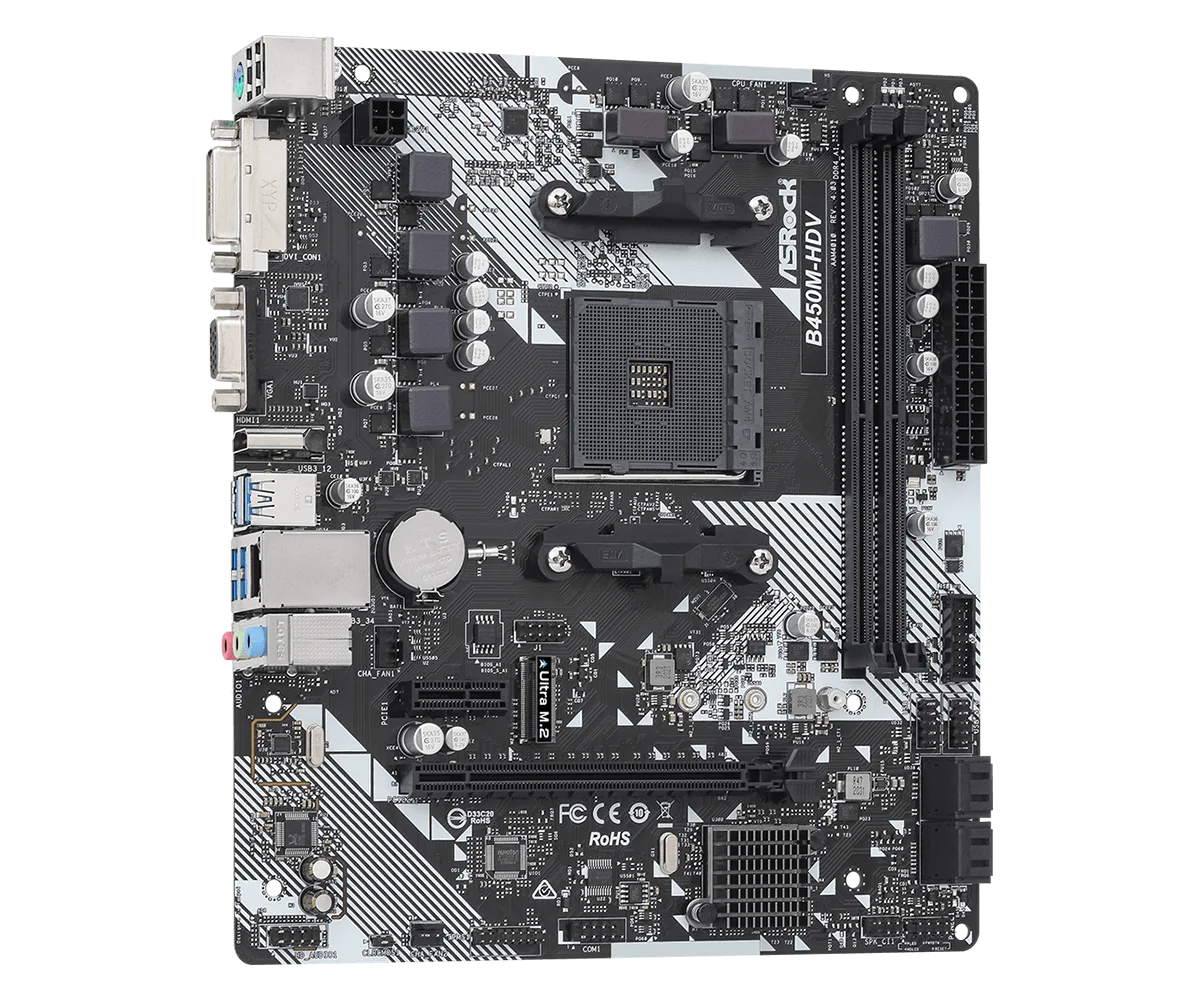

motherboard chip
Integrated Chip Sound Card/Network Card
Main chipset AMD B450
Chipset Description Using AMD B450 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC887 7.1 channel audio chip
Network card chip Onboard Realtek RTL8111H Gigabit network card
Processor Specifications
CPU Type 2nd/1st Generation AMD Ryzen/Ryzen with Radeon Vega Graphics
CPU socket Socket AM4
memory specification
Memory type 2×DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR4 3200+ (OC)/2933/2667/2400/2133Mhz memory
storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 1×PCI-E X1 slot
Storage interface 1×M.2 interface, 4×SATA III interface

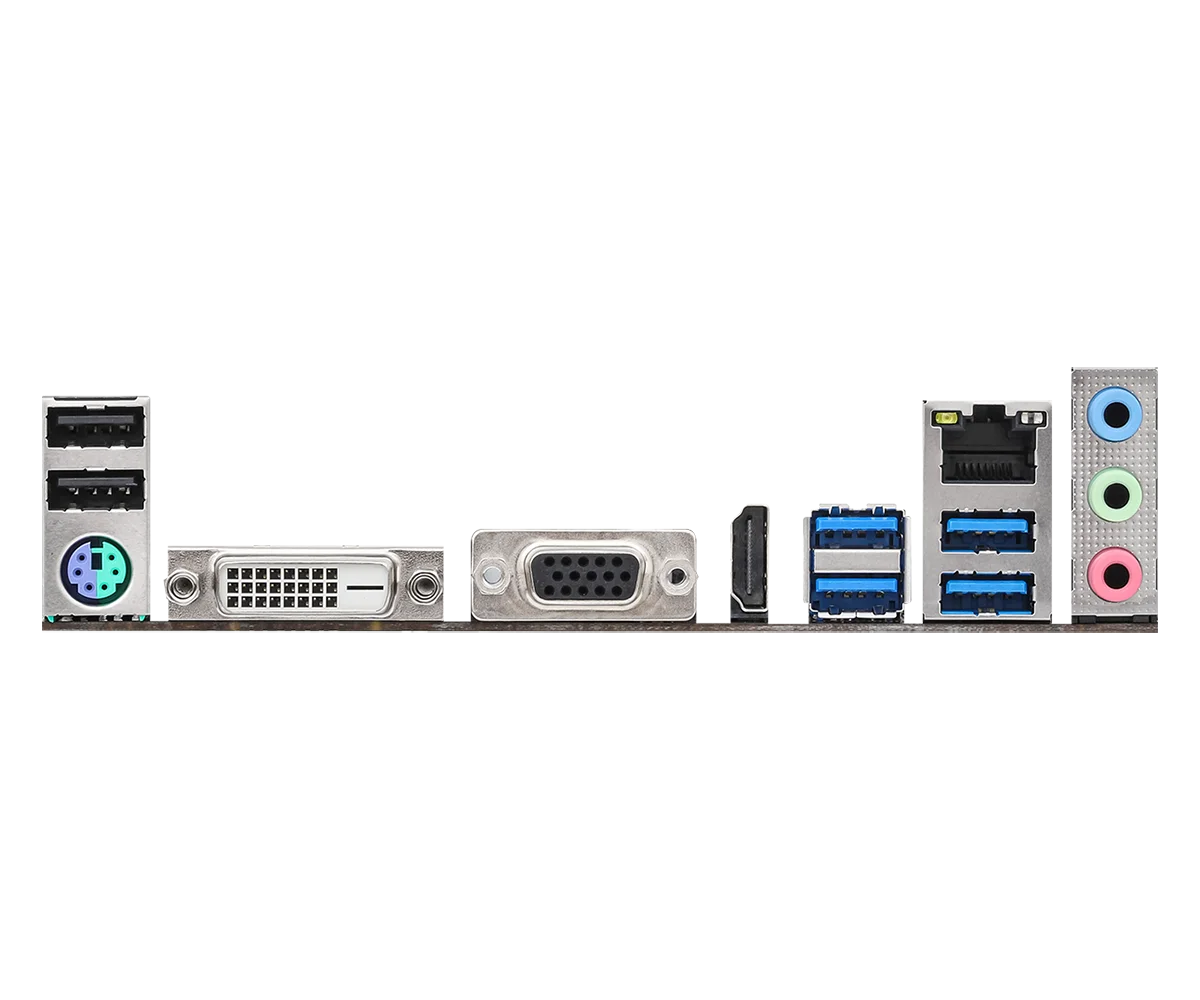

I/O interface
USB interface 5×USB3.1 Gen1 interface (1 built-in + 4 backplane), 4×USB2.0 interface (2 built-in + 2 backplane)
Video interface 1×HDMI interface, 1×DVI interface
Power interface One 4-pin, one 24-pin power interface
Other interfaces 1×RJ45 network interface, 3×audio interface, 1×PS/2 universal interface for keyboard and mouse
plate type
Motherboard form factor Micro ATX form factor
Dimensions 23.1×20.6cm
