Descripción
Available to Work with 2 mobile transceiver and 1 Antenna
The antenna and transceivers must match to the frequency bands of the MX62 Antenna combiner
The transmit frequencies band of the 2pieces connected mobile transceiver must be in different frequency band when they are in transmit status simultaneously, otherwise the device MX62 will be invalided.
Comes with 2 pieces Coaxial Cable (30cm Cable Length) for connecting to the mobile transceiver

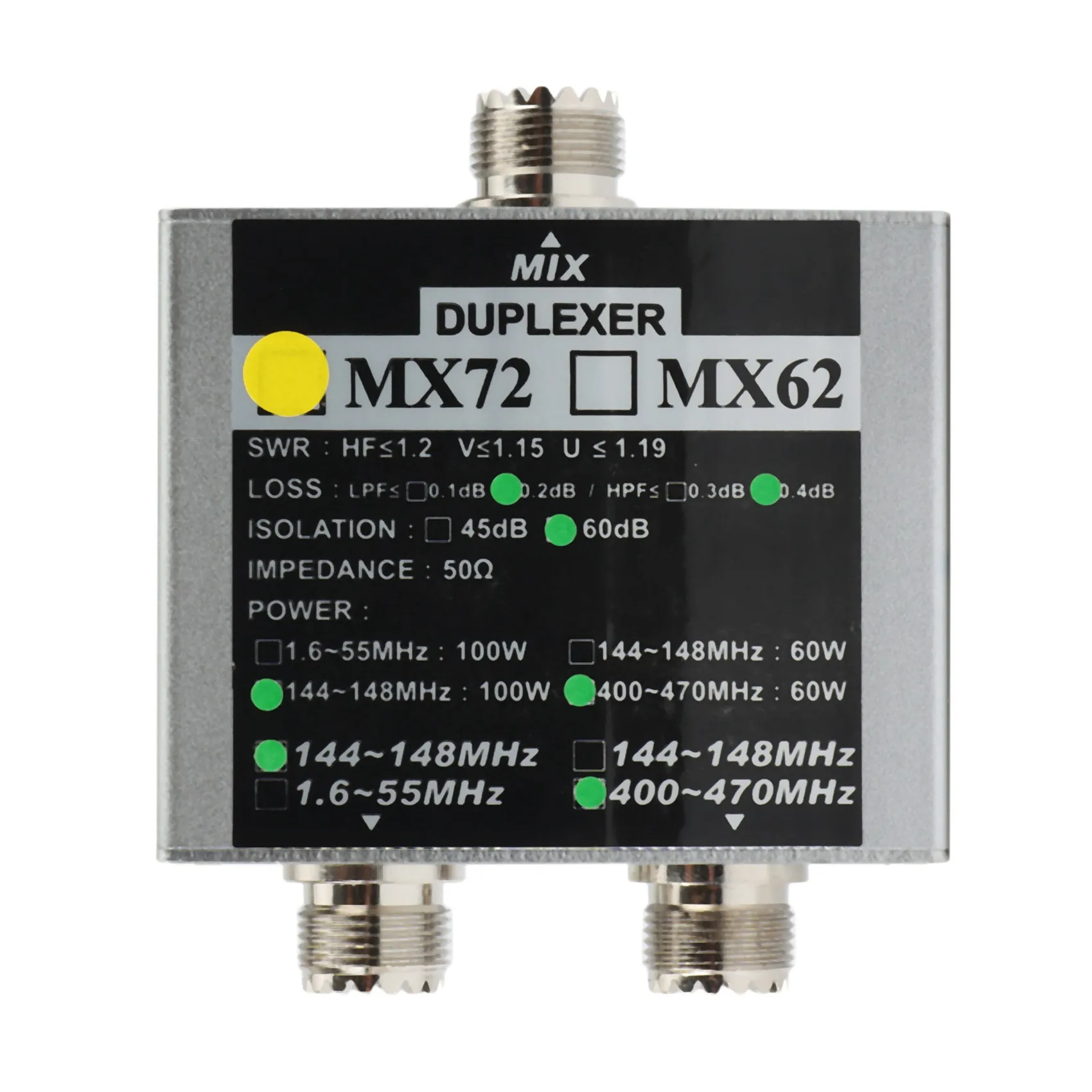

Working Frequency Range of the Antenna Combiner: 1.6-55MHz,144-148MHz and 400-470MHz
SWR: HF less than equal 1.2,VHF less than equal 1.5, UHF less than equal 1.19
LOSS: LPF:0.1dB, HPF:0.3dB
ISOLATION: 45dB
Impedance: 50 ohm
Power: 1.6-55MHz:100W, 144-148MHz:100W,400-470MHz: 60W
Interface: SO239
Material:Metal
colour:As shown
Package Contents:
1 x Antenna Duplexer
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
