Descripción

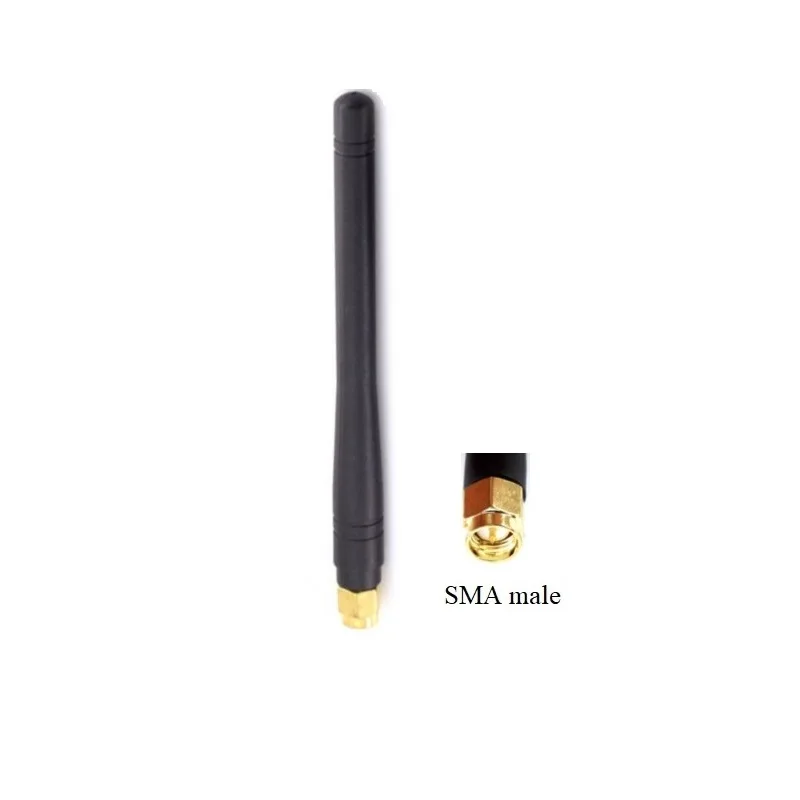

GSM 3G Antenna Specifications:
Part Number: GSM3G011-SMAMS
3G Antenna Specification
Frequency Range
824-960/1710-2170MHz
V.S.W.R
≤2.0
Gain
3.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
20
Impedance
50 ohm
Mechanical Specifications
Size
115mm high
Weight
50g
Connector
SMA male straight
Other Connector
FME, BNC or others
Housing
Black ABS
Environmental Specification
Working Temp
-40℃~+85℃
Vibration
Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity
95%~100%RH
