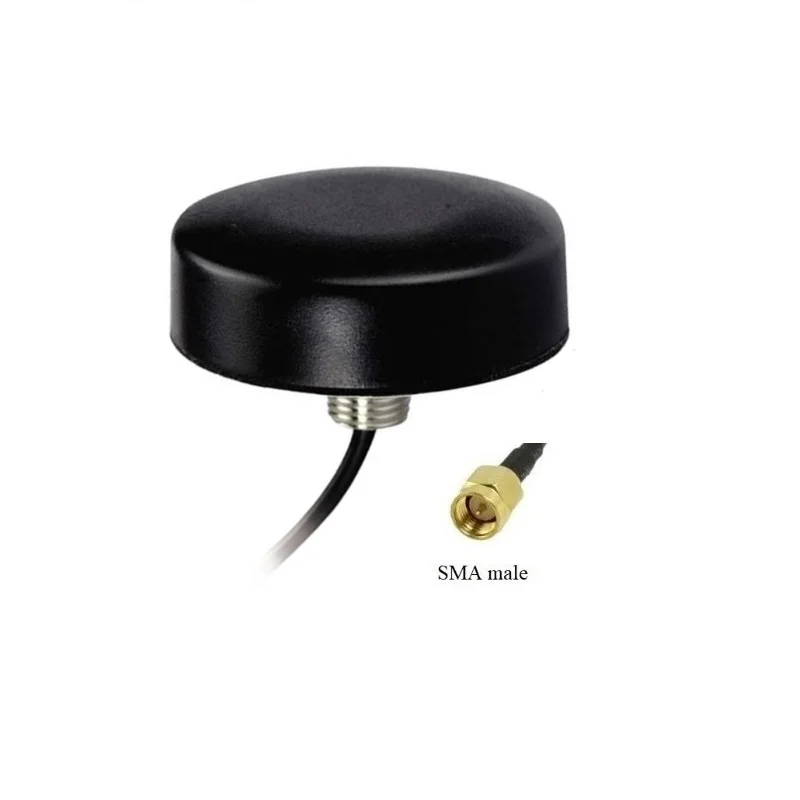

GPS/GLONASS/BEIDOU Active Antenna Specifications:
Part Number: GPSGNBD007-SMA
Dielectric Antenna Specification
Size
25×25×4mm
Frequency Range
1559-1610MHz
BEIDOU:1561MHz, GPS:1575.42MHz, GLONASS:1602MHz
V.S.W.R
2.0
Attenuation
25dB
Impedance
50 ohm
Peak Gain
3dBic, Based on 7×7cm ground plane
Gain Coverage
-4dBic at –90° 0 +90°(over 75% Volume)
Polarization
Right-handed Circular(RHCP)
LNA specifications
LNA Gain
(Without cable)
28dB Typical
Noise Figure
1.8dB
V.S.W.R
2.0
DC Voltage
2.7V-5.0V±0.5V
DC current
25mA Max(5V DC)
Mechanical Specifications
Weight
200g
Size
Φ47×15mm
Cable
4m RG174 cable
Connector
SMA male straight
Other Cable
RF1.13, RG178, RG316, LMR100, RG58 or others
Other Cable Length
50cm, 100cm, 200cm, 4m, 5m or others
Other Connector
SMB, FAKRA, FME, MCX, MMCX, BNC, TNC or others
Mounting
Screw
Housing
Black ABS
Environmental Specification
Working Temp
-40℃~+85℃
Vibration
Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity
95%~100%RH
Waterproof
IP67
