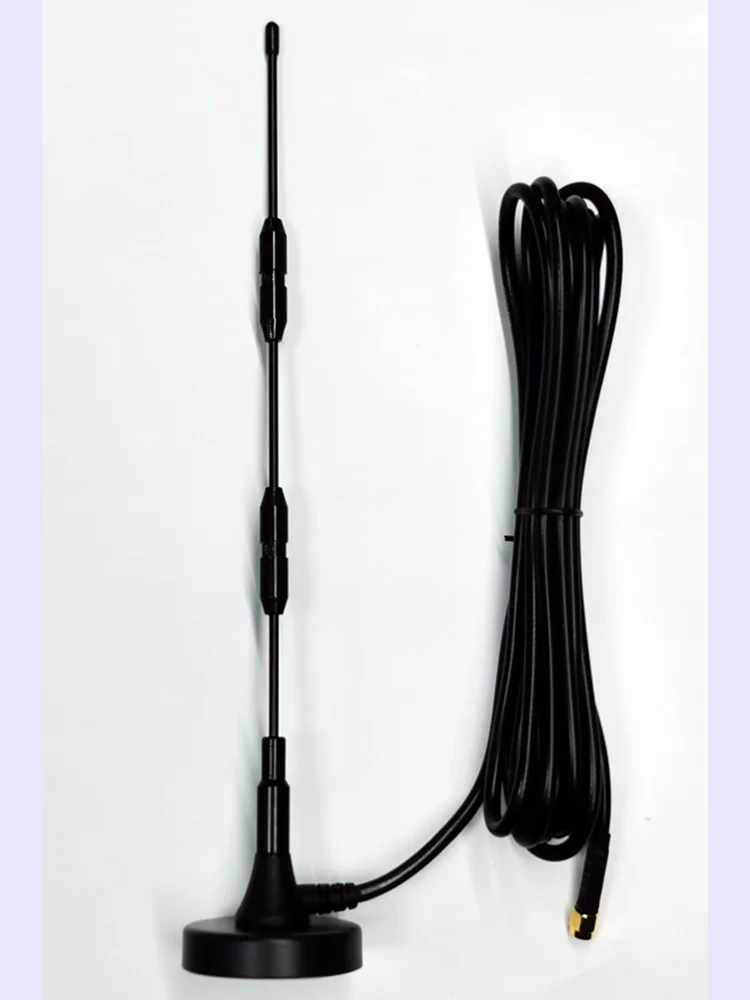

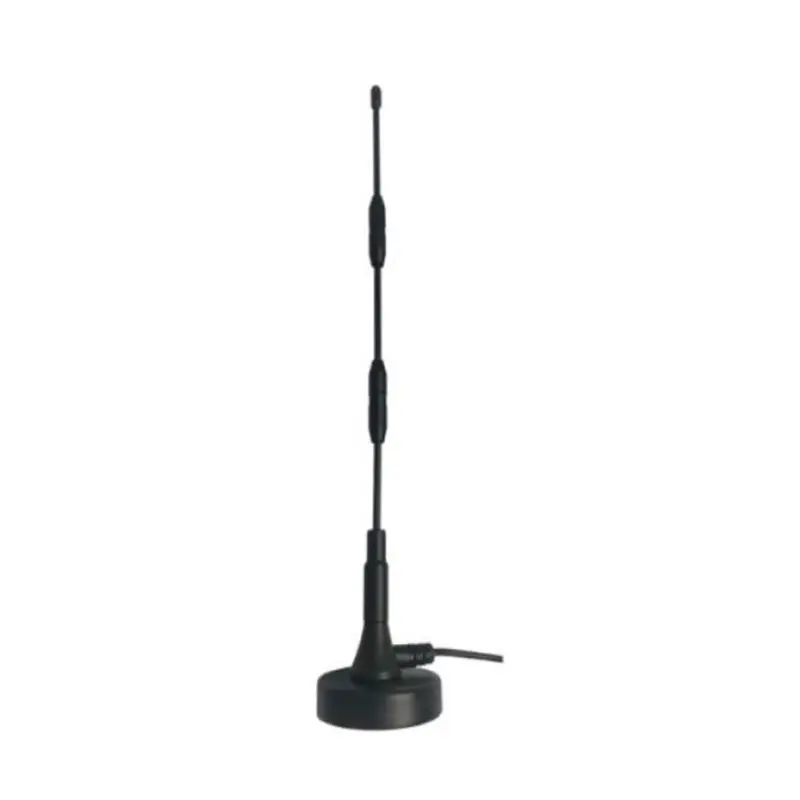

GSM 3G 4G LTE 5G Antenna Specifications:
Part Number: 5G019-SMA
5G Antenna Specification
Frequency Range
600-6000MHz
V.S.W.R
≤3.0
Gain
7.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50
Impedance
50 ohm

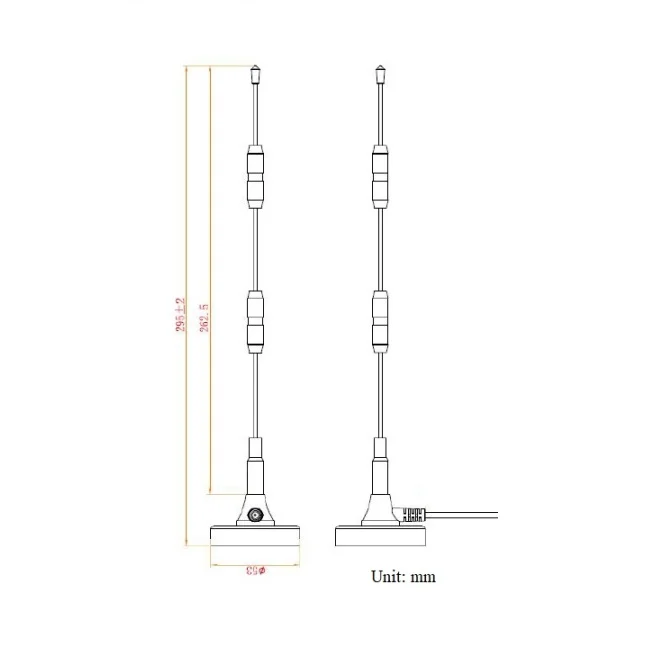

Mechanical Specifications
Size
Φ53×295mm
Weight
250g
Cable
3m RG58 cable
Connector
SMA male straight
Other Cable
RG74, RG316, LMR200 or others
Other Cable Length
50cm, 100cm, 250cm or others
Other Connector
SMB, FME, FAKRA, MMCX, MCX, BNC, TNC or others
Mounting
Magnetic or Adhesive
Housing
Black ABS
Environmental Specification
Working Temp
-40℃~+85℃
Vibration
Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity
95%~100%RH
Waterproof
100% waterproof
