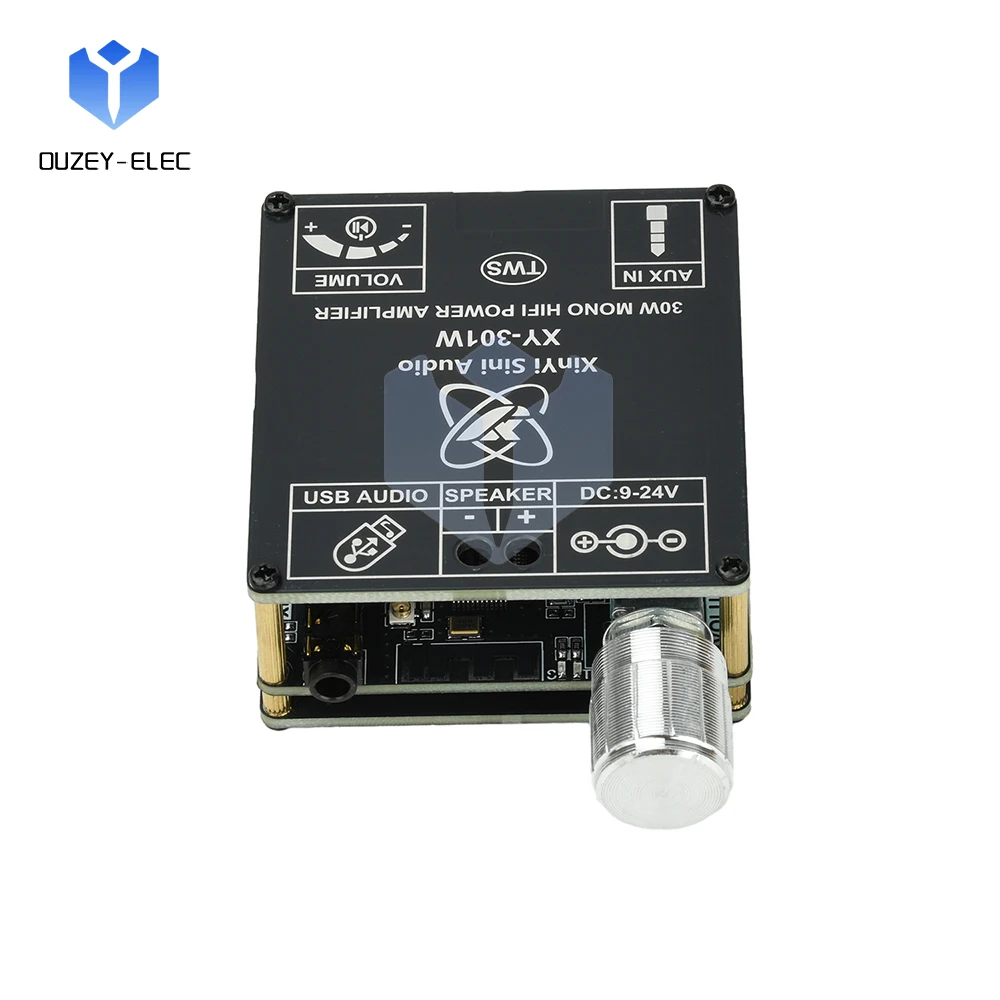

AMPLIFICADOR BT DC 9-24V XY-301W Mono 30W reproductor de Audio de calidad de sonido Hi-Fi compatible con interfaz TWS amplificador de cine en casa

Features:
1. Supports Bluetooth 5.2, stable wireless connection, and smoother audio transmission.

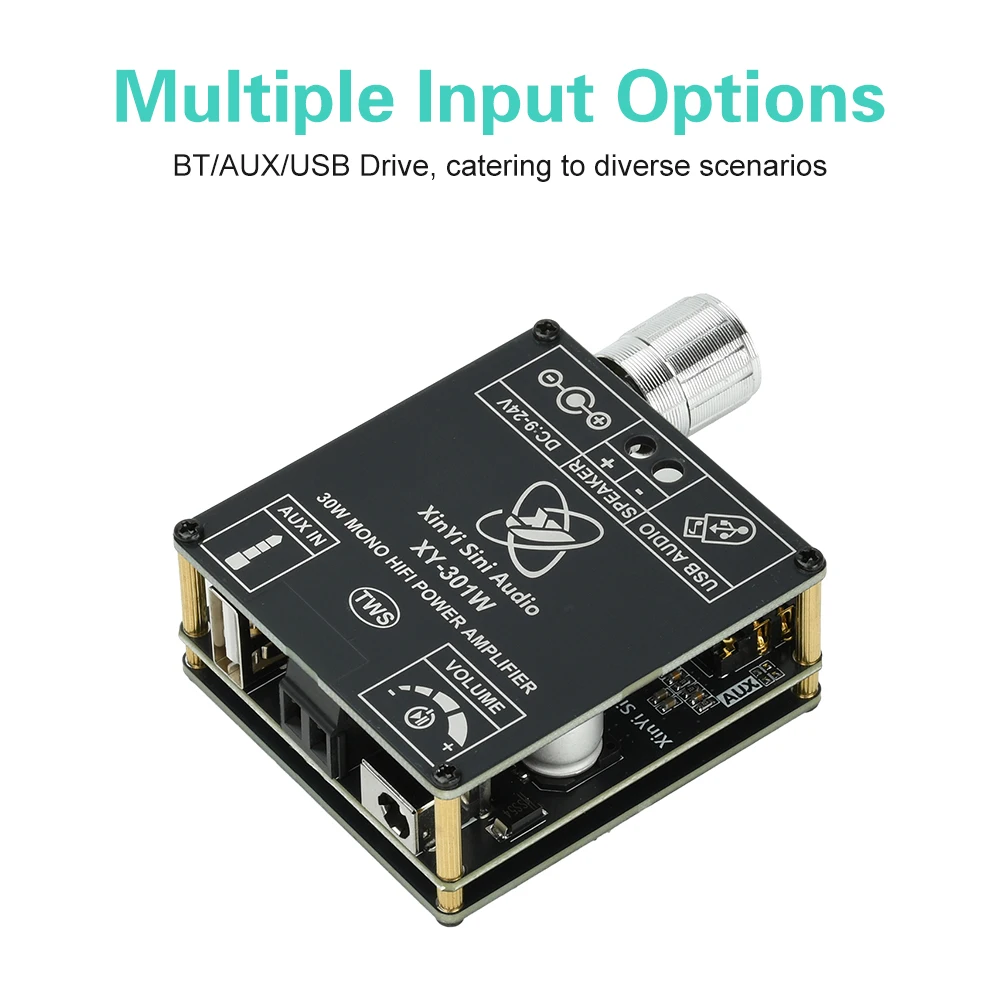

2. Multiple input methods: Bluetooth/AUX/U disk, meeting the needs of different scenarios.

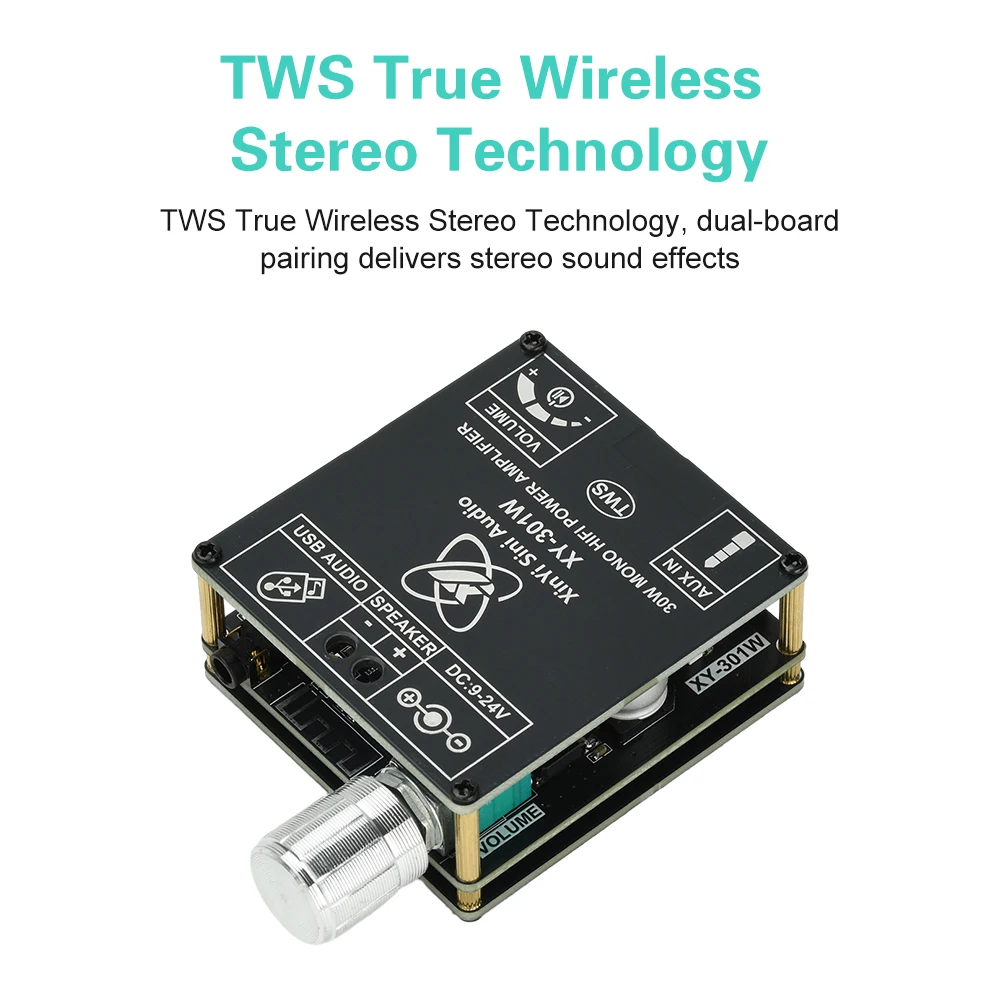

3. TWS true wireless box technology, dual board combination to achieve stereo sound effects.

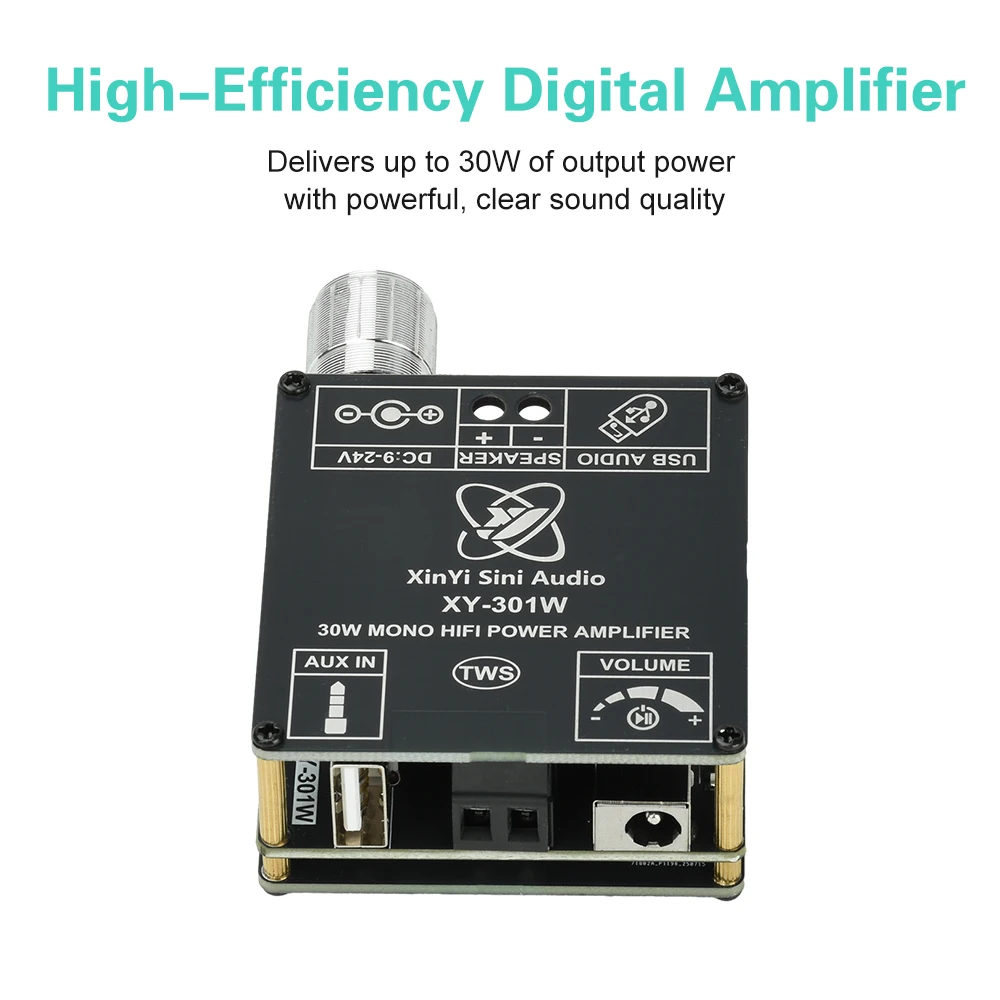

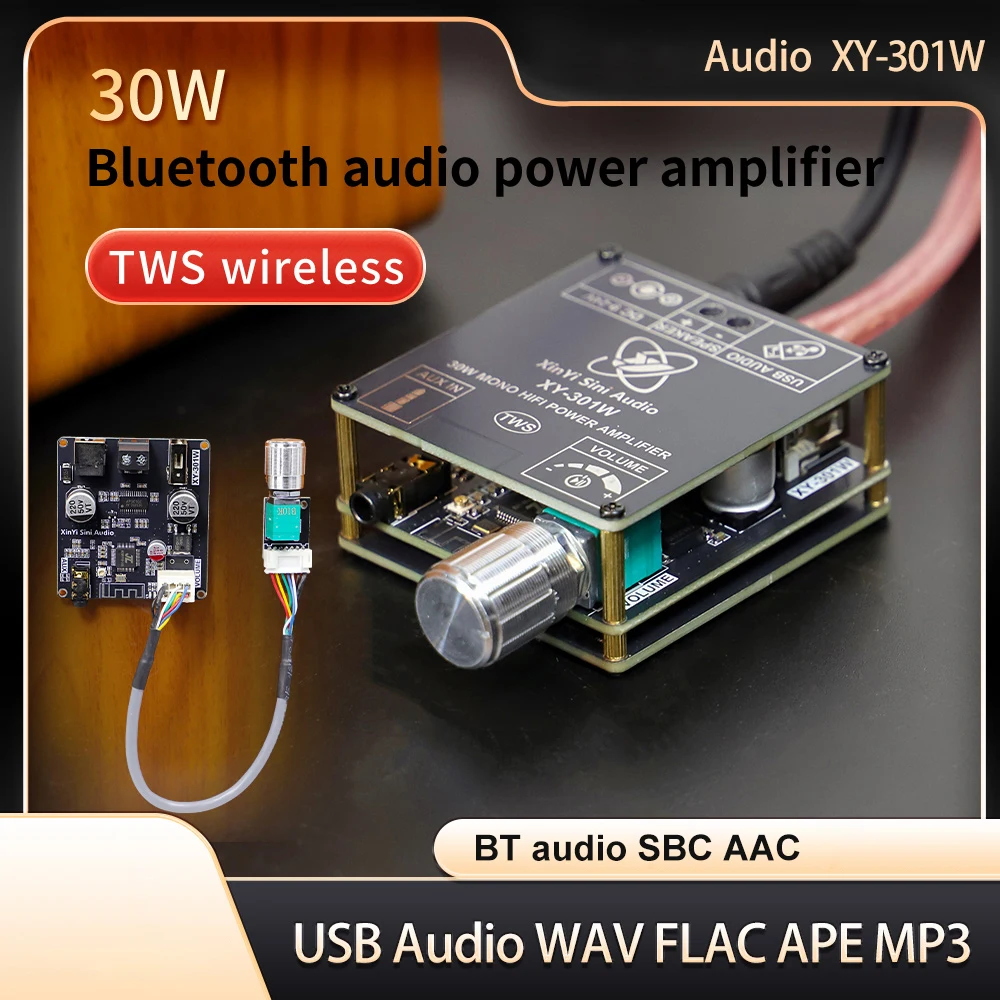

4. Built in high-efficiency digital amplifier, with an output power of up to 30W and strong and clear sound quality.

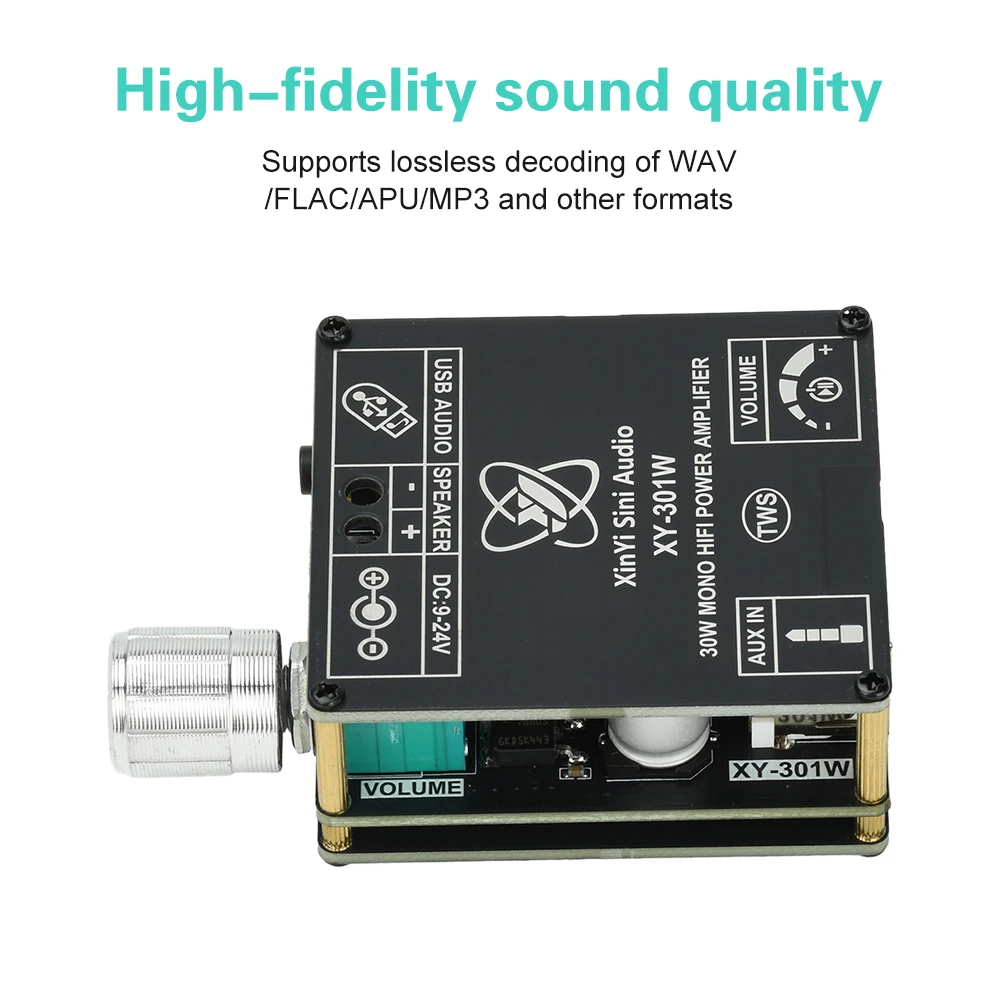

5. Supports lossless decoding such as WAV/FLAC/APU/MP3, providing high fidelity sound quality experience.

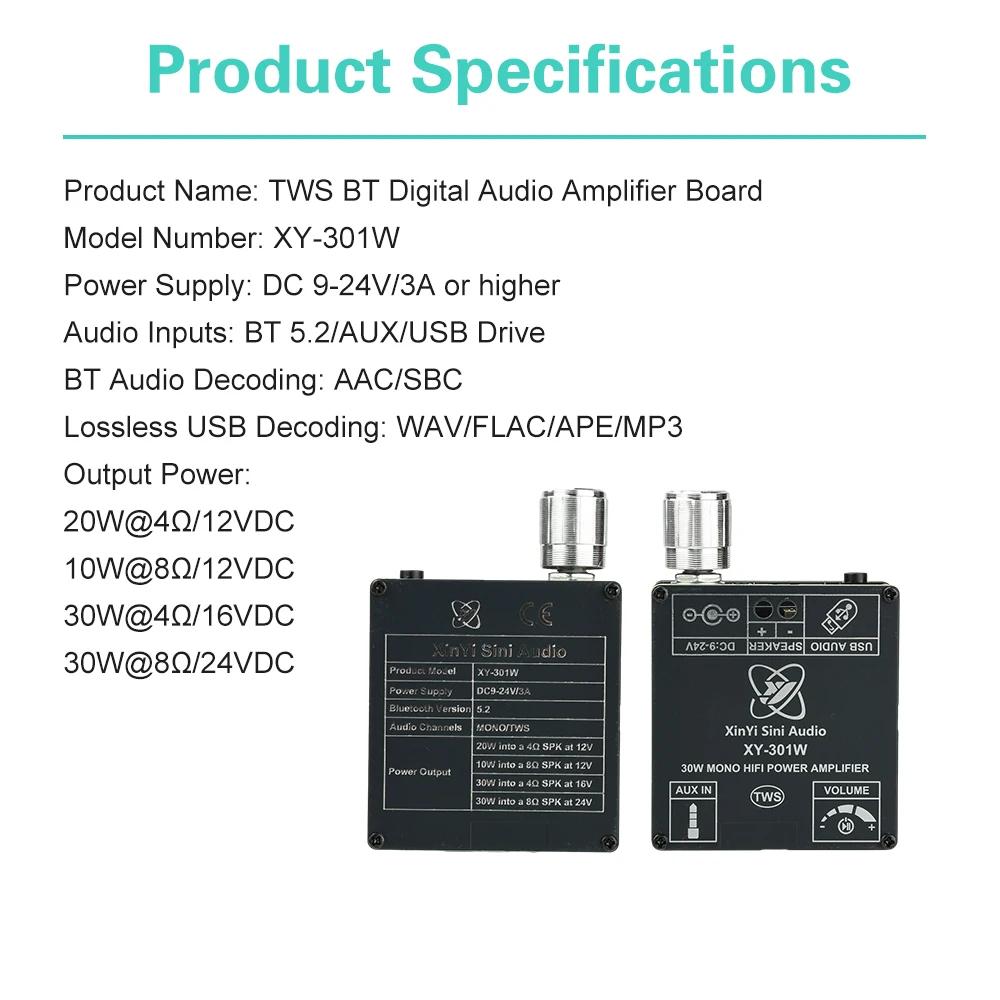

Parameter:
Product Name: TWS Bluetooth Digital Audio Amplifier Board
Product Model: XY-301W
Power supply: DC9-24V/3A or above
Audio input: Bluetooth 5.2/AUX/U drive
Bluetooth audio decoding: AAC/SBC
USB lossless decoding: WAV/FLAC/APE/MP3
Output power:
20W@4 Ω/12VDC
10W@8 Ω/12VDC
30W@4 Ω/16VDC
30W@8 Ω/24VDC

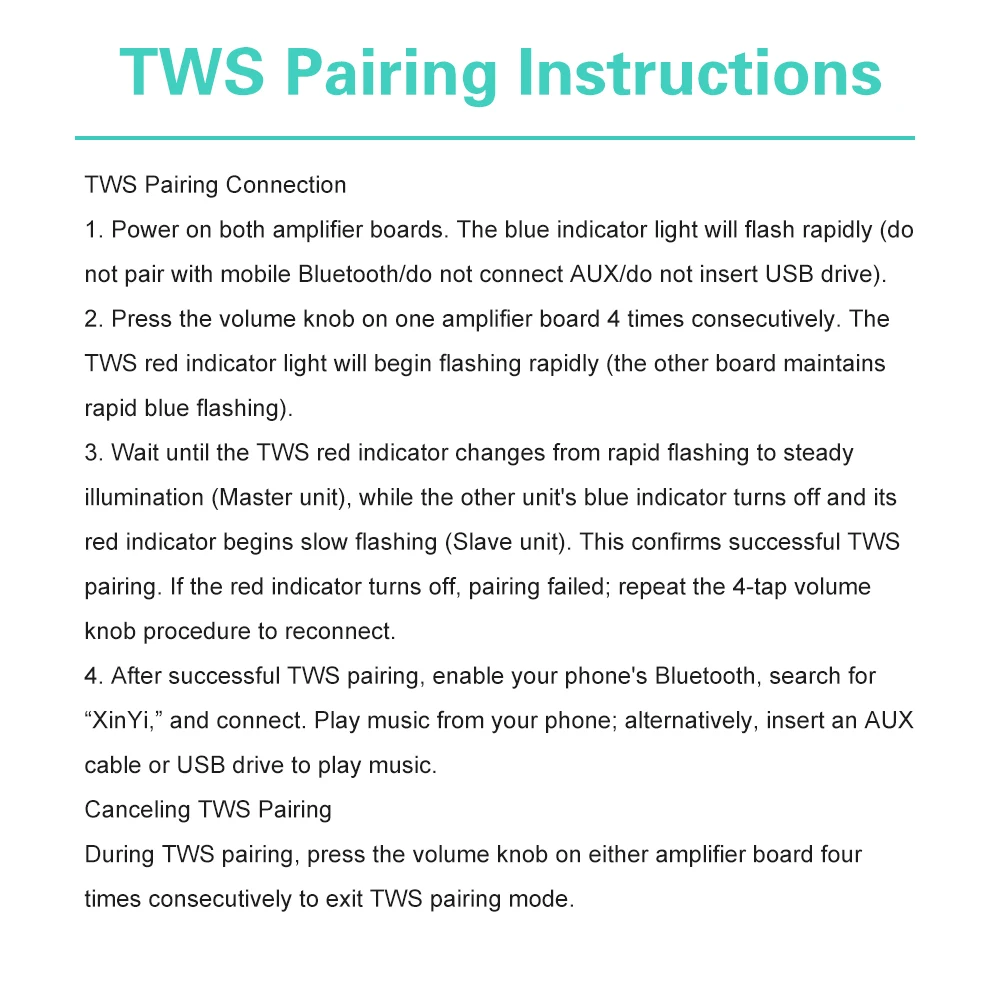

*TWS box operation instructions:
TWS box connection
1. Two power amplifier boards are powered on, and the blue indicator light flashes rapidly (do not pair with Bluetooth phones/do not connect AUX)
/Do not insert a USB flash drive.
2. Press the volume knob of one of the amplifier boards for 4 consecutive times, and the TWS red indicator light will start flashing rapidly (the other one)
Keep the blue indicator light flashing rapidly.
3. Wait for the TWS red indicator light to change from fast flashing to long on (host), and the other blue indicator light to turn off
The red indicator light starts flashing slowly (slave), indicating that TWS has been successfully connected; If the red indicator light goes out
The connection has failed. You can click the volume knob again 4 times to connect to TWS.
After the TWS connection is successful, open your phone's Bluetooth to search for XinYi and connect, and your phone will play music; Or insert
Play music on AUX or USB drive.
Cancel TWS box function
During the TWS box connection process, press the volume knob of any amplifier board four times in a row to exit the TWS box connection mode.

Note:
When using the TWS box function, it is necessary to first connect the TWS box and then pair it with the phone's Bluetooth.
The TWS box function is in memory mode, and it will automatically connect to the box the next time it is turned on.

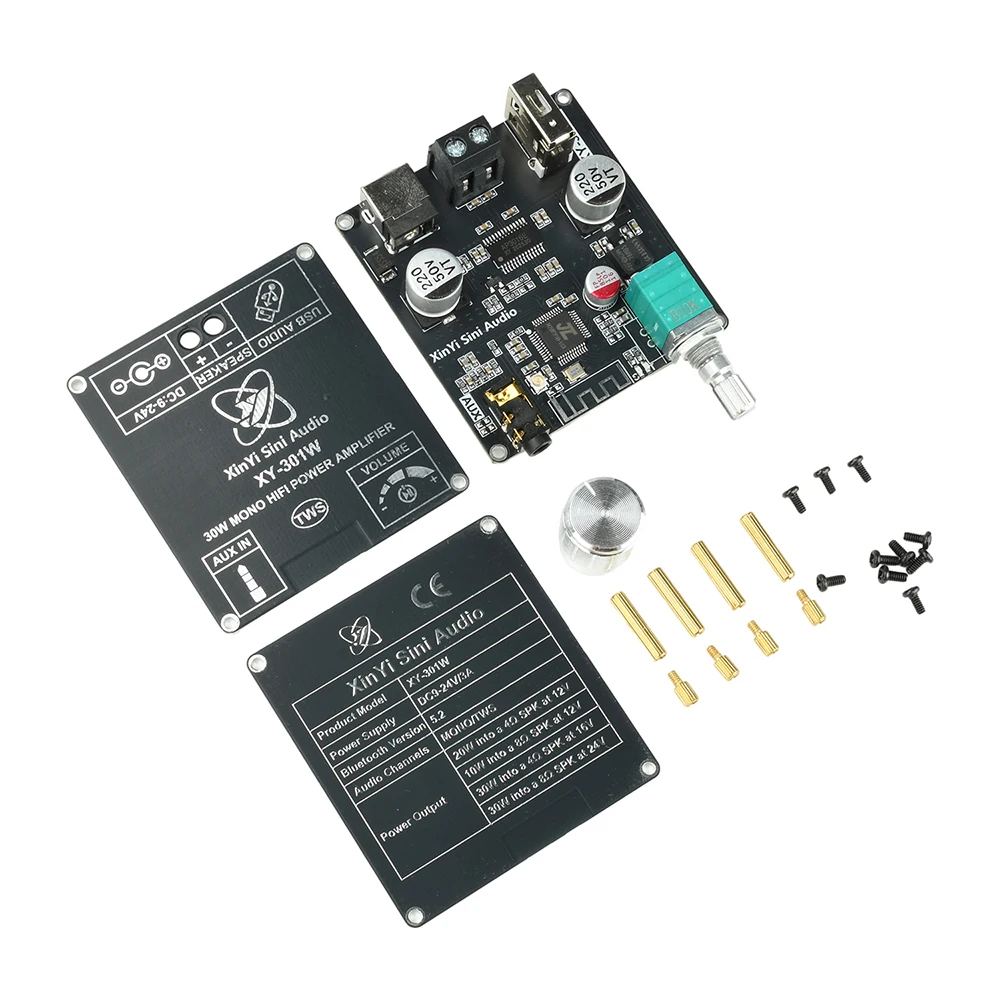

Package Include:
1X power amplifier board
1X adapter
1X screwdriver
Note: The product is shipped without assembly, and if the accessories are shipped separately, they need to be assembled themselves and a screwdriver is included as a gift.
