Product Description

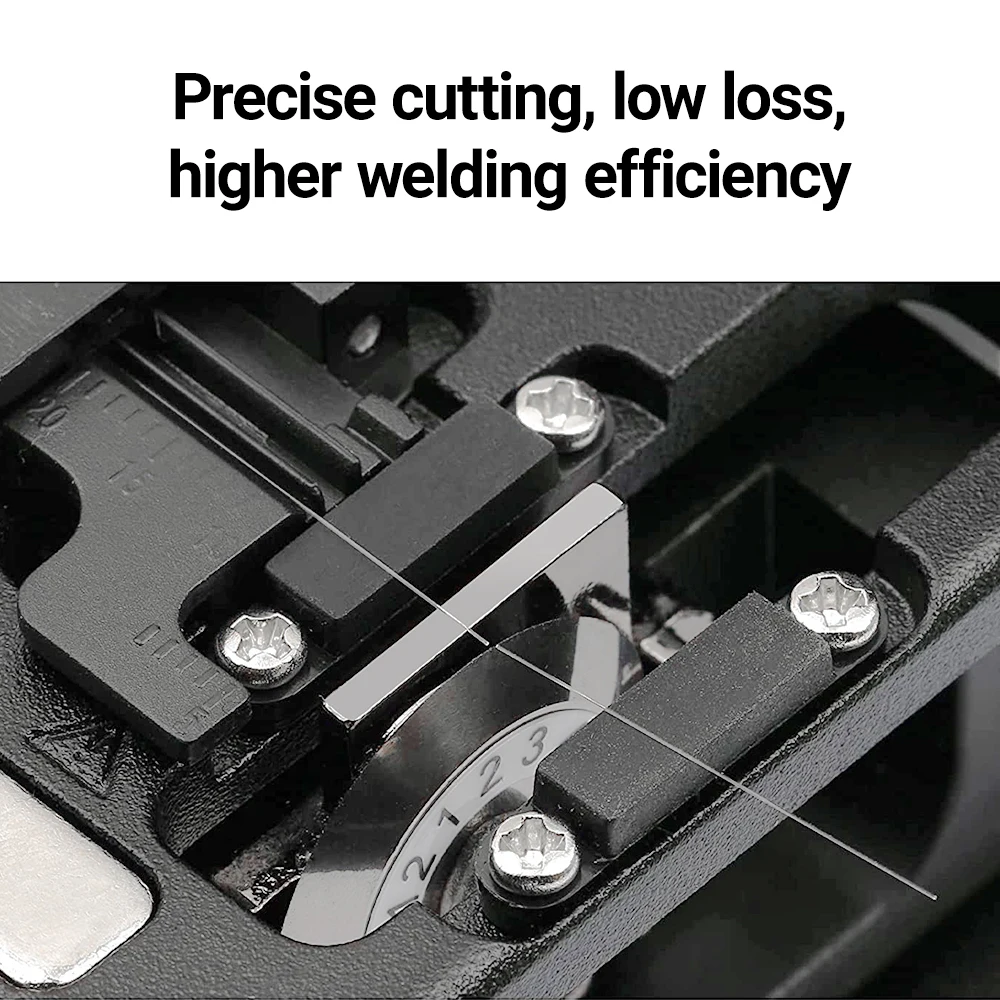

1. Precise cleaving: provides a cleave with a cutting angle of less than 0.5 for optimal fiber preparation for fusion splicing
Product Parameter
Applicable fibers:Silica optical fiber
Bare fiber diameter :125μm
Coating diameter:250-900μm
Cleaving angle:0.4-0.8 degrees with single fiber
Blade life:48000 times(100*16*3)

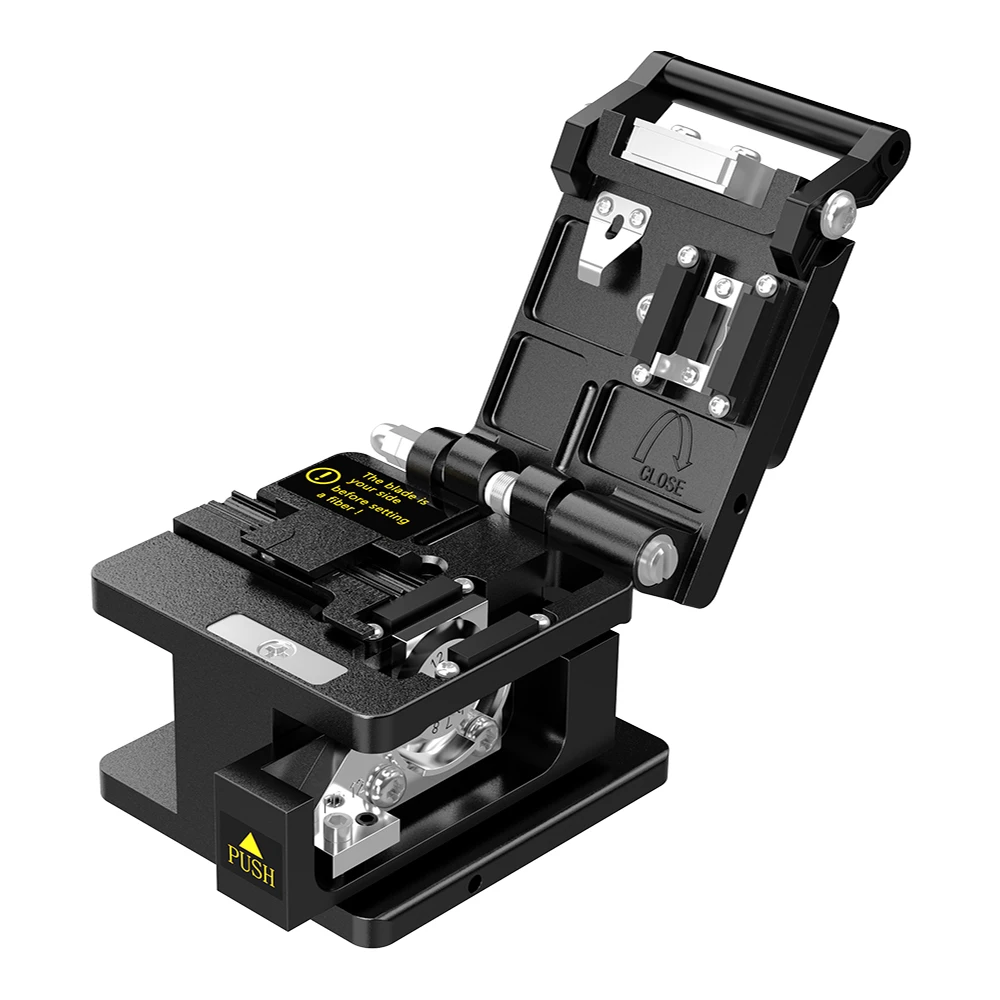

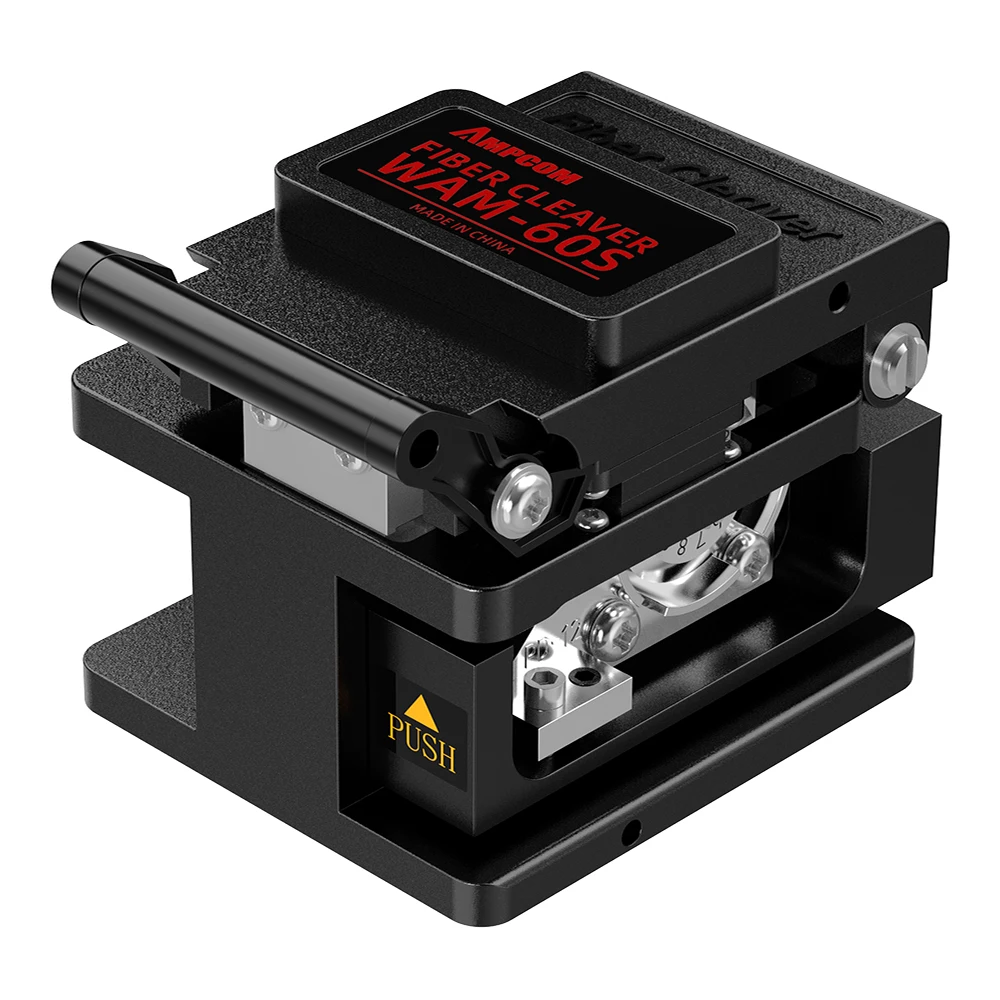

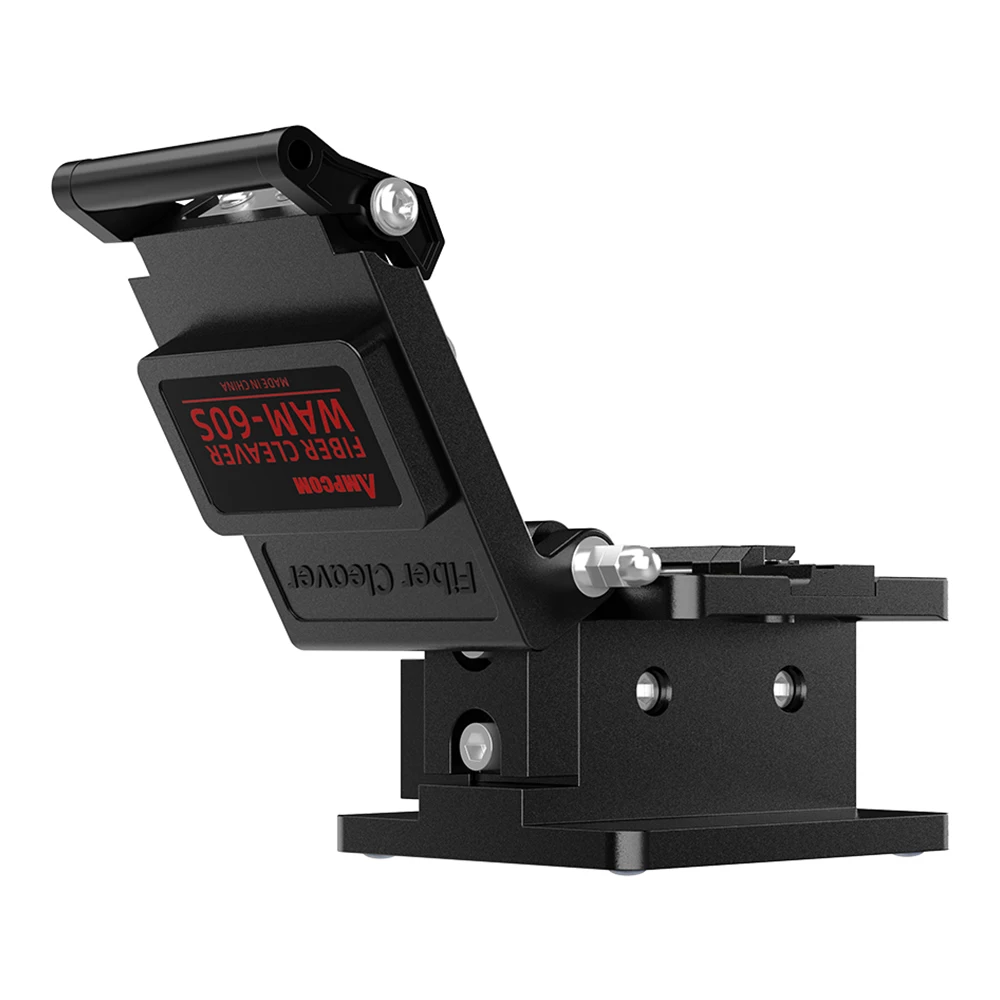

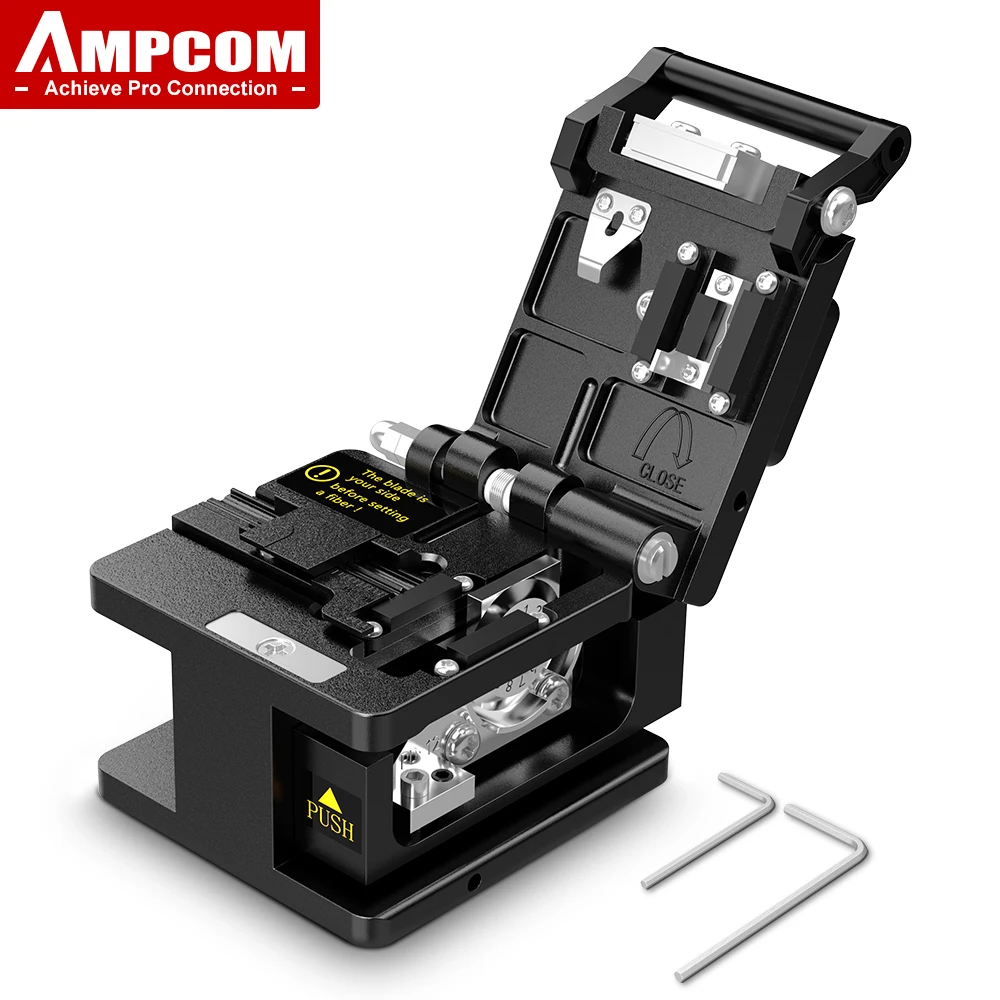

AMPCOM All-metal High Precision Fiber Optic Cleaver

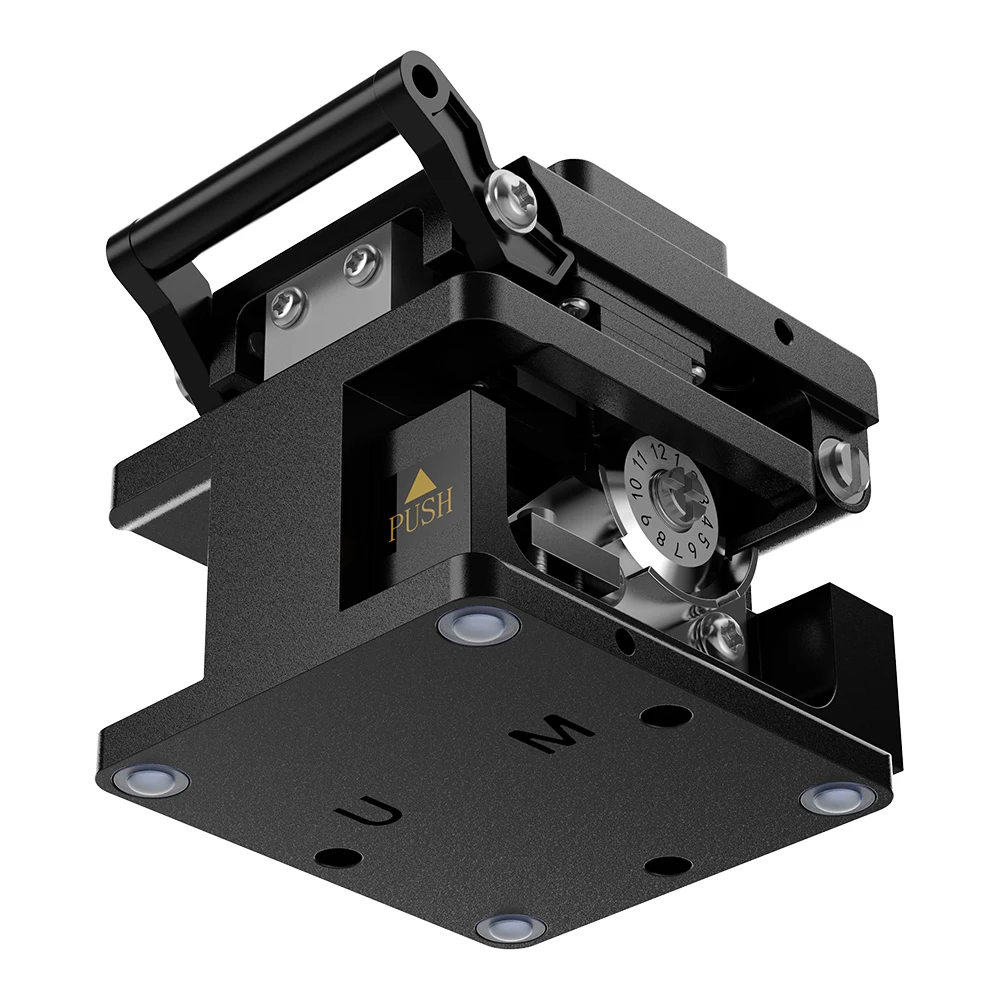

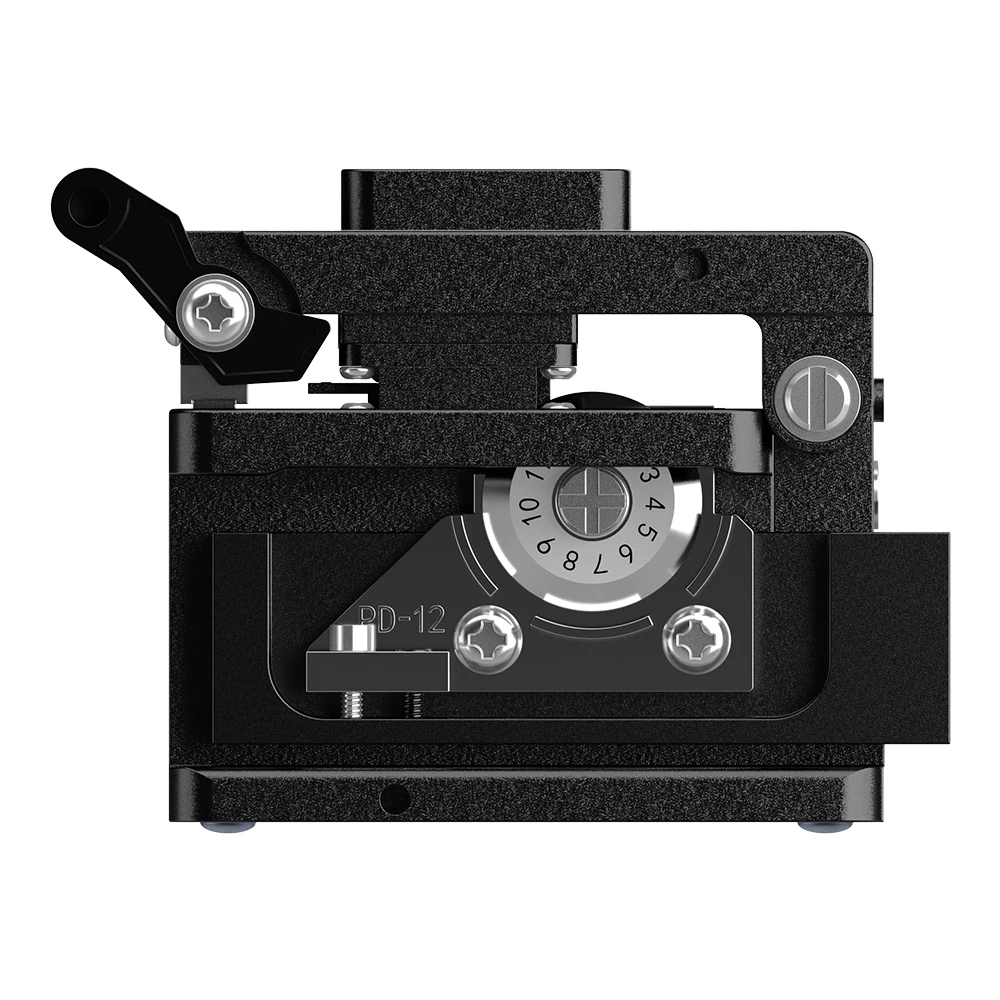

For preparing field-ready plug or occasional splicing. Blade with 12 positions, breaking angle approx. ≤ 0.5°, suitable for 250 µm / 900 µm fibre, 0.9 mm wire and 2.0-3.0 mm cable.

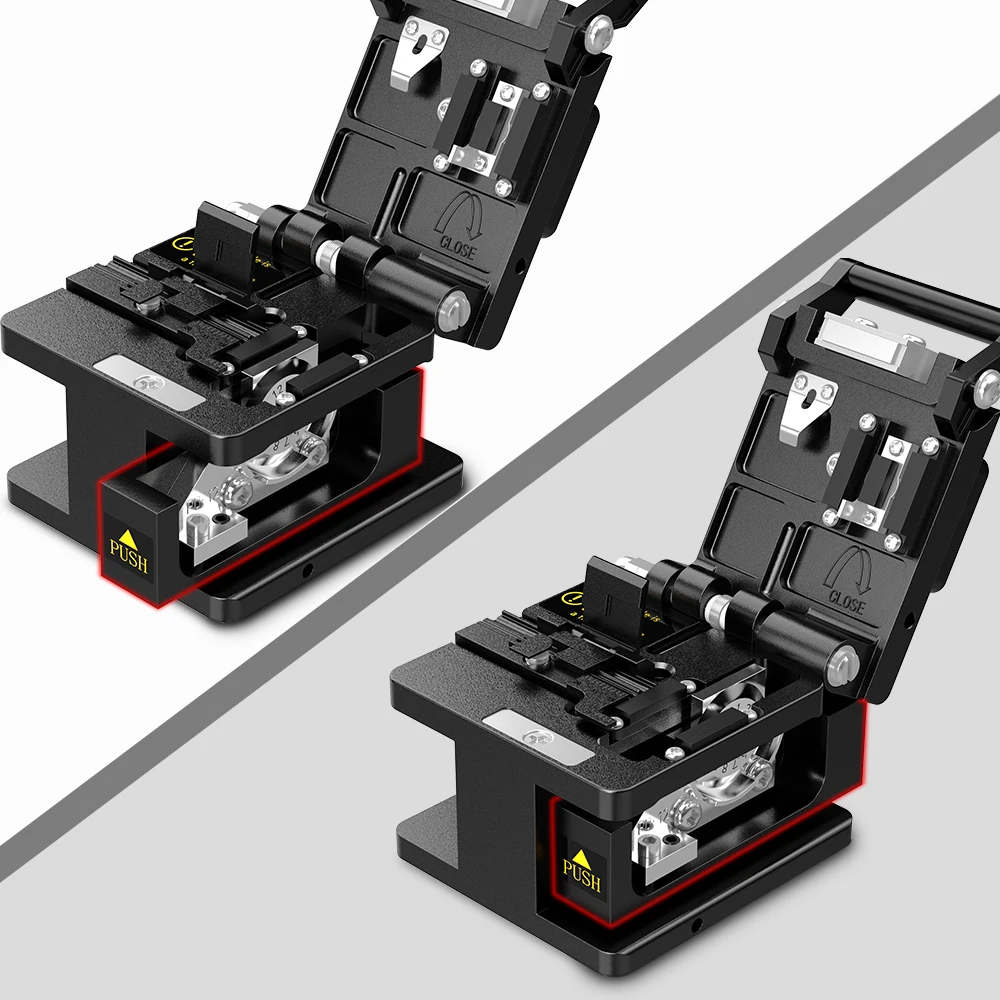

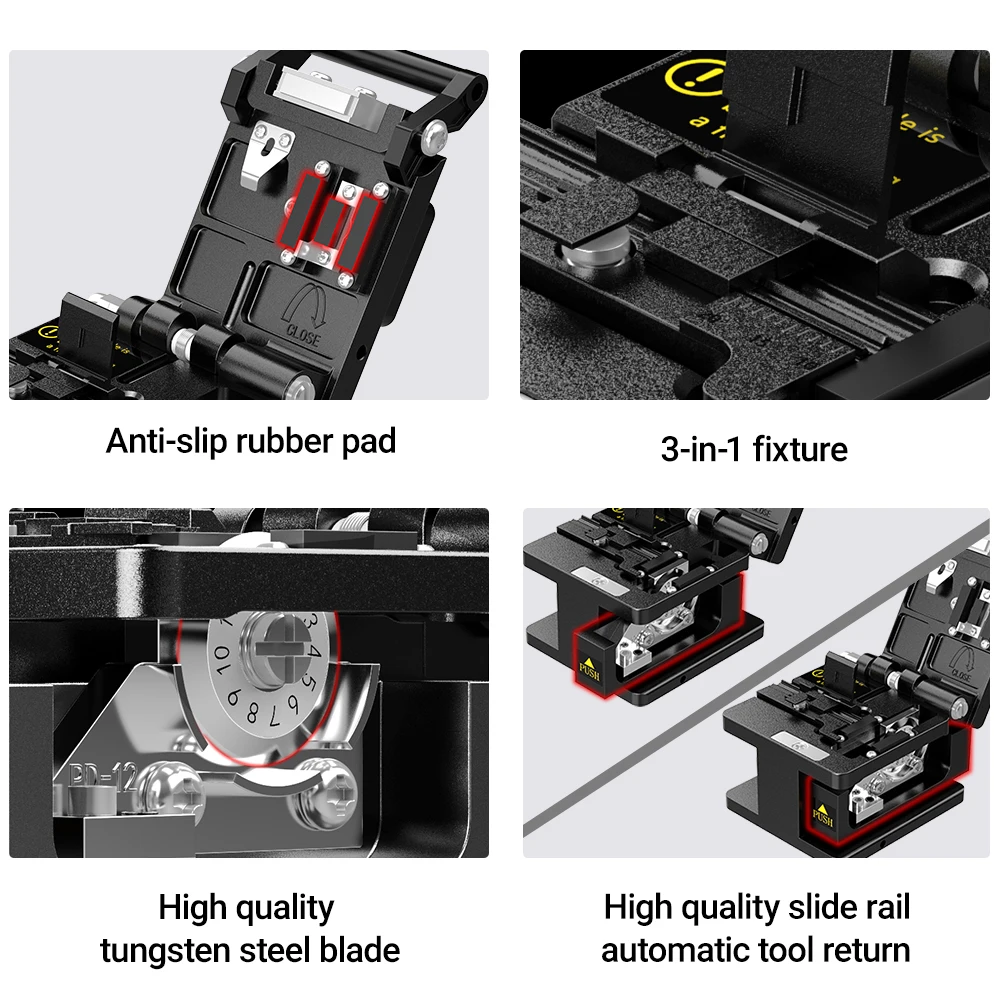

High quality slide rail automatic tool return

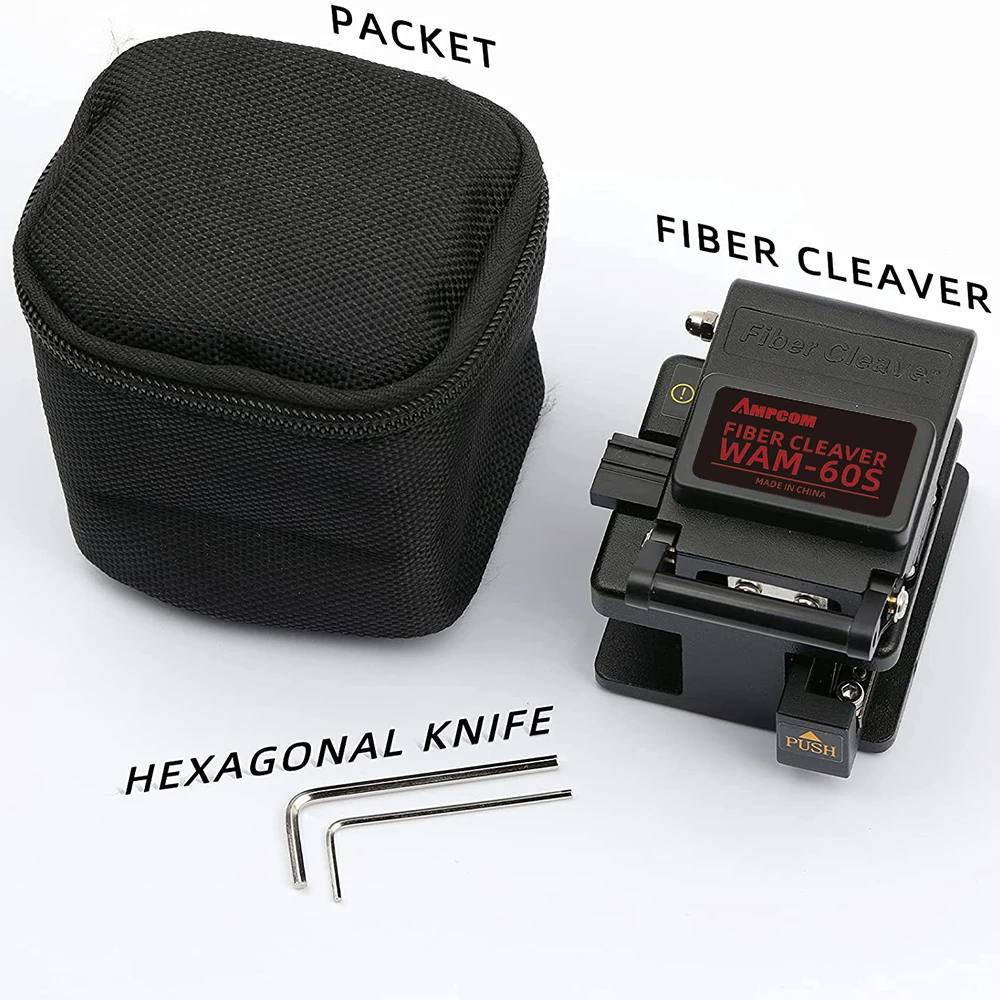

Package Contents
1x AMPCOM Fiber Cleaver,
1x User Manual,
1x Black bag
2 x Allen Wrench

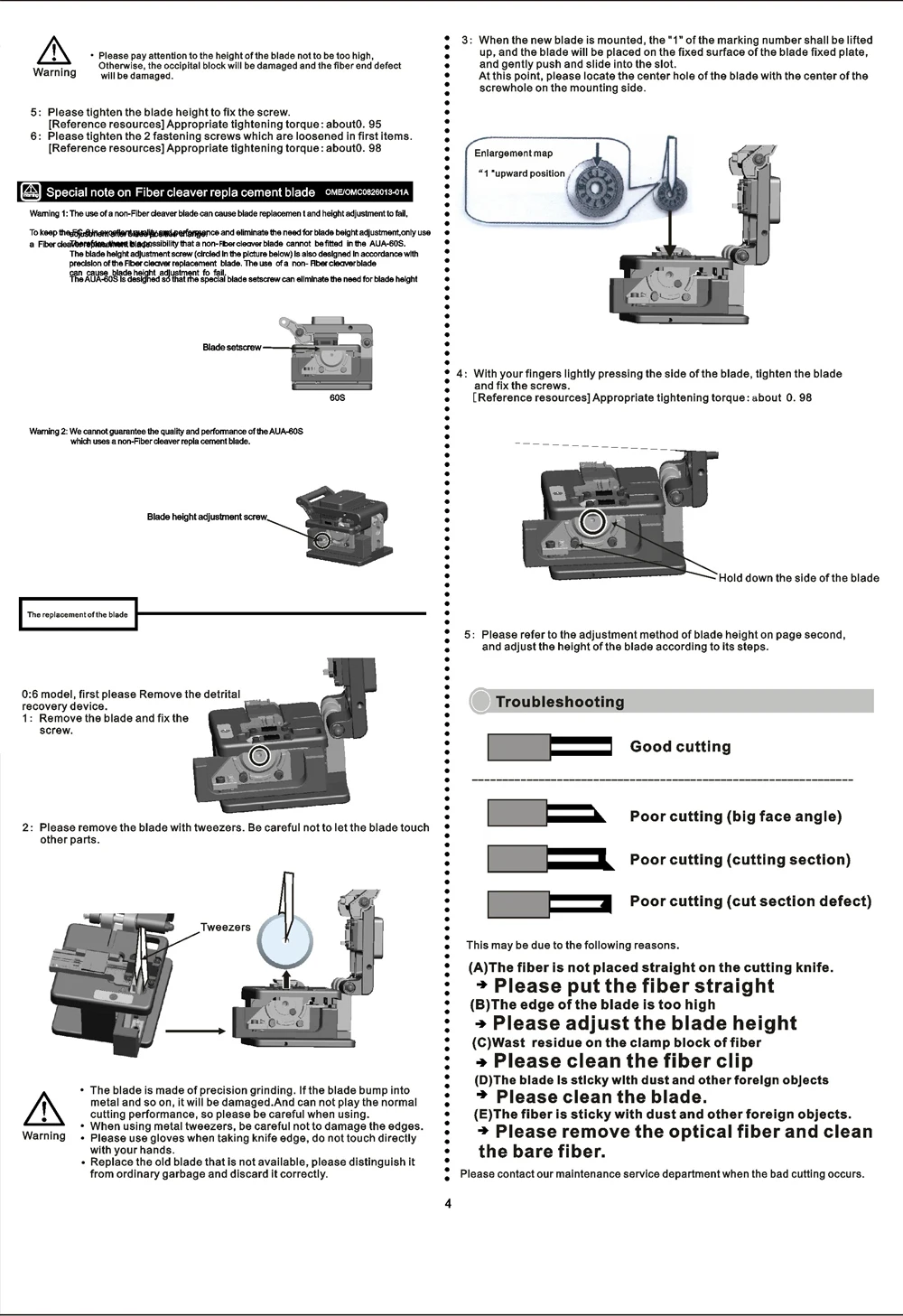

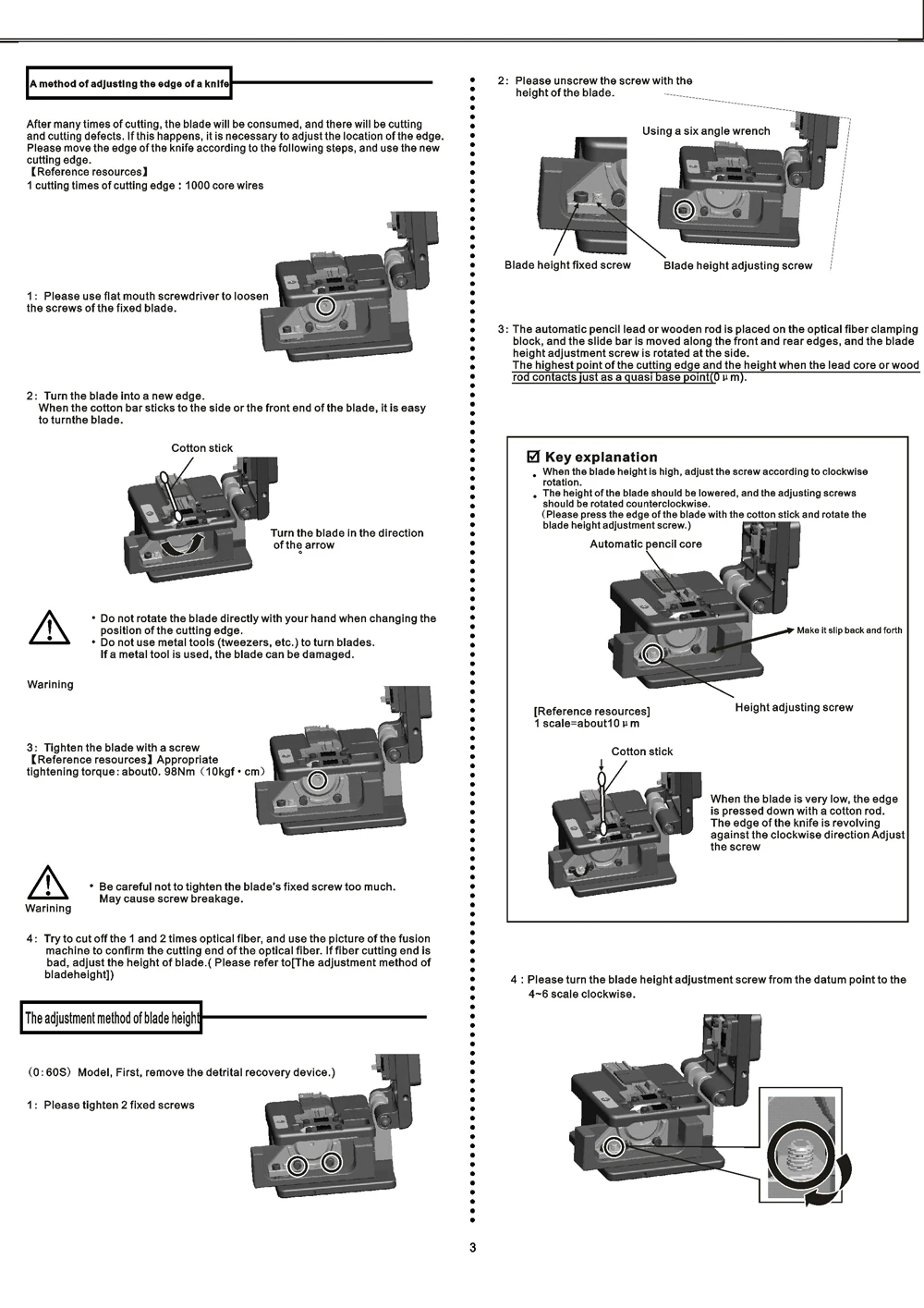

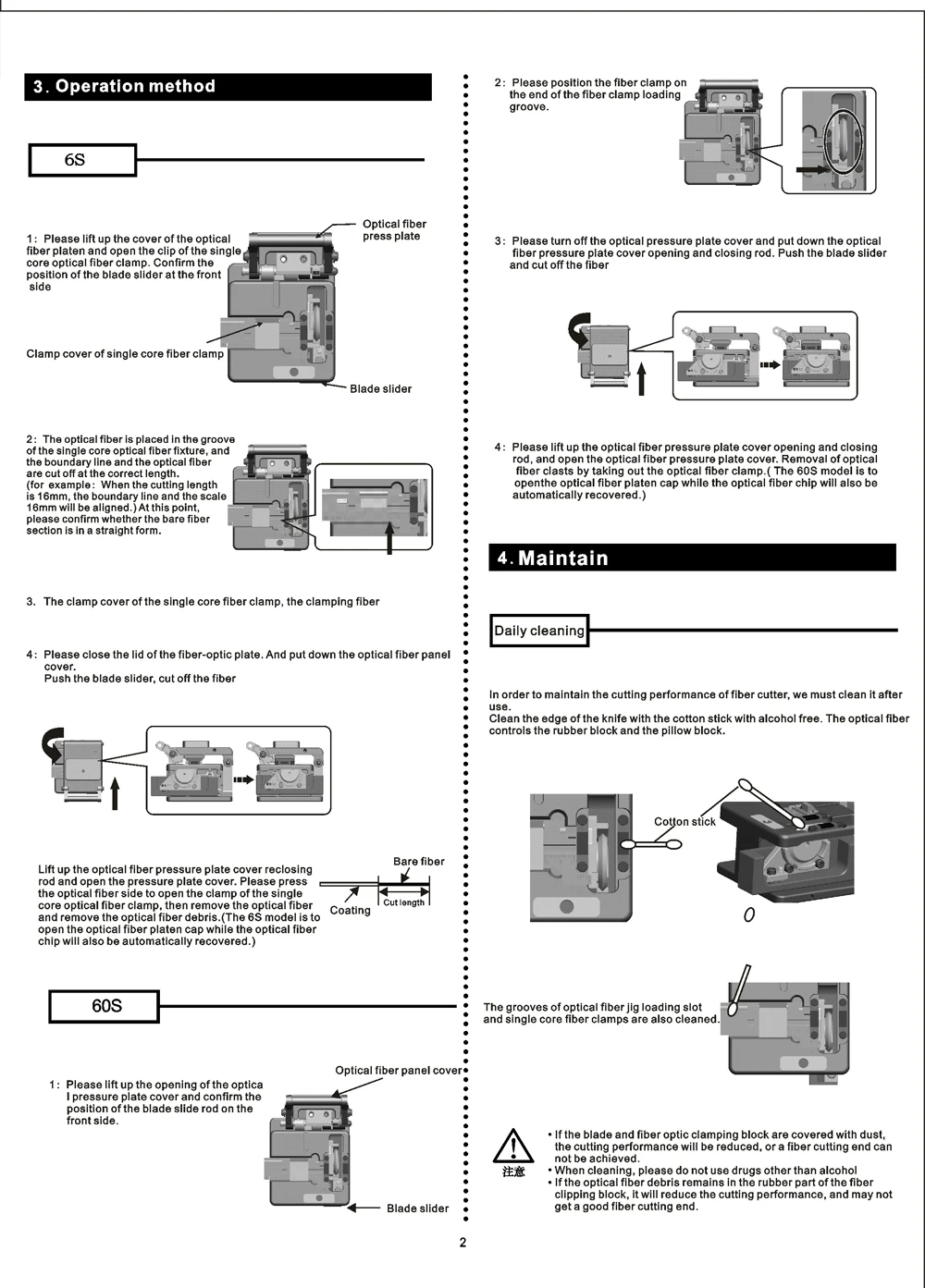

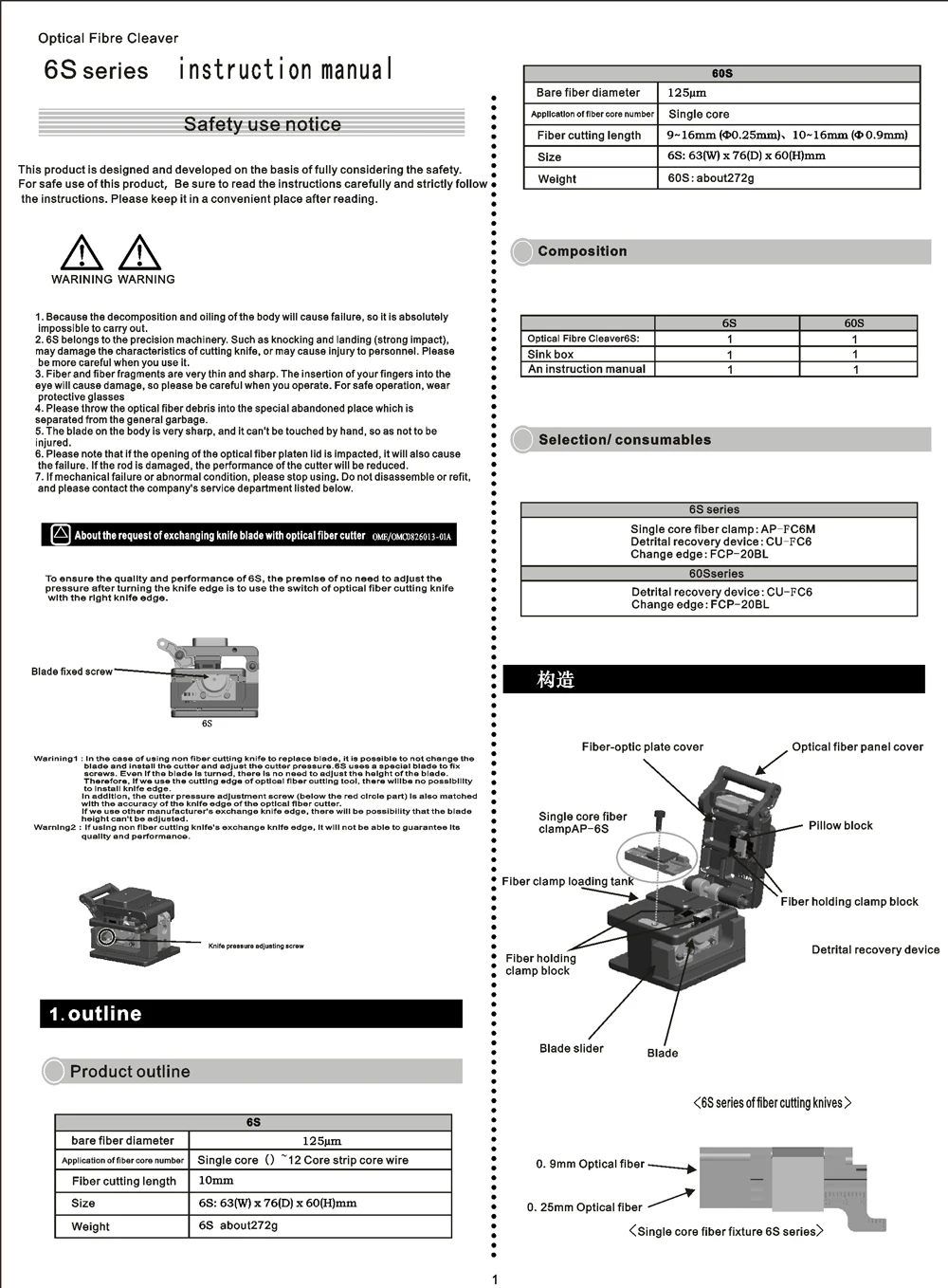

User Manuals
Question:Is it possible to get instructions in english?
Answer:If u are using 125 micron, 250-900 micron. Use ur choice of fiber strippers to expose the cladding and core. Cable is now ready for prep to cleave.
This cleaver is a three step process
- step one push actuator to the loaded position that located in the front of the cleaver
- step two open cleaver and lift fiber holder and place fiber in the appropriate holder on either 250um or 900 um. (It should fit snug and not be able to move).
-step three close lid and this will actuate the cleaver blade. ( at this time fiber will be cut and ready to splice).
-finally you can open the cleaver and support and remove fiber for splice, quick crimp, etc
Question:Is this cleaver okay for 9/125 single mode fiber?
Answer:Yes, there are measurements on the tool. For SM, line the fiber up on the 13.
Question:Could this work for fast connect connectors. i need to precision cleave single mode fiber at 10.5 mm for insertion into a fast connect.
Answer: Of course can
Question:Can this cleaver be used with fusion splicer?
Answer:Yes, it can
