Descripción
Our Advantage
1.CCC,CE&Rohs,ISO9001,FC,
2.Life span:more than 100000h
3.Excellent after-sales services with free repair whole life

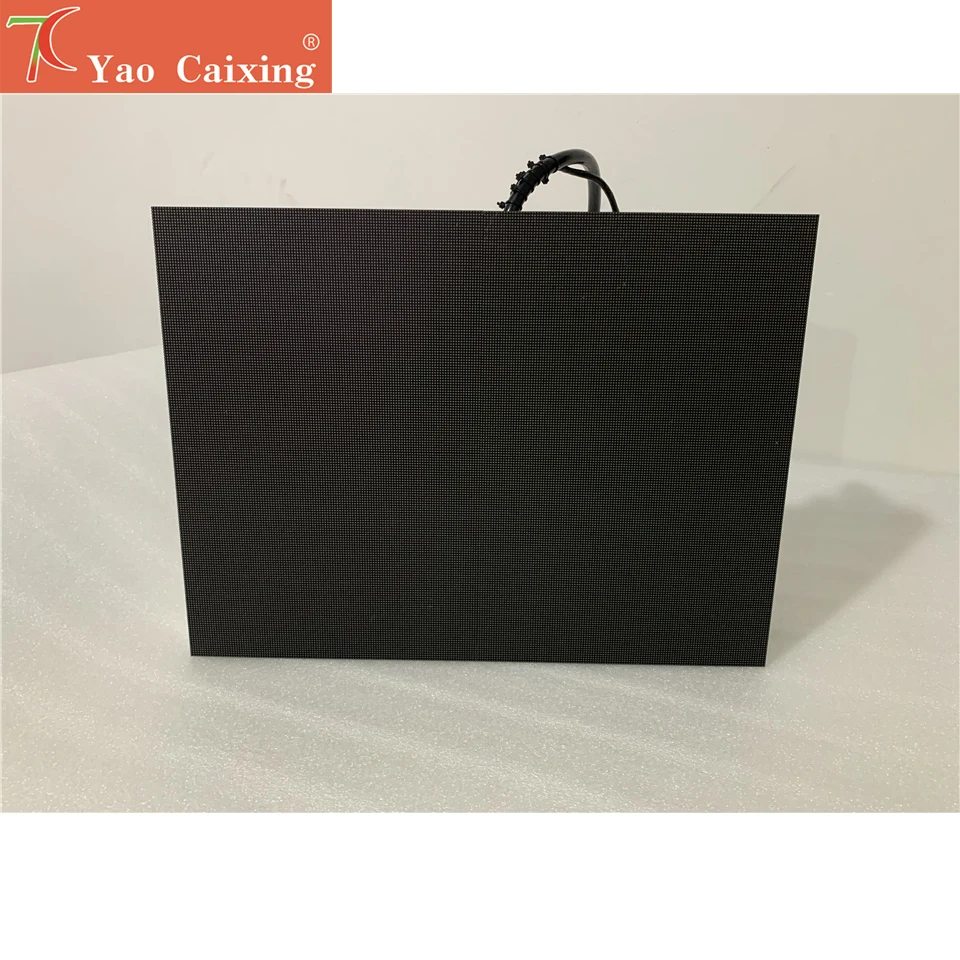

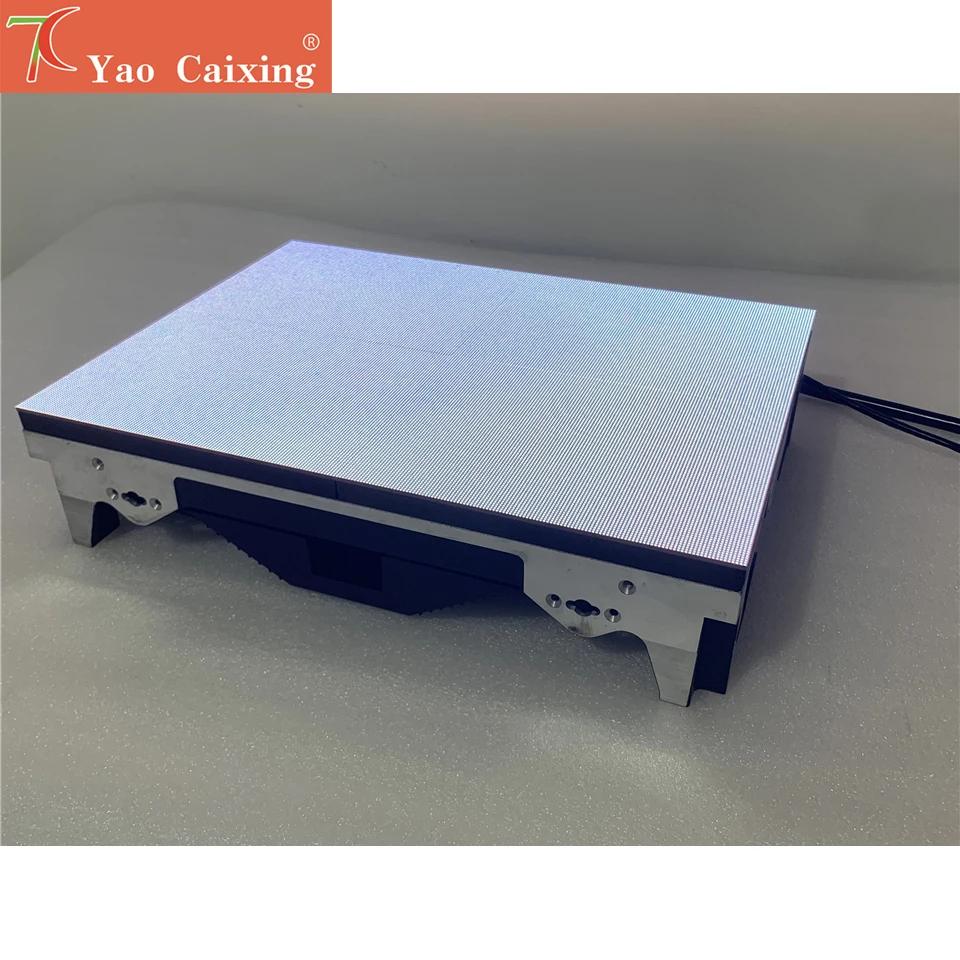

4.MOQ: 1pcs 400x300mm P1.56 cabinet screen(without controller )
5.Prompt delivery: 10-15 working days
Spcification
Module Parameter
Module Resolution
96(H)×128(V)
Pitch
1.56mm
Density
409,600 pixels/m²
LED Lamps
SMD1010
Driver IC
FM6363/FM6373
Size
150mm(H)×200mm(W)
Module Refersh
4800hz
Mask
Pure Black mask-high contrast screen
Cabinet Parameter
Cabinet Resolution
192(H)×256(W)
Cabinet Size
300mm(H)×400mm(W)
Cabinet Weight
4.8kg
Driver Mode
Dynamic 1/32 scan , constant current driving
Cabinet Power
≤200w
Cabinet Thickness
≤73mm+5mm
Electricity Parameter
Optical Ratings
Brightness Of White Balance
≥700cd/m²
View Angle
140 degree ( horizontal) 140degree(vertical)
View Distance
1m-100m
Gray Scale
65536
Display Color
3-in-1 RGB
Brightness Adjustment
100 levels
Power Supply
Operation Power
AC100-240V 50-60HZ Switch-able
Maxim Power Consumption
1000 w/m²
Average Power Consumption
400 w/m²
Control System
Correction Scale Level
16bits
Screen Refresh Frequency
3840Hz
Gamma Correction
-5.0—5.0
Support Input
HDMI,DVI,VGA,RJ45,USB,Serial Port
Control Distance
Ethernet cable 100m, optical fiber 5km
Support VGA Mode
800×600,1024×768,1280×1024,1600×1200,1920×1080
Color Temperature
5000-9300 adjustable
Brightness Correction
dot by dot, module by module, cabinet by cabinet
Reliability
Temperature
Storage:-35℃-+80℃ ; Operation :-25℃-+45℃
Humidity
Storage:10-70% RH ; Operation:10--60% RH
Operating Life
≥100,000 hours
MTBF
≥5000 hours
Continuous Working Time
≥48 hours
Protection Level
IP25
Out of Control Pixel Rate
≦0.03%
- SMD1010 black lamps make the high resolution
- Smaller pitch(under P3) module without mask

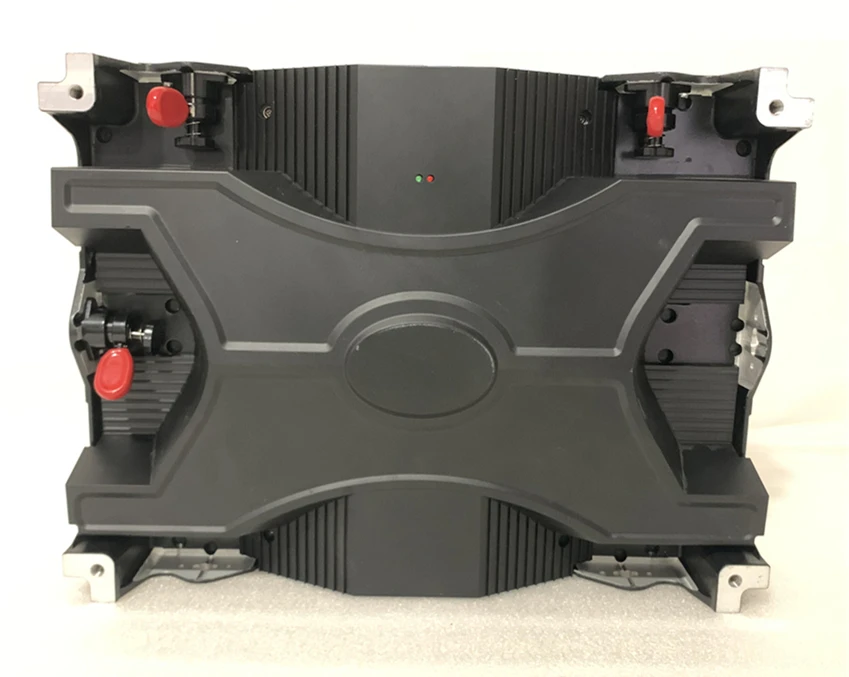

- Magnets fixed front maintenance
- Screen total thickness less than 9cm
- Single screen resolutions is 240x180pixels
- 6 squre meters reach 2K real resolutions
- 25 square meters reach 4K real resolution
